Genesis 11c EFORCE 2.0 User manual

VERSION 10-30-2023
SLi TOOL USER MANUAL
RM-013 REV. 2 Rel. Date 10-11-2023
Created by: Cory Johns, April Sova
Approved by Scott Cornell
THIS MANUAL COVERS
11C, 11CRIT, 14C, 15C, 17C, 19C, SC198, SC198NXT GEN, SC240, SC240NXT GEN,
SC385, F7, S44, S49, S54, 21-36 RAM, 22-54 RAM
2780 CULVER AVE. | KETTERING, OHIO 45249 | TEL: [phone] | WWW.GENESISRESCUE.COM

2 WWW.GENESISRESCUE.COM
1. General
1.1 Information on the Operating Instructions 5
1.2 Explanation of Symbols 6
1.3 Limitation of Liablity 7
1.4 Copyright 7
1.5 Warranty Provisions 8
1.6 Customer Service 8
2. Safety 9
2.1 Intended Use 9
2.2 Operator Responsibility 11
2.3 Operating Personnel 12
2.4 Personal Protective Equipment 13
2.5 Particular Hazards 14
2.6 Conduct in Dangerous Situations and Accidents 16
2.7 Signage 17
3. Technical Specications 18
3.1 Combi Tools 18
3.2 Cutters 19
3.3 Spreaders 20
3.4 Rescue Rams 21
3.5 Operating Conditions 21
3.6 Type Plate 21
4. Structure and Function 22
4.1 Overview of SLi Equipment 22
4.2 Cutter 23
4.3 Spreaders 24
4.4 Rescue Rams 25
CONTENTS
"uncontrolled if printed"

3 WWW.GENESISRESCUE.COM
4.5 Hydraulic Supply 26
4.6 Electrical Supply, Using a Combi Tool as an Example 27
4.7 Underwater Use 28
4.7 Communication Module and Radio Connection 29
4.8 Operating SLi Equipment 32
4.9 Device Registration for SLi Rescue Tools 32
4.10 Accessories 33
4.11 Replacing Blade Inserts (NXT GEN) 34
4.12 Replacing the Spreader Tips 35
5. Applications 36
5.1 Safety Instructions 36
5.2 Cutting (Cutters, Combi Tools) 36
5.3 Pushing (Rescue Rams) 37
5.4 Spreading (Spreaders, Combi Tools) 37
5.5 Pulling (Spreaders, Combi Tools, Rescue Rams) 38
5.6 Squeezing (Spreaders, Combi Tools) 39
5.7 Lifting (Spreaders, Combi Tools, Rescue Rams) 39
5.8 Peeling (Spreaders, Combi Tools, Rescue Rams) 39
6. Battery and Charger 40
6.1 Charger Technical Data 40
6.2 Special Safety Instructions 40
6.3 Intended Use 42
6.4 Mains Connection 42
6.5 Li-ion Battery 42
6.6 Charging Process 43
6.7 Maintenance 43
TABLE OF CONTENTS (CONT.)
"uncontrolled if printed"

4 WWW.GENESISRESCUE.COM
7. Transport, Packaging and Storage 44
7.1 Safety Instructions 44
7.2 Transport Inspection 44
7.3 Symbols on the Packaging 45
7.4 Dispoal of Packaging 45
7.5 Storage 45
8. Installation and Commissioning 46
8.1 Safety Instructions 46
8.2 Checks 46
8.3 Shut-down (End of Work) 47
8.4 Advantages of Device Registration 48
9. Maintenance 49
9.1 Safety Instructions 49
9.2 Upkeep and Maintenance 49
9.3 Maintenance After Operation in Humidity 50
9.4 Maintenance After Underwater Use 50
9.5 Maintenance Schedule 50
10. Malfunctions & Faults 51
11. Decommissioning/Recycling 53
TABLE OF CONTENTS (CONT.)
"uncontrolled if printed"

5 WWW.GENESISRESCUE.COM
1. General
1.1 Information on the Operating Instructions
These operating instructions provide information on using SLi equipment. To assure safety
at the workplace, always observe all safety and handling instructions contained in this
document.
When using the equipment at the operation site, please follow the local Health & Safety
guidelines and applicable risk assessments.
Before starting any work you must read these operating instructions thoroughly! They are a
component of the product and must be stored in a known location that is accessible to
personnel at all times.
This document contains information about the operation of your tool, regardless of which
type of tool it is. For this reason, you will also nd explanations that do not relate directly to
your tool.
All information, technical specications, graphics and illustrations contained in these
Operating Instructions are based on the most up-to-date data available at the time these
instructions were created.
In addition to thoroughly reading the operating instructions, we also recommend that you
undergo training and instruction in handling (possible uses, operational tactics, etc.)
the rescue equipment from one of our qualied trainers.
i
NOTE!
The current version of the operating
instructions can be found on our website
https://www.genesisrescue.com/
or by scanning the QR code.
"uncontrolled if printed"

6 WWW.GENESISRESCUE.COM
GENERAL
1.2 Explanation of Symbols
Warnings
In these operating instructions, warnings are identied by symbols.
The individual warnings are introduced by signal words expressing the degree
of danger.
These warnings must be followed to prevent accidents, injury and property damage.
DANGER!
...points out an immediately dangerous situation which can cause
death or severe injury if it is not avoided.
ATTENTION!
...points out a potentially dangerous situation which can cause
property damage if it is not avoided.
CAUTION!
...points out a potentially dangerous situation which can cause
minor or slight injury if it is not avoided.
WARNING!
...points out a potentially dangerous situation which can cause
death or severe injury if it is not avoided.
"uncontrolled if printed"

7 WWW.GENESISRESCUE.COM
Tips and Recommendations
iNOTE!
...emphasises useful tips and information for efcient, trouble-free
operation.
1.3 Limitation of Liability
All information and instructions in these operating instructions were compiled under
consideration of the applicable standards and regulations, the current state of technology
and our long-standing knowledge and experience.
The manufacturer assumes no liability for damages due to:
For special designs or due to technical changes, the actual scope of supply may differ from
the explanations and representations described.
1.4 Copyright
All texts, illustrations, drawings and images in these operating instructions may be used
freely without prior authorization.
• Non-observance of the operating instructions
• Improper use
• Assigning untrained personnel
• Unauthorized modications
• Technical changes
• Use of impermissible replacement parts
• Use of non-original accessories
"uncontrolled if printed"

8 WWW.GENESISRESCUE.COM
GENERAL
NOTE!
Additional information, images and diagrams are available on our
website: www.genesisrescue.com
i
NOTE!
When contacting Customer Service, please provide the
identication, type and year of the manufacture of the
equipment. This information can be found on the type
plate. For further assistance, please locate your dealer
through the QR Code:
i
1.5 Warranty Provisions
The warranty provisions are included with the sales documentation as a separate document.
1.6 Customer Service
Our Customer Service would be happy to provide you with technical information.
Phone: [phone]
Fax: [phone]
For SLi Technology & Electronics email: slisuppor[email protected]
For all other harware components, please contact your respective dealer
using our Dealer Locator through the QR Code below.
"uncontrolled if printed"

9 WWW.GENESISRESCUE.COM
2. Safety
This section of the operating instructions presents a comprehensive overview of all
important safety aspects for optimal protection of the operating personnel as well as safe,
trouble-free operation.
Non-observance of the handling and safety instructions presented in these Operating
Instructions can result in serious dangers.
2.1 Intended Use
The hydraulic battery tools are designed and tested exclusively for the intended
applications described here. All other activities are fundamentally prohibited.
All battery tools are designed as one-person tool and are therefore to be operated by only
one person.
Cutters (SC198, SC198NXT GEN, SC240, SC240NXT GEN, SC385, F7)
Spreaders (S44, S49, S54)
• The battery-powered cutting tools are used exclusively for cutting doors, roof
beams, pillars, door sills, the ring and the spokes of the steering wheel.
• If possible, for cutting solid material, always use the rear part of the cutter blades
as it is equipped with special edges for cutting round material.
• In industrial application, the equipment can also be used to cut pipes, structural
steels, proles, sheets and cables.
• The battery-powered spreading tools can be used for opening doors, lifting
vehicles or other moveable loads, pushing away and moving vehicle parts and
loads, and squeezing pipes and tie bars.
• If possible, always use the tips of the spreader for squeezing.
• The spreader tips can also be used as a peeling tool.
• The chain set is solely to be used for pulling.
"uncontrolled if printed"

10 WWW.GENESISRESCUE.COM
SAFETY
Combi Tools (11C/11CRIT, 14C, 15C, 17C, 19C)
Rescue Rams (21-36, 22-54)
Accessories - Chain Sets
• The battery-powered combi tools may be used for the specied purposes
of both the cutters and the spreaders. The spreader tips can also be used
as a peeling tool.
• The tools are used to lift and push up steering columns, vehicle roofs and
other vehicle parts.
• In addition, under certain conditions and while exercising particular care,
rescue rams can be used for support, lifting and stiffening.
• Spreaders and combi tools may only be used with the appropriate chain
set and pulling device. Pulling chains are exclusively for pulling away
obstacles and loads and for enlarging openings to free trapped persons.
NOTE!
All SLi equipment (cutters, spreaders, combi tools and rescue rams)
are intended for use in the professional or industrial sector and not for
private use!
i
WARNING!
Danger caused by improper use!
Any use other than intended use and/or other type of use of the tool can
cause dangerous situations!
Therefore, it is absolutely necessary to:
• Only use the tool for the intended uses described above.
• Observe all other information regarding proper use of the
tools in Chapter 5 (Possible Uses).
"uncontrolled if printed"

11
WWW.GENESISRESCUE.COM
iNOTE!
SLi devices contain a communication module, which is required for the
WLAN, LTE and GPS for communication and location determination.
More detailed information on the communication module and the radio
connections and channels used can be found in section 4.7.
2.2 Operator Responsibility
In addition to the occupational safety information in these operating instructions, the health and
safety, accident prevention and environmental prevention, guidelines and regulations applicable
to the operation site of the equipment must also be observed. Thereby, the following applies in
particular:
The operator is also responsible for ensuring that the equipment is always in a technically
awless condition. Therefore, the following applies:
• The operator must educate themselves regarding the applicable occupational
• safety regulations and carry out a risk assessment to identfy additional dangers
• arising from the special work conditions at the operation site of the tool.
• The operator must clearly regulate and determine responsibility for installation,
maintenance and cleaning.
• The operator must ensure that all persons engaged with the tool have completely
read and understood the operating instructions.
• Furthermore, they must train the personnel at regular intervals and inform them of
the dangers associated with handling the tool.
• After each time the equipment is used, or at least once a year, a visual inspection
of the tool by an instructed person is required (per DGUV guideline 305-002 or
country-specic rules).
• Every three years, or whenever a doubt is rasied about the safety or reliability of the
tool, a function and load test must also be carried out (per DGUV guideline 305-002
or country-specic regulations).
• After each use or at least once a year, check the seal on the battery cover and the
housing in the sealing area for cracks and damage. Lubricate the seal with colorless
lubricant WD40 or MegaÖl Plus with PTM.
• The tool must be tested for leaks at least once a year or if there is any doubt about its
reliability.
"uncontrolled if printed"

12 WWW.GENESISRESCUE.COM
SAFETY
2.3 Operating Personnel
The following qualications for different areas of activity are specied in the operating
instructions:
• Instructed persons
Have been instructed by the operator regarding the tasks they have been
assigned and the possible dangers caused by improper actions.
• Expert personnel
Because of their professional training, knowledge and experience as well
as their knowledge of the applicable manufacturer's provisions, expert
personnel are able to carry out the tasks they have been assigned and
independently recognize potential dangers.
NOTE!
Never operate the tool after consuming alcohol, medications or drugs!
i
WARNING!
Danger of injury caused by insufcient qualications!
Improper handling of these tools can cause serious injury and property
damage.
Therefore, it is absolutely necessary to:
• Only permit the people specied in the respective chapters of these
operating instructions to carry out the special activity.
• In case of doubt, immediately call in expert personnel.
NOTE!
Maintenance work can be carried out by instructed persons.
Maintenance measures and repairs may only be carried out by the tool
manufacturer, or by specialist personnel trained by the tool
manufacturer and the authorized service partners. Continuous training
and instruction by the tool manufacturer is mandatory for a valid
training certicate.
i
"uncontrolled if printed"

13
WWW.GENESISRESCUE.COM
2.4 Personal Protective Equipment
To minimize danger for the operating personnel, wearing personal protectice equipment (PPE)
when handling the hydraulic rescue equipment is absolutely mandatory.
As a matter of principle, always wear the following protective clothing for all work:
Safety Work Clothing
Only wear closely tting work clothing with narrow sleeves and
without protruding pieces while working. This is primarily for
protection against entanglement in moving parts of the equipment.
Safety Shoes
Always wear steel-capped safety shoes to protect against falling
objects and slipping on slippery surfaces.
Work Gloves
Wear safety work gloves to protect against sharp edges and glass
splinters when operating the equipment.
Helmet With Face Shield
Wear a helmet with face shield to protect against ying or falling
parts and glass splinters.
Protective Goggles
In addition to a face mask, protective goggles should be worn to
protect the eyes from projectile particles.
Also wear during any special kind of work that cause noise:
Ear Protection
To protect your hearing, ear protection should be worn in addition to
personal protective equipment.
"uncontrolled if printed"

14 WWW.GENESISRESCUE.COM
2.5 Particular Hazards
The dangers resulting from the risk assessment are presented in the following section.
To minimize potential health hazards and prevent dangerous situations, the safety
instructions listed below and the warning instructions in the following chapters of these
Operating Instructions must be observed.
Electrical Current
DANGER!
Danger of death due to electrical current!
There is an immediate danger of death if live parts are touched. Damage to
insulation or individual components can be life-threatening.
Therefore:
• If the insulation is damaged, immediately disconnect the power
supply and arrange for repairs.
• Only allow electricians to carry out work on the electrical system.
• When any work is being carried out on the electrical system, it must
be disconnected from the main supply and checked to ensure that it
is not live.
• Before carrying out maintenance, cleaning or repair work, the
power supply must be switched off and secured to prevent it from
being switched on again.
• Do not bypass or shut down any fuses. Use fuses with the correct
amperage when replacing.
• Keep live parts away from moisture. This can cause a short circuit.
WARNING!
The use of SLi tools in potentially explosive atmosphere is prohibited.
SAFETY
"uncontrolled if printed"

15 WWW.GENESISRESCUE.COM
WARNING!
Danger to hearing caused by noise
The noise arising in the working area can cause serious damage to the
hearing.
Therefore:
• Wear ear protection during any special kind of work that
causes noise.
• Only wear ear protection while you are in the danger area.
WARNING!
Danger due to hydraulic energy!
The hydraulic forces that are released and escaping hydraulic uid can cause
severe injuries.
Therefore:
• Always keep the tool in sight while working and put it down if
necessary.
• Inspect hose lines and tools for damage after each use.
• Avoid skin contact with the hydraulic oil (wear safety gloves).
• Remove hydraulic oil from wounds without delay and consult a
doctor immediately.
Hydraulic Energy
Noise
"uncontrolled if printed"

16 WWW.GENESISRESCUE.COM
2.6 Conduct in Dangerous Situations and Accidents
Preventive measures
In case of incidents
• Always be prepared for accidents
• Always have rst-aid equipment (rst-aid kit, blankets, etc.) within
reach
• Familiarize personnel with accident reporting, rst aid and rescue
equipment
• Keep access routes for rescue vehicles open
• Immediately shut down tools
• Initiate rst-aid measures
• Remove persons from the danger zone
• Inform responsible person at the operation site
• Alarm doctor and/or re department
• Open access routes for rescue vehicles
SAFETY
"uncontrolled if printed"

17 WWW.GENESISRESCUE.COM
2.7 Signage
The following symbols and instruction panels are located on the equipment. They refer to the
immediate environment in which they are displayed.
Please note contents of operating instructions
Do not use the designated tool until you have read the operating
instructions from cover to cover.
WARNING!
Danger of injury due to illegible symbols!
As times goes by, adhesive labels and symbols on the tool may get dirty,
or be rendered illegible in some other manner.
Therefore, it is absolutely necessary to:
• Maintain all safety, warning and operating instructions on the tool in
a readily legible condition.
• Damaged signs and adhesive labels must be replaced immediately.
"uncontrolled if printed"

18 WWW.GENESISRESCUE.COM

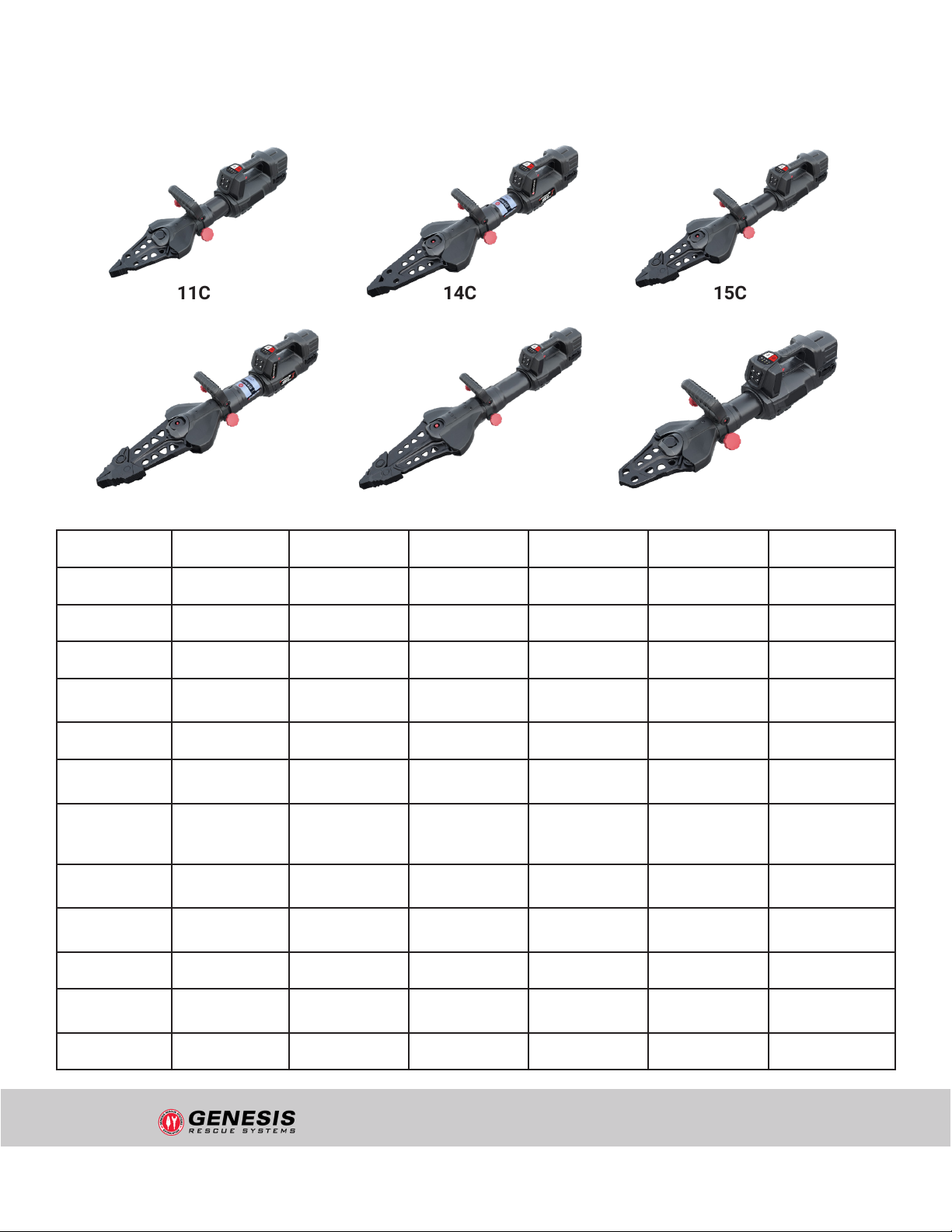

3. Technical Specications
3.1 Combi Tools
11C 14C 15C
17C 19C 11C-RIT
11C 14C 15C 17C 19C 11C-RIT
Length 32.56 in. 37.13 in. 37.36 in. 38.9 in. 42.36 in. 31.10 in.
Width 7.56 in. 9.29 in. 9.29 in. 9.29 in. 10.35 in. 7.56 in.
Height 8.98 in. 8.98 in. 8.98 in. 8.98 in. 8.98 in. 8.98 in.
Weight (ready
for use)
32.19 lbs. 41.67 lbs. 43.43 lbs. 47.84 lbs. 56.43 lbs. 31.53 lbs.
Opening Width 8.70 in. 11.22 in. 11.61 in. 15.50 in. 15.83 in. 8.46 in.
Pulling Width
(with adapter)
15.55 in. 17.32 in. 16.14 in. 17.72 in. 20.67 in. 12.6 in.
Expansion
Force in the
Working Area*
6,969 -
132,862 lbf
8,093 -
176,025 lbf
7,868 -
176,025 lbf
7,868 -
240,770 lbf
10,116 -
359,694 lbf
6,744 -
293,375 lbf
Max. Pulling
Force
8,093 lbf 11,915 lbf 12,589 lbf 13,039 lbf 17,535 lbf 10,556 lbf
Nominal
Pressure
10K psi 10K psi 10K psi 10K psi 10K psi 10K psi
EN Class ** BK31/270G-14.6 CK36/360I-18.9 CK35/370H-19.7 CK35/405I-21.7 CK45/480K-25.6 AC140H-14.3
NFPA Class A6-B7-C6-D7-
E7-F3
A7-B8-C7-D9-
E8-F5
A7-B8-C7-D8-
E8-F5
A7-B9-C7-D9-
E9-F6
A8-B9-C9-D9-
E9-F7
A6-B7-C6-D7-
E7-F3
Part No. 1101470GRS 1101471GRS 1101472GRS 1100144GRS 1101554GRS 1101159GRS
"uncontrolled if printed"

19
WWW.GENESISRESCUE.COM
SC198 SC198NXT GEN SC240 SC240NXT GEN SC385 F7
Length 35.75 in. 35.75 in. 36.85 in. 36.85 in. 39.49 in. 41.97 in.
Width 9.29 in. 9.29 in. 9.29 in. 9.29 in. 11.65 in. 11.61 in.
Height 8.98 in. 8.98 in. 8.98 in. 8.98 in. 8.98 in. 8.98 in.
Weight (ready
for use)
41.89 lbs. 44.31 lbs. 47.4 lbs. 50.04 lbs. 56.44 lbs. 61.5 lbs.
Opening Width 6.89 in. 6.89 in. 7.36 in. 7.36 in. 7.95 in. 11.81 in.
Nominal
Pressure
10K psi 10K psi 10K psi 10K psi 10K psi 10K psi
EN Class ** BC166I-19.0 BC1661I-20.1 BC187K-21.5 BC187K-22.7 CC202K-25.6 CC268K-27.9
NFPA Class A7-B8-C6-D8-
E9-F4
A7-B8-C6-D8-E9-F4 A8-B9-C7-D9-
E9-F4
A8-B9-C7-D9-E9-F4 A9-B9-C9-D9-
E9-F5
A9-B9-C9-D9-
E9-F7
Part No. 1101547GRS 1101548GRS 1101549GRS 1101550GRS 1101551GRS 1101553GRS
3.2 Cutters
SC198 SC198NXT GEN SC240
SC240NXT GEN SC385 F7
"uncontrolled if printed"

20 WWW.GENESISRESCUE.COM

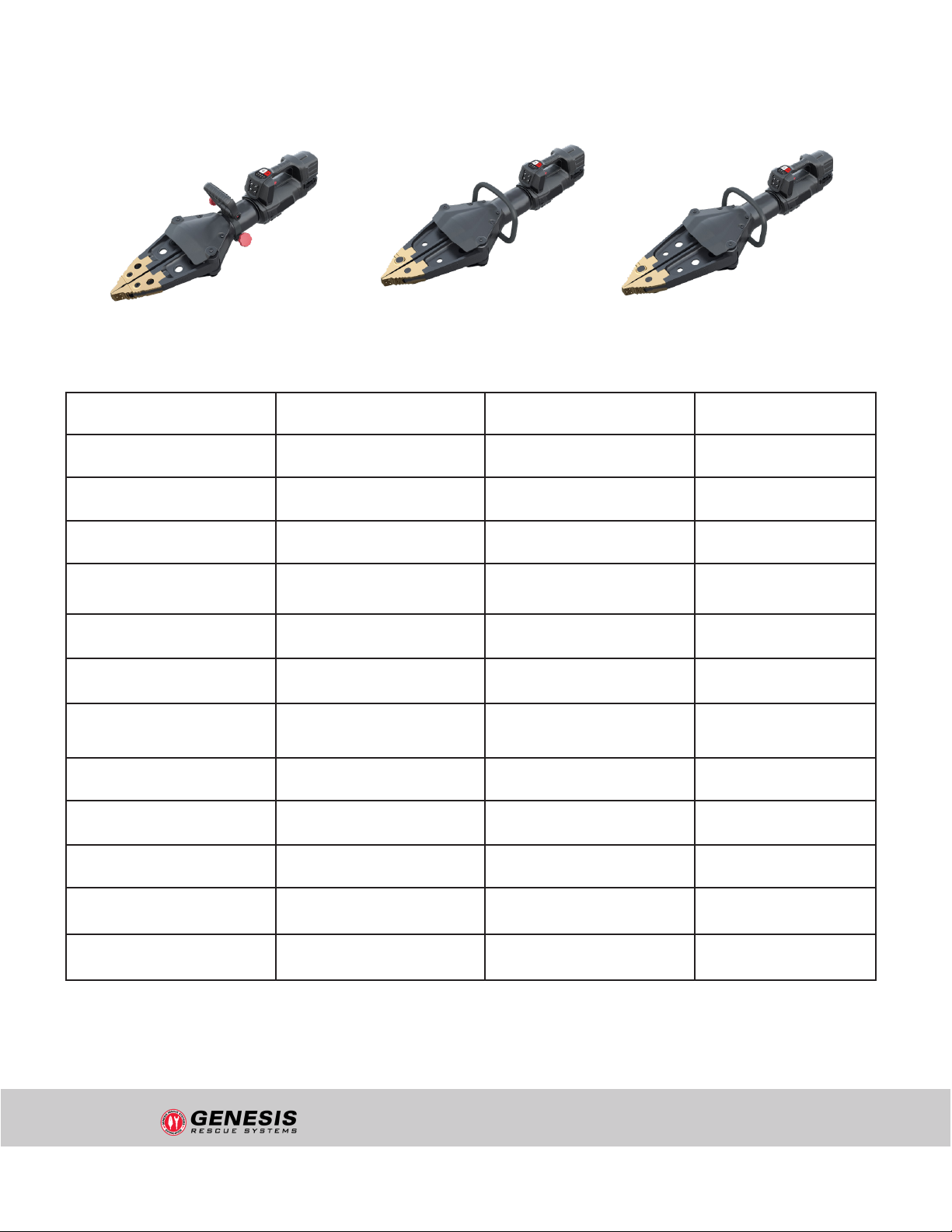

3.3 Spreaders
S44 S49 S54
S44 S49 S54
Length 35.16 in. 39.33 in. 40.63 in.
Width 9.41 in. 11.10 in. 11.10 in.
Height 8.98 in. 8.98 in. 8.98 in.
Weight (ready for use) 40.12 lbs. 47.62 lbs. 48.06 lbs.
Spreading Width 24.02 in. 28.94 in. 31.7 in.
Pulling Width 18.30 in. 24.41 in. 26.77 in.
Spreading Force in the
Working Area*
9,891.6 - 192,661 lbf 12,364 - 112,629 lbf 11,240 - 112,629 lbf
Max. Pulling Force 15,287 lbf 15,736 lbf 15,062 lbf
Max. Squeezing Force * 33,496 lbf 32,372 lbf 32,372 lbf
Nominal Pressure 10K psi 10K psi 10K psi
EN Class ** AS44/610-18.2 AS55/735-21.6 BS50/805-21.8
Part No. 1101468GRS 1101469GRS 1100143GRS
TECHNICAL SPECIFICATIONS
"uncontrolled if printed"
