Genie CT10 User manual

- 1 -
Coaxial and UTP Cable Tester
User's Guide
Precautions
• Make sure to read this user’s manual thoroughly before using this product.
• Keep this user’s manual to use this product properly.
•Avoid installing places as: over 50℃or below -10℃/ near rain, snow or high humidity /
near oil or gas / with vibration or shock / exposed to direct sunlight or outside / near
strong magnetic, high frequency(RF) or power cables. It may reduce the performance or
cause malfunction of the product.
•If this product is left unused or uncharged for a long time, the performance of battery may
degrade. Regular charging is recommended.
•Do not disassemble the product or put foreign materials such as metallic objects.
•Do not connect and use any device above rated capacity of this product. It may cause
malfunction or fire.
•The warranty period of battery is 6 months after the date of purchase.
•When replacing battery, do not disassemble the product arbitrarily. Please contact our
service center.
•Li-ion Polymer BATTERY(3.7V / 900mAh) is built in the product. Do not disassemble or
short circuit (SHORT) the battery.
•When charging the product, make sure to check the operational power supply voltage
before inputting power.
•Strong shock or vibration may cause device failure, so use with caution.
•If you let the product in abnormal state as smoke or smell, it may cause fire or electric
shock. In this case, stop operating the product and contact the place of purchase or our
service center for professional advice.
•Measuring media (cable) should be coaxial & UTP cable.
• Refer to the user’s manual for problems or questions besides above. Contact our service
center if you need assistance from a professional technician.
•Do not use the car USB charger as it may explode due to high temperature. (Do not keep
this device in the vehicle because there is a risk of explosion due to high temperature inside
the car in summer when charging with the car USB.)
CT10

- 2 -
1. Introduction
This product is a device to measure the length, check the status (Open, Short) of BNC, UTP
(T568A, 568B) cable and Loop resistance of coaxial cable.
2. Features
•Measure the open, short status and length of coaxial cable (ECX 3C-2V, 5C-2V, 5C-HFBT, 5C-FB,
RG-58 A/U, etc.) and UTP cable (UTP, STP).
→Measurable length: 5C-HFBT Max. 1,800m / CAT.5E, CAT.6 Max. 200m
•Save measured value of the cable that user want to use, in addition to the standard cable data.
(Built-in cable calibration function)
•Select and modify cable type stored in Load Data.
•Built-in USB chargeable battery
•Display remaining battery
•Auto power OFF function when the device is not in use.
•Measure coaxial cable loop resistance.

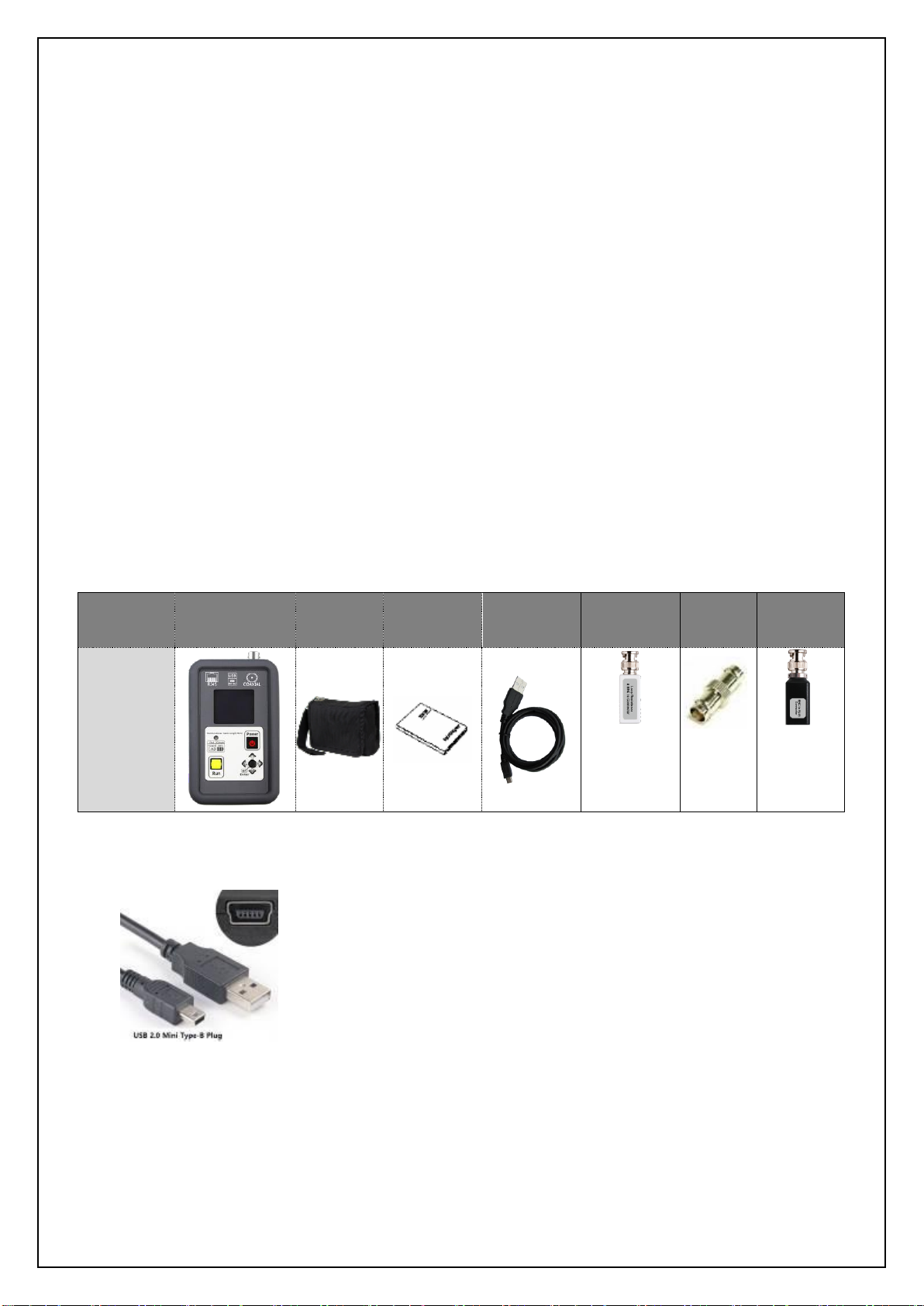

3. Components
•USB charging cable, bag, BNC to TB Connector, BNC to RJ45 Connector and BNC-A-JJ are
supplied as a one-time consumable item and able to be purchased separately.
•Use USB 2.0 Mini Type-B Plug for USB charging cable.
•Regular charging is required, as battery may discharge and degrade when the product is
uncharged for a long time.
•Battery is a consumable item. (The warranty period of the battery is 6 months. If performance
of battery degrades, it is able to replace it in service center.)
•Car USB charging is not guaranteed. (Do not keep the product in vehicle.)
Model No.
Product
Bag
User’s
Manual
USB
Charging
Cable
BNC to TB
Connector
BNC-A-JJ
BNC to
RJ45
Connector
Multi-
functional
Cable
Length
Meter
Loop
Resistance
BNC to TB(2P)
connector
Straight
Adaptor
Jack-Jack
BNC to RJ45
connector

- 3 -
4.Product Parts and Functions
5.MENU Details
5-1. Measure Menu

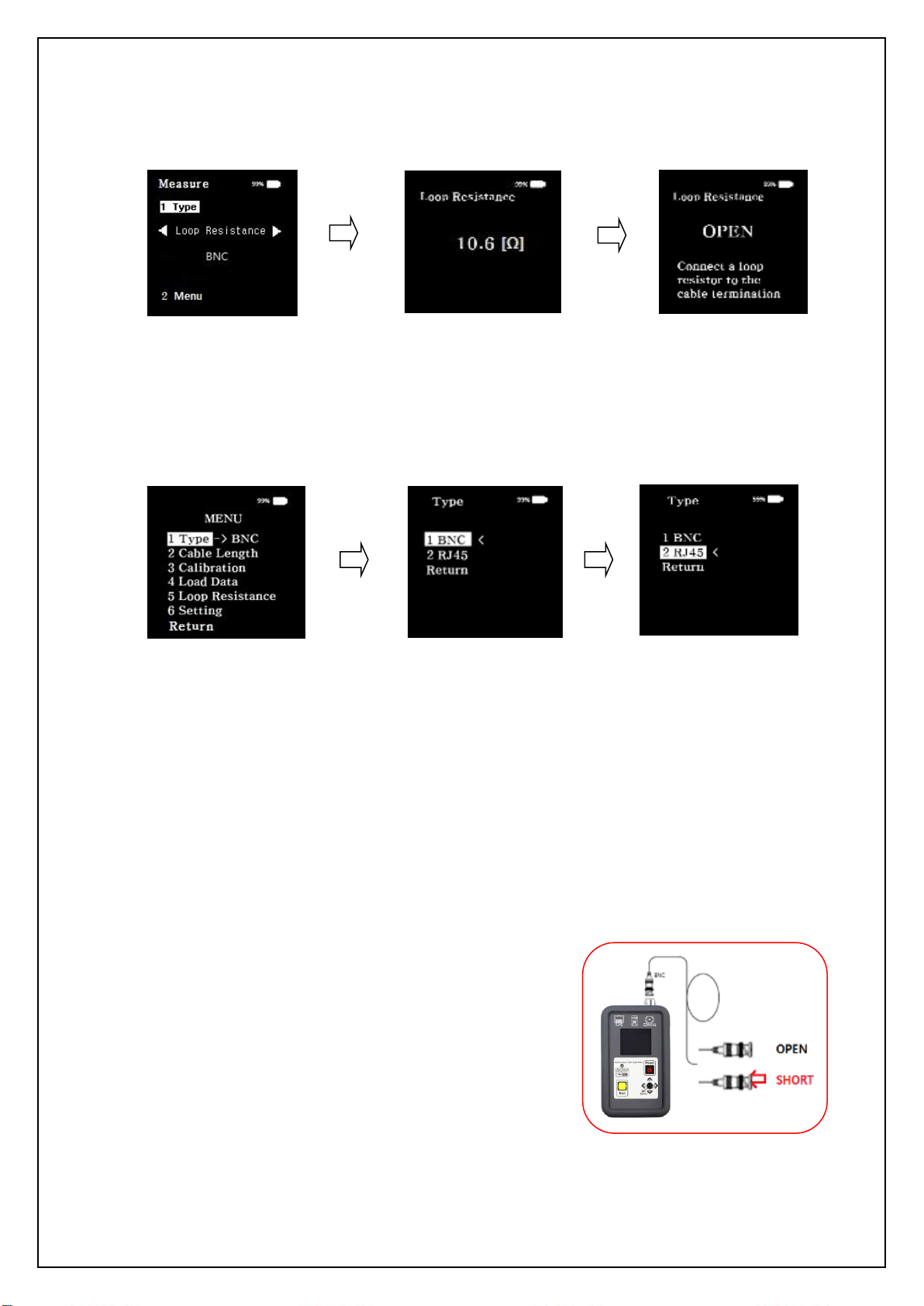

When power is on, Measure Menu is displayed as the initial menu screen. Select the Type and
Cable and press Run button for less than 3 seconds to display 1 time measured value and save it
to LIST. Press Run button for over 3 seconds to display 8 times measured value and save them to
LIST.
The cable length of BNC and RJ45 is saved to LIST in Cable Length menu, and loop resistance
value is saved to LIST in Loop Resistance menu.
•1 Type: Control direction key ◀▶ to select among BNC, RJ45 and Loop Resistance Type.
•2 Cable: Control direction key ◀▶ to select LOAD DATA of BNC, RJ45 Type Cable.
•3 Menu: Press Enter key to move to sub-menu according to the selected Type.
※ In ‘2 Cable’ menu, ‘USER’ cannot be modified or deleted because it is a LOAD DATA that the
calibrated value is initialized.
■BNC Type (Coaxial Cable) Setting and Measurement
Press Run(Green LED ON) button to measure.

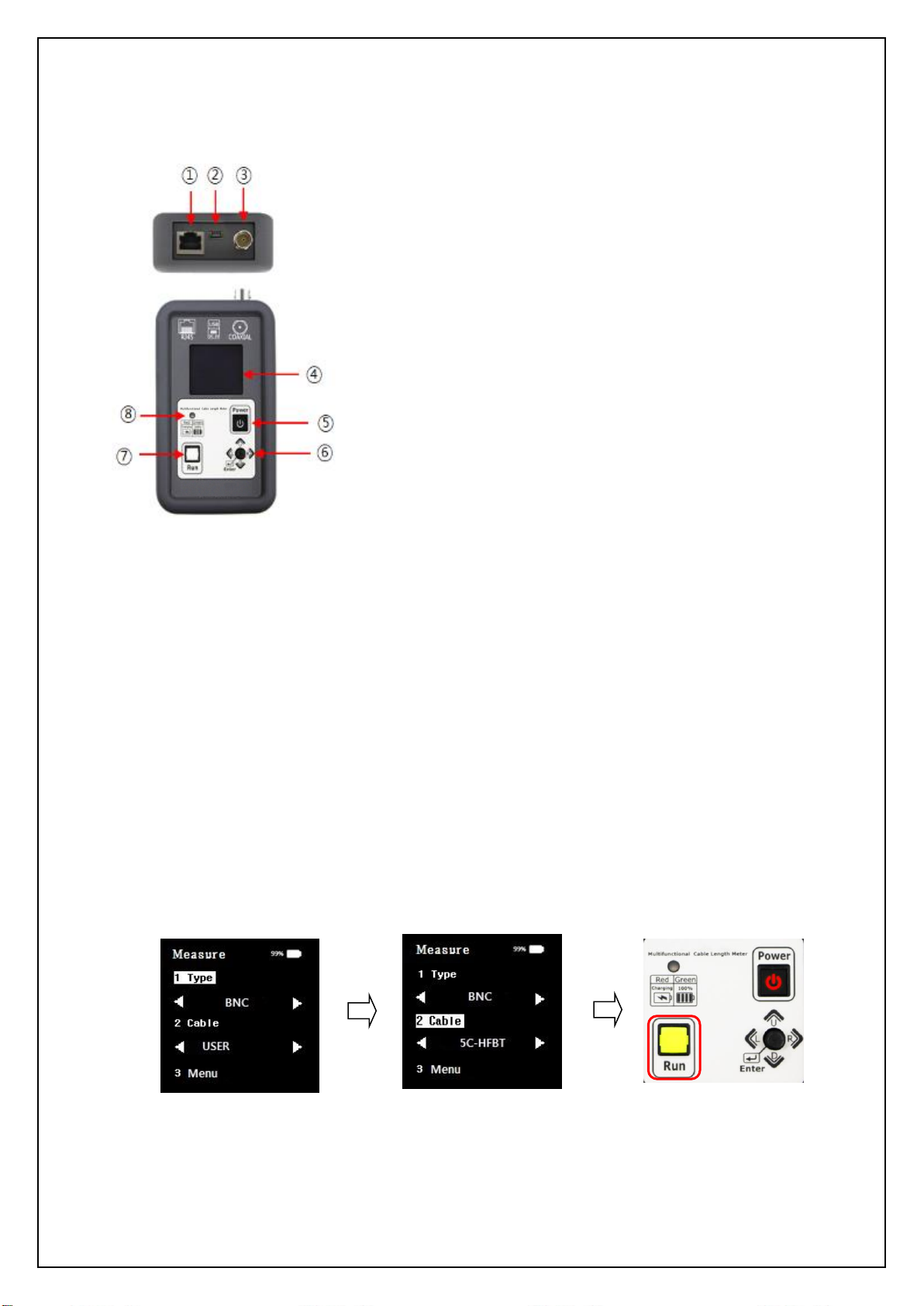

①. RJ-45: UTP cable connection port.
②.Power Input: Built-in battery charging port. USB Cable (DC 5V/500mA)
③. BNC: Coaxial cable connection port.
④.Display: 1.5 inch OLED
⑤. Power Button: Press for more than 2 sec. to turn ON/OFF.
⑥.Direction Switch: Switch to set menu.
To set menu, control with ▲▼, ◀▶ direction switch
To activate Enter Key, press the direction switch.
⑦. Run Button: Button to measure cable.
Used for cable measurement.
When Green LED is on, press the switch to start measurement.
⑧. Charge Status LED
●Red - Charging. ●Green –Charging done.

- 4 -
Cable Status: OPEN
→Control direction key ▲▼ to set PAGE.
Cable Status: SHORT
→Control direction key ▲▼ to set PAGE.
■RJ45 Type (UTP Cable) Setting and Measurement
Press Run(Green LED ON) button to measure.
Cable Status: OPEN
→Control direction key ▲▼ to set PAGE.
Cable Status: SHORT
→Control direction key ▲▼ to set PAGE.

- 5 -
•Loop Resistance: Measure Loop Resistance of Coaxial Cable.
Measure Loop Resistance In case of cable Open
Press Run(Green LED ON) button to measure.
5-2. Type : Measurement mode type setting (BNC, RJ45).
•BNC: Select coaxial cable measurement mode
•RJ45: Select UTP cable measurement mode
5-3. Cable Length : Cable length and status (Open, Short) measurement.
•START: In the menu, the Green LED lights up on Run button.
To measure cable length, press Run button.
•LOAD: From LOAD menu, press Enter Key to select the cable to measure Calibration in Load
Data. If you do not know the cable type, select USER.
•LOAD CANCEL: Delete the selected cable in LOAD menu.
•LIST: Press RUN button for less than 3 seconds to display 1 time measured value. Press RUN
button for over 3 seconds to display 8 times measured value. Press Enter key to return to the
previous menu.
•OPEN
Cable length is measured with nothing connected to the
cable end. The cable is not short-circuited.
•SHORT
Cable length is measured with nothing connected to the
cable end. The cable is short-circuited.
→When the product is connected with cable, the measured
value is displayed as OPEN, SHORT, Cable open or Too short
depending on the internal condition of the product.

- 6 -
■BNC Type (Coaxial Cable) Setting and Measurement
Select LOAD Select LOAD DATA Select START
Delete LOAD DATA
Select START and press Run (Green LED ON) button to measure.
Cable OPEN
→Control direction key ▲▼ to set PAGE.
Cable SHORT
→Control direction key ▲▼ to set PAGE.

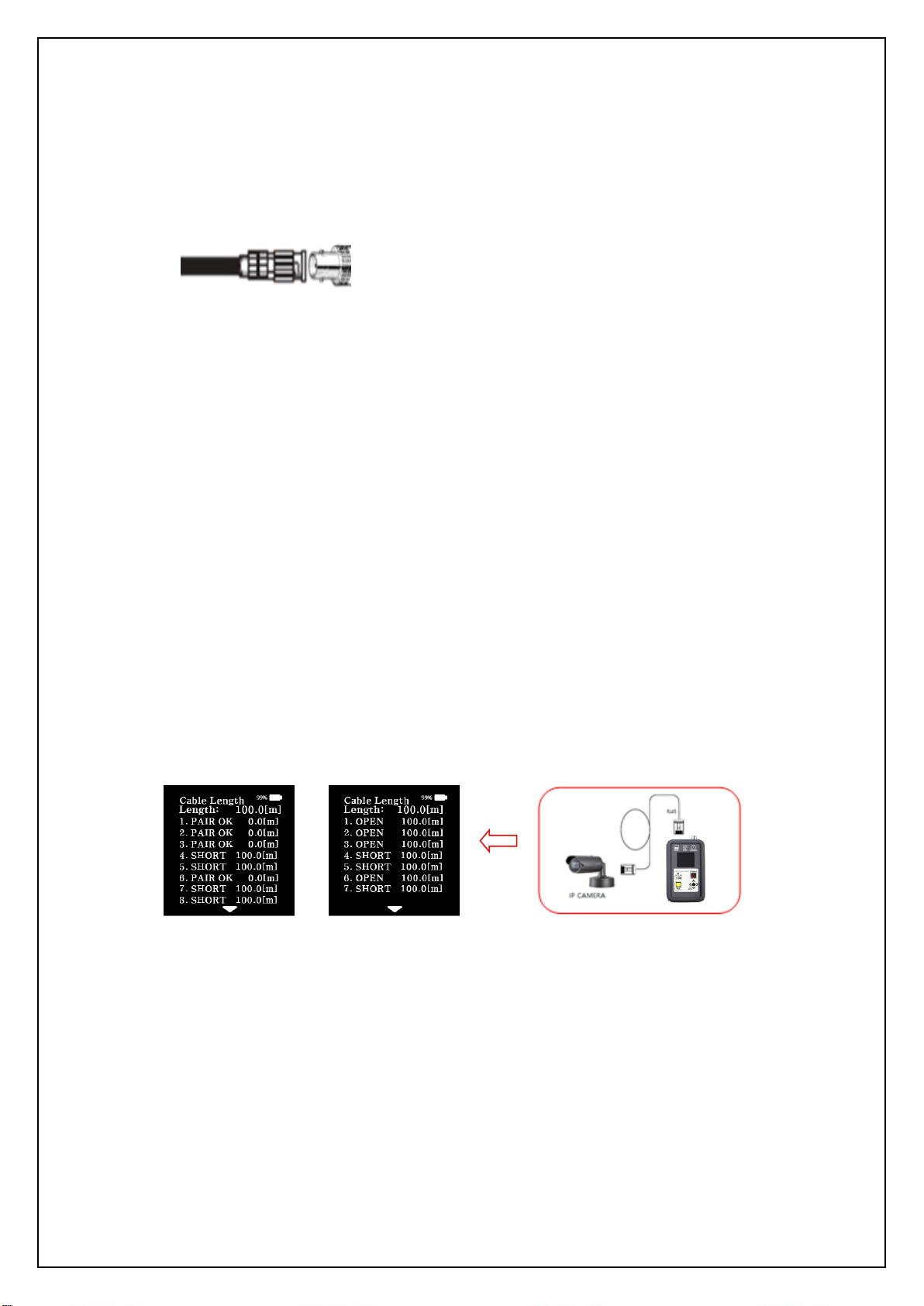

•Select LIST Menu
1 time measurement 8 times measurement
(press Run button below 3 seconds) (press Run button over 3 seconds)

- 7 -
■RJ45 Type (UTP Cable) Setting and Measurement
Select LOAD Select LOAD DATA Select START
Delete LOAD DATA
Select START and press Run (Green LED ON) button to measure.
Cable OPEN
→Control direction key ▲▼ to set PAGE.
Cable SHORT
→Control direction key ▲▼ to set PAGE.
•Select LIST Menu
1 time measurement 8 times measurement
(press Run button below 3 seconds) (press Run button over 3 seconds)

- 8 -
※When measuring coaxial cable, if the cable is not connected or the cable length is below
10m, the measured value is displayed as Cable open or Too short.
※When measuring UTP cable, if the cable is not connected or the cable length is below 5m, the measured
value is displayed as Cable open or Too short.
※If the RJ45 connector of UTP cable is not connected properly or the cable length is too short, the
measurement error rate may increase or decrease. (Especially for cables below 10m, the error rate may
increase or decrease.)
5-4. Calibration: Calibrate the cable that the user want to measure to the length and create
Load Data as standard.
•START: When set in menu, Green LED lights up on the Run button. Press the Run button to
measure the cable status.
It is able to measure the cable status several times by pressing Run button with Green LED on.
If the measured cable has an error compared to the standard value, use U, D(▲▼) Key to
change the calibrated value, press Enter Key to enter LOAD DATA NAME setup menu, and U,
D(▲▼) Key to set the cable name.
When the setting is completed, press Run Key to display stored location (LOAD2~LOAD8) and
NOT SAVE setting, and use U, D(▲▼) Key to set the storage location.

- 9 -
•Key Action: Run (measure) →U, D(▲▼) Key(calibrate) →Enter →U, D, L, R(▲▼◀▶) Key (set
DATA NAME) →Run (set save) →U, D, L, R(▲▼◀▶) Key (select Load Data store location) →
Enter
※If a cable error occurs when measuring Cable Length after Calibration, the user can perform
additional Calibration to correct the error value to an arbitrary value.
※Caution: Delete the cable name in LOAD using LOAD CANCEL and proceed calibration.
※DATA NAME Character: Consists of English capital letter (A~Z), number 0~9 and 7 special
character. It is able to input maximum 10 characters.
5-5. Load Data: The default calibration values are stored. It is able to save the values calibrated
by user in Load Data. Select DATA and press Enter Key to change the setting of selected DATA.
•SELECT: The selected DATA is automatically set to Cable Length LOAD.
※After changing DATA NAME, press SELECT to save or change.
•NAME EDIT: Change the cable name by U, D, L, R(▲▼◀▶) Key.
※The NAME of USER cannot be changed.
•DELETE: Delete selected Load Data.
※USER cannot be deleted.
●Built-in Load Data of coaxial cable
#
CABLE
Manufacturer
#
CABLE
Manufacturer
1
5C-HFBT
KUMKANG
5
3C-2V
YUJIN
2
5C-FB
TACHII
6
RG-58
DAEKYONG
3
L-5CFB
CANARE
7
RG-59
DAEKYONG
4
5C-2V
LS
●Built-in Load Data of UTP cable
#
CABLE
Manufacturer
1
CAT.5(5E)
LS
2
CAT.6
LS
3
STP CAT.5E
LS

- 10 -
*Cable length measurement or LOOP resistance value may vary depending on cable standard or
specifications. Make sure to proceed Calibration (refer to 5-3) when applying additional is
required additional to built-in Load Data.
5-6. Loop Resistance: Measure coaxial cable loop resistance.
•Available in BNC Mode. Measure loop resistance of coaxial cable.
※When measuring, connect BNC to TB Connector to the cable end and set the switch to Loop.
•START: When set in menu, Green LED lights up on the Run button. Press the Run button to
measure the cable loop resistance.
•LIST: Press RUN button for less than 3 seconds to display 1 time measured value. Press RUN
button for over 3 seconds to display 8 times measured value. Press Enter key to return to the
previous menu.
Select Loop Resistance Select START Measure Loop Resistance
In case of OPEN
•LIST Menu
1 time measurement 8 times measurement
(press Run button below 3 seconds) (press Run button over 3 seconds)

- 11 -
5-7. Unit Setting
Set measurement unit as Meter or Feet in Setting menu. Press Enter button to change the
setting. Setting
5-8. Setting
•Unit: Set cable measurement unit (to be supported).
•Language: Set system language (English supported).
•OLED OFF time: Set OLED auto off time (OFF/1 min/30 sec/15 sec).
•Auto OFF time: Set system auto off (OFF/2 hours /1 hours /30 mins/15 mins).
•Buzzer: Set buzzer ON/OFF.
•System Info: Display system version.
•System Reset: Set system initialization.
In Default All mode, press Enter Key to initialize the whole system.
•Software Update: Set software update.
※At the time of shipment, the product is updated as latest version. If you need to update the
product, refer to the update guide.

- 12 -
6.Battery Status Indicator
Status
Battery Indicator
LED Indicator
Charging
Red LED
Charging complete
Green LED
Charger not connected
LED OFF
•USB 2.0 MINI-B Type (factory supplied) is recommended to use.
•Make sure to use over DC5V 1.5A for USB adapter charger.
•The remaining battery level is displayed, so it is able to manage the battery efficiently by
controlling the charging time.
•While the product is charging, the remaining battery level is not displayed.
•If the battery is running low, the product is automatically turned OFF. Connect the USB
charger and use the product.
7.Specifications
MODEL
Cable Tester
Display
1.5 inch OLED
Cable Type
BNC Coaxial /RJ45 UTP(T568A, 568B)
Coaxial Cable Length
10m ~ 1.8km(MAX)
Coaxial Cable LOOP Resistance
Below 300Ω
UTP Cable Length
5m ~ 200m(STP 150m)
Minimum Calibration Length
Over 100m Recommended (Calibration)
Accuracy (BNC, RJ45)
5%(After Calibration)
Connector Type
BNC,RJ45
Battery Type
3.7V Rechargeable lithium battery 900mAh
Temperature / Humidity
-10℃ ~ +50℃ / 0 ~ 80%
Charging Port
USB 2.0 MINI-B Type, Over DC 5V 1.5A (USB charging adapter)
Full Charge Hour / Hours of Use
2H 30M / RJ45(3H), BNC(6H)
Dimensions (WxHxD)
74(W) X 33(H) X 120(D)mm / ±0.5mm
Material / Weight
ABS UL94V-0/ 210g
•Continuous use hour may vary depending on the measurement mode and cable length.
•The measured value may be displayed differently depending on the Load Data value and the cable
type.
•The maximum measured length of cable may vary depending on the cable manufacturer.
•If the connected cable is not the same specification with calibrated cable, measurement error may
occur.
•If the USB cable is disconnected while the battery is charging, the stabilization process may take one
or several minutes. (The shorter charging time is, the longer stabilization time is.)

- 13 -
•If you connect the product while power (PoE, PoC) is on, it may damage the product. Please
turn the power off and measure.
•BNC must be correctly tightened when connecting coaxial cable to the Cable Tester.
(If not, operation error may occur.)
•When measuring cable while connected to camera, DVR or other devices, the measurement
result may displayed as Open or Short according to the cable length. Or the cable length may
be measured differently depending on the type of device. Please measure while the power of
device is off.
(If a video is output from other devices, it may affect the measurement of cable. To measure the
accurate length, the cable end should be Open.)
•When connecting coaxial products, the measured value may be displayed as OPEN, SHORT or
Cable open or Too short (when not measured) depending on the power ON/OFF status and
product specifications.
•When measuring coaxial cable, it is able to get accurate length and OPEN, SHORT length of
cable if you measure the both ends of cable. When the cable is normal, the measured values
are same if you measure the both ends of cable.
(When the cable is OPEN, it is able to check short-circuited length if BNC to TB Connector is set
to LOOP (SHORT), connected to the cable end and the measured status is OPEN.
When the measured status is SHORT, it is able to check SHORT length if BNC to TB Connector
is set to LOOP (SHORT), connected to the cable end and the measured status is SHORT.)
•When connecting IP camera, the measured value is displayed as PAIR OK, OPEN or SHORT.
(Please make sure to use the product while the power of IP camera is not applied.)
•When connecting IP products, the measured value may displayed as PAIR OK, OPEN, SHORT or
Cable open or Too short (when not measured) depending on the power ON/OFF status and
product specifications.

- 14 -

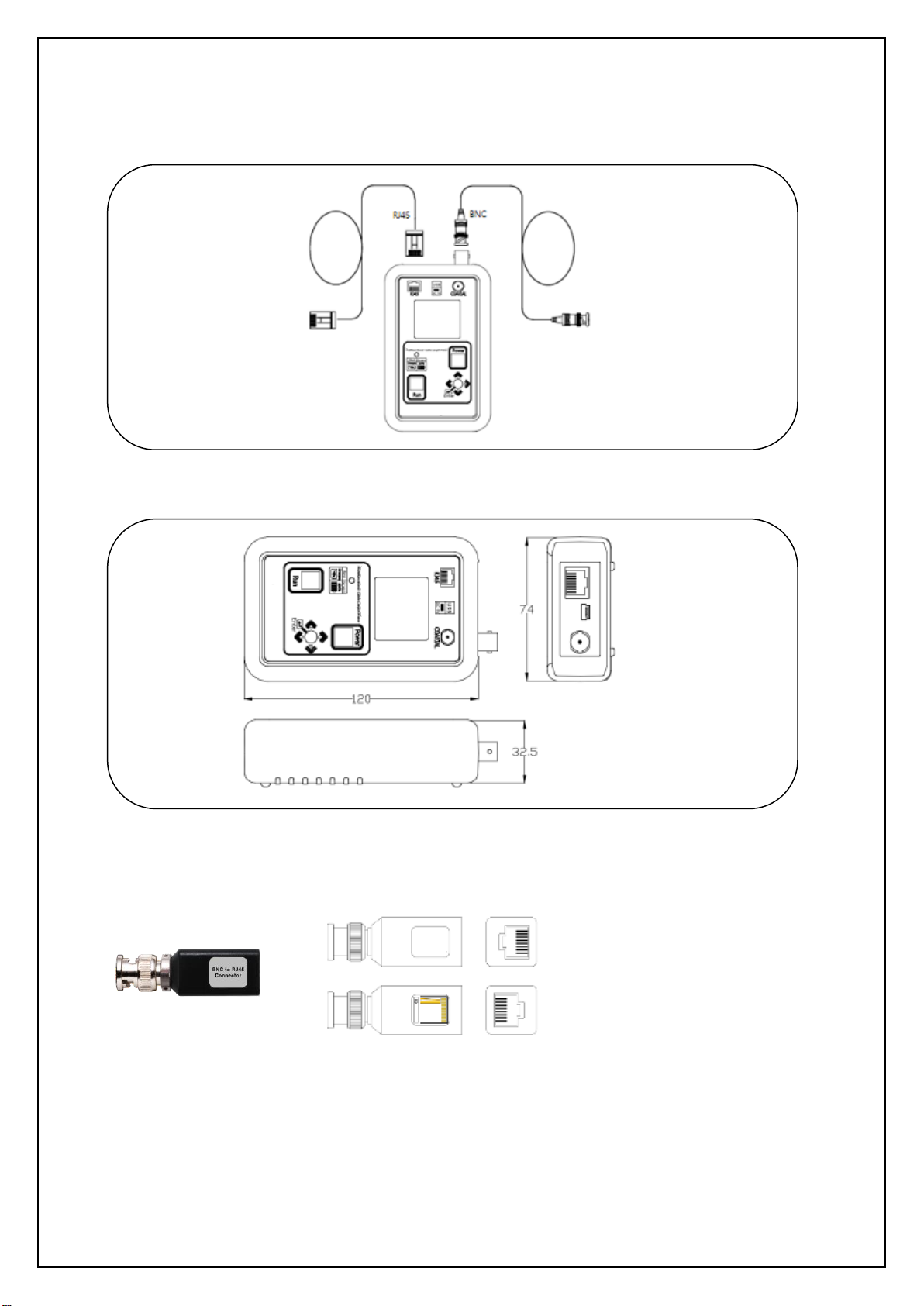

8.Connection Diagram
9.Appearance
10. How to Use BNC to TB Connector and BNC to RJ45 Connector
10-1. How to measure long length UTP cable by BNC (BNC to RJ45 Connector)
•Use to measure cables installed over long distance of 10m ~ 600m.
•Use to measure UTP cable in BNC mode. Calibrate the cable to be measured, save the result
in Load Data and measure the cable with the saved data.
•When measuring cable length, use the set(calibrated) Load Data set by user.
•Length Measurement is only available in 1 Pair (No.1 and 2 in T568A, 568B Type).
RJ45 (UTP Cable)
BNC (Coaxial Cable)
BNC to RJ45
Connector

- 15 -
10-2. How to measure Loop Resistance of coaxial cable
(Loop Resistance& BNC to TB (2P) Connector)
•Use to measure Loop resistance of coaxial cable.
•Connect the coaxial cable to the Cable Tester (BNC). Before measuring, connect BNC to TB
Connector with Straight Adaptor Jack-Jack connected to the end of the coaxial cable. The switch
of the connector should be set as LOOP.
※If the product is connected to the cable, the loop resistance is not measured and displayed as
OPEN.
10-3. How to measure cable length by using BNC to TB Connector’s switch set as CABLE
•Connect BNC to TB Connector to the BNC of the Cable Tester and connect the cable at the
terminal block of the connector. Set the switch of the connector as CABLE.
(It is able to measure cables without BNC connector or UTP RJ45 connector.)

- 16 -
11. Warranty Certificate
Product No.
Model No.
Date of Purchase
Place of Purchase
Purchaser
Name
Address & Contact No.
Distributor
Name
Address & Contact No.
Warranty Period
Two(2) years from the date of purchase
Any failure that occurs in the normal use for only two years after purchase will be repaired free of
charge.
Contact the phone number listed on the user’s manual for repair.
When reporting the failure, please inform the model name and condition of the product
accurately. It is convenient to know the name and department of the person in charge.
Please check this user’s manual again before reporting the failure.
Product shapes and circuits are subject to change without notice to improve performance.
Faults following will be treated as a charge:
• Failure by user’s handling without care
•Not connecting the rated power
•Disassembled or repaired arbitrarily by user
•Replacing consumables
•Failure caused by natural disaster (lightning, fire, flood, tsunami, etc.)
