Genie GHD190DV User manual

Quick Start Guide
Please read these instructions carefully before operating the unit
and keep for further reference. All the examples and pictures used
here are for reference only. The contents of this manual are subject
to change without notice.
2MP 4-in-1 Door Viewer Camera
with 170° Lens
GHD190DV

Quick Start Guide 2MP 4-in-1 Door Viewer Camera with 170° Lens
2
Features
• 1/2.8” Sony Starvis CMOS image sensor
• Full HD resolution (1920 × 1080)
• Auto compensation and long range transmission
• 170° in horizontal view
• Excellent low illumination performance
• 3D-DNR (Digital Noise Reduction)
• Sens-Up
• D-WDR (Digital Wide Dynamic Range)
• IP67 ingress protection
• DC12V
• OSD RCA cable
• NDAA compliant

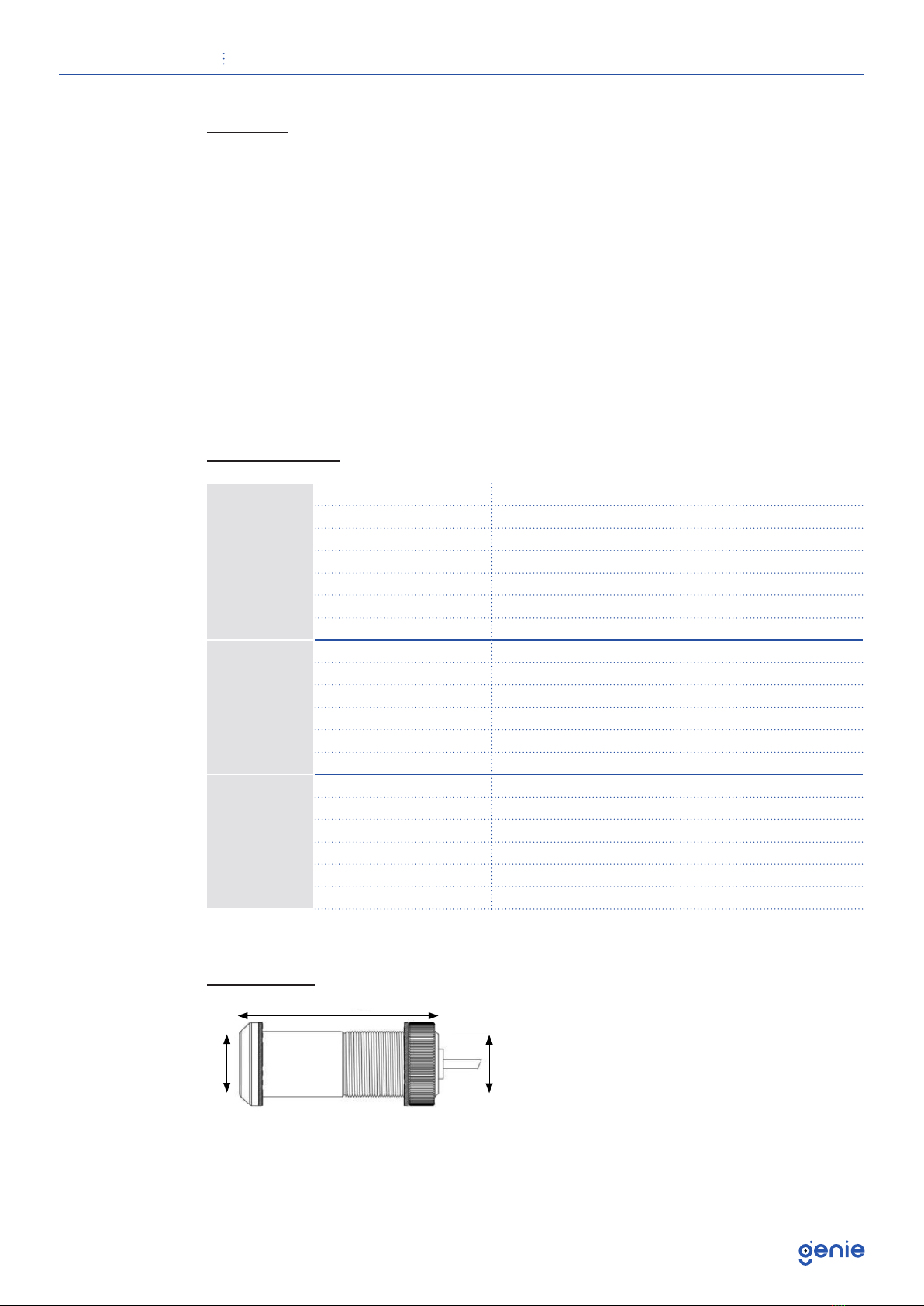

Specifications
Dimensions
Camera
Image Sensor 1/2.8” Sony Starvis CMOS
Resolution 1080p
Minimum Illumination 0.001 Lux (F1.0)
Lens 170° in horizontal view
S / N Ratio More than 50dB (AGC off)
Scanning System Progressive
Video Output AHD, TVI, CVI : 1080p, 720p, Analogue: NTSC/PAL, CVBS
Functions
D-WDR Off / 0~8
Sens-Up Off / x2-x30
Backlight Off / BLC / HSBLC
DNR Off / Low / Middle / High
Privacy Mask 4 masks
Motion Detection Off / On
Others
Ingress Protection IP67
Power Supply DC12V
Power Consumption Max. 1.5W
Operating Conditions -10°C to 50°C, Humidity: 10% to 85%
Dimensions 28 × 61.4 mm
Weight 80g
61.4mm
28mm
22mm

Quick Start Guide 2MP 4-in-1 Door Viewer Camera with 170° Lens
3
Cable
CAUTION! Please use regulated power supply DC12V 500mA
Reverse Polarity Protection
Mode Change
CVBS Mode: Push the Left OSD Key for 5 Seconds
AHD Mode: Push the Right OSD Key for 5 Seconds
CVI Mode: Push the Up OSD Key for 5 Seconds
TVI Mode: Push the Down OSD Key for 5 Seconds
Accessories
Hexagon Nut Ring x2 OSD
Power Input (DC12V)
OSD Connection
Video

Quick Start Guide 2MP 4-in-1 Door Viewer Camera with 170° Lens
4
Installation
Step 1
Make a hole in the door for
the camera.
Step 3
Secure the camera with the rings
and hexagon nut.
Insert the camera into the
hole in the door.
Step 2
