GENMAX GM4600iAEDC User manual

WARNING: SAVE THIS MANUAL FOR FUTURE REFERENCE
INVERTER GENERATOR
USER'S MANUAL
RGENMAX GENERATOR
GM4600iAEDC
This manual contains important information regarding safety. Operation,
maintenance and storage of this product. Before use, read carefully and
understand all cautions, warnings, instructions and product labels. Failure to do
so could result in serious personal injury and/or property damage.
Portable Dual Fuel Generator

1
UNPACKING
Always have assistance when lifting
the generator. The generator is heavy;
lifting it could cause bodily harm.
Avoid cutting on or near staples to
prevent personal injury.
Tools required - box cutter or similar device.
1. Carefully cut the packing tape on top of the carton.
2. Remove socket wrench, and oil funnel and save
for later.
3. Carefully cut two sides of the carton to remove the
generator.
WHAT COMES IN THE BOX
Spark Plug Socket Wrench (1)
Dual-Purpose Screwdriver (1)
User Manual (1)
Warranty Information (1)
Funnel (1)
Cigarette Lighter to USB-C&A Adapter (1)
Remote Control Key (1)
LPG Hose (1)
450ml 10W30 Oil(1)
Battery Charger (1)
DISCLAIMERS:
All information, illustrations and specifications in this manual are based on the latest information available at the
time of publishing. The illustrations used in this manual are intended as representative reference views only.
Moreover, because of our continuous product improvement policy, we may modify information, illustrations and/or
specifications to explain and/or exemplify a product, service or maintenance improvement. We reserve the right to
make any change at any time without notice. Some images may vary depending upon which model is shown.
ALL RIGHTS RESERVED:
No part of this publication may be reproduced or used in any form by any means - graphic, electronic or
mechanical, including photocopying, recording, taping or information storage and retrieval systems - without the
written permission of CHONGQING DINKING POWER MACHINERY CO., LTD
This manual contains important instructions for operating this inverter generator. For your
safety and the safety of others, be sure to read this manual thoroughly before operating the
generator. Failure to properly follow all instructions and precautions can cause you and others
to be seriously hurt or killed.

2
Spark Plug Socket Wrench
Used in spark plug maintenance,
inspection, and installation.
Phillips and slot blade
screwdriver used for generator
maintenance.
Dual-Purpose Screwdriver Funnel
It's used to oil the generator.
Cigarette Lighter to USB-C&A
Adapter
Convert the cigarette lighter
socket to a USB-C&A socket.

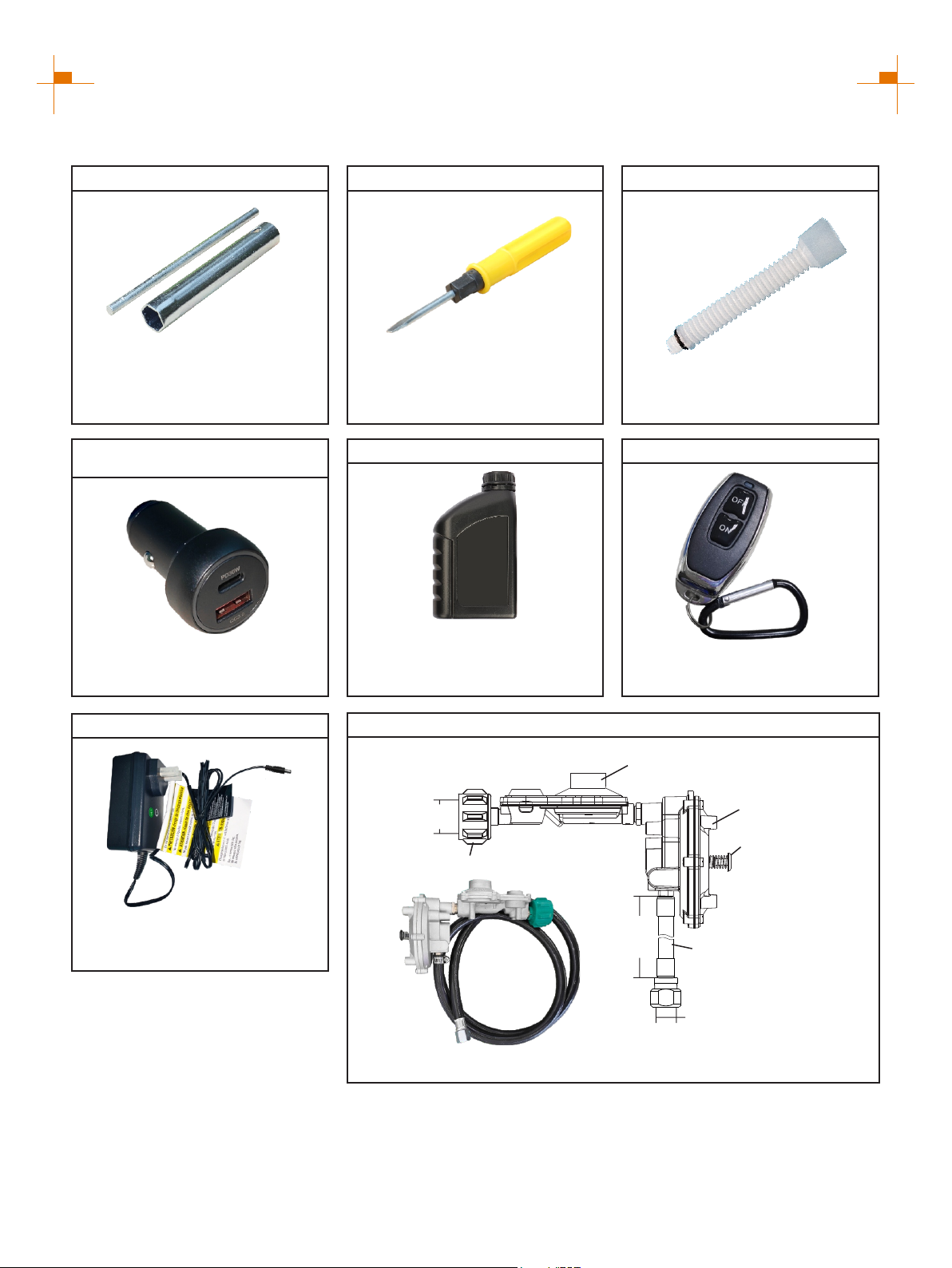

DESCRIPTION OF FITTINGS
Remote Control Key
Used to remotely start and stop
the generator.
LPG Hose
Connect the LPG tank to transmit LPG fuel to
the generator.
1485 mm
Hose length
LPG Hose
Pressure 1psi
First Stage Reducing Valve
Two Stage Pressure
Reducing Valve
Button To Increase
The Intake Volume
1.312"-5ACME
Inside Diameter
Gas Cylinder Joint
5/8"-18UNF
Inside Diameter
Note: Actual tools may differ in appearance or design from image shown.
450ml 10W30 Oil
Be sure to add oil before starting
the generator.
Battery Charger
Used to charge the battery
when in storage.

3
LIMITED WARRANTY
Model Number: _____________________________________
Name: ___________________________________________
Serial Number: ______________________________________
Street Address: ___________________________________
Date Purchased: ____________________________________
Purchased From: ____________________________________
City, State, ZIP: ____________________________________
Country: __________________________________________
Phone Number: ___________________________________
E-Mail: ___________________________________________
WARRANTY CARD
R
1. DURATION : One (1) year from the date of purchase by the original purchaser ( retail customer ) on products used
solely for consumer applications; if a product is used for business, commercial, or industrial applications, the warranty
per iod will be limited to ninety (90) days from the date of purchase.
2. WHO GIVES THIS WARRANTY (WARRANTOR):
CHONGQING DINKING POWER MACHINERY CO., LTD
3. WHO RECEIVES THIS WARRANTY(PURCHASER):The original purchaser (other than for purposes of resale) of
the Genmax's inverter.
4. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any portable generator supplied or manufactured by
Warrantor.
5. WHAT IS COVERED UNDER THIS WARRANTY: Substantial defects on material and workmanship which occur
within the duration of the warranty period.
6. WHAT IS NOT COVERED UNDER THIS WARRANTY:
A. Transportation changes for sending the product to Warrantor or its authorized service representative for warranty
service, or for shipping repaired or replacement products back to the customer; these charges must be borne by the
customer.
B. Damages caused by abuse, accident, shipping, misuse, overloading, modification, and the effects of corrosion,
erosion and normal wear and tear.
C. Warranty is voided if the customer fails to install, maintain and operate the product in accordance with the
instructions and recommendations set forth in the owner's manual(s), or if the product is used as rental equipment.
D. Pre-delivery service, i.e. assembly, oil or lubricants, and adjustment.
E. Items or service that are normally required to maintain the product, i.e. lubricants and filters.
F. Warrantor will not pay for repairs or adjustments to the product, or for any costs or labour, performed without
Warrantor's prior authorization.
EXCLUSIONS AND LIMITATIONS : Warrantor makes no other warranty of any kind, express or implied. Implied
warranties, including warranties of merchantability and of fitness for a particular purpose, are hereby disclaimed. This
warranty service described above is the exclusive remedy under this warranty; liability for incidental and consequential
damages is excluded to the extent permitted by law.
7. RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:
A. The purchaser must provide dated proof of purchase and must notify Warrantor within the warranty period.
B. Deliver or ship the serviced generator or component to the nearest Warrantor's authorized service representative.
Freight costs, if any, must be borne by the purchaser.
8. HAVE QUESTIONS?
Email: [e-mail] Phone: [phone]

4
LIMITED WARRANTY 3
SAFETY WARNING 5
SAFETY INSTRUCTIONS 6
NAMES OF COMPONENTS 8
CONTROL FUNCTIONS 9
PREPARATIONS 11
1.Fuel............................................................................................................................................11
2.Oil..............................................................................................................................................11
3.Pre-Operation Inspection........................................................................................................12
STARTING UP THE GENERATOR 13
SHUTTING DOWN THE GENERATOR 17
USING THE GENERATOR 18
1.Service Environment of the Generator....................................................................................18
2.Generator Wiring.......................................................................................................................18
3.Generator Grounding.................................................................................................................19
4.Parallel and Series Operation...........................................................................................20
5.Battery Charging.......................................................................................................................21
SERVICE AND MAINTENANCE 22
1.Spark Plug Inspection...............................................................................................................23
2.Adjustment of the Carburetor.....................................................................................................24
3.Replacement of Oil....................................................................................................................24
4.Air Filter......................................................................................................................................25
5.Fuel Filter Screen.....................................................................................................................26
STORAGE AND TRANSPORT 27
1.Generator Storage.....................................................................................................................27
2.Generator Transport..................................................................................................................28
TROUBLESHOOTING 29
TECHNICAL PARAMETERS 31
CHOOSING A GENERATOR 32
TABLE OF CONTENTS

5
SAFETY WARNING
Personal and property safeties of you and others are very vital. Please read the Safety
Warning in the User's Manual and the decals of the generator set carefully.The Safety
Warning can alert you to those potential hazards that could harm you and others. In front
of each Safety Warning, there is one of four words "DANGER" "WARNING",
"ATTENTION", and "CAREFUL". Details are as follows:
Failure to follow the instruction will result in being
in peril of your life or extremely serious injury. Failure to follow the instruction will result in being
in peril of your life or very serious injury.
Failure to follow the instruction will result in minor
injury.
Failure to follow the instruction will result in the
damage to your generator set and other properties.
For portable generators where the neutral is floating, the operator's manual shall include the following wording or
equivalent:
The portable generator stator winding is isolated from the frame and from the AC receptacle ground pin; and
Electrical devices that require a connection between one conductor pin and the grounded receptacle pin may not
function properly.
NEUTRAL FLOATING
CO DETECT technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by
engine exhaust when the generator is running. If CO Sensor detects unsafe elevated levels of CO gas, it
automatically shuts off the engine. CO Sensor is not a substitute for an indoor carbon monoxide alarm or for safe
operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other
openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust
pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
CO TECHNICAL WARNING

6
SAFETY INSTRUCTIONS
Before operating the generator, it will help you avoid accidents to read and understand the Manual and
familiarize yourself with the safe operation procedures of the generator.

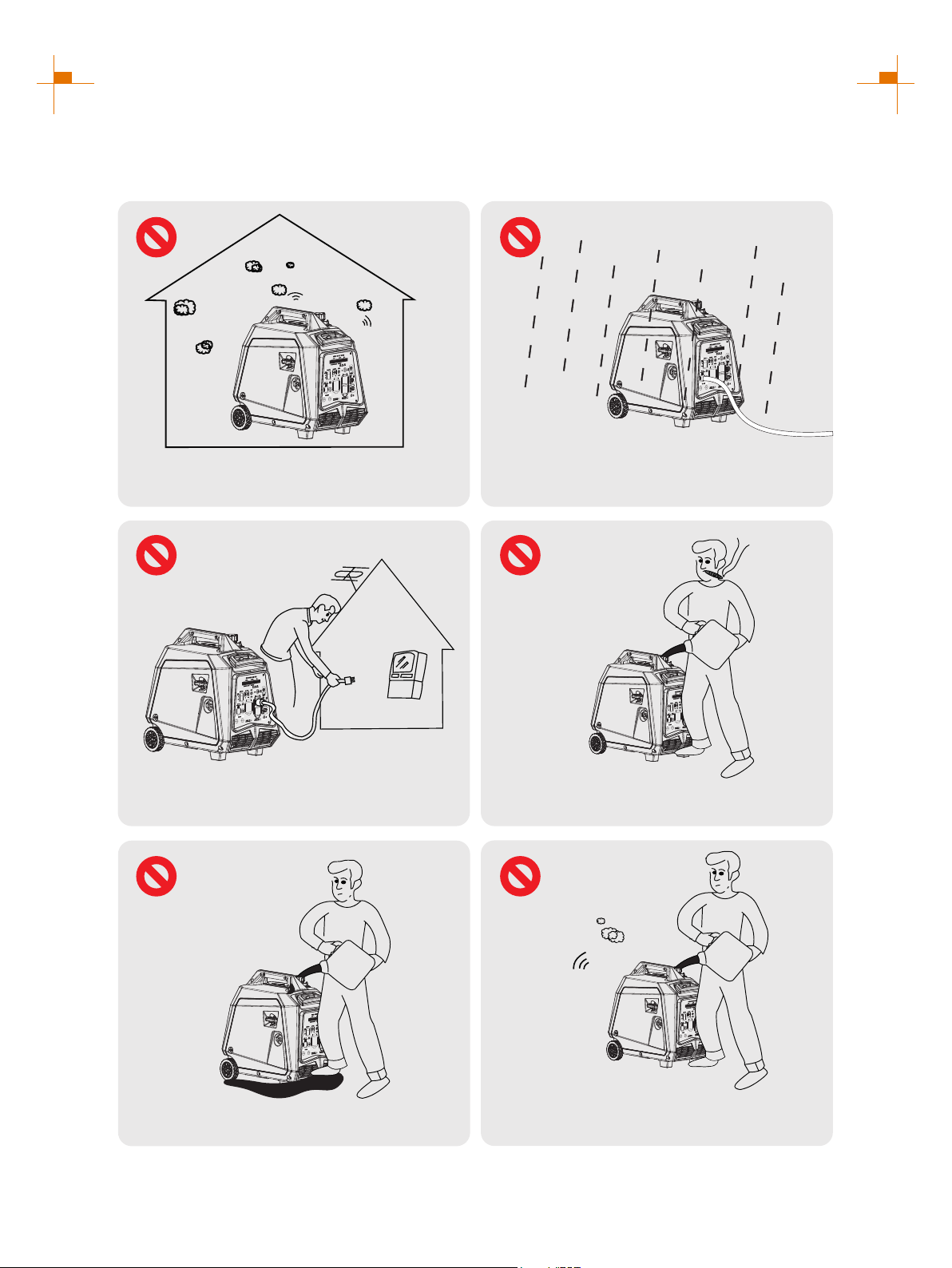

Please do not use indoors Please do not use in humid
environment
Please do not connect it to
household appliances directly Please do not smoke when refueling
Please do not spill when refueling
Please shut down the generator
before refueling

7
SAFETY INSTRUCTIONS
SAFETY LABELS AND DECALS

8
NAMES OF COMPONENTS

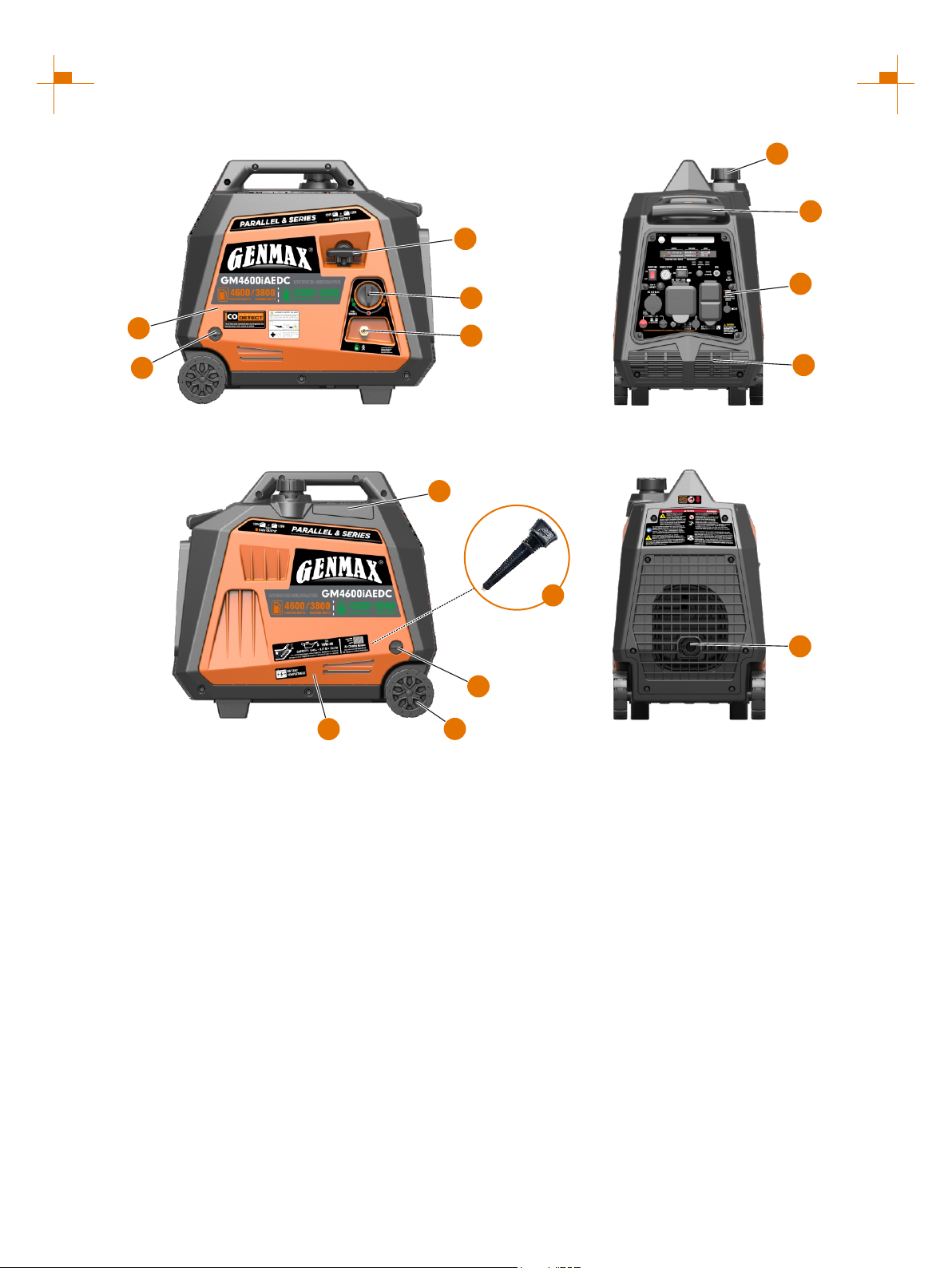

① Fuel Tank Cap: Open the fuel tank cap and fill with
proper amount of gasoline.
② Recoil Handle: Pull to start the engine.
③ Bolt: Remove left (right) outer cover.
④ Left Outer Cover
⑤ Control Panel: Contains the reset breaker, outlets
and warning lights.
⑥ Engine Cooling Vents: Helps move airflow in unit
to regulate engine temperatures.
⑦ Right Outer Cover: Unscrew the bolts to remove
the outer cover, add or replace the oil and maintain the
air filter.
⑧ Muffler: Avoid contact until the engine is cooled
down. The spark arrestor prevents sparks from exiting
the muffler. It must be removed for servicing.
⑨ Spark Plug Access Cover: Remove the cover to
service the spark plug.
⑩ Telescopic Rod
⑪ Wheel
⑫ LPG Inlet: Connects the LPG inlet to the LPG
hose/regulator.
⑬ Fuel Source: GAS/LPG valve that changes the fuel
into the engine.
⑭ Magnetic Oil Dipstick: absorb iron filings in the oil,
it is recommended to screw down the magnetic oil
dipstick and clean it every 50 hours.
3
4
2
1
10
5
6
8
9
3
11
7
14
12
13

9
CONTROL FUNCTIONS
CONTROL PANEL FEATURES GM4600iAEDC
10 11
12
13
14
15
16

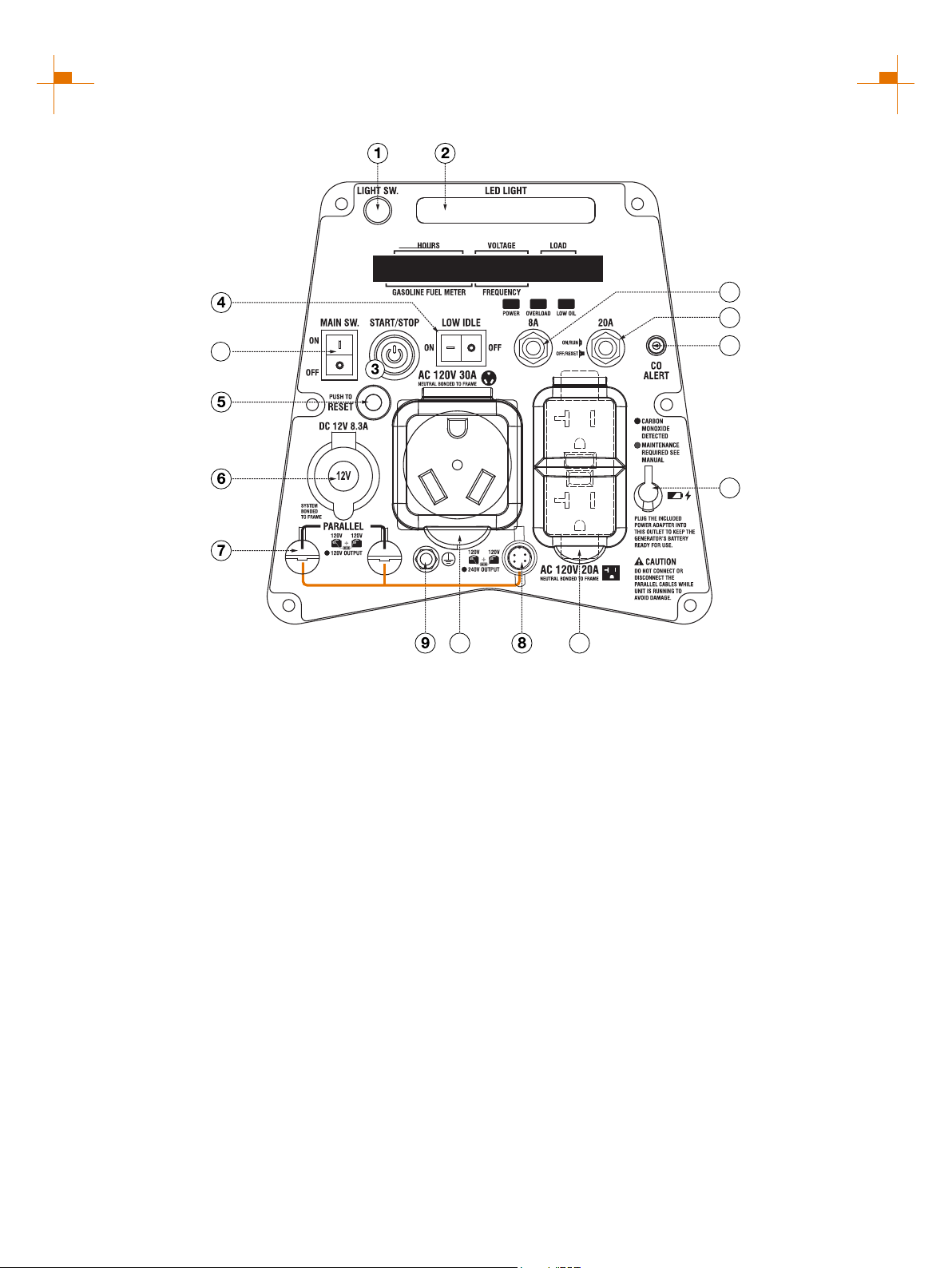

① Light Switch: Press the first time to turn on the LED light and
press the second time to turn off the LED light.
② LED Light: 1. The LED light can be used normally when the
generator is running, and the LED light cannot be used when the
generator shuts down.
2. If the LED light is not turned off, press the one-key start button (or
remote control key) to stop the generator while the main switch is not
turned off, the LED light will automatically turn off after 30 seconds.
3. Press the one-key start button (or remote control key) to stop the
generator and also turned off the main switch, the LED light will go
out immediately.
③ SwitchSTART/STOP : Press this button, the engine can start and
stop.
④ Low Idle Switch: When turned to the ON position, the engine will
sense the load needed and run at a slower RPM to save fuel.
⑤ Reset: If the inverter is overloaded, the reset breaker will trip. The
engine will continue to run, but there will be no output from the
inverter. Unplug the devices and reduce the load. Push in the reset
breaker to reset it.
⑥ DC Cigarette Lighter Outlet: 12V DC 8.3A.
⑦ Parallel Connectors: To increase AC power output, the connector
sockets are used to connect the two same type generators with
special parallel kit GM6000SPK sold by GENMAX. The connector
sockets is only used to connect two inverter generators. They can
not used for AC power output. The special paralleling kit GM6000SPK
shall be purchased separately, and they shall be approved by
certification body.
⑧ Series Connectors :
a. When using parallel kits, two 120V generators can output 240V by
connecting this interface.
b. Connect with the GM1600WH to automatically start or stop
charging the GM1600WH.
⑨ Ground Terminal: The ground terminal is used to externally
ground the inverter.
⑩ 120V AC 30A TT-30R Outlet: The outlet is capable of carrying a
maximum of 30 amps.
⑪ 120V AC 20A 5-20R Outlet: The outlet is capable of
carrying a maximum of 20 amps.
⑫ Battery Charging Port: Charge the generator battery.
⑬ CO Alarm: Flashing red light: dangerous levels of carbon
monoxide gas have built up leave immediately until area has aired
out. Move generator to well-ventilated area before operation. Flashing
yellow light: carbon monoxide sensor malfunction. Sensor needs
service.
⑭ AC Protector: If the generator is overload, the AC protector will
trip to block current.
⑮ DC Protector: If the generator is overload, the DC protector will
trip to block current.
⑯ Main Switch: Manage battery power and shutdown. Tip: If you do
not use the generator for more than 7 days (168 hours), please press
the main switch to the "OFF" position, which can prevent the battery
from running out.
SERIES

10
CONTROL FUNCTIONS
DIGITAL DISPLAY CENTER
① : Represents single run time, goes from 0
at each startup.
② : Represents total operation time of the
generator. (Tip: The total operation time shall start to
accumulate after the generator runs for one hour. It
will not be displayed when the generator runs for less
than one hour. The total operation time shall be
accumulated by hours.) The two factors ① and ② are
displayed alternately every 8 seconds.
③ GASOLINE FUEL METER: Gasoline fuel level
display.
④ VOLTAGE: Voltage display.
⑤ FREQUENCY: Frequency display.
⑥ LOAD: Load power display.
⑦ POWER: Green light means normal operation.
⑧ OVERLOAD: Red light means the machine
overload.
⑨ LOW OIL: Red light means the amount of oil is too
low.

11
PREPARATIONS
Fuel
1
DANGER
• Fuel is flammable and toxic, please read the Safety Instruction carefully before refueling;
• Do not fuel too full, otherwise fuel will spill after fuel tank is warmed;
• After refueling, confirm that the fuel tank cap has been tightened.
ATTENTION
• After refueling, dry gasoline residue with a clean and soft cloth in time to avoid damaging plastic
enclosure;
• Unleaded gasoline must be used, as leaded gasoline can seriously damage internal parts of the
generator;
Remove fuel tank cap, and add gasoline to red horizontal indicating line oil level.
Fuel tank capacity: 1.6gal (6L)
Oil
2

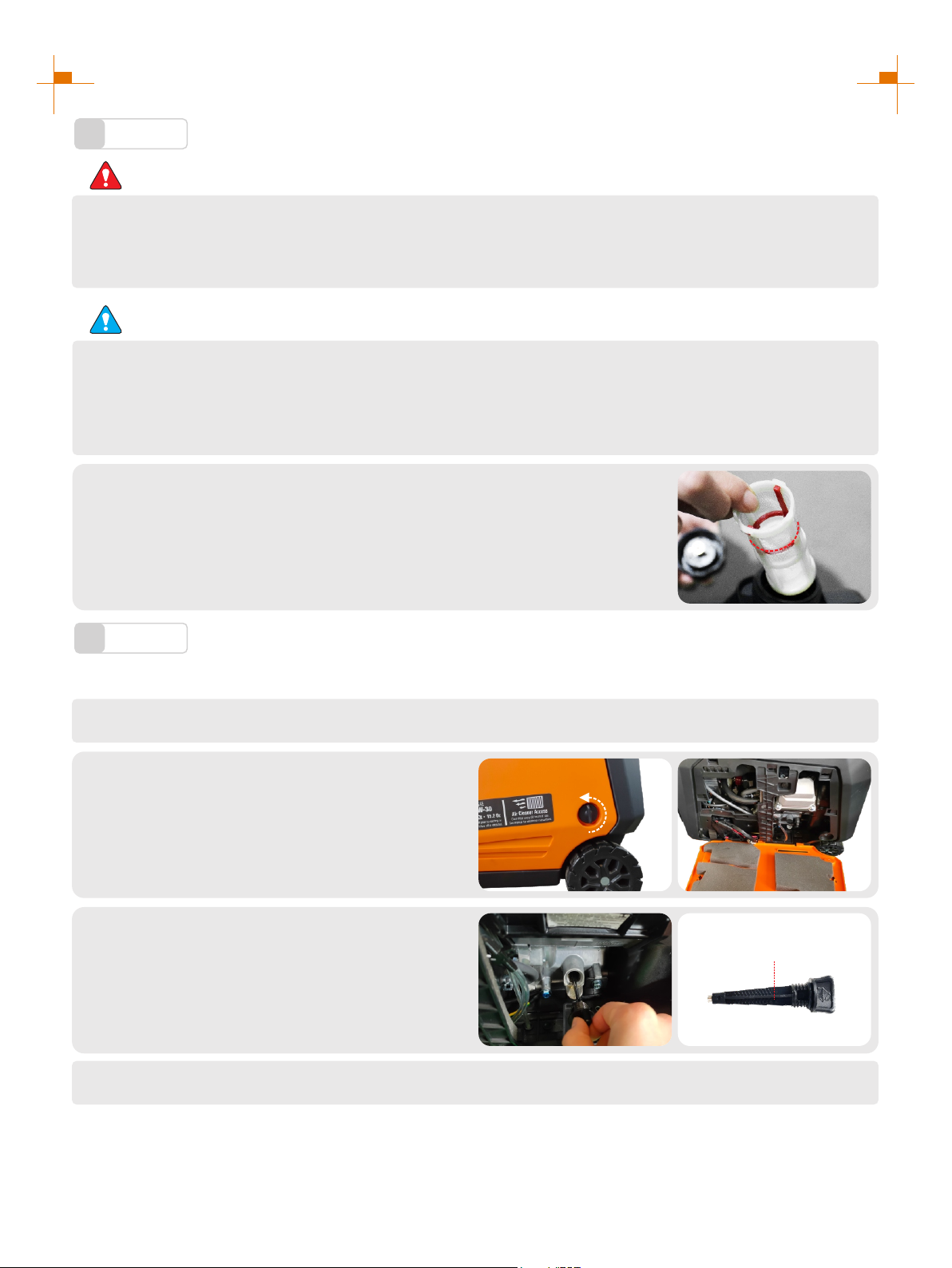

No oil is filled into this generator when being delivered. Do not start up the generator without filling sufficient oil.
Please place the generator onto a horizontal plane surface;
1.
Loosen the knob on the right cover
counterclockwise and remove the right cover;
2.
Unscrew oil dipstick, Fill in 0.12gal(0.45L) oil
(SAE 10W/30 oil is recommended, of which
the grade is API standard Type SE or higher);
3.
Reinstall the right exterior cover and tighten the knob.
4.
Don't go over the scale

12
PREPARATIONS
Pre-use Inspection
3
WARNING
Even if the generator is not in service, its important component may suddenly fails. Before the
generator is started up, if any of following components is unable to work properly, please inspect
and repair carefully.
Tip: The condition of the generator shall be inspected before using every time.
Pre-operation inspection
Project Possible Causes Probable Solutions
Fuel Check fuel level in fuel tank of the generator. Add fuel if necessary.
Oil
Check oil level of the generator. Add oil if necessary.
Check whether there is oil leaking.
Abnormal
conditions
during
operation
Check operating condition of the generator. If there is any need, please do not hesitate to
consult your dealer.
Battery Check whether the battery is full. See the “Battery Charging” page.

13
STARTING UP THE GENERATOR
Remove the load from all output ends;
1.
Connect battery line before first use:
1. Loosen the knob on the right cover and remove the cover;
2. Connect the positive and negative electrodes of the battery.
Tip: Connect the same color wires together, do not connect the wrong
positive and negative wires.
2.
Move the LOW IDLE Switch to "OFF";
4.

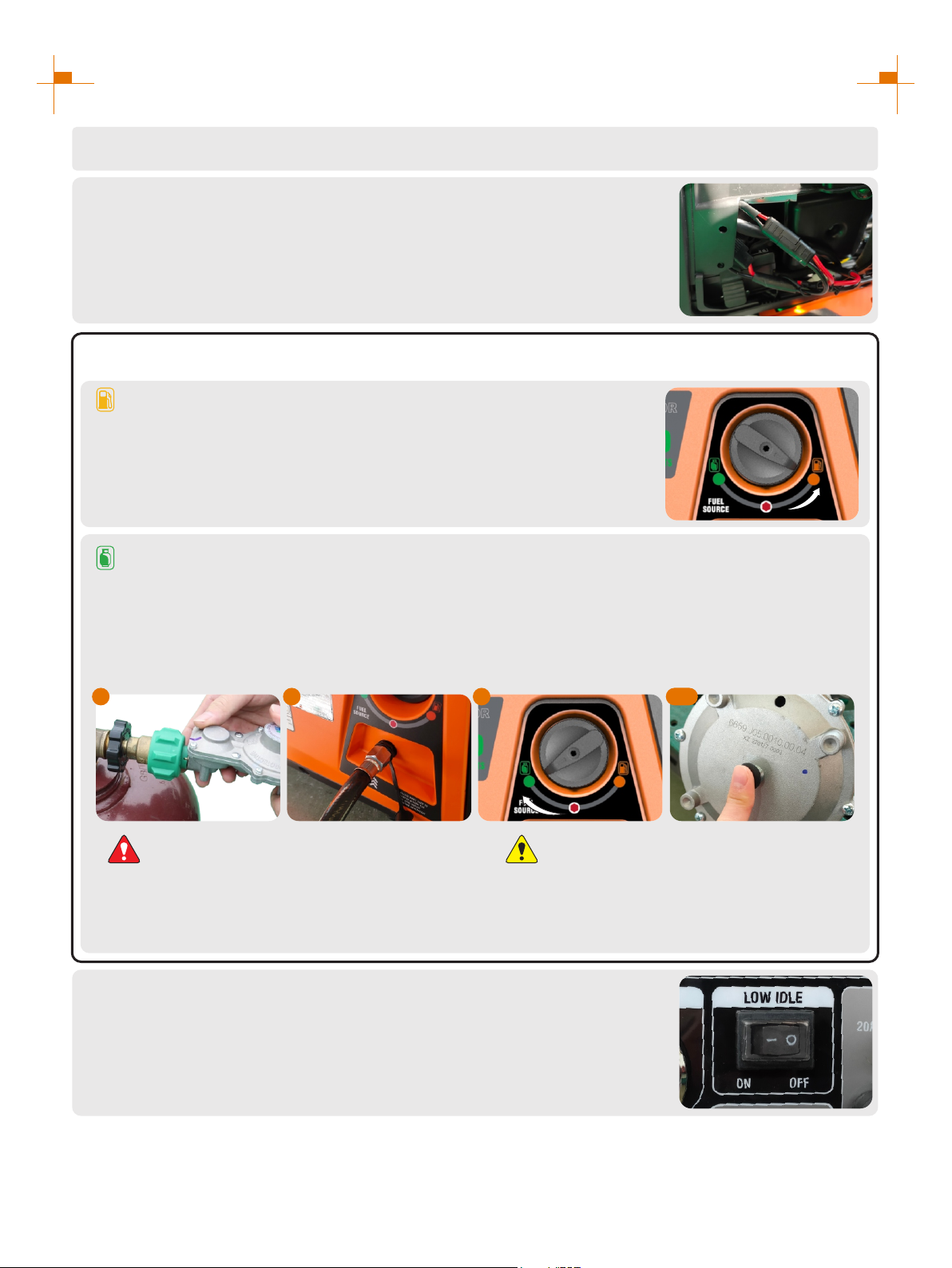

a. Gasoline: Turn the Fuel Source Switch to gasoline.
3.
b. LPG:
1. Connect the LPG hose to the LPG tank.
2. Tighten the other end of the LPG hose to the generator intake.
3. Turn the fuel source switch to gas.
Tip: If the cold engine fails to start many times, press the thickening valve button on the
secondary pressure reducing valve for 2-3 seconds to thicken the gas.
Select the Fuel:
1 2 3 Tip
DANGER
Fire and explosion hazard. Always turn the propane
tank valve to the fully closed position if not running
the generator on propane.
WARNING
When using the generator with propane, make
sure there is no possible ignition source close to
the generator.

14
STARTING UP THE GENERATOR
Plug in after started.
7.
Remote Control Pairing
1. Long press the start button for more than 5 seconds until the button red indicator is on;
2. Press any key on the remote control;
3. The red indicator of the start button will blink two or three times and then turns off, Remote start pairing is
successful.
Tip: The remote control delivered with the generator has been paired successfully.
1 2 3.1 3.2
Select Boot Mode:
a. Recoil Start: Pull the starting handle to start the generator.
b. START/STOP Button Switch: Press the button to start the generator.
Tip: If the red light keeps flashing fast, the generator does not start successfully. Press the button to
turn off the red light, and press the button again to start the generator.
c. Remote Start: Press the "START" button on the remote control to start the generator.
6.
abc
TIP
Remote Control Key Dormancy
When generator stops running for 5 days (120hours), while the main switch is not turned off, the remote
control key cannot be used to start the generator again. At this time, you need to turn off the main switch
and turn it on again, or press the one-key start button (or hand start) to start the generator, and the remote
control key will be reactivated.
Move the Main Switch to "ON";
5.

15
STARTING UP THE GENERATOR
LPG startup is difficult ?
When both gasoline and propane are present in the generator it is recommended to start the generator on
gasoline first, allow the engine to stabilize then switch to propane.
1. Ensure the LPG supply hose is securely attached and Close the LPG valve
completely.
2. Fuel source rocker switch to “GASOLINE”.
3. Follow the startup steps to start the generator.
4. Open the LPG valve completely.
5. Fuel source switch to “LPG”.
OPEN
CLOSE
Electric start and remote start no response ?
1. Check whether the positive and negative electrodes of the battery are correctly connected.
2. Check whether the battery is charged.
3. Check whether the remote control is powered on.
COMMON PROBLEMS WITH STARTING THE GENERATOR:
Start the generator to run normally without output ?

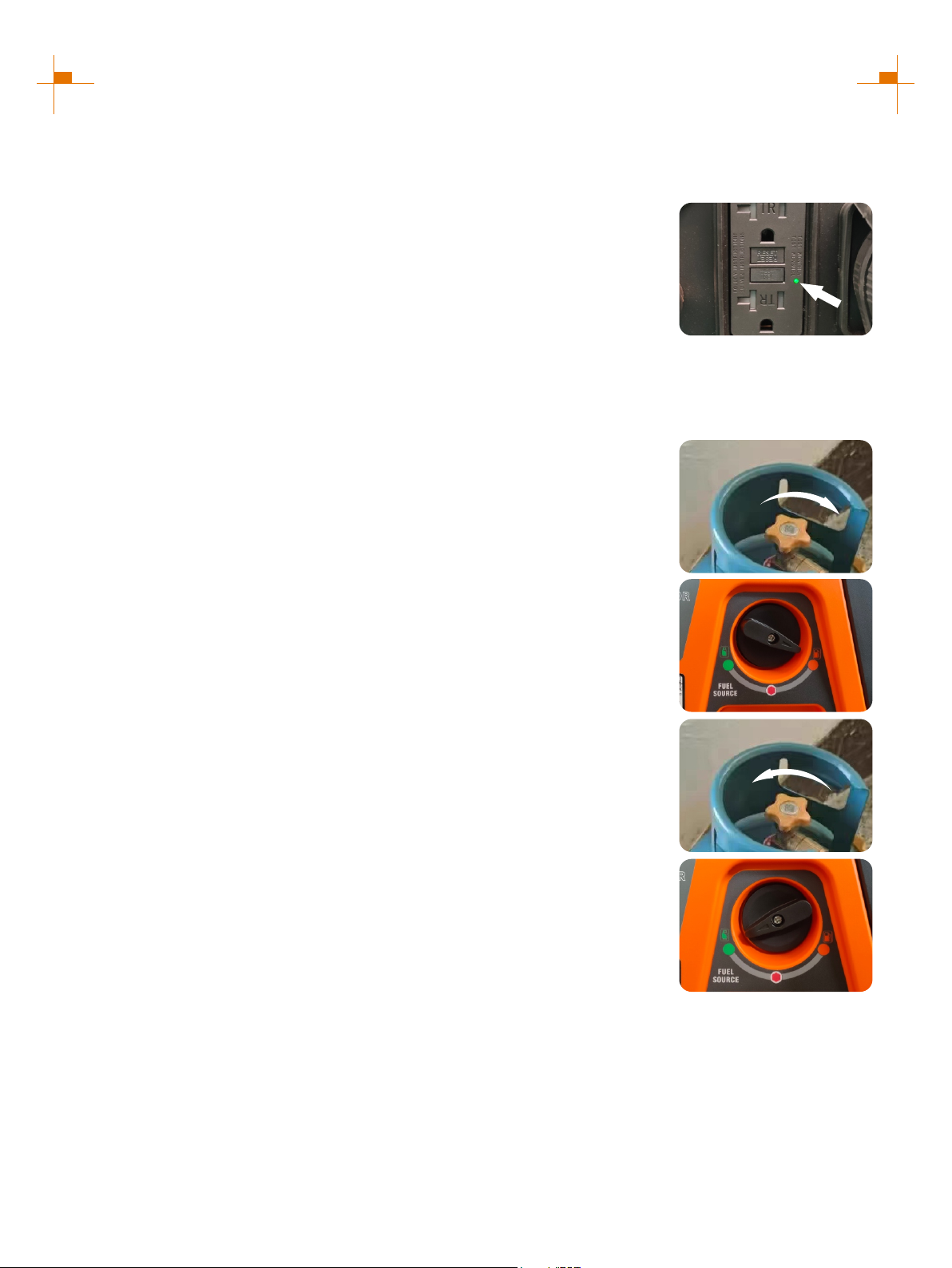

Check whether the green light of the GFCI socket is on.
If the green light is not on, press the RESET button after the generator is started to
make the green light on.
Tip: When the generator is not started, the GFCI socket is in the protected state and
the "RESET" button cannot be pressed.

16
STARTING UP THE GENERATOR
Parallel Operation
The parallel connection ports allow you to connect two generators to increase the total available electrical power.
Follow the instructions included with your parallel connection kit for proper installation and operation.
Overload Indicator
Note: The OVERLOAD light may turn on for a few seconds as a large device starts. This is normal for loads
approaching the capacity of this generator.
1. The total combined load through the outlets on the generator must not exceed the running power of the unit.
2. If the OVERLOAD light turns on and the generator stops producing power, it has been overloaded.
Low Oil Indicator
1. If the engine oil level is too low, the LOW OIL light turns on and the engine will automatically shut off.
2. The engine cannot be restarted until the proper amount of oil has been added. Add the appropriate type of oil
until the oil level is at the proper level. SAE 10W-30 oil is recommended for general use.
Do not run the engine with too little oil. Engine will shut off if engine oil level is too low.
Low Idle
1. Turn on a Low Idle Switch to limit noise and fuel consumption with a light generator load.
2. Turn off the low idle mode to run the engine at full speed under the following conditions:
● Starting the generator.
● If the load exceeds 50%, it is recommended to turn off the low idle mode.
AT T E NT IO N
3. Turn off and disconnect all electrical devices and stop the engine. Compare device requirements to generator
rating and reduce the total wattage of connected devices if necessary. Move anything that may be limiting
generator ventilation away.
4. Check if any circuit breakers have tripped and make sure that ALL circuit breakers are reset before starting the
generator again.
5. Restart the engine and reconnect devices while being careful to not overload the generator.

17
SHUTTING DOWN THE GENERATOR
Unplug the power cord;
1.
Select Stop Mode:
a. START/STOP Button Stop: Press the button
to turn off the generator.
b. Remote Stop: Press the "OFF" button on the
remote control to turn off the generator.
2.
ab
Set the Fuel Source Switch to the off position.
4.
Move the Main Switch to "OFF".
3.

18
USING THE GENERATOR
Service Environment of the Generator
1
• Applicable temperature: -5°C~ 40°C;
• Applicable humidity: below 95%;
• Applicable altitude: regions below 1,500 m (It shall be used by reducing power in regions above 1,000 m).
Standard atmospheric condition
• Ambient temperature Tr: 298k (25°C)
• Relative air humidity Фr: 30%
• Absolute atmospheric pressure Pr: 100kPa
When actual environmental condition is inconsistent with the condition of output power of the generator
set:
• Every 5°C of increase in ambient temperature will reduce the power of generator by about 2%.
• Every 30% of increase in relative humidity of air will reduce the power of generator by about 1.5%.
• Every 300 m rising of ASL will reduce the power the generator by about 4.5%.
Generator Wiring
2

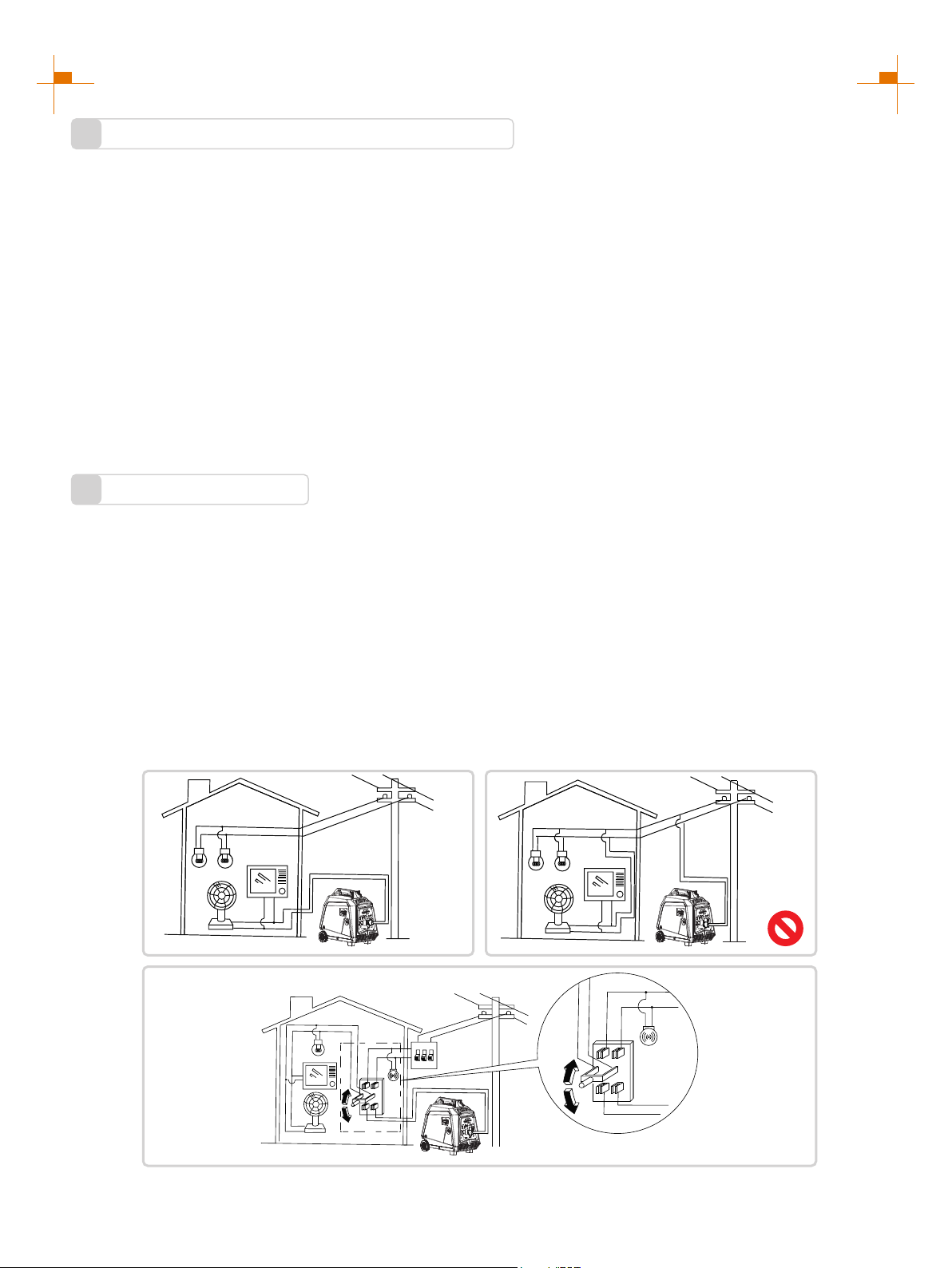

• When the generator is connected to household power source as a backup power supply, the connection shall be
carried out by a professional electrician or a person familiar with electricity.
• After connecting the load to the generator, check carefully whether electrical connection is safe and reliable.
Improper electrical connection may cause generator damage, burning or fire.
• Avoid connecting this generator to commercial power outlet.
• When extending the cable, be sure not to exceed its length.
① 60m cross-section area is 1.5mm²
② 100m cross-section area is 2.5mm²
• The appearance of extension cable shall be protected by a layer of tough and elastic rubber cover (IEC25) or
other substitutes.
OK
OK

19
USING THE GENERATOR
Connection of AC power
WARNING
All electrical equipment shall be disconnected before inserting the plug.
ATTENTION
• Make sure that all electrical equipment, including wires and plugs, are in good condition before
connecting to the generator;
• Make sure that all loads driven by the generator are within rated load range;
• Make sure that load current is within rated current range of rated socket.
Tip: Make sure that the generator set is grounded, and if electrical equipment requires
grounding, the generator set must be grounded.
① Start up the engine;
② Turn energy-saving switch to "ON";
③ Insert the plug into AC outlet;
④ Make sure that AC indicator is lit up;
⑤ Switch on electrical equipment.
Tip: Before increasing engine speed, energy-
saving switch must be switched to "OFF". If the
generator set supplies power to multi loads or
electrical equipment, start from large to small
according to the size of each electrical
equipment.
Generator Grounding
3
① Please use grounding wire with sufficient electrical energy capacity;
② Connect one end of grounding wire reliable to grounding bolt on control panel
of the generator set;
③ Insert grounding body (iron rod with a diameter of 5 ~ 10mm) 200mm below
into the earth and lead it out with conductor;
④ Connect the other end of the grounding wire reliable to the led wire of
grounding body.
In order to prevent any damage to the generator caused by electric shock or improper electrical application, it is
recommended that the generator is grounded with good conductor with insulating sheath.
Tip: How to change the grounding method please refer to the website: https://www.genmaxpower.com/page/faq
