Contents
1 – Safety Guideline
2 – FCC compliance statement
3 – Product Structure and Accessories
4 – Assembly Guide
5 – Product Parameters
6 – Laser Focusing
7 – Resources Download and Software Setup
8 – Custom PC Engraving Software Introduction
9 – LaserGrbl & LightBurn Software Introduction
10 – APP Download & Introduction
11 – FAQ
01
02
03
06
11
12
13
17
22
32
38

01
Safety Guideline
Always exercise safety and caution when working with laser marking systems. Consider the listed
recommendations to minimize risk:
● You must be at least 13 years old to operate the laser engraver.
● Direct exposure to the laser beam can cause severe burns and eye damage. Ensure that you are wearing proper laser
safety goggles when working in the vicinity of the laser equipment.
● When you focus the laser do so only on the lowest power setting.
● Keep a fire extinguisher nearby since use of the laser may lead to an unexpected fire.
● Never leave an operating laser unattended.
● Fumes and smoke generated during the engraving/cutting process must be extracted from the room as some can be
poisonous; make sure there is a ventilated system to the outdoors.
● Make sure the cutting area under the laser is metal or non-flammable.
● Ensure that the room or area you are operating the laser in is sufficiently labeled to prevent someone from
unknowingly walking into an active work area.
● Be sure to disconnect the power when cleaning, maintaining or servicing the laser equipment.
● DO NOT stare at the bright and intense light appearing during the engraving process. Doing so can cause serious eye
damage.
● Never use the laser except for the purpose intended.
SainSmart does not accept any responsibility or liability for any use or misuse of the Laser.

02
FCC compliance statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.

Product Structure and Accessories
03
1Front View 2Top View
3Rear View 4Right View
Laser Eye Protection Shield
Laser Head Module
USB Port for PC
DC Power Jack
Internal Control Board
USB Port for Rotary Attachment
Repeat Last Project
Power Button
Spiral Cable 01
Right Module
Spiral Cable 02
Rear Module
X-axis Module
Focusing Tool
Right Module
Laser Head Module
Front Module
Left Module

Left Module,
1pcs
Right Module,
1pcs
Rear Module, 1pcs
Front Module, 1pcs
X-axis Module, 1pcs
Spiral Cable 01,
1pcs
Spiral Cable 02,
1pcs
Product Structure and Accessories
04
Laser Head Module
1pcs
Cable Clip,
6pcs
Spring Washer
Label: N6
4pcs
X-axis Limit Switch Cable
1pcs
Left & Right Module
Connection Screws
Label: S5
8pcs
Laser Head Module
Connection Screw
Label: S10
4pcs
X-axis Connection Screw
Label: S7
4pcs
Laser Head
1pcs

Product Structure and Accessories
05
Accessories Details
Power Supply*1 USB Data Cable*1 USB Flash Drive*1
Kraft Paper*4 User Manual*1
Laser Safety Glasses*1
(Optional)
Rotation Module
(Optional)
Height Extension Unit
(Optional)
1. Power Supply: Supply power for the engraving machine.
2. Data Cable: Connect the computer and the machine.
3. USB Flash Drive: Contains drivers, engraving software for PC, user manual and video instruction.
4. Assembly Tool Set: Includes Allen Wrench*1, Phillips Screwdriver*1 and Flat-head Screwdriver*1.
5. Kraft paper: Sample materials to evaluate your laser engraver.
6. User manual: Introduction to engraving machine and operations
7. Laser Safety Glasses (Optional): Protects your eyes from hazardous laser eye exposure.
8. Rotary Attachment (Optional): Optional add-ons to engrave cylindrical objects; an additional USB cable is needed.
9. Height Extension Unit (Optional): To increase the machine height to engrave thicker materials.
Note: Our current rotary module (SKU: 101-63-LRR) is not compatible with the Jinsoku LC-40. Please stay tuned for the
compatible one.
Assembly Tool Set*1

Assembly Guide
06
Left Module (a)
Front Module
Left & Right Module
Connection Screws (S5)
Rear Module
Right Module (b)
Assembly Step 01:
1. Connect Stepper Motor Cables for each Y axis Arm- Left (a) and Right (b)
to Rear Module (Contains Mainboard, I/O Connections).
2. Remove the Rear Module Cover for cable management.
3. Align the two modules – Left (a) and Right (b) with 2 of the provided
Left & Right Module Connection Screws into the screw holes and tighten
them with the included 4mm hex wrench.
4. Repeat the steps above to assemble remaining frame modules. (X Axis
Module excluded).

Assembly Guide
07
X-axis Module
X-axis Limit Switch Cable
Assembly Step 02:
1. Connect the stepper motor cable and the limit switch cable of the Left Module and
X-axis Module.
2. Per the diagram place the cables into the cable channels.
3. Place the X-axis Module on the Left Module and Right Module and align the X-axis
Module with the positioning pin on the Left Module.
4. Turn the machine over and place it on the desktop before proceeding to the next step.
X-axis Connection Screw (S7)

X-axis Connection Screw (S7)
X-axis Module
X-axis Connection Screw (S7)
Limit Screw
Limit Screw
Limit Screw
Assembly Guide
08
Assembly Step 03:
1. Push the sliders on both sides of the Y-axis (left
module and right module) on the limit screws as
illustrated to ensure that both sliders are aligned.
2. Insert four X-axis Connection Screw (S7) into
the screw holes and tighten them with a 2.5mm
hex wrench.
3. Remove the limit screws when all four X-axis
Connection Screw (S7) are properly tightened.
X-axis Module

Assembly Step 04:
Align the X-axis module with the laser head module. Place the Spring Washers(N6) into the Laser Head Module Connection
Screws (S10) and insert four screws (S10) into the laser module mounting holes. Then align them with the screw holes on the
laser module and tighten them with the included 2.5mm hex wrench.
Laser Head Module
Spring Washer (N6)
Laser Head Module
Connection Screw (S10)
Assembly Guide
09

Assembly Guide
10
Spiral Cable 02
Spiral Cable 01
Cable Clip
Cable Clip
Cable Clip
Spiral Cable 02
Spiral Cable 01

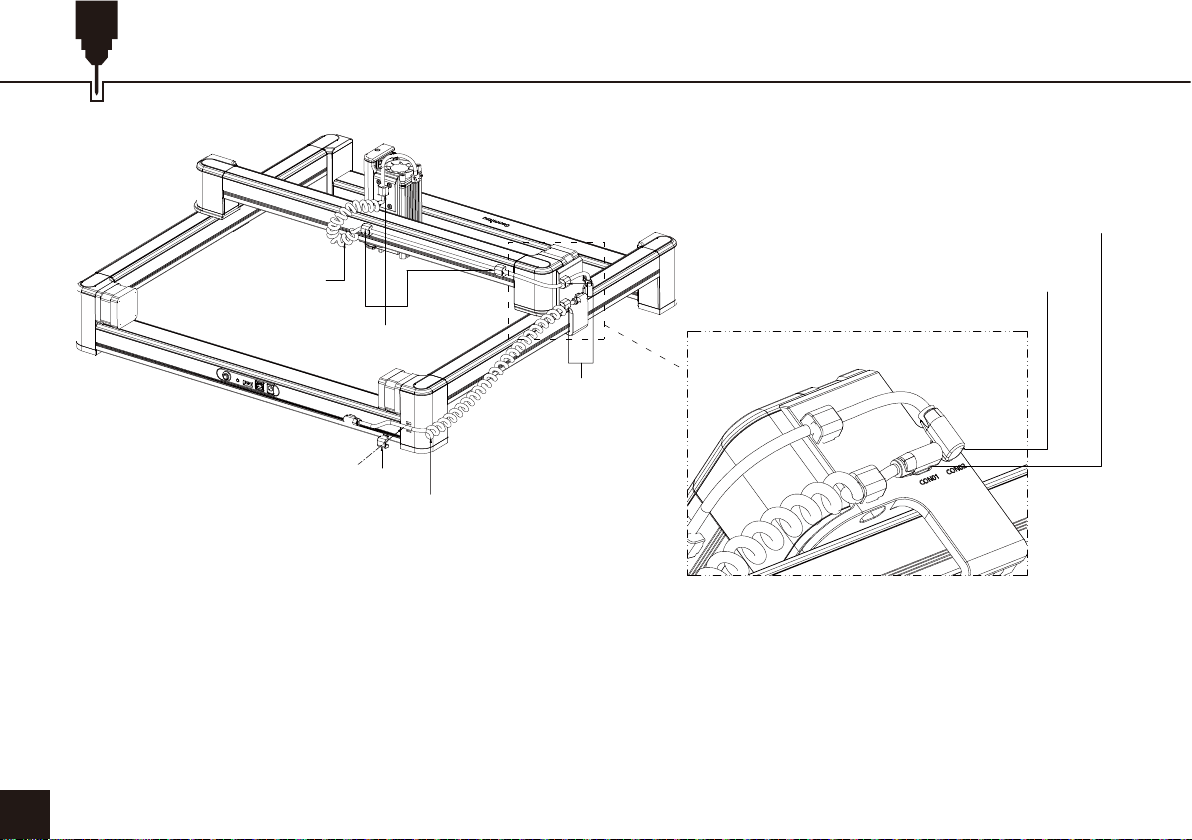

Assembly Step 05:
1. Connect the Front Module and X-axis Module with the Spiral Cable 01 and plug the type-c interface to the CON01 Port on the
Right Module.
2. Fix the Spiral Cable 01 on the Right Module and the X-axis Module with Cable Clip 01.
3. Connect the Right Module and Laser Head Module with the Spiral Cable 02. Plug the type-c interface to the CON02 Port on
the Right Module. The three-pin connector on the other end should be connected to the corresponding connector on the Laser
Head Module.
4. Use Cable Clip 02 to fix the spiral cable on the X-axis Module and Right Module.

Product Parameters
11
Model
Material
Laser Head
Max. Z-axis Material Height
Focal Distance
Power Supply
Data Interface
Cooling
Machine Power
Laser Electric Power
Laser Optical Power
Laser Wavelength
Laser Service Time
Spot Shape
Laser Control
Engraving Area
Engraving Accuracy
Engraving Speed
Engravable Materials
File Format
Supported OS
Product Size
Package size
LC-40
High-strength aluminium alloy profile + high-speed linear guide + ABS engineering plastics
5MM Fixed Focus
0.1-76mm
5mm
DC005, DC12V/5A
USB Type-B (Square USB Interface)
Passive+ Forced Air Cooling
<60W
10~20W (Standard); 20~40W (Upgradeable)
>4.5W (Standard); >8W (Upgradeable)
455nm
>10000H
Point
PWM
Work Area: 395×365mm; Motion Area: 400×400mm
0.1-0.2mm (Standard); 0.05-0.08mm (Upgradeable）
≤170mm/s
Cardboard, plywood, non-transparent plastic, cloth, leather, stone, glass, stainless steel and metal
with oxidized spray paint
JPEG/BMP/GIF/PLT/PNG/DXF/JPG/XJ/HPGL
Win7/Win8/Win10/MAC/IOS/Android
553.5X543.5X207mm
325.5X570X115mm

Laser Focusing
12

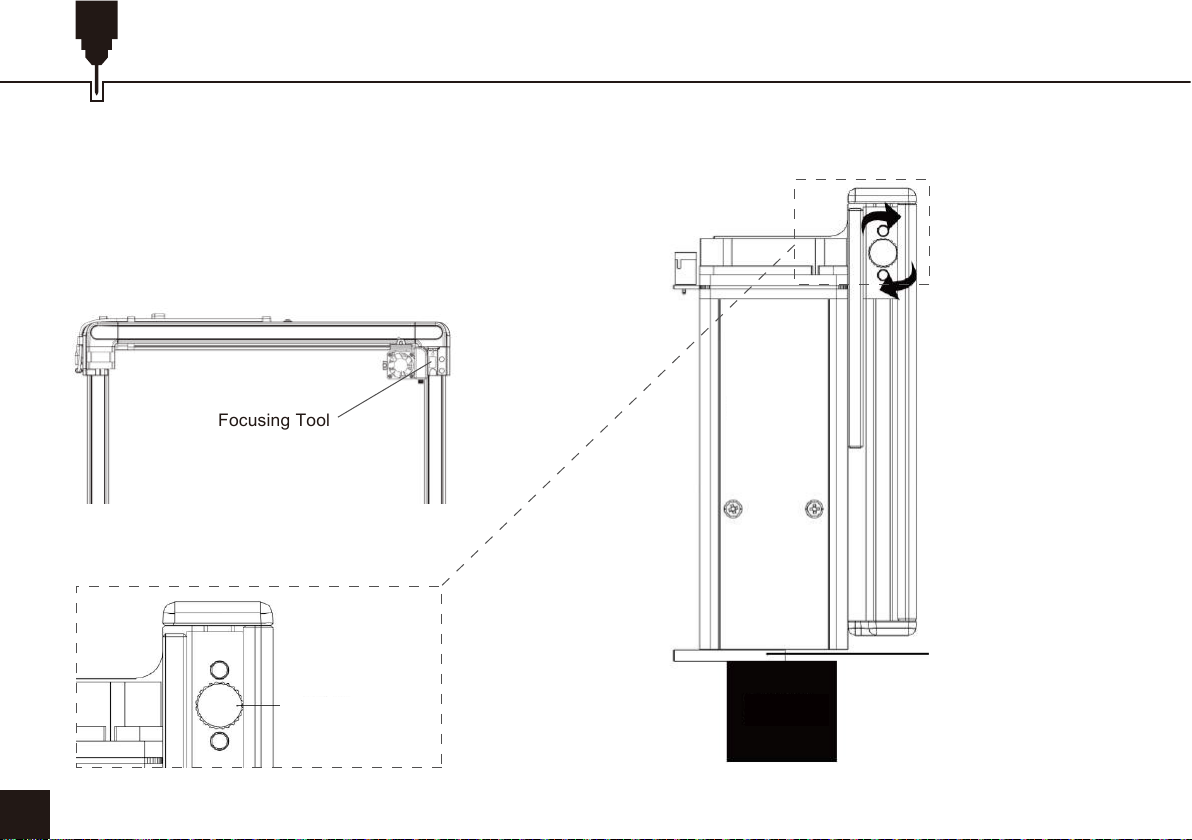

Instructions to adjust laser focus:
1. Place the focusing tool on the engraving material, manually
adjust the slider up and down to move the laser module close
to the focusing tool. The laser module is now focused, and
you can place the focusing tool back to the holder.
Lifting platform
Focusing tool 5mm
Turn the knob
counterclockwise,
move the laser
module 5mm above
the workpiece, then
turn it clockwise to
lock the laser
module.
Laser
module
Engraving
material
Focus
Adjustment Knob
Focusing Tool

Resources Download and Software Setup
13
Resources Download:
Method 1: Driver, software, sample picture and
instructions can be found in the USB flash drive that
comes with the machine. (Note: We recommend you to
copy all files to your computer when you use it for the
first time in case the flash drive get lost.)
Method 2: Download it from SainSmart Resources Center
All files included in the flash drive can also be
downloaded from SainSmart Resources Center:
https://docs.sainsmart.com/lc-40 or the following QR Code.
1. Driver Installation on Windows:
File Location: USB Flash Drive/01-windows/driver/driver.exe
Locate and double-click the .exe file to start the installation
program, click "install" to install the driver. When you see a
dialogue box that reads "The driver is successfully
pre-installed in advance", Click "OK" to finish the installation.
Scan QR code to download software and
user manual ↓↓↓
Driver Installation on Windows
Click “Install”
5
Click “Confirm” to
complete the installation
6

Resources Download and Software Setup
14
Note: If you get an alert from your antivirus software when installing the engraver software, please add it as an exception
to your antivirus software to allow it to install and operate. As an executable program, the engraving software sometimes
receives false-positive alerts from some antivirus software.
3. Machine Connection on Windows:
Connect the machine to the computer with the USB cable.
Open the engraving software — click the "connect device"
icon — the machine is successfully connected to your
computer when the icon turns blue.
Double click the
software icon
Click the “connect
device” icon
1
The machine is connected
when the icon turns blue
3
2
Connect the Machine
2. Software Installation on Windows:
File Location: USB Flash Drive/windows/software/
Laser_2.0.4(211018)/
Double-click the file icon to start the setup process, and
the software is successfully installed when the progress
bar reaches the end.
5
1 2
34
The software is successfully
installed when the progress
bar reaches the end.

Resources Download and Software Setup
15
1 2 3
4
78 9
56
Click “Continue” Enter computer password
Click “Continue Installation” Continue Installation Complete Installation
File Location: USB Flash Drive/02_MAC/driver/ CH34x_Install_V1.5.pkg/
Double-click on the package(.pkg file) and an installation wizard for the application. The installation wizard then performs
all the necessary tasks to install the driver correctly.
4. Driver Installation on Mac OS：

Resources Download and Software Setup
16
1
3
4
6
5
2
5. Software Installation on Mac OS：6. Machine Connection：
Double click the .dmg file Drag and drop the software
to the Application folder
Complete installation
File Location: USB Flash Drive/02_MAC/software/Engraver/
Locate and open the disk image(.dmg file), drag and drop the
software to the Application folder, the software is successfully
installed.
Connect the machine to the computer with the Type-C
cable.
Open the engraving software — click the "connect device"
icon — the machine is successfully connected to your
computer when the icon turns blue.
Double click the software icon
1 2
The machine is connected
when the icon turns blue
3
Connect the Machine
Click the “connect device”
icon

Custom PC Engraving Software Introduction
17
User Interface
1
2
3
4
5
6
7
8
9
Open
Load photos from computer.
Save
Save the edited texts and photos.
Input Text
Create/edit text, change font family, font style, font
size and text rotation etc.
QR code
Create QR code
Bar Code
Create Bar code
Graphics
The graphics creation tool helps you quickly create
graphics, including circles, squares, hearts and
stars.
Connect the device
Click to connect the machine with your PC. The icon turns blue if the machine is successfully connected.
Help
Link to SainSmart Resources Center, where you can find software, user manual, and video tutorial for the machine.
1 2 3 4 5 6 7 8 9
3
7
Settings
You can set the power of your laser here for test firing and framing of projects. You can also enable/disable the rotary attachment
here.
Rotary Roller

Custom PC Engraving Software Introduction
18
Engraving Settings
1
2
3
Engraving Power
Adjust the power level to engrave different
materials.
Engraving Speed
Set the engraving speed. The engraving speed
determines the engraving depth.
Contrast
Adjust the Contrast slider to increase or decrease
the text/photo contrast.
4
5
6
7
Filling Density; Filling
The filling effect can only be effective for vector graphics, select vectorization; Click “Fill” to apply the effect, drag the fill slider to
adjust the filling density.
Engraving Times
Sets how many times the laser runs with this engraving job.
Width; Height
Customize the width and height of the text/photo.
Lock Aspect Ratio
Preserve the relative width and height when you resize the image or text.
Contrast 16 Contrast 50 Contrast 80
1
2
3
4
5
6
7
