Geo Knight DK7 User manual
Version 2-11
Digital Knight
Cap, Label and Twin
Digital Clamshell Presses
Contents
(DK7/DK7T Only)
Temperature
°F/°C Indicator
Ready/Heating Indicator
Open/Timing/Done Ind.
Time
Pressure Bar Graph
TEMP key
PRG key
Up/Down Arrow keys
Default Operating Mode of Controller
Introduction
Handle
Pressure Knob
Heat Platen
Clamp/Linkage
Gas Spring
Silicone Pad
Lower Table
Pedestal
Hold-down Device
Gibb Plates
Base
Setup & Suggestions
• Locate the press on a rm, sturdy work surface. It is recommended to
bolt the press to a workbench using the rear and front mounting holes
on the base frame. The clamshell presses can “hop” when opened
abruptly, especially with the auto-release upgrade. This can cause
undesirable movement of the work on the bottom table. Bolting the
frame of the press to the workbench greatly reduces this.
• The height of the bench/work space the press is located on would be
ideally 27” to 32” high. The higher the press, the more difcult to
close/lock.
• Attach the power cord from the rear to the backside of the controller.
There is a power inlet on the back panel of the control box for the
power cord.
• Make sure the power cord can not be pulled on. Make sure there is no
tension on the inlet socket that the power cord plugs into
• The press should remain in the unclamped OPEN position when not in
use. Do not leave the heater block closed on the table when not using,
unless transporting.
• Do not leave the platen down on the silicone pad when heating. Always
leave the heat platen in the UP position.
Normal Operation
Normal Operating Mode
Setting Temperature
Setting Time
Pre-Press Timer
Setting Pressure
WARNING: The heat platen
will become detached from the frame
and drop onto the table if it is adjusted
too far.
Please use caution when attempting
to increase pressure by turning the
knob to the left (unscrewing: counter-
clockwise).
Cap Hold-down Device (DK7/DK7T Only)
Aligning the Pedestal
Optional Forms / Custom Pedestals
Guidelines & Standard Settings
The following information covers some basic guidelines for pressing,
as well as some generic parameters for basic heat transfer applications.
• When pressing shirts, it is often recommended that the shirts be quickly
pressed for 2 to 4 seconds before transferring to remove wrinkles and water
content.
• When pressing two sides of a garment, pull the garment over the table so
that the printed side drapes underneath the table. This will avoid reheating
previously transferred designs on opposite sides of garments. It will also
avoid any bleed-through of inks on lighter fabrics.
• Avoid laying collars, cuffs, zippers, and other bulky parts of garments
on the lower table, as these can adversely affect pressing conditions, and
reduce the life of the silicone pad.
• When pressing rigid substrates (plastics, metals, woods, etc.), be sure that
any protective lms or laminates are removed before heating.
• Always check that the transfer image is face down against the material, to
avoid sealing the image against the heat platen instead of the substrate.
Always follow the transfer media suppliers instructions when
pressing. The information below is for general reference only, and may
not be as accurate as the instructions provided by the transfer media &
imprintable substrate supplier.
• Hot Split Supplier Transfers 350-375°F, 8-10 secs
• Puff Transfers 350-375°, 5-7 secs (extra heavy pressure)
• Ink-Jet Transfer Papers 360°, 15-18 secs
• ColorCopy/Laser Transfer Papers 375°, 20-25 secs
• Sublimation Inks (Polyester Fabrics) 400°, 35 secs
• Sublimation Inks (Plastics) 400°, 1 min, 15 secs
• Sublimation Inks (Metals) 400°, 1 min
• Sublimation Inks (Woods) 400°, 1 min, 15 secs
• Sublimation Inks (Ceramics) 400°, 4 min
ERR Mode
Over-Temp Alarm
Loading a Preset
Programmable Presets
How Presets Work
Editing/Programming a Preset
A Walkthrough Tutorial for using Presets
Part 1:
Part 2:
User Menus
Entering the user menus & options
To access the user menus, simply press TEMP & PRG at the same
time from the normal operating mode and let go.
(Try to use two hands and press the keys at the exact same time. If one
key is pressed too early from the other, the temperature setting or preset
modes may be activated instead. Turn the press off and then on and try
again.)
Fahrenheit / Celsius
Timer Counter Units
Recorded Pressings (User Odometer)
Pressure Minimum
Pressure Maximum
Temperature Drop Sense
Keypad Beeper
Alarms
• denotes a short beep.
_ denotes a longer beep.
~ denotes innite loop.
Alarm # Alarm Pattern
Off No alarm
01 • • • _
02 • • • _ ~
03 • • _
04 • • _ ~
05 • • •
06 • • • ~
07 _ ~
08 _
09 •
10 • (shorter)
Finished Warning Beep
Prepress Timer
Prepress Alarms
• denotes a short beep.
_ denotes a longer beep.
~ denotes innite loop.
Alarm # Alarm Pattern
Off No alarm
01 • • • _
02 • • • _ ~
03 • • _
04 • • _ ~
05 • • •
06 • • • ~
07 _ ~
08 _
09 •
10 • (shorter)
Operator Lockout
Interchangeable Tables
Maintenance
• The pressure adjustment screw is an area of wear and stress on the machine
and should be checked occasionally for loss of threading. Check the threads
of the pressure screw and the pressure block it screws into and replace if
needed.
• The handle arm and moving linkage is another area of greatest wear and
stress on the machine. The entire blue frame is one solid assembly, and is
easily and inexpensively replaceable when nally worn. Contact the factory
if pressure loss and obvious wear occur on the curved upper clamping
linkage.
• The silicone pad on the lower table can degrade after much use and over
an extended period of time. This pad is replaceable.
Parts / Maintenance / Misc
Replacement Parts
DK7-FRAME ...................DK7/8 BASE FRAME & LINKAGE WELDED
DK7T-CPLKFM ..............DK7T/8T CLAMP LINKAGE TOP FRAME
DK7T-STLBASE .............DK7T/8T STEEL BASE
DKA-PEDESTAL ............DK/DC PEDESTAL W/ LOC POSTS
DKA-GIBB ......................DK/DC PEDESTAL SLIDE GIB (2 req)
DK7-PAS .........................DK7/8 PRESSURE ADJUSTMENT KNOB
DK7-HBA1 ......................DK7 COMPLETE 4 X 7 CURVED HBA 110V
DK8-HBA1 ......................DK8 COMPLETE 6 X 8 HBA 110V
DKA-47BF .......................DK/DC STANDARD CURVED CAP FORM
DKA-EURO .....................DK/DC EURO BOTTOM FORM
DKA-YOUTH ..................DK/DC YOUTH BOTTOM FORM
SHN-CAPHDN ................DK/DC CAP HOLDDOWN DEVICE
DKA-68TBL ....................DK/DC 6 X 8 FLAT BOTTOM TABLE
DKA-35TBL ....................DK/DC 3 X 5 FLAT BOTTOM TABLE
DKA-33TBL ....................DK/DC 3 X 3 FLAT BOTTOM TABLE
DKA-CTRLC ...................DIGITAL KNIGHT PROCESSOR BOARD
DKA-CTRLP ...................DIGITAL KNIGHT POWER BOARD
ELN-KM0227A1 .............DIGITAL KNIGHT MEMBRANE KEYPAD
RPK-DKPWR ..................DK POWER INLET/SWITCH/CORD KIT
DKA-HARNESS2 ...........DK 6-PIN PLUG TIMER WIRE & MERC
MEN-GGS4330S .............GAS SPRING 30# GGS43 W/ EF203 FITTINGS
MEN-GGS4350S .............GAS SPRING 50# GGS43 W/ EF203 FITTINGS
SHN-47CVR ....................DK/DC CAP HB COVER
SHN-68CVR ....................DK/DC 6 X 8 HB COVER
SHN-DK7GD ...................DK7/8 HBA REAR GUIDE
MEN-DKSMLPB ............DK SMALL PRESSURE BLOCK 1½ X 1½
ELN-K35TC ....................K-35” THERMOCOUPLE
ELN-MSTB2.5.................OST 5MM TRMNL THERMOCOUPLE PLUG
MEN-RCNTA4860 ..........DK7T/DK8T LARGE BEARING
MEN-TRA4860 ...............DK7T/DK8T LARGE WASHER (2 req)
FAS-NTA1018 .................DK7T/DK8T THRUST BEARING
MEN-TWB1018 ..............DK7T/DK8T SMALL WASHER (2 req)
This manual suits for next models
3
Table of contents
Other Geo Knight Power Tools manuals
Geo Knight

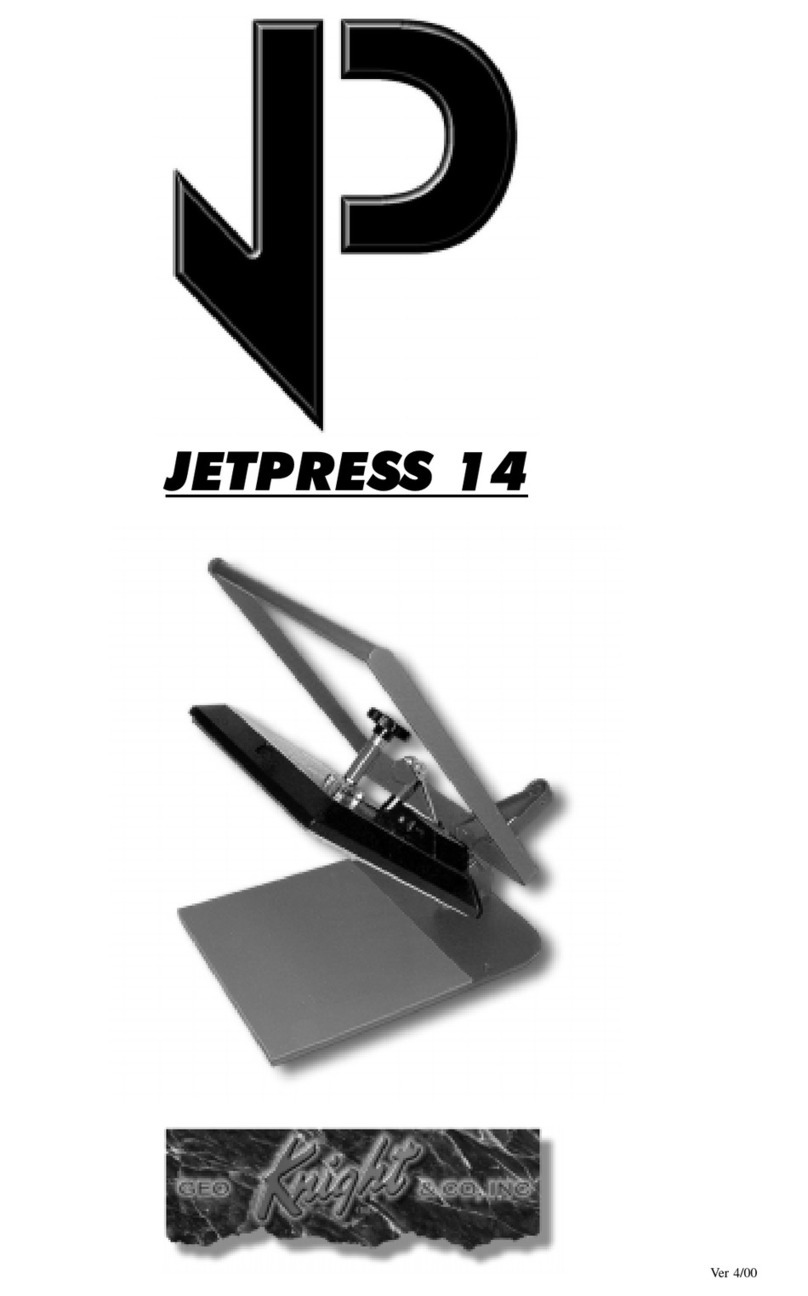

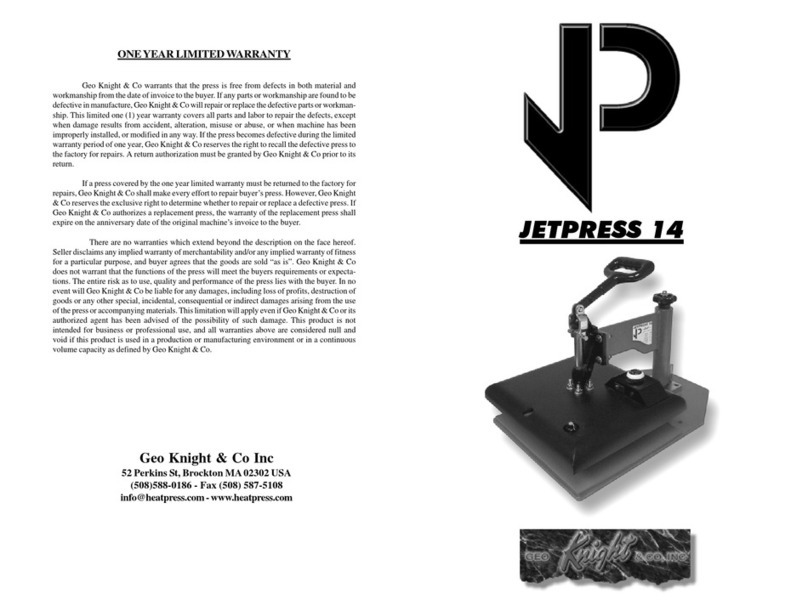

Geo Knight JETPRESS 14 User manual
Geo Knight

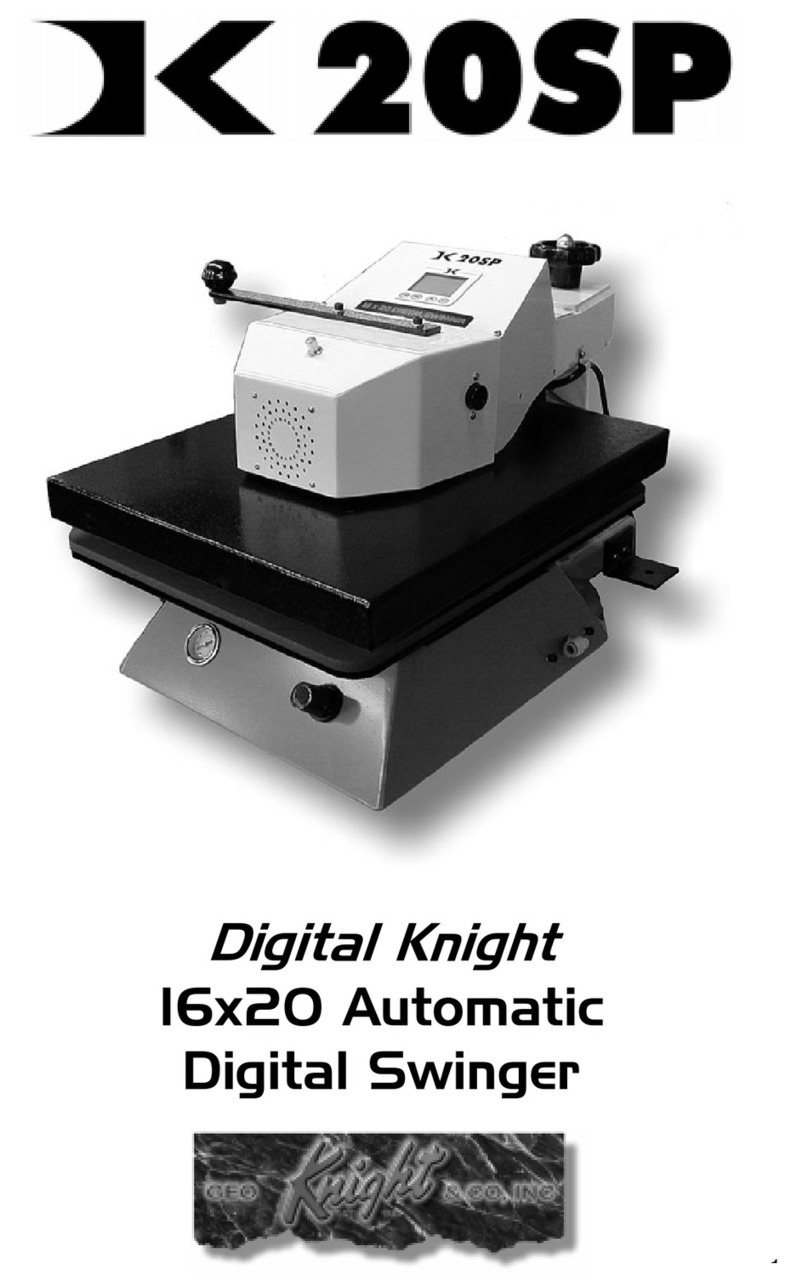

Geo Knight Digital Knight DK20SP User manual
Geo Knight

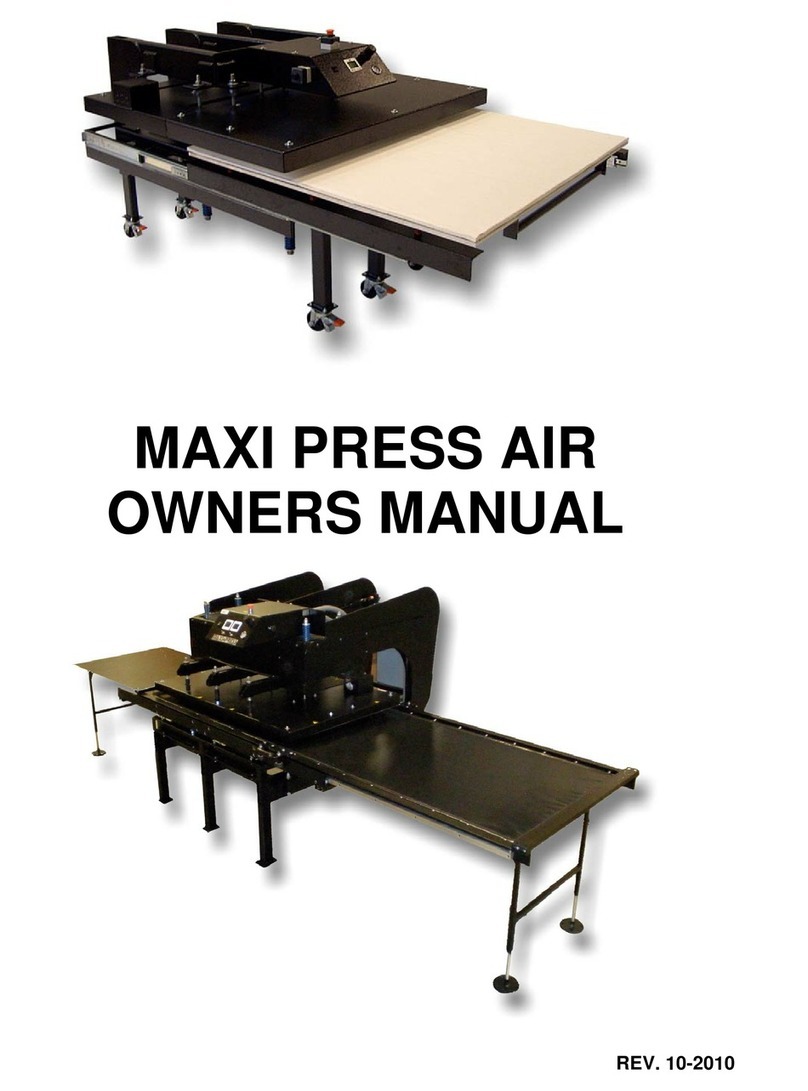

Geo Knight Maxi Press Air User manual
Geo Knight

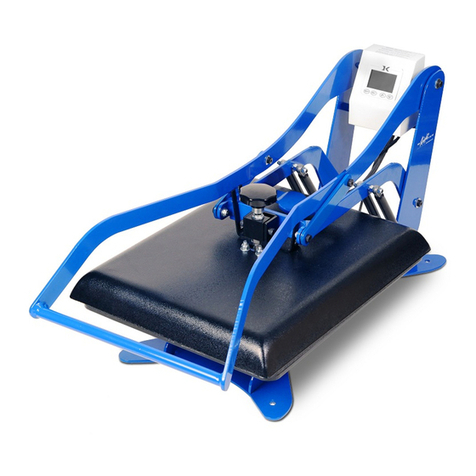

Geo Knight Digital Knight DK20 User manual
Geo Knight
Geo Knight Digital Combo DC16 User manual
Geo Knight
Geo Knight JetPress 14 User manual
Geo Knight

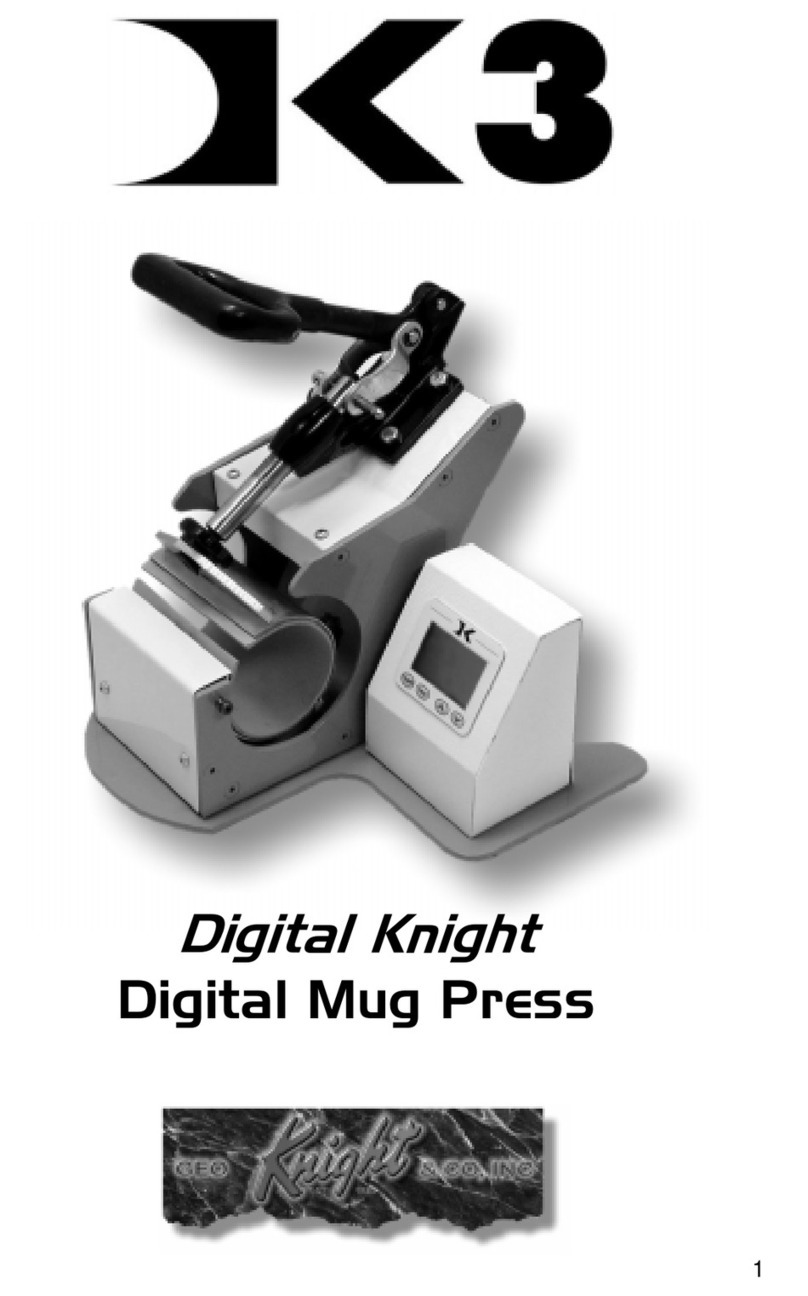

Geo Knight Digital Knight DK3 User manual
Geo Knight
Geo Knight DC16AP User manual
Geo Knight

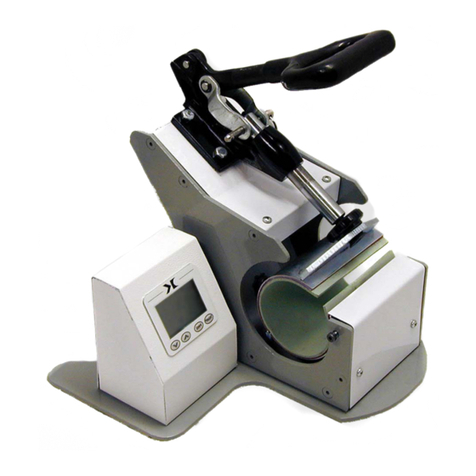

Geo Knight Digital Knight DK3 User manual
Geo Knight

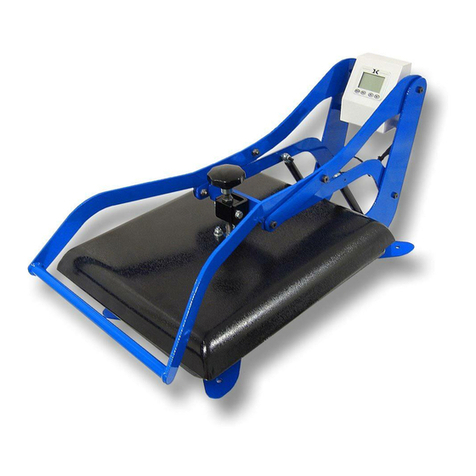

Geo Knight Digital DK20 16x20 User manual
