GEOSOFT DENT ENDOEST-3D User manual

«Geosoft Dent»
USER’S GUIDE
DENTAL MULTIFUNCTIONAL DEVICE
«ENDOEST-3D»

2
USER’S GUIDE
www.geosoft.ru/en
Congratulations!
! On buying the device, be sure to check the delivery set, presence
and correctness of the Quality Warranty Card filling, the acceptance
certificate and product selling marks.
! Please, thoroughly read the user’s guide before using the device.
Keep the User’s guide for future use.
! Please, address to the manufacturer if you have some questions
when using the device.
Hotline: [phone] (extension 170),
E-mail: hotline @ geosoft.ru
CJSC GEOSOFT DENT
(Russia)

3
ENDOEST-3D
hotline @ geosoft.ru
CONTENTS
1. General information..........................................………………...
2. Delivery set..................................……………...……………….
3. Accessories…………………………..…………………………
4. Specifications…………………... .....................………………..
5. The device outward appearance.......................…………...……
6. The fundamental operating instructions of the apexlocator …...
7. Makeready and using………….....................................………..
АPEX mode…………………………………………………….
EOD mode …..…………………………………………………
PULP mode…………………………………………………….
8. The device sterilization and disinfection……………………….
9. Maintenance………………..…………………………………..
10. Troubleshooting………………………………………………
11. Storage conditions, transportation and use…………...……...
12. Information on utilization…………………………………….
13. Information on certification …………………………………..
14. Warranty ........................……………………………………...
15. Symbol descriptions…………….……………………………..
Appendix
Electromagnetic Emissions and Immunity………………………..
4
6
8
9
10
12
16
20
22
24
27
28
29
31
31
31
35
36
37

4
USER’S GUIDE
www.geosoft.ru/en
1. GENERAL INFORMATION
1.1. The device designation:
The dental device “EndoEst-3D” is designed for:
- localization of the root canal apical constriction (APEX mode);
- determination of the tooth pulp clinical state - electro-odonto-
diagnostic (EOD mode);
- determination of the vital teeth over pulpal dentin, e.g. for deepness
determination of the tooth preparation under unit cast and ceramic
fixed prosthesis (PULP mode)
1.2. Field of application:
The device is designed for use in dentistry (endodontics) and can be
used only in hospitals by medical specialists licensed to practice
dentistry. The manufacturer is not responsible for the device misuse.
1.3. Contraindications:
!Do not use the device on patients with pacemakers.
1.4. Safety measures and warnings:
! Use the device only with the “Geosoft Dent” authentic accessories
(see part 3. “Accessories”).
!Do not dismount and do not change the device construction anyhow.
In the case of the device integrity damage warranty is considered
to be invalid. The device power source should be changed by
authorized service departments only.

5
ENDOEST-3D
hotline @ geosoft.ru
!Avoid any liquid ingress into the device case.
!Do not use the device close to inflammables. The device is not
operational in the presence of inflammable anesthetic mixtures with
air, oxygen or nitrogen oxides.
!Use only sterile and disinfected device components. The device
should be sterilized and disinfected directly before the first device use
and also after each patient in order to avoid cross infection (for more
details see part 8“The device sterilization and disinfection”).
!Use cofferdam when working in patient’s oral cavity.
! Do not damage the cable “Signal line”. To avoid cable rupture at the
time of use, disconnect the cable from the control unit, keeping only
the isolating part of the cable plug. Don’t pull out the cable from the
control unit in any case.
!In some cases the apexlocator indications may be not enough
accurate and reliable (see part 6 “The fundamental operating
instructions of the apexlocator”). Before the electronic apexlocator
use, it is recommended to make an X-ray and base on the information
from both methods.
! In the case of final diagnosing, the results of examination may serve
to be a guide mark for a dentist as the diagnosis of tooth pulp clinical
state (EOD) is based on average data. To set final diagnosis, use the
results of EOD together with anamnesis data, patient examination with
additional diagnostic methods.
! The device requires special safety precautions with regard to
electromagnetic compatibility (EMC), and the EMC information

6
USER’S GUIDE
www.geosoft.ru/en
contained in this manual must be strictly adhered to during installation
and operation. It is especially important not to use the device near
fluorescent lamps, radio transmitters or remote controls, portable or
mobile radio frequency communications equipment.
! The device malfunction is possible when using it in the area of
strong electromagnetic interference (EMC). Don’t use the device close
to electromagnetic waves emitting equipment. Malfunctions may take
place close to the equipment marked with symbol.
! Do not use this device in conjunction with other equipment, or as
part of other equipment.
!The device normally operates at temperatures 10-35°С, relative air
humidity not more than 80%, atmosphere pressure (101±3) kPa. Any
violation of the pointed restrictions may lead to the device
misoperation.
1.5. Side effects:
Not found out.
2. DELIVERY SET
The device delivery set is represented in figure 1
1- Control unit (1 pc)
2- Cable «Signal Line» (USB (B) -plug) (1 pc)
3- File clip «Probe Princh» (1 pc) (for АРЕХ mode)
4- EOD probe (1 pc) (for EOD mode and PULP mode)

7
ENDOEST-3D
hotline @ geosoft.ru
5 - Lip clip «Oral Hook» (1 pc)
6- Cable USB (A)-USB (B) for the accumulator charging (1 pc);
7 - Charger (USB-socket) (1 pc);
- User’s guide (1 pc)
Figure 1. Delivery set
2
5
4
3
1
6
7

8
USER’S GUIDE
www.geosoft.ru/en
! Accessories are in the device set of delivery and can be also shipped loose at
extra cost if necessary.
3. ACCESSORIES

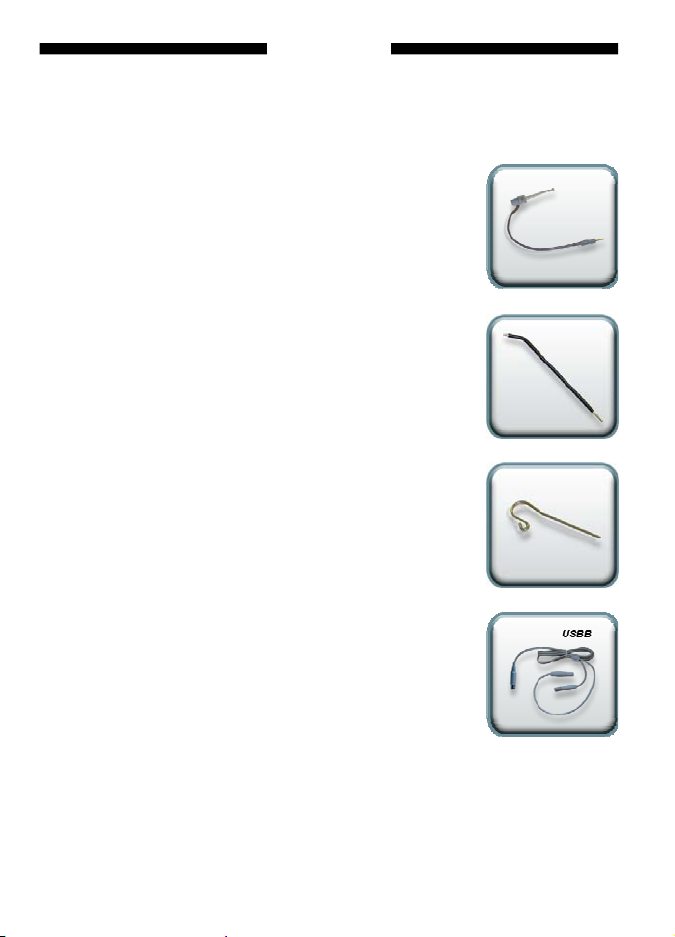

1. File clip “Probe Princh” (3 pcs/1 pc)
GЕ99.047.000 / GЕ99.121.000
File clip for working file. It is used as a
clutch of the active electrode (file) during
apexlocation.
2. EOD probe (Ø2,0 mm) (3 pcs/1 pc)
GE99.059.000/ GE99.122.000
It is used as an active electrode during EOD and
dentometry procedures.
3. Lip clip “Oral Hook” (3 pcs/1 pc)
GЕ99.062.000 / GЕ99.123.000
It is used as passive electrode during apexlocation,
EOD and dentometry. It is fixed on patient’s lip.
4. Cable «Signal Line» (USBВ-plug)
GЕ99.169.000
Cable for apexlocation, EOD and dentometry
procedures. Plug- USBB.

9
ENDOEST-3D
hotline @ geosoft.ru
4. SPECIFICATIONS
Electrical and maintenance device specifications answer the
requirements of: EN 60601-1:2006, EN 80601-2-60:2012, EN 60601-
1-2:2007
4.1. Control unit «EndoEst-3D»:
 Power source………………..Li-Ро accumulator (3,7V; 700 mA/h)
 Electrical safety ……………………………………..class II, typeВ
 Monochrome LCD display ……………………………..66*66 mm
 Measurement range in the АРЕХ mode ……………..from 3,0 to 0,0
 Effective max. current value in the АРЕХ mode …………….9 mcA
 Accuracy of measurement in the АРЕХ mode (in the range from
1.0 to 0.0) ………………........................................................... ± 0,1
 Measurement range in the PULP mode …………..from 3,0 to 0 mm
 Accuracy of measurement in the PULP mode (in the range from
1.0 to 0.0 mm) ………………………………………….... ± 0,2 mm
 Range of the “diagnostic” current in the EOD mode
…………………………………..…from 0 to 80mcA (step 1 mcA)
 Max. voltage on applied part in the EOD mode…………………….
… … ………………..… …... 160V ± 10% (in a short-term impulse)
 Effective max. voltage on applied part in the EOD
mode…………………………………………………... 6,5V ± 10%
 Time of the device operation in the “sleep” mode until the device
automatic power switch off ………………………...……40±1 min
 The device operation time with a new fully charged accumulator
without recharging ………………………………. not less than 10h
 The device accumulator full charge period ………………2,5±0,5 h
 The accumulator life cycle …………...not less 300 recharge cycles
 Overall dimensions …….………………………......138*85*68 mm
 Weight….…………………….…………………………...280±50 g

10
USER’S GUIDE
www.geosoft.ru/en
 Protection level from dust and liquid penetration ……………..IP51
The device life time ………………………………………….5 years
4.2. Charger:
 Input voltage …………………………..…...(100-240) V, ~50/60Hz
 Output voltage ……………………………………………….5V; 1А
5. THE DEVICE OUTWARD APPEARANCE
Outward appearance of the device “EndoEst-3D” is represented in the
figure 2.

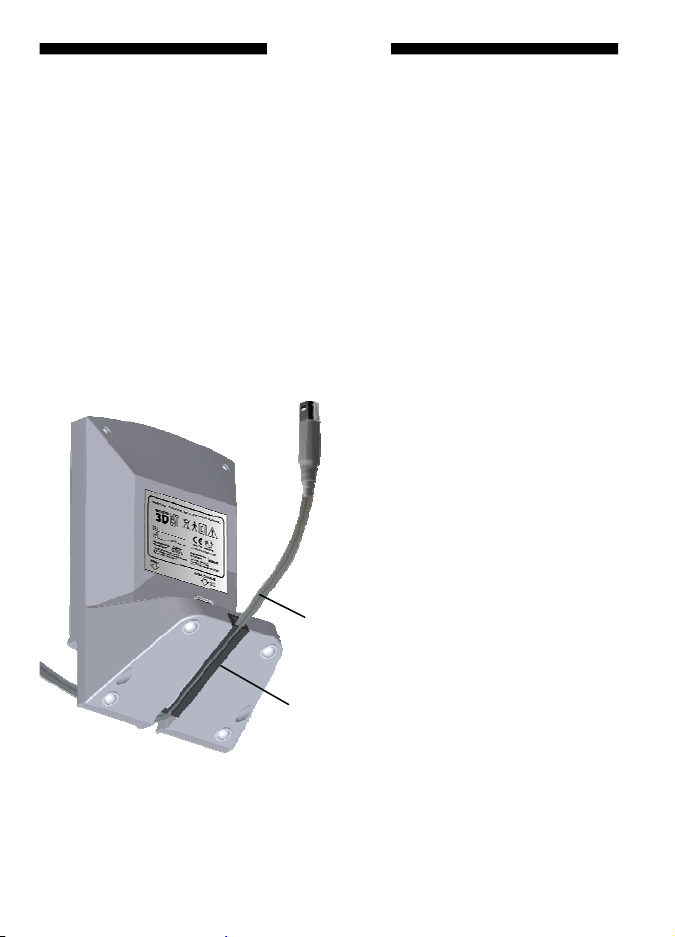

2
1
3
6
5
4
11
Figure 2
7
8
9
10
11

11
ENDOEST-3D
hotline @ geosoft.ru
where: 1- case;
2- LCD display (see fig. 3);
3- three-color LED indicator;
4- button «POWER / MODE» : the device switch on/off, choosing of
the operation mode;
5- touch button «START / STOP» : start / stop "diagnostic" current in
the EOD mode;
6- touch button «SOUND» : adjustment the volume level of the sound
signal;
7- socket «APEX / CHARGE»: USB (B) -socket for connecting the
cable “Signal Line” or cable USB (A)-USB (B) for the accumulator
charging;
8- indicator of accumulator charge;
9- button «RESET»;
10 - information label (serial number, date of manufacturing,
firmware version)
11 - special groove with the rubber sleeve for placement and
fixing of a working cable

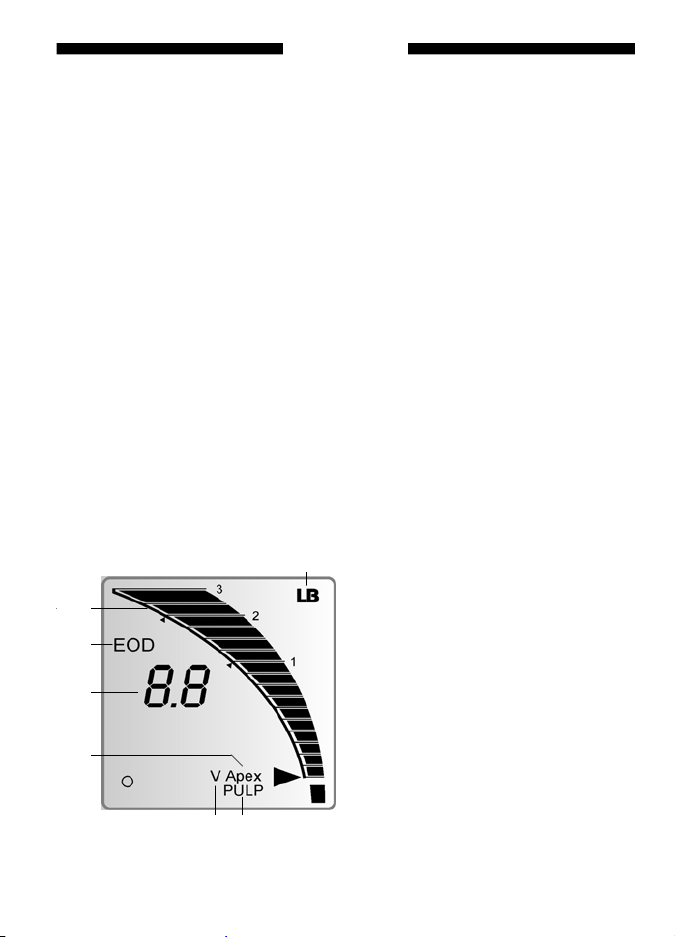

Figure 3. LCD display
1- indicator of the APEX mode;
2- indicator of the EOD mode;
3- indicator of the PULP mode;
4 - graphic scale of the distance to the
apex point in canal in the APEX mode
or to the over pulpal dentin thickness
in the PULP mode;
5- numerical indications of the
distance to the apex point or over
pulpal dentin thickness (mm)/ the
“diagnostic” current amount (mcA);
6- the current set indicator in EOD
mode;
7- «LB» accumulator discharge
indicator;
4
2
5
1
36
7

12
USER’S GUIDE
www.geosoft.ru/en
6. THE FUNDAMENTAL OPERATING
INSTRUCTIONS OF THE APEXLOCATOR
For more accurate apexlocator measurement results, please,
follow these rules:
1. Carefully isolate the studied tooth and working file from saliva.
We recommend to use cofferdam, cotton swabs, saliva ejectors;
2. Work only in rubber gloves;
3. Use the file, corresponding to the root canal width in the apical area
(usually ISO 10-20);
4. Do not use unclean or oxygenized files;
5. Use electroconductive gel for root canals (e.g. RC-Prep, Сanal +)
(recommended);
6. Prevent any contact of an instrument with metals in oral cavity
(amalgam restorations, crowns, brackets etc.);
7. Do not touch the working file metallic parts and patient’s mucosa
with wet hands;
8. Provide wet contact of lip clip electrode with cavity.
Attention!!! There is a possibility of measurements accuracy fall-off
in the following cases:

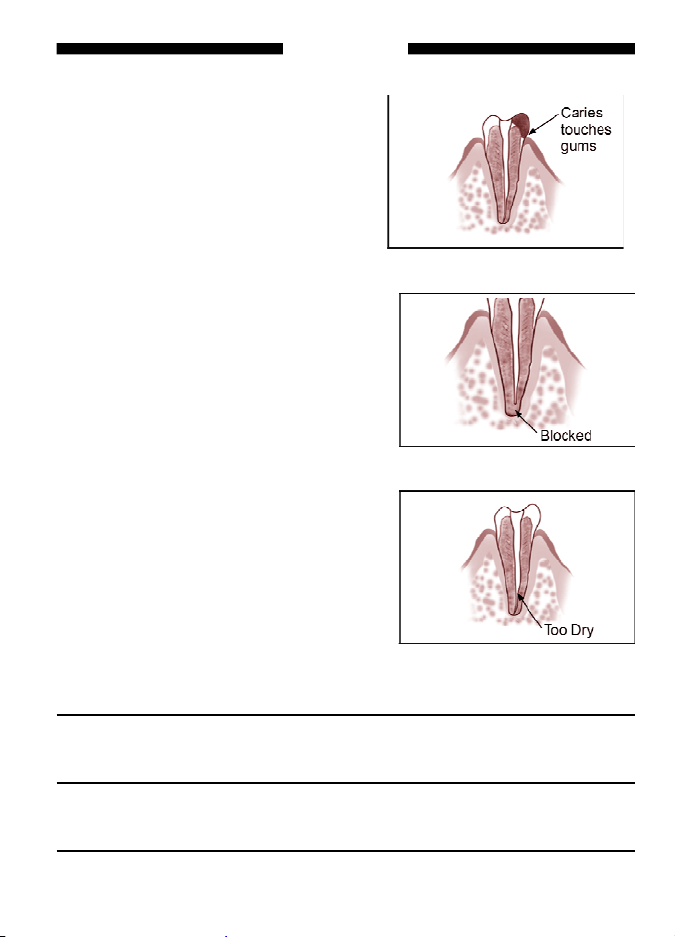

1. Root canal with large apical constriction 
Root canal that has exceptionally
large apical constriction due to a
lesion or incomplete development
cannot be accurately measured; the
measurement results will be less than
the actual length.
Fig.4

13
ENDOEST-3D
hotline @ geosoft.ru

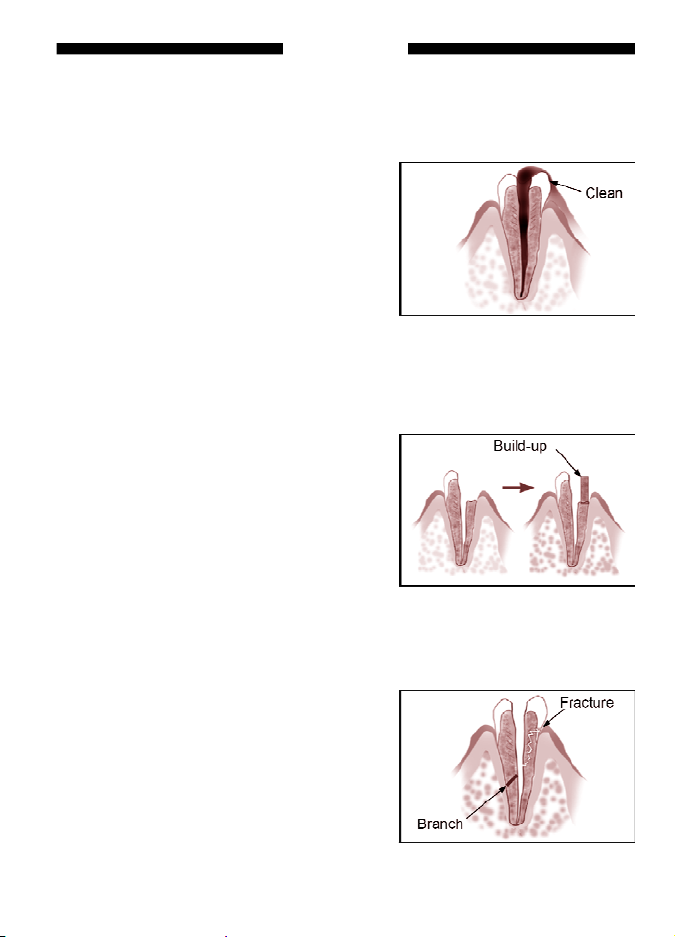

2. Root canal with blood, saliva or a chemical solution overflowing
from the opening
If blood, saliva, or a chemical
solution overflows from the opening
of the root canal and contacts gums,
this will result in electrical leakage
and an accurate measurement can
not be obtained. Wait for bleeding to
stop completely. Clean the inside and
opening of the canal thoroughly to
get rid of all blood, saliva and
chemical solutions and then make a measurement.
3. Broken crown
If the crown is broken and a section
of the gingival tissue intrudes into the
cavity surrounding the canal opening,
contact between the gingival tissue
and the file will result in electrical
leakage and an accurate
measurement cannot be obtained. In
this case, build up the tooth with a
suitable material to insulate the gingival tissue.
4. Fractured tooth. Leakage through a branch canal
Fractured tooth will cause electrical
leakage and an accurate
measurement cannot be obtained.
A branch canal will also cause
electrical leakage.
Fig.5
Fig.6
Fig.7

14
USER’S GUIDE
www.geosoft.ru/en

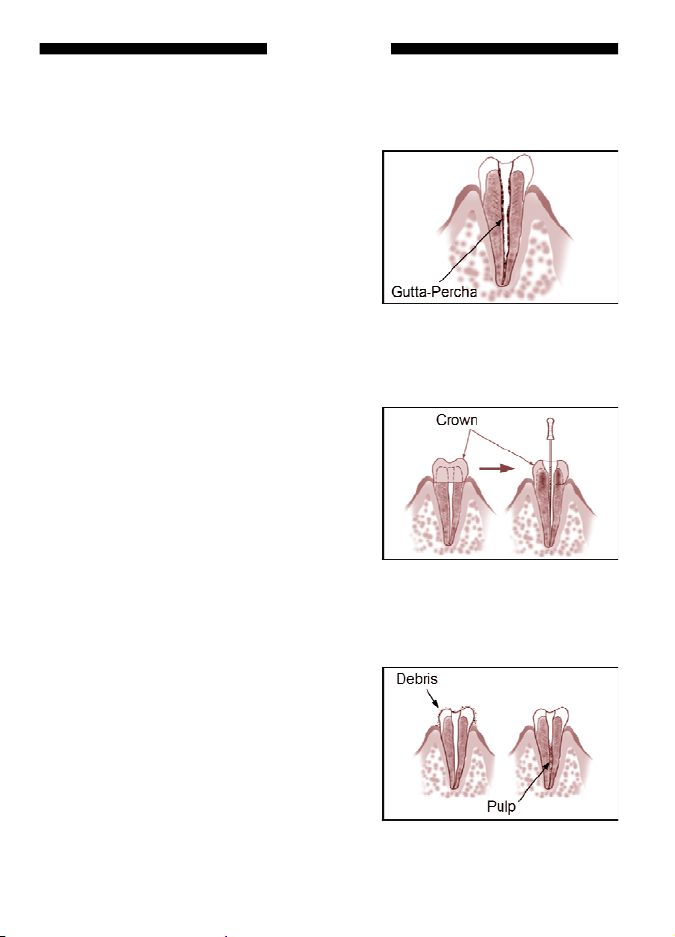

5. Retreatment of a root canal, filled with gutta-percha
The gutta-percha must be completely
removed to eliminate its insulating
effect. After removing the gutta-
percha, pass a small file all the way
through apical constriction and then
put a little saline in the canal, but do
not let it overflow the canal opening.
6. Crown or metal prosthesis touching gingival tissue
Accurate measurement cannot be
obtained if the file touches a metal
prosthesis that is touching gingival
tissue. In this case, widen the opening
at the top of the crown so that the file
will not touch the metal prosthesis
before taking a measurement.
7. Cutting debris on tooth. Pulp inside canal
Thoroughly remove all cutting debris
on the tooth. Thoroughly remove all
the pulp inside the canal.
Otherwise an accurate measurement
cannot be obtained.
Fig.8
Fig.9
Fig.10

15
ENDOEST-3D
hotline @ geosoft.ru
8. Caries contacts with gum
In this case, electrical leakage
through the caries infected area to
the gums will make it impossible to
obtain an accurate measurement.
9. Blocked canal
The meter will not move if the canal
is blocked. Open the canal all the way
to the apical constriction to measure
it.
10. Extremely dry canal
If the canal is extremely dry, the
meter will not move until it is quite
close to the apex. In this case, try to
moisten a canal with saline.
Fig.11
Fig.12
Fig.13

16
USER’S GUIDE
www.geosoft.ru/en
7. MAKEREADY AND USING
After the device transportation at temperature below +5 С, you
should let it warm up for an hour at room temperature before
switching it on.
7.1. Accumulator charging
Chargeable Li-Po accumulator battery is the “EndoEst-3D” source
power. Before the first device use it is necessary to fully charge the
accumulator.
One may charge the accumulator from the mains (110-240)V or from
the PC USB-port.
The accumulator should be charged in the following way:
- Connect the cable for accumulator charging (6-fig.1) to the device
“EndoEst-3D”. Insert the USB (B) cable plug to the «APEX/
CHARGE” socket (7-fig.2) on the device.
Variant 1. Charging from the
mains:
- Connect the open plug of the
cable for the accumulator
charging to the USB socket of the
charger (7-fig.1) - see fig.14 and
insert the charger into the
standard mains supply socket
(110-240)V.
Variant 2. Charging from the USB-port:
Рис.14

17
ENDOEST-3D
hotline @ geosoft.ru
- Connect the open plug of the cable for the accumulator charging to
the PC USB-port .
Yellow light (8-fig.2) indicates that accumulator is being charged.
When the accumulator is fully charged, indicator goes down (slight
lightning is possible).
Note: Standard time for the accumulator charging is about 2,5 hours,
however, it depends on the accumulator current charge, level of its
wear, temperature.
Operation and charge time of the old accumulator is shorter than of a
new one. In the case of meaningful reduction of the device operation
duration you should address to the service department to replace the
old accumulator for a new one.
- Remove the charger plug from the mains socket and disconnect the
cable from the device and PC when the device is charged.
7.2 Indication of the accumulator discharge
When the accumulator charge is lower than minimally allowable
level (<20%), warning “LB” indicator (7-fig.3) appears on the device
display.
Having seen such an indicator, charge the accumulator according to
the p.7.1.
Otherwise, when the accumulator charge falls to the critic level
(<10%), the device switches off automatically.
Attention! When discharged, charge the device power supply in time.
Exclude the accumulator full discharge.

18
USER’S GUIDE
www.geosoft.ru/en
7.3. Power saving function
To increase time between the accumulator charging and to extend the
device life time, the device has power saving function - automatic
switch off in 40 minutes after the last time of device use at the absence
of use.
7.4. Connecting the cable and electrodes
- Connect the cable “Signal Line” (2-fig.1) to the device “EndoEst-
3D”. Insert the USB (B) cable plug to the «APEX/CHARGE” socket
(7-fig.2) on the device.
Note: For ensuring
the maximum usability
of the device in the
process, as well as to
prevent breakage of the
working cable it is
possible to output a
working cable on the
front side of the device.
To do it you need:
- to disconnect a
cable from the
control unit
- to place a wire of
a working cable in
the rubber sleeve (fig. 15) ;
- to connect a cable to the device
Fig.15
cable
rubber
sleeve

19
ENDOEST-3D
hotline @ geosoft.ru
- Connect the electrodes to the cable
sockets.
Connect the active electrode ((file
clip (3 - fig.1) or EOD probe (4 -
fig.1))to the socket with the short
wire, the passive electrode (lip clip)
(5-fig.1) - to the long wire.
Attention! Be sure to sterilize the electrodes before using it before
each patient (see part 8“The device sterilization and disinfection”).
Note: To disconnect the cable or the file clip from the device case,
take the insulating part of the necessary component plug and pull with
a small effort.
Attention! Do not disconnect the cable or the file clip holding their
wires to avoid break. Avoid wires kinking.
7.5. Switching on of the device and choosing of an operating mode
- Switch on the device and choose one of the three operation modes by
short pressing the button «POWER/MODE» (4– fig.2).
Modes switching is done according to the scheme represented in the
fig.17.
Fig.16
Fig.17

20
USER’S GUIDE
www.geosoft.ru/en
where: APEX - Apexlocator mode;
EOD - Electro-odonto-diagnostic mode ;
PULP - Dentometer mode
Note: The operation mode you used the last time, before the device
switching off or entering the power saving mode, will automatically
start when reusing the device.
7.6. Checking of circuit continuity of the device
Before starting to work be sure to check the working circuit continuity
“control unit - cable - probe - lip clip”. 
You can check the working circuit continuity when the device is ready
for work in the APEX or PULP mode by closing the passive and
active electrodes against each other.
At this moment LED indicator (3-fig.2) has to light RED color and a
continuous sound signal appears.
If the lighting of indicator doesn’t appear or it is flashing on and off
this means that the circuit continuity is broken and the device is out of
service. In this case, you should replace the cable (rarely, file clip) or
address the service department.
7.7. Operating in the APEX mode
Attention! Before starting to work in the APEX mode, you should
thoroughly read the fundamental operating instructions for the
apexlocator considered in the part 6 of the User’s guide.
1. Switch on the device APEX mode (see p.7.5)
