GEOSOFT DENT ENDOEST MOTOR-MINI User manual

USER’S GUIDE
ENDODONTIC MOTOR
ENDOEST MOTOR-MINI

2
USER’S GUIDE
www.geosoft.ru/en
Congratulations!
! On buying the device, be sure to check the delivery set, presence
and correctness of the Quality Warranty Card filling, the acceptance
certificate and product selling marks.
! Please, thoroughly read the user’s guide before using the device.
Keep the User’s guide for future use.
! Please, address to the manufacturer if you have some questions
when using the device.
Hotline: [phone] (extension 170),
E-mail: hotline @ geosoft.ru
CJSC GEOSOFT DENT
(Russia)

3
ENDOEST MOTOR-MINI
hotline @ geosoft.ru
CONTENTS
1. General information .............................................……………..
2. Delivery set……….....................................…………………….
3. Accessories………………….…………………………………
4. The device outward appearance.......................…………...……
5. Specifications………………...... .....................………………..
6. Make ready……………………………………………………..
7. Using…………………………………………………………..
8. The fundamental operating instructions of the apex-locator …..
9. Caring for the device. Information on sterilization and ……….
disinfection ………...……………………………………………..
10. Maintenance……..………….………………………………...
11. Troubleshooting………………………………………………
12. Storage conditions, transportation and use…………....……...
13. Information on utilization……………………………………..
14. Information on certification …………………………………..
15. Warranty…………………… ........................………………...
16. Symbol descriptions ………………………………………….
Appendix
Electromagnetic Emissions and Immunity………………………..
4
9
9
11
13
14
26
31
35
37
39
42
42
42
44
45
46

4
USER’S GUIDE
www.geosoft.ru/en
1. GENERAL INFORMATION
1.1. The device brief summary:
“EndoEst Motor - Mini” is a compact device combining endodontic
motor with microprocessor control for working with rotating Ni-Ti
instruments and apex-locator for localization of root canal apical
constriction (apex) during endo-motor operation.
The device is manufactured in several versions according to table 1.
Table 1.
1.2. Field of application:
The device is designed for use in dentistry (endodontics) and can be
used only in hospitals by medical specialists licensed to practice
dentistry.
The manufacturer is not responsible for the device misuse.
Version of the
device
Options
Function of
RECIPROCAL
file rotation
Function of APEX
LOCATION
Operating area
LED
illumination
Basic
No
No
Apexlocation
Yes
Apexlocation - L Yes
Reciprocation Yes No
Reciprocation - L Yes
No

5
ENDOEST MOTOR-MINI
hotline @ geosoft.ru
1.3. The device functional capabilities:
“Continuous” rotation mode - instrument constantly rotates
clockwise or counterclockwise, respectively
“Reciprocal” rotation mode - instrument alternately rotates
clockwise and counterclockwise with clearly fixed speed and
rotation angle in both directions: with a big rotation angle when
moving forward (clockwise or counterclockwise, respectively) and
with a small when moving back.
Programs Mode of
rotation
The name of the file
system, under which
adapted the program
Basic, Apexlocation
Apexlocation -L
Reciprocation
Reciprocation/-L
1 ,2, 3, 4, 5
r
—
6
T-FILE
(GLOBAL TOP)
7
ONE FILE
(GLOBAL TOP)
8 RECIPROC (VDW)
9 WAVEONE
(DENTSPLY Maillefer)
__
(programmable)
Table 2. The list of programs endo-motor

6
USER’S GUIDE
www.geosoft.ru/en
1.4. Contraindications
Do not use the device on patients with pacemakers.
1.5. Safety measures and warnings
! Use the device only with the “Geosoft Dent” authentic accessories
(see part 3. “Accessories”).
!Do not dismount and do not change the device construction anyhow.
In the case of the device integrity damage warranty is considered
to be invalid. The device power source should be changed by
authorized service departments only.
!Avoid any liquid ingress into the device case.
!Do not use the device close to inflammables. The device is not
operational in the presence of inflammable anesthetic mixtures with
air, oxygen or nitrogen oxides.
!Use only sterile and disinfected device components. The device
should be sterilized and disinfected directly before the first device use
and also after each patient in order to avoid cross infection (for more
details see part 9 “Caring for the device. Information on sterilization
and disinfection”).
!Be sure to lubricate and sterilize the micro-motor head before its use
after previous patient. Avoid lubricant ingress into the micro-motor
expanded parts.
!Use cofferdam when working in patient’s oral cavity.

7
ENDOEST MOTOR-MINI
hotline @ geosoft.ru
!In case of any abnormality in the endo-motor functioning (noise,
shakiness, vibrations), stop using the device immediately and try to
find the cause of malfunction, basing on the information represented
in the part 11.
! This endo-motor has function of the file limit torque which lessens
probability of break during its use. In spite of it, files may break down
because of wrongly set limit torque value in the program or because of
worn-out files use. Carefully follow manufacturer’s instructions con-
cerning use of the endodontic instruments and avoid use of worn-out
and damaged files.
!Do not use instruments of “continuous” rotation in “reciprocal”
movement and vice versa.
! Do not use curved, deformed or not corresponding to the ISO file.
Use of such a file may result in injury.
!Always clean the shank of file to be set. Mud penetration into the
head clutch may cause loss of concentricity and the file clutch power
worsening, loss of the apex-locator contact.
! Do not start the micro-motor until the file is securely fixed in the
clutch head.
!Avoid inadvertent contact with rotating micro-motor parts and/or
rotating file.
!In some cases apex determination with apex-locator may be not
enough accurate and reliable (see part 8. “The fundamental operating
instructions of the apex-locator”). Make an X-ray image and base on
the information received from both methods before using the mixed

8
USER’S GUIDE
www.geosoft.ru/en
mode (endo-motor and apex-locator).
! The device requires special safety precautions with regard to
electromagnetic compatibility (EMC), and the EMC information
contained in this manual must be strictly adhered to during installation
and operation. It is especially important not to use the device near
fluorescent lamps, radio transmitters or remote controls, portable or
mobile radio frequency communications equipment.
! The apex-locator malfunction is possible when using it in the area of
strong electromagnetic interference (EMC). Don’t use the device close
to electromagnetic waves emitting equipment. Malfunctions may take
place close to the equipment marked with symbol.
! Do not use this device in conjunction with other equipment, or as
part of other equipment.
!Do not use the accessories, transducers and cables other than those
listed below. This may result in increased emissions or decreased
immunity performance of the device. The manufacturer guarantees the
electromagnetic compatibility of the following elements: Apex-locator
cable with maximum length 105 cm; Mains charger (model DN500)
with a maximum cable length 1.8m
!The device normally operates at temperatures 10-35°С, relative air
humidity not more than 80%, atmosphere pressure (101±3) kPa. Any
violation of the pointed restrictions may lead to the device failure.
1.6. Side effects:
Not found out.

9
ENDOEST MOTOR-MINI
hotline @ geosoft.ru
2. DELIVERY SET
The device delivery set is represented in table 3.
3. ACCESSORIES
1. Micro-motor head
GЕ99.124.000
Miniature head SCHD05-C-1M with friction fixing
Position name Number of pieces for modification
Basic Apexlocation / -L,
Reciprocation / -L
Control unit with head 1 1
Apex-locator cable
(micro pin 2 mm, single)
__ 1
Apex-locator lip clip __ 1
Cable for external apex-
locator connection
(2хmicro pin 2 mm)
1 __
Charger stand 1 1
Mains charger 1 1
User’s guide 1 1
Torque card 1 1
Table 3.

10
USER’S GUIDE
www.geosoft.ru/en
! Accessories are shipped apart at extra cost
2. Seal ring for the head (3 pcs)
GЕ99.133.000
Additional silicon seal ring for head
GЕ99.124.000
3. Adapter for lubrication
GЕ99.161.000
Adapter for lubrication
micro-motor head GЕ99.124.000
4. Apex-locator cable
GЕ99.162.000
Cable for apex location. Length - 100± 3 cm
Plug - micro pin (2 mm)
5. Lip clip «Oral Hook” (3pcs/1 pc)
GЕ99.062.000 / GЕ99.123.000
Is used as passive electrode during apex location.
Should be fixed on patient’s lip.
6. Cable for external apex-locator connection
GE99.165.000
Cable for external apex-locator connection
(micro pin (2 mm) – micro pin (2 mm).
Length - 15±5 cm
7. Mains charger
GЕ99.049.000
Input voltage: (220±10%) V~50/60Hz.
Output voltage: 4,5V; 500 mA.
Plug - 3,5 mm

11
ENDOEST MOTOR-MINI
hotline @ geosoft.ru
4. THE DEVICE OUTWARD APPEARANCE
Outward appearance of the «EndoEst Motor-Mini” is represented in
the figure 1.
Fig.1. EndoEst Motor-Mini
4
5
13
12
F
B
A
3
2
6
1
D
E
Back view
8
End view
10 11
Back view
14
7
9
C
15
16 17 18

12
USER’S GUIDE
www.geosoft.ru/en
where: А. Control unit: 1. Socket of the head;
2. LCD display (see fig.2);
3. Button «POWER/SET»: Power switch on/off; adjusted parameter
selecting;
4. Button «START/STOP»: the micro-motor start/stop;
5. Button «+»: adjusted parameter value increase;
6. Button «-»: adjusted parameter value lessening ;
7*.Touch button « »: on/off of LED illumination;
8*.Operating area LED illumination;
9. Button «Reset»; 10. Contacts for battery charging;
11. Socket micro Jack for apex-locator cable connecting ;
B. Charger stand:
12. Socket of charger; 113. Indicator of battery charge;
14. Socket of the mains charger.
C. Micro-motor head
15. Head; 16. Adapter; 17. Silicon seal ring; 18. Rod.
D. Apex-locator cable E. Lip clip F. Mains charger

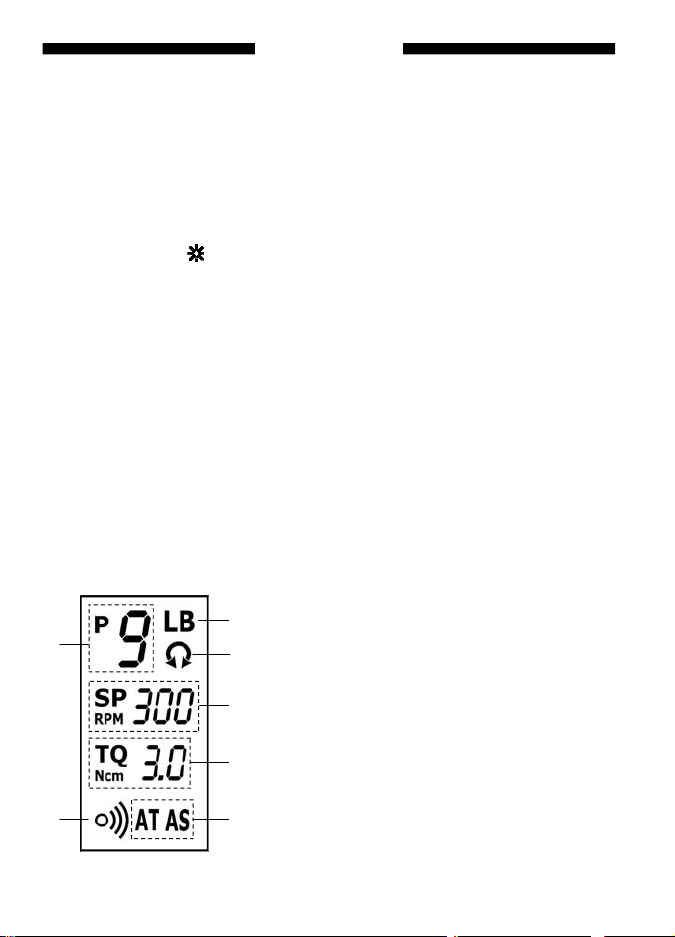

Fig. 2. The display symbols description
1 - indicator of selected program «1» -
«9»;
2 - «LB» battery discharge indicator;
3 - indicator “reciprocal rotation” (active
only modifications «Reciprocation/-L»);
4 - indicator of the instrument preset
rotation speed value (rpm);
5 - indicator of the instrument limit torque
preset value (Ncm);
6 - indicator “Auto twist”/“Auto stop”;
7 - indicator of sound signal switch on
“Sound”.
1
7
3
2
4
5
6
* only for modifications «Apexlocation-L» and «Reciprocation-L»

13
ENDOEST MOTOR-MINI
hotline @ geosoft.ru
5. SPECIFICATIONS
Electrical and maintenance device specifications answer the
requirements of: EN 60601-1:2006, EN 80601-2-60:2012, EN 60601-
1-2:2007
5.1. Control unit & head
Power source - Li-Ро battery (3,7V; 700 mAh);
Electrical safety - type В;
Monochrome LCD display - 16*32 mm;
Micro-motor head: model SCHD05-C-1M (miniature, with friction
fixing), transmission ratio 1:1, file fixing - locking pattern;
Range of the file rotation speed adjustment in the “continuous”
rotation mode - from 200 to 600 rpm (by increment 50 rpm);
Accuracy of rotation speed stabilization when load applying -±10%;
Range of the file limit torque adjustment in the “continuous”
rotation mode - from 0,2 to 3,5 Ncm (by increment 0,1 Ncm);
Accuracy of the preset limit torque - ±15% ;
Max. rotation speed in the “continuous” rotation mode at the torque
3,5Ncm - 250 rpm;
Max. limit torque in the “continuous” rotation mode at the speed
600 rpm - 1,6 Ncm;
Average operation time in the “continuous” rotation mode with new
fully charged battery without recharging – 6 h;
 Time of the device operation in the “sleep” mode until the device
automatic power switch off – 2h±1 min;
The device battery charge period – 1,5±0,5 h;
The battery life cycle - not less 300 recharge cycles;
Overall dimensions - (196*32*23) ±3 mm ,
Weight –135±10 g;

14
USER’S GUIDE
www.geosoft.ru/en
5.2. Charger stand
Electrical safety - class II, type В;
Overall dimensions - (98*98*60) ±3 mm; Weight -175±10 g;
5.3. Mains charger
Моdel- DN500 (Geosoft Dent);
Input /Output voltage - (220±10%)V, ~50/60Hz / 4,5 V; 500 mA.
The device life time - 5 years.
6. MAKE READY
After the device transportation at temperature below +5 С, you
should let it warm up for an hour at room temperature before
switching it on.
6.1. Battery charging
Chargeable lithium-polymeric (Li-Po) battery is the “EndoEst Motor-
Mini” source power. Before the first device use it is necessary to fully
charge the battery.
The battery should be charged in the following way:
- Connect the mains charger (F) to the stand (B), insert the charger
cable into the socket (14-fig.1) on the stand case;
- Connect the mains charger to the mains supply socket 220 V;
Attention! Do not use mains chargers of other types. Use only the
charger in the device set of delivery.
- Insert the device control unit (A) into the charger socket (12-fig.1) on
the charger stand (B).

15
ENDOEST MOTOR-MINI
hotline @ geosoft.ru
Red light (13-fig.1) indicates that battery is being charged. When the
battery is fully charged, indicator changes color to yellow-green.
Note: Standard time for the battery charging is about 1,5 hours,
however, it depends on the battery current charge, level of its wear,
temperature. Operation and charge time of the old battery is shorter
than of a new one. In the case of meaningful reduction of the device
operation duration you should address to the service department to
replace the old battery for a new one.
6.2 Indication of the battery discharge
When the battery charge is lower than minimally allowable level
(<20%), warning “LB” indicator (2-fig.2) appears on the device
display.
Having seen such an indicator, charge the battery according to the
p.6.1.
Otherwise, when the battery charge falls to the critic level (<10%), the
device switches off automatically. You will see “LB” indicator
displaying when you try to switch the device on again.
Attention! When discharged, charge the device power supply in time.
Exclude the battery full discharge.
6.3. Power saving function
To increase time between the battery charges and to extend the device
life time, the device has power saving function - automatic switch off
in 2 h. after the last device operating controls activation while the
motor doesn’t rotate.

16
USER’S GUIDE
www.geosoft.ru/en
6.4. The device switching on
Press the button «POWER/SET” (3-fig.1) to switch on the device.
6.5. Calibration of the system micro-motor
The calibration function allows you to check and compensate for the
friction system of the micro-motor.
The calibration function is activated automatically after power off the
device. At the same time on the display screen will display "C" (abbr.
Calibration).
During calibration, the micro-motor is available in the entire speed
range provided by the program. The whole calibration procedure takes
about 6.5 seconds.
Note: The calibration system micro-motor should be carried out each
time at the beginning and after lubrication, sterilization or
replacement heads
In case of error calibration, the display will show the error indicator
"E" (abbr. Error).
In this case you should:
- power off the device;
- disconnect the head from the control unit;
- again to turn on the power and re-calibrate the micro-motor without
head.
If no head calibration is successful, then you need to lubricate, clean
or replace the head. If no head system again fails the calibration it is
necessary to replace or repair the control unit of the device.

17
ENDOEST MOTOR-MINI
hotline @ geosoft.ru
6.6. The device setting
All settings of the device should be carried out only when the micro-
motor doesn’t rotate.
6.6.1. Torque and speed programming in the “continuous” rotation
mode
The device has 6 programs for user to independently program speed
and limit torque for different Ni-Ti instruments "continuous"
rotation: five programs "1" - "5" for files with right-hand thread and
one program "r" for files with left-hand thread.
The procedure for programming the speed and torque:
1. Select the program “1” (see p.6.6.1.1.)
2. Program the necessary speed value (see p. 6.6.1.2)
3. Program the necessary limit torque (see p. 6.6.1.3)
4. Repeat steps 1-3 for all the rest programs “2” - “8”, “r”
6.6.1.1. Program selection
- Be sure that there are no flashing on and off elements on
the display.
Otherwise, activate the program indicator on the display.
To do it press the button “POWER/SET” (3-fig.1) in the
short run until the current program number starts flashing
on and off (fig.3);
- Use the buttons “+” (5-fig.1) or “-” (6-fig.1) to select the necessary
program.Press one of the indicated buttons in the short run to get to
the next/previous program number or hold the button down for fast
search of necessary program on the display.
One can move in the programs according to cyclic scheme: 1-2-3-4-5-
r-6-7-8-9-1…....
Fig.3

18
USER’S GUIDE
www.geosoft.ru/en
6.6.1.2 Speed programming
The device has the instrument rotation speed programming within the
limits of 200 - 600 rpm in the mode of the instruments “continuous”
rotation.
The speed value is set for each program («1» - «5», «r») individually.
To change the current setting:
- Activate the speed indicator on the display. To do
it press the button “POWER/SET” (3-fig.1) in the
short run until the preset speed value starts flashing
on and off (fig.4);
- Use the buttons “+” (5-fig.1) or “-” (6-fig.1) to increase/lessen
speed. Press one of the indicated buttons in the short run to change
speed by increments of 50 rpm or hold the button down to get through
the all speed ranges.
Note: Maximally allowed instrument rotation speed value depends on the
preset limit torque (see p. 6.6.1.3). Maximal speed values at preset limit
torque are indicated in the Table 4:
Table 4
When the speed is more than maximally allowed, the preset value of limit
torque will lessen automatically.
Fig.4
Preset limit torque, Ncm 0,2-
1,6
1,7-
1,8
1,9-
2,0
2,1-
2,2
Maximal speed, rpm 600 550 500 450
2,3-
2,5
400
2,6-
2,8
350
2,9-
3,3
300
3,4-
3,5
250

19
ENDOEST MOTOR-MINI
hotline @ geosoft.ru
Attention! When selecting rotation speed for the instrument, follow
the Ni-Ti instrument manufacturer’s recommendations (see the
Torque card enclosed). Do not preset speed value on the display more
than maximally allowed by the manufacturer.
6.6.1.3. Limit torque programming
The device has the instrument rotation limit torque programming
within the limits of 0,2 - 3,5 Ncm in the mode of the instruments
“continuous” rotation.
The limit torque value is set for each program («1» - «5», «r»)
individually.
To change the current setting:
- Activate the torque indicator on the display. To do
it press the button “POWER/SET” (3-fig.1) in the
short run until the preset torque value starts flashing
on and off (fig.5);
- Use the buttons “+” (5-fig.1) or “-” (6-fig.1) to increase/lessen limit
torque. Press one of the indicated buttons in the short run to change
limit torque by increments of 0,1 Ncm or hold the button down to get
through the all torque ranges.
Note: Maximally allowed limit torque value depends on the preset
rotation speed (see p. 6.6.1.2). Maximal limit torque values at preset
speed are indicated in the Table 5:
Fig.5
Table 5
Preset speed, rpm 200-250 300 350 400
Maximal limit torque,
Ncm
3,5 3,3 2,8 2,5
450
2,2
500
2,0
550
1,8
600
1,6

20
USER’S GUIDE
www.geosoft.ru/en
When the limit torque is more than maximally allowed, the preset value of
speed will lessen automatically.
Attention! When selecting rotation limit torque for the instrument,
follow the Ni-Ti instrument manufacturer’s recommendations (see the
Torque card enclosed). Do not preset torque value on the display
more than maximally recommended by the manufacturer in any case
to avoid the instrument break during the canal preparation.
6.5.2. Adjusting the volume of sound signals
This device provides a sound indication in accordance with table 6
and 4 volume level of the sound signal: loud, medium, light signals
and sound is muted. Table 6
Action Type of sound signal Possibility of
switching off
Power switching on/off One-time signal. Yes
Pressing the active buttons One-time short signal. Yes
Pressing not active buttons Two-time short signal. Yes
Auto stop function activation
- when attaining limit torque
- when attaining the apex
Long signal.
Yes
No
Working with micro-motor in the
mode of reverse rotation
Discontinuous signal
like “rattle”
Yes
Operation of integrated apex-
locator
Discontinuous signal No
Checking the apex-locator
electrical circuit continuity
Frequent
discontinuous signal
No
Currently torque > 50% of the set
value in the "continuous"
rotation mode or >75% - in the
"reciprocal" rotation mode
Short discontinuous
signal
Yes
