GEOSOFT DENT ESTUS User manual

2
USER’S MANUAL
www.geosoft.ru/en
Congratulations!
! On buying the device, be sure to check the delivery set, presence
and correctness of the Quality Warranty Card filling, the acceptance
certificate and product selling marks.
! Please, thoroughly read the user’s guide before using the device.
Keep the User’s guide for future use.
! Please, address to the manufacturer if you have some questions
when using the device.
Tel.: [phone] (extension 109),
E-mail: [e-mail]
JSC GEOSOFT DENT
(Russia)

3
ESTUS DRIVE
www.geosoft.ru/en
CONTENTS
1. General information.......................................………………….
2. Delivery set...................................……………………………..
3. Accessories……………………………………………………..
4. Technical specifications........................………………………..
5. “Estus Drive” appearance.............……………………………..
6. Preparatory stage and working procedure……………………..
7. Basic rules of work with apex locator…...……………………..
8. Sterilization and disinfection…………………………………..
9. Maintenance……………………………………………………
10. Troubleshooting……………………………………………….
11. Storage, transportation and use ………………………………
12. Information on utilization…………………………………….
13. Symbol descriptions ………………………………………….
Appendix………………………………………………………….
4
9
10
14
18
22
42
46
50
52
55
55
56
57

4
USER’S MANUAL
www.geosoft.ru/en
1. GENERAL INFORMATION
1.1. Intended use:
Endodontic motor “Estus Drive” is a device for the tooth root canals
preparation using:
- all types of Ni‐Ti files with continuous and reciprocal rotation and
with built-in apex locator to control the distance from the file tip to the
apical constriction (physiological apex) during the endomotor
operation;
- self-adjusting files (SAF) with simultaneous irrigation of the canal
using the pump “Estus Pump”;
- endodontic burs and brushes of the “GentleBrush File” type.
1.2. Indication for use:
“Estus Drive” is an electronic device used in dentistry for preparation
and processing of the root canal. The manufacturer is not responsible
for any dangerous situation while using the device for purposes other
than that intended.
1.3. Application field:
The device is for use ONLY in medical facilities.
1.4. Potential users: ONLY the licensed dentists.
1.5. Contraindications: “Estus Drive” is not recommended for use in
patients who have a pacemaker.
1.6. Adverse reactions: Without finding.
1.7. Contact type with a patient: Short invasive contact through the
oral cavity.

5
ESTUS DRIVE
www.geosoft.ru/en
1.8. Operating principal:
Endodontic motor: the drive combined with “RT”, “SAF” or “GF”
heads allows to control endodontic continuous and reciprocal rotations
of Ni-Ti files, self-adjusting files or endodontic burs and brushes of
the “GentleBrush File” type accordingly.
1.9. Functional abilities:
 Operation with three types of the heads: “RT”, “SAF” and “GF”.
Automatic head type recognition and the following activation of the
corresponding operational mode.
Motor with “RT” head:
- Four programs (1 - 4) for operation with Ni-Ti files of the
continuous rotation with the fixed speed value and ultimate rotating
moment (torque) value for every file.
- One program (5) for operation with Ni-Ti file of reciprocal rotation
with the fixed speed value and the file rotation angles clockwise
and counterclockwise.
- Function of automatic optimal torque control “Safety Torque
Reverse” (STR) at the ultimate torque value in the mode of the
continuous Ni-Ti files rotation.
- Functions of the built-in APEX LOCATOR :
- automatic apex locator activation at the inserting file into the
canal during the endomotor operation;
- automatic motor rotation slowing at the approaching to apex
(“Apical Slow Down”);
- apical reverse (“Apical Reverse”) at the apex achieving .
- Indication on the LED scale of the handpiece:
- chosen working program before motor start;
- current torque from the motor start moment or
- the distance to canal apical constriction in the range from 2,0 to
0,0 units at closing the apex locator measuring circuit.

6
USER’S MANUAL
www.geosoft.ru/en
Motor with “SAF ”head:
- Five programs (1 - 5) for operation with SAF-files with one fixed
value of the file rotation speed and five speeds of the irrigating
solution supply with the pump “Estus Pump” connecting.
- Built-in timer of the motor and pump operation with the function of
storing the current time value, automatic zeroing of the timer after
4 minutes work and automatic motor and pump stop after 5-
minutes work.
- Indication on the LED scale of the handpiece:
- of the chosen working program before motor start,
- of the current timer value from the motor start moment .
Motor with “GF”head:
- Two programs: (1) for working with burs 6500 rpm and (2) for
working with endodontic brushes “GentleBrush File” type 3000
rpm
 Automatic calibration of the micro-motor system during the
handpiece work allows to measure and compensate the inner
friction of the micro-motor system;
 Possibility to change all working parameter of the handpiece in a
wide range of values if the handpiece is connected to the PC with
the special wireless adapter “Estus USB”;
 Audio indication during operation and function of the audio signal
volume adjustment.
 Indication of the power supply discharge.
 Power saving function.
 The possibility of expanding “Estus Drive” functionality in terms
of settings and displaying the values of its operating parameters
and the built-in apex locator values indication when the device is
operating as a part of the “Estus” dental complex together with the
“Estus Multi (Plus)”* main control unit.

7
ESTUS DRIVE
www.geosoft.ru/en
* is not included into the delivery set and should be purchased separately.
1.10 Precautions and Warnings
! Use the device with the original “Geosoft Dent” accessories only
(see section 3).
!Do not disassemble or modify the device. Violation of the device
integrity cancels the warranty.
!Avoid letting any liquid inside the product’s housing.
!Do not use the device close to flammable agents. The device is not
suitable for use in presence of flammable anesthetic agents with air,
oxygen or nitric oxide.
!Use sterile and disinfected parts and accessories of the device only.
Sterilization and disinfection must be conducted directly before the
initial use and also between each time of use to avoid cross infection.
(for more details see section 8).
!Be sure to lubricate and sterilize the motor head before first use and
between each patient use. Avoid getting oil on exposed parts of the
motor.
!When working in the patient's oral cavity, use a rubber dam.
!If any deviations from the normal operation of the endomotor are
detected (noise, vibration, heating, etc.), immediately stop using the
device and try to find out the cause of the failure, based on the
information presented in section 10 of this manual.
! The endomotor offers the function of Ni-Ti file torque limitation in
the continuous rotation mode, which decreases the file breakage
during the processing. Setting of the wrong torque value and using the
life-expired file could cause the file breakage. Carefully follow the
manufacturer’s instruction and avoid using the life-expired or
damaged files.
! Do not use the curved, defected or not corresponding to ISO
standards file. Using such file could cause injury.

8
USER’S MANUAL
www.geosoft.ru/en
!Always clean the shank of the file to be set. The contaminated head
clamp mechanism could cause improper file fixation in the head and
also the contact loss and violation of the measuring circuit continuity
of the in-built apex locator.
!Do not start the motor until the file is not reliably set in the head
clamp mechanism.
!Avoid casual contact with the motor rotating parts and/or rotating
file.
!In some cases detecting apex with the built-in electronic apex locator
could be inaccurate and unreliable. (see section 7 Basic rules of work
with apex locator). Prior to using combined mode (motor and apex
locator) with “RT” head, it is recommended to make an x-ray and rely
on the information got by both methods.
! This device requires special measures application for
electromagnetic capability (EMC) and should be installed and
switched into operation accordingly with the information in the
Appendix of the User’s Manual. It includes the requirement not to use
the device close to daylight lamps, radio transmitting equipment and
remote controls.
! The buit-in apex locator dysfunction is possible if used in
electromagnetic interference (EMI) area. Do not use the device close
to the electromagnetic equipment. This equipment is usually marked
by the sign
!Do not use the device jointly with the different equipment or as a
part of the equipment, not included into the manufacturer’s product
list.
!Do not use the accessories, adapters and cables, different from the
listed below. It can direct to the emission interference increase or
reduce interference immunity of the device. The Manufacturer
guarantees electromagnetic compatibility of the following accessories:
apex locator cable of the maximal length 105 cm; the charger cable of

9
ESTUS DRIVE
www.geosoft.ru/en
the maximal length 1.8 m.
! The device operates normally at a temperature of 10-35°С, relative
humidity of air not more than 80%, atmospheric pressure (101±3) kPa.
Any violation of these restrictions may cause the device error.
2. DELIVERY SET
Delivery set variants are in the table 1.
Table 1
The device element Quantity, pcs
in the delivery set variant
Drive Drive+
RT
Drive+
RT+
USB
Drive+
RT+
Smart
SAF
1 Control unit “Estus Drive” 1 1 1 1 -
2 Battery unit 1 1 1 1 -
3 “RT” head - 1 1 1 -
4 “SAF” head - - - - 1
5 “GF” head 1* 1* 1* 1* -
6 Protective case for the “RT”
head
- 1 1 1 -
7 Adapter for the heads
lubrication
1 1 1 1 -
8 Apex locator cable (micro pin
2 mm, single)
- 1 1 1 -

10
USER’S MANUAL
www.geosoft.ru/en
Table 1 continued
* These components are supplied if necessary
** The presented products are delivered individually packed. Information on
use of the devices is in the different User’s manual : User’s manual Irrigation
pump “Estus Pump”, User’s manual Smart stand “Estus Smart-B” and
User’s manual Wireless adapter “Estus USB”.
The device element Quantity, pcs
in the delivery set variant
Drive Drive+
RT
Drive+
RT+
USB
Drive+
RT+
Smart
SAF
9 Lip clip “Oral Hook” - 1 1 1 -
10 Stand “Estus One-B” 1* 1* 1* - -
11 Сharging stand “Estus Energy-S” 1* 1* 1* 1 -
12 Charger cable USB - USB-B 1* 1* 1* 1 -
13 Stand “Estus Smart-B” ** - - - 1 -
14 Power adapter (USB-socket) 1А1* 1* 1* 1 -
15 Irrigation pump “Estus Pump”
**
- - - - 1
16 Wireless adapter “Estus USB”
**
- - 1 - -
17 User’s manual “Estus Drive” 1 1 1 1 -
18 Warranty Card “Estus Drive” 1 1 1 1 -
19 Warranty Card “Estus Energy
-S/D”
1* 1* 1* 1 -

11
ESTUS DRIVE
www.geosoft.ru/en
3. ACCESSORIES
RТhead (complete set) GE99.202.000
Miniature button head with magnetic lock for
working with Ni-Ti files of continuous and
reciprocal rotation.
SAF head (complete set) GE99.203.000
Head with magnetic lock for working with SAF
files.
GF head (complete set) GE99.204.000
Miniature button head with magnetic lock for
working with endodontic burs and brushes of the
GentleBrush File type.
Battery unit GE99.205.000
Additional battery unit for the “Estus Drive”
handpiece (2х3.7 V, 800 mАh).
Wireless adapter “Estus USB” GE41.000.000
Special wireless adapter for changing the working
parameters of the “Estus Drive” handpiece.

12
USER’S MANUAL
www.geosoft.ru/en
Control unit “Estus Multi (Plus)” GE28.000.000
External apex locator and control unit for extended
setting and indication of the working parameters of
the “Estus Drive” handpiece.
Irrigation pump “Estus Pump” GE38.000.000
One-channel pump the irrigating solution feed
during the operation of the “Estus Drive”
handpiece with SAF head.
Protective case for the RТhead GE99.206.000
Protective reusable sterilizable silicone case for RT
head electro-isolation during the work in combined
mode “motor + apex locator”.
Adapter for the heads lubrication
GE99.161.000
Adapter for the heads lubrication
Apex locator cable GE99.162.000
Cable for the apex location procedure.
Length - 100± 3 cm, the plug – micro pin (2 mm)
Lip clip Oral Hook (3pcs/1 pc)
GE99.062.000 / GE99.123.000
Lip clip is used as a passive electrode during the
apex location procedure. It is fixed on the patient’s
lip.

13
ESTUS DRIVE
www.geosoft.ru/en
! Accessories are delivered separately, additionally paid
Charging stand “Estus Energy-S”
GE42.000.000
One-port charging stand for the battery unit of the
“Estus Drive” handpiece.
Charging stand “Estus Energy-D”
GE39.000.000 T
wo-ports charging stand for two battery units of the
“Estus Drive” handpiece.
Power adapter (USB-socket) 1А
Model: Robiton USB1000/White
Input voltage - (100-240) V, ~50/60 Hz
Output voltage - 5 V; 1А.
Stand “Estus One-B”
GE99.208.000
Single-stand for the “Estus Drive” handpiece.
Stand «Estus Smart-B»
GЕ44.000.000
Smart stand for performing the following functions:
1) as an Estus drive handpiece stand 2) setting and
indication of endomotor operation parameters 3)
autonomous apex locator

14
USER’S MANUAL
www.geosoft.ru/en
4. TECHNICAL SPECIFICATIONS
4.1. Handpiece “Estus Drive” :
 Power supply - Li-Ро battery unit (2х3,7 V; 800 mАh).
 Electric shock protection - Device with the built-in power supply.
Applied part is of the ВF type.
 The built-in radio module NF-03: frequency range - 2,4-2,525GHz,
max output capacity - 7 dBm (0,00501W), cover range -up to 3 m
in the direct vision.
 Average uninterrupted performance with the new fully charged
battery - 135 minutes.
 Stand-by operating time to automatic switch off - 10 ±0,5 minutes
 Battery unit charging time - 70 ±10 minutes
 Battery resource - is not less than 300 recharges
 The working area of the ring switch on the front side of the
handpiece - 180° .
 The operating force of the ring switch - not more than 1N
 Audio indication parameters: audio frequency - from 1 to 6 kHz,
volume level - not more than 70 dB.
 Dust and water protection rate - IP41.
 Dimensions - (215*33*51) ±3 mm
 Weight - 140 ±10 g
 Service time of the device - 5 years.

15
ESTUS DRIVE
www.geosoft.ru/en
Table 2
Parameters Parameters
factory settings
Values at using
Estus USB, Estus
Smart-B or
Estus Multi (Plus)*
with the RТhead:
Head model GE29.140.000GG with magnetic lock,
16:1 reduction, button type
Speed in the mode of
continuous rotation with
accuracy ±10%, rpm
Р1=250,
Р2=350,
Р3=500,
Р4=1000
from 200 to 400
(step 50) and
from 400 to 1200
(step 100)
Stabilization accuracy of the
rotation speed , %
±10
Limit torque in the continuous
rotation mode with accuracy
±15% , Nсm
Р1=3.0,
Р2=2.0,
Р3=1.2,
Р4=1.0
from 0,2 to 5,1
(with a step 0,1)
Rotation angle clockwise/
counterclockwise in the mode
of reciprocal rotation with
accuracy ±5°, °
Р5= 30 / 150 from 10 to 360 /
from 10 to 360
(with a step 10)
Built-in apex locator:
- Measuring range, units
- Adjustment range of the apical
stop point “Apical stop point”,
units
from 2,0 to 0.0
(with a step 0,5)
no
from 3,0 to 0.0
(with a step 0,1)
from 0,1 до 1,0**
(with a step 0,1)

16
USER’S MANUAL
www.geosoft.ru/en
* is not in the delivery set, could be purchased separately, additionally paid
** when using “Estus Smart-B” and setting this parameter is not available
Parameters Parameters
factory
settings
Values at using
Estus USB, Estus
Smart-B or
Estus Multi (Plus)*
With the SAF head:
Head model GE29.130.000G with magnetic
lock, 1:1 reduction
Rotation speed with accuracy
±10%, rpm
5000 from 3500 to 9500
(with a step 500)
Solution supply speed at connecting
the pump with accuracy ± 15% , ml/
min.
from 1 to 5 (with a step 1)
Timer with accuracy ± 2% , min. from 0 to 5
With the GF head:
Head model GE29.150.000GG with magnetic
lock, 1:1 reduction, button type
Rotation speed with accuracy
±10%, rpm
Р1=6500,
Р2=3000
from 3000 to 9000
(with a step 500)

17
ESTUS DRIVE
www.geosoft.ru/en
4.2. Charging stand “Estus Energy-S”:
 Power - 5V, 1А.
 Electric shock protection - the product is of the class II.
 Dust and water protection rate - IP41.
 Dimensions - (87*56*49) ±3 mm
 Weight - 130±10 g
 Service time of the device - 5 years.
4.3. Power adapter (USB-socket) 1A
 Input voltage - (100-240) V, ~50/60 Hz .
 Output voltage - 5 V; 1А.
4.4. Stand “Estus One-B”:
 Dimensions- (100*60*40) ±3 mm
 Weight - 132 ±10 g

18
USER’S MANUAL
www.geosoft.ru/en
5. “ESTUS DRIVE” APPEARANCE
Appearance of endomotor “ESTUS DRIVE” is on the figure 1,
including:
А. “Estus Drive” handpiece:
1. Control unit;
2. RT / SAF / GF heads;
3. Removable battery unit;
4. Ring switch (see table 3);
5. Indicator STATUS (see table 4);
6. LED scale includes 5 indicators to display: the chosen program/
current torque/ distance to apex/ timer;
7. Discharge indicator of the removable battery unit;
8. Input socket for apex locator cable;
B. Stand “Estus One-B” for the handpiece;
C. Charging stand “Estus Energy-S”:
9. Charging socket;
10. Charge indicator;
11. Socket USB-B for the charger cable;
D. Charger cable USB- USB-B
E. Power adapter (USB-socket)
F. Apex locator cable
G. Lip clip
H. Protective case for the head RТ
I. Adapter for heads lubrication

19
ESTUS DRIVE
www.geosoft.ru/en
B
8
1
2
4
3
5
7
6
F
D
E
G
11
10
9 C
Figure 1. “Estus Drive”
A
H
I

20
USER’S MANUAL
www.geosoft.ru/en

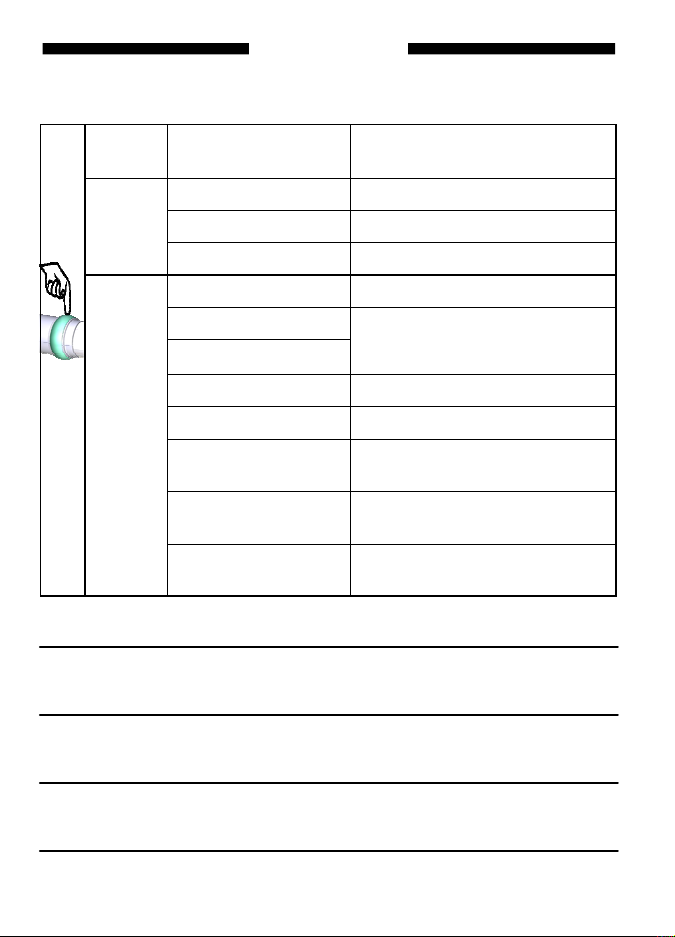

Table 3. Variants of using the ring switch
Power
supply
Press ring switch Result
OFF 1 time Power on
Holding up to 10 sec. Volume adjustment
Holding > 20 sec. Pair creating mode activation
ON
1 time Start/ Stop motor rotary
2 times The working program selection
2 times with holding
3 times Power off
3 times with holding Return to the factory settings
Holding in stand-by
mode SAF
Reset (zeroing) of the timer
Holding in the mode of
pair creating with pump
Confirmation
of pair creation with pump
5 times Handpiece testing
(starting motor without the head)
