Geotech 1.66 Reclaimer User manual

Rev 06/10/12 Part# 26600222
Geotech
1.66 Reclaimer
Installation and Operation Manual

1
TABLE OF CONTENTS
CHAPTER 1: SYSTEM DESCRIPTION......................................................................................3
FUNCTION AND THEORY .................................................................................................3
CHAPTER 2: SYSTEM INSTALLATION .....................................................................................4
CHAPTER 3: SYSTEM OPERATION..........................................................................................5
CHAPTER 4: SYSTEM MAINTENANCE ....................................................................................7
CHAPTER 5: SYSTEM TROUBLESHOOTING ..........................................................................9
CHAPTER 6: SYSTEM SPECIFICATIONS...............................................................................10
CHAPTER 7: REPLACEMENT PARTS LIST............................................................................12
THE WARRANTY .......................................................................................................................14
EQUIPMENT RETURN POLICY................................................................................................14
EQUIPMENT DECONTAMINATION..........................................................................................14

DOCUMENTATION CONVENTIONS
This manual uses the ollowing conventions to present in ormation:
An exclamation point icon in icates a WARNING of a situation or con ition that
coul lea to personal injury or eath. You shoul not procee until you rea
an thoroughly un erstan the WARNING message.
WARNING
A raise han icon in icates CAUTION information that relates to a situation or
con ition that coul lea to equipment malfunction or amage. You shoul not
procee until you rea an thoroughly un erstan the CAUTION message.
CAUTION
A note icon in icates NOTE information. Notes provi e a itional or supplemen-
tary information about an activity or concept.
NOTE
2

Chapter 1: System Description
Function and Theory
The Geotech Reclaimer can be configure as a Top fill, Bottom fill, or Top an Bottom fill fixe
intake, positive air isplacement pump. The Geotech Reclaimer is esigne for total flui s,
hy rocarbon, leachate, an con ensate recovery. The Geotech Reclaimer is esigne to with-
stan most aggressive own well environments inclu ing highly corrosive flui s without fear of
material break own or failure.
The Geotech Reclaimer will recover flui s from epths up to 500' (152 m).
Refer to the operation section of this manual.
Flow rates of up to 3 GPM (11.4 LPM) are possible.
Refer to the specifications section of this manual.
The Geotech 1.66" Reclaimer will operate in wells 2" (5cm) insi e iameter or larger vertical wells.
3

4
Chapter 2: System Installation
Attach pro uct ischarge an air supply hoses to the proper barbe fittings on the pump.
Refer to Figures 1 an 2 below for fitting configurations.
If pump configuration was not assemble as a complete system,
please use the following steps:
Attach air supply hose to Geotech pneumatic controller air supply fitting.
Ensure all hoses are installe properly an securely to the fittings.
Attach the safety cable to the support loop using proper crimps or cable clamps.
The Reclaimer can now be lowere into the recovery well. For optimum efficiency, the
Reclaimer must be positione in the well with the intake a equately submerge .

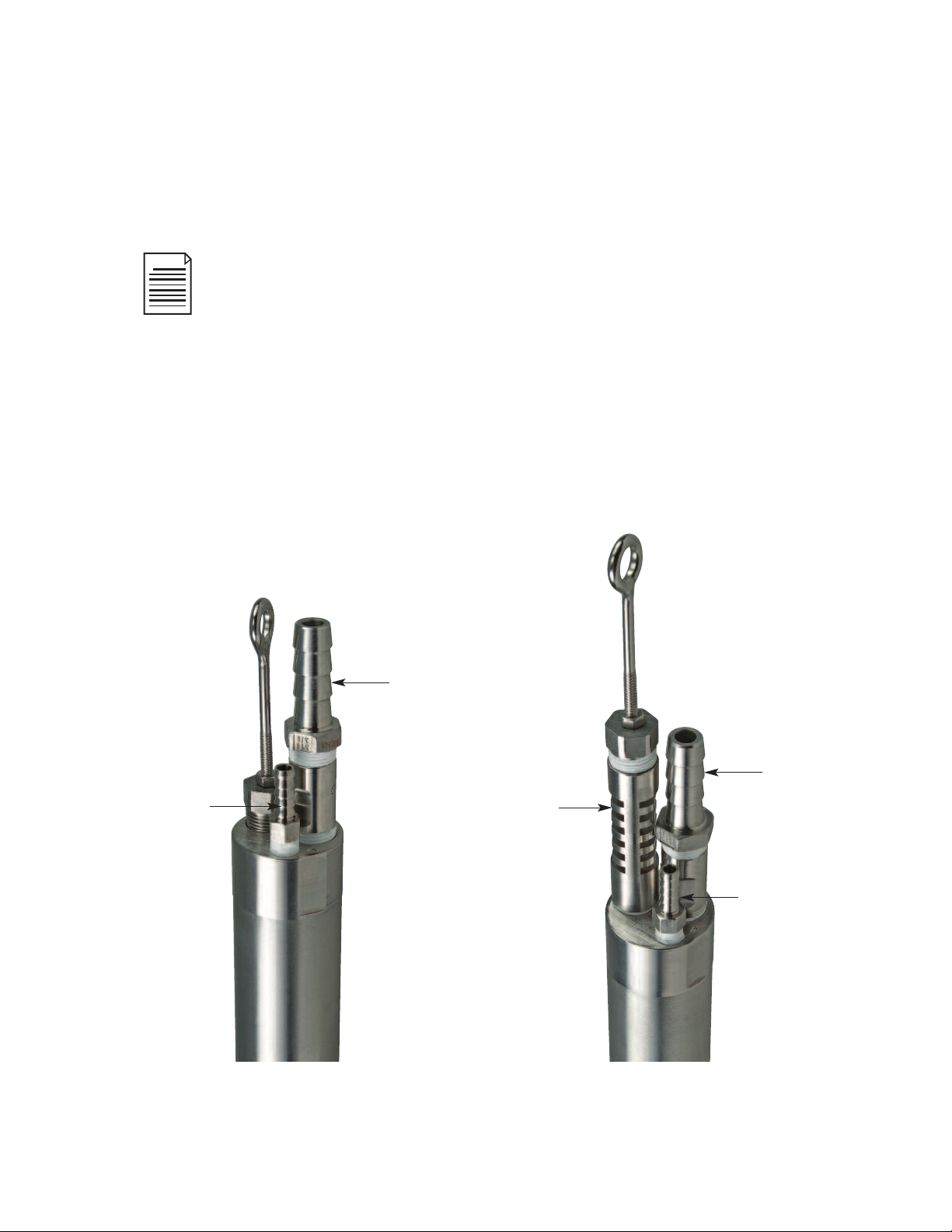

Figure 1
1.66" Reclaimer Bottom Fill
Figure 2
1.66" Reclaimer Top Fill
Discharge
Discharge
Air
Air Fluid
Intake

5
Chapter 3: System Operation
Compressed air is utilized in this system. For pressure requirements use .5
psi per oot (.03 bar per 30.5 cm) o li t plus ten. Example: 30' (9 m) o head
would need a minimum o 25 psi (1.7 bar). Consult the controller manual or
air pressure requirements needed.
TOP FILL
The Top Fill Reclaimer is place in a recovery well with the top inlet submerge below static
groun water. Combine with the Geotech Pneumatic Controller, the Reclaimer cyclically fills
an empties.
Well recharge rate and time sequence settings on the Geotech Pneumatic
Controller will a ect the maintainable luid level.
BOTTOM FILL
The Bottom Fill Reclaimer is place in a recovery well with the bottom intake submerge below
static groun water. Combine with Geotech’s Pneumatic Controller, the Reclaimer cyclically
fills an empties.
Well recharge rate and time sequence settings on the Geotech Pneumatic
Controller will a ect the maintainable luid level, see Figure 3.

Controller
To Compressor
Product/Liquid
Discharge Air Supply
Cone of
Depression
Figure 3
1.66" Reclaimer
6

Chapter 4: System Maintenance
The Geotech Reclaimer has been esigne to be virtually maintenance free. In the event
clogging occurs in the pump or trappe particulate in the check ball seats, isassemble the
Reclaimer pump an rinse with soapy or clean water to islo ge any matter. The Reclaimer
is constructe of 300 series stainless steel an PTFE to provi e many years of continue serv-
ice with minimal maintenance. See Figure 4.
7

8
Figure 4
Top Fill Bottom Fill

9
Chapter 5: System Troubleshooting
Problem: Pump does not discharge luid to the sur ace.
Solutions:
1. Check controller to ensure it is functioning properly. Consult controller manual.
2. Ensure that the air pressure is a equate enough to overcome the total ynamic hea
pressure the pump is working against. (Consult the controller manual for air pressure
requirements nee e .)
3. Inlet screen is clogge – Remove pump from well, isassemble, clean screen
4. Inlet pipe plug is clogge – Remove pump from well, isassemble, clear, clean plug
5. Air exhaust vent hose is clogge – Remove pump from well, isassemble, clear vent hose
6. Hoses are kinke or cut – Replace amage hoses

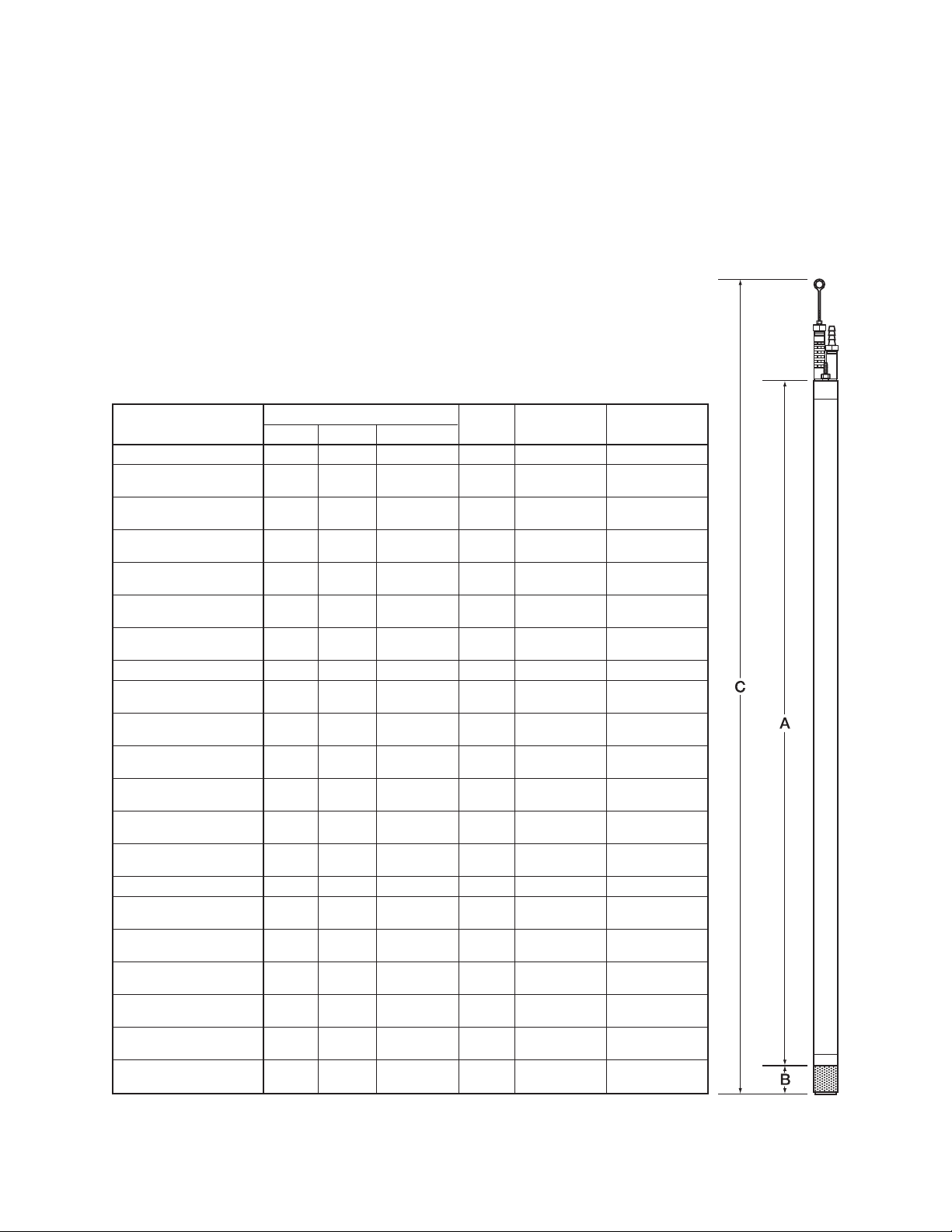

Dimensions - in. (cm) Weight Volume/Cycle Max. Flow Rate
1.66 Reclaimer AB Clbs. (kg) gallons (L) GPM (LPM)
24" Top Fill 24 (61) 0 30.25 (76.8) 4.0 (1.8) 0.1 (.4) 2 (7.6)
24" Bottom Fill
(No Screen) 24 (61) 0 27.25 (69.2) 4.0 (1.8) 0.1 (.4) 2 (7.6)
24" Bottom Fill
(Flat Screen) 24 (61) 0.25 (.6) 27.5 (69.8) 4.5 (2) 0.1 (.4) 2 (7.6)
24" Bottom Fill
(2" Screen) 24 (61) 2 (5) 29.25 (74.3) 5.0 (2.3) 0.1 (.4) 2 (7.6)
24" Top & Bottom Fill
(No Screen) 24 (61) 0 30.25 (76.8) 4.0 (1.8) 0.1 (.4) 2 (7.6)
24" Top & Bottom Fill
(Flat Screen) 24 (61) 0.25 (.6) 30.5 (77.5) 4.5 (2) 0.1 (.4) 2 (7.6)
24" Top & Bottom Fill
(2" Screen) 24 (61) 2 (5) 32.25 (81.9) 5.0 (2.3) 0.1 (.4) 2 (7.6)
36" Top Fill 36 (91) 0 42.25 (107.3) 5.4 (2.4) 0.2 (.8) 2.4 (9)
36" Bottom Fill
(No Screen) 36 (91) 0 39.25 (99.7) 5.4 (2.4) 0.2 (.8) 2.4 (9)
36" Bottom Fill
(Flat Screen) 36 (91) 0.25 (.6) 39.5 (100.3) 5.9 (2.7) 0.2 (.8) 2.4 (9)
36" Bottom Fill
(2" Screen) 36 (91) 2 (5) 41.25 (104.8) 6.4 (2.9) 0.2 (.8) 2.4 (9)
36" Top & Bottom Fill
(No Screen) 36 (91) 0 42.25 (107.3) 5.4 (2.4) 0.2 (.8) 2.4 (9)
36" Top & Bottom
Fill (Flat Screen) 36 (91) 0.25 (.6) 42.5 (107.9) 5.9 (2.7) 0.2 (.8) 2.4 (9)
36" Top & Bottom Fill
(2" Screen) 36 (91) 2 (5) 44.25 (112.4) 6.4 (2.9) 0.2 (.8) 2.4 (9)
48" Top Fill 48 (122) 0 54.25 (137.8) 7.8 (3.5) 0.4 (1.5) 3 (11.4)
48" Bottom Fill
(No Screen) 48 (122) 0 51.25 (130.2) 7.8 (3.5) 0.4 (1.5) 3 (11.4)
48" Bottom Fill
(Flat Screen) 48 (122) 0.25 (.6) 51.5 (130.8) 8.3 (3.8) 0.4 (1.5) 3 (11.4)
48" Bottom Fill
(2" Screen) 48 (122) 2 (5) 53.25 (135.2) 8.8 (4.0) 0.4 (1.5) 3 (11.4)
48" Top & Bottom Fill
(No Screen) 48 (122) 0 54.25 (137.8) 7.8 (3.5) 0.4 (1.5) 3 (11.4)
48" Top & Bottom Fill
(Flat Screen) 48 (122) 0.25 (.6) 54.5 (138.4) 8.3 (3.8) 0.4 (1.5) 3 (11.4)
48" Top & Bottom Fill
(2" Screen) 48 (122) 2 (5) 56.25 (142.9) 8.8 (4.0) 0.4 (1.5) 3 (11.4)
Chapter 6: System Speci ications
1.66" Reclaimer
Outsi e Diameter . . . . . . . . . . . . . . 1.66" (4.22 cm)
Max. Operating Depth . . . . . . . . . . 500' (152 m)
Min. Well ID . . . . . . . . . . . . . . . . . . 2" (5 cm)
Operating Pressure Range . . . . . . . 10-300 psi (.7-20.7 bar)
Fittings . . . . . . . . . . . . . . . . . . . . . . Stainless steel
Flui Discharge . . . . . . . . . . . . . . . ½" - ¾"
Air Supply . . . . . . . . . . . . . . . . . . . . ¼" - 3⁄8"
10

NOTES
11

Chapter 7: Replacement Parts List
Item Qty Description Part No.
11 BOLT, SS6, 10-24 x 3", EYE W/NUT 16600133
21 NUT, SS8, 10-24 11200650
31 PLUG, HANGER, SS4, 1.66 26600178
41 INTAKE ASSY, UPPER, 1.66 56600056
51 ASSY, DISCHARGE, 1.66 56600068
61 HOSEBARB, SS6, 1/2 x 3/8 MPT 16600217
71 HOSEBARB, SS6, 1/4 x 1/8 MPT 17200072
81 HEAD, RECLAIMER, 1.66, CAP, UPPER 26600217
91 PIPE, CENTER, SS4, 1/4 x 24, 1.66 RECLAIMER 26600213
1 PIPE, CENTER, SS4, 1/4 x 36,1.66 RECLAIMER 26600214
1 PIPE CENTER, SS4, 1/4 x 48" 1.66 AR 26600062
10 1 HOUSING, RECLAIMER, 1.66, SS4, 24" 56600063
1 HOUSING, RECLAIMER, 1.66, SS4, 36" 56600064
1 HOUSING, RECLAIMER, 1.66, SS4, 48" 56600065
11 1 CAP, BOTTOM INLET, 1.66 26600070
12 1 BALL, TFE, 3/4" 17500085
13 2 O-RING, VITON, #126 17500104
14 1 BOTTOM INLET, SS, 1.66 26600071
15 1 PIN, DOWEL, SS8, 1/4 x 1.5" 16600124
16 1 SCREEN, INLET, SS, 1.66 x 2 26600083
17 1 CAP, BOTTOM INLET, SCREEN, 1.66 26600072
1 CAP, SS6, BOT INLET SCREEN, ANODE 26600136
18 2 SCREW, SS8, 8-32 x 2.25", SHCS 16600132
19 1 SCREEN, INLET, SS, 1.66, FLAT 26600134
20 2 SCREW, SS6, 10-32 x .5", SHCS 16600095
21 1 CAP, BOTTOM BLANK, 1.66 26600069
MANUAL, RECLAIMER, 1.66 26600222
12

Figure 5
System Components
13
1
6
5
10
2
3
4
8
13
9
11
21
13
12
19
20
14
16
1
18
15

14
THE WARRANTY
For a perio of one (1) year from ate of first sale, pro uct is warrante to be free from efects
in materials an workmanship. Geotech agrees to repair or replace, at Geotech’s option, the
portion proving efective, or at our option to refun the purchase price thereof. Geotech will
have no warranty obligation if the pro uct is subjecte to abnormal operating con itions, acci-
ent, abuse, misuse, unauthorize mo ification, alteration, repair, or replacement of wear parts.
User assumes all other risk, if any, inclu ing the risk of injury, loss, or amage, irect or conse-
quential, arising out of the use, misuse, or inability to use this pro uct. User agrees to use,
maintain an install pro uct in accor ance with recommen ations an instructions. User is
responsible for transportation charges connecte to the repair or replacement of pro uct
un er this warranty.
Equipment Return Policy
A Return Material Authorization number (RMA #) is require prior to return of any equipment to
our facilities, please call 800 number for appropriate location. An RMA # will be issue upon
receipt of your request to return equipment, which shoul inclu e reasons for the return. Your
return shipment to us must have this RMA # clearly marke on the outsi e of the package.
Proof of ate of purchase is require for processing of all warranty requests.
This policy applies to both equipment sales an repair or ers.
FOR A RETURN MATERIAL AUTHORIZATION, PLEASE CALL OUR SERVICE DEPARTMENT AT
1-800-833-7958
Mo el Number:
Serial Number:
Date of Purchase:
Equipment Decontamination
Prior to return, all equipment must be thoroughly cleane an econtaminate . Please make
note on RMA form, the use of equipment, contaminants equipment was expose to, an
econtamination solutions/metho s use .
Geotech reserves the right to refuse any equipment not properly econtaminate . Geotech
may also choose to econtaminate equipment for a fee, which will be applie to the repair
or er invoice
