How to load default settings to GV-IP cameras?
Article ID: GV15-11-19-f
Release Date: 11/19/2015
Applied to
GV-IPCAM H.264 Series
Summary
Among different models of GV-IP cameras, you can restore factory default settings through
the Web interface or directly on the camera. The time of loading default settings for each
model can vary and the way the LEDs flash can also be different.

2
Contents
1. Using the Web Interface ...............................................................................................3
2. Directly on the Camera.................................................................................................4
Box Camera..............................................................................................................4
Ultra Box Camera and Target Box Camera ..............................................................5
Mini Fixed Dome .......................................................................................................6
Mini Fixed Rugged Dome .........................................................................................7
IR Arctic Box Camera ...............................................................................................7
Target Mini Fixed Target Mini Fixed Rugged Dome .................................................8
Bullet Camera ...........................................................................................................9
Ultra Bullet Camera...................................................................................................9
Target Bullet Camera..............................................................................................10
Vandal Proof IP Dome ............................................................................................10
Target Vandal Proof IP Dome.................................................................................11
Fixed IP Dome ........................................................................................................12
Target Fixed IP Dome.............................................................................................12
Cube Camera..........................................................................................................13
Advanced Cube Camera.........................................................................................14
PT Camera..............................................................................................................14
Pinhole Camera ......................................................................................................15
Fisheye Camera......................................................................................................15

3
Restoring to Default Settings
There are twelve models of GV-IPCAM H.264 Series: Box, Ultra Box, Mini Fixed Dome, Mini
Fixed Rugged Dome, Bullet, Ultra Bullet, PTZ and PT, Vandal Proof IP Dome, Fixed IP Dome,
Cube, and Advanced Cube.
1. Using the Web Interface

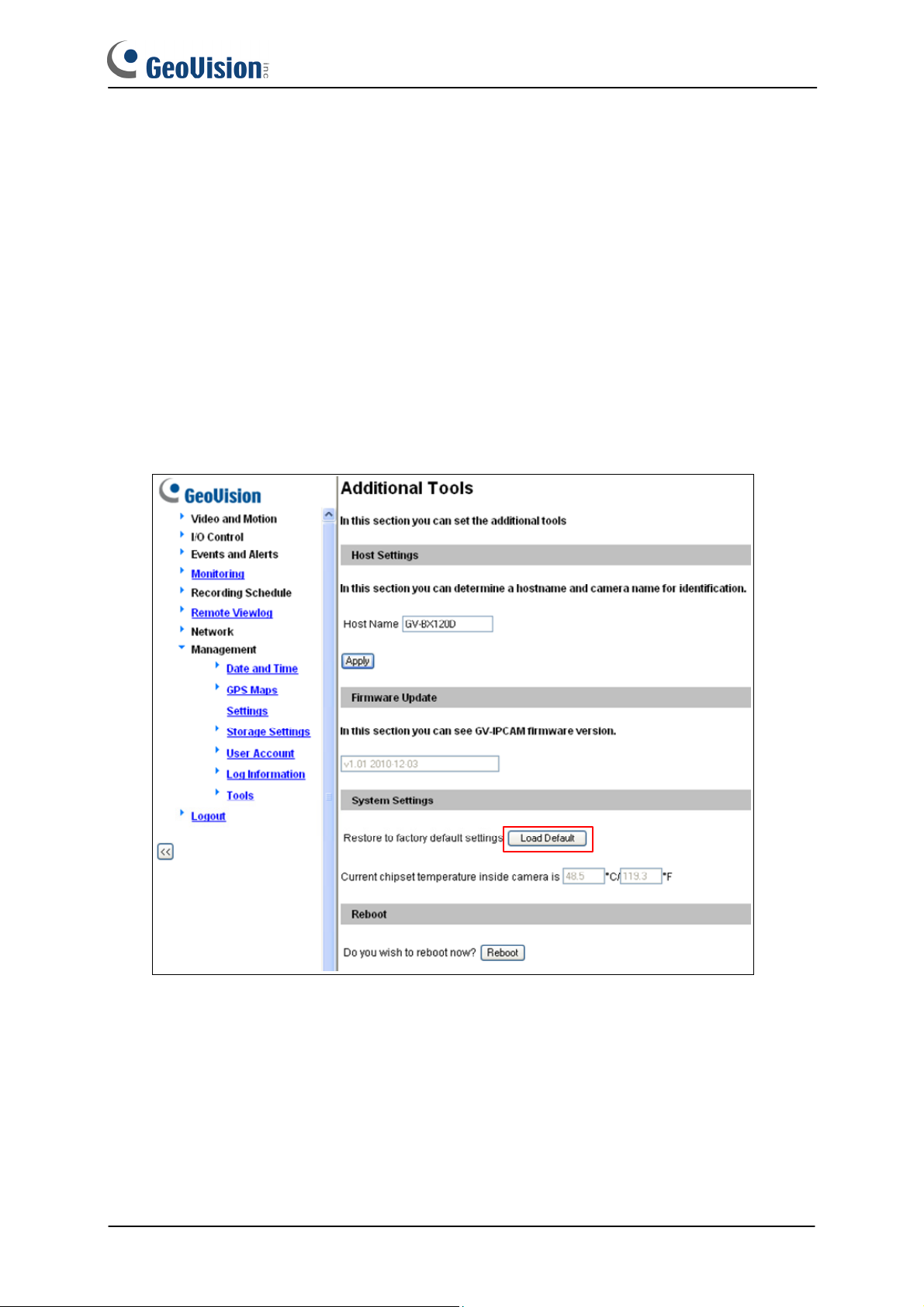

1. On the left menu of Web interface, select Management and select Tools. The Additional
Tools dialog box appears.
2. Click the Load Default button in the System Settings section.

4
2. Directly on the Camera
Box Camera
1. Keep the power and network cables connected to the camera.
2. Use a pin to press and hold the default button on the back panel of the camera.
Default button
3. Release the default button when the status LED blinks. This shall take about 8 seconds.
Status LED
4. When the status LED fades, the process of loading default settings is completed and the
camera reboots automatically.

5
Ultra Box Camera and Target Box Camera
1. Keep the power and network cables connected to the camera.
2. Use a pin to press and hold the default button on the back panel of the camera.
Default button
3. Release the default button when the status LED blinks. This shall take about 8 seconds.
Status LED
4. When the status LED fades, the process of loading default settings is completed and the
camera reboots automatically. When the status LED turns on (green), the camera is ready
for use.

6
Mini Fixed Dome
1. Keep the power and network cables (or PoE) connected to the camera.
2. Press and hold the default button.
GV-MFD120 / 130 / 320
Default button
Status LED
GV-MFD1501 Series / 2401 Series / 3401 Series / 5301 Series
3. Release the default button when the status LED blinks. This shall take about 8 seconds.
4. When the status LED fades, the process of loading default settings is completed and the
camera reboots automatically.

7
Mini Fixed Rugged Dome
1. Keep the power and network cables connected to the camera.
2. Press and hold the default button.
Status LED
Default button
3. Release the default button when the status LED blinks. This shall take about 8 seconds.
4. When the status LED fades, the process of loading default settings is completed and the
camera reboots automatically.
IR Arctic Box Camera
Note the following procedure is only applicable to GV-BX2510-E / 5310-E. To restore
default settings of other IR Arctic Box Cameras, access the load default function from
its Web interface. For details, see Tools, Administrator Mode, Chapter 4, GV-IPCam
H.264 Firmware Manual.
1. Keep the power and network cables (or PoE) connected to the camera.
2. Press and hold the default button.
Default button
Status LED
3. Release the default button when the status LED blinks. This shall take about 8
seconds.

8
4. When the status LED fades, the process of loading default settings is completed
and the camera reboots automatically.
Target Mini Fixed Target Mini Fixed Rugged Dome
1. Keep the PoE cable connected to the camera.
2. Press and hold the default button for about 8 seconds.
Default button
3. Release the default button when the status LED blinks.
4. When the status LED fades, the process of loading default settings is completed and the
camera reboots automatically.

9
Bullet Camera
1. Keep the power and network cables connected to the camera.
2. Loosen the camera’s cover and remove the Silica Gel Bag.
3. Press and hold the default button for 8 seconds.
Default button
4. Release the default button. When the process of loading default settings is completed,
the camera reboots automatically.
5. Insert a new Silica Gel Bag and fasten the camera’s cover immediately.
Ultra Bullet Camera
1. Keep the power and network cables (or PoE) connected to the camera.
2. Press and hold the default button for about 8 seconds.
Default button
3. Release the default button. When the process of loading default settings is completed,
the camera reboots automatically.

10
Target Bullet Camera
1. Keep the power and network cables (or PoE) connected to the camera.
2. Loosen the camera’s cover.
3. Press and hold the default button for about 8 seconds.
4. Release the default button. When the process of loading default settings is completed,
the camera reboots automatically.
5. Replace the Silica Gel Tape inside the camera cover and fasten the camera’s cover
immediately.
Vandal Proof IP Dome
1. Keep the power and network cables (or PoE) connected to the camera.
2. Use a pin to press and hold the default button on the inner housing.
Status LED
Default button
