1. Introduction
Welcome to the GV-IP Speed Dome Quick Start Guide. In the following
sections, you will be guided through the basic installations and
configurations of the GV-SD220/GV-SD220-S/GV-SD200/GV-SD200-S.
For detailed information, see GV-IP Speed Dome User’s Manual on the
Software CD.
Model Application Description
GV-SD220 Indoor
GV-SD220-S Outdoor 2 MP H.264, 20x optical zoom, 12x
digital zoom, WDR pro
GV-SD200 Indoor
GV-SD200-S Outdoor 2 MP H.264, 18x optical zoom, 8x
digital zoom, WDR pro

2. GV-SD220 / SD220-S
2.1 Packing List
2.1.1 Indoor GV-IP Speed Dome
•Indoor GV-IP Speed Dome •Hard-Ceiling Cover
•Mounting Plate
•GV-IP Speed Dome
Software CD
•GV-NVR Software DVD

GV-SD220 / SD220-S
3
2
2.1.2 Outdoor GV-IP Speed Dome
•Outdoor GV-IP Speed Dome •Pendant Tube
•Hex Keys x 2 •M6 Screws x 3
•Desiccant pack x 2 •GV-IP Speed Dome
Software CD
•GV-NVR Software DVD

4
2.2 Overview
1
2
3
4
5
6
No. Name Description
1. Default Restores all the settings to the factory default values.
For details, see 2.13 Restoring to Default Settings.
2. Status The status LED turns green when the power is on and
fades when the camera is ready for use.
3. Power The power LED turns green when the power is on.
4. ACT The ACT LED flashes orange light upon data
transmission.
5. Link The Link LED turns green with Internet connectivity.
6. Memory
Card Slot Insert a micro SD/SDHC/SDXC card to store recording data.

GV-SD220 / SD220-S
5
2
2.3 Installation
There are multiple ways to install the GV-IP Speed Dome. Only the
standard installation methods are introduced in the Quick Start Guide. For
details on optional installations, see Installing the GV-SD220/220-S IP
Speed Dome, Chapter 5, GV-Mount Installation Guide on the Software CD.

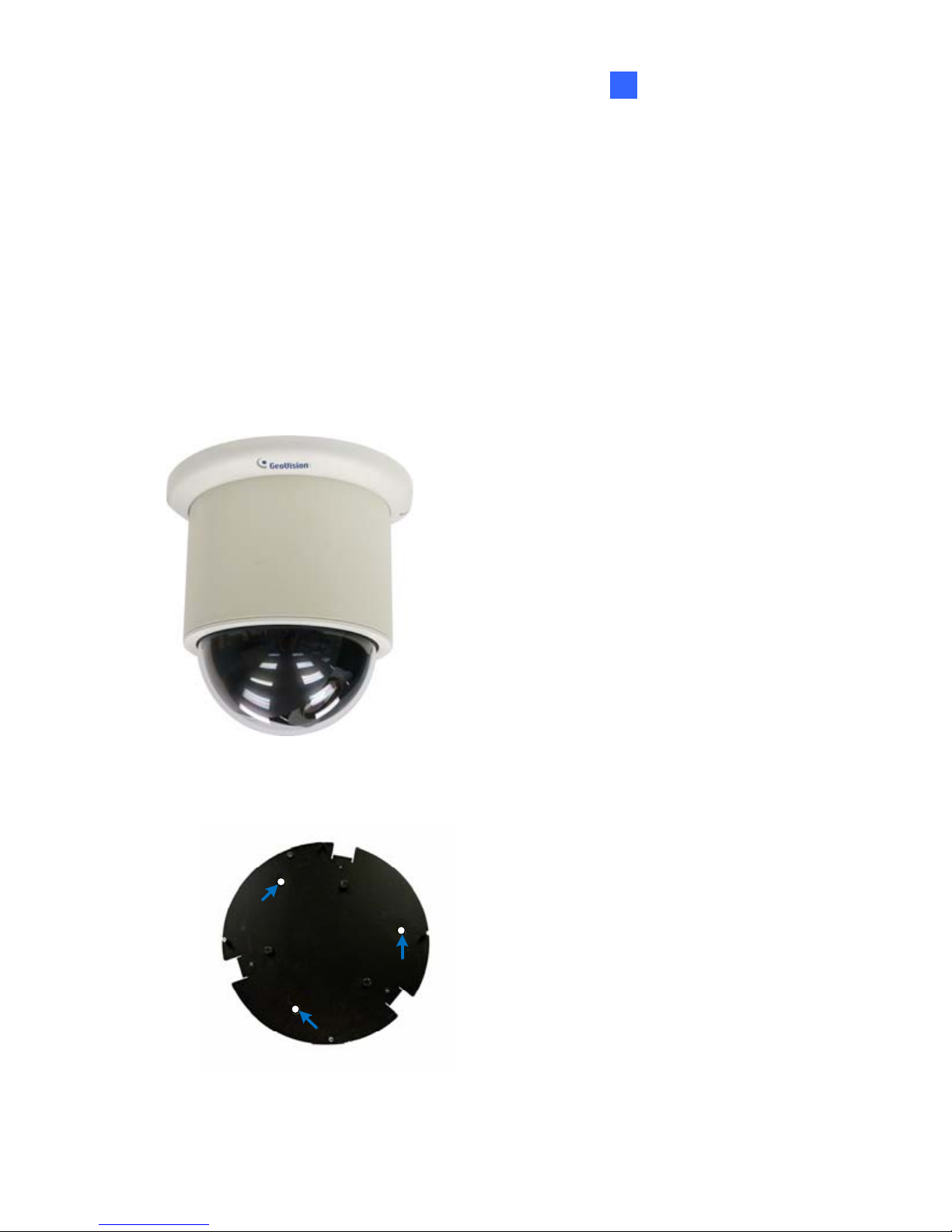

2.3.1 Indoor GV-IP Speed Dome: Hard-Ceiling Mount
Required Items
•Indoor packing (supplied)
•ceiling screws x 3 (user-prepared)
1. Secure the mounting plate to the ceiling with self-prepared screws.

6

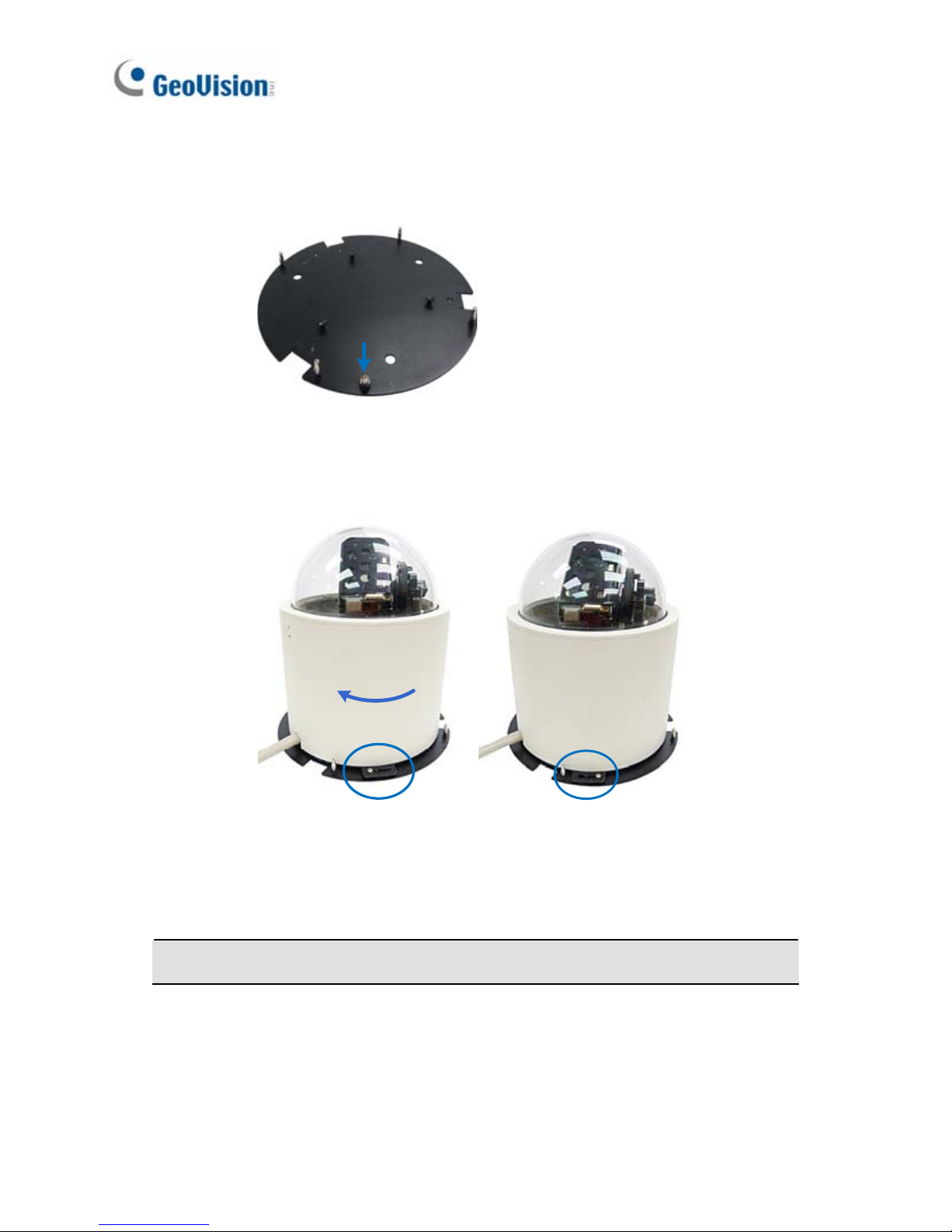

2. Secure the indoor GV-IP Speed Dome to the mounting plate.
A. Loosen the screw on the mounting plate
B. Align the camera to the mounting plate and rotate the camera
body to the right.
C. Tighten the screw.
3. Put on the hard-ceiling cover.
Note: Cut away a side of the cover if you want to run the cable through.

GV-SD220 / SD220-S
7
2

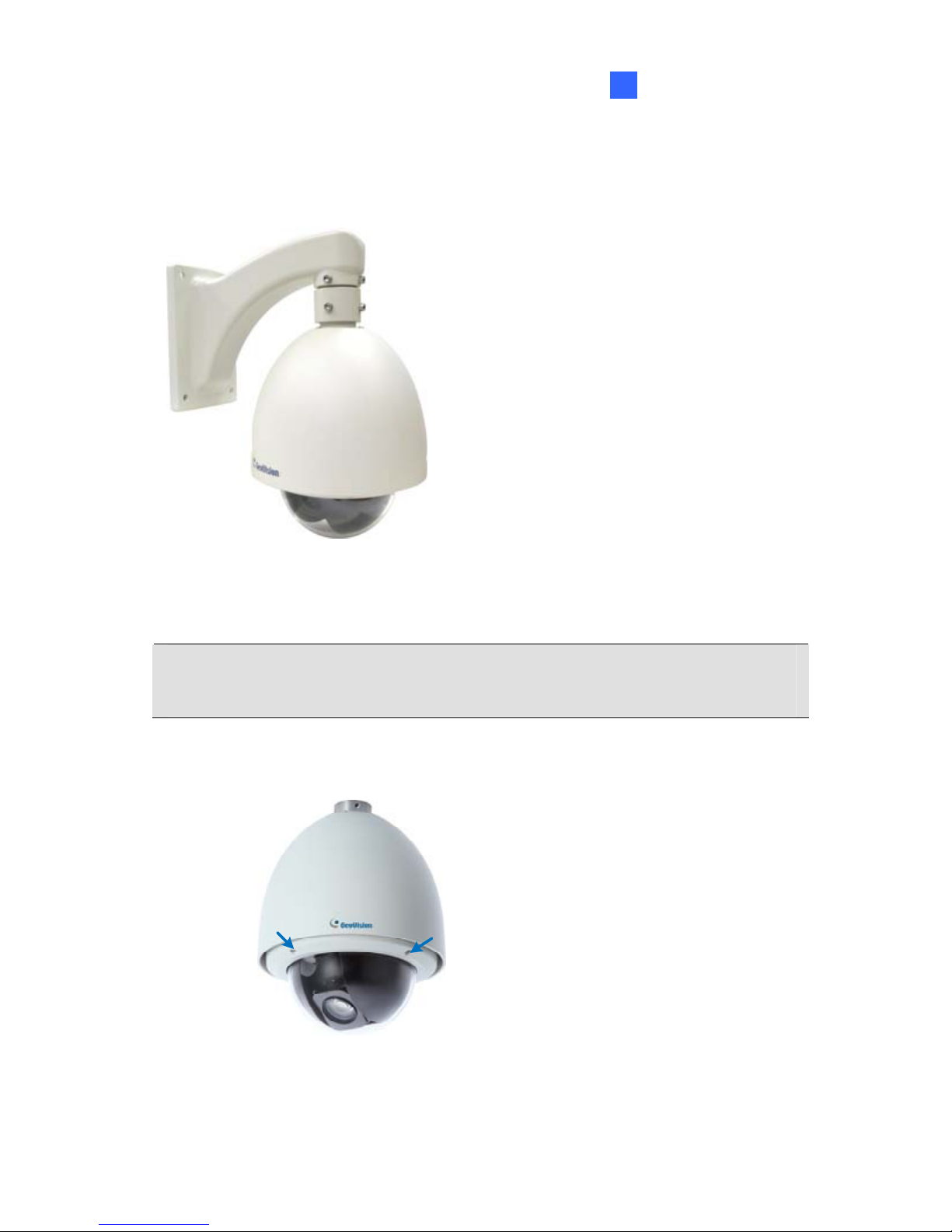

2.3.2 Outdoor GV-IP Speed Dome: Wall Mount
Required Items
•Outdoor packing (supplied)
•ceiling screws x 4
(user-prepared)
1. Insert the desiccant to the camera.
Note: Be sure the desiccant is concealed in the GV-IP Speed Dome within
2 minutes of opening the desiccant pack.
A. Remove the camera cover using the supplied hex key.

8

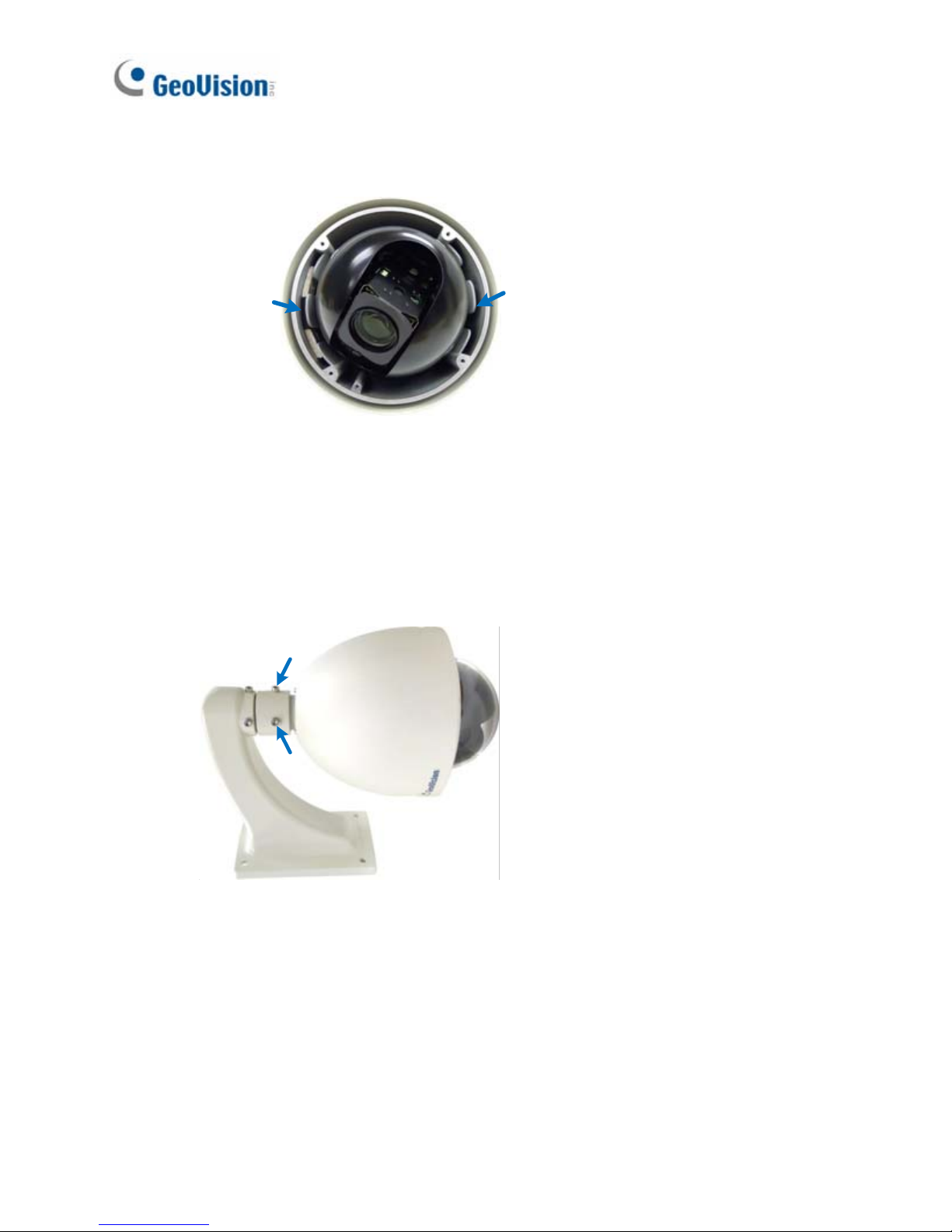

B. Insert the desiccant to two of the indicated places.
C. Follow step 1A to secure the camera cover with the supplied
hex key.
2. Thread the camera cable through the pendant tube and lock the
camera to the pendant tube.
3. Secure the camera to the pendant tube with the supplied M6 screws.
4. Secure the pendant tube to the wall with self-prepared screws.

GV-SD220 / SD220-S
9
2
2.4 Connecting the Cables
With the Data Cable, you can connect the power, microphone, speaker, and
I/O devices to the GV-IP Speed Dome. The Data Cable is illustrated as
below.
I/O Wires
Microphone
Speaker
Power Adapter
Ethernet
No. Wire Definition
1Orange Alarm In 1
2Yellow Alarm In 2
3Green Alarm In 3
4Blue Alarm In 4
5Pink Ground
6Purple Alarm Out
7White Alarm Out Open
8Gray Alarm Out Close

10
2.5 Accessing the Camera
2.5.1 System Requirements
To access GV-IP Speed Dome functions through Web browser, ensure your
PC is in good network connection and use one of the following web
browsers:
•Microsoft Internet Explorer 7.x or later
•Google Chrome
•Mozilla Firefox
•Safari
Note:
1. For users of Internet Explorer 8, additional settings are required.
For details, see Appendix C.For more details, see 1.2 System
Requirements, GV-IP Speed Dome GV-SD220 User’s Manual on
the Software CD.
2. With non-IE browsers,
A. Motion Detection, Text Overlay, two-way audio and GPS
map settings are not supported.
B. The Play function is only available on the live view window.
C. RTSP streaming must be kept as enabled.

GV-SD220 / SD220-S
11
2
2.5.2 Looking Up the IP Address and Logging In
By default, the IP address of your GV-IP Speed Dome is assigned by the
DHCP server unless your router does not support DHCP. In this case, the
default IP address will be 192.168.0.10. Follow the steps below to look up
the dynamic IP address.
1. Install the GV-IP Device Utility program from the Software CD.
Note: The PC installed with GV-IP Device Utility must be under the same
LAN with the camera you wish to configure.
2. On the PC desktop, select Start, select Programs and select GV IP
Device Utility to execute the program. The GV IP Device Utility
window appears and automatically searches for the GV IP devices
on the same LAN.
3. Click the Name or Mac Address column to sort.
4. Find the Mac Address of the camera to see its IP address.

12
5. To login, type the IP address in the browser. The login page appears.
6. Type the default ID and password admin and click Apply to log in.
7. When accessing the GV-IP Speed Dome for the first time, you must
set your browser to allow a one-time installation of GeoVision
ActiveX component onto your computer.
Note: If your router does not support DHCP, the default IP address will
be 192.168.0.10. In this case, it is strongly suggested to modify the IP
address to avoid IP address conflict with other GeoVision IP device on
the same LAN. For details, see Changing the IP Address in 2.1 Looking
Up the IP Address, GV-IP Speed Dome GV-SD220 User’s Manual on
the Software CD.

GV-SD220 / SD220-S
13
2
2.6 The Web Interface
12
123 4 5 6 78
10
11
9
No. Name Description
1 Play Plays live video.
2 Stop Stops playing video.
3 Microphone Talks to the surveillance area from the local
computer.
4 Speaker Listens to the audio around the camera.

14
No. Name Description
5 Snapshot Takes a snapshot of live video.
6 File Save Records live video to the local computer.
7 Full Screen Switches to full screen view. Right-click the image
to have these options: Snapshot, Full Screen,
Resolution,Wide Angle Lens Dewarping, PIP,
PAP, GPS and Google Maps.
8 Visual PTZ Clicks to switch to one of the three visual PTZ
control modes: Fixed Direction Move, Random
Move or Center Move.
9 PTZ Home Click to return the dome view to the home position.
10 I/O Control Starts the I/O Control Panel.
11 PTZ Control Starts the PTZ Control Panel and the Visual PTZ.
12 Show System
Menu
Brings up these functions: Alarm Notify,Video
and Audio Configuration, Remote Config, Show
Camera Name and Image Enhance.
For detail, see 3.1 The Live View Window, GV-IP Speed Dome GV-SD220
User’s Manual on the Software CD.
