GeoVision PN300 User manual

PN300 & SQP133
User’s Manual
PN300SQP133V106-A

© 2015GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice. Note: no SD/SDHC card slot or local storage function
for Argentina.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows XP
are registered trademarks of Microsoft Corporation.
June 2015

Contents
Preface ...................................................................................................................................vi
Compatible Firmware and Software Versions...................................................................vii
Chapter 1 Introduction........................................................................................................1
1.1 Features .....................................................................................................................1
1.2 Packing List ................................................................................................................1
1.2.1 PN300 .........................................................................................................1
1.2.2 SQP133.......................................................................................................1
1.3 Options .......................................................................................................................2
1.4 Overview ....................................................................................................................3
PN300 3
1.4.2 SQP133.......................................................................................................5
1.5 The IR Remote Control ..............................................................................................7
Chapter 2 Getting Started...................................................................................................9
2.1 Connecting the Device ...............................................................................................9
2.1.1 Connecting the PN300 ................................................................................9
2.1.2 Connecting the SQP133 ...........................................................................10

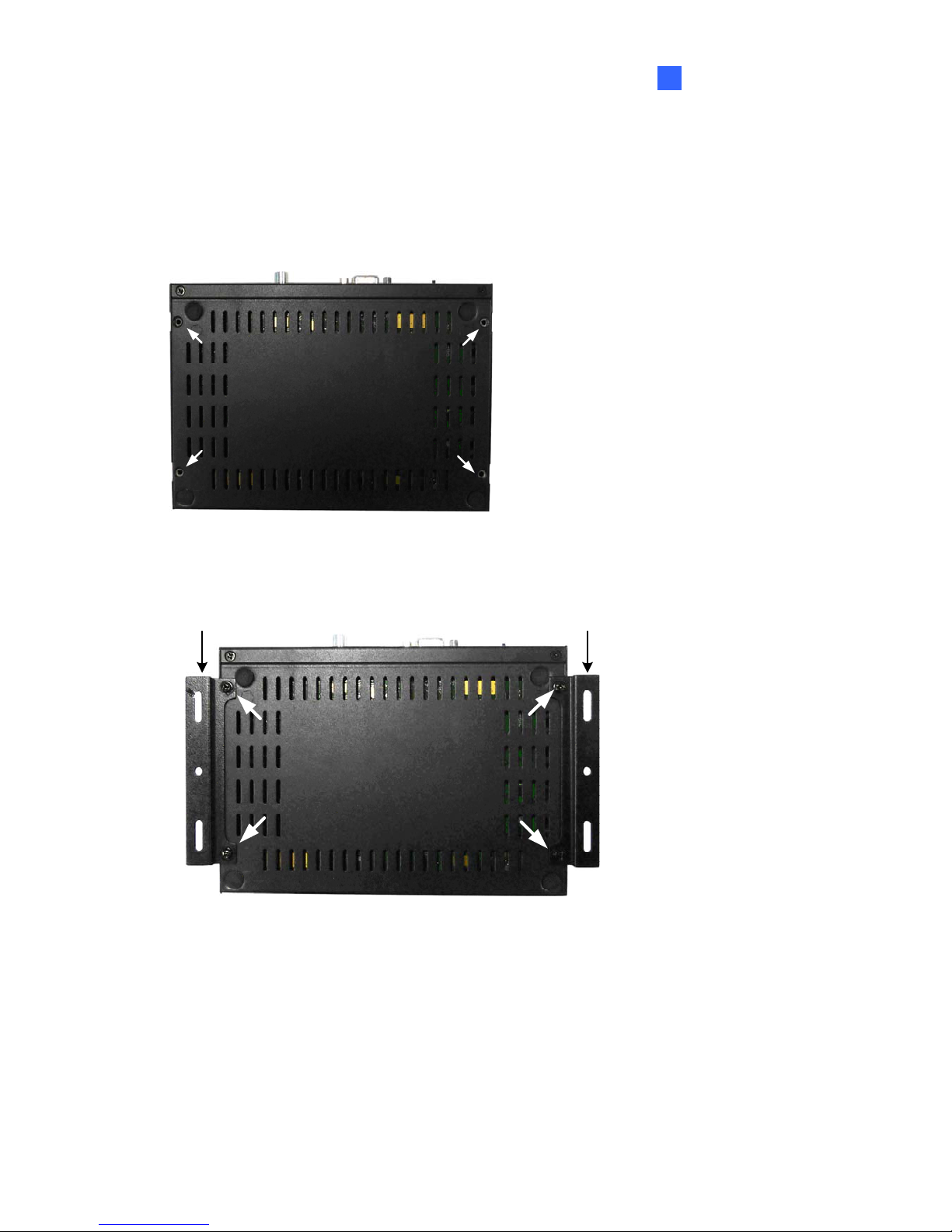

2.2 Installing Wall Mount .................................................................................... 11
2.3 Installing VESA Monitor Mount.................................................................................12
2.4 Playing the Slideshow ..............................................................................................13
Chapter 3 System Setup ...................................................................................................14
3.1 The Setup Menu.......................................................................................................14
3.2 Setting Video Output and Resolution .......................................................................15
3.3 Setting Slideshow Display Effect..............................................................................16
3.4 Looking Up Device Information ................................................................................17
3.5 Setting the Time .......................................................................................................18
3.5.1 Setting the System Time ...........................................................................18
3.5.2 Setting the Time Zone...............................................................................19
3.6 Setting the Network ..................................................................................................20
3.6.1 Wired Network Connection .......................................................................20
3.6.2 Wireless Network Connection ...................................................................21
3.7 Setting the Device Name..........................................................................................22
3.8 Copying Files from the USB Storage Device ...........................................................22
3.9 Upgrading the Firmware...........................................................................................23
3.10 Restoring to Factory Default Settings.....................................................................24
Chapter 4 Content Designer.............................................................................................25
4.1 Minimum System Requirements ..............................................................................25
iii

4.2 Installing the Content Designer ................................................................................26
4.3 The Menu Bar...........................................................................................................28
4.4 Creating a Project.....................................................................................................29
4.4.1 Create a Screen Layout ............................................................................29
4.4.2 The Main Screen.......................................................................................31
4.4.3 Assign Content to Zones...........................................................................33
4.4.4 Preview and Save Screen Layout .............................................................38
4.5 Playing the Project on PN300 or SQP133................................................................39
Chapter 5 Content Schedule.............................................................................................40
5.1 Installing the Content Schedule................................................................................40
5.2 Setting the Content Schedule...................................................................................42
Chapter 6 CMS Lite............................................................................................................49
6.1 Software License......................................................................................................50
6.2 Installing the CMS Lite .............................................................................................51
6.3 Connecting the Devices to CMS Lite........................................................................53
6.4 The Main Screen ......................................................................................................54
6.5 Uploading Video and Image Files ............................................................................56
6.6 Uploading the Scenario ............................................................................................57
6.7 Uploading the Schedule ...........................................................................................58
6.8 Uploading the Firmware ...........................................................................................59
6.9 Uploading the Scrolling Ticker..................................................................................60
6.10 Changing the Device Name ...................................................................................61
Chapter 7 CMS Server.......................................................................................................62
7.1 System Requirements ..............................................................................................63
7.1.1 Minimum System Requirements ...............................................................63
7.1.2 Software License.......................................................................................63
7.2 Installing CMS Server...............................................................................................64
7.3 Connecting the Devices to CMS Server...................................................................66
7.4 Starting CMS Server ................................................................................................67
7.4.1 List of Menu Options .................................................................................69
7.5 Getting Started .........................................................................................................70
7.5 Getting Started .........................................................................................................70
7.5.1 Preparing the Package..............................................................................70
7.5.2 Transferring the Package ..........................................................................71
7.5.3 Uploading the Package.............................................................................75
7.5.4 Revising the Package ...............................................................................77
7.6 Applying the Scrolling Ticker ....................................................................................78
7.7 Applying the RSS Feed ............................................................................................79
iv

7.8 Planning Device Group ............................................................................................80
7.9 Arranging the Loop Video.........................................................................................82
7.10 Information .............................................................................................................84
7.10.1 Device Information ..................................................................................84
7.10.2 System Information .................................................................................86
7.10.3 User Information......................................................................................86
7.10.4 Package Information ...............................................................................87
7.11 Device Setup ..........................................................................................................88
7.12 Event Query ...........................................................................................................90
7.12.1 Behavior Log Query ................................................................................90
7.12.2 Behavior Log Analysis.............................................................................91
7.12.3 Device Event Query ................................................................................92
7.12.4 Device Event Analysis (Counts) ..............................................................93
7.12.5 Device Event Analysis (Elapsed Time)....................................................94
7.12.6 Play Count Analysis ................................................................................95
7.13 Upload Management ..............................................................................................97
7.14 Server Setting.........................................................................................................98
7.14.1 User Account...........................................................................................98
7.14.2 Network Setting.......................................................................................99
7.14.3 Email Service ........................................................................................100
7.15 Upgrading the Firmware.......................................................................................102
Chapter 8 Dynamic DNS..................................................................................................104
8.1 Installing the Dynamic DNS....................................................................................104
8.2 Registering Domain Name .....................................................................................106
8.3 Starting Dynamic DNS ...........................................................................................108
Specifications.....................................................................................................................109
PN300 .............................................................................................................................109
SQP133 ..........................................................................................................................110
Appendix.............................................................................................................................111
Definitions of Folder Names............................................................................................ 111
v

Preface
Welcome to thePN300 & SQP133 User’s Manual.
The PN300 & SQP133 are devices that play back slideshows edited or managed by
GeoVision’s software such as Content Designer, Content Schedule, CMS Lite and CMS
Server. This Manual is designed for the following models, firmware, and software version:
Hardware
Model Firmware Version
PN300 1.06
SQP133 1.06
Software
Model Software Version
Content Designer 1.0.6.0
Content Schedule 1.0.3.0
CMS Lite 1.0.4.0
CMS Server 1.0.4.0
vi

vii
Compatible Firmware and Software Versions
The PN300 / SQP133 / SQP110 Series are compatible with CMS Server / CMS Lite / Content
Designer. See the following compatible versions.
PN300 / SQP133 SQP110 Series
CMS Server / CMS Lite V1.0.4.0 V1.06 N/A
CMS Server / CMS Lite V1.0.3.0 V1.05 N/A
CMS Server / CMS Lite V1.0.2.0 or
earlier
V1.04 or earlier V1.03 or earlier
Content Designer V1.0.5.0 or later V1.05 or later N/A
Content Designer V1.0.4.0 or earlier V1.04 or earlier N/A

Introduction
1
Chapter 1 Introduction
The PN300 and SQP133 are digital media players designed to deliver uninterrupted playback
of Digital Signage presentations.
1.1 Features
•Multimedia support
•Video resolution up to 1080p and Video outputs of HDMI and VGA (PN300 only)
•Panel resolution of 1280 x 800 (SQP133 only)
•Built-in speaker (SQP133 only)
•SD card and USB storage
•Content Schedule and Content Designer
•Content Management System (CMS Server and CMS Lite)
•IR remote control
•Wireless connectivity (GV-WiFi USB Adapter required)
1.2 Packing List
1.2.1 PN300
1. PN300 device × 1
2. IR remote control × 1
3. AC/DC adapter × 1 (12 V, 3 A, 36 W)
4. Power cord x 1
1.2.2 SQP133
1. SQP133 device × 1
2. IR remote control × 1
3. Magnetic hinge x 1
4. Screw x 4
5. AC/DC adapter × 1 (12 V, 3 A, 36 W)
6. Power cord x 1
1

2
1.3 Options
Optional devices can expand the capabilities and versatility of your PN300/SQP133. Contact
your dealer for more information.
Options Detail
The Wall Mount Kit is used to mount the PN300 to the
wall.
Wall Mount Kit
zL-type brackets x 2
zSmall screws x 4
The VESA Monitor Mount Kit is used to mount the PN300
to the back of a VESA monitor.
VESA Monitor-Mount Kit
zVESA monitor mount bracket x 1
zL-type brackets x 2
zLarge screws x 4
zSmall screws x 8
GV-WiFi USB Adapter
The GV-WiFi USB adapter is a plug-and-play device that
provides wireless connectivity to GeoVision IP devices.
The GV-WiFi USB Adapter complies with IEEE802.11
b/g/n (Draft 3.0) standards for wireless networking.
I
CMS Lite a rver
nternal GV-USB Dongle for
nd CMS Se
The USB dongle can provide the Hardware Watchdog
function to the system by restarting the computer wh
Windows crashes. You need to
en
connect the dongle
internally on the motherboard.
SD Card (4 GB, Class 4) ard is used for local storage and firmware
upgrade.
The SD C

Introduction
1
1.4 Overview
This section identifies the components of the PN300 and SQP133.
PN300
Front View
Figure 1-1
No. Name Function
1 LED Indicators
The green LED indicates the system is ready. The red LED
indicates the power is supplied. When the green LED is off and
the red LED is on, the device is in sleep mode.
2 USB
Connect to a USB device for local storage of content, firmware
upgrade and GV-WiFi USB Adapter. Note the removal of the
USB storage device will cause the PN300 to automatically
reboot.
3 IR Built-in IR receiver to receive the IR signals from the IR remote
control.
4 Default Reset the PN300 to the default factory settings. See 3.10
Restoring to Factory Default Settings.
5 SD Card Slot
Connect to an SD card for local storage and firmware upgrade.
Note the removal of the SD card will cause the PN300 to
automatically reboot.
3

4
Rear View
Figure 1-2
No. Name Function
1 Ethernet Connect to an Ethernet.
2 SPDIF Reserved (not enabled).
3 HDMI Connect to an HDMI supported display device.
4 VGA Connect to a VGA monitor.
5 L/R Connect to a speaker.
6 Power OFF/ON Switch the power on or off.
7 DC 12V Connect to power by using the supplied power adapter.

Introduction
1
1.4.2 SQP133
Right Panel View
1
2
3
4
5
Figure 1-3
No. Name Function
1 SD Card Slot Connect to an SD card for local storage of content and
firmware upgrade.
2 USB
Connect to a USB device for local storage of content,
firmware upgrade, and GV-WiFi USB Adapter. Note the
removal of the USB storage device will cause the SQP133 to
automatically reboot.
3 LED Indicators
The green LED indicates the system is ready. The red LED
indicates the power is supplied. When the green LED is off
and the red LED is on, the device is in sleep mode.
4 IR Built-in IR receiver to receive the IR signals from the IR
remote control.
5 Ethernet Connect to an Ethernet.
5

6
Left Panel
12
34
56
78
9
Figure1-4
No. Name Function
1. MENU Switch to the setup menu.
2 ENTER Enter the setup options or save the settings in the Setup Menu.
3 UP Move the cursor up.
4 DOWN Move the cursor down.
5 LEFT Move the cursor left.
6 RIGHT Move the cursor right.
7 STAND BY
Press to enter the Standby/Sleep mode. In the standby mode, the
screen turns off to minimize power consumption. Press the key
again to enter the ON mode.
8 Power OFF/ON Switch the power on or off.
9 DC 12V Connect to power using the supplied power adapter.

Introduction
1
1.5 The IR Remote Control
1
25
6
4
37
8
9
10
Figure1-5
No. Name Function
1 Power
Press to enter the Standby/Sleep mode. In the standby mode,
the screen turns off to minimize power consumption. Press the
key again to enter the ON mode.
2
Numeric / Alphabetical /
Punctuation Marks
Buttons
Enter the numbers, alphabets or punctuation marks.
3 Back
zBack to the previous page in the Setup Menu.
zPlay the media files.
4 Menu Control Move up, down, right and left in the Setup Menu.
5 Volume Control Increase or decrease the volume.
6 Mute Mute the volume.
7 Menu Switch to the setup menu.
7

8
No. Name Function
8 OK Enter the setup options or save the settings in the Setup Menu.
Switch among the 8 resolutions for PN300. Once the button is
pressed, the Green LED on the front panel of PN300 will flash.
Press No. 0 ~ 7 for the desired resolution within 30 seconds.
Shift + 0 : VGA_640 x 480
Shift + 1 : VGA_1024 x 768
Shift + 2 : VGA_1280 x 768
Shift + 3 : VGA_1366 x 768
Shift + 4 : HDMI_480p
Shift + 5 : HDMI_720p
Shift + 6 : HDMI_1080i
Shift + 7 : HDMI_1080p
9 Shift
Note the resolution switch will cause the PN300 to
automatically reboot.
10 Search Scan for available Access Points or wireless stations when
wireless network is selected.

Chapter 2 Getting Started
2.1 Connecting the Device
2.1.1 Connecting the PN300
14
3 5
2
Figure 2-1
1. Connect a display device to VGA video connector, or HDMI connector for video and audio
combined outputs.
2. Connect to a standard network cable.
3. If you use a VGA monitor, connect a speaker to L/R port for audio output.
4. Connect to power using the supplied power adapter.
5. Switch the Power button to ON.
Note:
1. You can only connect the PN300 / SQP133 to one display device through the HDMI or
VGA connector. The video signal will be unstable if multiple display devices are
connected.
9

10
2. The default video output is set to VGA with 1024 x 768 resolutions. To change the default
setting, see 3.2 Setting Video Output and Resolution.
2.1.2 Connecting the SQP133
Follow the steps below to connect the SQP133:
Figure 2-2
1. Connect to power using the supplied power adapter.
2. Connect to a standard network cable.
3. Turn the Power switch to ON.

Getting Started
2
2.2 Installing Wall Mount
Optionally, you can purchase the mounting plates to mount PN300 on a wall.
1. Unscrew the 4 screws on the back panel of the PN300.
Figure 2-3
2. Use the 4 screws in the package to tighten the L-type brackets on the PN300.
L-Type Bracket L-Type Bracket
Figure 2-4
11

12
2.3 Installing VESA Monitor Mount
Optionally, you can purchase VESA Monitor mount for installing PN300.
1. Follow steps 1 and 2 in 2.2 Installing Wall Mount to tighten the L-type brackets on the back
panel of PN300.
2. Using the 4 large screws, tighten the VESA monitor mount bracket on the back of the
computer monitor.
Figure 2-5
3. Use the 4 small screws to tighten the PN300 and the VESA monitor mount bracket
together.
Figure 2-6

Getting Started
13
2
2.4 Playing the Slideshow
Without any further settings, you can now play the slideshow made of video or image files.
1. Create a folder named Loop_Video in a USB storage device or an SD card.
2. Copy image or video files to the Loop_Video folder.
3. Connect the USB storage device or the SD card to the device.
4. Turn on the digital signage device.
5. By default, the local storage is SD card. If you are using an SD card, the device will
repeatedly play the files at this step.
6. If you are using a USB storage, select Play Source and select USB to be the
storage, press Back to return the menu, and press Back again to start playing.
Note:
1. For the folder names workable on the device, see Definitions of Folder Names,
Appendix.
2. By default, the image and video files are sorted by name, first in numerical and then
alphabetical order. To change the sorting rule to by size or random, see Loop Mode
option, 3.3 Setting Slideshow Display Effect.
