Note for Connecting to GV-VMS / DVR / NVR
The GV-IP Speed Dome is designed to work with GV-VMS / DVR / NVR, a video management
system. Note the following when the camera is connected to GV-VMS / DVR / NVR:
1. By default, the images are recorded to the memory card inserted in the camera.
2. Once the camera is connected to the GV-VMS / DVR / NVR, the resolution set on the
GV-VMS / DVR / NVR will override the resolution set on the camera’s Web interface. You
can only change the resolution settings through the Web interface when the connection to
the GV-VMS / DVR / NVR is interrupted.

iii
Note for Recording
1. Mind the following when using a memory card for recording:
•Recorded data on the memory card can be damaged or lost if the data are accessed
while the camera is under physical shock, power interruption, memory card
detachment or when the memory card reaches the end of its lifespan. No guarantee is
provided for such causes.
•The stored data can be lost if the memory card is not accessed for a long period of
time. Back up your data periodically if you seldom access the memory card.
•Memory cards are expendable and their durability varies according to the conditions
of the installed site and how they are used. Back up your data regularly and replace
the memory card annually.
•To avoid power outage, it is highly suggested to apply a battery backup (UPS).
•For better performance, it is highly suggested to use Micro SD card of MLC NAND
flash, Class 10.
•Replace the memory card when its read/write speed is lower than 6 MB/s or when the
memory card is frequently undetected by the camera.
2. It is recommended to use memory cards of the following setting and specifications:
•Apply a battery backup (UPS) to avoid power outage.
•Use Micro SD card of MLC NAND flash, Class 10 for better performance.

iv
Note for Installing Camera Outdoor
When installing the camera outdoor, be sure that:

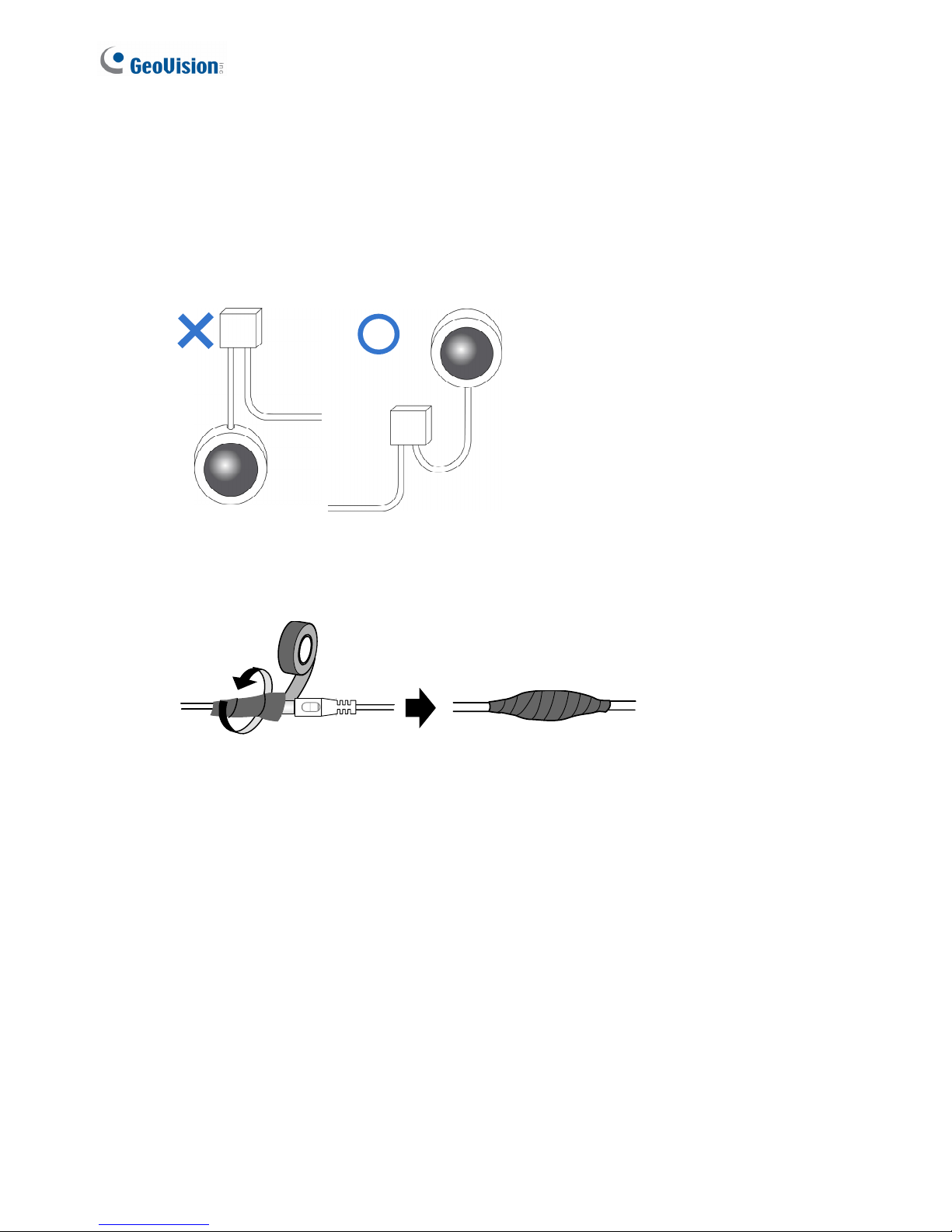

1. The camera is set up above the junction box to prevent water from entering the camera
along the cables.
2. Any power, audio and I/O cables are waterproofed using waterproof silicon rubber or the
like.
3. The screws are tightened and the cover is in place after opening the camera cover.

Introduction
1
1
1. Introduction
Welcome to the GV-SD2322-IR Speed Dome Quick Start Guide. In the following sections, you
will learn the basic installations and configurations. For a detailed user manual, see the
GV-SD2322-IR Speed Dome User’s Manual on the Software DVD.
1.1 Packing List
•GV-SD2322-IR Speed Dome
•24V AC Power Adapter
•M4 Hex Key
•Waterproof Rubber Set
•Waterproof Requirements
•GV-IP Speed Dome Software DVD
•GV-Software DVD
•Warranty Card

2
1.2 Optional Accessories
Optional devices can expand the capabilities and versatility of your camera. Contact your
dealer for more information.
Name Details
GV-Mount Accessories The GV-Mount Accessories provides a comprehensive lineup
of accessories for installation on ceiling, wall and pole. For
details, see GV-Mount Accessories Installation Guide on the
software DVD.
1.3 Overview
2
1
No. Name Function
1. Default Button Resets all configurations to default factory settings. See 7.
Restoring to Factory Default.
2. Micro SD Card Slot Inserts a micro SD card (SD/SDHC, version 2.0, Class 10)
to store recording data.

Installation
3
2
2. Installation
You can separately purchase optional mounting accessories to mount GV-SD2322-IR on a
wall, ceiling or pole. Make sure the wall has enough strength to support the camera and the
mount. For details, see GV-Mount Accessories Installation Guide.
Below are the instructions for Wall Pendant Mount, which requires the accessory
GV-Mount210. The pendant tube and screws are not included in the standard packing list of
GV-SD2322-IR.
1. Unscrew the back cover of the camera.
2. Insert the micro SD card into the slot, and secure the back cover of the camera.
Note: Be sure to format the memory card on the camera’s Web interface (Setup > Storage
> Storage).

4
3. Place the pendant tube on the wall, and mark the position of the screw holes.
4. Drill holes on the wall, and secure the pendant tube to the wall with 4 self-prepared screws.
5. Attach the safety lock of the camera to the pendant tube.
6. Thread the data cable through the pendant tube.

Installation
5
2
7. Attach the camera to the pendant tube, rotate the camera until it is locked into position, and
secure the indicated screws.
8. Insert the pendant mount screws and tighten with the supplied M4 hex key.
9. Thread the Ethernet cable through the waterproof rubber set as shown below.
Note: The size of RJ-45 connector must be within 14 mm to go through the waterproof
rubber set.
Unfit size of RJ45 Connector

6
3. Connecting the Camera
The camera comes with a data cable that allows you to connect the camera to the power
adapter, microphone, speaker, and I/O devices.

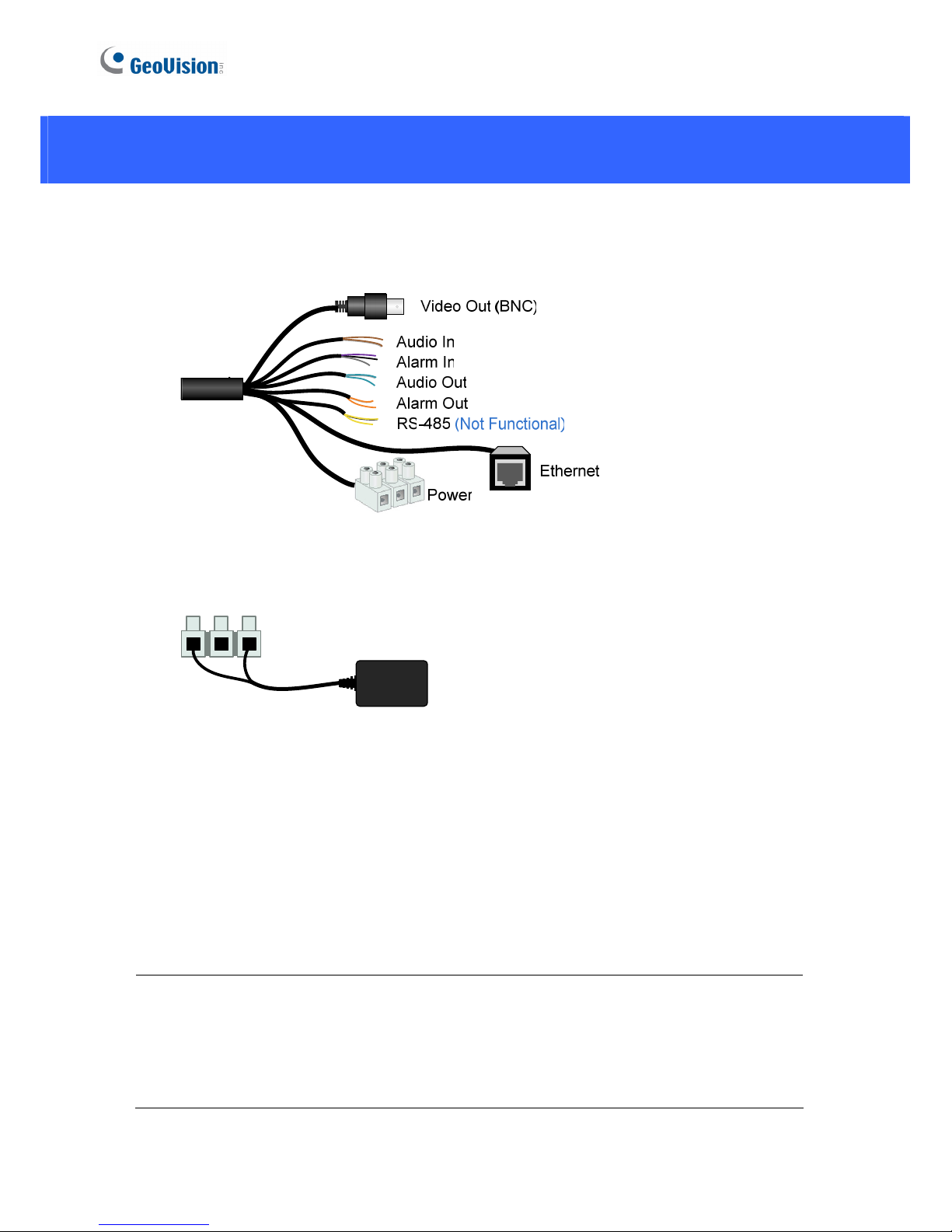

1. Connect the supplied power adapter to the 3-pin terminal block. Either of the red and
black cables can be used for anode (+) and the cathode (-).
Power Adaptor
2. Connect a standard network cable to the Ethernet cable of the camera.
3. Optionally connect the TV-out (BNC) cable to a monitor. The TV-out function can be used
during installation to adjust the camera image.
4. Optionally connect I/O devices, speaker and microphone to the camera. You can connect
up to 2 alarm inputs and 1 output device. See Wire Definition section below.
Each time the camera is powered on, it will perform a self-test to check the Pan/Tilt/Zoom (PTZ)
function. After the self-test, you can operate the camera.
Note:
1. When the working temperature is below zero degree Celsius, it may take up to 30
minutes for the camera to finish the pre-heating process.
2. If you are using your own power adapter, you may need to ground the camera using
the yellow cable (GND) on the 3-pin terminal block.

Connecting the Camera
7
3
Wire Definition
No. Wire Definition
1 Brown Audio in
2 Brown / White GND
3 Green Audio out
4 Green / White GND
5 Gray Alarm IN 1
6 Purple Alarm IN 2
7 Black GND
8 Orange Alarm In -
9 Orange / White Alarm Out +
10 Yellow RS-485 – (Currently not functional)
11 Yellow / Black RS-485 + (Currently not functional)

8
4. Accessing the Camera
4.1 Web Browser
Once installed, your camera is accessible over the network. Make sure your PC has good
network connection, and meet the following requirement.
CPU Dual-Core, 2.0 GHz or higher
Memory At least 1 GB
Graphic Card At least 128 MB display memory
Web Browsers zInternet Explorer 11.0 or above
zMozilla Firefox
zSafari
Note: Some functions are not available on non-IE browsers.

Accessing the Camera
9
4
4.2 Looking Up the Dynamic IP Address
By default, when the camera is connected to LAN with a DHCP server, it is automatically
assigned with a dynamic IP address. Follow the steps below to look up its IP address.
Note: The computer you use to configure the IP address must be under the same LAN with
your camera.

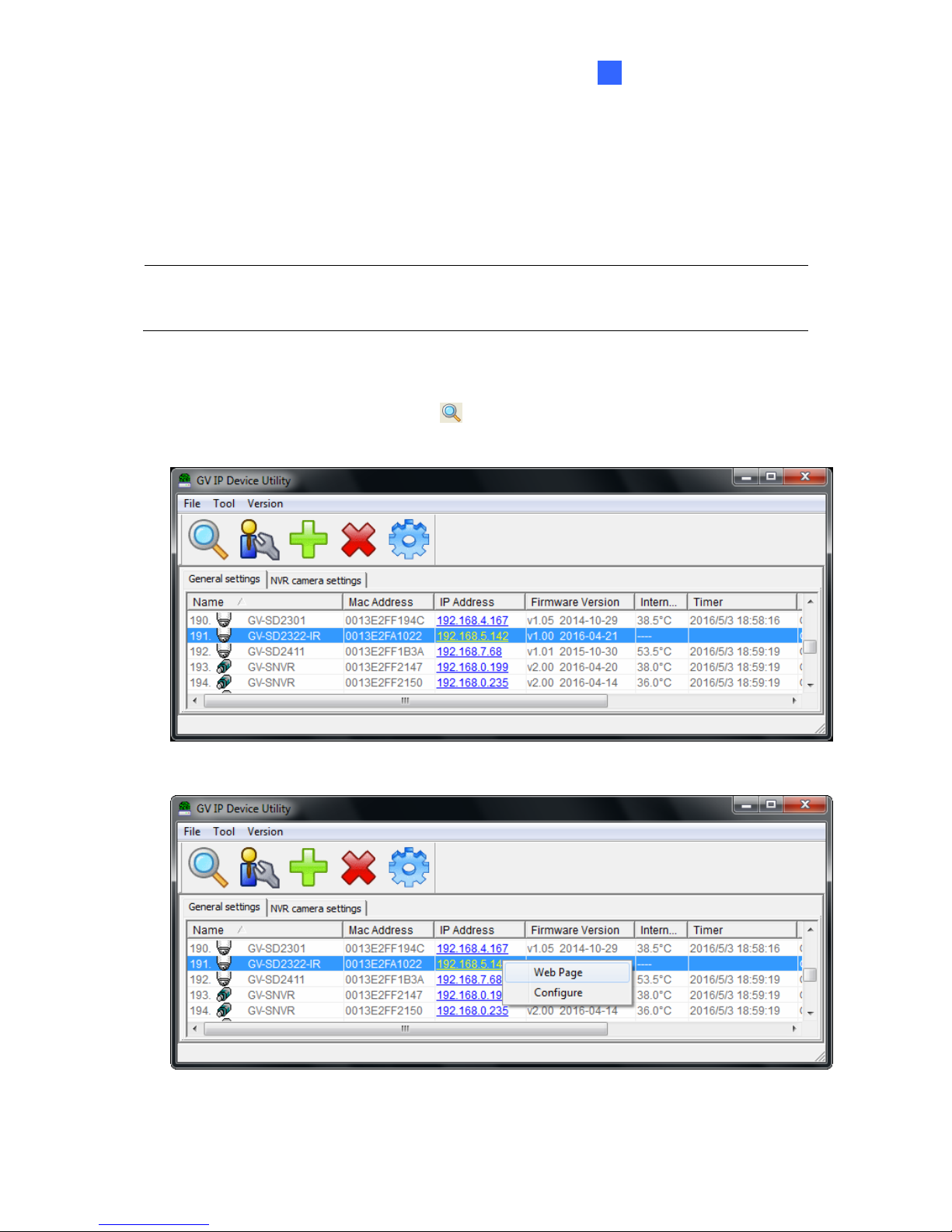

1. Install the GV-IP Device Utility program included on the Software DVD.
2. On the GV-IP Utility window, click the button to search for the IP devices connected in
the same LAN. Click the Name or Mac Address column to sort.
3. Find the camera with its Mac Address, click on its IP address and select Web Page.

10
4. The login page appears.
5. Type the default ID and password admin and click Apply to log in.

Accessing the Camera
11
4
4.3 Configuring the IP Address
If the camera is connected to LAN without a DHCP server, the default IP address will be
192.168.0.10. Follow the steps below to modify the IP address to avoid IP conflict with other
GV-IP devices on the same LAN.

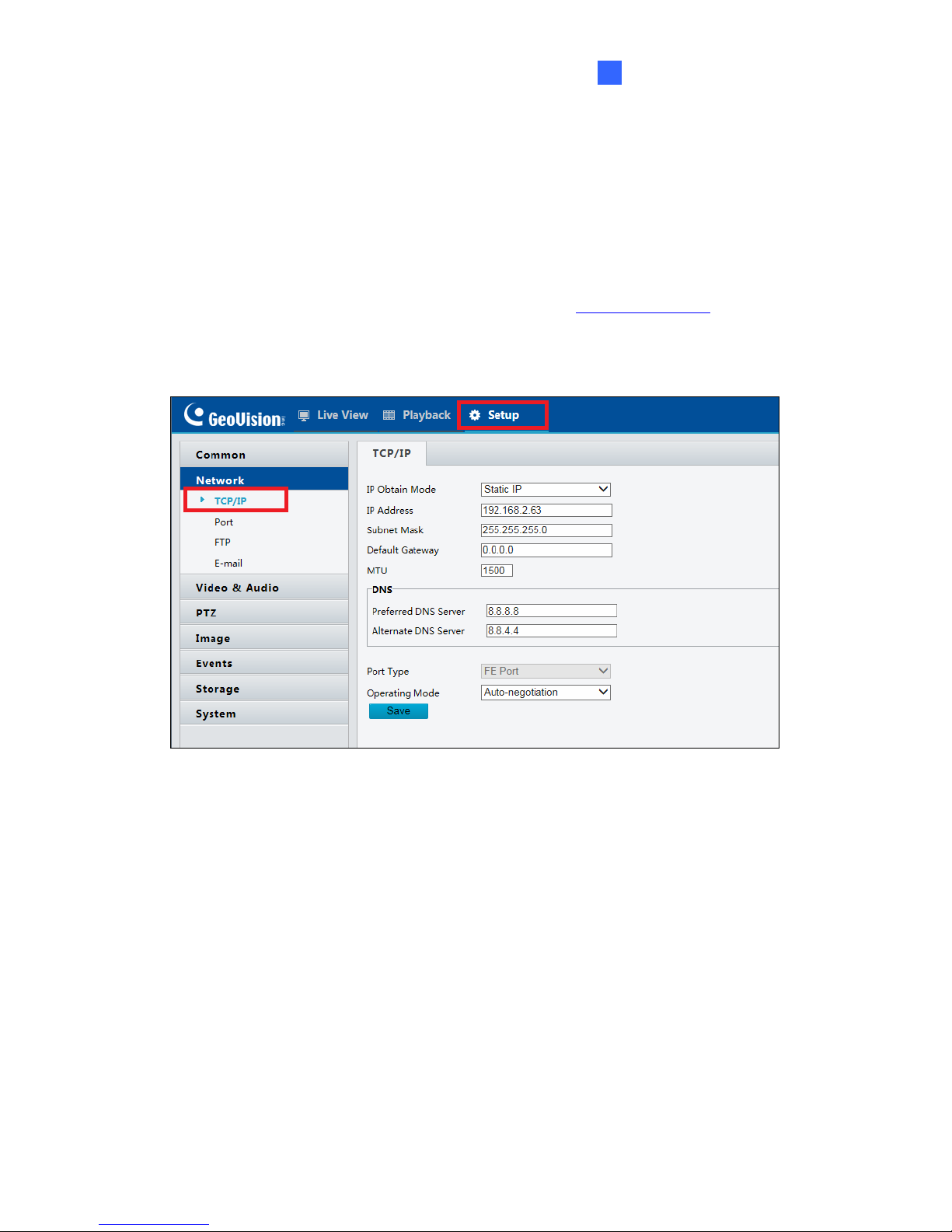

1. Open your web browser, and type the default IP address http://192.168.0.10.
2. In both Login and Password fields, type the default value admin. Click Apply.
3. Click Setup, select Network in the left menu and select TCP/IP.
4. Select Static IP from the IP Obtain Mode drop-down list.
5. Enter the IP address, subnet mask, and default gateway address. Make sure that the IP
address of the camera is unique in the network.
6. Click Save.

12
5. The Web Interface

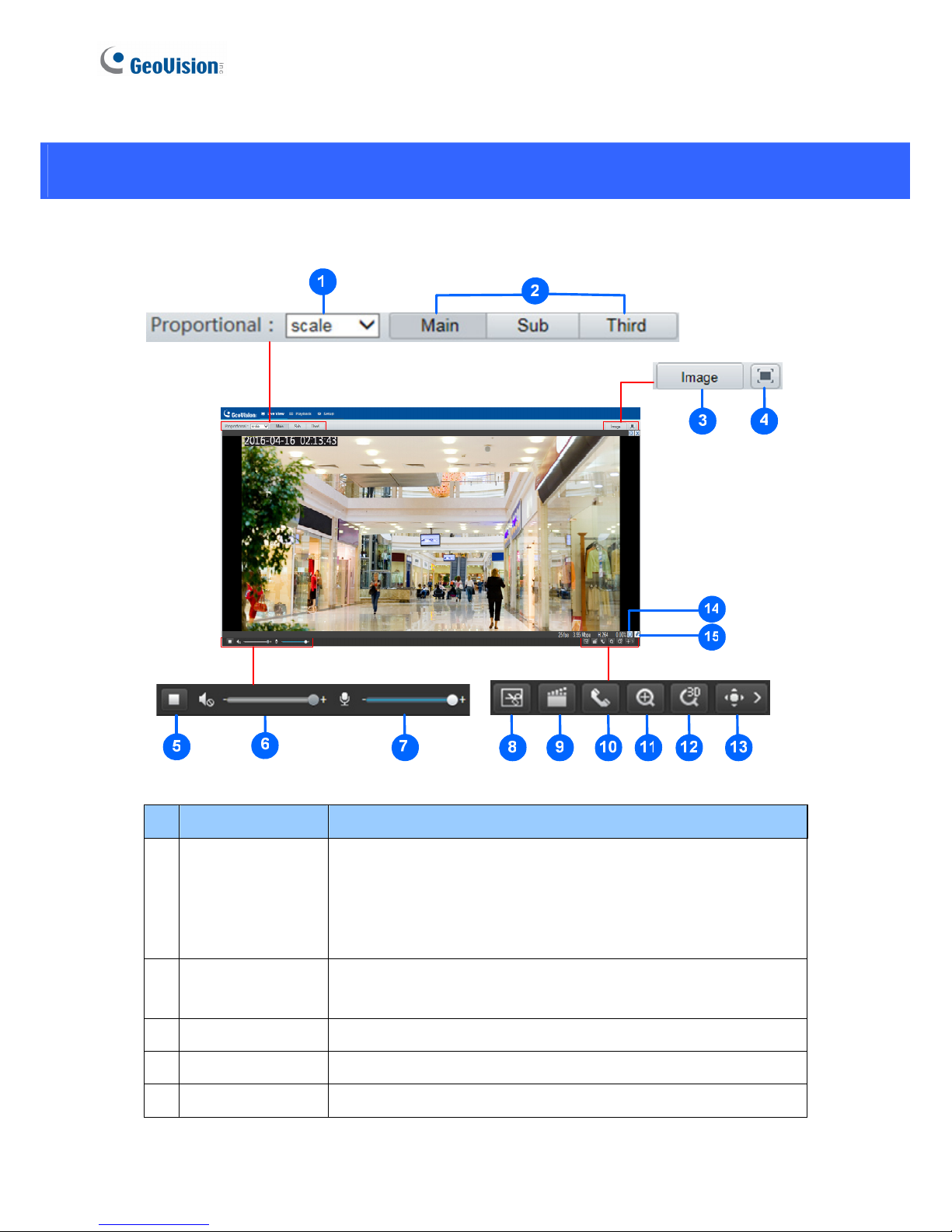

Once you log in the Web interface, you will see the live view as shown below.
No. Name Function
1 Proportional
Set the display ratio of the image.
•Scale: display images by 16:9.
•Stretch: display images by window size.
•Original: display images in its original size.
2 Live Stream Select a live video stream: main stream, sub stream or third
stream.
3 Image Open the image setting page.
4 Full Screen Mode Display in full screen mode.
5 Play/Stop Play or stop live video.

The Web Interface
13
5
6 Volume Adjust the audio output volume on the PC.
7 Microphone
Adjust the microphone volume on the PC during audio
communication between the PC and the camera.
8 Snapshot Take a snapshot of the current image displayed on the PC.
9 Local Recording Start or stop local recording.
10 Audio
Communication
Start or stop audio communication between the PC and
the camera.
11 Digital Zoom Start or stop digital zoom.
12 3D Positioning Start or stop 3D positioning (optical zoom).
13 PTZ control panel Show or hide the PTZ control panel. -- See 5.1 PTZ
Control Panel.
14 Reset the packet loss rate to zero.
15 Display packet loss rate and bit rate information in the bottom.
Note:
1. The paths for saving snapshots and local recordings are set in System Configuration.
2. The buttons (No. 14 and No. 15) will appear on the floating toolbar after you move the
mouse cursor on a live view window.

14
5.1 PTZ Control Panel
You can find the PTZ control panel to the right of the live view.
2
3
5
8
7
4
6
1
No. Item Function
1 Auto Pan Start or stop auto panning of the camera.
2 PTZ Control Panel Control the direction of the camera and release the control.
3 PTZ Speed Adjust the moving speed of the PTZ camera.
4 Zoom Adjust the camera’s zoom (optical).
5 Focus Adjust the camera’s focus.
6 Snow Turn on or off the snow control. When enabled, the camera will
rotate to remove accumulated snow if detected by the camera.
7 Preset Select a preset and the camera goes to the selected preset.
-- See Adding a Preset Point section below.
8 Patrol Select a patrol route. -- See Adding a Patrol Route section below.
