geratech EGE-SP118-4K User manual

EGE-SP118-4K
11x8 HDMI Splitter Supports resolution 4Kx2K@60Hz(YUV 4:2:0), HDCP, EDID

EGE-SP118-4K
11x8 HDMI Splitter Supports resolution 4Kx2K@60Hz(YUV 4:2:0), HDCP, EDID

CONTENTS
Operating Instructions 1
Features 1
Package Contents 1
Specification 2
Panel Descriptions 2
Edit Intoduction 3
Connecting Operating 3
Connection Diagram 3
Safety Information 4
Safeguards 4
Product Service 4
Warranty 4
Mall-In Service 4
Limited Warranty Limits And Exclusions 5
.........................................................
..........................................................
.............................................................
.................................................................
................................................................
................................................................
.....................................................................
.....................................................................
.......................................................................
............................
..........................................................................
.............................................................................
.................................................................................
.................................................................................
EGE-SP118-4K
11x8 HDMI Splitter Supports resolution 4Kx2K@60Hz(YUV 4:2:0), HDCP, EDID

Operating Instructions
Notice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any kind, express or implied.
Features
Simultaneously displays an UItra Hi-Def source on up to eight UItra HD displays.
Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:2:0 ) and 1080p Full HD.
Supports four kinds of EDID handling abilities: mixed EDID, copy EDID, default 1080p output,
default 4Kx2K output.
Supports 36 bit Deep Color.
Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio .
Supports HDMI input/output cable 10 to 15 meters at 1080p/8-bit resolution.
HDCP Compliant.
Support 3D.
Package Contents
1x HDMI Splitter
1x 5V/1A DC Adapter
1x User Manual
1
EGE-SP118-4K
11x8 HDMI Splitter Supports resolution 4Kx2K@60Hz(YUV 4:2:0), HDCP, EDID

2
SPECIFICATIONS
Operating Temperature Range -5 to +35°C(+23 to +95°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Bandwidth frequency 10.2Gbps
Input ports 1xHDMI(female)
Output ports 8xHDMI outputs(female)
Resolution outputs up to 4Kx2K(3840x2160@60Hz YUV 4:2:0)
Dimensions(LxWxH) 270x110x27.5mm
Power consumption 3W(MAX)
Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG
Net Weight 840g

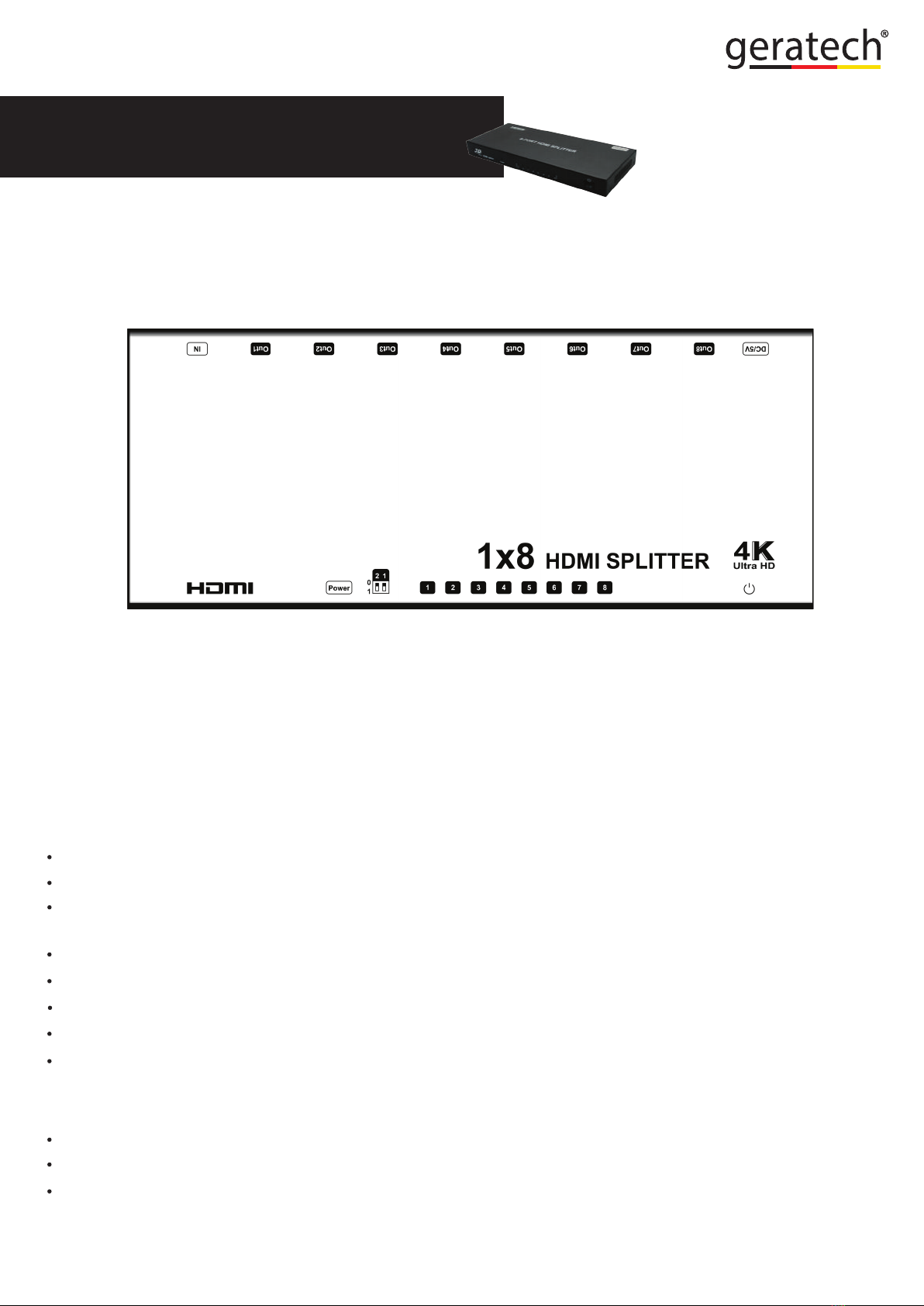

PANEL DESCRIPTIONS
Power input indicator
P switch for EDID choosing
11: Mixed EDID,
00: Copy EDID,
10: Default 1080p output,
1: Default 4Kx2K output,
1
2
1 2 34
5 6 7
Indicator of HDMI output
The power switch
Power input
HDMI output
HDMI input
3
4
5
6
7
EGE-SP118-4K
11x8 HDMI Splitter Supports resolution 4Kx2K@60Hz(YUV 4:2:0), HDCP, EDID

EDID Introduction
11: Mixed EDID: always follow the lowest resolution of the displays connected to the 8 outputs, in order to
support all displays show the source.
00: Copy EDID: output 8 is prior port
a. When output 8 is connected to the display, all other displays connected to the other 7 outputs will
follow the Resolution of output 8.
b. When output 8 is disconnected, all other 7 displays will output 1080p only.
10: Default 1080p output: output a default 1080p source, in this case all outputs will display 1080p if they
support resolution 1080p and above.
01: Default 4Kx2K output:output a default 4Kx2K source, in this case all outputs will display 4Kx2K if
they support resolution 4Kx2K and above.
Note: Please restart the splitter when change EDID mode!
Connecting And Operating
1) Connect the HDMI input source to input port of HDMI splitter.
2) Connect the HDMI splitter output ports to the displays.
3) Power on splitter, source and displays.
Connection Diagram
3
EGE-SP118-4K
11x8 HDMI Splitter Supports resolution 4Kx2K@60Hz(YUV 4:2:0), HDCP, EDID

4
CONNECTING AND OPERATING
1) Connect the HDMI input source (such as HD-DVD/ PS3 /STB etc.) into transmitter over HDMI cable.
2) Connect the output of transmitter and input of receiver over CAT5E or CAT6 cable.
3) Connect the HDMI oustput (such as: HD-LCD/D-DLP) into receiver over HDMI cable.
4) Connect yhe IR TX cable into ‘‘IRTX’’ port of the transmitter; Connect the IR RX cable into IR RX
Safety Information
Safeguards
To reduce the risk of electric shock, do not expose this product to rain or moisture
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by quali ed service personnel if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in these operating
instructions. Refer all other servicing to authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses parts speci ed by the
manufacturer or parts that have the same characteristics as the original parts. Unauthorized
substitutes may result in re, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety checks to con rm that the
unit is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or workmanship, our Compa-
ny (referred to as "the warrantor" ) will , for the length of the period indicated as below,
(Parts(2)Years ,Labor(90) Days) which starts with the date of original purchase ("Limited Warranty
period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with
a new of a refurbished product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product
during the warranty period. This Limited Warranty is extended only to the original purchaser and only
covers product purchased as new. A purchase receipt or other proof of original purchase date is
required for Limited Warranty service.
Mail-In Service
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the
original carton. Include a letter detailing the complaint and provide a day time phone and/or email
address where you can be reached.
EGE-SP118-4K
11x8 HDMI Splitter Supports resolution 4Kx2K@60Hz(YUV 4:2:0), HDCP, EDID

5
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and
DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO
DOES NOT COVER damages which occurred in shipment, or failures which are caused by
proucts not supplied by warrantor,or failures which result from accidents,misuse,abuse,neglect,
mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage, modi cation, or
service by anyone other than a Factory Service center or other Authorized Servicer, or damage
that is attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE".THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY
BREACH OF THIS WARRNTY. (As examples, this excludes damages for lost time, cost of having
someone remove or re-install an installed unit if applicable, travel to and from the service, loss of
or damage to media or images, data or other recorded content. The items listed are not exclusive,
but are for illustration only.
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
