1
1. INTRODUCTION
The HDMI over HDMI and CAT5e/6/7 Transmitter can convert a single HDMI input, 2-way
IR and RS-232 control and LAN serving to a single CAT5e/6/7 output and includes a
simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K
timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Dolby TrueHD,
Dolby Digital Plus and DTS-HD). The HDMI bypass output can be connected to an HDMI
display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a
CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 100 meters.
Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs
or games consoles. The Bidirectional Power over Ethernet (PoE) function provides greater
exibility in installations.
2. APPLICATIONS
• Household entertainment sharing and control
• Lecture room display and control
• Showroom display and control
• Meeting room presentation and control
• Classroom display and control
3. PACKAGE CONTENTS
• HDMI over HDMI & CAT5e/6/7 with LAN/IR/RS232 & Bidirectional PoE Transmitter
• IR Blaster x 1
• 3.5mm Phone Jack to RS-232 Cable
• 24V DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
• Source equipment with HDMI output connector
• Display TV/Monitor with HDMI input connector
• HDMI over CAT5e/6/7 Receivers with industry CAT5e/6/7 cables

EGE-UHD-5HDB-1411
1×2 HDMI over 1 HDMI and 1 CAT5e/6/7
Splitter,100m with IR,PoC, LAN Serving,(not include 507RX)
2
5. FEATURES
• HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant
• Simultaneous HDMI and CAT5e/6/7 outputs
• Supports data rate from 250Mbps up to 3Gbps
• Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up
to 4Kx2K (3840x2160@24/25/30Hz and 4096x2160@24Hz)
• Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
transmission (32-192kHz sample rate)
• Supports distances up to 100 meters through CAT5e/6/7 cables
• Supports Ethernet network rate up to 100Mbps
• Can select Standard or TV EDID
• Supports USB service port
• Provides 24V DC power to or received from compatible PoE Receiver through
CAT5e/6/7
• Supports control of devices via RS-232 and 2-way IR
• The 3D signal display follow by display TV’s EDID
• Supports Bidirectional IR PoE
Note:
1. This system was tested with CAT6/23AWG cables, results may vary with cables of a
different specication.
2. The PoE function is designed for powering compatible Receiver
units only non-PoE Receivers will need their own power supply.
Receivers of another brand may not be compatible.
3. Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable and display
in order for proper image displaying.
4. This device obtain the last memory function therefore, the device will use last
CAT5e/6/7 output port's EDID when CAT5e/6/7 output is not connected to a display after
power cycling.
The unit will detect CAT5e/6/7 output's EDID when it obtain a 4Kx2K EDID and send out
the signal accordingly to other output ports. If the CAT5e/6/7 output is without a 4Kx2K's
EDID the unit will detect all output's EDID and send out the signal that all outputs can
accept.

EGE-UHD-5HDB-1411
1×2 HDMI over 1 HDMI and 1 CAT5e/6/7
Splitter,100m with IR,PoC, LAN Serving,(not include 507RX)
3
"6. OPERATION CONTROLS AND FUNCTIONS

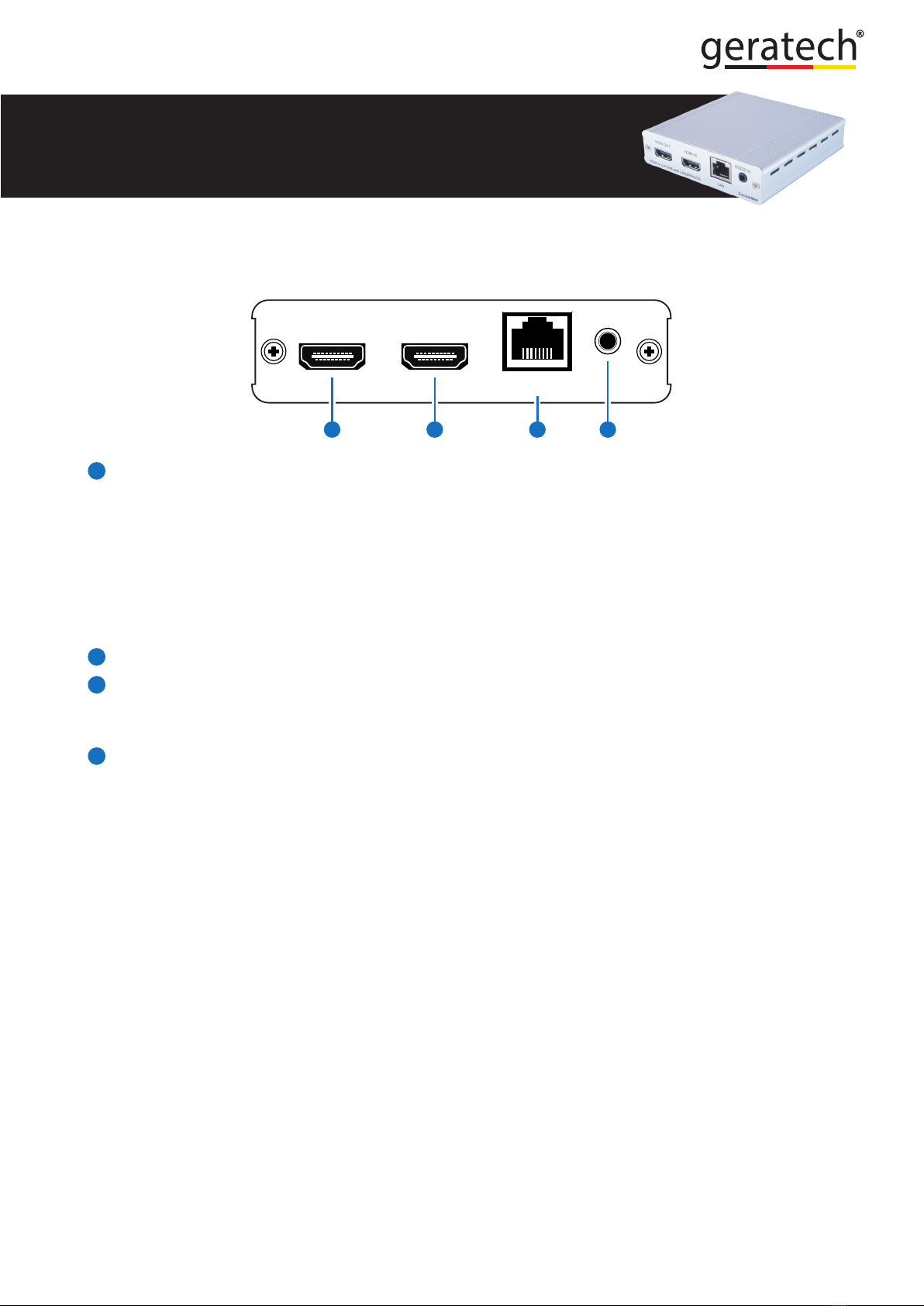

6.1 Front Panel
HDMI OUT HDMI IN
LAN
RS232 IN
HDMI to CAT5e/6 with LAN/IR/RS232 Transmitter
1 2 3 4
1HDMI OUT: Connect to HDMI display for instant image display or cascade with another
family type Transmitter. The unit will detect CAT5e/6/7 output's EDID when it obtain a
4Kx2K EDID and send out the signal accordingly to other output ports. If CAT5e/6/7
output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the
signal that all outputs can accept.
This device obtain the last memory function therefore, the device will use the last
CAT5e/6/7 output port's EDID when CAT5e/6/7 output port is not connected after power
cycling.
2HDMI IN: Connect with source equipment such as DVD/Blu-ray or PS3 player.
3LAN: Connect to intranet or internet service system for a total sharing rate of 100Mbps
within the link of Transmitter.
Warning: DO NOT connect this slot with any of the
CAT5e/6/7 port, doing so may trigger a power shot down and ruin the device.
4RS-232 IN: Connect to a PC/Laptop or RS-232 enabled device (with supplied 3.5mm
Phone Jack to D-Sub 9-Pin female adaptor) to transmit of RS-232 commands.

EGE-UHD-5HDB-1411
1×2 HDMI over 1 HDMI and 1 CAT5e/6/7
Splitter,100m with IR,PoC, LAN Serving,(not include 507RX)
4

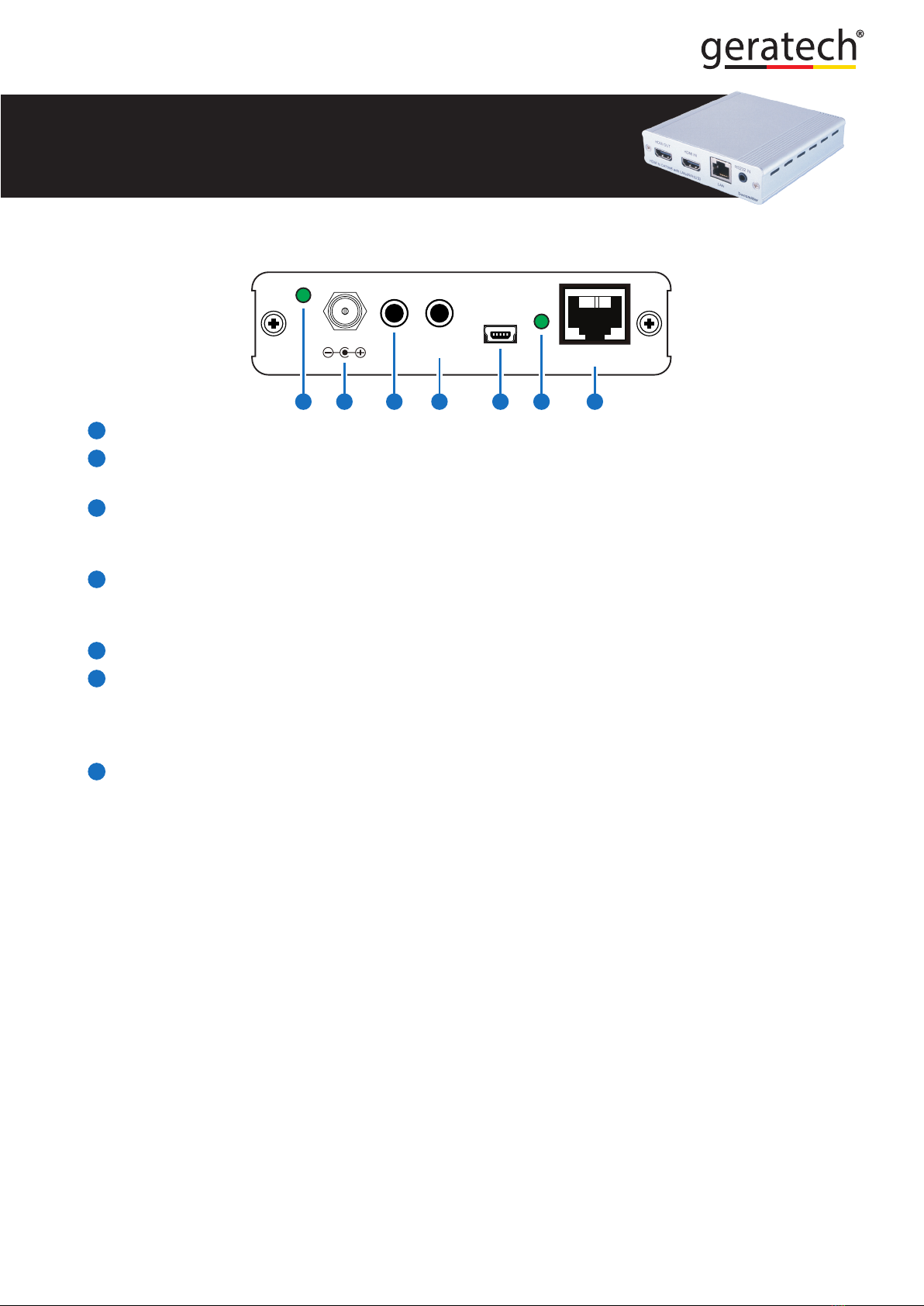

6.2 Rear Panel
POWER
DC 24V
CAT5e/6 OUT
IR 1
BLASTER USB LINK
IR 2
EXTENDER
1 2 3 4 5 6 7
1POWER LED: Once the power supply is connected the LED will illuminate.
2DC 24V: Plug the 24V DC power supply into the unit and connect the adaptor to an AC
outlet.
3IR 1 BLASTER: Connect with the supplied IR Blaster to blast out the IR signal received
from the Receiver side. Place the IR Blaster in direct line-of-sight of the equipment to be
controlled.
4IR 2 EXTENDER: Connect with the supplied IR Extender to receive IR signal from
Transmitter side and blast out at Receiver side. Ensure that remote controller being
used is within the direct line-of-sight of the IR Extender.
5USB: This slot is reserved for rmware update only.
6LINK LED: This LED will illuminate when both the input source and output display
signals are connected through CAT cable. When it blinks regularly it states the display
is NOT sending signals to Receiver but the Transmitter and Receiver are linked and if it
blink irregularly it states an error has occurred.
7CAT5e/6/7 OUT: Connect this port to CAT5e/6/7 to HDMI Receiver with CAT5e/6/7
cable to extend the signal up to 100m.

EGE-UHD-5HDB-1411
1×2 HDMI over 1 HDMI and 1 CAT5e/6/7
Splitter,100m with IR,PoC, LAN Serving,(not include 507RX)
5

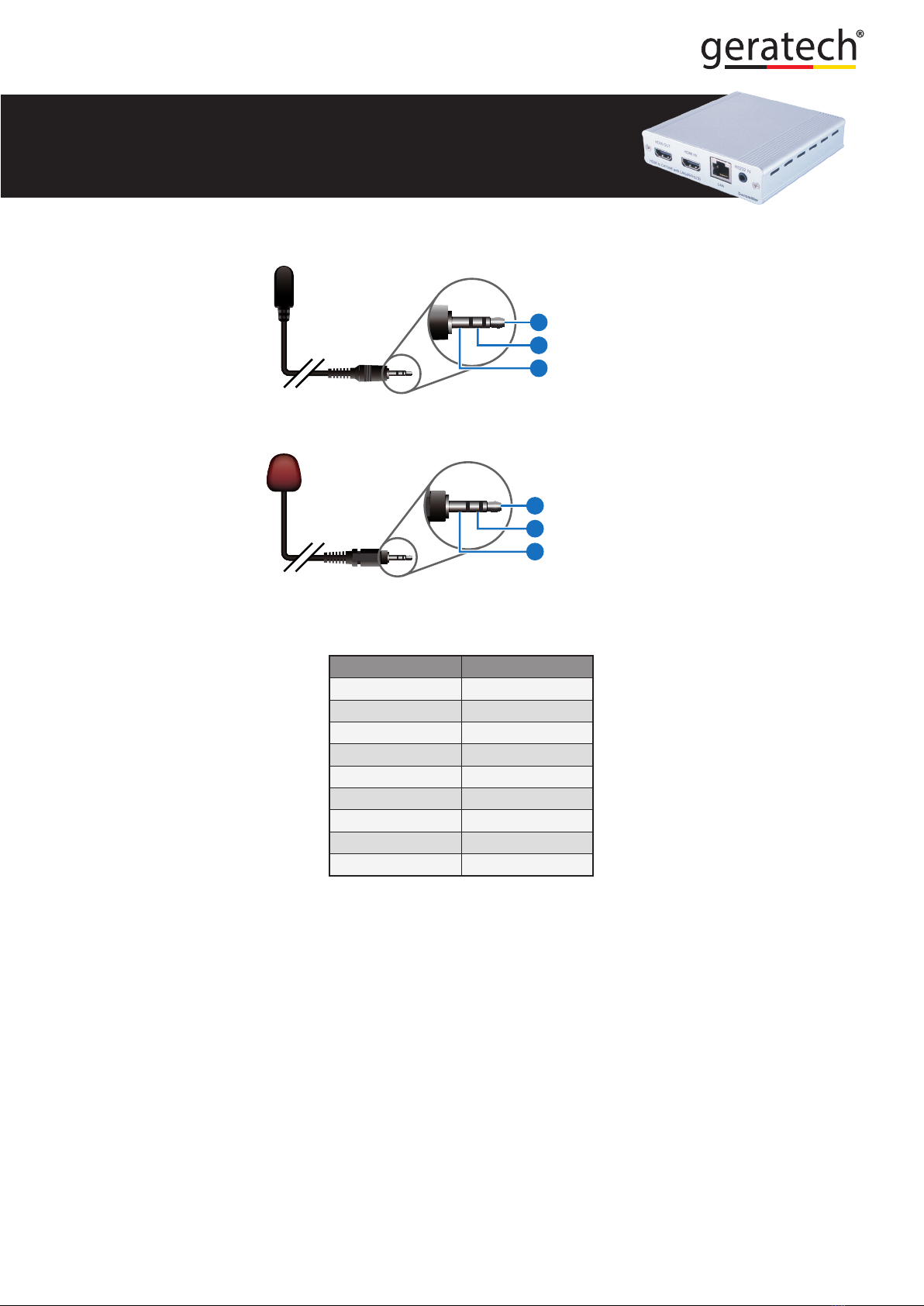

6.3 IR Cable Pin Assignment
3
1
3
1
2
2
Power 3.3V
IR Blaster Signal
NC
IR Signal
Power 3.3V
Grounding
IR Extender
IR Blaster
6.4 D-Sub 9-Pin Denitions
Pin Dene TX / RX
1 N/C
2 TxD/RxD
3 RxD/TxD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC

EGE-UHD-5HDB-1411
1×2 HDMI over 1 HDMI and 1 CAT5e/6/7
Splitter,100m with IR,PoC, LAN Serving,(not include 507RX)
6

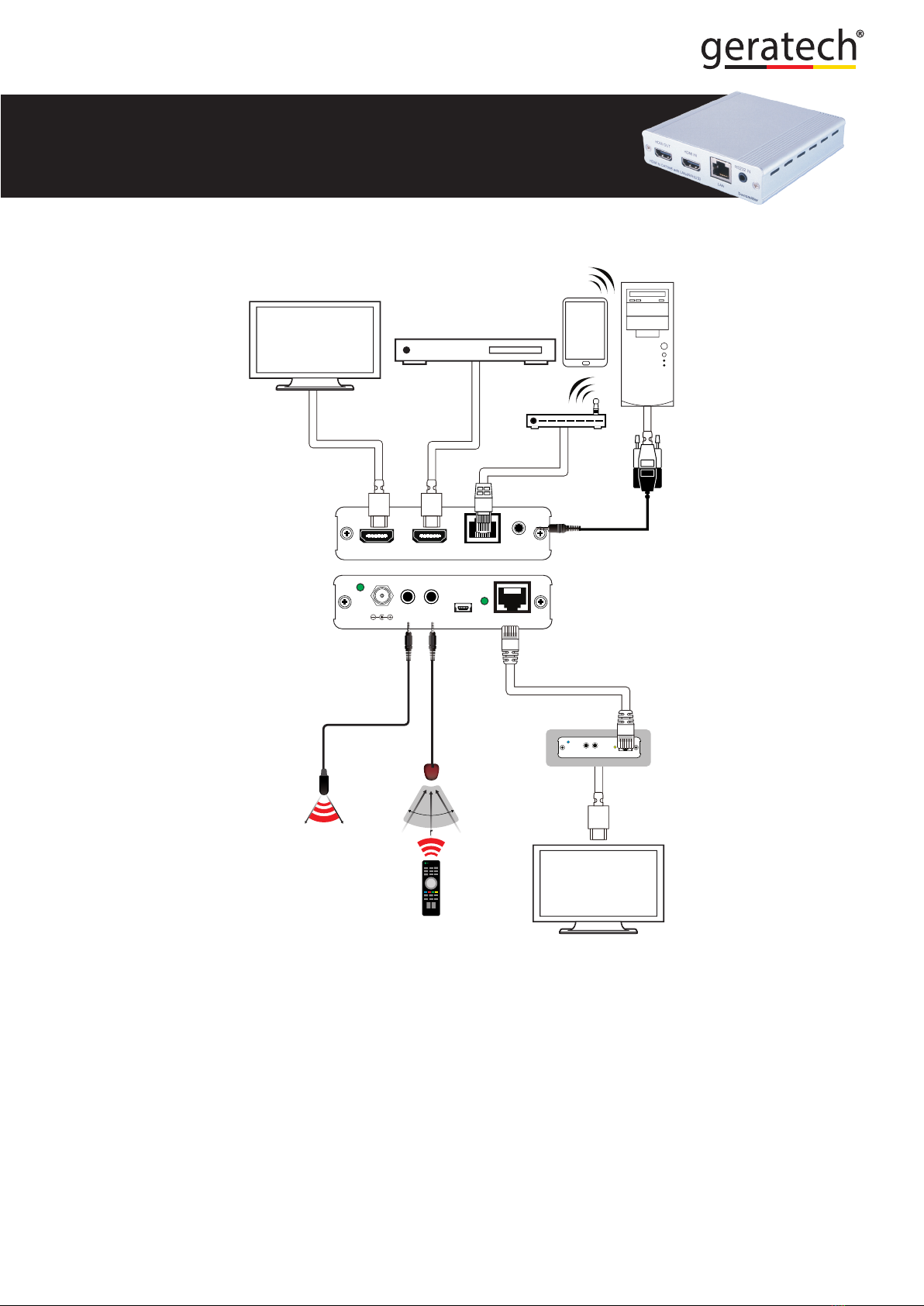

7. CONNECTION DIAGRAM
POWER
DC 24V
CAT5e/6 OUT
IR 1
BLASTER USBLINK
IR 2
EXTENDER
HDMI OUT HDMI IN
LAN
RS232 IN
HDMI to CAT5e/6 with LAN/IR/RS232 Transmitter
1.5m
60°
CAT5e/6 In
Link
IR1 Extender
IR2 Blaster
Power
7m
3m 3m
60°
m
3D TV/Display
3D TV/Display
HDMI HDMI
RS-232 Cable
Blu-ray or PS3 Player
Smartphone or
Tablet
Router with
Internet
Connection
PC

EGE-UHD-5HDB-1411
1×2 HDMI over 1 HDMI and 1 CAT5e/6/7
Splitter,100m with IR,PoC, LAN Serving,(not include 507RX)
7

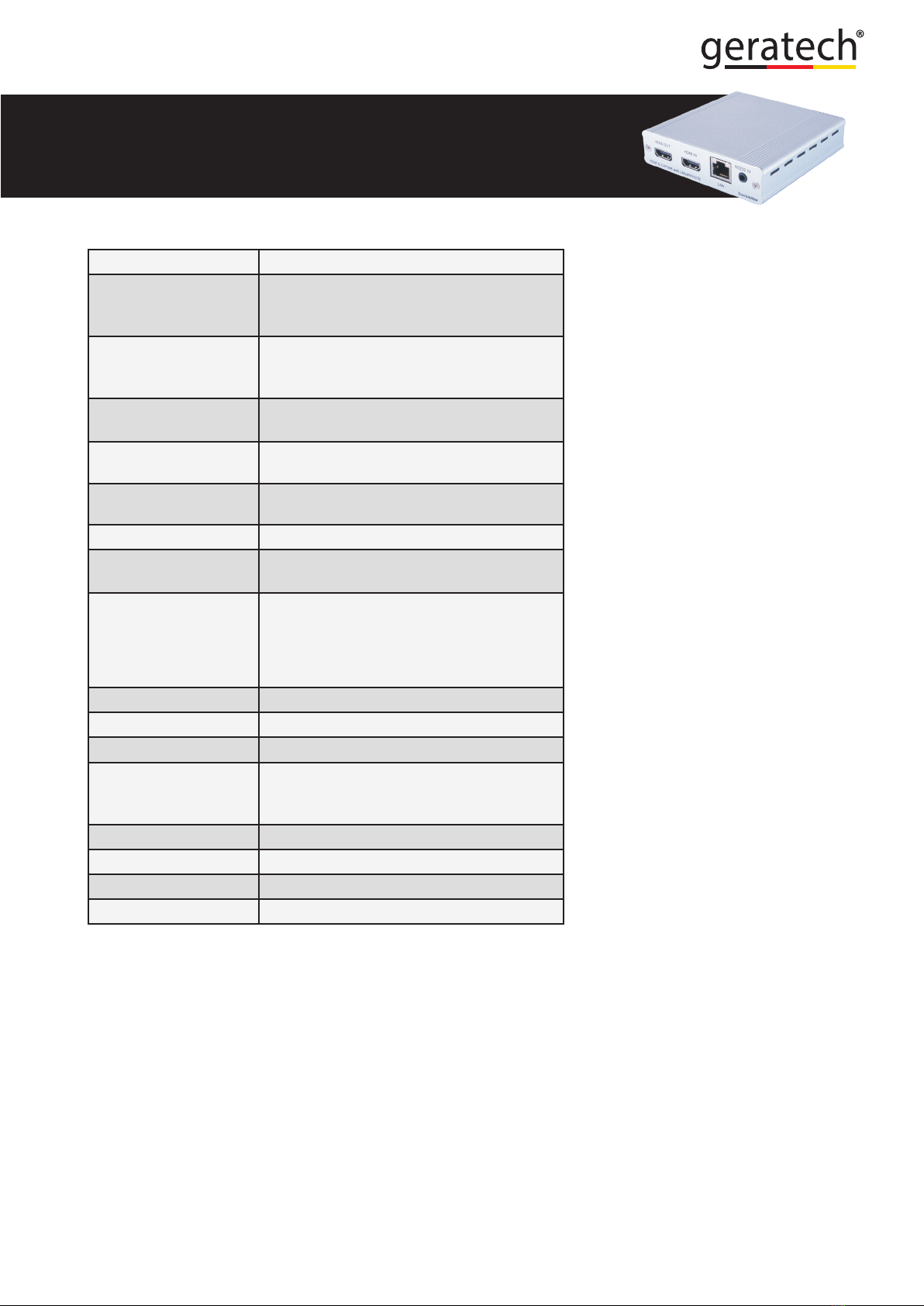

8. SPECIFICATIONS
Video Bandwidth 340Mbps/10.2Gbps
Input ports 1 x HDMI, 1 x 3.5mm Phone Jack for RS-232,
1 x IR IN, 1 x LAN,
1 x USB (Service only)
Output ports 1 x HDMI,
1 x CAT5e/6/7
1 x IR OUT,
Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/4096x2
160@24Hz)
HDMI Input & Output
Cable Distance
Up to 10m@8 or12-bit 1080p
CAT5e/6/7 Output Cable
Distance
Up to 100m
IR Frequency 30~50kHz
Power Supply 24V / 1.25A DC (US/EU standards, CE/FCC/
UL certied)
Dimensions 102 mm(W) x 102 mm(D) x 25 mm(H)/
Jacks Excluded
102 mm(W) x 110 mm(D) x 25 mm(H)/
Jacks Included
Weight 252g
Chassis Material Metal
Silkscreen Color Gray
ESD Protection Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Operating Temperature 0°C ~ 40°C
Storage Temperature -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90% RH (non-condensing)
Power Consumption 6.3W

EGE-UHD-5HDB-1411
1×2 HDMI over 1 HDMI and 1 CAT5e/6/7
Splitter,100m with IR,PoC, LAN Serving,(not include 507RX)
8
8.1 CAT5e/6/7 Cable Specication
Cable
Type
Range Pixel clock
rate
Video Data
Rate
Supported Video
CAT5e/6/7 100 m <=225 MHz <=5.3 Gbps
(HD Video)
Up to 1080p, 60 Hz,
36 bits, 3D (data rates
lower than 5.3 Gbps or
below 225 MHz TMDS
clock).
70 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
CAT6A/7 100 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz video
formats
9. ACRONYMS
ACRONYM COMPLETE TERM
4Kx2K 3840x2160 / 4096x2160
DTS Digital Theater System
EDID Extended Display Identication Data
HDCP High-bandwidth Digital Content Protection
HDMI High-Denition Multimedia Interface
HDTV High-Denition Television

www.geratech.com.tr
www.egerate.com
www.egerate-store.com
20130625 MPM-CHDBT1H1CE
