DISCLAIMERS
The information in this manual has been carefully checked and is believed to be
accurate. Geratech assumes no responsibility for any infringements of patents or
other rights of third parties which may result from its use.
Geratech assumes no responsibility for any inaccuracies that may be contained in
this document. Geratech also makes no commitment to update or to keep current
the information contained in this document.
Geratech reserves the right to make improvements to this document and/or product
at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a
retrieval system, or any of its part translated into any language or computer le, in
any form or by any means—electronic, mechanical, magnetic, optical, chemical,
manual, or otherwise—without express written permission and consent from
Geratech.
© Copyright 2014 by Geratech.
All Rights Reserved.
Version 1.0 November 2014
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of
the companies with which they are associated.

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this
equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of re, electrical shock
and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain, moisture or
install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or
empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is
damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be
placed upon it or any person to walk on it.
• To protect the unit from overheating, do not block any vents or openings in
the unit housing that provide ventilation and allow for sufcient space for air to
circulate around the unit.
REVISION HISTORY
VER-
SION
NO.
DATE (DD/MM/
YY) SUMMARY OF CHANGE
VR0 22/06/15 Preliminary Release

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
CONTENTS
1. INTRODUCTION ...................................................................... 1
2. APPLICATIONS ........................................................................ 1
3. PACKAGE CONTENTS ........................................................... 1
4. SYSTEM REQUIREMENTS ..................................................... 1
5. FEATURES .............................................................................. 1
6. OPERATION CONTROLS AND FUNCTIONS ......................... 2
6.1 Front Panel ......................................................................... 2
6.2 Rear Panel .......................................................................... 3
6.3 Remote Control .................................................................. 4
6.4 OSD Menu........................................................................... 5
6.5 RS-232 Protocols ............................................................... 8
6.6 IR Pin Denitions ................................................................ 9
6.7 IP Searching Software Application and Installation ............ 9
6.8 Telnet & RS-232 Commands .............................................. 9
6.9 Telnet Control ....................................................................11

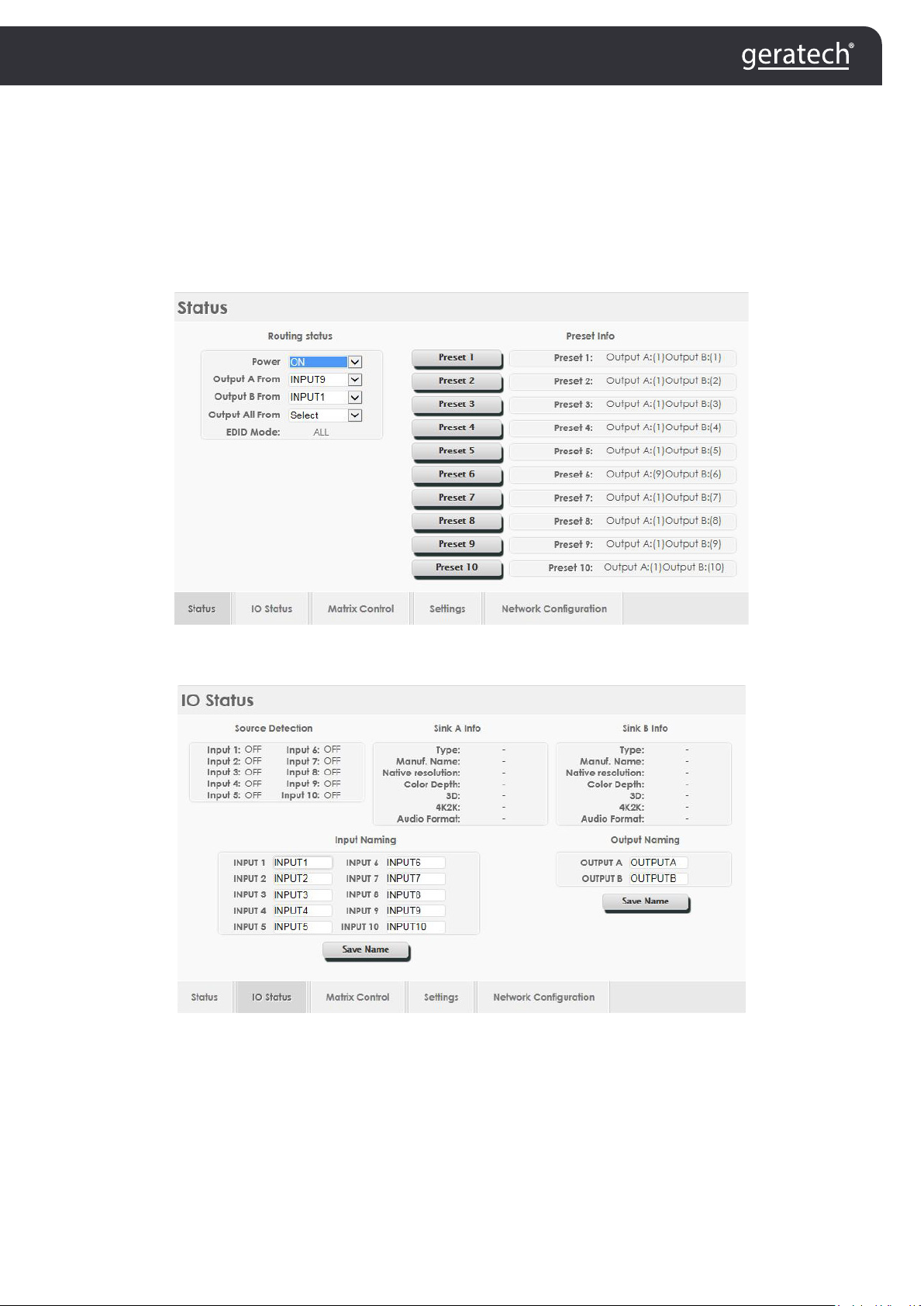

6.10 WebGUI Control ............................................................. 12

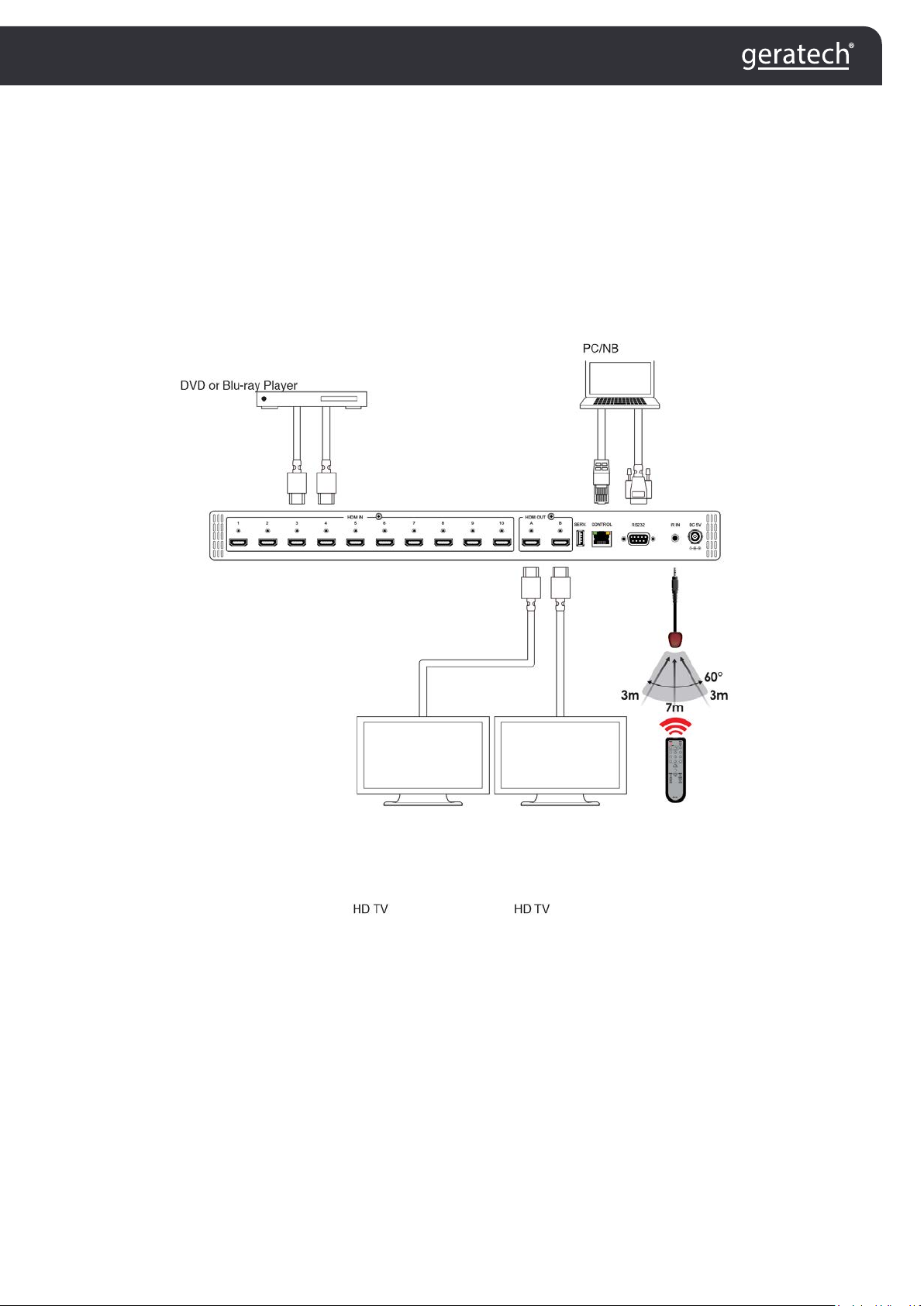

7. CONNECTION DIAGRAM ..................................................... 14
8. SPECIFICATIONS .................................................................. 15

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
1

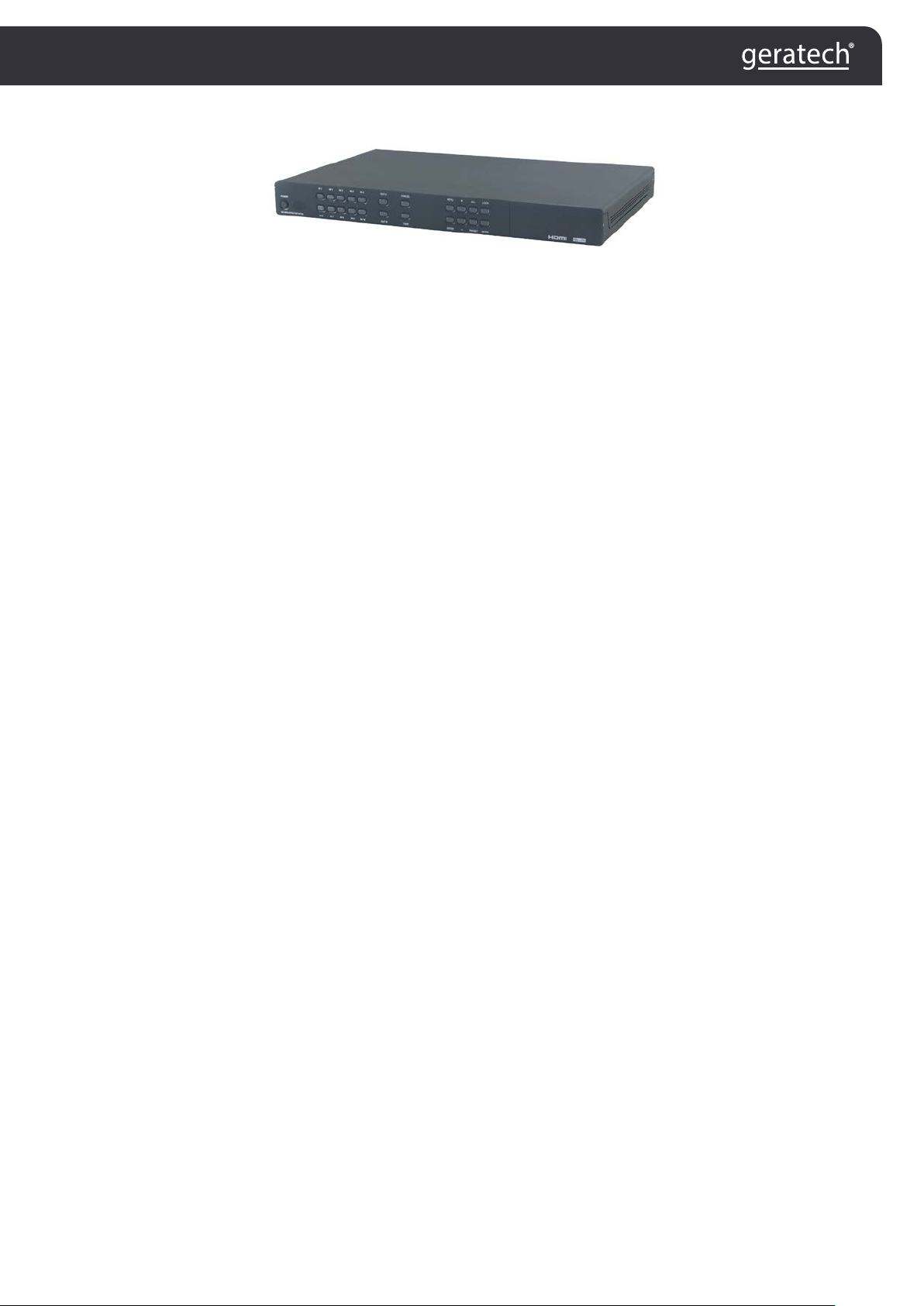

1. INTRODUCTION
This 10 by 2 HDMI UHD Matrix is an advanced solution for switching up to 10 HDMI
inputs to two HDMI outputs. It provides high performance pass-through of video/audio
and is capable of receiving and transmitting 300MHz/9Gbps bandwidth rate with no data
loss. It’s Fast Switching technology can greatly reduce the time required to swap between
inputs. Supporting the latest features you can be assured of reliable and high quality HDMI
distribution.
2. APPLICATIONS
• Showroom display & control
• Educational demo
• Installation usage
• Advertising display
3. PACKAGE CONTENTS
• 10 By 2 HDMI Matrix Fast Switch
• 1 x IR Extender
• 1 x Remote Control with Battery
• 1 x 5V/2.6A Power Adaptor
• 1 x Left & Right Ear Racks
• Operational Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as DVD/Blu-ray player and output HD display/Monitor
with HDMI cables.
5. FEATURES
• Supports UHD resolutions up to 4K2K@24/25/30Hz & 4K2K YUV420@60Hz
• Supports HDTV resolutions up to 1080@60Hz, ‘Deep Color’ 36/30/24-bit and
PC resolutions up to WUXGA@60Hz(RB)
• Supports 3D
• Supports pass-through of audio formats: LPCM 2/5.1/7.1CH, Dolby Digital
2~5.1CH,
• DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD
Master Audio

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
2
• • Supports EDID selection function
• Supports control via IR, RS-232, Telnet and WebGUI controls
• Input port HDCP support Standard and Apple mode. The Apple mode selection
to guarantees the use of Apple devices.
• Compliant with DVI source
• Note: Supporting HDMI to DVI conversion when HDMI sources is non- deep
color and color space RGB
6. OPERATION CONTROLS AND FUNCTIONS

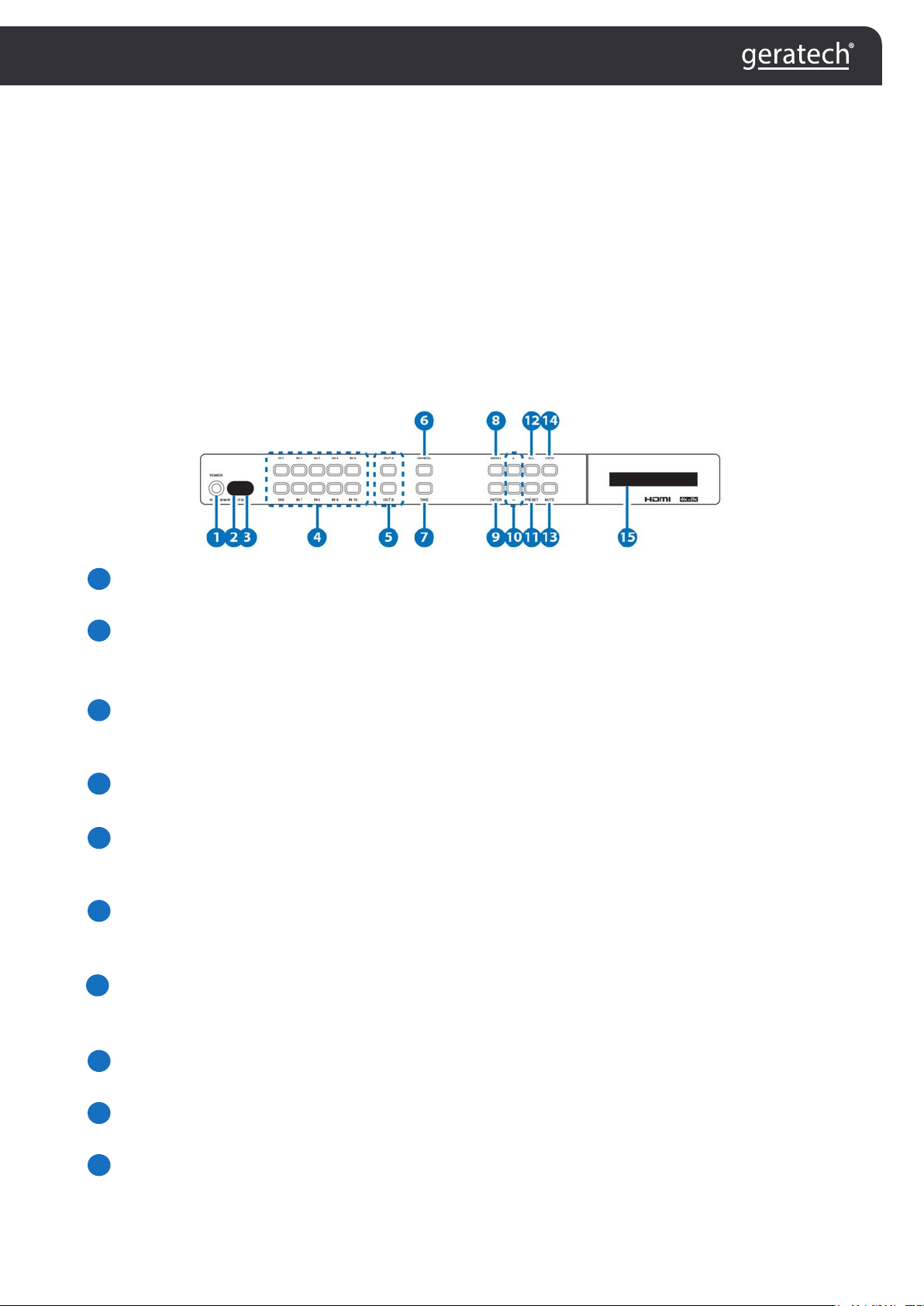

6.1 Front Panel
1POWER Button
Press this button to switch On or set the device to standby mode.
2POWER LED
This LED will illuminate in green when the device is power On and if it is switched to
standby mode the LED will turn red.
3IR Window
This IR Receiver receives the remote control signal from the package included
remote control only.
4IN 1~10
Press these IN buttons to select an input from the 10 input sources.
5OUT A/B
Press these buttons once a time along with an IN buttons to select an input source
for an output display. i.e. OUTA > IN1 > TAKE or OUTB > IN10 > TAKE.
6CANCLE
Press this button to cancel the IN/OUT selection and during any selection under
MENU.
7TAKE
Press this button to conrm the selection of an IN and an OUT button. If this button
is not pressed the IN & OUT selection will not be executed.
8MENU
Press to enter into the menu selection.
9ENTER
Press to conrm the selection.
10 +/-
Press these buttons to move up/down under menu selection.

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
3
11 PRESET
Press this button to recall the preset setting from 1~10. Press and select from
IN1~10 then press TAKE to conrm the recall selection or press CANCEL
to exit the selection. To reset the Preset setting, enter into menu and select Preset
setting from IN1~10 then press OUTA and select an input from IN1~10 then press
OUTB and select an input from IN1~10 again and press ENTER to conrm the
selection. eg. To preset 2’s gure, MENU > ENTER > Matrix Preset > Enter>
Preset2 > IN2 > OUTA > IN8 > OUTB > IN7 > ENTER
12 ALL
Press this button to select all outputs to display with an input source. e.g. To
select all output with input source 3. ALL > IN3
13 MUTE
Press this button to mute video and audio on OUT A or B or on all output.
e.g. To mute output A OUTA > MUTE
14 LOCK
Press this button to lock all button functions on the panel to unlock, press
The button and hold for 3 seconds.
15 LCM
Displaying Input and Outputs selection and menu selection.

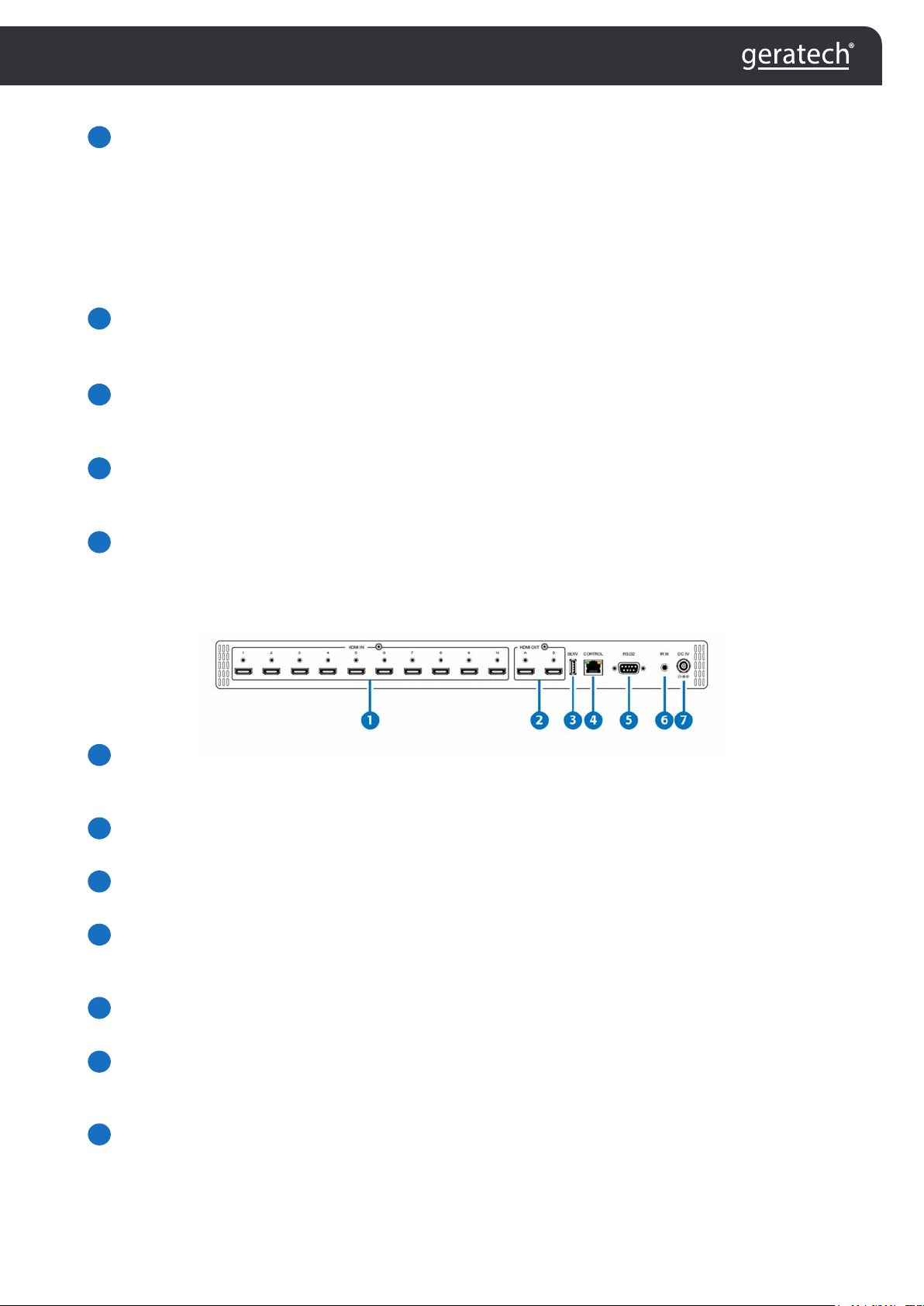

6.2 Rear Panel
1HDMI IN
Connect from source equipment such as Blu-ray/DVD/PS3 players, Set-Top-Box or
any HDMI equipped source device for input signal sending.
2HDMI OUT
Connect to HDMI TV/display or HD Amplier for output image and or audio display.
3SERV.
This slot is reserved for rmware update use only.
4CONTROL
Connect from PC/Laptop with active internet service for Telnet or WebGUI control
with RJ-45 terminated cable.
5RS-232
Connect from PC/Laptop for RS-232 command sending to control the device.
6IR IN
Connect the IR Receiver included in the package for IR signal receive from the
included remote control.
7DC 5V
Connect the adaptor included in the package and connect to AC wall outlet for
power supply.

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
4

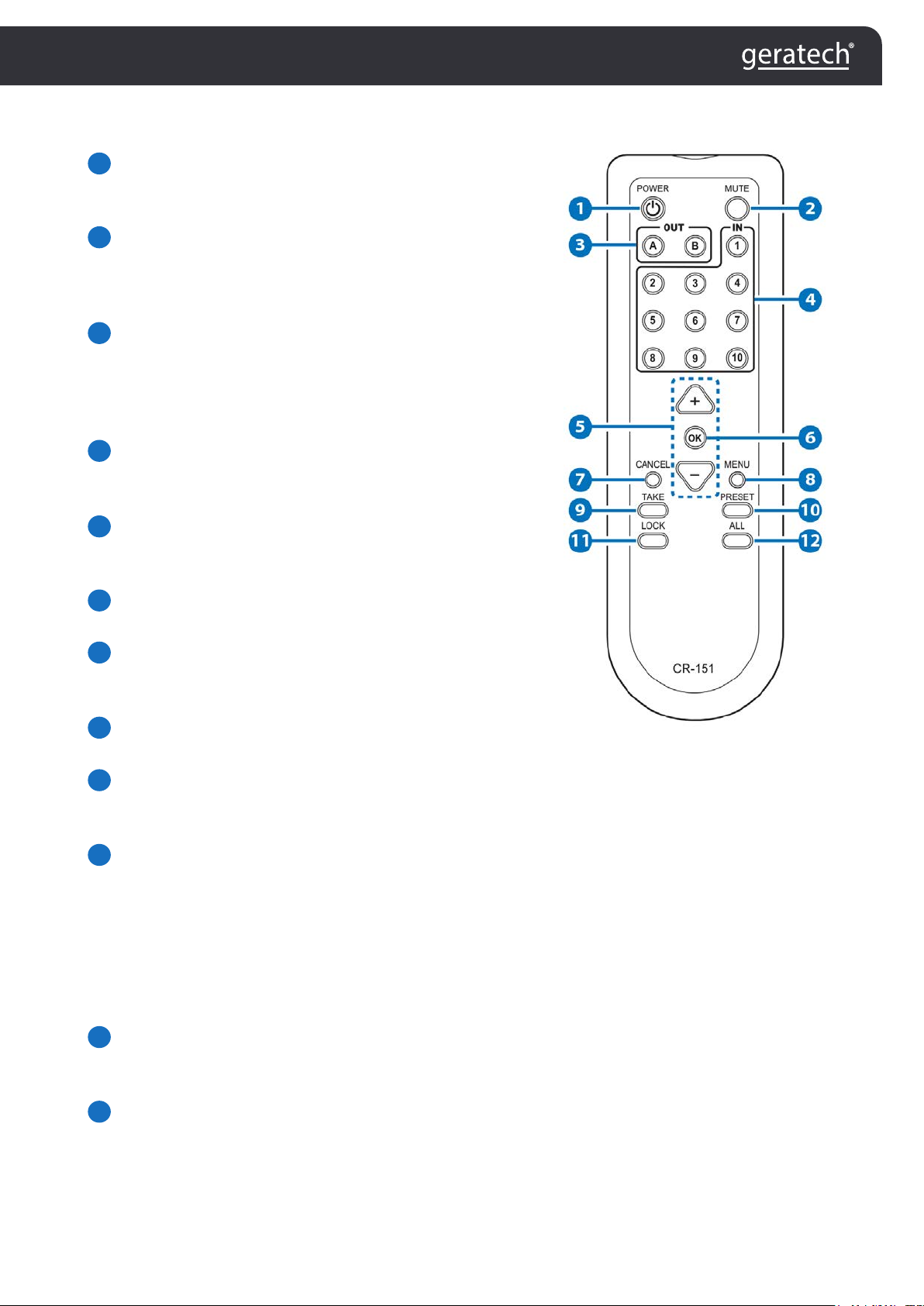

6.3 Remote Control
1POWER
Press this button to switch On or set the device
to standby mode.
2MUTE
Press this button to mute video and audio on
OUT A or B or on all output. e.g. To mute output A
OUTA > MUTE
3OUT A/B
Press these buttons once a time along with an IN
buttons to select an input source for an
output display. i.e. OUTA > IN1 > TAKE or OUTB
> IN10 > TAKE.
4IN 1~10
Press these IN buttons to select an input from the
10 input sources.
5+/-
Press these buttons to move up/down under
menu selection.
6OK
Press to conrm the selection.
7CANCEL
Press this button to cancel the IN/OUT selection
and during any selection under MENU.
8MENU
Press to enter into the menu selection.
9TAKE
Press this button to conrm the selection of an IN and an OUT button. If this button
is not pressed the IN & OUT selection will not be executed.
10 PRESET
Press this button to recall the preset setting from 1~10. Press and select from
IN1~10 then press TAKE to conrm the recall selection or press CANCEL to exit
the selection. To reset the Preset setting, enter into menu and select Preset
setting from IN1~10 then press OUTA and select an input from IN1~10
then press OUTB and select an input from IN1~10 again and press
ENTER to conrm the selection. eg. To preset 2’s gure, MENU > ENTER > Matrix
Preset > ENTER > Preset2 > IN2 > OUTA > IN8 > OUTB > IN7 > ENTER
11 LOCK
Press this button to lock all button functions on the panel to unlock, press the button
and hold for 3 seconds.
12 ALL
Press this button to select all outputs to display with an input source. e.g. To select
all output with input source 3. ALL > IN3

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
5
6.4 OSD Menu
Main Menu Sub Menu Description Default
EDID Mode All All Input port is using
same EDID.
In menu “EDID All”, can
select suitable EDID.
All
Appoint Each Input port can
select individual EDID.
In menu “EDID IN1~10”
select suitable EDID.
Exit
EDID All Sink A Copy Output A
display EDID
8/2D/
PCM/1080p
Sink B Copy Output B
display EDID
8/2D/
PCM/720p
Standard EDID, Content:
deep color/2D3D/audio/
native resolution
8/2D/PCM/
AC3/720p
Standard EDID, Content:
deep color/2D3D/audio/
native resolution
8/2D/
PCM/1080p
Standard EDID, Content:
deep color/2D3D/audio/
native resolution
8/2D/PCM/
AC3/1080p
Standard EDID, Content:
deep color/2D3D/audio/
native resolution
8/2D/
PCM/4K2K
Standard EDID, Content:
deep color/2D3D/audio/
native resolution
8/2D/PCM/
AC3/4K2K
Standard EDID, Content:
deep color/2D3D/audio/
native resolution
8/2D/PCM/
Y420
Standard EDID, Content:
deep color/2D3D/audio/
native resolution
8/2D/PCM/
AC3/Y420
Standard EDID, Content:
deep color/2D3D/audio/
native resolution
Exit
EDID IN1 Same EDID All Select Input 1’s EDID Same EDID All
EDID IN2 Same EDID All Select Input 2’s EDID Same EDID All
EDID IN3 Same EDID All Select Input 3’s EDID Same EDID All
EDID IN4 Same EDID All Select Input 4’s EDID Same EDID All

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
6
EDID IN5 Same EDID All Select Input 5’s EDID Same EDID All
EDID IN6 Same EDID All Select Input 6’s EDID Same EDID All
EDID IN7 Same EDID All Select Input 7’s EDID Same EDID All
EDID IN8 Same EDID All Select Input 8’s EDID Same EDID All
EDID IN9 Same EDID All Select Input 9’s EDID Same EDID All
EDID IN10 Same EDID All Select Input 10’s EDID Same EDID All
Matrix
Preset
Preset 1 IN/OUT default No.1 A=1 , B=1
Preset 2 No.2 A=1 , B=1
Preset 3 No.3 A=1 , B=1
Preset 4 No.4 A=1 , B=1
Preset 5 No.5 A=1 , B=1
Preset 6 No.6 A=1 , B=1
Preset 7 No.7 A=1 , B=1
Preset 8 No.8 A=1 , B=1
Preset 9 No.9 A=1 , B=1
Preset 10 No.10 A=1 , B=1
Exit
To reset the Preset setting, select a Preset from 1~10 then press OUTA and select an input from 1~10
then press OUTB and select an input from 1~10 again and press ENTER to conrm the selection
HDCP Input IN1 Standard/
Apple
Set IN1 in Apple/
Standard mode
Standard
IN2 Standard/
Apple
Set IN2 in Apple/
Standard mode
Standard
IN3 Standard/
Apple
Set IN3 in Apple/
Standard mode
Standard
IN4 Standard/
Apple
Set IN4 in Apple/
Standard mode
Standard
IN5 Standard/
Apple
Set IN5 in Apple/
Standard mode
Standard
IN6 Standard/
Apple
Set IN6 in Apple/
Standard mode
Standard
IN7 Standard/
Apple
Set IN7 in Apple/
Standard mode
Standard
IN8 Standard/
Apple
Set IN8 in Apple/
Standard mode
Standard
IN9 Standard/
Apple
Set IN9 in Apple/
Standard mode
Standard
IN10 Standard/
Apple
Set IN10 in Apple/
Standard mode
Standard
Exit

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
7
Network
Setup
IP Mode DHCP , Static DHCP
IP Setup Static IP 192.168.1.50
Mask Setup Static Netmask 255.255.255.0
Gate Setup Static Gateway 192.168.5.254
Do Re-Link Re-Link.
After setup Network,
the system need to
relink
---
Exit
Network
Status
Link Network status
DHCP,Static or Not
Linked
---
IP Get IP ---
Mask Get Netmask ---
Gate Get Gateway ---
MAC System MAC Address ---
Exit
Source
Detection
(Detect
Source’s
5V-pin only)
IN1 On/Off ,
IN2 On/Off
IN1 , IN2 detect source
with/without the signal
---
IN3 On/Off ,
IN4 On/Off
IN3 , IN4 detect source
with/without the signal
IN5 On/Off ,
IN6 On/Off
IN5 , IN6 detect source
with/without the signal
IN7 On/Off ,
IN8 On/Off
IN7 , IN8 detect source
with/without the signal
IN9 On/Off ,
IN10 On/Off
IN9 , IN10 detect source
with/without the signal
Exit
Sink A Info Type, Manuf. Detect and Analysis
Output A display’s EDID
Content: type(HDMI/
DVI/VGA), Manufactory/
Model number
---
Native Content: native
resolution
Video Format Content: deep color,
2D or 3D, 4K2K
Audio Format Content: PCM,
BitStream, HBR
Exit
Sink B Info Same Sink A
Info
Detect and Analysis
Output B display’s EDID
---

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
8
Firmware FW Version Display the model
number and FW version
---
Update FW Update
Exit
Factory
Reset
Do Reset Do system Reset ---
Exit
Exit
6.5 RS-232 Protocols
Baud Rate: 115200bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
Switch
PIN Assignment
1 NC
2 TxD
3 RxD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC
Switch
PIN Assignment
1 NC
2 RxD
3 TxD
4 NC
5 GND
6 NC
7 NC
8 NC
9 NC

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
9

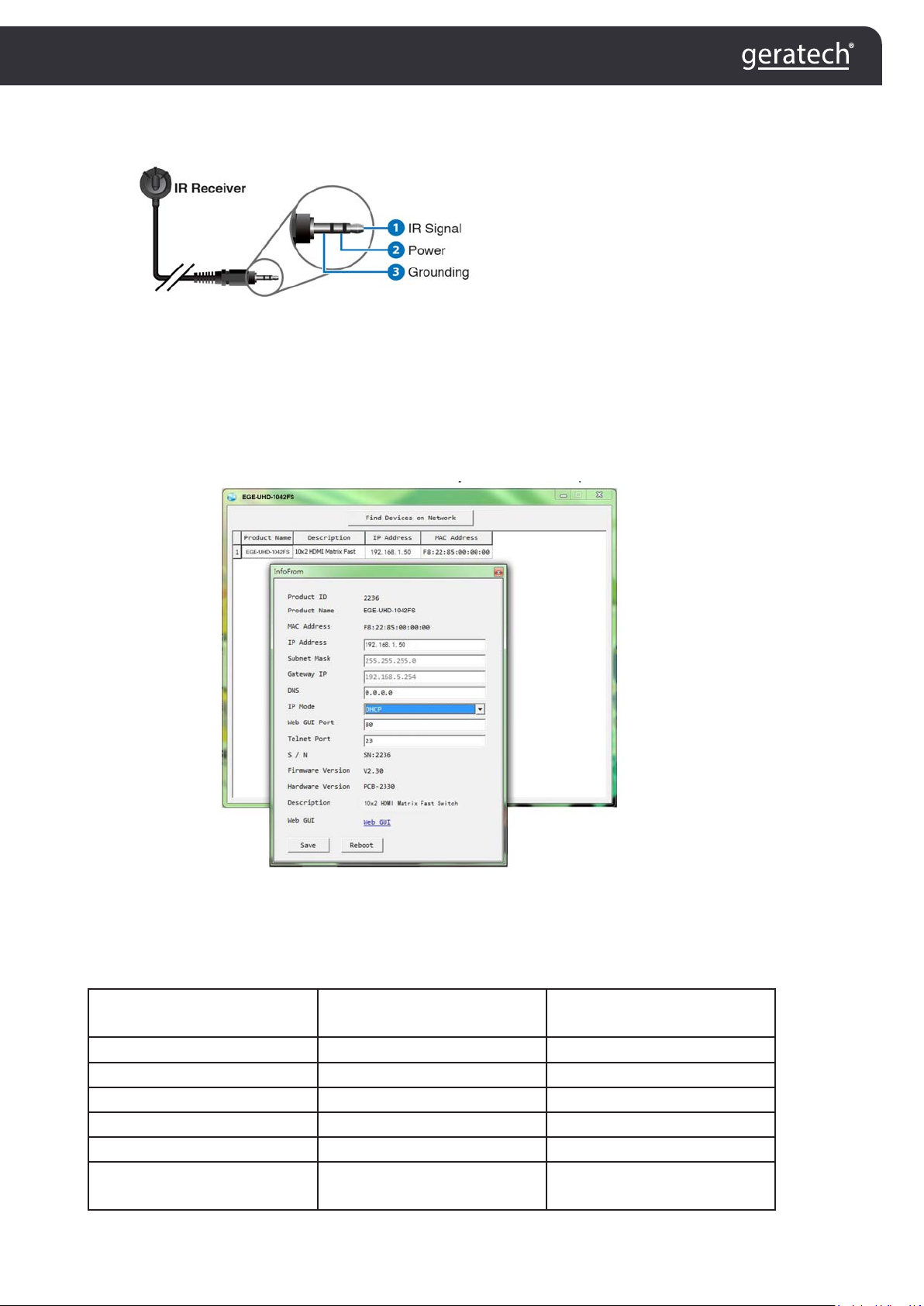

6.6 IR Pin Denitions
6.7 IP Searching Software Application and Installation
Connect the Control System with PC/Laptop through the Ethernet port through an
active network system and open the application. Click on Find Devices on Network
and a list of the devices connected to the Control System will show up.
Then user may use the IP Address to nd the control device through Telnet,
WebGUI or even RS-232/Hyper Terminal tools.
6.8 Telnet & RS-232 Commands
Command Name Description Description of
parameter
P0 Power Off (Standby) NONE
P1 Power On NONE
A N Set Output A Source N=1-10
B N Set Output B Source N=1-10
I N Set All Outputs Source N=1-10
IPCONFIG Display The Current IP
Congure
NONE

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
10
SIPADDR XXX.XXX.
XXX.XXX
Set Ethernet IP
Address
XXX=0~255
SNETMASK XXX.XXX.
XXX.XXX
Set Ethernet Net Mask XXX=0~255
SGATEWAY XXX.XXX.
XXX.XXX
Set Ethernet Gateway XXX=0~255
HTTPPORT N Set Http Port Number N=0~65535
RSTIP IP Conguration Reset
To <DHCP>
NONE
EDIDMODE Show EDID MODE NONE
EDIDMODE N Set EDID Mode N=0(Appoint), 1(All)
EDIDALL Show EDID Mode Source For All NONE
EDIDALL N Show EDID Mode Source For All N=1-10
EDIDIN Show Input EDID Source NONE
EDIDIN N1 Show Input N1 EDIDSource N=1-10
EDIDIN N1 N2 Set Input N1 EDID Source N1=1-10 N2=1-10
HDCPIN Input HDCP Status NONE
HDCPIN N1 Show Input N1 HDCP Status N1=1-10
HDCPIN N1 N2 Set Input N1 HDCP On/Off N1=1-10 N2=0(OFF), 1(ON)
PRESET Show All Preset Congure NONE
PRESET N1 Set Preset N1 Source
to Outputs
N1=1-10
PRESET N1 N2 Set Preset N1 Congure N1=1-10 N2=AXBX
(X=01-10,0M)
SOURCEDET Show All Input Signal NONE
SOURCEDET N1 Show Input N1 Signal N1=1-10
SINKINFO Show Output Information NONE
INNAME Show Input Name NONE
INNAME N1 N2 Set Input N1 Name N1=1-10
N2=ABCDEFGH(Max Length=8)
OUTNAME Show Output Name NONE
OUTNAME N1 N2 Set Output N1 Name N1=1-2
N2=ABCDEFGH(Max Length=8)
VER Show Unit Firmware Version
REBOOT System Reboot NONE
HELP (?) Show Command List NONE
HELP N Show Descript Of Command N : COMMAND NAME
FADEFAULT All Congure Set To Factory
Default
NONE
Note: All the RS-232 command will be not executed unless followed
with a carriage return. All commands are case-sensitive.

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
11

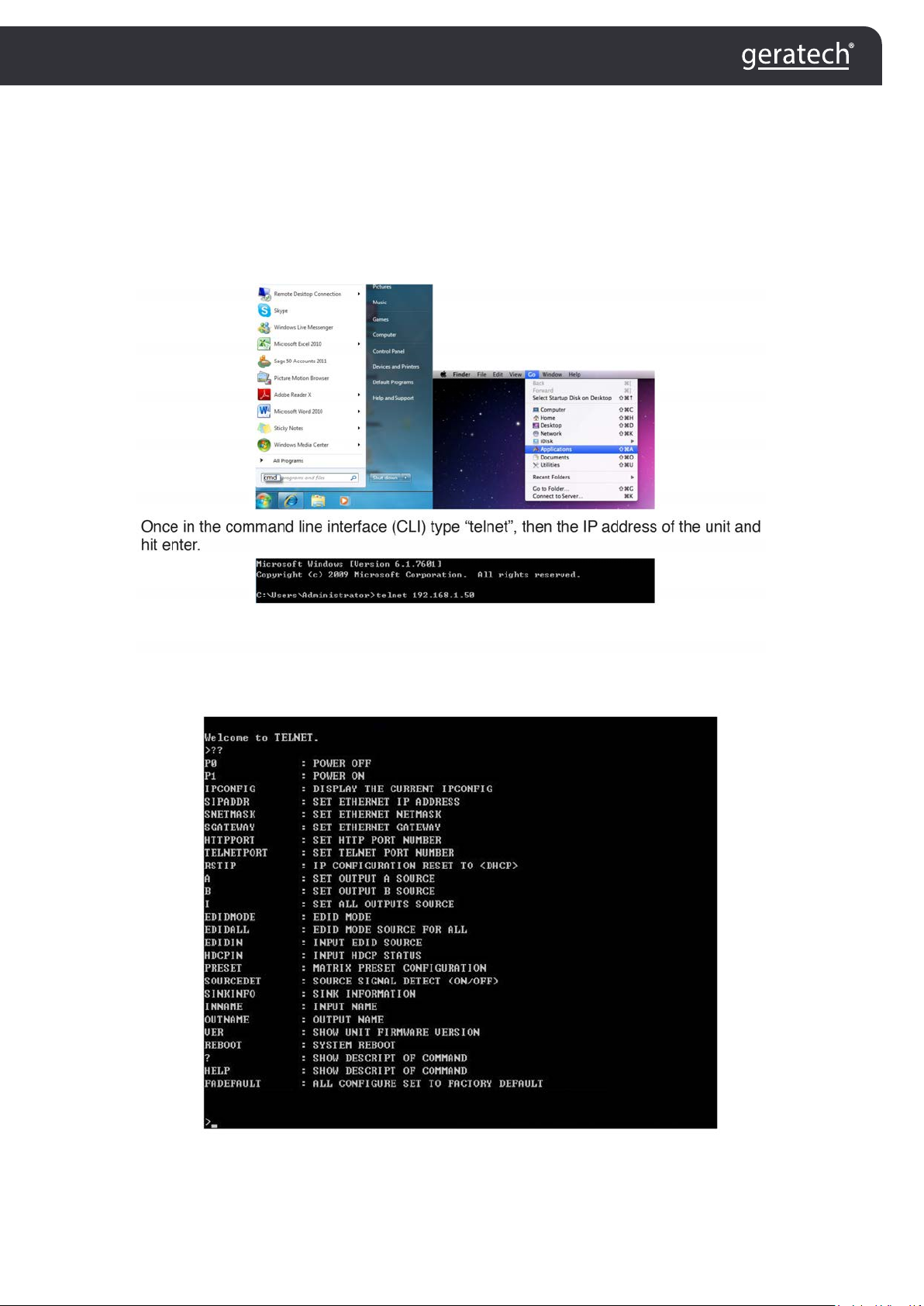

6.9 Telnet Control
To access the telnet control in Windows 7, click on ‘Start’ menu and type “cmd” in
the Search eld then press enter.
Under Windows XP go to the ‘Start’ menu and click on “Run”, type “cmd” and press
enter.
Under Mac OS X, go to Go > Application > Utilities > Terminal
Type HELP or ? to bring out all the commands.
Note: All the commands will be not executed unless followed by a carriage return.
Commands are case-insensitive. If the IP is changed then the IP Address required for
Telnet access will also change accordingly.

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
12
6.10 WebGUI Control
On a PC/Laptop that is connected to an active network system, open a web browser and
type device’s IP address (available inside the OSD menu) on the web address entry bar.
The browser will display device’s Status, IO Status, Matrix Control, Settings and Network
Conguration control pages for users to control.
Click on Status for input and output and Preset selection.
Click on IO Status to view connection status and output EDID information and to rename
input and output ports.

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
13

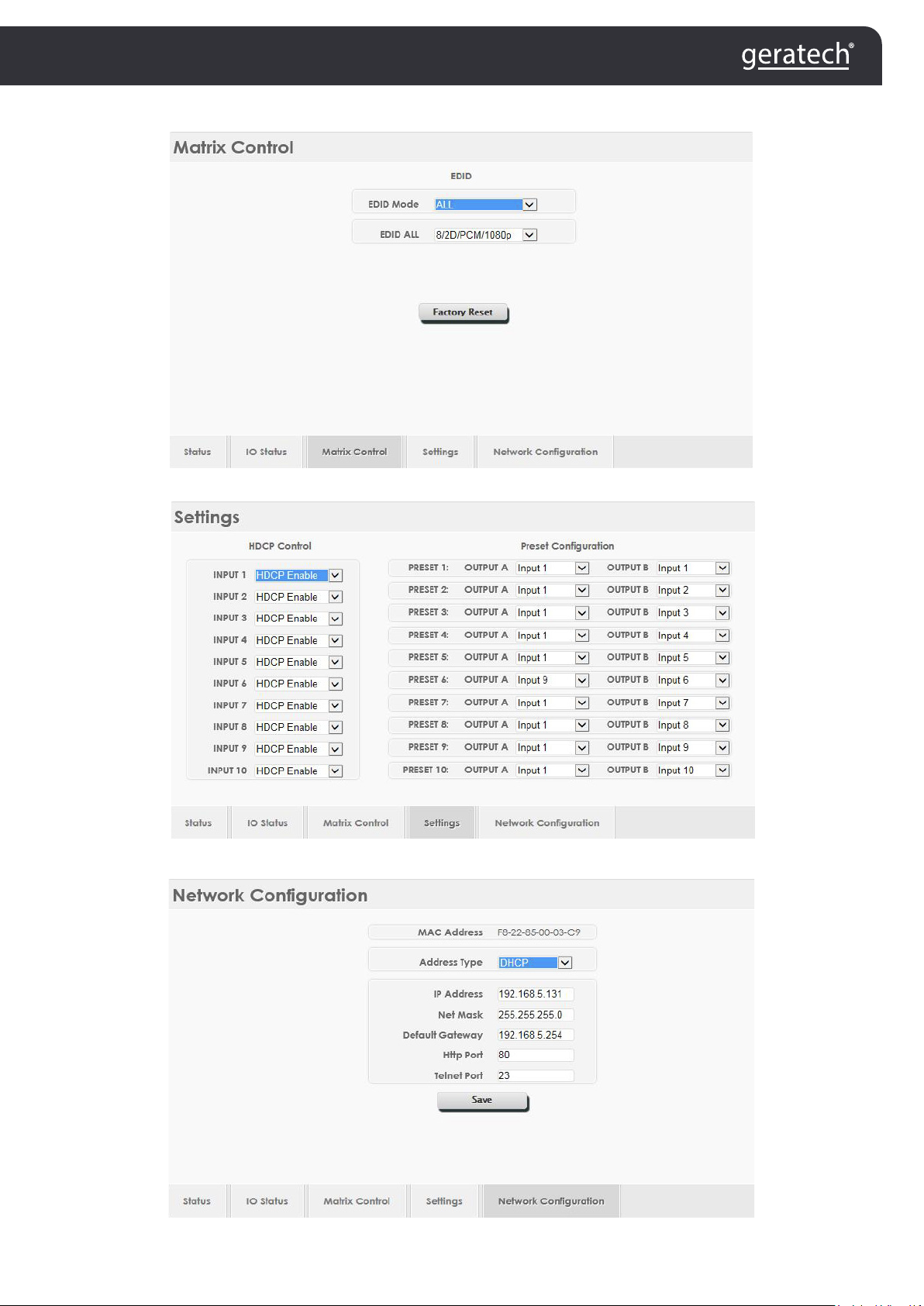

Click on Matrix Control to set the EDID mode for each and all inputs.
Click on Settings to set each input’s HDCP Control and Preset Conguration.

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
14
Click on Network Conguration to set the device’s IP conguration. Once the changes are
saved the system will reset the IP address on device automatically and user will need to
re-enter the IP address to continue the WebGUI function.
7. CONNECTION DIAGRAM

10x2 HDMI 4K UHD Matrix Fast
Switching
EGE-UHD-1042FS
15
8. SPECIFICATIONS
Video Bandwidth 300MHz / 9Gbps
Input Ports 10 x HDMI, 1 x IR Extender, 1 x RJ-45
(Control), 1 x RS-232, 1 x USB
(Firmware
update only)
Output Ports 2 x HDMI
Resolution HD: 480i~1080p@24/50/60, 4K2K@24/25/30
& 4K2K@60 YUV_420
HDMI I/O Cable Length Up to 10M at 1080p@ 8/12 bits or
up to 5M at 4K2K
Power Supply 5V DC/2.6A (US/EU standards, CE/
FCC/UL certied)
ESD Protection Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions 438mm (W) x 269mm (D) x 44mm (H)/
Jacks Excluded
482mm (W) x 276mm (D) x 52mm (H)/
Jacks Included
Weight 2854g
Chassis Material Metal
Silkscreen Color Black
Operating
Temperature
0 ˚C ~ 40 ˚C/32 ˚F ~ 104 ˚F
Storage
Temperature
−20 ˚C ~ 60˚C/−4 ˚F ~ 140 ˚F
Relative Humidity 20 ~ 90 % RH (non-condensing)
Power Consumption 8.3w (Max)
