German pool EFT-309 User manual

Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
EFT-309
Free-standing Electric Fan
座檯式電風扇
使用說明書 USER MANUAL
在使用之前請詳細閱讀「使用說明書」及「保用條款」
，並妥為保存。

Please register your warranty information now !
For Warranty Terms & Conditions,
please refer to the last page of these User Manual.
有關保用條款細則，請看本說明書最後一頁。
請即進行保用登記﹗

P.3
目錄 Content
注意事項 Notice Before Use 04
產品結構 Product Structure 05
操作說明 Operating Instructions 06
清潔與保養 Care & Maintenance 08
疑難排解 Troubleshooting Guidelines 09
技術規格 Technical Specications 09
保用條款 Warranty Terms & Conditions 11
Please register your warranty information now !
For Warranty Terms & Conditions,
please refer to the last page of these User Manual.
有關保用條款細則，請看本說明書最後一頁。
請即進行保用登記﹗

P.4
注意事項 Notice Before Use
1.在使用該電器前請仔細閱讀此說明書。
2.拆開包裝後，請檢查機體是否被損壞，如果對產
品質量有任何懷疑請立即諮詢供應商。
3.勿讓兒童玩弄諸如塑膠袋之類的包裝材料。
4.在插插頭前須先檢查供應電壓是否與本電器電壓
標上所注的電壓相符合。
5.在安裝或拆卸本機之前須確保插頭沒有接通電源。
6.拔掉插頭前須先切斷電源。
7.在風扇工作的過程中禁止將任何物體插入扇網內，
這會給人帶來嚴重傷害。
8.該風扇應在氣候溫和時使用，請勿在潮濕或灰塵
多的地方使用，勿在酸性或鹼性的條件下使用。
9.勿將衣物掛在風扇上。
10.勿在戶外使用該電器。
11.嬰兒或病人請勿長時間對著風扇吹。
12.請勿在沒有大人監管的情況下使用本機。
13.請勿讓小孩玩弄本機。
14.本機不適合有缺陷、有智力問題的人或是無操作
經驗的人使用，除非有監管人或是在指導下使用。
15.八歲或以上的兒童或者有缺陷以及有智力問題
的人在有監督或者被告知安全使用方法且瞭解
潛在危害的情況下可以使用本產品。兒童不能
把玩本產品，兒童做清潔維護時要人監督。
16.如果電源軟線損壞，為避免危險，必須由製造
廠或其維修部或類似的專職人員來更換。
1.Read all instructions carefully before you use the
appliance.
2.Remove the packages and ensure that the appliance
is undamaged. In case of doubt do not use the fan
and contact with your supplier.
3.Do not let children play with parts of the packages
(such as plastic bags).
4.Before plugging to the socket, check that if the
voltage of your main supply matches the voltage
marked on the rating label of the appliance.
5.Before assembling or dismantling the fan, make
sure that the fan is unplugged.
6.Before unplugging the power cord, turn off the switch.
7.Do not insert any object into the guard while the
fan is operating. IT WILL CAUSE INJURY TO THE
PERSON.
8.The fan shall be used for temperate climates, do
not use the fan at the high humidity area or dusty
area. Do not use the fan where acid or alkali is stored.
9. Do not hang any clothes on the fan guards.
10. Do not use the fan outdoors.
11. Do not continuously to blow the baby or the
patient directly for a long time.
12. The appliance is not intended for use by young
children or inrm persons without supervision.
13. Children should be supervised to ensure that
they do not play with the appliance.
14. This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance
by a person responsible for their safety.
15. This appliance can be used by children aged from
8 years old and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
16. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualied persons in order to avoid a hazard.

P.5

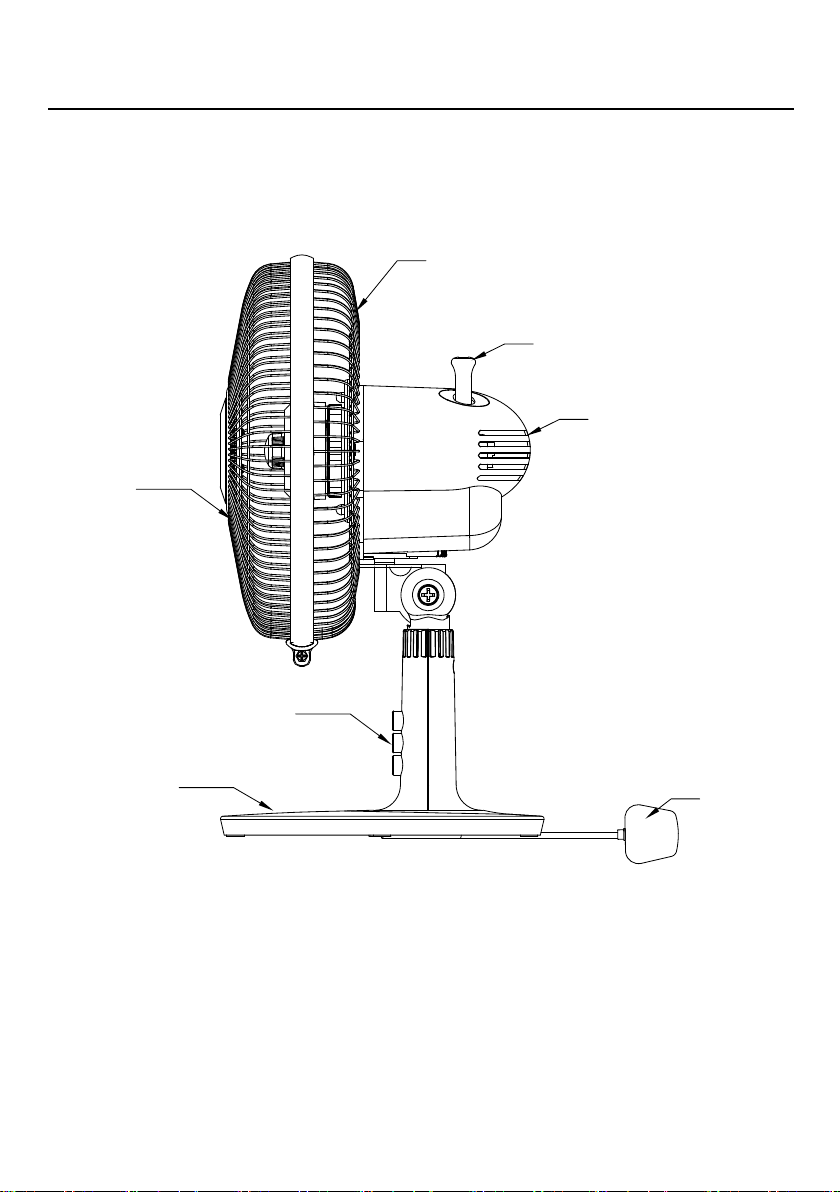

產品結構 Product Structure
主機
Main Body
後網
Rear Guard
拉杆
Oscillation Control Knob
電機殼
Motor Cover
前網
Front Guard
風速控制按鍵
Speed Control
Button
底盤
Base Plate 電源線
Power Cord

P.6
組裝方法
1. 將網束從電機軸上取下。
2. 將後網對準電機前殼的定位支柱套入。再用網束
把後網固定在機身上。
3. 對準插槽將風扇葉套到電機軸上，手動檢查風葉
轉動是否順暢。
4. 鬆開前網底部的網環螺絲，放鬆網環；從後網
頂部開始套入前網，按壓前網周邊使前後網完
全吻合，鎖緊網環螺絲，收緊網環。
5. 底盤組裝
將電源線卡到底盤的缺口處，將立柱的凸點與底
盤內的缺口處對齊，插入後順時針擰緊。
操作說明 Operating Instructions

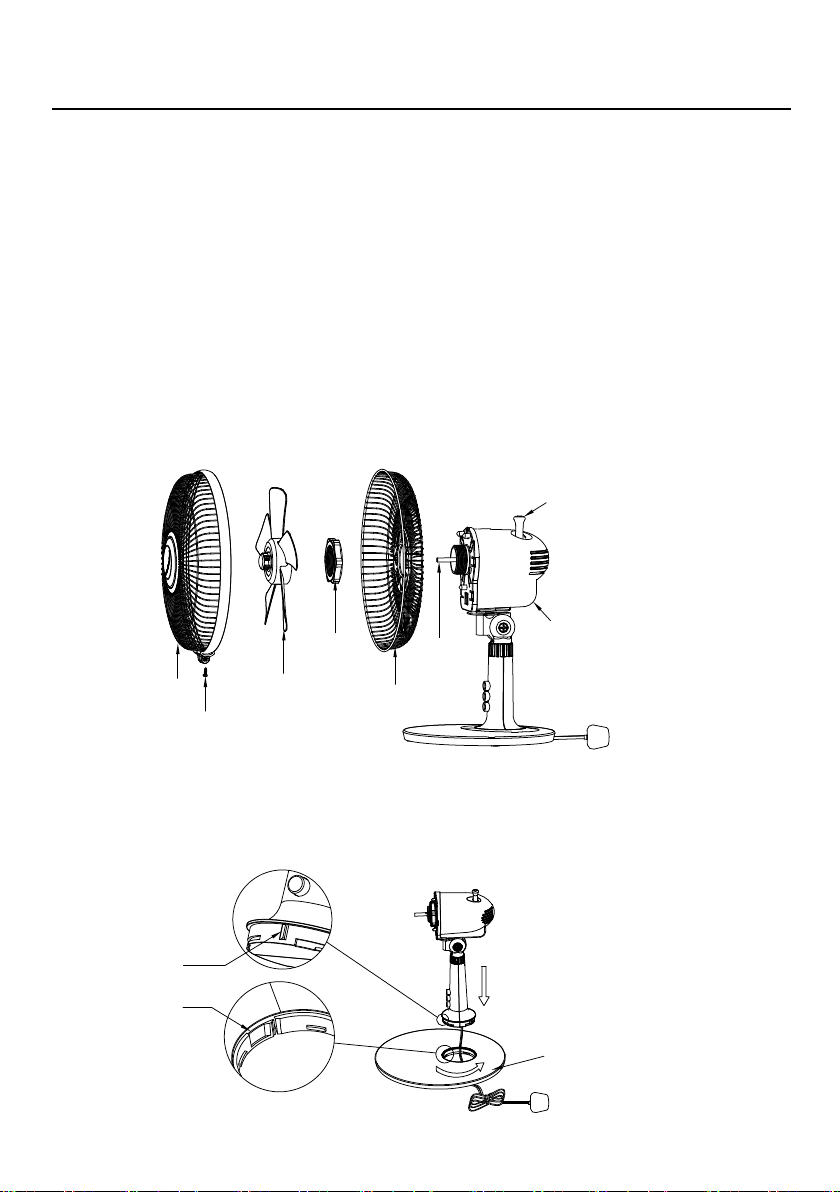

Assembly Desk Fan
1. Remove guard lock nut from the motor shaft spindle.
2. Fit the rear guard, by the positioning on the location
pins. Secure the guard to the motor body with the
guard lock nut.
3. Push the fan blade onto the motor shaft. Check
that the fan blade rotates freely by turning with
your hand.
4. Open the securing clip at the bottom of the front
guard and loosen the clip screw. Position the top
clip on the uppermost part of the rear guard.
Push the top clip down and press rim of the front
guard onto the rear guard. Close the bottom clip
and tighten the screw.
5. Base assembles
Put power cord into the base hole and set the
bulge of stand tube alignment with space of base
hole, and turn the stand tube by clockwise direction.
前網
Front Guard
網環螺絲
Gurad
Securing
凸點
Bulge
缺口
Space
風葉
Fan
Blade
網束
Guard
Lock Nut
後網
Rear
Guard
電機軸
Motor
Shaft
拉杆
Oscillation Control Knob
電機殼
Motor Cover
1.將電源線卡到底盤在缺口處，將立柱在凸點與底
盤內的缺口處對齊.
Put power cord into the base hole and set the bulge
of stand tube alignmengt with space of hole.
2.逆時針方向旋轉.
Turning in a counter-clockwise direction.

P.7
重要提示
不要在浴室或潮濕的地方使用。可將風扇放置在架上、
枱上或櫃頂，並需靠近電源插頭，注意放置位置平整使
風扇穩定。並要在兒童不能接觸到的位置，不要將任何
物品插入網罩內。如需要移動風扇，請關閉風扇拔掉
插頭。
按鍵說明
按風速鍵可控制吹風速度。
上下調節
風扇的上下角度，可用手從風扇的網罩頂部往下按，或
將網罩從底部往上抬高調校。
操作說明 Operating Instructions
IMPORTANT
Do not use in the bathroom or damp location.
Decide on a location for the fan, on a shelf, desk,
table or cabinet top, convenient to a supply socket.
Be sure the location is level so that the fan is stable.
Position the fan out of reach of children. Do not
insert anything into the guard grille. If moving the
fan to a different location, switch off and unplug
from the mains.

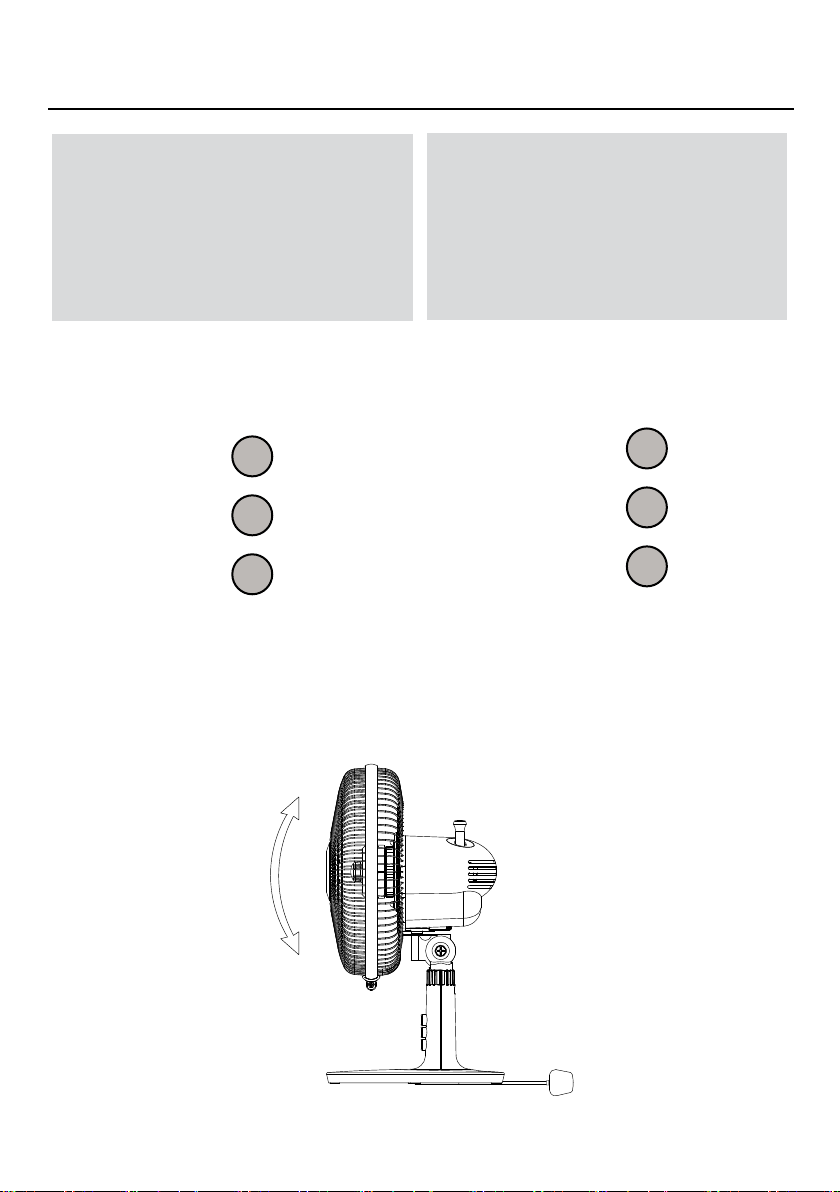

CONTROLS
Push the speed button to control the air ow speed.
TILTING
The desk fans can be adjusted for a desired tilt with
your hand.
高 2HIGH 2
低 1LOW 1
關 0OFF 0

P.8
左右搖頭
按下拉杆，風扇開始搖頭。
拉起拉杆，風扇停止搖頭。
為避免衣物進入網罩內，請不要在風扇正面操作拉杆。
操作說明 Operating Instructions

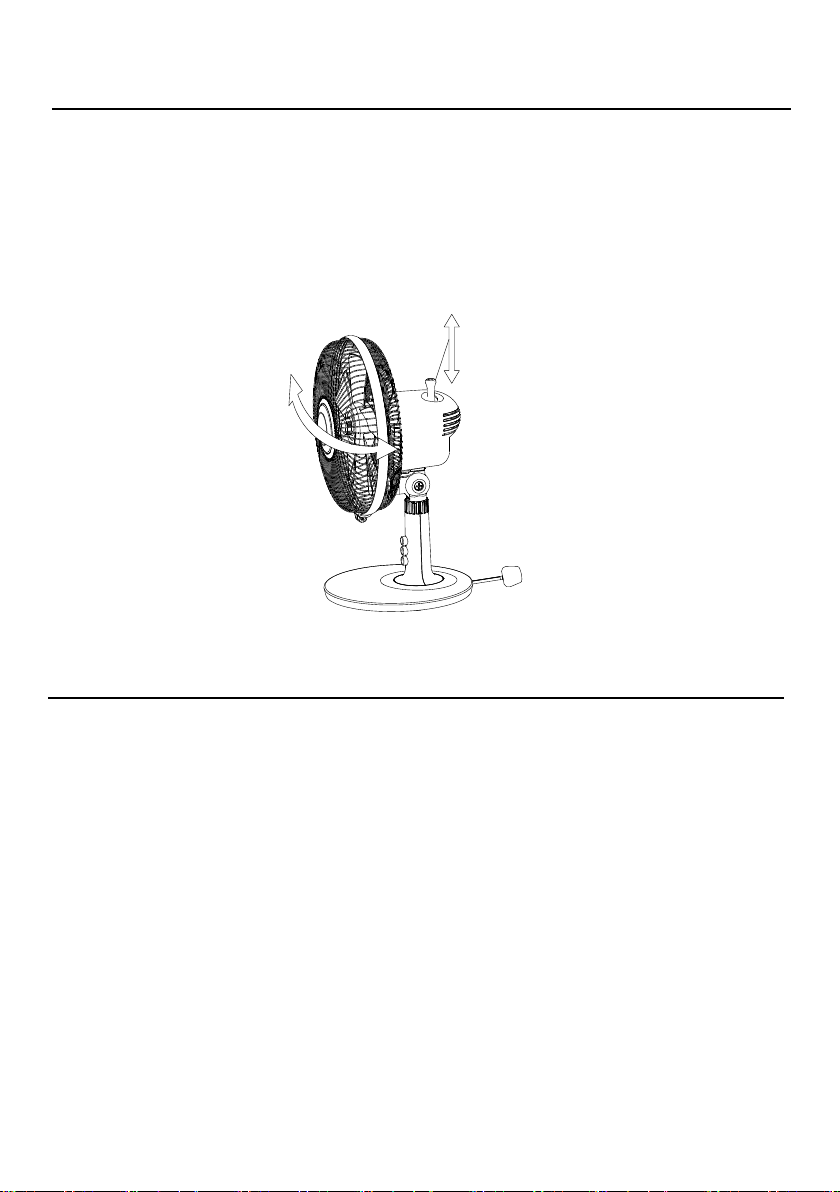

OSCILLATION
The oscillation control knob is positioned on the top
of the motor housing. Press the knob down to make
the fan oscillate, pull it up to stop the oscillation.
When operating this control we suggest that it is
best not to reach across the front of the fan. There
is the possibility of clothing, sleeves, etc, entering
the front guard.
清潔與保養 Care & Maintenance
停止
Stop
搖頭
Oscillation
清潔
1.清潔前請先關掉電源，拔掉電源插頭。
2.使用柔軟的乾布來清理機身，如果機身非常髒，可用
濕布來清潔。
3.不要使用任何清潔劑、噴劑或其他化學劑，因為這些
對風扇有害。
儲存
清潔後請按以下步驟來儲存風扇：
1.用適量潤滑油塗在電機軸上防止生銹。
2.去掉機身上的油漬和汙漬。
3.用原包裝裝好放在通風乾燥的地方。
CLEANING
1. Turn off and unplug the appliance before cleaning.
2. Clean the surface of the appliance with dry cloth.
If it’s very dirty, please use wet cloth.
3. Do not use any detergent, spray or chemicals to
clean the appliance to avoid any damage.
STORAGE
Please follow the steps as below to store the fan
after cleaning:
1. Put several lubricant into the motor shaft to avoid
rusty.
2. Make sure all the greasiness and grime is out of
the surface of the appliance.
3. Please follow the original packing to keep the fan
properly stored at a dry place.

P.9
疑難排解 Troubleshooting Guidelines
狀況 Trouble 檢查事項 Inspection
風扇開啟時風葉未轉動
The fan blade does not
rotate when turned-on
1. 電源線插頭是否正確的插入插座。
Check if the supply cord is properly connected to the supply.
2. 網罩是否觸及到風葉。
Check the fan guard and the fan blade if it is touching or
hitting each other.
風扇啟動時有異響
There is abnormal sound when
starting the fan
1. 風葉是否正確裝入電機軸上，風葉是否套到底。
Check if the fan blade is properly attached to the rotor shaft
with respect to the rotor pin.
2. 風葉是否有毛邊或變形，觸及到網罩。
Check if there are burrs or damage on the fan blade causing
it to touch or hit the fan guard.
3. 網罩是否變形觸及到風葉。
Check if the fan guard are deformed or touching the fan blade.
技術規格 Technical Specications
型號 ModelEFT-309
電壓 Voltage 220-240V
頻率 Frequency 50Hz
功率 Power 25W
產品規格及設計如有變更，恕不另行通知。
Specications are subject to change without prior notice.
中英文版本如有出入，一概以中文版為準。
If there is any inconsistency or ambiguity between the English version and the Chinese version,
the Chinese version shall prevail.
本產品使用說明書以 www.germanpool.com 網上版為最新版本。
Refer to www.germanpool.com for the most up-to-date version of the User Manual.
