About This Device
Intended Use
The G-ST 500+ hardware platform is specially designed
for use in vehicles of all types. The device supports
mobile recording and playback of network cameras.
Intended use also includes that you have read and
understood these instructions and in particular the safety
instructions in full.
About This Instructions for Use
These instructions for use contain important information
on the safe and appropriate commissioning and use of
the G-ST 500+ hardware platform.
The hardware platform has been developed and
manufactured according to the generally accepted rules
of technology and in compliance with acknowledged valid
standards and regulations.
Observe the safety instructions in these instructions to
avoid damage to persons and property.
Read these instructions completely and thoroughly
before working with the hardware platform.
Keep these instructions in a location where they are
always accessible to all users.
Always include the operating instructions when you
pass the hardware platform on to third parties.
Validity of the Documentation
This documentation is applicable for the hardware
platforms G-ST 500+/4R, G-ST-500+/8R and
G-ST 500+/4M.
These instructions represent the technical status of the
device at the time of publication. Errors and omissions
excepted.
Geutebrück reserves the right to make changes without
prior notice.
EU Declaration of Conformity
This device complies with requirements according to the
following EU regulations:
Regulation for electromagnetic compatibility (EMC)
2014/30/EU
RoHS-Regulation 2011/65/EU
The currently valid version of the EU
Declaration of Conformity can be found
here:
https://t1p.de/1pbd9
FCC Declaration of Conformity
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Please note that depending on the equipment of the
device with radio modules, special antenna cables or
antennas, the requirements for compliance with the
European Directive 2014/53/EU (Radio Equipment
Directive) and for obtaining FCC approval in US can be
changed and the existing permits may become invalid.
We look forward to having your special variants of
equipment certified on request.
Transport and Storage
The device is shipped from the factory in a shipping box
with a special cushion packing. If possible, always use
the original packaging.
Transport and Storage Conditions:
Temperature: -25°C to +70°C (For sub-zero
operating temperature, a wide temperature range
HDD or solid-state disk (SSD) is required).
Relative humidity: 10% to 90% (without
condensation).
Disposal
Dispose of the device properly. Carless disposal of the
device could lead to pollution of the environment.
This symbol on the product or product
packaging indicates that the product
must not be treated as household
waste according to Directive WEEE II
Directive 2012/19/EU.
It must be handed in at the appropriate collection points
for the recycling of electrical and electronic waste.
Alternatively, Geutebrück grants the end customer the
option of returning the delivered hardware to Geutebrück
for disposal after the end of use. The standard RMA
procedure of Geutebrück GmbH is used to process the
return.
Compliance is evidenced by written declaration from our
suppliers, assuring that any potential trace contamination
levels of restricted substances are below the maximum
level set by EU Directive 2011/65/EU, or are exempted
due to their application.
G-ST 500+
Instructions for Use
G-ST 500+/4R (0.60050)
G-ST 500+/8R (0.60052)
G-ST 500+/4M (0.60054)
User Manual G-ST 500+
A user manual with a description of the device and additional information on its use can be found here:
Installation Manual G-ST Software
Installation manual with information on how to install the individual software components can be found here:
https://manuals.geutebrueck.com/

Instructions for Use G-ST 500+

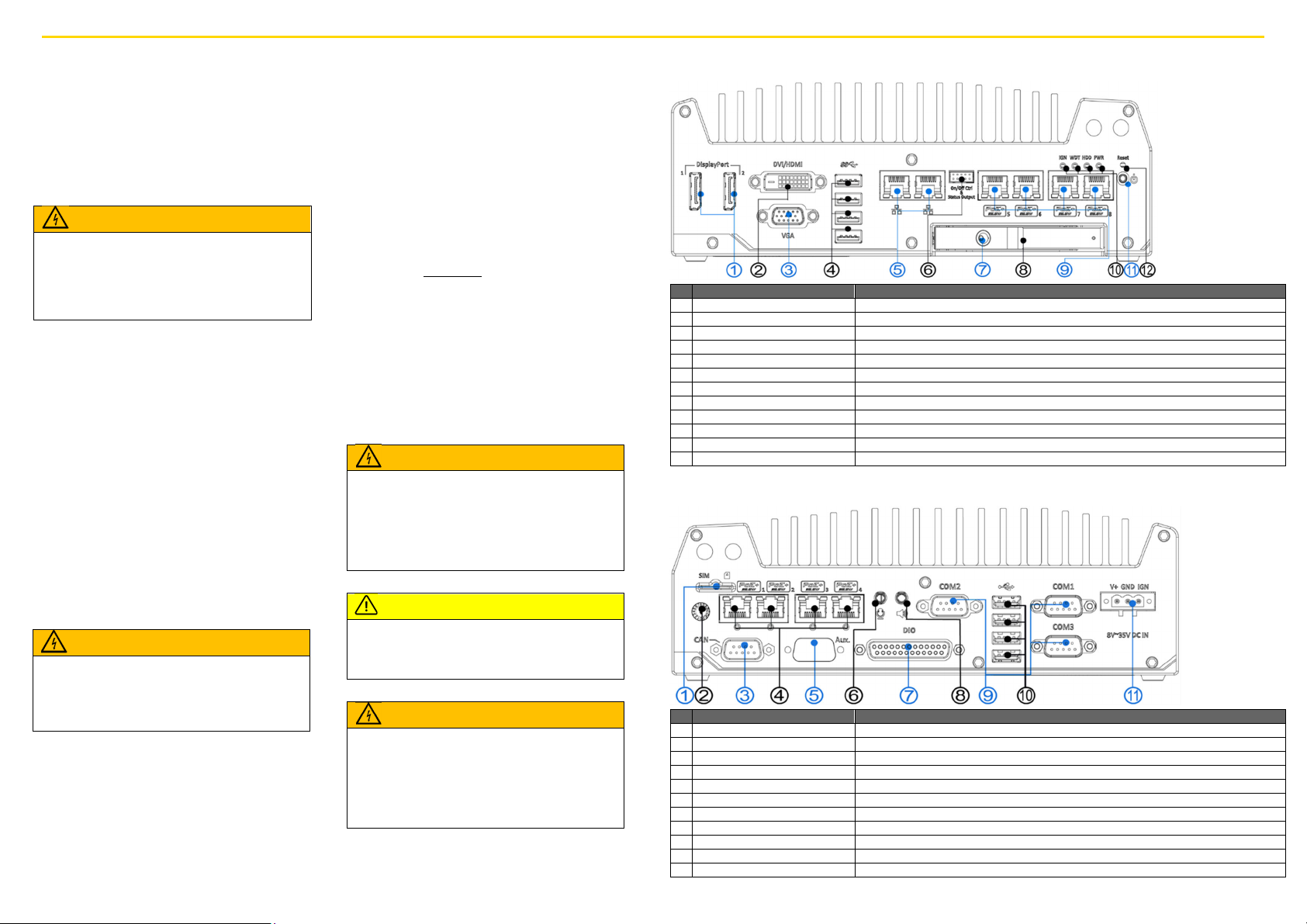

Front View
No. Element Description
1 Display ports Resolutions up to 4096 × 2304. Compatible with HDMI/DVI via adapter/cable.
2 DVI/HDMI port Resolutions up to 1920 × 1200 at 60 Hz. Compatible with other connections via adapter.
3 VGA port Resolutions up to 1920 × 1200 at 60 Hz.
4 USB 3.0 port Data transfer rates up to 5 Gbit/s.
5 GbE ports Gigabit Ethernet ports for fast network access.
6 On/Off control and status output Possibility to connect an external switch.
7 2,5" HDD slot key lock Prevents unauthorized or accidental access to the hard disk drive.
8 2,5" HDD slot Enables expansion of the storage capacity.
9 PoE + GbE ports Only for 5108 VTC. For data connection and simultaneous power supply of devices.
10 System status LEDs Ignition control (IGN), watchdog timer (WDT), hard disk drive (HDD), power (PWR).
11 Power key Turning the system on and off.
12 Reset key Key to reset the system.
Rear View
No. Element Description
1 SIM card slot With an internally installed 3G/4G module, this slot has no function.
2 Ignition control switch Configuration of the on/off delay.
3 CAN bus port For communication of the controller with other CAN bus devices in the vehicle.
4 PoE + GbE ports Supports RJ45 PoE+. For data connections and simultaneous power supply.
5 Aux Reserved for additional DB9 connector.
6 Microphone input For voice recording.
7 DIO Supports 4 isolated digital input and 4 isolated output channels.
8 Speaker output For sound output.
9 COM ports There are 3 COM ports for communicating with external devices.
10 USB 2.0 ports The USB 2.0 ports are backward compatible with USB 1.1/1.0.
11 3-pin terminal strip DC input, compatible with 8-35 V. Also used as ignition signal input.
General Safety Instructions
Commissioning
The device may only be commissioned by qualified
personnel who are familiar with the device and the
technology.
Make sure that all applicable safety requirements are
fulfilled.
WARNING
Electrical voltages!
Personal and property damage
► All connection work should only be performed
on the device when it is switched off.
► Do not remove the housing cover.
WARNING
Electrical voltages!
Personal and property damage
► Do not use the device if it is damaged.
► Disconnect the device from the power supply.
Do not use the supply cable for purposes for which it is
not intended. Protect the cable from heat, oil, and sharp
edges.
In dangerous situations or in case of malfunctions,
disconnect the device from the power supply immediately.
Repair and Maintenance
Ensure that the device is repaired professionally. Mark
the defect clearly and disconnect the power plug so that
no accidents or damage can occur due to a defective
device or be caused by it until the device is repaired.
Do not remove the housing cover! There are only
maintenance-free components inside the device.
WARNING
Electrical voltages!
Personal and property damage
► Disconnect the device from the power supply
during all repair and maintenance work.
► Work on the electrical equipment may only be
performed by a qualified electrician.
CAUTION
Danger due to the use of non-original parts!
Personal and property damage
► Only use original spare parts.
WARNING
Explosion hazard!
If the mainboard battery is replaced by an unsuitable
battery type, explosions may occur.
► Make sure that a suitable battery type is used.
► Dispose the battery according to the valid legal
requirements and local regulations.
For the connection of control lines, please refer to the
instructions in the user manual.
Use a socket with a protective contact to connect the
power-supply unit.
Ensure a power supply of 110 VAC to 230 VAC. When
connecting external contacts, do not apply voltages
above 3.3 V, this may cause damage.
The operating system is precisely preconfigured for your
device.
Operation
When operating the device, the local applicable laws,
other regulations, standards, and rules of technology
must be observed. In the interest of a safe work
process, operating company and supervisors are
responsible for their compliance.
During all work, check the device for any damage. All
parts must be correctly mounted and fulfill all conditions
to ensure proper operation.
Password disclosure:
,QWKH:LQGRZV/RJLQ dialog box, enter the following:
Then assign your own new password and write it down!
The password must be at least six characters long.
The password must contain characters from three of the
following categories:
Upper case letters (A to Z)
Lowercase letters (a through z)
Numbers in base 10 (0 to 9)
Non-alphabetic characters (for example !, $, #, %)
Please note that this is the Windows system
password, it is not possible to recover the password if
it is lost! The user profile Administrator allows full
access to your G-ST.
Confirm with the "ENTER" key.
Administrator User name:
Pass word: Pa$$w0rd
