GIA GIATSU JONICA Service manual

OWNER’S AND
INSTALLATION MANUAL
Thanks for choosing our product.
Please, read carefully this manual
before using the product.
ENGLISH
JÓNICA
GIA-FSI-48JON
INDOOR UNIT
COLUMN AIR CONDITIONER

Precautions ........................................................................................................ 1
Parts name.......................................................................................................... 5
Clean and maintenance.................................................................................... 6
Malfunction analysis......................................................................................... 8

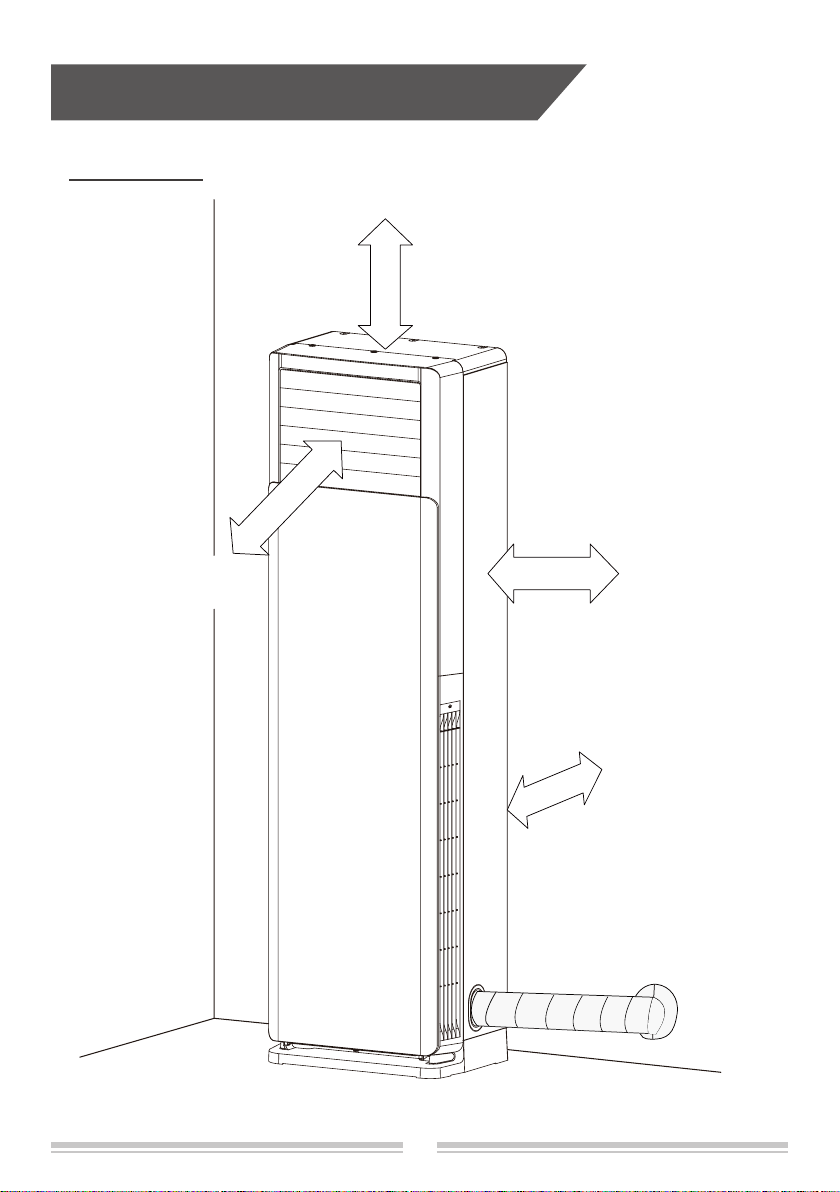

Installation drawing ........................................................................................ 11
Installation prepare.......................................................................................... 12

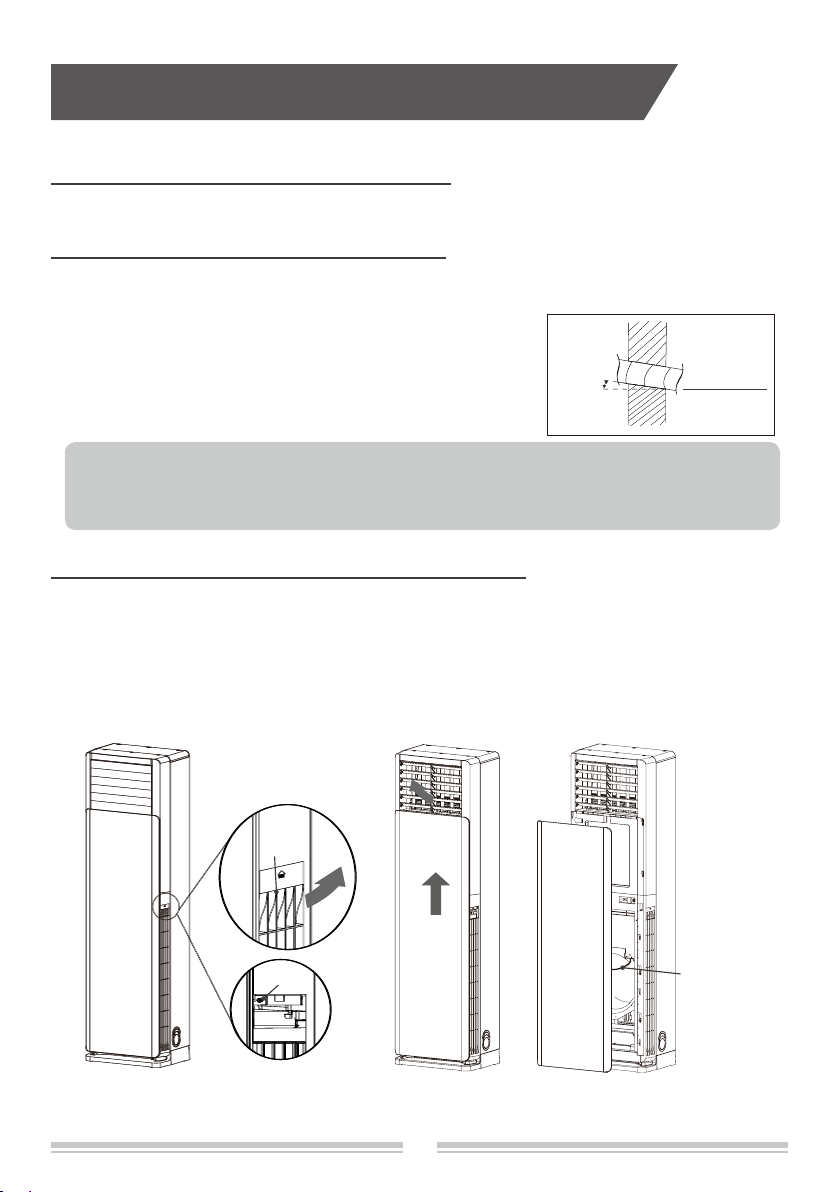

Installation of indoor unit................................................................................ 15
Check after installation ................................................................................... 18
Test operation................................................................................................... 18
Configuration of connection pipe................................................................... 19

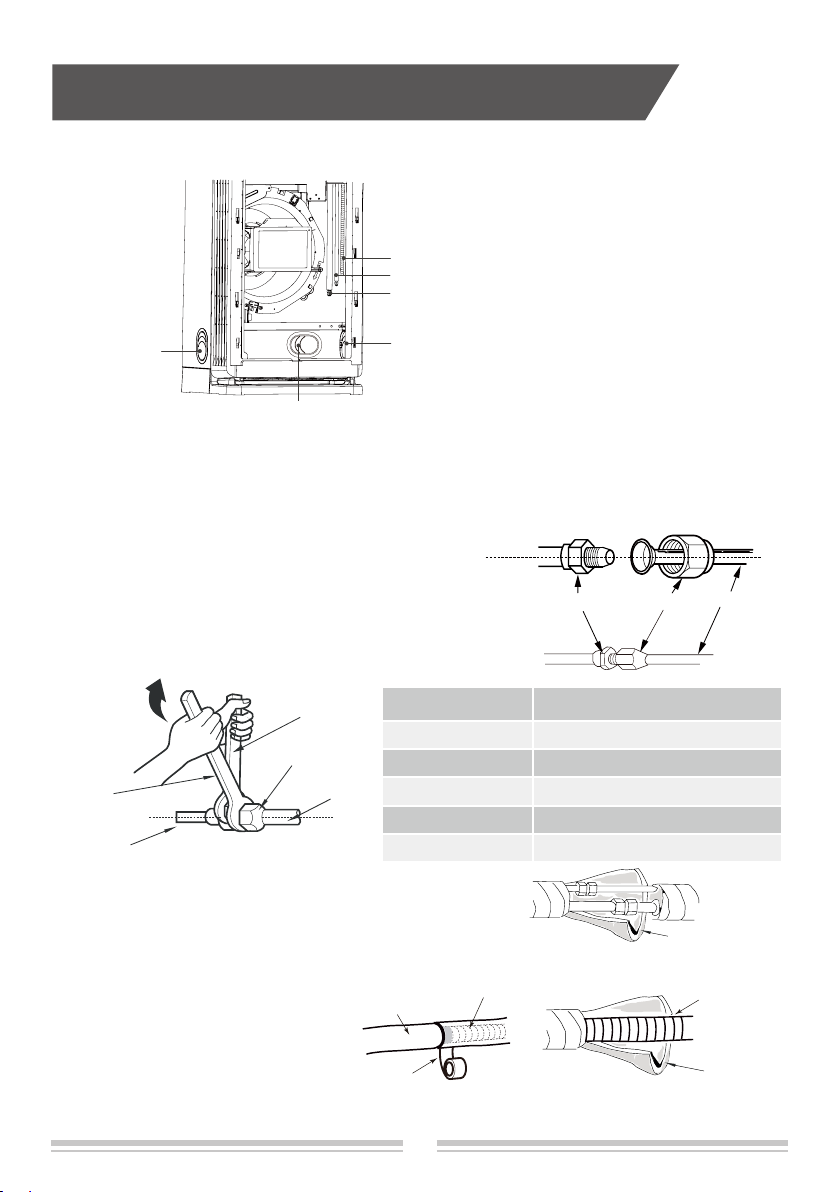

Pipe expanding method................................................................................... 20
Content
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used device, please
use the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Operation
Installation
Attachment

1
This appliance can be used by children aged of 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
Do not connect air conditioner to multi-purpose socket.
Otherwise, it may cause re hazard.
Do disconnect power supply when cleaning air conditioner.
Otherwise, it may cause electric shock.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
Do not wash the air conditioner with water to avoid electric shock.
Do not spray water on indoor unit. It may cause electric shock
or malfunction.
Do not use re or hair dryer to dry the lter to avoid deformation
or re hazard.
Maintenance must be performed by qualied professionals.
Otherwise, it may cause personal injury or damage.
Do not repair air conditioner by yourself. It may cause electric
shock or damage. Please contact dealer when you need to
repair air conditioner.
Do not extend ngers or objects into air inlet or air outlet. It may
cause personal injury or damage.
Precautions
Operation and Maintenance WARNING

2
Do not block air outlet or air inlet. It may cause malfunction.
Do not spill water on the remote controller, otherwise the
remote controller may be broken.
When below phenomenon occurs, please turn off air conditioner
and disconnect power immediately, and then contact the dealer
or qualied professionals for service.
● Power cord is overheating or damaged.
● There’s abnormal sound during operation.
● Circuit break trips off frequently.
● Air conditioner gives off burning smell.
● Indoor unit is leaking.
If the air conditioner operates under abnormal conditions, it may
cause malfunction, electric shock or re hazard.
When turning on or turning off the unit by emergency operation
switch, please press this switch with an insulating object other
than metal.
Do not step on top panel of outdoor unit, or put heavy objects.
It may cause damage or personal injury.
Precautions
Operation and Maintenance WARNING
Installation must be performed by qualied professionals.
Otherwise, it may cause personal injury or damage.
Must follow the electric safety regulations when installing the unit.
According to the local safety regulations, use qualied power
supply circuit and circuit break.
Do install the circuit break. If not, it may cause malfunction.
An all-pole disconnection switch having a contact separation of
at least 3mm in all poles should be connected in xed wiring.
Including an circuit break with suitable capacity, please note the
following table.Air switch should be included magnet buckle
and heating buckle function, it can protect the circuit-short and
overload.
Attachment

3
Precautions
Attachment WARNING
Air Conditioner should be properly grounded. Incorrect
grounding may cause electric shock.
Don't use unqualied power cord.
Make sure the power supply matches with the requirement of
air conditioner.Unstable power supply or incorrect wiring or
malfunction. Please install proper power supply cables before
using the air conditioner.
Properly connect the live wire, neutral wire and grounding wire
of power socket.
Be sure to cut off the power supply before proceeding any work
related to electricity and safety.
Do not put through the power before nishing installation.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
The temperature of refrigerant circuit will be high, please keep
the interconnection cable away from the copper tube.
The appliance shall be installed in accordance with national
wiring regulations.
Installation must be performed in accordance with the
requirement of NEC and CEC by authorized personnel only.
The air conditioner is the rst class electric appliance. It must
be properly grounding with specialized grounding device
by a professional. Please make sure it is always grounded
effectively, otherwise it may cause electric shock.
The yellow-green wire in air conditioner is grounding wire,
which can't be used for other purposes.
The grounding resistance should comply with national electric
safety regulations.
The appliance must be positioned so that the plug is accessible.

4
Precautions
Attachment WARNING
All wires of indoor unit and outdoor unit should be connected
by a professional.
If the length of power connection wire is insufcient, please
contact the supplier for a new one. Avoid extending the wire by
yourself.
For the air conditioner with plug, the plug should be reachable
after nishing installation.
For the air conditioner without plug, an circuit break must be
installed in the line.
If you need to relocate the air conditioner to another place, only
the qualied person can perform the work. Otherwise, it may
cause personal injury or damage.
Select a location which is out of reach for children and far away
from animals or plants.If it is unavoidable, please add the fence
for safety purpose.
Working temperature range
The operating temperature range (outdoor temperature) for cooling only unit is 18℃~ 43℃,
for heat pump unit is -7℃~ 24℃.
Indoor side DB/WB(℃) Outdoor side DB/WB(℃)
Maximum cooling 32/23 43/26
Maximum heating 27/- 24/18

5

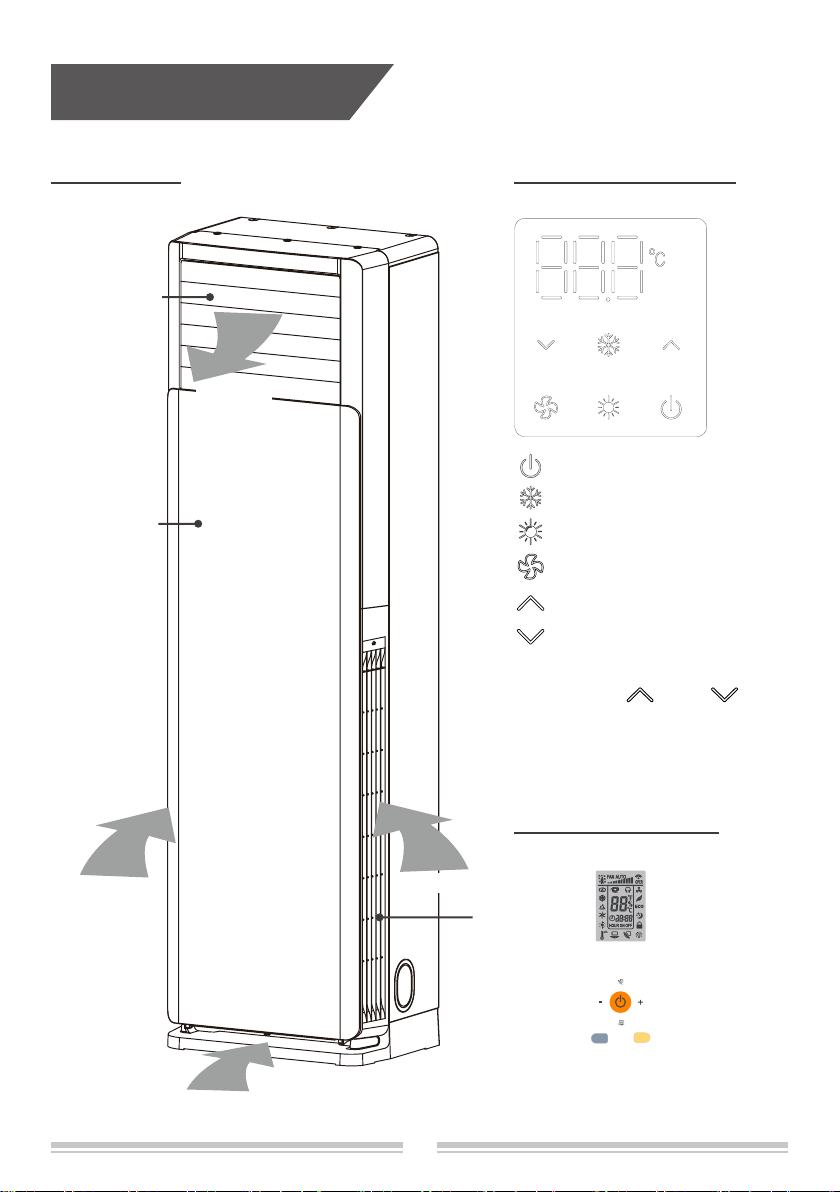

Parts name
TIMERTIMER
ON
LIGHTECO
QUIET
CLOCK
I FEEL
OFF
HEALTH
CLEANTEMP
MODE FAN
TURBO SLEEP
Remote controller
Indoor unit Display and Buttons
Air inlet
Air inlet
ON/OFF button
Cooling button
Heating button
Fan button
Increase button
Decrease button
NOTE：After connecting the
power, Press " " and " "
simultaneously to turn on or turn
off panel child lock function.
Swing Louver
Front Panel
Filter
Air outlet
Air inlet

6
Clean and maintenance
WARNING
■ Turn off the air conditioner and disconnect the power before cleaning the
air conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
Clean surface of indoor unit
When the surface of indoor unit is dirty, recommended to
use a soft dry cloth or wet cloth to wipe it.
Note:
Do not remove the panel when cleaning it.
Clean lter
The lter in the bottom should pull down till the
lter xed pole and front panel apart, then the
lter can be pull out.
1Take the lters out as the arrowhead.
2
Use dust catcher or water to clean the lte.when
the lter is very dirt, use the water (below 45℃)
to clean it, and then put it in a shady and cool
place to dry.
3
Push the dry lter back into the air conditioner according to the position of slots.(The
lters in left and right side is not universal, please put them in matched position.)
4
Bottom
Left and right
●The lters in left and right side
●The lter in the bottom
● When air conditioner add to running for 600 hours,
the indoor unit will display "CL" to remind user to
clean the lter. After cleaning completed, restart the
air conditioner, then the code will disappear.

7
The lter should be cleaned every three months. If there is much dust in the operation
environment, clean frequency can be increased.
After removing the lter,do not touch ns to avoid injury.
Do not use re or hair dryer to dry the lter to avoid deformation or re hazard.
NOTE:
Checking before use-season
1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether lter is clean.
4. Check whether drainage pipe is damaged.
Checking after use-season
1. Disconnect power supply.
2. Clean lter and indoor unit's panel .
Notice for recovery
1. Most packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or consultant
service center for the correct disposal method.
Clean and maintenance

8
Malfunction analysis
General phenomenon analysis
Please check below items before asking for maintenance. If the malfunction still can't be
eliminated,please contact local dealer or qualied professionals.
Phenomenon Check items Solution
Indoor unit can’t
receive remote
controller’s signal
or remote
controller has no
action.
Whether it's interfered severely
(such as static electricity, stable
voltage)?
Pull out the plug. Reinsert the plug
after about 3min, and then turn on
the unit again.
Whether remote controller is
within the signal receiving range? Signal receiving range is 8m.
Whether there are obstacles? Remove obstacles.
Whether remote controller is
pointing at the receiving window?
Select proper angle and point the
remote controller at the receiving
window on indoor unit
Is sensitivity of remote controller
low; fuzzy display and no display?
Check the batteries. If the power of
batteries is too low,please replace
them.
No display when operating
remote controller?
Check whether remote controller
appears to be damaged. If yes,
replace it.
Fluorescent lamp in room?
Take the remote controller close to
indoor unit.
Turn off the uoresent lamp and then
try it again.
No air emitted
from indoor unit.
Air inlet or air outlet of indoor unit
is blocked? Eliminate obstacles.
In heating mode, indoor
temperature reached to seting
temperature?
After reaching to seting temperature,
indoor unit will stop blowing out air.
Heating mode is turned on just
now?
In order to prevent blowing out cold
air, indoor unit will be started after
delaying for several minutes, which is
a normal phenomenon.
Air conditioner
can’t operate
Power failure? Wait until power recovery.
Is plug loose? Reinsert the plug.
Is circuit broken off or fuse burnt
out?
Ask professional person to replace
circuit break or fuse.
Wiring has malfunction? Ask professional person to replace it.
Has unit restarted immediately
after stopping operation?
Wait for 3min, and then turn on the
unit again.
Whether the function setting for
remote controller correct? Reset the function.

9
Phenomenon Check items Solution
Mist is emitted
from indoor unit’s
air outlet.
Is indoor temperature and
humidity high?
Because indoor air is cooled rapidly.
After a while, indoor temperature and
humidity will be decrease and mist
will disappear.
Set temperature
can’t be adjusted
Is unit operating under auto
mode?
Temperature can’t be adjusted under
auto mode.
Please switch the operation mode if
you need to adjust temperature.
Did you require temperature
exceeds the seting temperature
range?
Seting temperature range:
16℃~31℃
Cooling (heating)
effect is not good.
Is voltage too low? Wait until the voltage resumes
normal.
Is lter dirty? Clean the lter.
Is the setting temperature in
proper range? Adjust temperature to proper range.
Are door and window opened? Close door and window.
Odours are
emitted
Whether there’s odour
source,such as furniture and
cigarette, etc.
Clean the lter.
Eliminate the odour source.
Air conditioner
operates normally
suddenly
Whether there’s interference,such
as thunder, wireless devices, etc.
Disconnect power, put back
power, and then turn on the
unit again.
Outdoor unit has
vapor
Heating mode is turned on? During defrosting under heating
mode, it may generate vapor, which
is a normal phenomenon.
“ Water owing”
noise
Is air conditioner turned on or
turned off just now?
The noise is the sound of refrigerant
owing inside the unit, which is a
normal phenomenon.
Cracking noise
Is air conditioner turned on or
turned off just now?
This is the sound of friction caused by
expansion and/or contraction of panel
or other parts due to the change of
temperature.
Malfunction analysis

10
Malfunction analysis
Error Code
When air conditioner status is abnormal, temperature indicator on indoor unit will blink to
dispiay corresponding error code. Please refer to below list for identication of error code.
Below listed error codes are only part error codes. Please refero to error code list in
serive manual for more information.
If there're other error codes, please contact qualied professionals for service.
When below phenomenon occurs, please turn off air conditioner and disconnect power
immediately, and then contact the dealer or qualied professionals for service.
● Power cord is overheating or damaged.
● Air conditioner gives off burning smell.
● There’s abnormal sound during operation.
● Circuit break trips off frequently.
● Indoor unit is leaking.
Do not repair or ret the air conditioner by yourself.
If the air conditioner operates under abnormal conditions, it may cause malfuntion,
electric shock or re hazard.
Contact us
Error
code Troubleshooting Solution
CL Filter lth blockage alert
Power off,clean lter.If the lter is not
dirtey, turn off the air conditioner for 2s
then restart,the code will be removed
automatically.
E1 Overheat protection
Turn off,restart after 5min,if the code
occurs again after a few minutes,
please contact the professional person.
E2 Overcurrent protection
E4 System high pressure protection
E5 System low pressure protection
HE Auxiliary heat control circuit malfunction Pull out the plug, please contact the
professional person.
L0 Jumper error
Pull out the plug, restart after 10s, if the
code occurs again , please contact the
professional person.
L1 PG Indoor motor zero crossing detecting
circuit malfunction
L2 Indoor fan motor error
L3/L6 Communication malfunction
L7 Communication malfunction between
mainboard and display
U0 Indoor ambiet temp sensor short\open
U1 Indoor mide pepe temp sensor short\open

11
Installation drawing
Indoor unit
At least 5cm
Space to the ceiling
At least 30cm
At least 10cm
Space to the
rear side
At least 200cm
Space to the
obstruction
Space to the
obstruction

12
Installation prepare
1 Level meter 2 Screw driver 3 Impact drill
4 Drill head 5 Pipe expander 6 Torque wrench
7 Open-end wrench 8 Pipe cutter 9 Leakage detector
10 Vacuum pump 11 Pressure meter 12 Universal meter
13 Inner hexagon spanner 14 Measuring tape
Tools
Selection of location
Basic requirement
Installing the unit in the following places maycause malfunction. If it is unavoidable, please
consult the local dealer:
1.The place with strong heat sources,vapors,ammable or explosive gas,or volatile objects
spread in the air.
2.The place with high-frequency devices (such as welding machine,medical equipment).
3.The place near coast area.
4.The place with oil or fumes in the air.
5.The place with sulfureted gas.
6.Other places with special circumstances.
7.The appliance shall not be installed in the laundry.
1. There should be noobstruction near air
inlet and air outlet.
2. Choose a place where the condensation water can be dispersed easily and won't
affect other people.
3. Choose a place which is convenient to
connect the outdoor unit and near the power socket.
4. Choose a place which is out of the reach of children.
5. The place should be able to withstand the weight of indoor unit and won't increase
noise and vibration.
6. Don't install the indoor unit right above the electric appliance.
7.Please try your best to keep way from uorescent lamp.
Indoor unit

13
Safety precaution
1. Must follow the electric safety regulations when installing the unit.
2. According to the local safety regulations, use qualied power supply circuit and circuit
break.
3. Make sure the power supply matches with the requirement of air conditioner. Unstable
power supply or incorrect wiring or malfunction. Please install proper power supply
cables before using the air conditioner.
4. Properly connect the live wire, neutral wire and grounding wire of power socket.
5. Be sure to cut off the power supply before proceeding any work related to electricity
and safety.
6. Do not connect the power before nishing inatallation.
7. If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
8. The temperature of refrigerant circuit will be high, please keep the interconnection
cable away from the copper tube.
9. The appliance shall be installed in accordance with national wiring regulations.
10. Installation must be performed in accordance with the requirement of NEC and CEC
by authorized personnel only.
Grounding requirement
1. The air conditioner is the rst class electric appliance. It must be properly grounding
with specialized grounding device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can't be used for
other purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3mm in all
poles should be connected in xed wiring. For models with a power plug, make sure
the plug is within reach after installation.
6. Including an circuit break with suitable capacity, please note the following table.
Circuit break should be included magnet buckle and heating buckle function, it can
protect the circuit-short and overload. (Caution: please do not use the fuse only for
protect the circuit)
Installation prepare
Air conditioner Circuit break capacity
48K 16A

14
Installation prepare
NOTES FOR ELECTRIC WIRING
1.Special circuit must be used for power supply.
2.The circuit must be installed by special serviceman.
3.Please do the wiring according to the following wiring disgram.the screws must be tightly
fastened,the slippery screws must be changed,the tapping screw cannot be used for
electric wiring.
4.Please wiring according to the circuit disgram on the unit.
5.Adopts the cables which are attached with the unit,please do not to change the cables
optionally,and do not change the length and ends of the cable ,if need to adjust,please
contact with the local after-sales service center.
6.For the power cord which is without the plug ,that cannot be connected the pulg for using.
7.The electric wiring connection of should not be affected by the stretch and bending.
8. is symbol of earthing ,it donotes that the yellow-green dual wire only can be connected
with the place with the symbol.
9.After the electric installation completed,make sure to use wire clamp to x the power cord,
power supply connection cable and signal cable tightly,and ensure that there is enough
space in the x postion and each connection terminal of the lead wires.
10.Please use about a half kilogram of force,to check whether each lead wire is installed
well. When checking the air connector, please enclasp it ,and check each lead wire of
which is connecting with the connector.
NOTE:
The unit should be correctly earthed to avoid interference to the complete unit and ensure
personal safety.
Indoor
unit Outdoor
unit
Earth
Signal control cable
Power supply
connection cable
Power cable
Air switch
Power
For the three pahse
380V 3NЊ
Power
Air switch
Power supply
connection cable
Signal control cable
Indoor
unit
Earth
Outdoor
unit
Power cable
For the single pahse
220VЊ

15
Installation of indoor unit
Step 1: Choosing installation location
Recommend the installation location to the client and then conrm it with the client.
Step 2: Open piping hole
1. Choose the position of piping hole according to the direction of outlet pipe. The position
of piping hole should be a little lower than the wall-mounted frame, shown as below.
2. Open a piping hole with the diameter of Φ55/Φ70
on the selected outlet pipeposition. In order to drain
smoothly, slant the piping hole on the wall slightly
downward to the outdoor side with the gradient of 5-10°.
Indoor Outdoor
5～10°Φ55/Φ70
Note:
● Pay attention to dust prevention and take relevant safety measures when opening
the hole.
● The plastic expansion particles are not provided and should be bought locally.
Screw
Front
panel
Connecting
cable
Filter
1.Pull out the lters in left and right side, remove the xed screw of front panel, turn the
swing louver up, lift up the front panel 10mm can remove it.
(Notice:In order to avoid damage of the connecting cable between front panel and electric
box, please do not pull it. The connecting cable is connected by air docking connector, if
the connects are loose, please reconnect them before install the front panel.)
2.Take out the spare parts.
Step 3: Install drain pipe and connecting pipe

16
NOTICE: Connect the pipe of indoor unit
(1).Aim the pipe joint at the corresponding bellmouth.
(2).Pretightening the union nut with hand.
(3). Adjust the torque force by referring to the
following sheet. Place the open-end wrench on
the pipe joint and place the torque wrench on
the union nut. Tighten the union nut with torque
wrench.
union nutpipe joint pipe
insulating pipe
torque wrench
open-end
wrench
indoor pipe
pipe
union nut
Hex nut diameter Tightening torque (N.m)
Φ 6 15~20
Φ 9.52 30~40
Φ 12 45~55
Φ 16 60~65
Φ 19 70~75
(4).Wrap the indoor pipe and joint of connection pipe
with insulating pipe, and then wrap it with tape.
Installation of indoor unit
Drain pipe
Small connecting nozzle
Big connecting nozzle
Right outlet
Rear outlet
Left outlet
3.Choose the direction of outlet pipe according to the position of air conditioner.
4.Connecting the drain pipe and connecting pipe.
NOTICE: Install drain hose
(1).Connect the drain hose to the outlet pipe of indoor unit.
(2).Bind the joint with tape.
drain hose
tape
outlet pipe
drain hose
insulating pipe
● Add insulating pipe in the indoor
drain hose in order to prevent
condensation.
● The plastic expansion particles
are not provided.

17

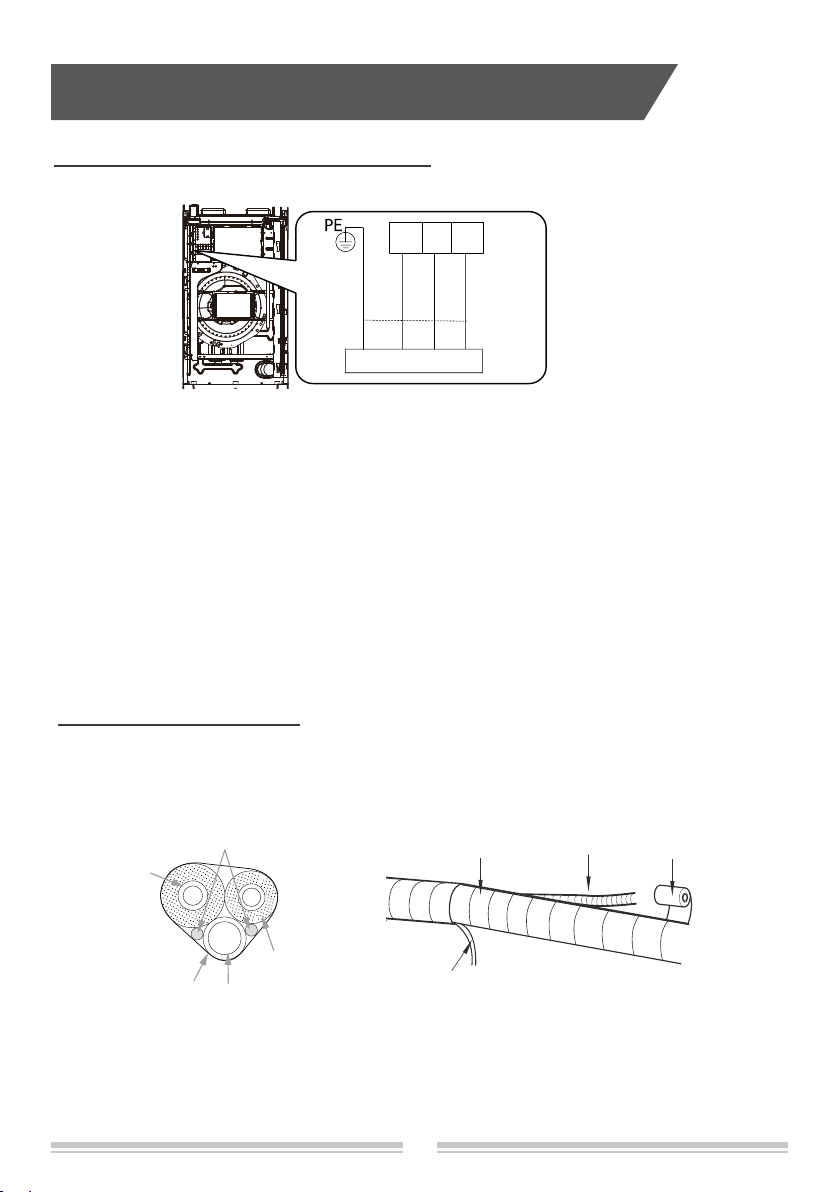

Step 4: Connect wire of indoor unit
1.Open the panel, remove the screw on the wiring cover and then take down the cover.
2. Make the power connection wire go through the cable-cross hole at the back of indoor
unit and then pull it out from the front side.
3. Remove the wire clip,connect the power connection wire to the wiring terminal according
to the color; tighten the screw and then x the power connection wirewith wire clip.
4. Put wiring cover back and then tighten the screw.
5. Close the panel.
Note:
● All wires of indoor unit and outdoor unit should be connected by a professional.
● If the length of power connection wire is insufcient, please contact the supplier for a
new one. Avoid extending the wire by yourself.
● For the air conditioner with plug,the plug should be reachable after nishing installation.
● For the air conditioner without plug, an air switch must be installed in the line.
The air switch should be all-pole partingand the contact parting distance should be more
than 3mm.
Installation of indoor unit
Step 5: Bind up pipe
1. Bind up the connection pipe, power cord and drain hose with the band.
2. Reserve a certain length of drain hose and power cord for installation when binding
them.When binding to a certain degree, separate the indoor power and then separate
the drain hose.
3. Bind them evenly.
4. The liquid pipe and gas pipe should be bound separately at the end.
drain hose
band
connection pipe
indoor power cord
Note:
● The power cord and control wire can't be crossed or winding.
● The drain hose should be bound at the bottom.
gas pipe
indoor and outdoor
power cord
liquid pipe
drain hose
band
Outdoor unit
blue black
(gray)
brown
3
yellow-
green
N(1) 2

18
Check after installation
Check according to the following requirement after nishing installation.
Items to be checked Possible malfunction
Has the unit been installed rmly? The unit may drop, shake or emit noise.
Have you done the refrigerant leakage
test?
It may cause in sufcient cooling(heating)
capacity.
Is heat insulation of pipeline sufcient? It may cause condensation and water dripping.
Is water drained well? It may cause condensation and water dripping.
Is the voltage of power supply
according to the voltage marked on the
nameplate?
It may cause malfunction or damaging the parts.
Is electric wiring and pipeline installed
correctly? It may cause malfunction or damaging the parts.
Is the unit grounded securely? It may cause electric leakage.
Does the power cord follow the
specication? It may cause malfunction or damaging the parts.
Is there any obstruction in the air inlet
and outlet?
It may cause in sufcient cooling(heating)
capacity.
The dust and sundries caused during
installation are removed? It may cause malfunction or damaging the parts.
The gas valve and liquid valve of
connection pipe are open completely?
It may cause in sufcient cooling(heating)
capacity.
Test operation
1. Preparation of test operation
● The client approves the air conditioner.
● Specify the important notes for air conditioner to the client.
2. Method of test operation
● Connect the power, press ON/OFF button on the remote controller to start
operation.
● Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check whether
the operation is normal or not.
● If the ambient temperature is lower than 16℃, the air conditioner can’t start cooling.
