VARIO-PA
Section 1: Information about the manufacturer
Giebel FilTec GmbH
Carl-Zeiss-Str. 5
DE-74626 Bretzfeld-Schwabbach
Phone. [phone]
Fax [phone]
E-mail [e-mail]

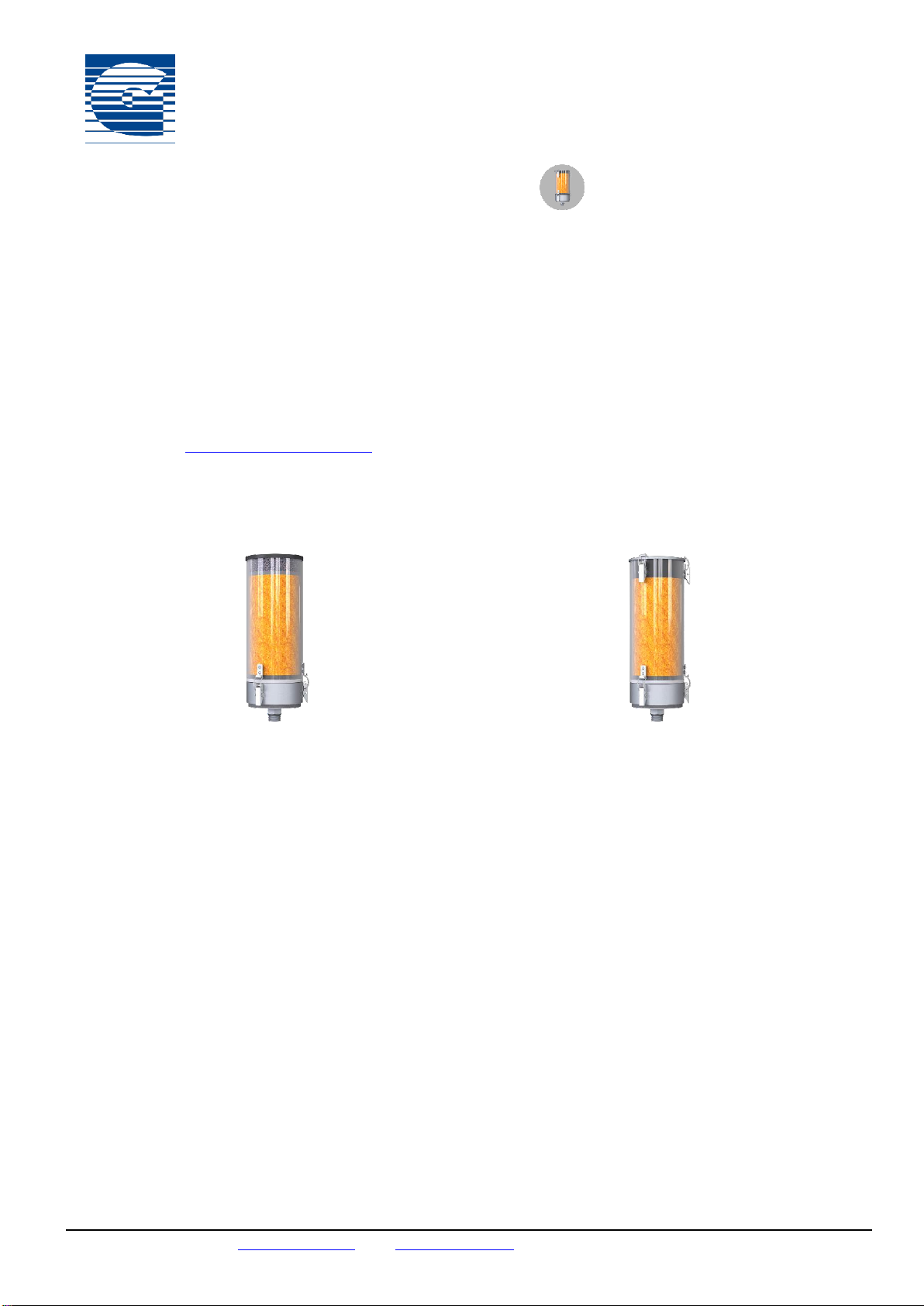

Section 2: Adsorber overview
DV 300-PA
DV 320-PA
DV 500-PA
DV 520-PA
DV 550-PA
DV 310-PA
DV 330-PA
DV 510-PA
DV 530-PA
DV 560-PA
Materials used:
Acrylic glass, aluminium, acrylonitrile butadiene rubber (NBR), activated carbon (moulded carbon),
Silica gel (amorphous silicon dioxide)
REACH notice:
No ingredients that must be named according to Regulation (EC) No. 1907/2006.

Manual
according to regulation DIN 82079
Version 09.19
Date: 02.09.2019
Name: Manual_VARIO-PA
GIEBEL FilTec GmbH • Web www.giebel-adsorber.de • Email [e-mail] • Tel [phone]/8

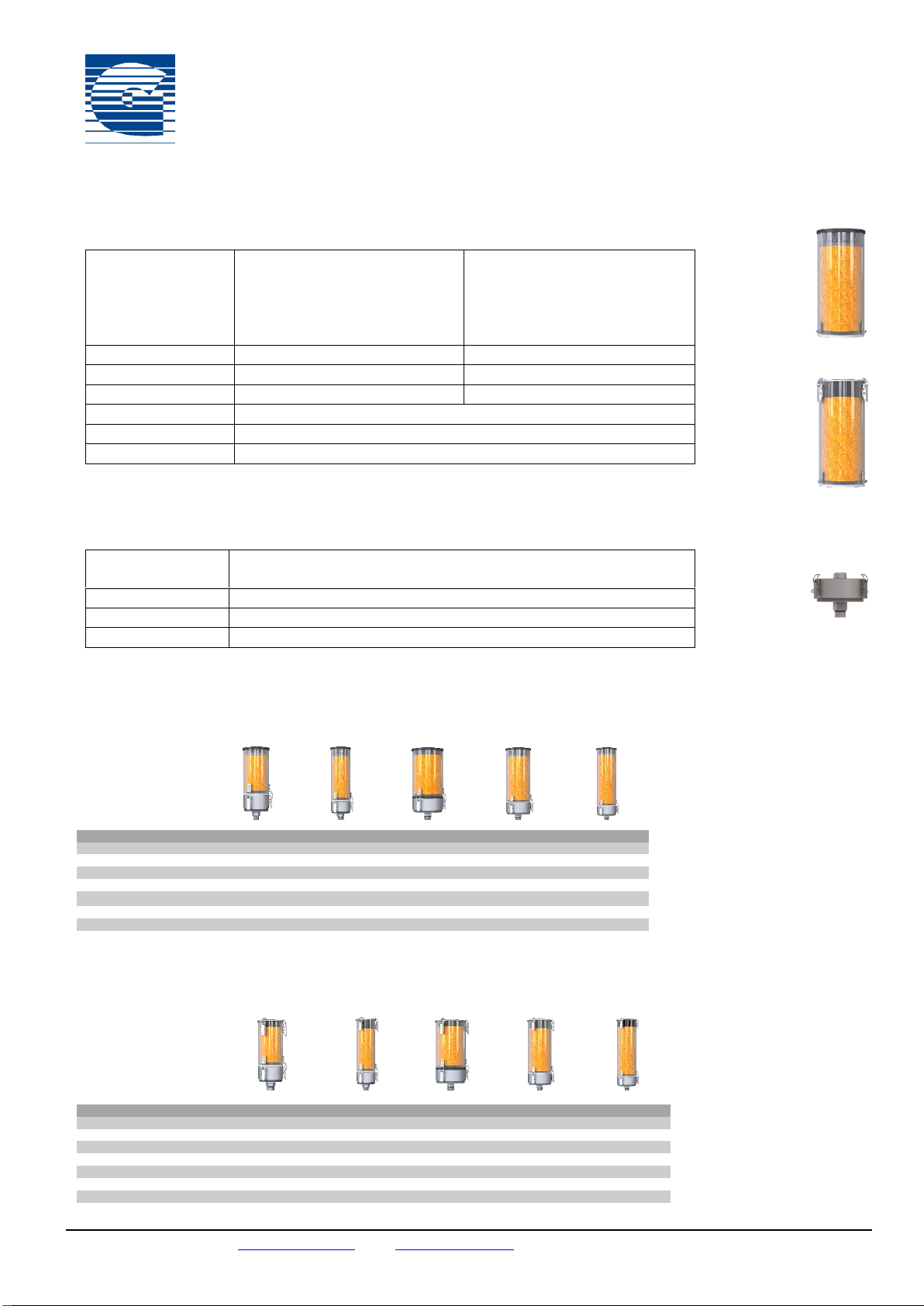

Section 3: Structure and materials
Adsorber part PA
adsorber part
DV 301-PA
DV 321-PA
DV 501-PA
DV 521-PA
DV 551-PA
adsorber part
DV 311-PA
DV 331-PA
DV 511-PA
DV 531-PA
DV 561-PA
Use of the
one-way
returnable
housing material
acrylic glass
Acrylic glass / aluminium
adsorbent
Silica gel, activated carbon filling
Silica gel, activated carbon filter disc
particulate filters
Folded filter element with 3 µm separation efficiency
seal material
NBR / FKM
operating temperature
-30°C - +70°C
Mounting part PA
receiving part
DV 3-MA, DV 5-MA
connection
customs
housing material
Aluminium
seal material
NBR/FKM
Section 4: Technical Data
VARIO PA-D
DV 300-PA
DV 320-PA
DV 500-PA
DV 520-PA
DV 550-PA
Total weight [kg]
2,2
3,0
4,4
5,8
7,2
Adsorbent [kg]
0,8
1,3
2,2
3,3
4,5
Height [mm]
300
400
335
435
535
Housing diameter [mm]
110
110
150
150
150
Insertion diameter [mm]
140
140
180
180
180
connection
G 1" STS (SW36)
G 1" STS (SW36)
G 1" STS (SW36)
G 1" STS (SW36)
G 1" STS (SW36)
Valves [IN-OUT]
1-1
1-1
2-2
2-2
2-2
VARIO PA-R
DV 310-PA
DV 330-PA
DV 510-PA
DV 530-PA
DV 560-PA
Total weight [kg]
2,5
3,2
4,8
6,2
7,6
Adsorbent [kg]
0,9
1,4
2,3
3,4
4,5
Height [mm]
310
410
345
445
545
Housing diameter [mm]
110
110
150
150
150
Insertion diameter [mm]
140
140
180
180
180
connection
G 1" STS (SW36)
G 1" STS (SW36)
G 1" STS (SW36)
G 1" STS (SW36)
G 1" STS (SW36)
Valves [IN-OUT]
1-1
1-1
2-2
2-2
2-2

Manual
according to regulation DIN 82079
Version 09.19
Date: 02.09.2019
Name: Manual_VARIO-PA
GIEBEL FilTec GmbH • Web www.giebel-adsorber.de • Email [e-mail] • Tel [phone]/8

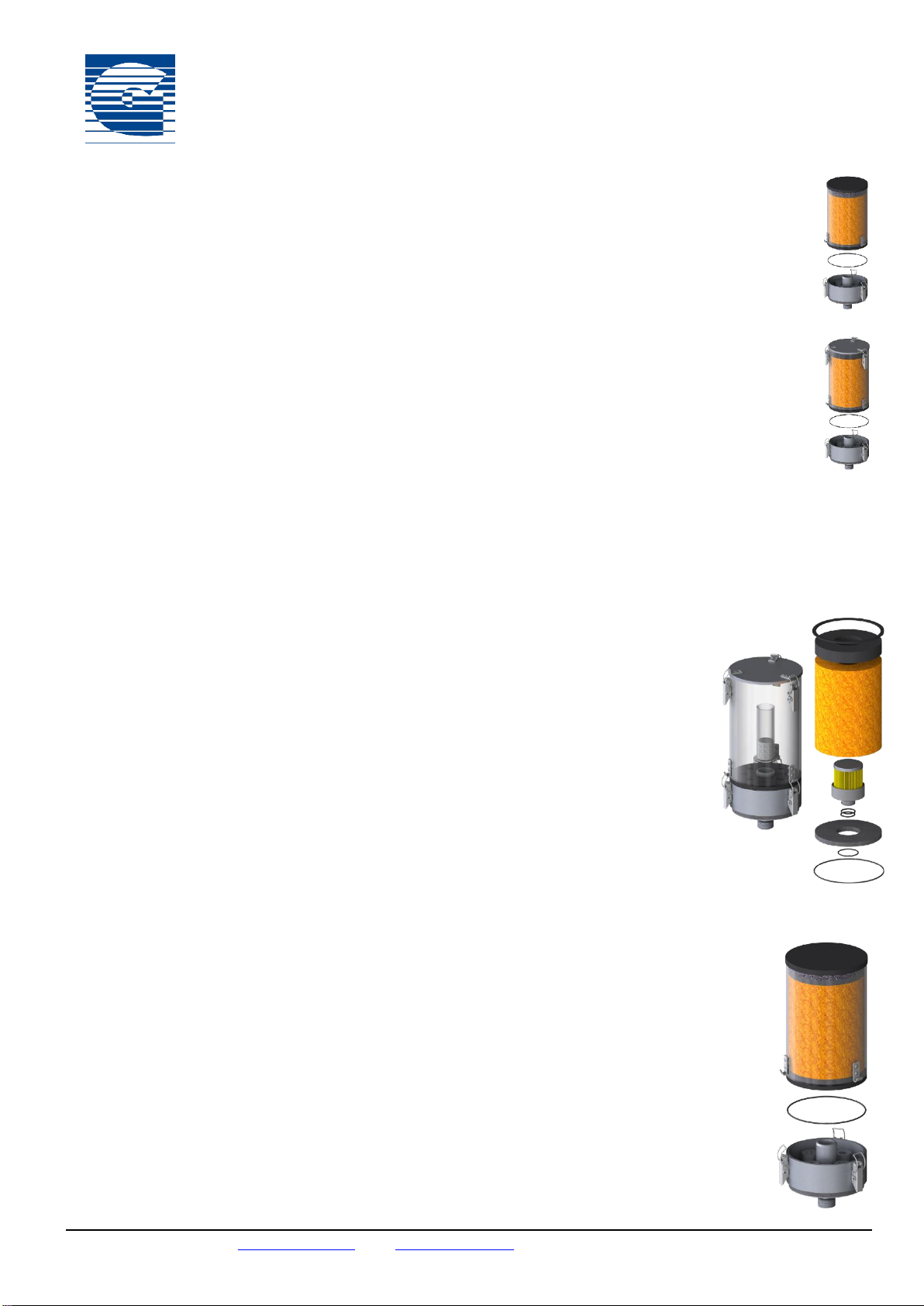

Section 5: Assembly and commissioning
Proceed as follows to install the entire adsorber:
1. Switch off the system.
2. Screw the valve part onto the plant.
3. Place the O-ring in the groove provided in the valve section and check that it is seated
correctly.
4. Remove the safety plug from the valve part.
5. Peel off the protective foil on the underside of the adsorber part.
6. Push the adsorber part onto the sleeve of the valve part.
7. Hook the tensioning bracket into the closing hooks and push the tensioning levers
downwards.
8. Secure the clamp with the safety plugs.
Section 6: maintenance
Procedure for reusable adsorbers
1. Switch off the system.
2. Remove the adsorber part by opening the closing clamps.
3. Open the cover and remove it from the adsorber part.
4. Remove the seal in the cover and replace it with a new one.
5. Remove the activated charcoal disc and empty the desiccant.
6. Pull out the dust filter insert.
7. Remove the lower foam disk as well.
8. Insert new foam disk.
9. Insert a new dust filter insert and then
Fill with fresh desiccant. When filling the
Using a soft object (e.g. ball of the hand), lightly knock the desiccant against
the housing to compact the filling.
10. Insert a new activated carbon disc and then close the lid again.
11. Replace O-rings between valve part and adsorber part.
12. If necessary, clean the lower foam disk with compressed air.
13. Place the adsorber section back on the valve section and remove the
Close the clamps.
Procedure for disposable adsorbers
1. Switch off the system.
2. Remove the adsorber part by opening the
Closure clamps.
3. New O-ring between valve section and adsorber section
in.
4. Place the new adsorber part on the valve part and
Close the clamps.

Manual
according to regulation DIN 82079
Version 09.19
Date: 02.09.2019
Name: Manual_VARIO-PA
GIEBEL FilTec GmbH • Web www.giebel-adsorber.de • Email [e-mail] • Tel [phone]/8

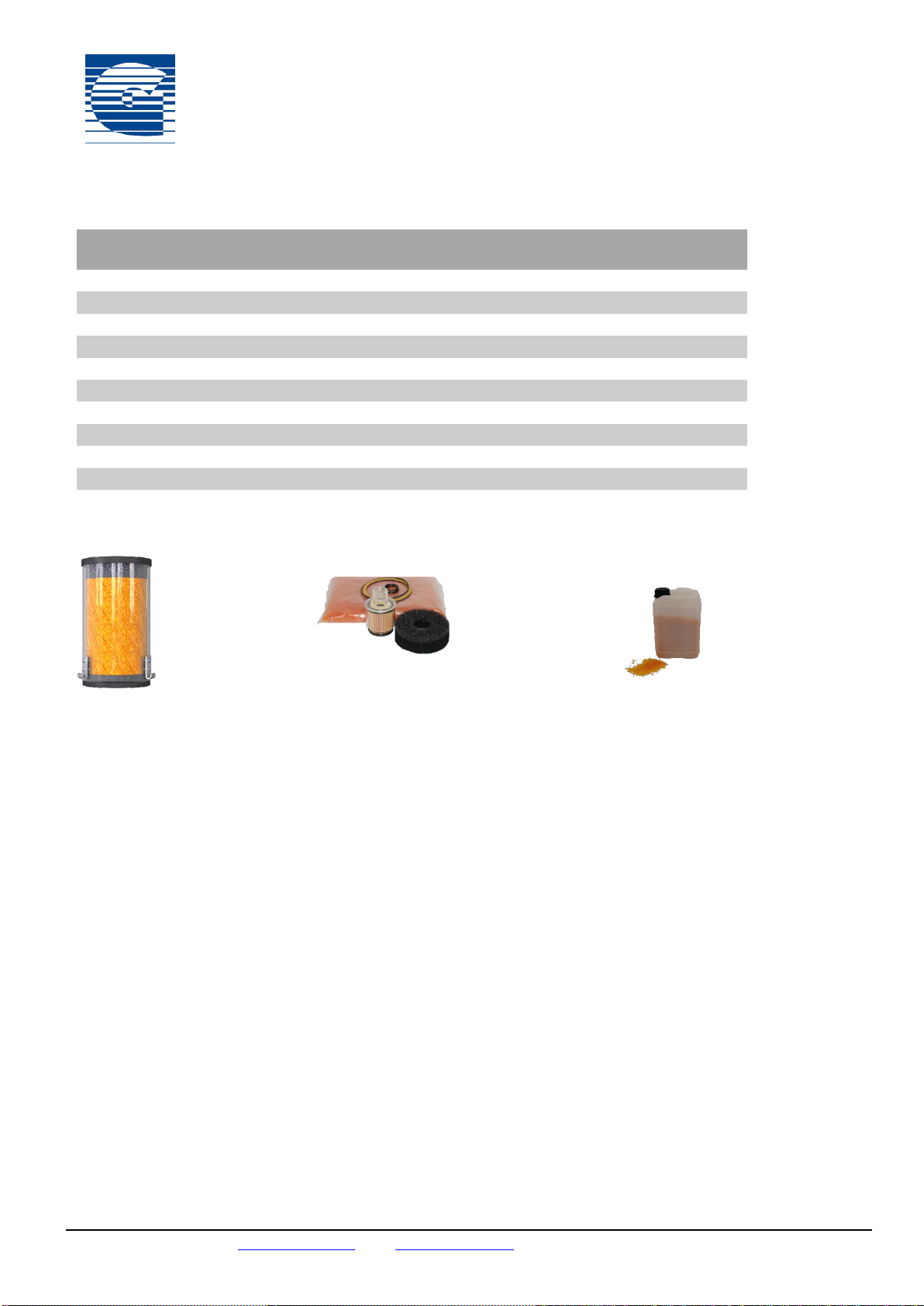

Section 7: Spare parts and storage
ADSORBER
DISPOSABLE
ADSORBER PART
RETURNABLE SPARE PARTS
PACKAGE
CANISTER DESICCANT
DUO-VARIO 300-PA
Adsorber part DV 301-PA
DUO-VARIO 310-PA
Spare parts package DV 313-PA
Silicagel Orange-Green 4kg
DUO-VARIO 320-PA
Adsorber part DV 321-PA
DUO-VARIO 330-PA
Spare parts package DV 333-PA
Silicagel Orange-Green 4kg
DUO-VARIO 500-PA
Adsorber part DV 501-PA
DUO-VARIO 510-PA
Spare parts package DV 513-PA
Silicagel Orange-Green 4kg
DUO-VARIO 520-PA
Adsorber part DV 521-PA
DUO-VARIO 530-PA
Spare parts package DV 533-PA
Silicagel Orange-Green 4kg
DUO-VARIO 550-PA
Adsorber part DV 551-PA
DUO-VARIO 560-PA
Spare parts package DV 563-PA
Silicagel Orange-Green 4kg
Order of spare parts
For constant operational readiness of the adsorber and thus of the hydraulic unit or transmission, make
sure that there is always a spare parts package or a spare adsorber part in stock.
The time to complete saturation of the activated carbon by the adsorption of oil mist and thus also the
service life of the adsorber depends on various factors:
- Number and duration of flow and loading intervals.
- Amount of oil particles and mists emitted.
Storage of adsorbers
All assemblies filled with desiccant are packed airtight. To avoid damage to the desiccant, it must also be
stored in dark and dry rooms at -10°C to +30°C.
adsorber part
superstructure
- adsorbent
- activated carbon
- filter element
- seal
Pre-assembled in
the housing and
packed airtight.
spare parts
package
content
- adsorbent
- Activated
carbon filter discs
- Dust filter insert
complete
- seal kit
individually and
airtightly packed.
desiccant
one at a time
content
- adsorbent
packed airtight.
Packaging-
5,0l plastic canister
weight
- 4,0 Kg

Manual
according to regulation DIN 82079
Version 09.19
Date: 02.09.2019
Name: Manual_VARIO-PA
GIEBEL FilTec GmbH • Web www.giebel-adsorber.de • Email [e-mail] • Tel [phone]/8
Section 8: disposal
regeneration
In practice, the most common regeneration method used is temperature increase. When desorbing water
vapour from silica gel, the temperature shall be above 100°C. A regeneration temperature between
150°C and 175°C is recommended. However, it should be noted that a color indicator applied to the
silica gel will be damaged at these temperatures. Therefore a regeneration temperature of 120°C is
indicated for silica gel with colour indicator and should not exceed 140°C.
disposal
At the end of its useful life, the device must be disposed of in accordance with the relevant legal
regulations. Metal and plastic parts should be separated according to type and disposed of. The loaded
drying agent Silicagel Orange can be disposed of in household waste. Silicagel Orange is not classified
as a hazardous substance according to European Union legislation (Regulation EC No. 1272/2008).
According to the EC Directive (67/548/EEC or 1999/45/EC) it is not subject to labelling. Silicagel Orange
is not a hazardous substance for health or the environment.
The desiccant Silicagel Blue is mixed with cobalt(II) chloride hexahydrate and is classified as a
substance requiring labelling according to the EC Directive (1999/45/EC). This desiccant is one of the
substances hazardous to health and the environment. National regulations must be observed for
disposal.

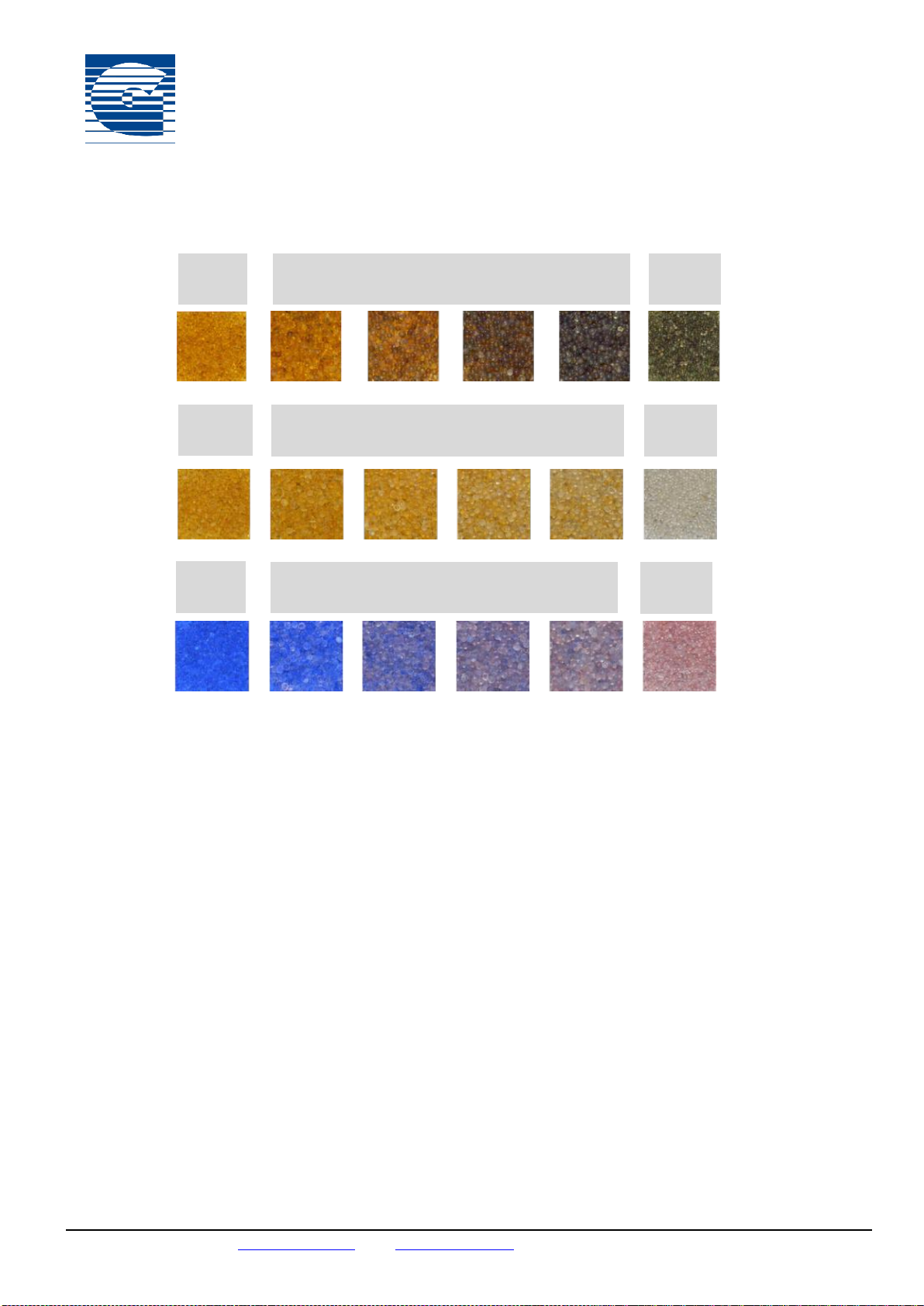

New /
Regenerated
Disposal /
Regeneration
Observe color changeOrange
- Colorless
New /
Regenerated
Disposal /
Regeneration
Observe color changeBlue
- Pink
Observe colour changeOrange
- Green
Disposal /
Regeneration
New /
Regenerated

Manual
according to regulation DIN 82079
Version 09.19
Date: 02.09.2019
Name: Manual_VARIO-PA
GIEBEL FilTec GmbH • Web www.giebel-adsorber.de • Email [e-mail] • Tel [phone]/8
Section 9: Risk and hazard analysis
1 Positive or negative pressure builds up in the system
1.1Valves are jammed / blocked
The functionality may be impaired by impurities.
→See maintenance plan point 5
1. 2Air flow rate too high
If the air flow rate is too high, overpressure or underpressure in the system can be
to build.
1.3Filter contaminated
The filter unit can be clogged by dirt particles.
→See maintenance plan point 2
1.4Prefilter disc contaminated
The prefilter disc can be clogged with dirt particles.
→See maintenance plan point 3
1.5 Oil film on the desiccant
Oil particles collect in the pores of the silica gel. Dirt particles can accumulate on the oil
film and thus hinder the supply or exhaust air.
→See maintenance plan point 1
2 Humid air flows into the system
2.1Porous seals
Moist air can flow into the adsorber at the porous points. This means that complete drying
is not possible and moist air enters the system.
→See maintenance plan point 4
2.2Saturated desiccant
If the desiccant is saturated, it cannot absorb any more moisture. This allows moist air to
enter the system.
→See maintenance plan point 1
2. 3Air flow rate too high
If the air flow rate is too high, the contact time between moist air and desiccant is too
short. This allows moist air to flow into the system.
2.4 Oil film on the desiccant
If oil particles get into the adsorber, the oil particles close the pores of the desiccant and
thus prevent the adsorption capability.
→See maintenance plan point 1
2.5 Ambient temperature too high
If the ambient temperature exceeds 80°C, the incoming ambient air is only dried to a
limited extent.
3 Adsorber housing is damaged
3.1Material resistance
When selecting an adsorber, the ambient and operating conditions should be taken into
account.
→See maintenance plan point 6
3.2Vibrations of the system
Strong vibrations of the system can damage the adsorber.
→See maintenance plan point 6

Manual
according to regulation DIN 82079
Version 09.19
Date: 02.09.2019
Name: Manual_VARIO-PA
GIEBEL FilTec GmbH • Web www.giebel-adsorber.de • Email [e-mail] • Tel [phone]/8
Section 10: maintenance schedule
1. Optical check of the silica gel for saturation
Check:
The loading condition of the silica gel is to be determined
by visual inspection of the adsorber. The colour orange indicates that the
silica gel can still adsorb water and air is dehumidified. If the silica gel is
completely saturated, the colour changes to green.
If there are oil particles on the silica gel, these close the pores and the
adsorption capacity is reduced. This causes the silica gel to discolour
more slowly and unevenly.
Action:
The silica gel is removed from the adsorber. New silica gel is refilled. With
disposable adsorbers, the entire adsorber part is changed.
Proceed as described in "Part 6 Maintenance".
Weekly
2. Check filter unit for impurities
Check: Remove
the lid from the adsorber part and remove the activated charcoal disc.
Then empty the desiccant. The filter unit can then be removed. This must
be checked for impurities and should be free of dirt for smooth operation.
Action:
The filter unit is part of the spare parts package and should be replaced if
there is contamination.
Proceed as described in "Part 6 Maintenance".
Half-yearly
3. Check prefilter disc for impurities
Check:
The prefilter disc should be checked for impurities that may clog it and
prevent free air entry.
Action:
Clean the prefilter disc with compressed air to remove dirt particles and
dust.
Half-yearly
4. Check seals for wear
Check: The seals and O-rings installed in
the adsorber and in the valve part must be checked for their perfect
condition. For this purpose, the flat seal in the cover, the O-rings of the
filter unit, and the O-rings between the receiving and adsorber parts
should be examined for brittleness.
Action:In
case of existing damage, the seals or O-rings should be replaced. These
are part of the spare parts package.
Proceed as described in "Part 6 Maintenance".
Yearly

Manual
according to regulation DIN 82079
Version 09.19
Date: 02.09.2019
Name: Manual_VARIO-PA
GIEBEL FilTec GmbH • Web www.giebel-adsorber.de • Email [e-mail] • Tel [phone]/8
5. Check valves for jamming
Check:
The valve part must be visually inspected for impurities and damage. In
order to ensure long-term functionality, the valves of the valve section
should be checked. To do this, remove the adsorber part from the valve
part and check the functionality of the valves.
Measure:
If the valves do not open and close, replace the valve part with a new one
to ensure full functionality.
Biennial
6. Optical control of the adsorber
Check:
The adsorber (valve part and adsorber part) must be visually checked for
damage. Damage can occur due to various environmental or operating
conditions.
Action:
If the adsorber is damaged, replace the damaged part to ensure full
functionality.
Weekly
7. Replacing wear parts
Check:
The wear parts of the adsorber and the valve part must be checked for
their condition.
Measure:
Regardless of the result of the test, it is recommended to replace the
wearing parts by using the spare parts package or a new adsorber part to
ensure smooth operation.
Biennial
