Gigabyte GSmart S1205 User manual

S1205│1
Device Information
This section introduces you to the hardware of the
device.
No. Items Functions
1 Touch Screen
Display screen. Use
stylus to select items on
screen.
2Windows Flag
Key
Press to open Start
menu options.
3Phone Settings
Key
Press to launch phone
settings screen
4 Call Key Press this key to make
or answer a call.
5 End Key
Press this key to end a
call or to return toToday
screen from any
screen.
6 Confirm Key
Select an icon on
screen, andthen, press
this keyto activate the
function of that icon.

S1205│2
7 LED Indicator
The LED indicator
indicates the status of
your device by showing
different colors.
Red: Charging is
activated.
Green: Mobile network
is detected.
Blue: Bluetooth, Wi-Fi,
GPS is activated.
8 Receiver/Speaker
The source of music
and voice.
9 Power Key
Hold down this key for a
few seconds to turn
on/off your device.
10 Micro USB slot
Use USB connector to
synchronize data with
your desktop PC, and
transmit data or charge
the battery. It is also a
handset plug.
11 Headset Plug You can listen to music
via headset.

S1205│3
12 Volume Key
Slide this key upwards
or downwards to
adjust volume.
13 Micro SD card
slot
You can insert your
Micro SD card here.
14 Camera Key Press this key to
launch camera.
15 Camera Lens
The Camera on the
back of the device
supports 3-mega-pixel
photo and high-quality
video.

S1205│4
No. Items Functions
16 Stylus
There are 2 ways to use your
stylus:
․Tap：Tap a desired item by
your stylus, and then, lift the
stylus from the screen.
․Press：Use your stylus to
hold down on a desired item
until the pop-up menu
appears.
17 Battery
Cover
Remove the battery cover,
and then, install the battery
and insert your SIM card into
the carrier.
Remove the battery cover and
the stylus. Then you can find
the reset button. Press it to
reset your phone.

S1205│5
Battery
Your device comes with a removable and
rechargeable Lithium Polymer battery. The
standby time and talk time will vary depending on
the local network and individual usage.
Open Battery Cover
Push the battery cover upwards, and then,
remove it.
Charging the Battery
Please make sure that the battery is installed and
fully charged when use your device for the first
time. You may charge the battery in the following
ways:
1. Universal AC Adapter: Plug your AC adapter
into a suitable main power socket, and plug
the connector to the charging slot of your
device. The phone will start charging
automatically.
2. USB Cable: Connect your device and your PC
with the USB cable supplied in your package.
Power On/Off
Press Power On/Off key on the top of the device
to turn on/off the device.
To reduce the power consumption of your device,
you may change the backlight duration and
brightness level.
Tap Start > Settings > Power > Advanced tab, and
Note: Using any battery pack or AC adapter
(charger) not specified/endorsed by GSmart
on this phone may be dangerous and may
invalidate any warranty and approval given to
the device. Unplug the charger from the
power supply when it is not in use.

S1205│6
then, select the duration of the backlight. This
function helps you save power.
Battery Power
Tap Start > Settings > Power > Battery tab. The
bar indicates the remaining power of the battery.
Sleep Mode
1. Sleep Mode is a power saving mode designed
to reserve the power of the battery. After idling
for a period of time, the device enters Sleep
Mode automatically. You may also manually
enter Sleep mode by pressing Power Key. The
backlight of the screen will turn off and the
device will activate Sleep Mode. When your
device is in Sleep Mode, it will not respond to
any operation or touches on screen and on the
keypad.
2. Press Power Key again to exit Sleep mode.
3. You may adjust time to activate Sleep Mode.
The device will enter Sleep Mode
automatically, when no operation is done
within a period of time.
․Tap Start > Settings > Power > Advanced tab.
․Select your desired time period on “On battery
power” or “On external power”.
․Tap OK to complete this setting.
SIM Card
Before inserting/removing a SIM card, please
make sure that the device is turned off and is not
connected to any power supply.
1. Push the battery cover upwards, and then
remove it.
2. Find the carrier of the SIM card on the upper
section of your phone.
3. Insert the SIM card into the slot. The metal
contacts on the SIM please face down. There
are two slots for two SIM cards. Upper slot is
for SIM1, SIM2 slot is on the underside.

S1205│7
4. Please always remember to pull down the SIM
card latch for locking your SIM card safely. If
you don’t pull down the SIM card latch, the
device won’t power on and battery cover can’t
be pulled back. The SIM card latch is on the
upper-right corner of the device.
5. Return the battery back to the battery slot, and
then, return the battery cover back onto the
device.
6. Push the battery cover back, and then, you will
hear “click”.
Lock/Unlock
1. Lock the device:
Tap Start > Lock to lock the device. The device
will not respond to touches on screen nor react
to any input on the keypad, when it is locked.
2. Unlock the device:
Slide Lock icon on the screen, and then, the

S1205│8
device will be unlocked.
Advanced Lock Settings
You can create a personal password to lock your
device.
A strong password must have at least 7
characters that are a combination of uppercase
and lower case letters, numerals, and
punctuations.
1. Tap Start > Settings > Lock
2. To enable this function, select how long your
device must be turned off before the password
is required for using the device. Tap “Prompt if
phone unused for”.
3. Select the type of password you would like to
use: Strong alphanumeric or Simple PIN.
4. Enter the password, and type it again in
Confirm field.
5. On Hint tab, the system provides a hint for the
password in case you forget your password.
This hint may be visible by others.
6. On Display tab, you can change the unlock
display.
7. Tap OK to save the settings.
․If your device is configured to connect to
network, use a strong password to help protect
network security.
․If you forget your password, you must reset the
device. The reset function will erase all files,
data, and programs.
․If you have used ActiveSync to create a backup
file, all of your program data can be restored.
Screen Orientation
You can change the display of the screen. The
Portrait mode allows you to get a better view or a
Note: The Lock/Unlock procedure is based
on the lock display of Windows Default.

S1205│9
better operation of certain programs on your
device, while Landscape may be optimal for
viewing longer text files.
Tap Start > Settings > System > Screen >
General tab.
1. On General tab, select your desired orientation:
Portrait, Landscape (right-handed), or
Landscape (left-handed).
2. Tap OK, and the screen will be changed
accordingly.
Portrait

S1205│10
Landscape

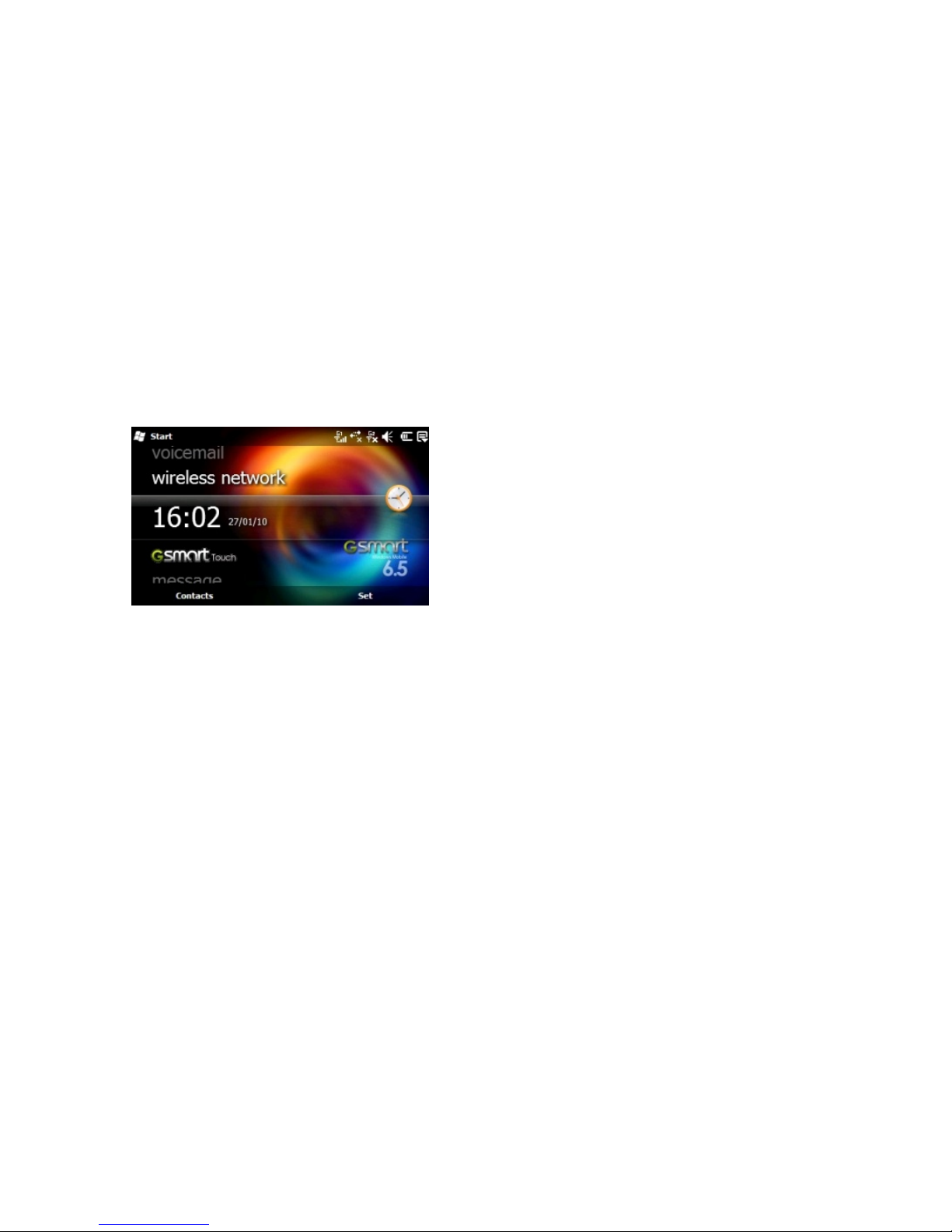

Display Information
The main screen displays the following
information:
1. Start Menu
Tap “Start” to open Start Menu. Tap Start >
Today, you can return to Today screen at any
time.
2. Status & Icon Area
Display icons of notifications and the status of
the system. You can tap the icons to get the
details of the functions.
3. Today Screen
On Today screen, this area contains shortcuts
to certain programs and important information
of today. Tap Start > Settings > Today, you can
change the settings of Today screen.
4. Command Area
Depending on different mode, this area
contains different features such as menu
options, Input Method and commands to
create or edit a file.
5. Pop-up Window
It allows you to access an item quickly. Tap the
selected item to perform an action. To cancel
this pop-up window, tap other areas of this
screen.

S1205│11

Status
This ar
e
You ca
n
setting
s
Stat
u
Typ
e
Batte
Call
s
& Icon Area
e
a shows status and
n
tapthe icons to ge
t
s
.
u
s
e
s Icons
ry
The
p
full.
The
p
low.
P
Batt
e
s
Call
f
Call
o
Data
You
h
Voic
e
alerts of the system
t
the details andthe
Descriptions
p
ower of the battery
i
p
ower of the battery
i
P
lease recharge.
e
ry is charging.
f
orward.
o
n hold.
call.
h
ave missed calls.
e
call is active.
S1205│12
.
i
s
i
s
Signal
No con
n
GPRS i
s
GPRS i
s
Building
GPRS.
Bluetoo
t
Wi-Fi is
network
network
SIM1 h
a
SIM2 h
a
n
ections
s
in range.
s
connected.
connection to
t
h is activated.
activated; a Wi-Fi
is in range; Wi-Fi
is connected.
a
s strong signal.
a
s strong signal.

SIM1
SIM
2
SIM1
SIM
2
SIM1
SIM
2
Roa
m
Tryin
g
GPS
no service.
2
no service.
has no SIM card.
2
has no SIM card.
phone off.
2
phone off.
m
ing.
g
to connect GPS;
is connected.
S1205│13
Messag
e
Volume
Quick
Menu
Setting
e
You ha
v
messag
You ha
v
voice m
a
You ha
v
instant
m
System
Phone
v
Ringer i
s
Ringer i
s
Quick
M
help yo
u
frequen
t
v
e one or more new
e(s).
v
e one or more new
a
il(s).
v
e one or more
m
essage(s).
volume.
v
olume.
s
on.
s
off.
M
enu Setting can
u
adjust the
t
ly used settings.

S1205│14
Specifications
Items Specifications
System Information
Operating
System
Microsoft Windows Mobile 6.5
Professional
Processor MT6516 at 416MHz
Memory ROM 256 MB, RAM 128 MB
Size
Dimensions
(L x W x T) 110.6 x 55 x 13.1 mm
Weight 114.5 g (including Battery)
Battery
Battery
Capacity Li-Poly pack 1300 mAh
Standby time Up to 150 hours (It may vary
depending on the availability
of local networks and
individual usage.)
Talk t ime
Up to 4 hours (It may vary
depending on the availability
of local networks and
individual usage.)
Display Characteristics
Type 3.2”, 65, 536 WQ
V
GA TFT LCD
touch panel
Resolution 240 x 400 pixels
Band
Band *GSM/GPRS/EDGE
850/900/1800/1900
Connectivity
Bluetooth Bluetooth 2.1
Wi-Fi IEEE 802.11b/g
CSD Y
Modem dial-up Y

S1205│15
USB Micro USB 2.0
Format JPEG, GIF, PNG, BMP
Max Size (per) Depends on available RAM
Audio
Format MP3, AMR, AAC, MIDI
Max Size Depends on available RAM
V
ideo
Format 3GP, WMV7/8/9, H.264 D1
Max Size Depends on available RAM
Phonebook
Size Depends on available RAM
Ringtone
Type MP3,
A
AC, AMR
Polyphone 64 polyphonic MIDI file
Digital Camera
Type JPEG, GI
F
, PNG, BMP
Camera 3.0 mega pixels
Video Y
Recording
Message
Windows Live
Messenger Y
SMS Y
MMS Y
E-mail Y
External Memor
y
Type Micro SD Card
Max Size Maximum to 16 GB
Operating Temperature
Temperature -10 ~45℃℃

S1205│16
Introduction of Smart Pack
On Today, tap Start > Settings > Personal > Smart
Pack, and select the interface you want.
In interfaces, hold down Confirm Key to switch the
screens of the interfaces to Today.
Live Nature
Main Screen
1. Status & Icon Area
2. Battery
3. Lock/Unlock
4. Time
5. Weather
6. Phone
7. Text
8. Call History
9. Smart Pack

Hold d
o
bottom
menu.
Y
menu.
o
wn on one of fou
r
of the main screen
Y
ou can select the i
r
icons located at t
h
to activate the qui
c
cons you want in th
S1205│17
h
e
c
k
at
Status &
I
Display ic
o
system. Y
o
of the fun
c
Icons
(D
y
I
con Area
o
ns of notifications a
n
o
u can tap some ico
n
c
tions.
Descri
p
GPRS i
s
EDGE i
s
GPRS i
s
EDGE i
s
y
namic) Data is
c
No GP
R
n
d the status of the
n
s to get the details
p
tions
s
active
s
active
s
used
s
used
c
onnecting
R
S Service

(Dyn
a
(Dyn
a
Getti
n
Roa
m
Activ
e
a
mic)
Activ
e
Activ
e
No
W
is no
t
a
mic)
Wi-Fi
Wi-Fi
n
g MSN Message
m
ing
e
Sync is connected
e
Sync is connecting
e
Sync is failed
W
i-Fi Service, or Wi-
F
t
connected
is connecting
is connected
S1205│18
F
i
Bluetoo
t
Getting
d
Bluetoo
t
active;
H
microph
Use the
adapter
the micr
active.)
A2DP H
connect
e
Vibrate
i
Mute
Alarm is
t
h is active
d
ata via Bluetooth
t
h headset is
H
eadset with
one is inserted.
headset (The
is inserted, and
ophone is not
eadset is
e
d.
i
s active
active

GPS
FM
R
Reco
Stop
w
Miss
e
On t
h
Unre
a
Unre
a
Invali
is active
R
adio is active
rder is active
w
atch is active
e
d call
h
e line
a
d SMS/MMS
a
d E-mail
d SIM Card
S1205│19
Battery
Tap the B
a
the batter
y
left) to swi
t
No SIM
SIM Ca
r
No Pho
n
No Pho
n
Strong
S
The po
w
is full
Chargin
g
0%~10
0
time. 0
%
100%.
a
ttery icon to check
t
y
. Slide the screen
(
t
ch the screens:
card
r
d is locked
n
e Service
n
e Function
S
ignal
w
er of the battery
g
0
%. Carry 10% per
%
, 10%, ~…, 90%,
t
he current power of
(
left to right/right to

S1205│20
˙On Battery tab, you can check the left power of
the battery. The power of the battery will vary
depending on individual usage.
˙On Advanced tab, you can change the duration
of the backlight.
Time
Tap beside the Time icon to adjust time.
Slide to choose “Year, Hour, Minute, Month, and
Date” for adjusting time.
Tap the Alarm icon to adjust time and alarms:
˙On Time tab, you can adjust time.
˙On Alarms tab, you can adjust alarms.
˙On More tab, you can adjust more settings.
Weather
Tap beside the Weather icon to adjust the
settings of weather.
˙On Forecast tab, you can get the information of
weatherabout today and this week.
˙On Settings tab, you can select country/area
and city. You can also select Fahrenheit or
Centigrade. Tap to update the information
of weather.
˙On Auto tab, you can adjust the advanced
settings.
Lock/Unlock
1. Lock the device:
Tap the Unlock icon to lock the device. The device
will not respond to touches on screen nor react to
any input on the keypad, when it is locked.
Notes: Before you adjust the settings of
weather, you need to adjust time. The
information of weather can only shows the
information of today and this week.
