Gigabyte GV-N595U-GT User manual

Declaration of Conformity
We, Manufacturer/Importer
(full address)
declare that the product
( description of the apparatus, system, installation to which it refers)
VGA Card
GV-N595U256V / GV-N595U-GT
is in conformity with
(reference to the specification under which conformity is declared)
in accordance with 89/336 EEC-EMC Directive


EN 55011 Limits and methods of measurement
of radio disturbance characteristics of
industrial,scientific and medical (ISM
high frequency equipment


EN 61000-3-2*
77
77
7EN 60555-2 Disturbances in supply systems cause by household appliances and similar
electrical equipment "Harmonics"


EN 55013 Limits and methods of measurement
of radio disturbance characteristics of
broadcast receivers and associated
equipment


EN 61000-3-3* Disturbances in supply systems cause
by household appliances and similar
electrical equipment "Voltage fluctuations"


EN 55014 Limits and methods of measurement
of radio disturbance characteristics of
household electrical appliances,
portable tools and similar electrical
apparatus
77
77
7EN 50081-1 Generic emission standard Part 1:
Residual commercial and light industry
77
77
7EN 50082-1 Generic immunity standard Part 1:
Residual commercial and light industry


EN 55015 Limits and methods of measurement
of radio disturbance characteristics of
fluorescent lamps and luminaries
Generic emission standard Part 2:
Industrial environment


EN 55081-2
Immunity from radio interference of
broadcast receivers and associated
equipment
Generic emission standard Part 2:
Industrial environment


EN 55082-2
77
77
7EN 55022 Limits and methods of measurement
of radio disturbance characteristics of
information technology equipment
lmmunity requirements for household
appliances tools and similar apparatus


ENV 55104
Cabled distribution systems; Equipment
for receiving and/or distribution from
sound and television signals
EMC requirements for uninterruptible
power systems (UPS)


EN50091-2


EN 55020


DIN VDE 0855


part 10


part 12
(EC conformity marking)
77
77
7CE marking
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
Safety requirements for mains operated
electronic and related apparatus for
household and similar general use


EN 60950


EN 60065
Safety of household and similar
electrical appliances


EN 60335
Manufacturer/Importer
Signature:
Name:
(Stamp) Date : Jan. 12, 2004
77
77
7EN 60555-3
Timmy Huang
Timmy Huang


EN 50091-1
Safety for information technology equipment
including electrical bussiness equipment
General and Safety requirements for
uninterruptible power systems (UPS)
G.B.T. Technology Trading GMbH
Ausschlager Weg 41, 1F, 20537 Hamburg, Germany
..

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109
(a),Class B Digital Device
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name:
Address:
Phone/FaxNo:
hereby declares that the product
ProductName:
Conforms to the following specifications:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful and (2) this device must accept any inference received,
including that may cause undesired operation.
Representative Person'sName:
Signature: Eric Lu
Supplementary Information:
ModelNumber:
17358 Railroad Street
City of Industry, CA 91748
G.B.T. INC. (U.S.A.)
[phone]/ [phone]
VGA Card
GV-N595U256V /GV-N595U-GT
Date:
ERIC LU
Jan. 12, 2004

User's Manual
Rev. 101
12MD-N595U256-102
Copyright
© 2003 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in
any from without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on VGA card, this may void the warranty of this VGA card.
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make
a commitment to update the information contained herein.
GV-N595U256V /
GV-N595U-GT
GeForce™FX 5950 Ultra Graphics Accelerator

GV-N595U256V Graphics Accelerator - 2 -
English
Table of Contents
1. Introduction ......................................................................................... 3
1.1. Features ..................................................................................................... 3
1.2. Minimum system requirement .................................................................... 3
2. Hardware Installation........................................................................... 4
2.1. Unpacking .................................................................................................. 4
2.2. Board layout ............................................................................................... 5
2.3. Hardware installation .................................................................................. 6
3. Software Installation ............................................................................ 8
3.1. Win®XP driver and utilities installation ....................................................... 8
3.1.1. Operating system requirement ....................................................................... 8
3.1.2. DirectX installation .......................................................................................... 9

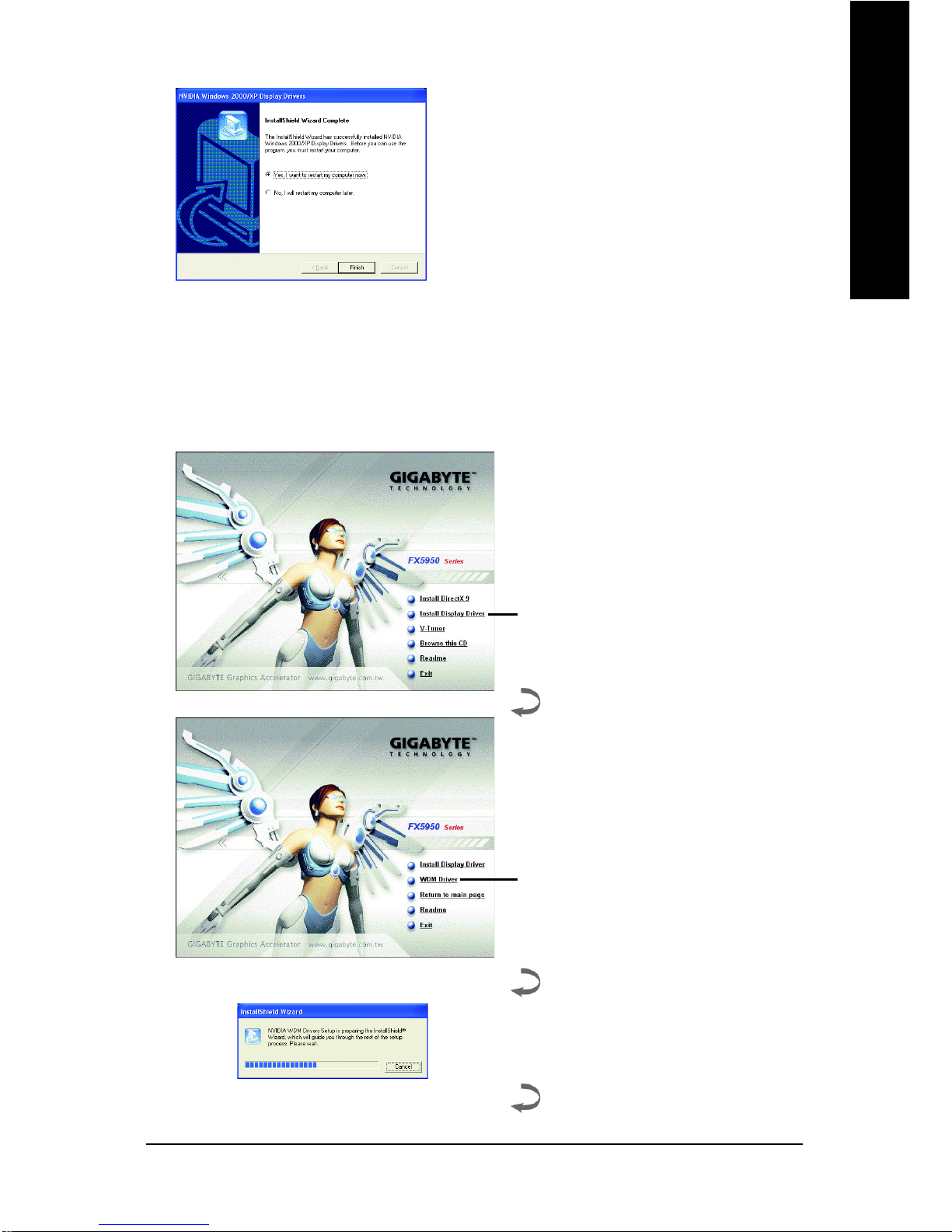

3.1.3. Driver installation .......................................................................................... 11

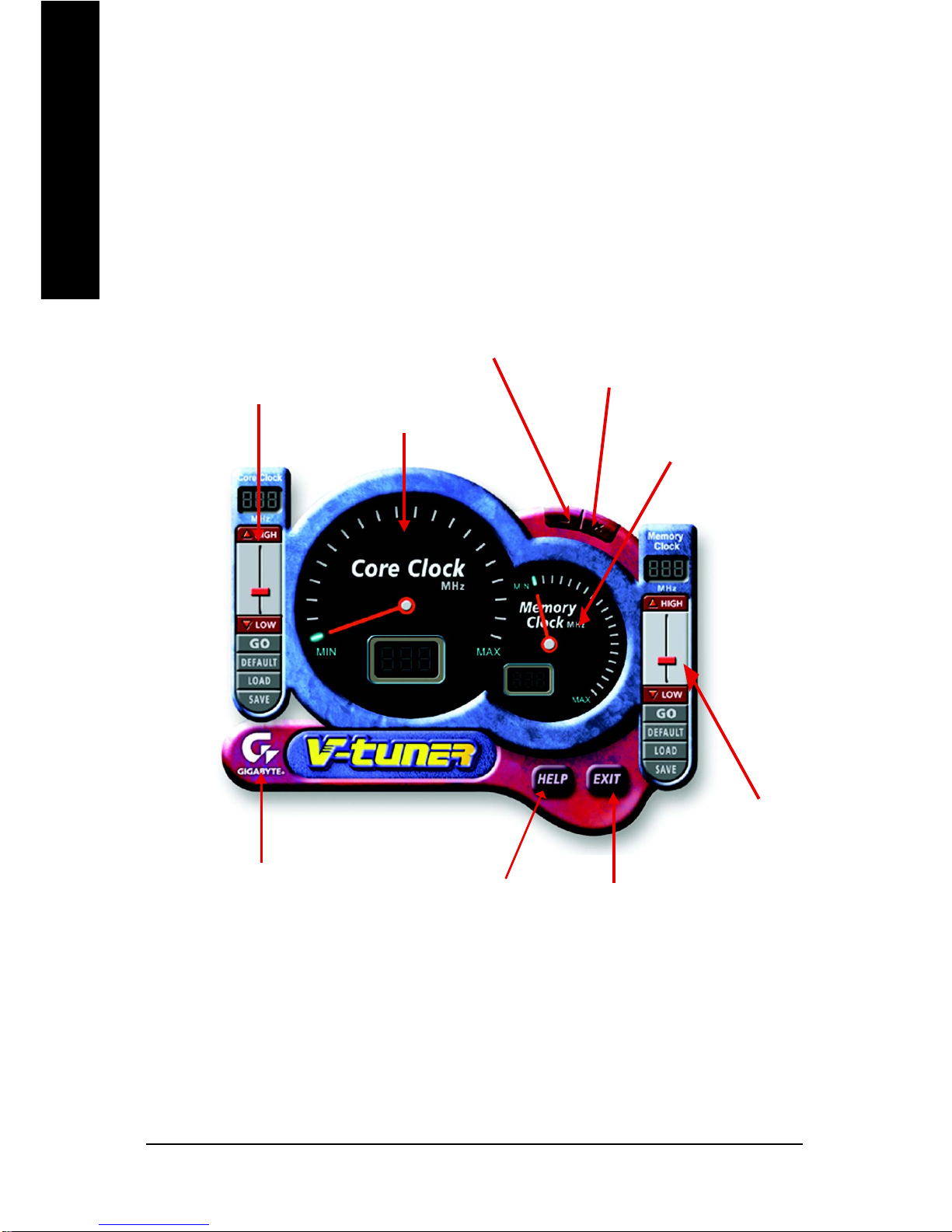

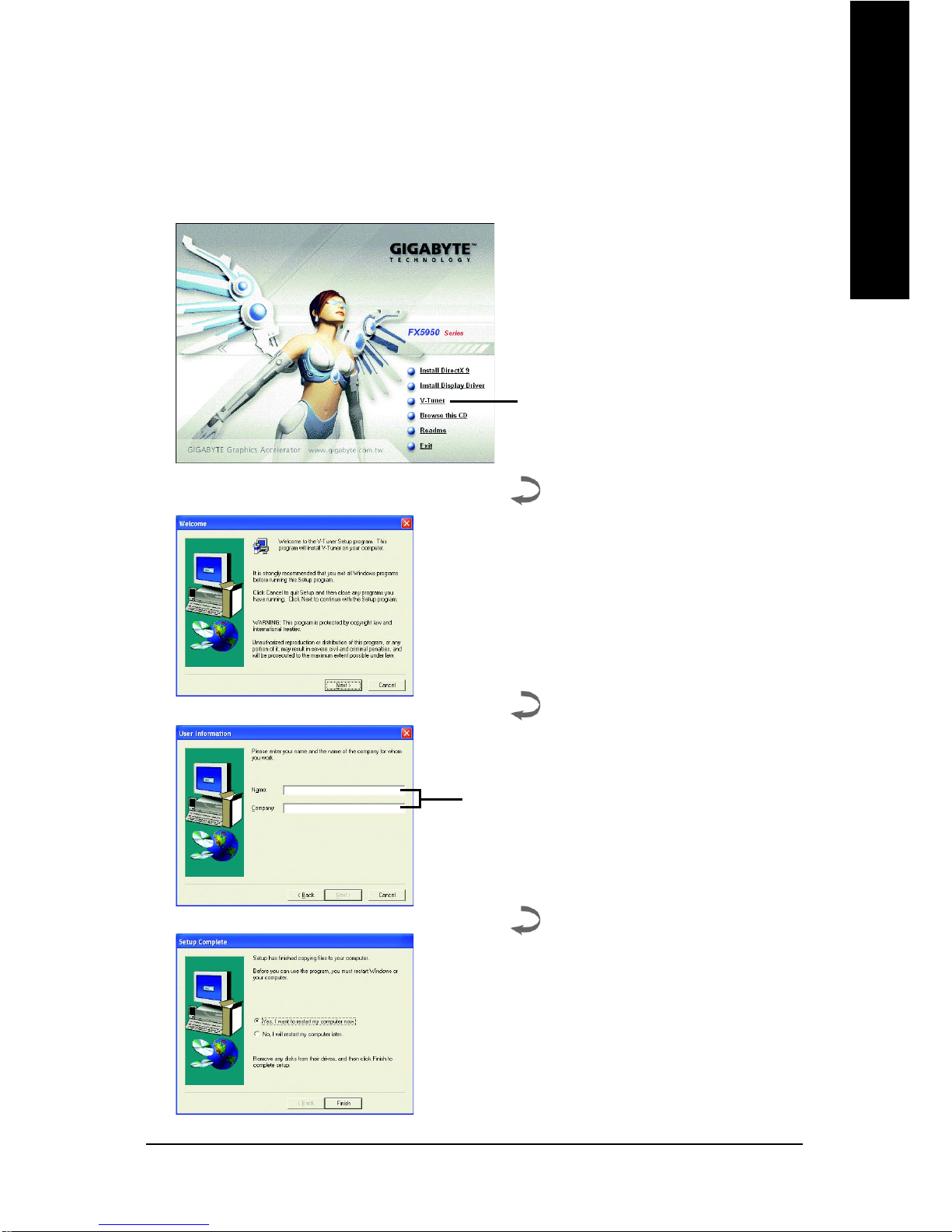

3.1.4. Utilities on driver CD ..................................................................................... 15
3.1.5. Taskbar icon ................................................................................................. 17
3.1.6. Display properties pages .............................................................................. 20
3.1.7. nView properties pages ................................................................................ 25
3.2. Win®98/98SE / Win®2000 / Win®ME driver installation ........................... 30
3.3. BIOS flash utility ....................................................................................... 30
4. Troubleshooting Tips .........................................................................31
5. Appendix ........................................................................................... 32
5.1. How to reflash the BIOS ........................................................................... 32
5.2. Resolutions and color depth table (In Windows®XP) ............................... 33

Introduction- 3 -
English
1. Introduction
1.1. Features
•Powered by NVIDIA®GeForce™FX 5950 Ultra Graphics Processing Unit (GPU)
•Supports the new AGP 8X and latest DirectX 9.0
•Integrated with 256MB DDR memory
•Features DVI-I, TV-Out and D-Sub connectors
•Supports video capture for video editing (VIVO)
1.2. Minimum system requirement
•IBM®or 100% PC compatible with Pentium®III 650MHz or AMD Athlon 650MHz
class processor or higher
•One available AGP3.0 compliant slot or better
•Operating Systems Win®98/98SE / Win®2000 / Win®ME / Win®XP
•64MB system memory
•50MB of available disk space for full installation
•CD-ROM or DVD-ROM drive

GV-N595U256V Graphics Accelerator - 4 -
English
2. Hardware Installation
2.1. Unpacking
The GV-N595U256V / GV-N595U-GT package contains the following:
The GV-N595U256V or GV-N595U-GT graphics accelerator
GV-N595U256V / GV-N595U-GT user's manual
NVIDIA Series driver and utility CD
PowerDVD CD
Game CD
S-video and AV in/output cable x 1
DVI-I to D-Sub connector
Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect
them against damage from static electricity, you should follow some precautions
whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the power
supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static
electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator should
be wearing an anti-static wristband, grounded at the same point as the anti-static mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage to
your card. Be sure there are no shipping and handling damages on the card before proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON THE CARD.
In order to ensure your graphics card working correctly, please use official Gigabyte
BIOS only. Use none official gigabyte BIOS might cause problem on the graphics
card.

Hardware Installation- 5 -
English
VIVO
VGA Monitor
Connector
(15pin)
DVI-I Connector
VIVO
VGA Monitor
Connector
(15pin)
DVI-I Connector

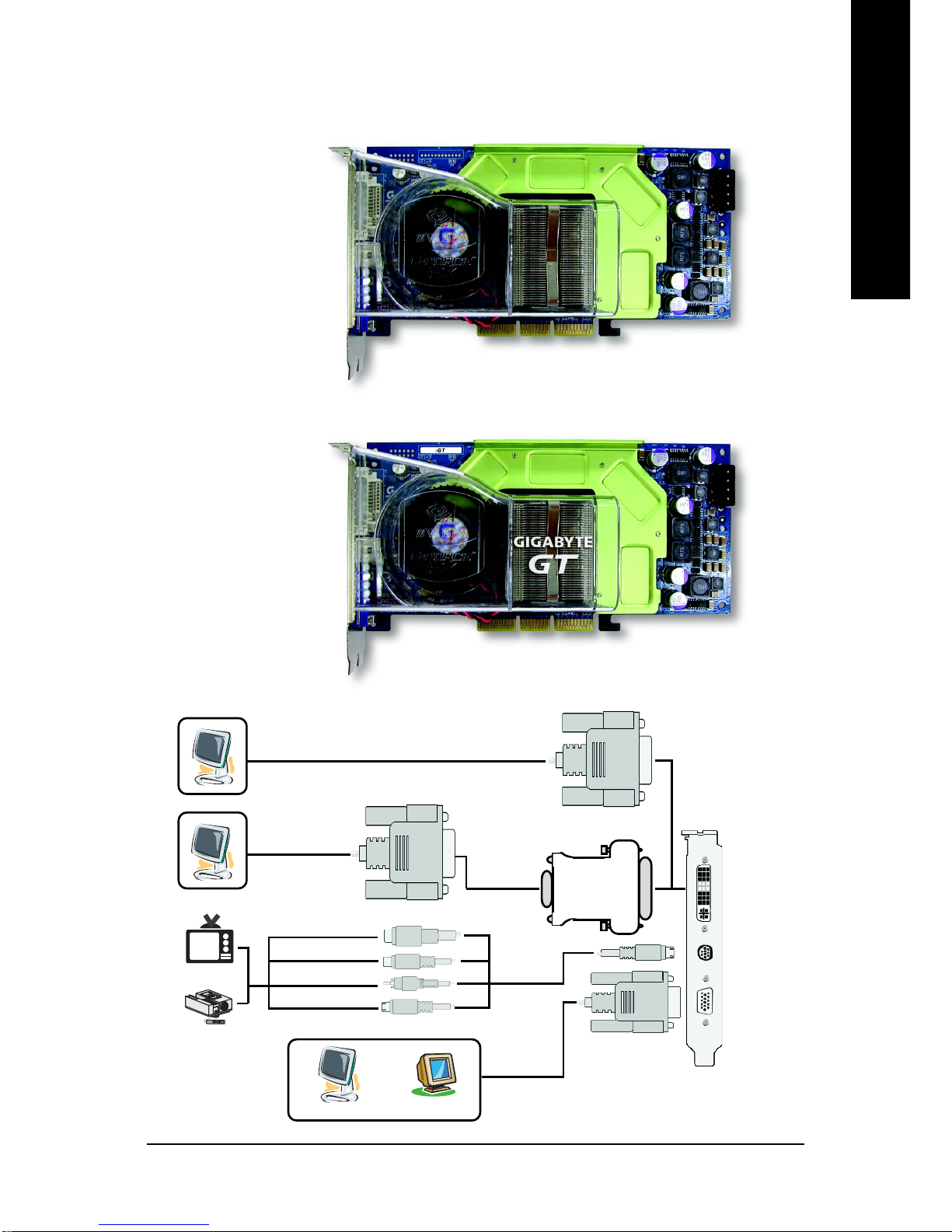

2.2. Board layout
1) GV-N595U256V
2) GV-N595U-GT
VIVO
VGA Monitor
Connector
(15pin)
DVI-I Connector
NTSC / PAL
Projector
Analog LCD Monitor Analog Monitor
OR VGA Output
Analog LCD Monitor
Digital LCD Monitor
DVI Output
DVI-I to D-Sub Connector
VGA Output
AV Output
S-Video Output
S-Video Input
AV Input

GV-N595U256V Graphics Accelerator - 6 -
English

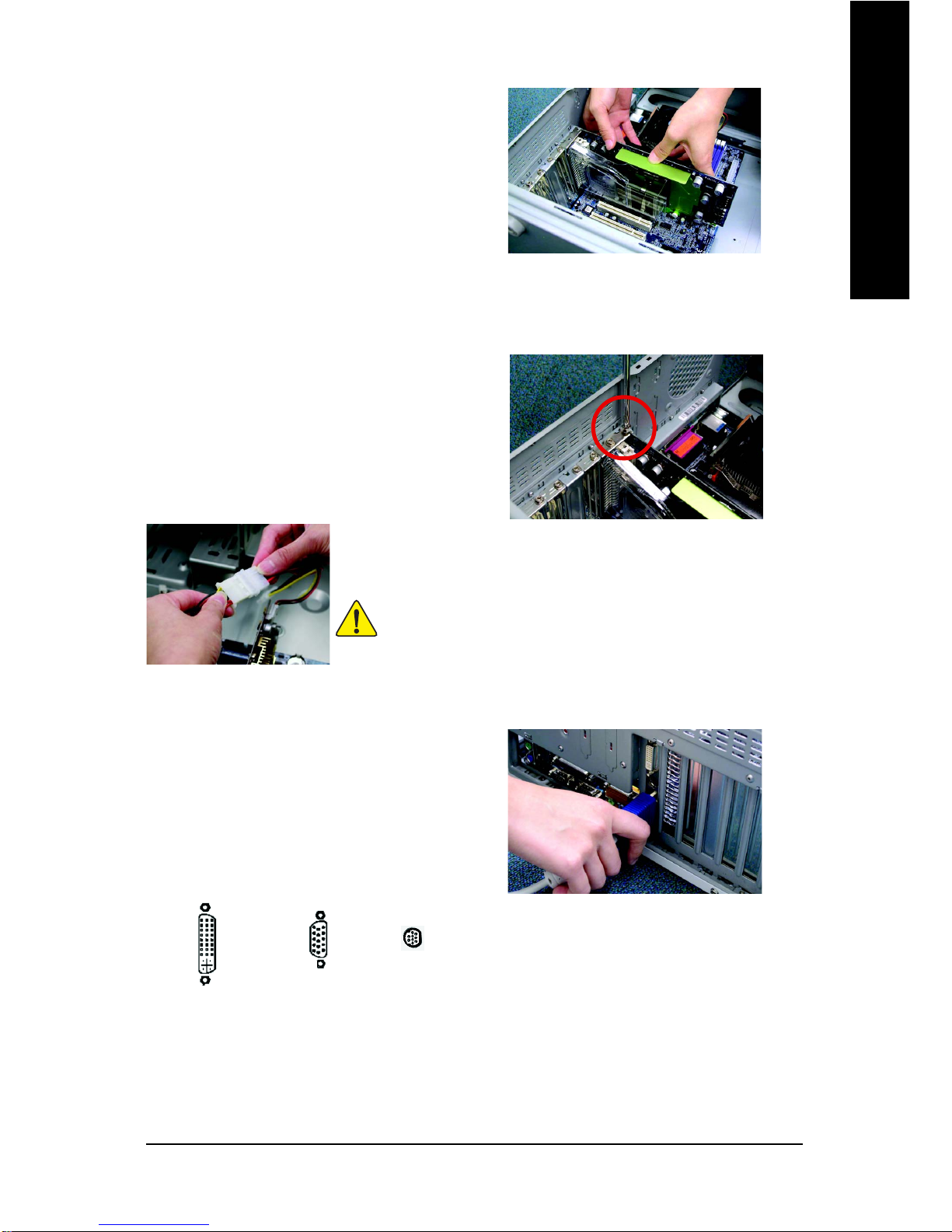

2.3. Hardware installation
Installing Your graphics card.
Now that you have prepared your computer, you are ready to install your graphics
accelerator card.
To install your graphics accelerator card:
1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help
in removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to
disable it on the motherboard. For more
information, see your computer
documentation.

Hardware Installation- 7 -
English
4. Locate the AGP slot. If necessary, remove
the metal cover from this slot; then align
your graphics card with the AGP slot, and
press it in firmly until the card is fully eated.
5. Replace the screw to fasten the card in
place, and replace the computer cover.
6. Plug the display cable into your card; then
turn on the computer and monitor. If your
graphics card came with a DVI connector,
you can connect a flat panel display to the
appropriate connector, as shown below...
You are now ready to proceed with the installation of the graphics card driver. For detailed
instructions, select your operating system from the list below.
To VGA Monitor
To Flat Panel Display
After installation, please connect the power cable to your
GV-N595U256V graphics card, or system will not boot.
9 Pin (VIVO)

GV-N595U256V Graphics Accelerator - 8 -
English
3. Software Installation
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
The installation of Win®98/98SE / Win®2000 / Win®ME / Win®XP drivers is very simple.
When you insert the driver CD into your CD-ROM drive, you can see the AUTORUN
window (if it does not show up, run "D:\setup.exe"). Then you can follow the guides to
setup your graphics card driver. (Please follow the subsection 3.1.3 "Driver installation"
to install the driver for your graphics accelerator.)
3.1. Win®XP driver and utilities installation
3.1.1. Operating system requirement
•When loading the graphics card drivers for the system, please make sure your
system has installed DirectX 9 or later version.
•If you install the graphics card drivers for the motherboard, which consist of SIS,
ALI or VIA chipsets, please install the appropriate driver program for that
motherboard. Or please contact your motherboard nearest dealer for motherboard
driver.

Software Installation- 9 -
English

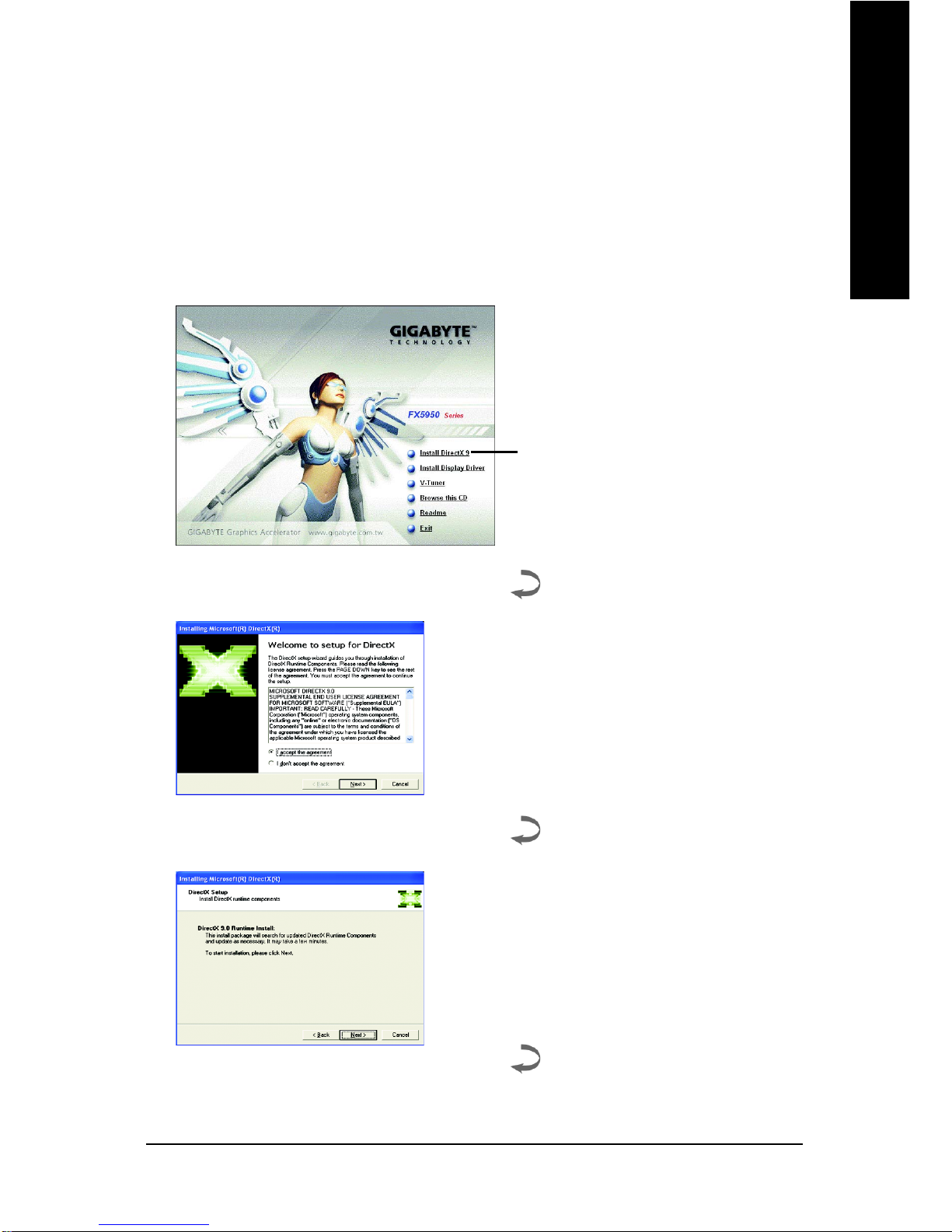

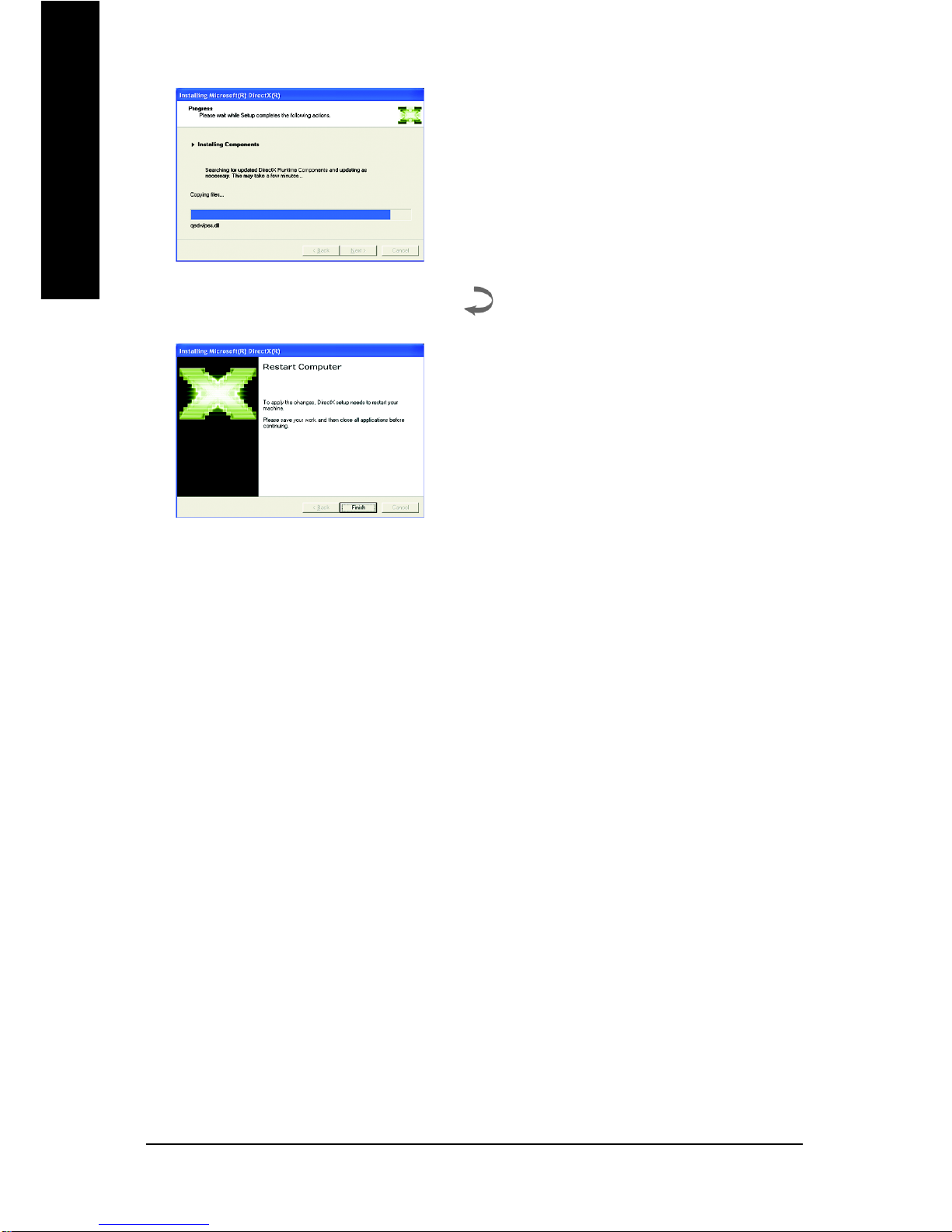

3.1.2. DirectX installation
Install Microsoft DirectX to enable 3D hardware acceleration support for Windows®98/
98SE / Windows®2000 / Windows®ME or Windows®XP to achieve better 3D performence.
0Note: For software MPEG support in Windows®98/ 98SE/ Windows®2000 / Windows®
ME or Windows®XP, you must install DirectX first.
Click "Install DirectX 9" item.
Step 2. Choose I accept the agreement and
Click "Next" button.
Step 3. Click "Next" button.
Step 1. When autorun window show up,
click Install DirectX 9 item.

GV-N595U256V Graphics Accelerator - 10 -
English
Step 4. Click "Finish" to restart computer.
Then the DirectX 9 installation is completed.
Installing the components.

Software Installation- 11 -
English
3.1.3. Driver installation
A. New hardware found
After the graphics card is inserted into your computer at the first time, the windows will
automatically detect a new hardware in the system and pop out a "New Hardware Found"
message. The following is the step-by-step installation guide.
Step 1: Found new hardware wizard: Video controller (VGA Compatible)
Click "Next" button to install the driver. (There is
a driver CD disk that came with your graphics
accelerator, please insert it now.)
Or click the "Cancel" button to install the driver
from AUTORUN window.
Step 2: Found new hardware wizard: Searching and installing
The wizard will search for the driver and install it automatically.
Step 3: Found new hardware wizard: Finish
Click the "Finish" button to finish the installation.

GV-N595U256V Graphics Accelerator - 12 -
English
B. Driver installation (Autorun Window)
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
Step 2. Click "Next" button.
Step 1. When autorun window show up,
click Install Display Driver item.
Windows installings the components.
Click "Install Display Driver" item.
Click "Install Display Driver" item.

Software Installation- 13 -
English
Step 1. When autorun window show up,
click Install Display Driver item.
Click "Install Display Driver" item.
Step 3. Click "Finish" button to restart computer.
Then the driver installation is completed.

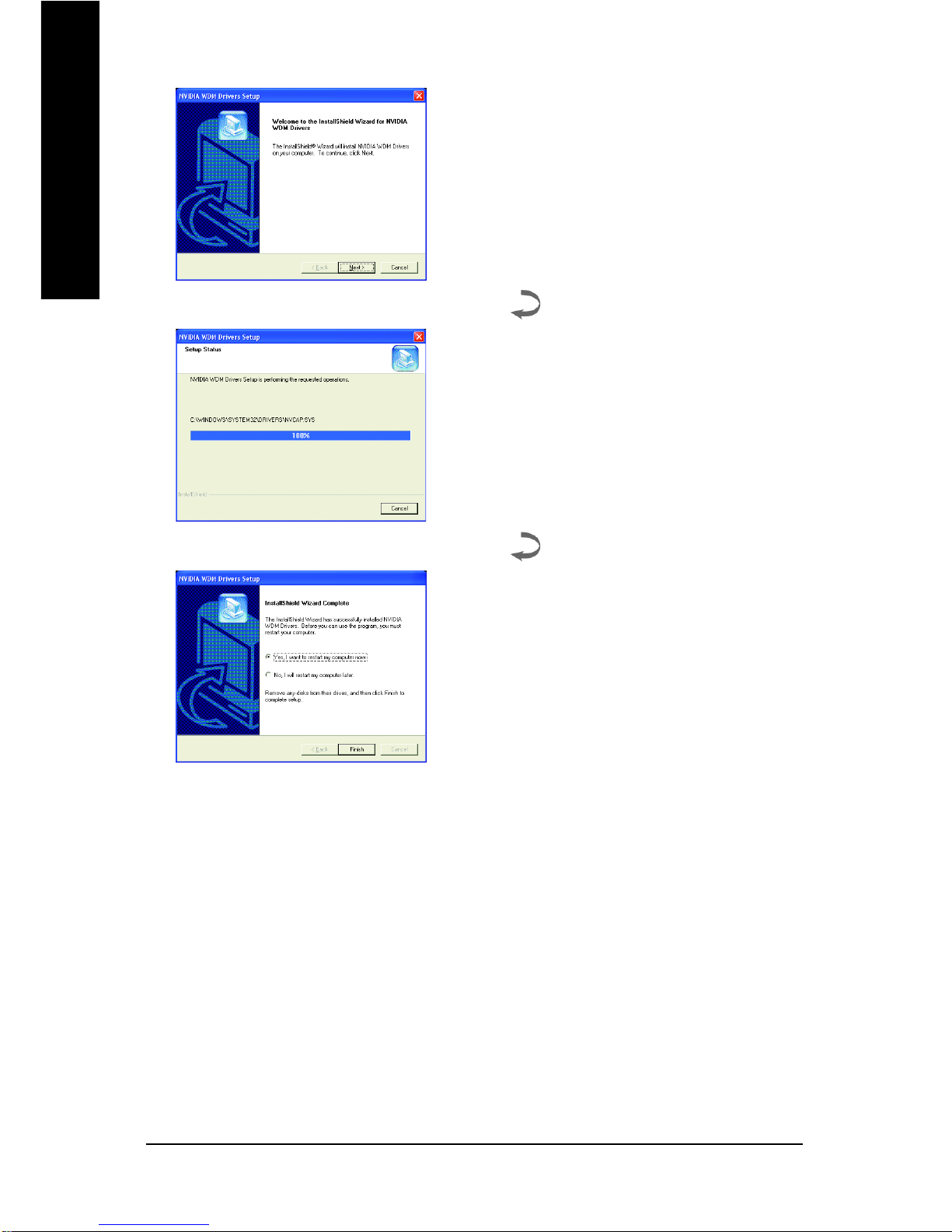

C. Driver installation (WDM Driver)
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
Click "WDM Driver" item.

GV-N595U256V Graphics Accelerator - 14 -
English
Step 2. Click "Next" button.
Windows installings the components.
Step 3. Click "Finish" button to restart computer.
Then the driver installation is completed.

Software Installation- 15 -
English
3.1.4. Utilities on driver CD
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
•Install V-Tuner:
Step 3. Enter your name and company.
Step 4. Click "Finish" button to restart computer.
Then the V-Tuner installation is completed.
Step 2. Click "Next" button.
Step 1. When autorun window show up,
click V-Tuner item.
Click "V-Tuner" item.

GV-N595U256V Graphics Accelerator - 16 -
English
Display Memory Clock
Close V-Tuner
Min. V-Tuner
Display Core Clock
Display & Adjust
Core Clock
Link to the Website of Gigabyte Help Description Close V-Tuner to
System Tray
Display & Adjust
Memory Clock
V-Tuner (Overclock Utility)
V-Tuner lets you adjust the working frequency of the graphic engine and video memory
(Core Clock and Memory Clock).

Software Installation- 17 -
English
3.1.5. Taskbar icon
After installation of the display drivers, you will find a GBT icon on the taskbar's
status area. Right-clicking this icon opens the GBT control panel, showing a menu
composed of shortcut of the graphics card's enhanced and other functions.
You may click the "Display Properties" item, and then click Settings. Click "Advanced"
after clickng Settings. Click the appropriate tab to change your display settings.
Right click the icon.
You can link to GBT website for updated information about the
graphics accelerator, latest drivers, and other information.
Click "VGA Information" item
into the "VGA Info" and "Color
Adjust" tabs.

GV-N595U256V Graphics Accelerator - 18 -
English
VGA Information
VGA Info lists the relevant information about your card.
Color Adjust
Color Adjust allows you to make color adjustments, such as brightness, contrast and
gamma values for each or all of RGB colors.
