User's Manual

Rev. 101

12MD-RX3HM2P-101R

GV-RX30HM256DP-RH

Radeon X300SE Graphics Accelerator

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

GV-RX30HM256DP-RH Graphics Accelerator

- 2 -

English

Table of Contents

1. Introduction ......................................................................................... 3

1.1. Features ..................................................................................................... 3

1.2. Minimum System Requirement .................................................................. 3

2. Hardware Installation........................................................................... 4

2.1. Board Layout .............................................................................................. 4

2.2. Hardware Installation ................................................................................... 6

3. Software Installation ............................................................................ 8

3.1. Windows®XP Driver and Utilities Installation ................................................. 8

3.1.1. Operating System Requirement ................................................................................... 8

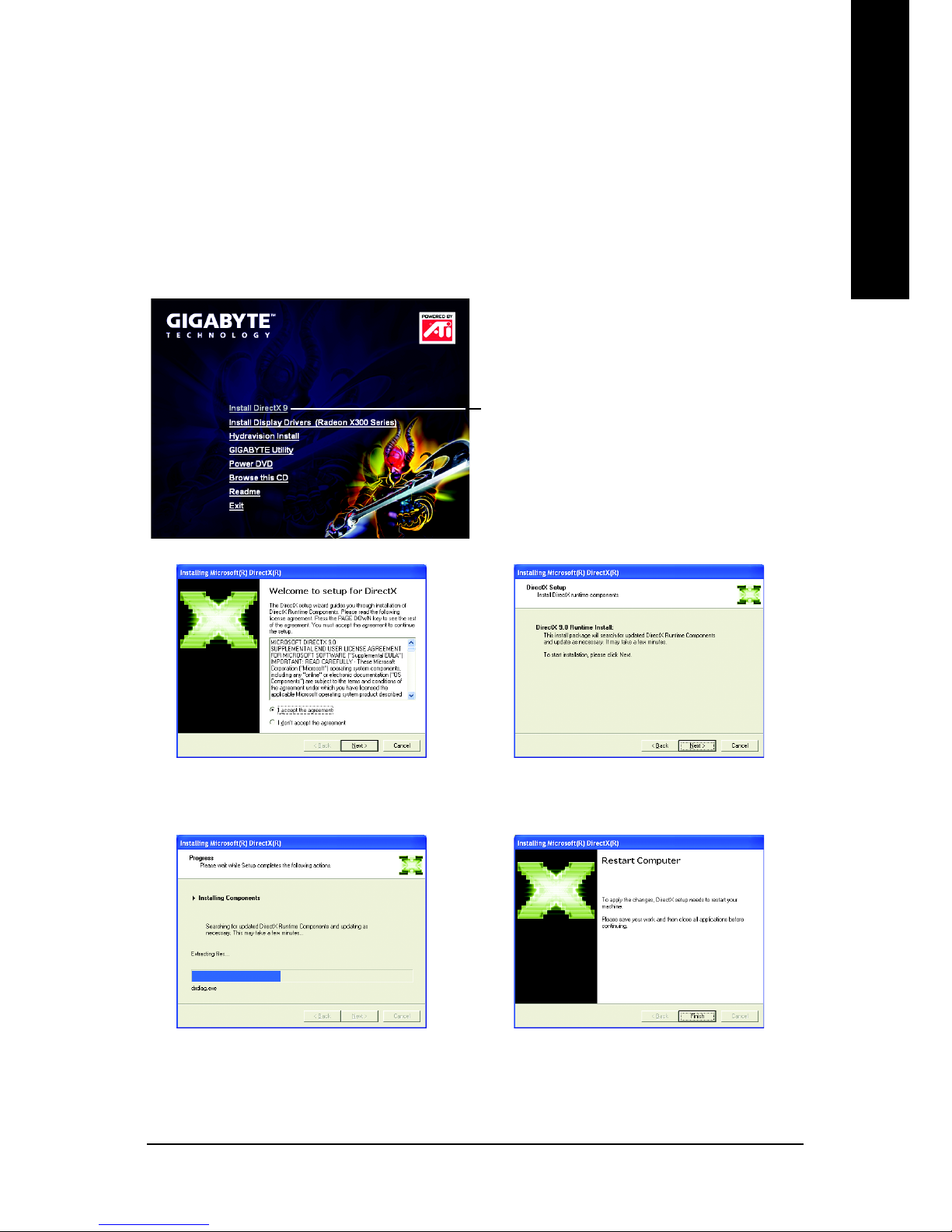

3.1.2. DirectX Installation .......................................................................................................... 9

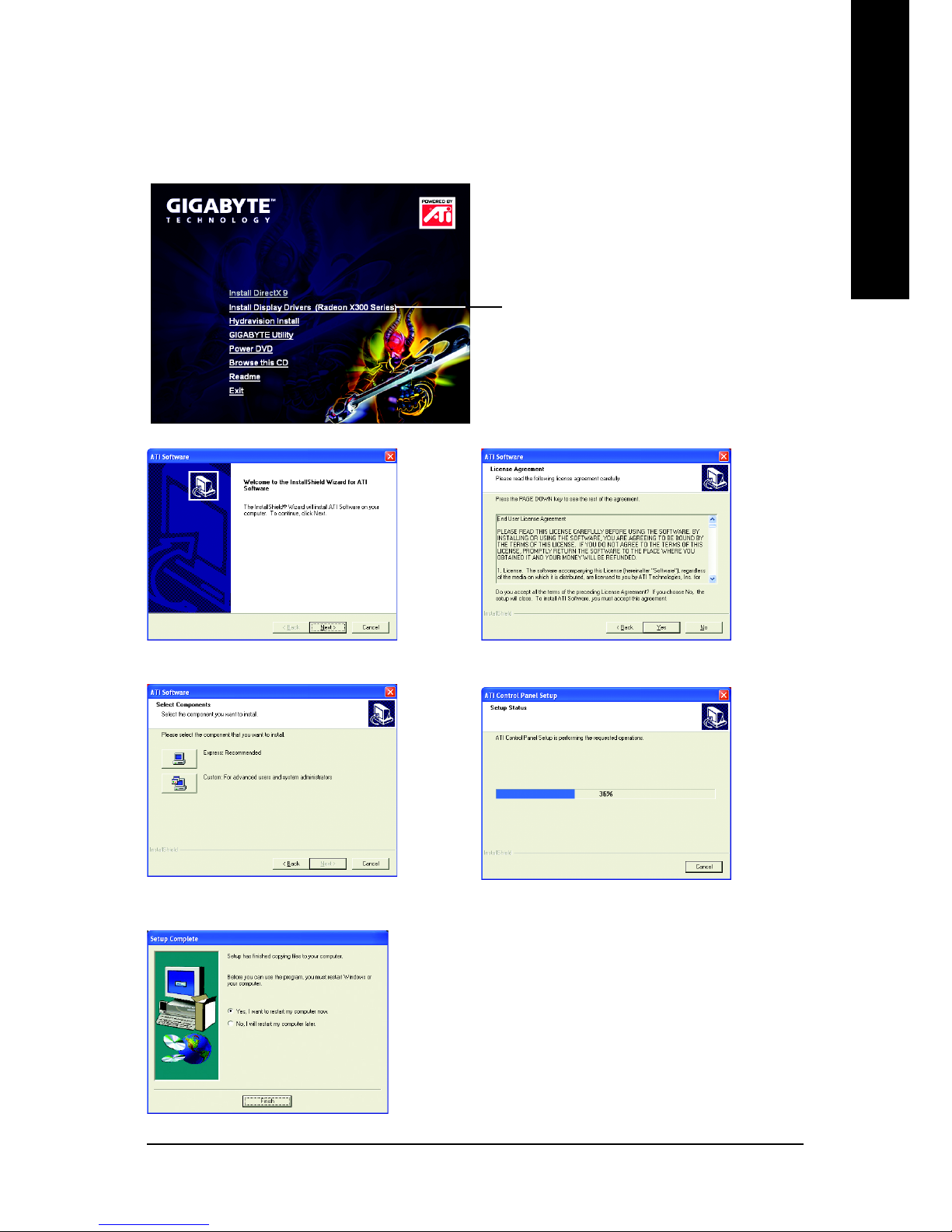

3.1.3. Driver Installation .......................................................................................................... 10

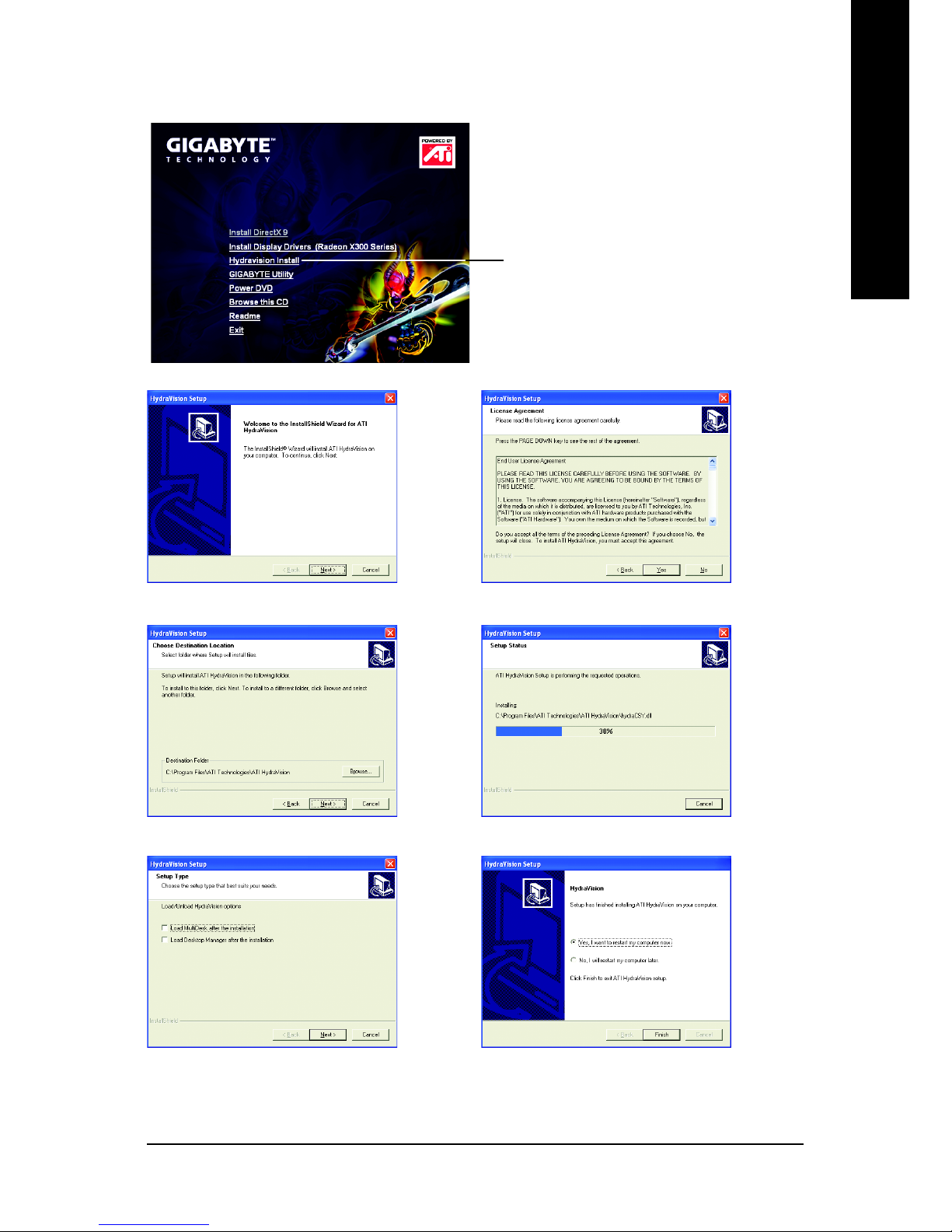

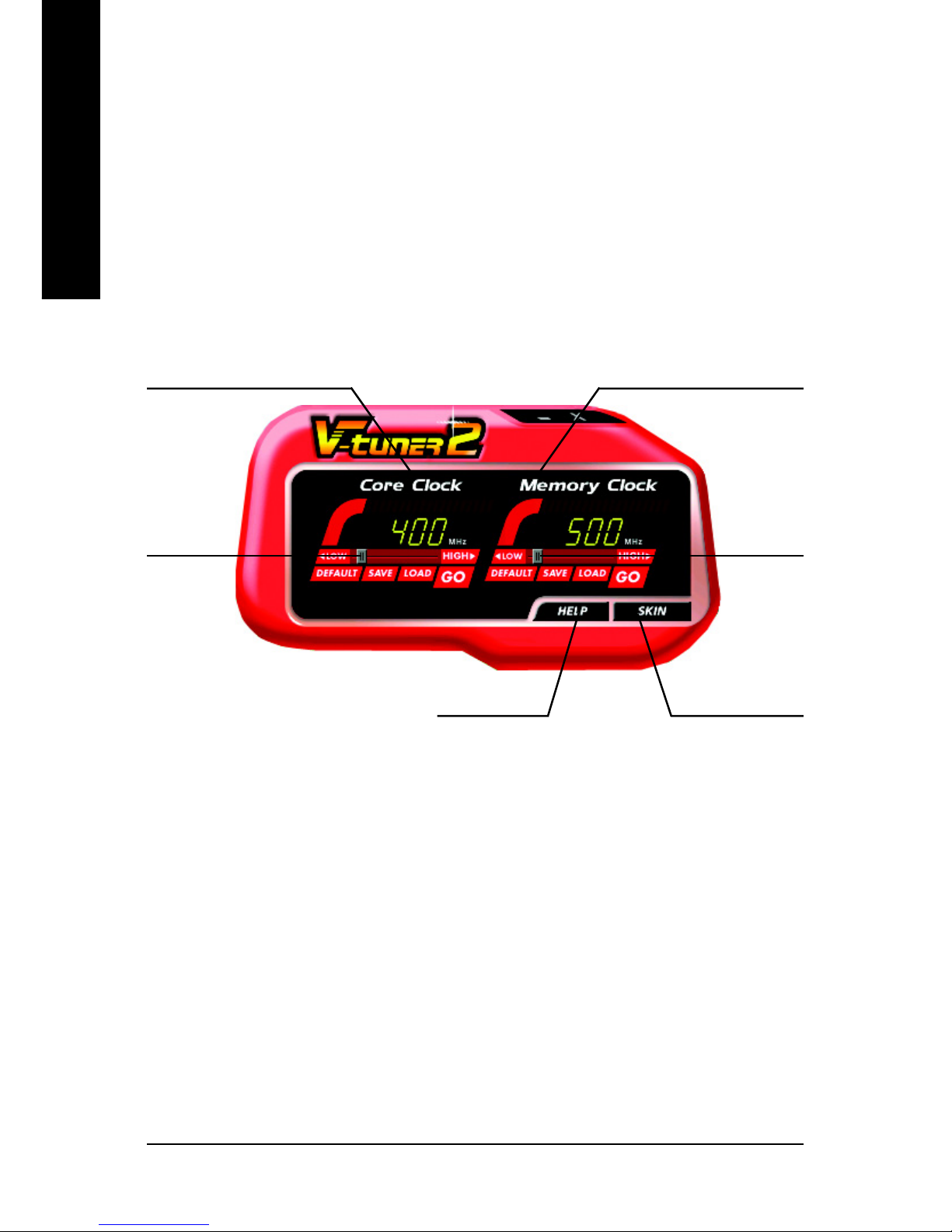

3.1.4. Utilities on Driver CD ................................................................................................... 12

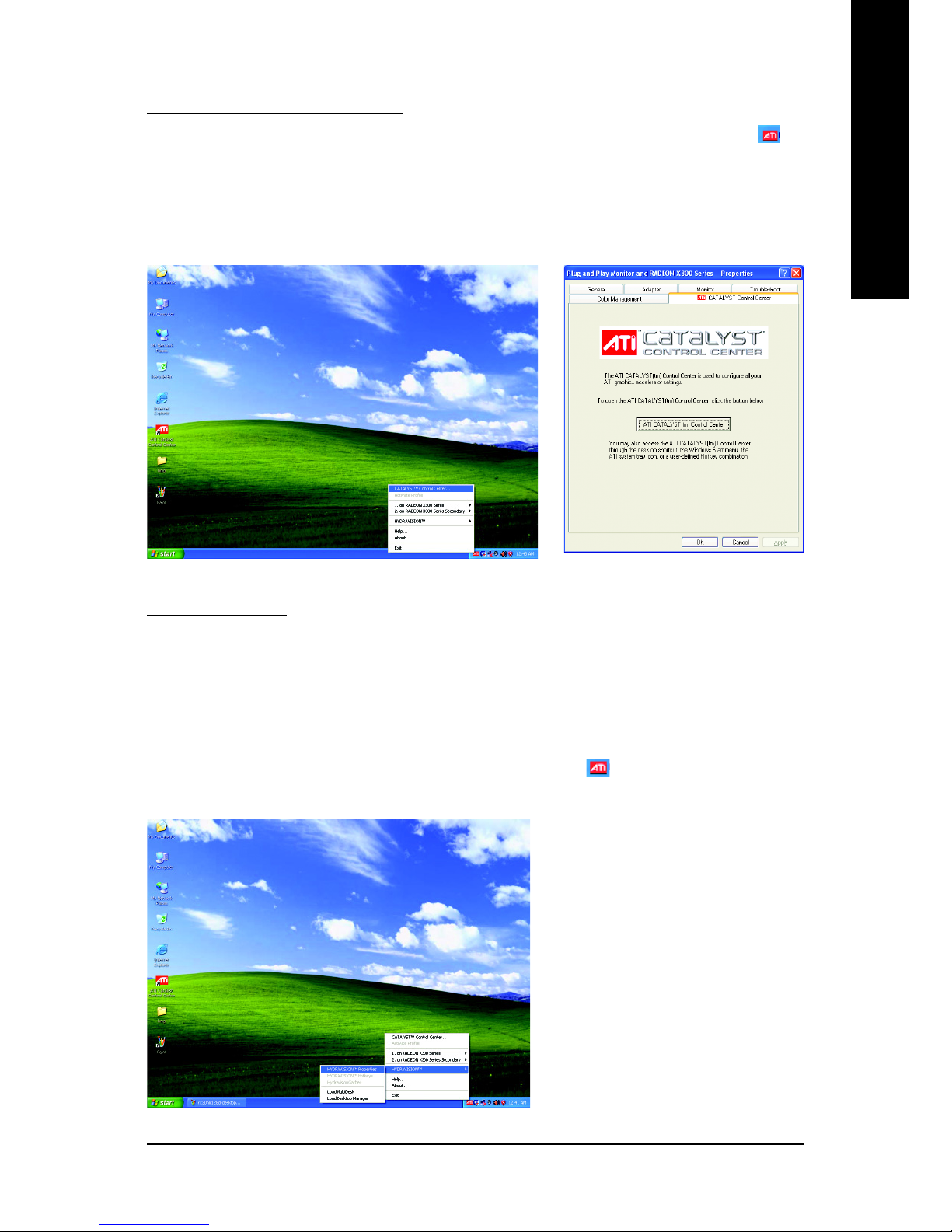

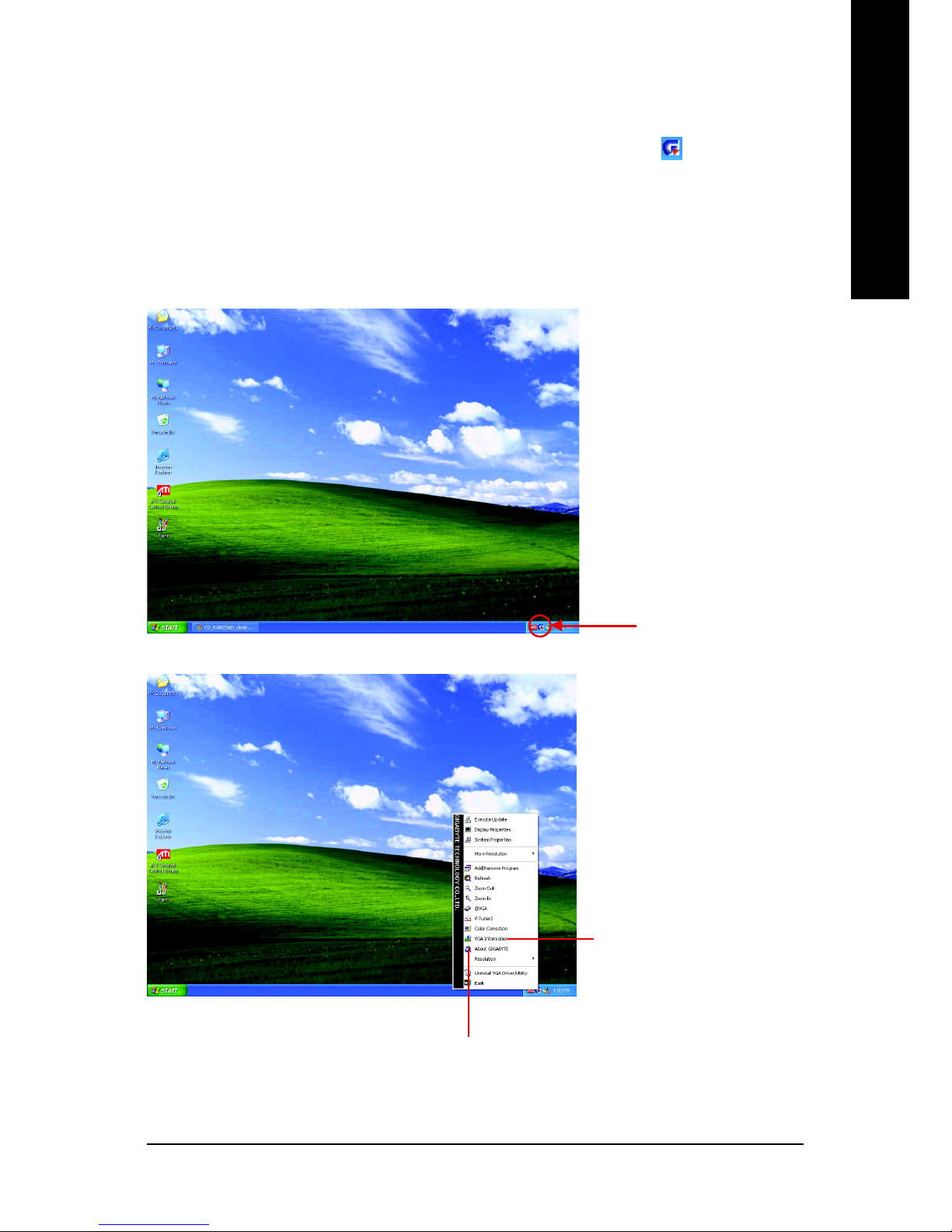

3.1.5. Taskbar Icon ................................................................................................................. 15

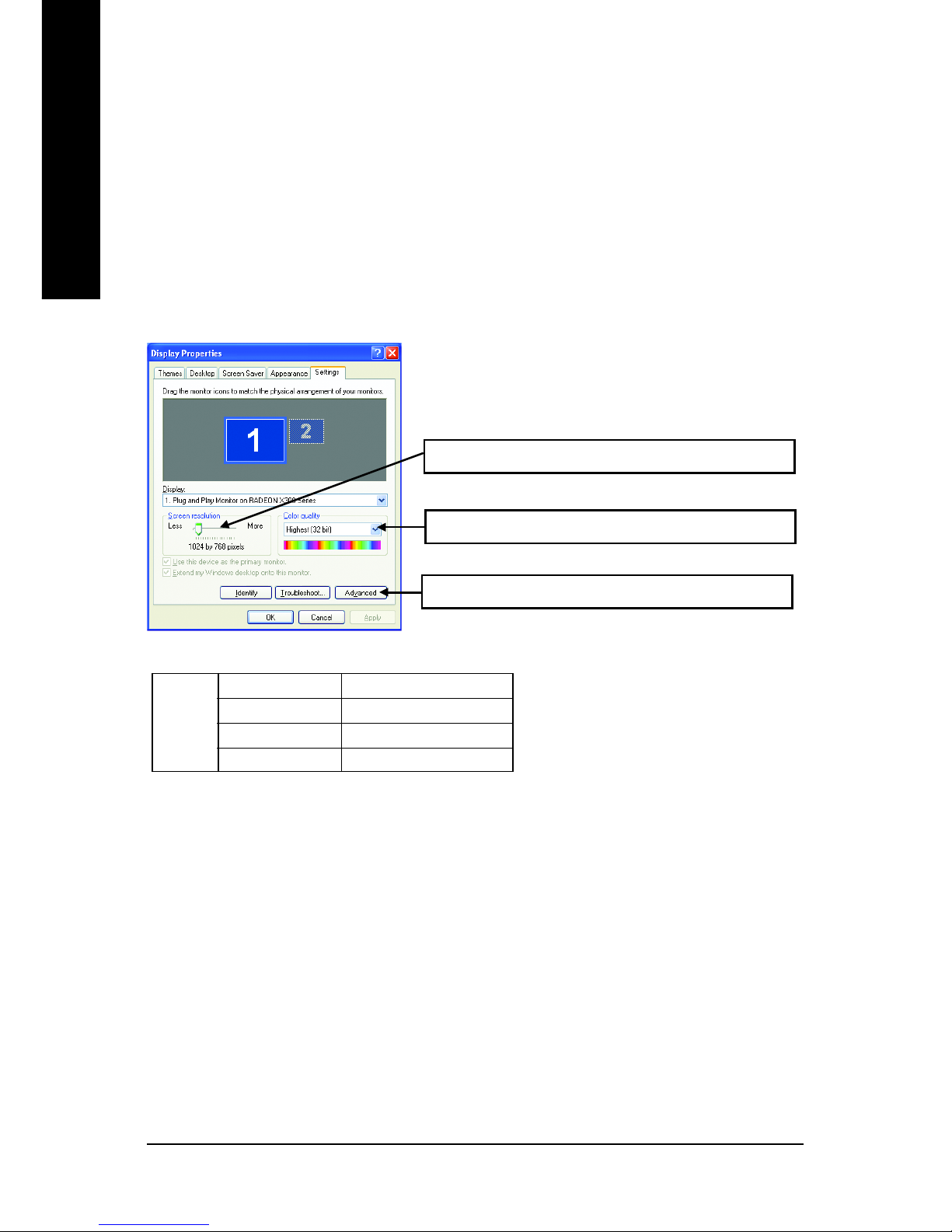

3.1.6. Display Properties pages ............................................................................................ 18

3.2. Windows®2000 Driver Installation ............................................................. 31

4. Troubleshooting Tips ......................................................................... 32

5. Appendix ...........................................................................................33

5.1. How to Reflash the BIOS .......................................................................... 33

5.1.1. Reflash BIOS in MS-DOS mode .................................................................................... 33

5.1.2. Reflash BIOS in Windows mode .................................................................................... 33

5.2. Resolutions and Color Depth Table (In Windows®XP) ............................. 34

Introduction- 3 -

English

1. Introduction

1.1. Features

•Powered by ATI X300SE with HyperMemoryTM Technology Visual Processing

Unit (VPU)

•Supports the newest PCI Express x 16

•Supports 256MB DDR memory (Local on-board memory is 128MB DDRII)

•Supports DirectX 9.0

•Supports TV-Out connector

•Supports DVI-I connector

•Supports AV / S-Video and HDTV output

•Supports TV-Out and D-Sub connector

1.2. Minimum System Requirement

•IBM®or 100% PC compatible with Pentium®III 650MHz or AMD Athlon 650MHz

class processor or higher

•One PCI Express x 16 slot

•Operating Systems Windows®2000 / Windows®XP

•64MB system memory

•50MB of available disk space for full installation

•CD-ROM or DVD-ROM drive

GV-RX30HM256DP-RH Graphics Accelerator

- 4 -

English

TV-Out

VGA Monitor Connector

(15pin)

DVI-I Connector

TV-Out

VGA Monitor

Connector

(15-pin)

DVI-I Connector

NTSC / PAL TV

Projector

Analog LCD Monitor Analog Monitor

VGA Output

Analog LCD Monitor

Digital LCD Monitor

DVI Output

DVI-I to D-Sub

Adapter

VGA Output

S-Video Output

HDTV

Pb/AV Output

2. Hardware Installation

2.1. Board Layout

Hardware Installation- 5 -

English

Expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow

some precautions whenever you work on your computer.

1. Turn off your computer and unplug power supply.

2. Use a grounded wrist strap before handling computer components. If you do not

have one, touch both of your hands to a safely grounded object or to a metal object,

such as the power supply case.

3. Place components on a grounded antistatic pad or on the bag that came with the

components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by

static electricity, so the card should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat. The operator

should be wearing an anti-static wristband, grounded at the same point as the anti-

static mat.

Inspect the card carton for obvious damage. Shipping and handling may cause damage

to your card. Be sure there are no shipping and handling damages on the card before

proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON

THE CARD.

In order to ensure your graphics card working correctly, please use official

Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem

on the graphics card.

GV-RX30HM256DP-RH Graphics Accelerator

- 6 -

English

2.2. Hardware Installation

Installing Your Graphics card.

Now that you have prepared your computer, you are ready to install your graphics

accelerator card.

To install your graphics accelerator card:

1. Power off the computer and monitor, then

disconnect the display cable from the back

of your computer.

2. Remove the computer cover. If necessary,

consult your computer's manual for help

in removing the cover.

3. Remove any existing graphics card from

your computer.

Or, if your computer has any on-board

graphics capability, you may need to

disable it on the motherboard. For more

information, see you computer

documentation.

Hardware Installation- 7 -

English

5. Replace the screw to fasten the card in

place, and replace the computer cover.

You are now ready to proceed with the installation of the graphics card drivers. Please

refer to next chapter for detailed instructions.

4. Locate the PCI Express x 16 slot. If

necessary, remove the metal cover from this

slot; then align your graphics card with the

PCI Express x 16 slot, and press it in firmly

until the card is fully seated.

6. Plug the display cable into your graphics

card; then turn on the computer and monitor.

To connect a flat panel directly to your graphics

card, use the DVI-I connector. To connect a

VGA monitor to the DVI-I connector, plug

the DVI-I to D-sub adapter into the DVI-I

connector, then plug the monitor cable into

the adapter.

Connect a flat panel

To Flat Panel Display

To TV or VCR To VGA Monitor

(only for GV-RX30HM256DP-RH)

GV-RX30HM256DP-RH Graphics Accelerator

- 8 -

English

3. Software Installation

In this manual, we assume that your CD-ROM Drive letter to be Drive D:

The installation of Windows®2000 / Windows®XP drivers is very simple. When you insert

the driver CD into your CD-ROM drive, you can see the AUTORUN window (if it does not

show up, run "D:\setup.exe"). Then you can follow the guides to setup your graphics card

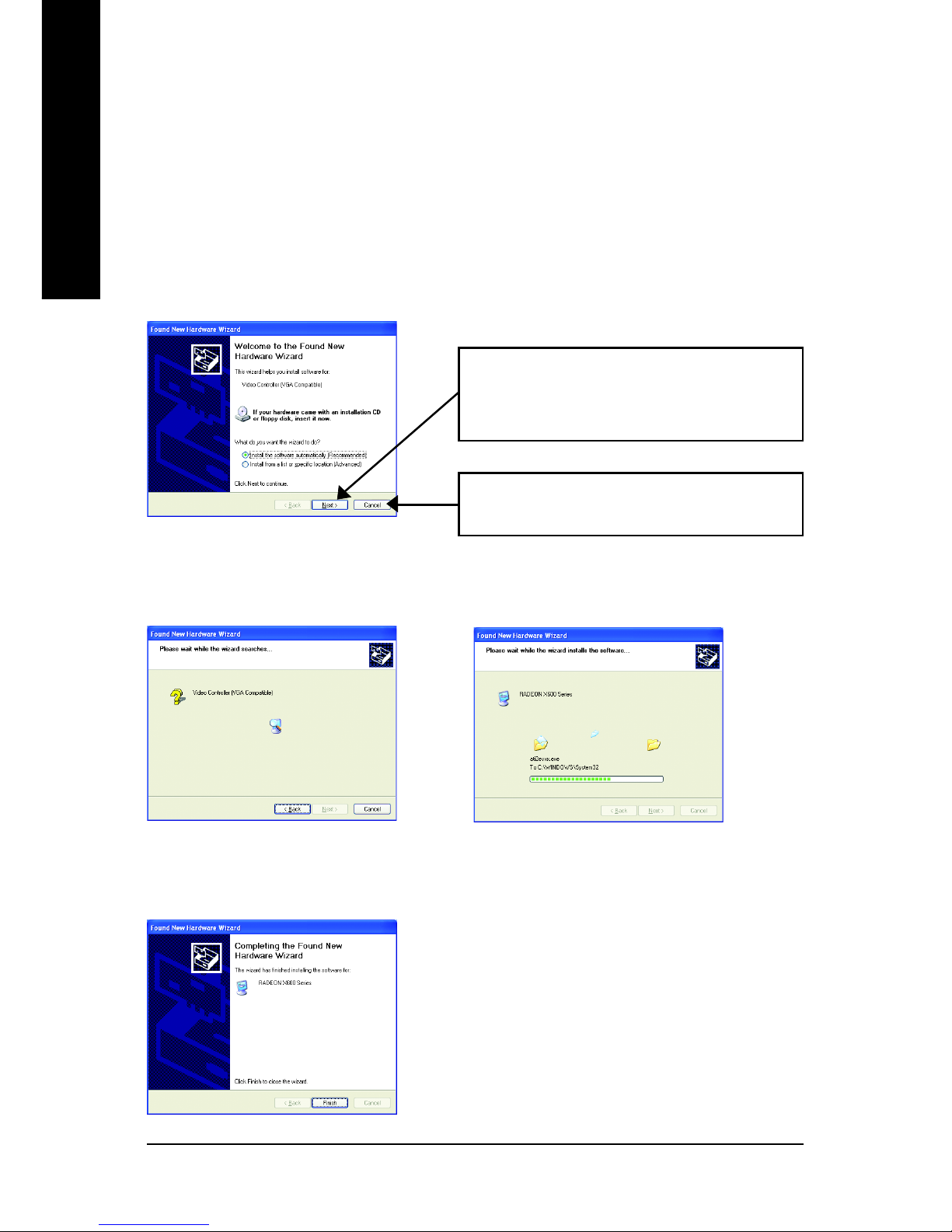

driver. (Please follow the subsection 3.1.3 "Driver installation" to install the driver for your

graphics accelerator.)

3.1. Windows®XP Driver and Utilities Installation

3.1.1. Operating System Requirement

•When loading the graphics card drivers for the system, please make sure your

system has installed DirectX 9 or later version.

•If you install the graphics card drivers for the motherboard, which consist of SIS, or

VIA chipsets, please install the appropriate driver program for that motherboard.

Or please contact your motherboard nearest dealer for motherboard driver.
