Gigabyte GV-N98XP-512H-B User manual

GV-N98XP-512H-B
GeForceTM 9800 GTX+ GraphicsAccelerator
User's Manual
Rev. 101
12MM-N98XP5-101R
Copyright
© 2008GIGABYTETECHNOLOGYCO.,LTD
CopyrightbyGIGA-BYTETECHNOLOGYCO.,LTD.("GBT").Nopartofthismanualmay bereproducedortransmitted
inanyformwithouttheexpressed,writtenpermissionof GBT.
Trademarks
Third-partybrandsandnamesarethepropertiesoftheirrespectiveowners.
Notice
Pleasedo notremoveany labelson thisgraphicscard.Doingso may voidthewarrantyofthiscard.
Duetorapidchangeintechnology,someofthespecificationsmightbeoutofdatebeforepublicationofthisthismanual.
The authorassumes noresponsibilityforanyerrorsoromissionsthatmayappearinthisdocumentnordoestheauthor
makeacommitmenttoupdatetheinformationcontainedherein.
Macrovision corporation product notice:
ThisproductincorporatescopyrightprotectiontechnologythatisprotectedbyU.S.patentsandotherintellectualproperty
rights.UseofthiscopyrightprotectiontechnologymustbeauthorizedbyMacrovision,andisintendedforhomeandother
limitedviewingusesonlyunlessotherwiseauthorizedbyMacrovision.Reverseengineeringordisassemblyisprohibited.

VGA Card
GV-N98XP-512H-B
Jul. 2, 2008
VGA Card
GV-N98XP-512H-B
Jul. 2, 2008

- 3 -
Table of Contents
1.Introduction ................................................................................................................ 4
1.1.Features ......................................................................................................................... 4
1.2.Minimum SystemRequirements .................................................................................... 4
2.HardwareInstallation.................................................................................................. 5
2.1.BoardLayout ................................................................................................................. 5
2.2.HardwareInstallation......................................................................................................8
3.SoftwareInstallation.................................................................................................. 13
3.1.Windows®XPDriverandUtilitiesInstallation ............................................................... 13
3.1.1. Operating System Requirements .............................................................................. 13
3.1.2. DirectX Installation........................................................................................................ 14
3.1.3. Driver Installation ......................................................................................................... 15
3.1.4. Taskbar Icon................................................................................................................. 17
3.1.5. Display Properties Pages........................................................................................... 18
3.1.6. nView Properties Pages (Note) ...................................................................................... 29
4.TroubleshootingTips................................................................................................ 34
5.Appendix ................................................................................................................. 35
5.1. How to Reflash the BIOS in MS-DOS Mode.............................................................. 35
5.2.ResolutionsandColorDepthTable(InWindowsXP)................................................... 36
RegulatoryStatements ................................................................................................. 38
(Note) This item will show up when you connect two monitors.

- 4 -GV-N98XP-512H-B Graphics Accelerator
1. Introduction
1.1. Features
• Powered by NVIDIA®GeForceTM 9800 GTX+ Graphics Processing Unit (GPU)
• Supports PCI Express 2.0
• Integratedwith512MBGDDR3memory
• SupportsDirectX10
• SupportsNVIDIA®SLITM (Scalable Link Interface) technology(Note1)
• Supports2DVI-Iconnectors
• SupportsHDMIconnector(byadapter)
• Supports2D-Subconnectors(byadapter)
• SupportsHDCP(High-BandwidthDigitalContentProtection)technology
1.2. Minimum System Requirements
•Hardware
- 450-wattpower supplyorgreaterwith minimum12Vcurrentratingof24A.(Note 2)
- Intel®Pentium®/CoreTM 2orAMDAthlonTM/PhenomTM
- 512MBof system memory;2GB or moreforbest performance
- Opticaldrivefor software installation(CD-ROM or DVD-ROMdrive)
•OperatingSystem
- Windows®Vista
- Windows®XP with Service Pack 2 (SP2)
- Windows®XPProfessionalx64Edition
•SLITM Configuration
If you are planning on using this graphics card as part of an SLI system, the following
arerequired:
- AnSLIcertifiedmotherboardwithtwoPCIExpressx16slotsandcorrectchipsetdriver
- TwoGV-N98XP-512H-B
- Apowersupply with 750-watt oraboveisrecommended
- AnSLIbridgeconnector
(Note 1) SLI technology requires a PCI Express motherboard with two x16 physical connectors.
Graphics cards working in an SLI configuration must be with the same model name
(e.g. GV-N98XP-512H-B) and from the same vendor (e.g. GIGABYTE TECHNOLOGY).
(Note 2) The minimum system power requirement recommended here is based on a PC configured
with an Intel Core 2 Extreme processor (QX6700).

- 5 - Hardware Installation
2. Hardware Installation
2.1. Board Layout
TV-Out
DVI-I
Connector 1
DVI-I
Connector 2
AnalogLCDMonitor AnalogMonitor
or DVI-I to D-Sub
Adapter
HDTV
NTSC/PALTV Projector
NTSC/PALTV Projector
or
or
Pr
Pb/AV Output
S-Video Output
Digital LCD Monitor
DVI Output
DVI-I to HDMI Adapter
D-Sub
Output
HDMI TV
Y
SLI Connector
TV-Out
DVI-I Connector 1
DVI-I Connector 2

- 6 -GV-N98XP-512H-B Graphics Accelerator
The GV-N98XP-512H-B graphics card is a performance optimized high-end card. Power is taken from
the PCI Express host bus as well as the two 6-pin PCI Express power connectors.
Without auxiliary power provided to the GV-N98XP-512H-B graphics card, an LED on the bracket goes
red and the graphics card will not boot. In addition, the connector that is not adequately powered will turn
red.
The table below outlines the different possible scenarios as well as the resulting behaviors.
6-pin PCIe Power 6-pin PCIe Power Result
Connector (upper) Connector (lower)
Connected Connected Full Power
Not Connected Connected LED light is red- graphics card will not boot
Connected Not Connected LED light is red- graphics card will not boot
Not Connected Not Connected LED light is red- graphics card will not boot

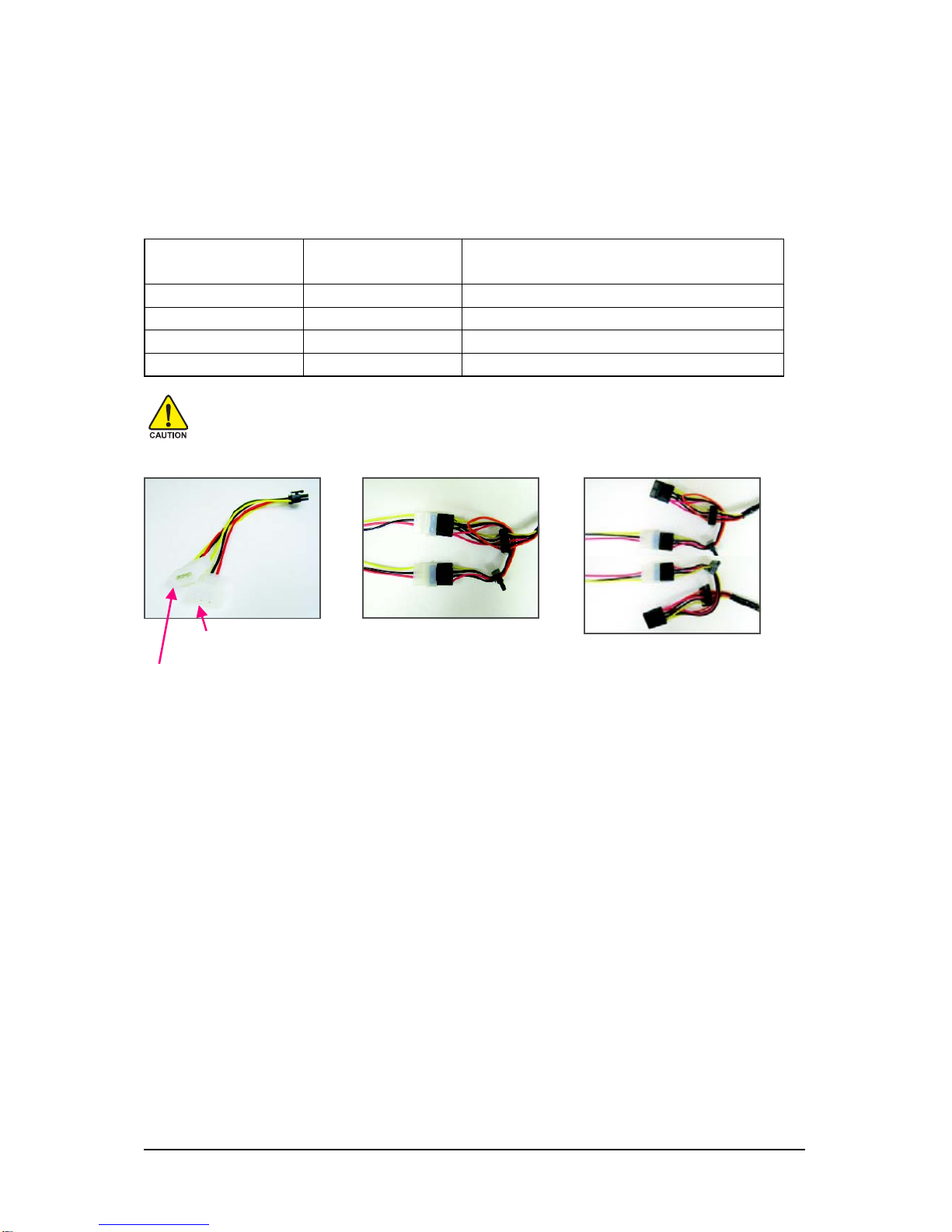

If you want to use the included 6-pin power adapters, make sure at least 12V/15A current is
supplied to each 4-pin power connector on the adapters. Failure to do so may jeopardize the
stability of the graphics card.
Incorrect Connection
(The two 4-pin power connectors on
theadapterareconnectedtothesame
system power supply cable.)
Correct Connection
(The two 4-pin power connectors on the
adapter are connected to two independent
system power supply cables.)
Requires at least 12V current
rating of 15A
6-pin Power
Adapter
Requires at least 12V current
rating of 15A
Configuration with External PCIe Connectors:

- 7 - Hardware Installation
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protectthemagainstdamagefromstaticelectricity,youshouldfollowsome
precautions whenever you work on your computer.
1. Turnoff yourcomputer and unplug power supply.
2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonot
haveone,touchbothofyourhandstoasafelygroundedobjectortoametalobject,
suchasthepowersupplycase.
3. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththe
componentswheneverthecomponentsareseparatedfromthesystem.
Thecardcontainssensitiveelectriccomponents,whichcanbeeasilydamagedbystatic
electricity,sothecardshouldbeleftinitsoriginalpackinguntilitisinstalled.
Unpackingandinstallationshouldbedoneonagroundedanti-staticmat.Theoperator
shouldbewearingananti-staticwristband,groundedatthesamepointastheanti-static
mat.
Inspectthecardcartonforobviousdamage.Shippingandhandlingmaycausedamage
toyour card.Be sure there are no shipping and handling damages on the card before
proceeding.
DO NOTAPPLY POWER TO YOUR SYSTEM IF THE GRAPHICS CARD IS
DAMAGED.
In order to ensure that your graphics card can work correctly, please use
official GIGABYTE BIOS only. Using non-official GIGABYTE BIOS might
cause problem(s) on the graphics card.

- 8 -GV-N98XP-512H-B Graphics Accelerator
2.2. Hardware Installation
Now that you have prepared your computer, you are ready to install your graphics card.
To remove the existing graphics card:
Step 1.
Power off the computer and monitor, then disconnect
the display cable from the back of your computer.
Step 2.
Remove the computer cover. If necessary, consult
your computer's manual for help in removing the
cover.
Step 3.
Remove any existing graphics card from your
computer.
To install your new graphics card:
Step 1.
Locate the PCI Express x16 slot. If necessary, re-
move the metal cover from this slot; then align your
graphics card with the PCI Express x16 slot, and
press it in firmly until the card is fully seated.
* Please make sure that the gold edge connector of
the graphics card is securely inserted.

- 9 - Hardware Installation
Step 2.
Replace the screws to fasten the card in place, and
replace the computer cover.
Step 3.
Plug the display cable into your graphics card; then
turn on the computer and monitor. To connect a flat
panel directly to your graphics card, use the DVI-I
connector. To connect a D-Sub monitor to the DVI-I
connector, plug the DVI-I to D-Sub adapter into the
DVI-I connector, then plug the monitor cable into the
adapter. Or use the DVI-I to HDMI adapter to connect
an HDMI monitor. Connectaflatpanel
ConnectaD-SubmonitorviaDVI-ItoD-Subadapter
After installation, remember to connect the power cable to your graphics
card, or the system will not boot (refer to page 6 to see the details). Do not
touch the card when it's operating to prevent system instability.
To TV/ VCR To Flat Panel Display
ConnectaHDMImonitorviaDVI-ItoHDMIadapter

- 10 -GV-N98XP-512H-B Graphics Accelerator
You are now ready to proceed with the installation of the graphics card driver. Please refer to next
chapter for detailed instructions.
A-1.Connect theS/PDIFcabletothegraphics card
A-2.ConnecttheS/PDIFcabletothemotherboard.
B-1.ConnecttheGIGABYTEvideoadapter to theTV-
Outportonthegraphicscard
B-2.Connectthe SPDIF coaxial cable (optional)
tothevideoadapterandmotherboard
Method B (via the coaxial S/PDIF out jack):
Connect the GIGABYTE video adapter to the TV-
Out port on the graphics card. Insert one end of the
SPDIF coaxial cable (optional) into the S/PDIF in
jack on the adapter and the other end into the co-
axial S/PDIF out jack on your motheboard.
Step 4.
To connect an HDMI TV, use either Method A or
Method B below (depending on your motherboard
design) to enable the S/PDIF in function for the graph-
ics card. It is recommended Method A be used on
motherboards that have a free S/PDIF header.
Method A (via the S/PDIF out header):
Connect the provided S/PDIF cable to the graphics
card and the S/PDIF out header on your motherboard
(the red wire connects to the S/PDIF out pin and the
black to the Ground pin).

- 11 - Hardware Installation
GIGABYTEVideo Adapter
Connect to the TV-Out port on
the graphics card.
S-Video Out HDTV Component
(Y+Pr+Pb)
AV Out
(1) Connecting HDTV
Connect your HDTV cables to the video adapter according to
the corresponding color.
(Y= Green, Pr= Red, Pb= Blue)
(2) Connecting S-Video
If your TV has a S-Video connection, connect the S-Video
cable from your TV to the S-Video Out port on the adapter.
(3) Connecting AV Output
If your TV has a Composite video connection, you can connect
the RCA cable from your TV to the AV Out port on the adapter.

- 12 -GV-N98XP-512H-B Graphics Accelerator

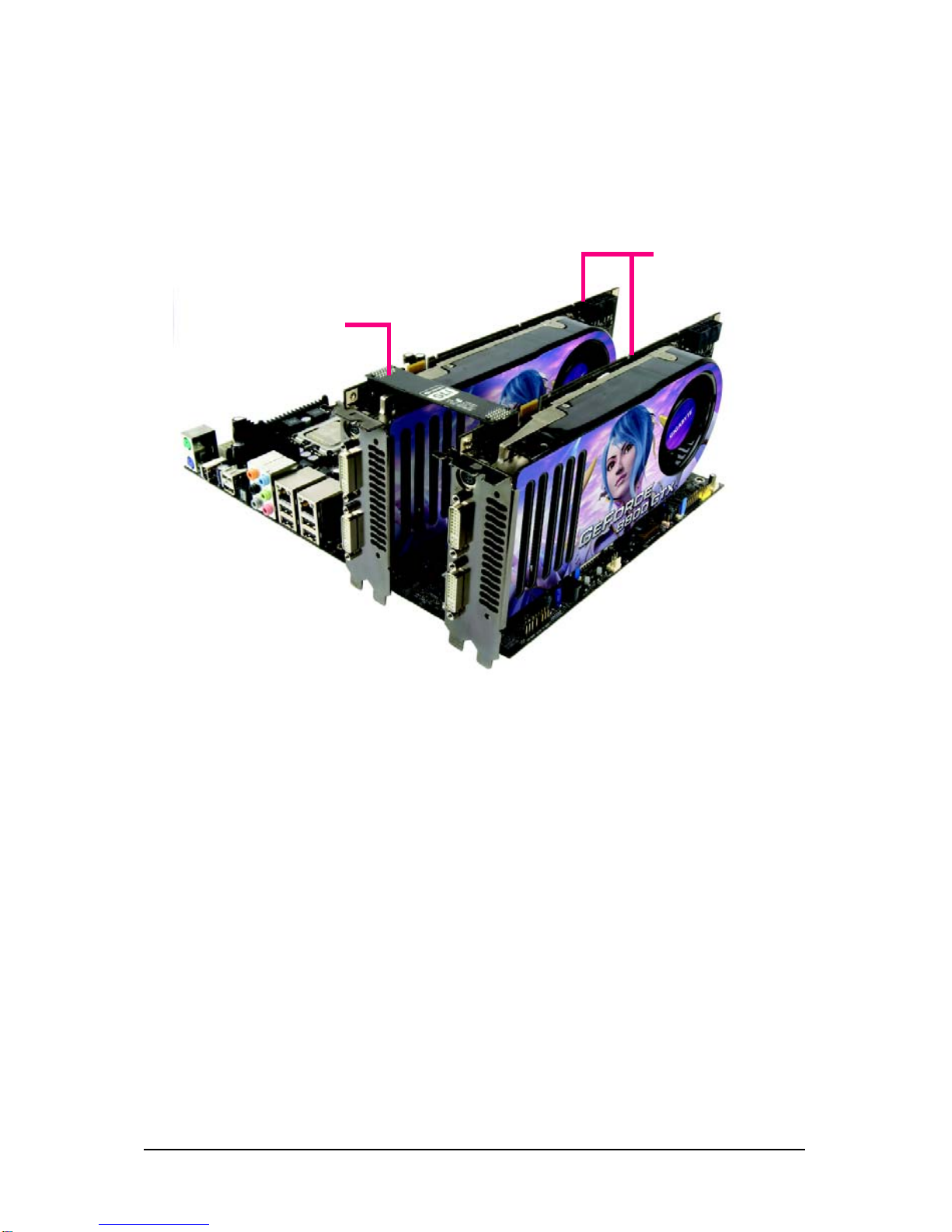

How NVIDIA®SLITM (Scalable Link Interface) technology works:
In an SLI configuration, two SLI-ready graphics cards of the same model and the same manufacturers
are connected together via SLI bridge connector in a system that provides two x16 PCI Express slots
to scale graphics performance. The picture below shows that two graphics cards are linked in parallel
in an SLI configuration.
SLI bridge connector
(provided by motherboard manufacturer)
TwoSLI-ready graphics cards of
the same type.
(Example:GV-NX88X768H-RH)

- 13 - Software Installation

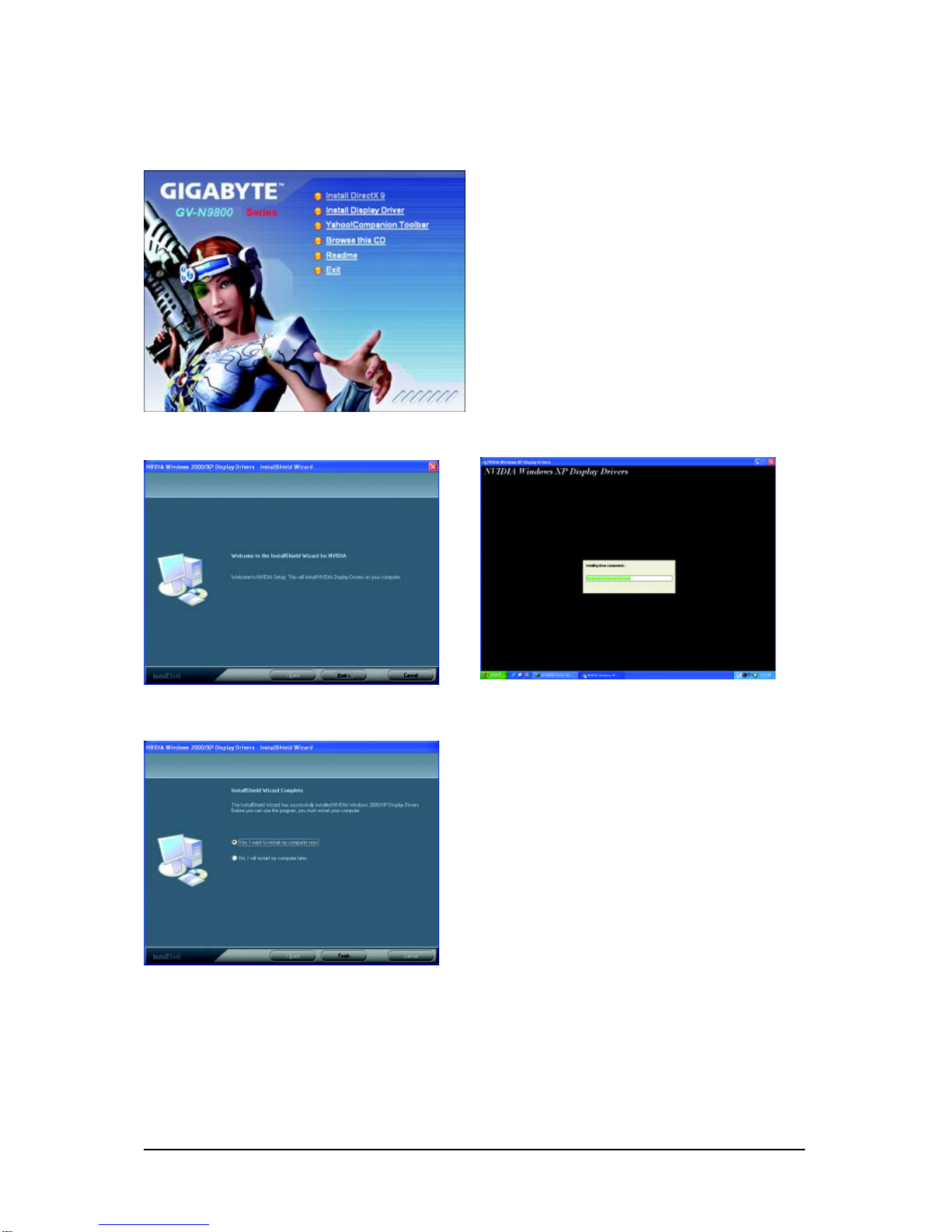

3. Software Installation
In this manual, we assume that your CD-ROM drive letter to be Drive D:
The installation of drivers is very simple. When you insert the driver CD into your CD-ROM drive, you
can see the autorun window (if it does not show up, run "D:\setup.exe"). Then you can follow the
instructions to setup your graphics card driver. (Please follow the subsection "3.1.3 Driver Installation"
to install the driver for your graphics card.)
3.1. Windows®XP Driver and Utilities Installation
3.1.1. Operating System Requirements
Notice the following guidelines before installing the drivers:
1. First make sure your system has installed DirectX 9.0c or later version.
2. Make sure your system has installed the appropriate motherboard drivers (for the motherboard
drivers, please contact the motherboard manufacturer.)

- 14 -GV-N98XP-512H-B Graphics Accelerator
3.1.2. DirectX Installation
Install Microsoft DirectX to enable 3D hardware acceleration support for Windows XP to achieve better
3D performance.
For software MPEG support in Windows XP, you must install DirectX first. Users who run
Windows XP with Service Pack 2 or above do not need to install DirectX separately.
Step 1.
When the autorun window shows up, click the
Install DirectX 9 item.
Step 2. Choose I accept the agreement
and click the Next button. Step 3. Click the Next button.
The system is installing the components. Step 4. Click Finish to restart computer.
Then the DirectX 9 installation is completed.

- 15 - Software Installation
3.1.3. Driver Installation
A. New Hardware Found
When the graphics card is inserted into your computer for the first time, the operating system will detect
the graphics card automatically and display a New Hardware Found message. The following are step-
by-step installation instructions.
Step 1: Found New Hardware Wizard: Video Controller (VGA Compatible)
Click the Next button to install the driver. (Insert the
driver CD-ROM that came with your graphics card.)
Or click the Cancel button to install the driver from
the autorun window.
Step 2: Found New Hardware Wizard: Searching and Installing
The wizard will search for the driver and install it automatically.
Step 3: Found New Hardware Wizard: Finish
Click the Finish button to finish the installation.

- 16 -GV-N98XP-512H-B Graphics Accelerator
B. Driver Installation (Autorun Window)
Insert the driver CD-ROM into your CD-ROM drive. The autorun window will appear. If it does not show
up, please run "D:\setup.exe".
Step 1.
When the autorun window shows up, click the
Install Display Driver item.
Step 2. Click the Next button. The system is installing the components.
Step 3. Click the Finish button to restart the computer.
Then the driver installation is completed.

- 17 - Software Installation

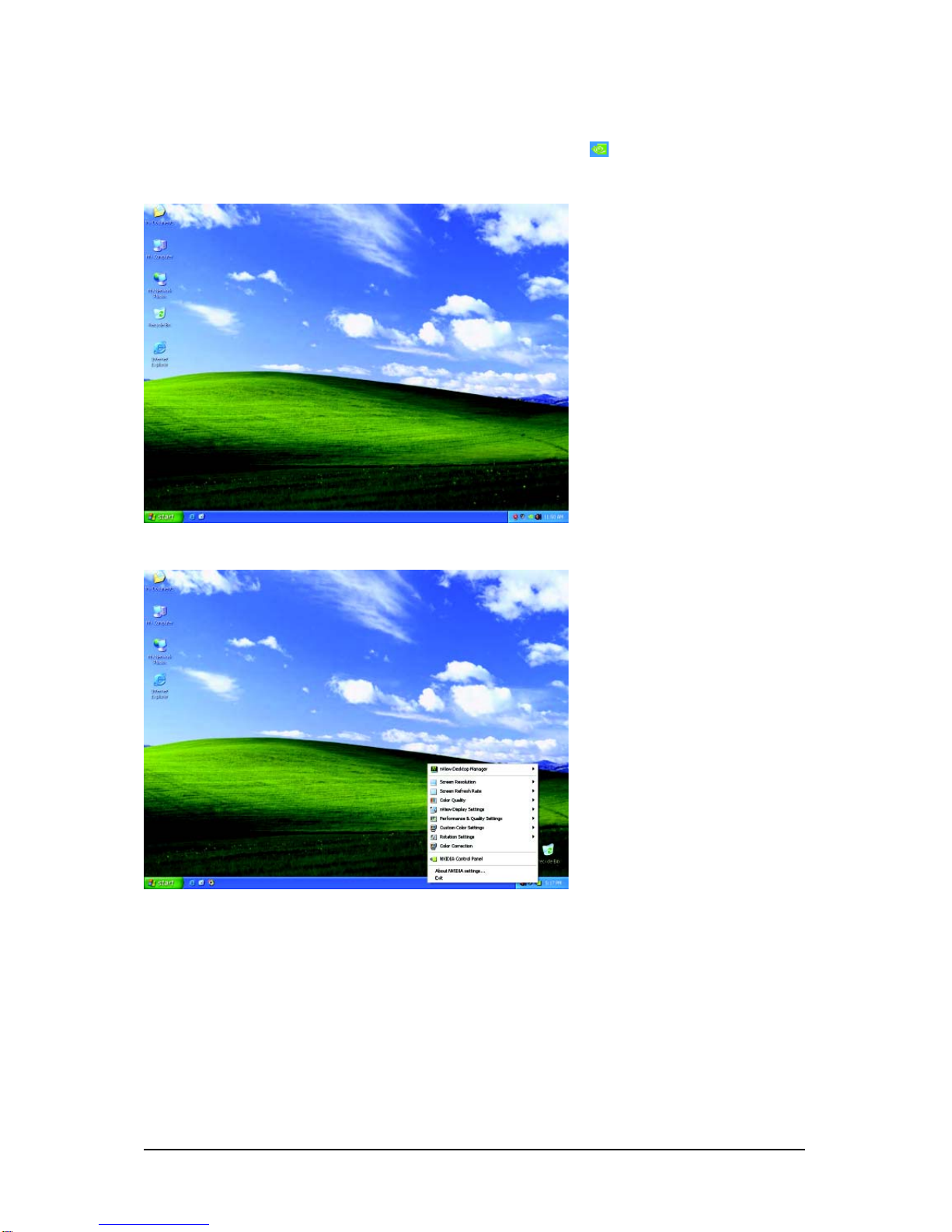

3.1.4. Taskbar Icon
After installing the graphics card driver, you will find an NVIDIA icon in your system tray. Click this
icon to open the control panel.
Right click the NVIDIA icon to enter the NVIDIA Control Center.
You can adjust the properties of the graphics card here.

- 18 -GV-N98XP-512H-B Graphics Accelerator

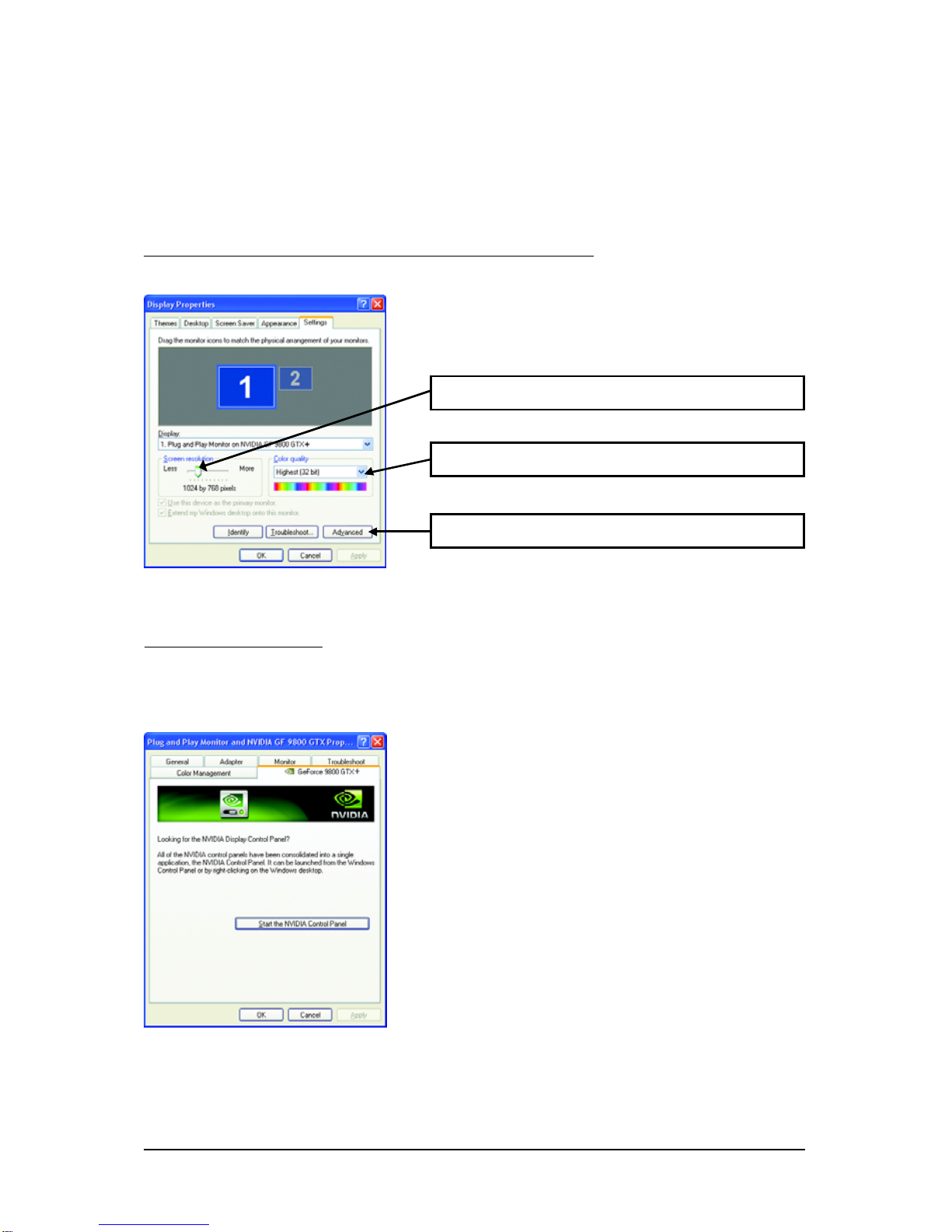

3.1.5. Display Properties Pages
To access Display Properties pages, right-click on desktop and then select Properties. The Display
Properties dialog box shows the information of display adapter, color, the range of display area, and
the refresh rate.
Settings (Resolutions and Color Quality for Windows)
You may adjust the screen resolution and color quality settings in this dialog box.
You can move the slider to change the resolution.
You can click the item to change the color quality.
Click the Advanced button for advanced settings
NVIDIA Control Panel
After pressing the Advanced button in Settings, you'll see the Plug and Play Monitor and NVIDIA
GF 9800 GTX+ Properties dialog box. Click the GeForce 9800 GTX+ tab. (You can also click the
NVIDIA icon in your system tray and select NVIDIA Control Panel.)
Access the GeForce 9800 GTX+ tab page to launch the
NVIDIA Control Panel.
All of the NVIDIA control panels have been consolidated
into a single application, the NVIDIA Control Panel. Click
the Start the NVIDIA Control Panel button to open the
NVIDIA Control Panel.

- 19 - Software Installation

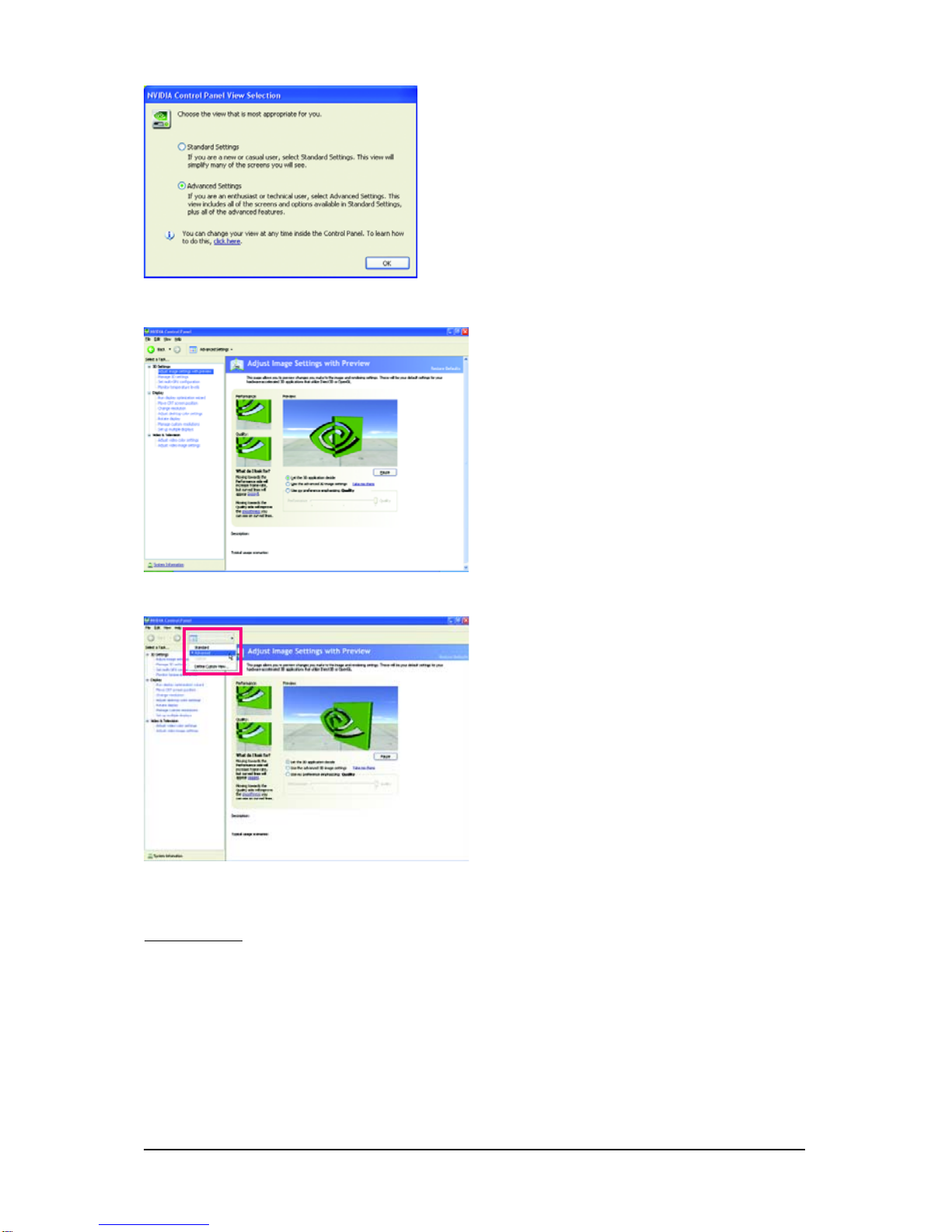

Select the view of the NVIDIA Control Panel that is
most appropriate for you.
Standard Settings
Advanced Settings
The following pages provide details on configuring
advanced settings.
In the NVIDIA Control Panel, select a category to
alter specific NVIDIA display settings.
The categories are:
3D Settings
Display
Video & Television
In the NVIDIA Control Panel, change a view if you
want.
The supported modes are:
Standard
Advanced
Custom
3D Settings
Tasks in the 3D Settings pages allow you to do the following:
• Change the image and rendering settings of your 3D applications and games that utilize Direct3D and
OpenGL technology.
• Override the shipped clocked frequencies of your GPU and GPU memory to increase your GPU
performance.
• Assign specific 3D settings to a game so that these settings automatically load when a game is
launched.

- 20 -GV-N98XP-512H-B Graphics Accelerator
(Note) This item is present only in Advanced view mode.

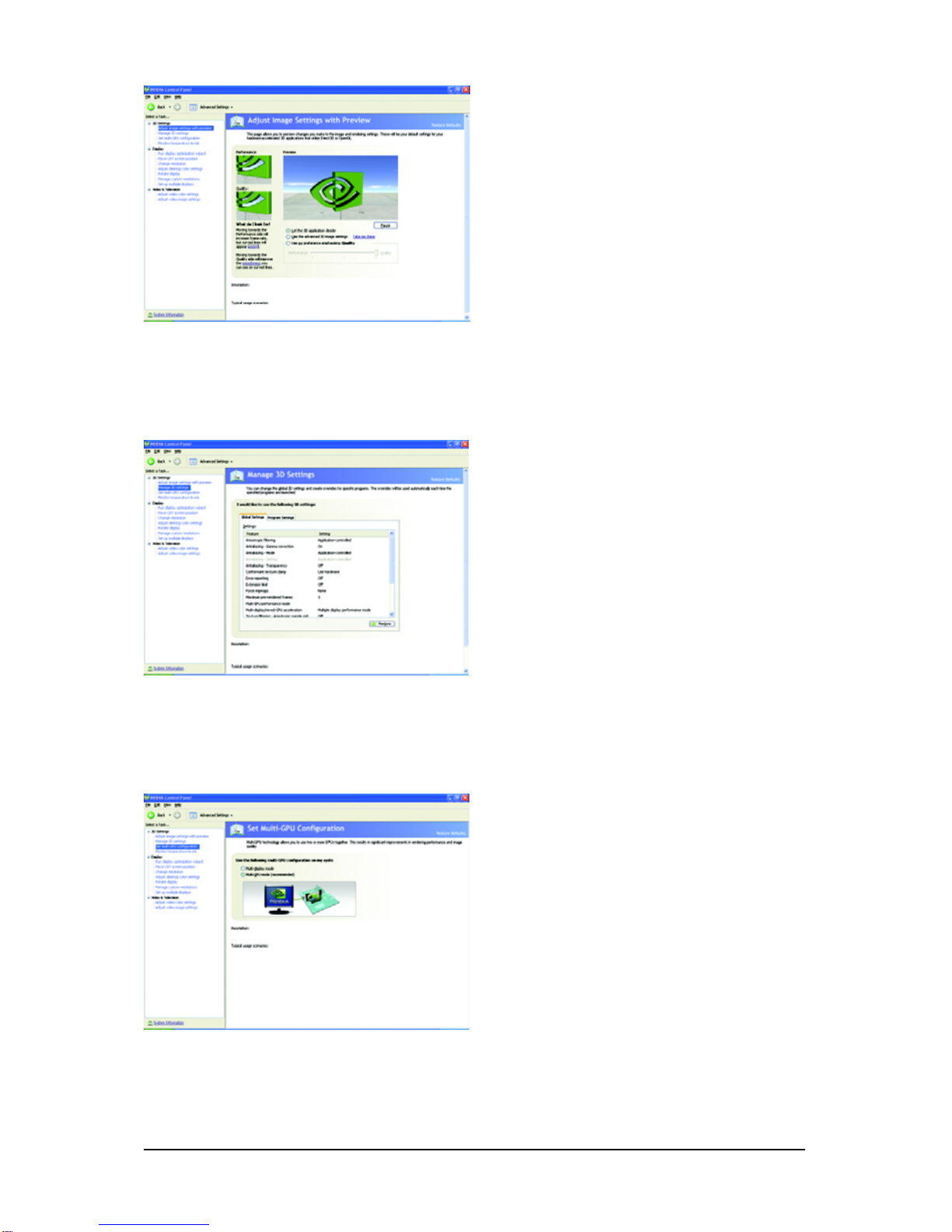

AdjustImageSettings with Preview
If you are unfamiliar with 3D technology or not
an advanced graphics user, use the Adjust
Image Settings with Preview page to preview
any changes you make for improved image
quality and rendering.
Manage3DSettings(Note)
The Manage 3D Settings page enables you to
establish default 3D settings to use for all your
Direct3D or OpenGL applications and to estab-
lish a unique set of 3D settings for a particular
game or application.
SetMulti-GPUConfiguration
Multi-GPU technology allows you to use two
or more GPUs together. This results in signifi-
cant improvements in rendering performance
and image quality.
Note:
It is recommended that you set to Multi-GPU mode
to enhance the graphics card's performance.
