Gigabyte GV-RX19X512VB-RH User manual

Jan. 25, 2006
VGA Card
GV-RX19X512VB-RH

VGA Card
Jan. 25, 2006
GV-RX19X512VB-RH

Copyright
© 2005 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in
any form without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on VGA card, this may void the warranty of this VGA card
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make
a commitment to update the information contained herein.
GV-RX19X512VB-RH
Radeon X1900XTX Graphics Accelerator
User's Manual
Rev. 101
12MD-RX19X5BR-101R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.

- 2 -
English
GV-RX19X512VB-RH Graphics Accelerator
Table of Contents
1. Introduction ......................................................................................... 3
1.1. Features ..................................................................................................... 3
1.2. Minimum System Requirement ..................................................................... 3
2. Hardware Installation ........................................................................... 4
2.1. Board Layout .............................................................................................. 4
2.2. Hardware Installation ................................................................................... 6
3. Software Installation ............................................................................ 8
3.1. Windows®XP Driver and Utilities Installation ................................................. 8
3.1.1. Operating System Requirement ................................................................................... 8
3.1.2. DirectX Installation .......................................................................................................... 9
3.1.3. Driver Installation .......................................................................................................... 10
3.1.4. Utilities on Driver CD ................................................................................................... 12
3.1.5. Video In Introduction ..................................................................................................... 13
3.1.6. Taskbar Icon ................................................................................................................. 16
3.1.7. Display Properties pages ............................................................................................ 17
3.2. Windows®2000 Driver Installation ............................................................. 34
4. Troubleshooting Tips ........................................................................ 35
5. Appendix .......................................................................................... 36
5.1. How to Reflash the BIOS in MS-DOS mode ............................................... 36
5.2. Resolutions and Color Depth Table (In Windows®XP) ............................... 37

Introduction- 3 -
English
1. Introduction
1.1. Features
•Powered by ATI Radeon X1900XTX Visual Processing Unit (VPU)
•Supports the newest PCI Express x 16
•Integrated with 512MB GDDR3 memory
•Supports DirectX 9.0C
•Supports AV / S-Video and HDTV output
•Supports AV / S-Video input
•Supports TV-Out connector
•Supports 2 DVI-I connectors
1.2. Minimum System Requirement
• Hardware
•Intel®Pentium®4 or AMD Athlon® .
•512MB of system memory ; 1GB or more for best performance.
•Optical drive for installation software (CD-ROM or DVD-ROM drive).
•A 450watt power supply or above must be used.
• Operating System
•Windows® XP with Service Pack 2(SP2).
•Windows®XP Professional x64 Edition.
•Windows®2000.
• CrossFireTM Compatibility
If you are planning on using this grpahics card as part of a CorssFireTM system, the
following is required:
•A CrossFireTM certified motherboard with two (2) PCI Express®X16 sltos
and correct PCIe chipset driver.
•Provides X1900 CrossFireTM edition master card.
•A 550watt power supply or above must be used.

- 4 -
English
GV-RX19X512VB-RH Graphics Accelerator
2. Hardware Installation
2.1. Board Layout
VIVO (Note)
DVI-I
Connector 2
Analog LCD Monitor
Digital LCD Monitor
DVI Output
DVI-I
Connector 1
DVI-I to D-Sub
Adapter
VGA Output
(Note) Please refer to page 13 about Video In introduction.
NTSC / PAL TV
Projector
S-Video Output
YHDTV
Pr
Pb/AV Output
DVI-I Connector 2
VIVO
DVI-I Connector 1

Hardware Installation
- 5 -
English
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow
some precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not
have one, touch both of your hands to a safely grounded object or to a metal object,
such as the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by
static electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator
should be wearing an anti-static wristband, grounded at the same point as the anti-
static mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage
to your card. Be sure there are no shipping and handling damages on the card before
proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON
THE CARD.
In order to ensure your graphics card working correctly, please use official
Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem
on the graphics card.

- 6 -
English
GV-RX19X512VB-RH Graphics Accelerator

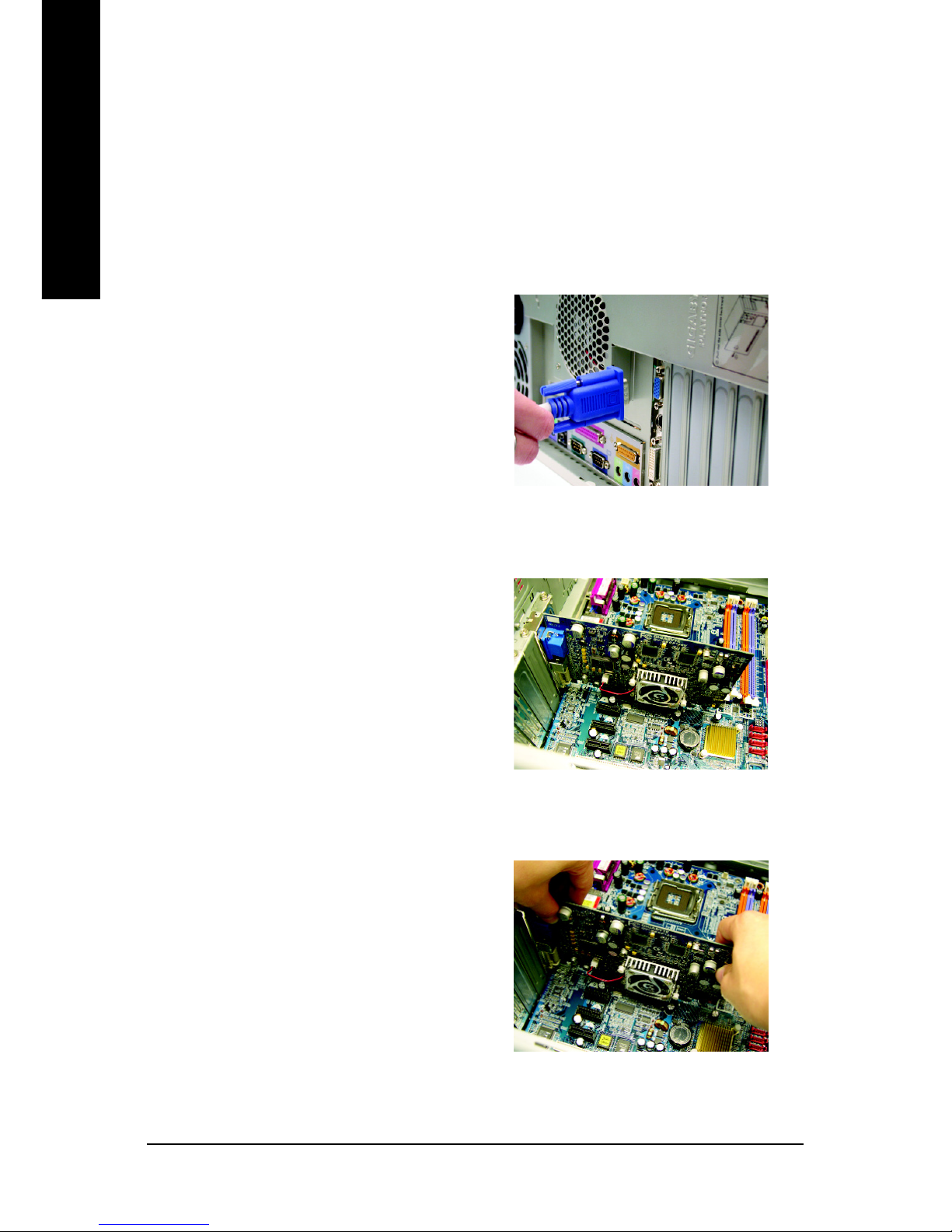

2.2. Hardware Installation
Now that you have prepared your computer, you are ready to install your graphics accelerator
card.
To remove the existing graphics card:
1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help in
removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to disable
it on the motherboard. For more information,
see your computer documentation.

Hardware Installation
- 7 -
English
2. Replace the screw to fasten the card in place,
and replace the computer cover.
You are now ready to proceed with the installation of the graphics card drivers. Please
refer to next chapter for detailed instructions.
To Flat Panel Display 9-Pin for VIVO
3. Plug the display cable into your graphics
card; then turn on the computer and
monitor. To connect a flat panel directly to
your graphics card, use the DVI-I connector.
To connect a VGA monitor to the DVI-I
connector, plug the DVI-I to D-sub adapter
into the DVI-I connector, then plug the
monitor cable into the adapter.
After installation, please connect the power cable to
your graphics card, or the system will not boot.
Connect a flat panel
Connect a VGA monitor via DVI-I to D-sub adapter
To install your new graphics card:
1. Locate the PCI Express x 16 slot. If
necessary, remove the metal cover from this
slot; then align your graphics card with the
PCI Express x 16 slot, and press it in firmly
until the card is fully seated.

- 8 -
English
GV-RX19X512VB-RH Graphics Accelerator
3. Software Installation
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
The installation of Windows®2000 / Windows®XP drivers is very simple. When you insert
the driver CD into your CD-ROM drive, you can see the AUTORUN window (if it does not
show up, run "D:\setup.exe"). Then you can follow the guides to setup your graphics card
driver. (Please follow the subsection 3.1.3 "Driver installation" to install the driver for your
graphics accelerator.)
3.1. Windows®XP Driver and Utilities Installation
3.1.1. Operating System Requirement
•When loading the graphics card drivers for the system, please make sure your
system has installed DirectX 9 or later version.
•If you install the graphics card drivers for the motherboard, which consist of SIS, or
VIA chipsets, please install the appropriate driver program for that motherboard.
Or please contact your motherboard nearest dealer for motherboard driver.

Software Installation- 9 -
English
3.1.2. DirectX Installation
Install Microsoft DirectX to enable 3D hardware acceleration support for Windows®2000
or Windows®XP to achieve better 3D performance.
0Note: For software MPEG support in Windows®2000 or Windows®XP, you must install
DirectX first. Users who run Windows XP with Service Pack 2 or above do not need to
install DirectX separately.
Step 1. When autorun window show up, click the
Install DirectX 9 item.
Step 2. Choose I accept the agreement
and click the Next button.
Step 3. Click the Next button.
Step 4. Click Finish to restart computer.
Then the DirectX 9 installation is completed.
Installing the components.
Click the Install DirectX 9 item.

- 10 -
English
GV-RX19X512VB-RH Graphics Accelerator
3.1.3. Driver Installation
A. New hardware found
After the graphics card is inserted into your computer at the first time, the windows will
automatically detect a new hardware in the system and pop out a "New Hardware Found"
message. The following is the step-by-step installation guide.
Step 1: Found new hardware wizard: Video controller (VGA Compatible)
Click the Next button to install the driver. (There
is a driver CD disk that came with your graphics
accelerator, please insert it now.)
Or click the Cancel button to install the driver
from AUTORUN window.
Step 2: Found new hardware wizard: Searching and installing
The wizard will search for the driver and install it automatically.
Step 3: Found new hardware wizard: Finish
Click the Finish button to finish the installation.

Software Installation- 11 -
English
B. Driver installation (Autorun Window)
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
Click the Install Display Drivers (Radeon
X1900 Series) item.
Step 1. When autorun window show up, click the
Install Display Drivers (Radeon X1900 Series)
item.
Step 2. Click the Next button. Step 3. Click the Yes button.
Setp 4. Click the Express or Custom icon.
Step 5. Click the Finish button to restart computer.
Then the driver installation is completed.
Windows installings the components.

- 12 -
English
GV-RX19X512VB-RH Graphics Accelerator

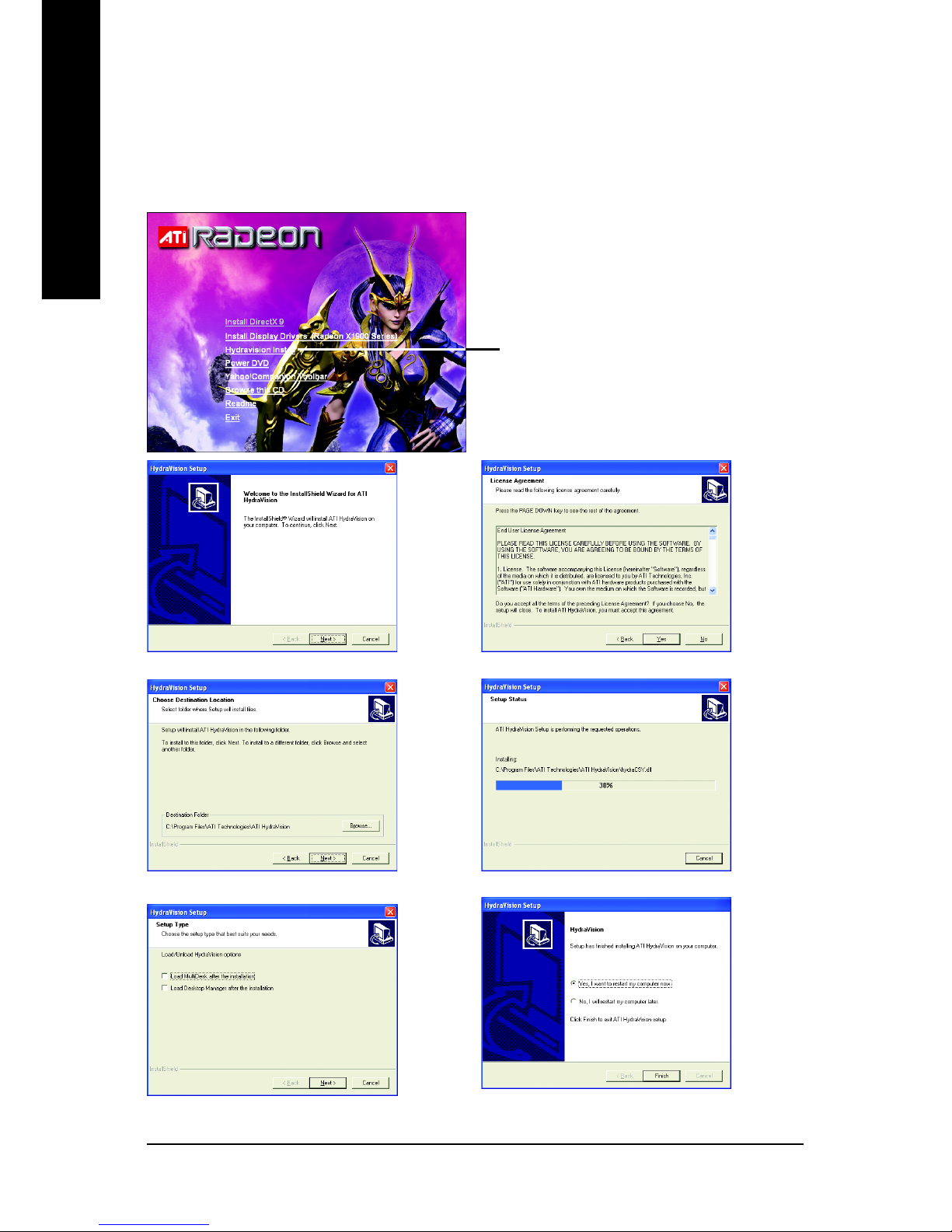

3.1.4. Utilities on Driver CD
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
zInstall Hydravision :
Step 2. Click the Next button.
Click the Hydravision Install item.
Step 3. Click the Yes button.
Step 4. Click the Next button. Windows installings the components.
Step 6. Click the Finish button to restart computer.
Then the Hydravision Install is completed.
Step 5. Click the Next button.

Software Installation- 13 -
English
Red record
button
Videobutton

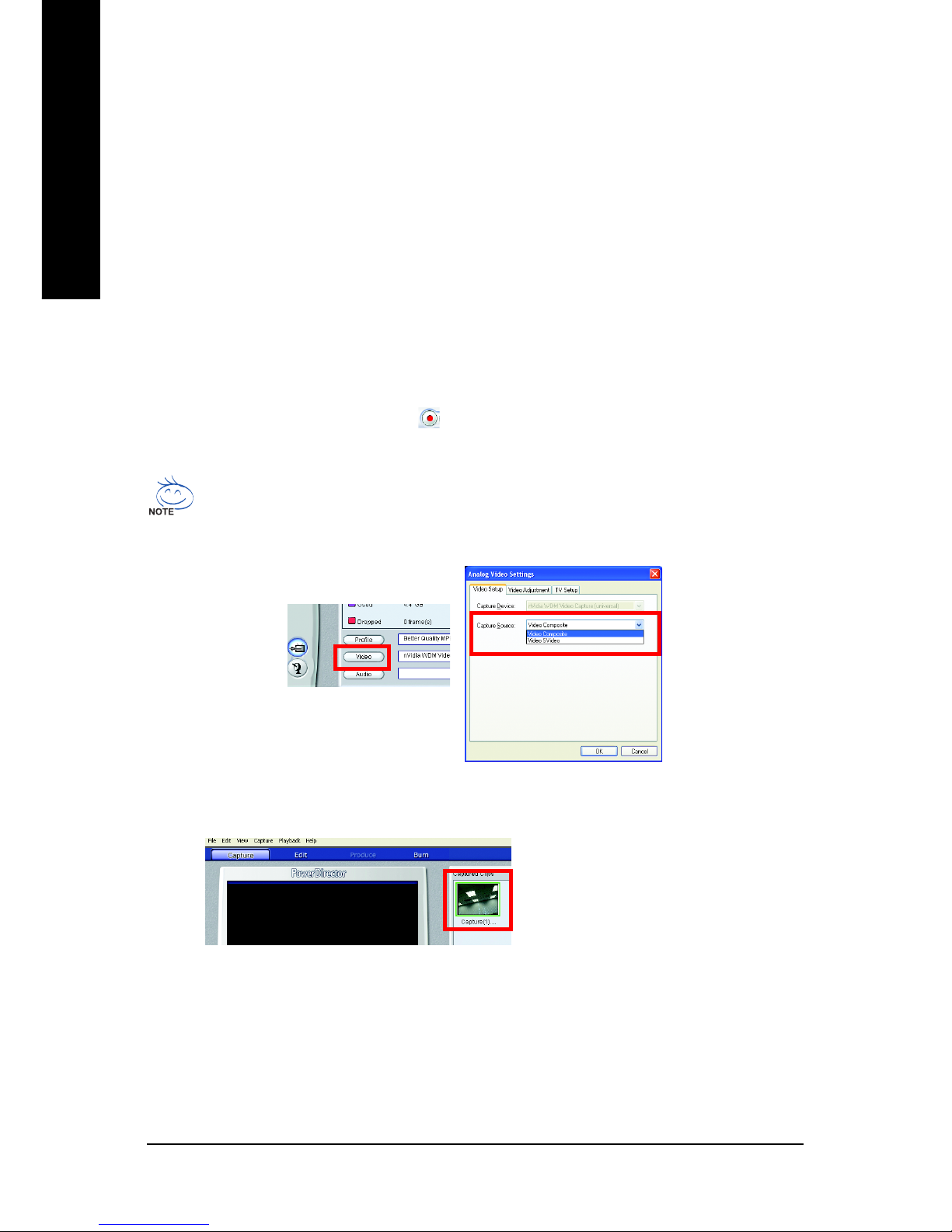

3.1.5. Video In Introduction
zCyberlink Power Director 3.X Installation (Note)
Please install the Cyberlink Power Director 3.X (or above) version with your graphics card.
Press the "Capture" button, PowerDirector enter Capture mode, in which you can capture
media from a variety of device. (Figure 1)
Figure 1
(Note) Power Director 3.X only supported on the Windows XP operating systems.

- 14 -
English
GV-RX19X512VB-RH Graphics Accelerator
Figure 3
zIntroduction of the capture sources device
Please check out your capture source. In general, the media sources comprise the following item:
1. Video Tape Recorder (VCR), V8 :
Connect the AV connector or video cable of the VCR to the Video In of the video capture card. And if your
VCR, V8 supports S-Video output, connect S-Video connector to the S-Video In port of the graphics card.
Connect the audio cable of the VCR, V8 to the Line In of the sound card.
If your sound card has no Line In port, try the Microphone port.
2. DV (recommend to use IEEE1394 card)
DV (Check out if the power of DV is turned on, and enter VCR mode; moreover, make sure FireWire
cable connect well.
Furthermore, when capturing media by VIVO-based graphics card, you could chose two ways(Note),
including Composite (COMP-IN) and SVideo(SVID-IN). Afterward please click the play button of
captured devices, and click the red REC button between Capture preview window and Capture
device selection area.
Figure 4
When you got the media you need, click the red REC button again to stop capturing. And then the media
clips will be loaded into Capture clips area automatically. (Figure 4)
Please verify how your cable connects. If the cable connects to SVID-IN port on HDTV/VIVO
cable, please press the "Video" button (Figure 2), and please select the "Video SVideo" item
(Figure 2); if it connects to COMP-IN port on HDTV/VIVO cable, please select the "Video
Composite" item (Figure 3).
Figure 2

Software Installation- 15 -
English
Once you click the "Edit" button to return Edit mode, the media clips will be loaded into Library
immediately.
(Figure. 4)
At this moment in time, you can expand a series of outstanding editing experience to fill you life with
boundless possibility.
(For more details about movie editing function of PowerDirector, please refer to user's guide, or visit
Cyberlink website for official technical support.)

- 16 -
English
GV-RX19X512VB-RH Graphics Accelerator

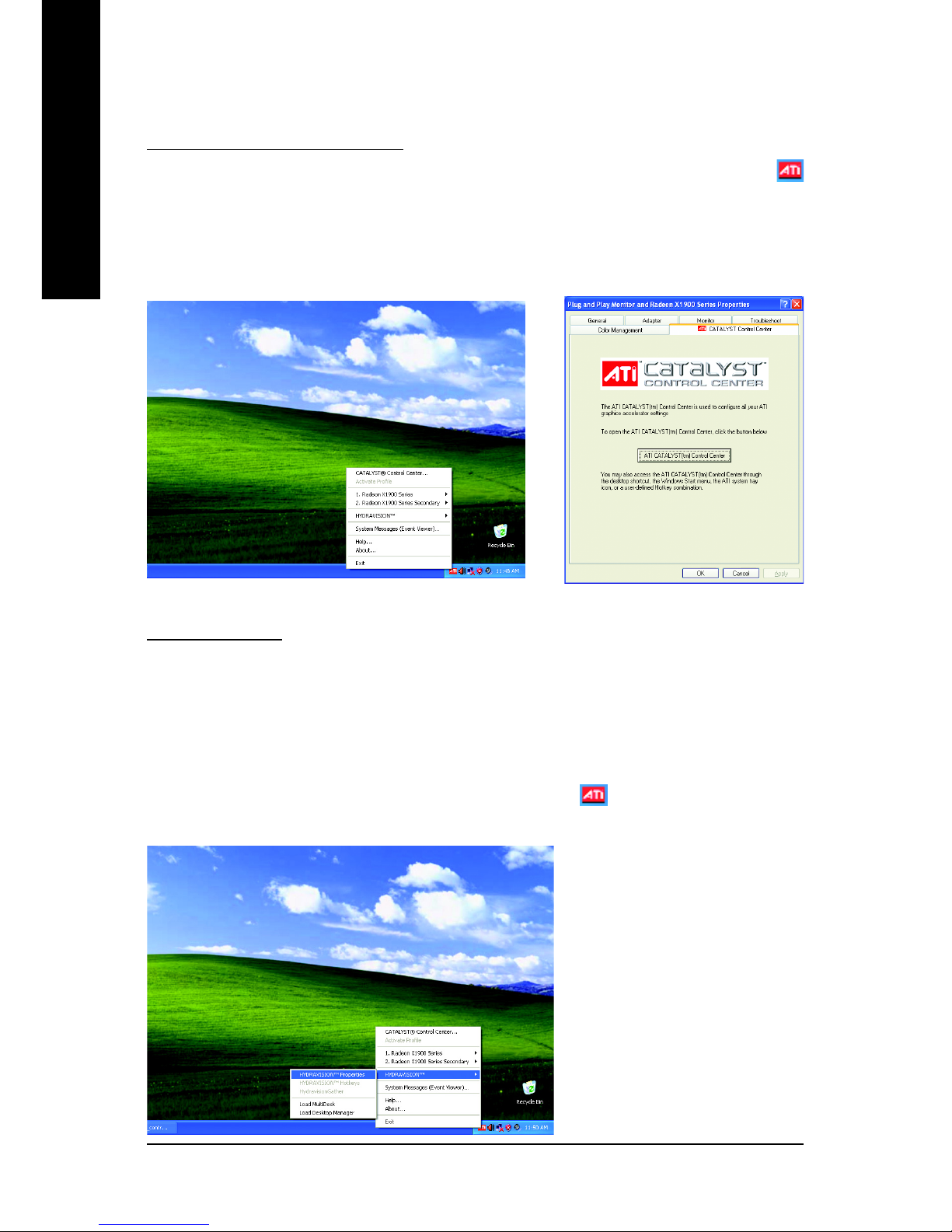

ATI CATALYSTTM Control Center:
After installation of the display drivers, you will find an ATI CATALYSTTM Control Center icon
on the taskbar's status area. The ATI CATALYSTTM Control Center is used to configure all your
graphics card settings. Right-click the icon to enter the ATI CATALYSTTM Control Center (refer to
Fig. 1). Or you can right-click on the desktop to select Properties>Settings>Advanced>ATI
CATALYST Control Center tab and press ATI CATALYST(tm) Control Center button (refer to Fig. 2).
Fig. 1 Fig. 2
HYDRAVISIONTM :
HYDRAVISION has everything you need to manage increased amounts of information across
your computer desktop. It allows you to quickly and easily tailor your computer desktop to the way
you work. You can:
• arrange and rearrange monitors. • assign Hot Key shortcuts.
• create up to 9 virtual desktops. • add special effects to windows and menus.
You can right-click on ATI CATALYSTTM Control Center icon to select HYDRAVISIONTM>
HYDRAVISIONTM Properties to set the HYDRAVISION (refer to Fig. 3).
Fig. 3
3.1.6. Taskbar Icon

Software Installation- 17 -
English
3.1.7. Display Properties pages
To access Display Properties pages, right-click the GIGABYTE icon on the taskbar and
select Display Properties or right-click on Desktop and then select Properties. The
Display Properties dialog box shows the information of display adapter, color, the range
of display area, and the refresh rate.
Settings (Resolutions and Color depth for Windows)
You may adjust the screen resolution and color quality settings in this dialog box.
(Note)The CRT+TV configuration requires that you connect your CRT display to the DVI connector 2
on the card using the DVI-I to VGA adapter to ensure normal operation.
This configuration is not supported if the CRT monitor is directly attached to the DVI connector 1
on the card.
You can click the item to change the color quality.
Click the Advanced button for adapter and setting.
You can move the slider to change the resolution.
Display
Matrix
Model GV-RX19X512VB-RH
CRT+TV(Note) Yes
CRT+DVI Yes
DVI+TV Yes
DVI+TV+CRT No
DVI +DVI Yes

- 18 -
English
GV-RX19X512VB-RH Graphics Accelerator
View Properties:
The CATALYST Control Center dashboard supports three types of views: Standard View/
Advanced View/ Custom View.
Standard View
The Standard view is the default view when
CATALYST Control Center is launched for the first
time. It provides a single button in the left naviga-
tion pane for each main page. The Standard view
is recommended for novice users.
Advanced View
The Advanced view provides access to the
advanced features on each page. The left
navigation pane displays a tree view that lists all
the advanced features. The Advanced view is
recommended for experienced users.
Custom View
The Custom view allows you to display only the
features you choose in the left navigation pane.
The Custom view is recommended for
experienced users who want to expose only the
features they adjust most often or that their 3D
application supports.
Hotkeys Properties:
The Hotkeys Manager allows you to create shortcut key combinations to quickly perform tasks
such as changing a graphics setting or opening an application. A Hotkey is a combination of a
modifier key or keys, such as Ctrl, Alt, or Shift, and any letter from the alphabet.
