Gigabyte GV-NX76G256HI-RH User manual

Oct. 11, 2006
VGA Card
GV-NX76G256HI-RH

VGA Card
Oct. 11, 2006
GV-NX76G256HI-RH

GV-NX76G256HI-RH
GeForce™7600 GS Graphics Accelerator
User's Manual
Rev. 101
12MD-NX76G2HI-101R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
Copyright
© 2006 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from
without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on VGA card, this may void the warranty of this VGA card
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a
commitment to update the information contained herein.
Macrovision corporation product notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

GV-NX76G256HI-RH Graphics Accelerator - 2 -
English
Table of Contents
1. Introduction ......................................................................................... 3
1.1. Features ..................................................................................................... 3
1.2. Minimum System Requirements ................................................................... 3
2. Hardware Installation ........................................................................... 4
2.1. Board Layout .............................................................................................. 4
2.2. Hardware Installation ................................................................................... 6
3. Software Installation .......................................................................... 12
3.1. Windows®XP Driver and Utilities Installation ............................................... 12
3.1.1. Operating System Requirement ................................................................................. 12
3.1.2. DirectX Installation ........................................................................................................ 13
3.1.3. Driver Installation .......................................................................................................... 14
3.1.4. Utilities on Driver CD ................................................................................................... 16
3.1.5. Taskbar Icon ................................................................................................................. 18
3.1.6. Display Properties Pages ............................................................................................ 21
3.1.7. nView Properties pages .............................................................................................. 28
3.2. Windows®2000 Driver Installation ............................................................. 33
4. Troubleshooting Tips ........................................................................ 34
5. Appendix .......................................................................................... 35
5.1. How to Reflash the BIOS ........................................................................... 35
5.1.1. Reflash BIOS in MS-DOS Mode ................................................................................. 35
5.1.2. Reflash BIOS in Windows Mode ................................................................................ 35
5.2. Connecting to a HDTV .............................................................................. 36
5.3. Resolutions and Color Depth Table (In Windows®XP) ............................... 37

Introduction- 3 -
English
1. Introduction
1.1. Features
•Powered by NVIDIA®GeForce™7600 GS Graphics Processing Unit (GPU)
•Supports the newest PCI Express x16
•Integrated with 256 MB DDRII memory
•Supports DirectX 9.0c
•Supports NVIDIA® SLITM (Scalable Link Interface) technology (Note)
•Supports AV / S-Video and HDTV output
•Supports HDMI connector
•Supports DVI-I connector
1.2. Minimum System Requirements
•Intel®Pentium®4 or AMD AthlonTM or higher
•One PCI Express x16 slot
•Operating Systems Windows®2000 / Windows®XP
•512 MB of system memory
•200 MB of available disk space for full installation
•CD-ROM or DVD-ROM drive
(Note): SLI technology requires a PCI Express motherboard with two x16 physical
connectors. Graphics cards working in an SLI configuration must be with the same model
name (e.g. GV-NX76G256HI-RH) and from the same vendor (e.g. GIGABYTE
TECHNOLOGY).

GV-NX76G256HI-RH Graphics Accelerator - 4 -
English
2. Hardware Installation
2.1. Board Layout
SLI Connector
TV-Out
DVI-I Connector
HDMI Connector
Analog LCD Monitor
Digital LCD Monitor
DVI Output
DVI-I to D-Sub
Connector
VGA Output
S-Video Output
Pb/AV Output
Pr
Y
NTSC / PAL TV Projector
HDTV
OR
OR
NTSC / PAL TV Projector
DVI-I
Connector
HDMI
Connector
TV-Out
HDMI to DVI-I Connector
Digital LCD Monitor
DVI Output
HDMI TV

Hardware Installation- 5 -
English
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some
precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static
electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator
should be wearing an anti-static wristband, grounded at the same point as the anti-static
mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage
to your card. Be sure there are no shipping and handling damages on the card before
proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON
THE CARD.
In order to ensure your graphics card working correctly, please use official
Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem
on the graphics card.

GV-NX76G256HI-RH Graphics Accelerator - 6 -
English
2.2. Hardware Installation
Installing Your graphics card.
Now that you have prepared your computer, you are ready to install your graphics accelerator
card.

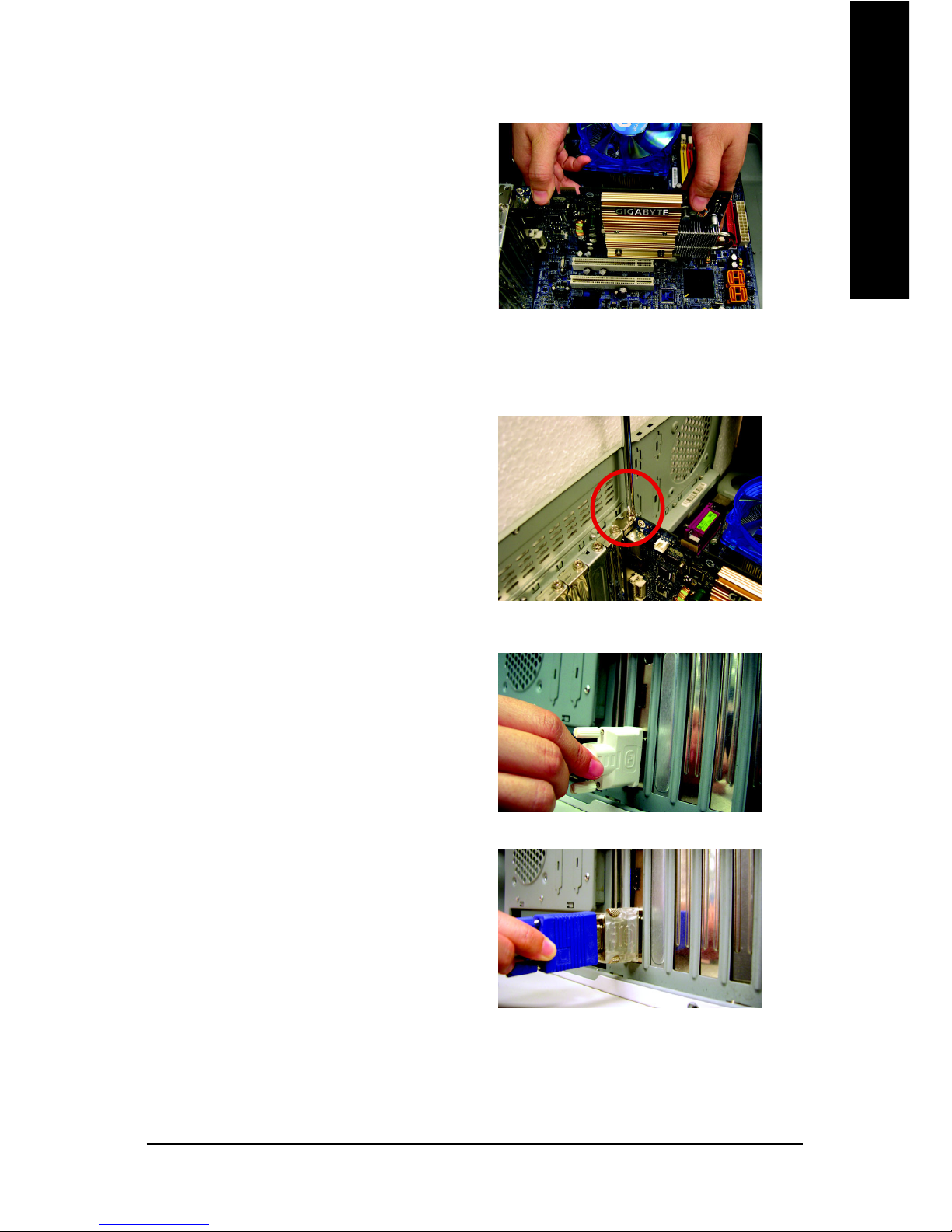

To remove the existing graphics card:
1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help in
removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to disable
it on the motherboard. For more information,
please see your computer documentation.

Hardware Installation- 7 -
English
2. Replace the screws to fasten the card in
place, and replace the computer cover.
3. The GV-NX76G256HI-RH provides one
DVI-I connector and one HDMI connector.
Plug the display cable into your graphics
card; then turn on the computer and monitor.
To connect a flat panel directly to your
graphics card, use the DVI-I connector. To
connect a VGA monitor to the DVI-I
connector, plug the DVI-I to D-sub adapter
intotheDVI-I connector, thenplugthe monitor
cable into the adapter.

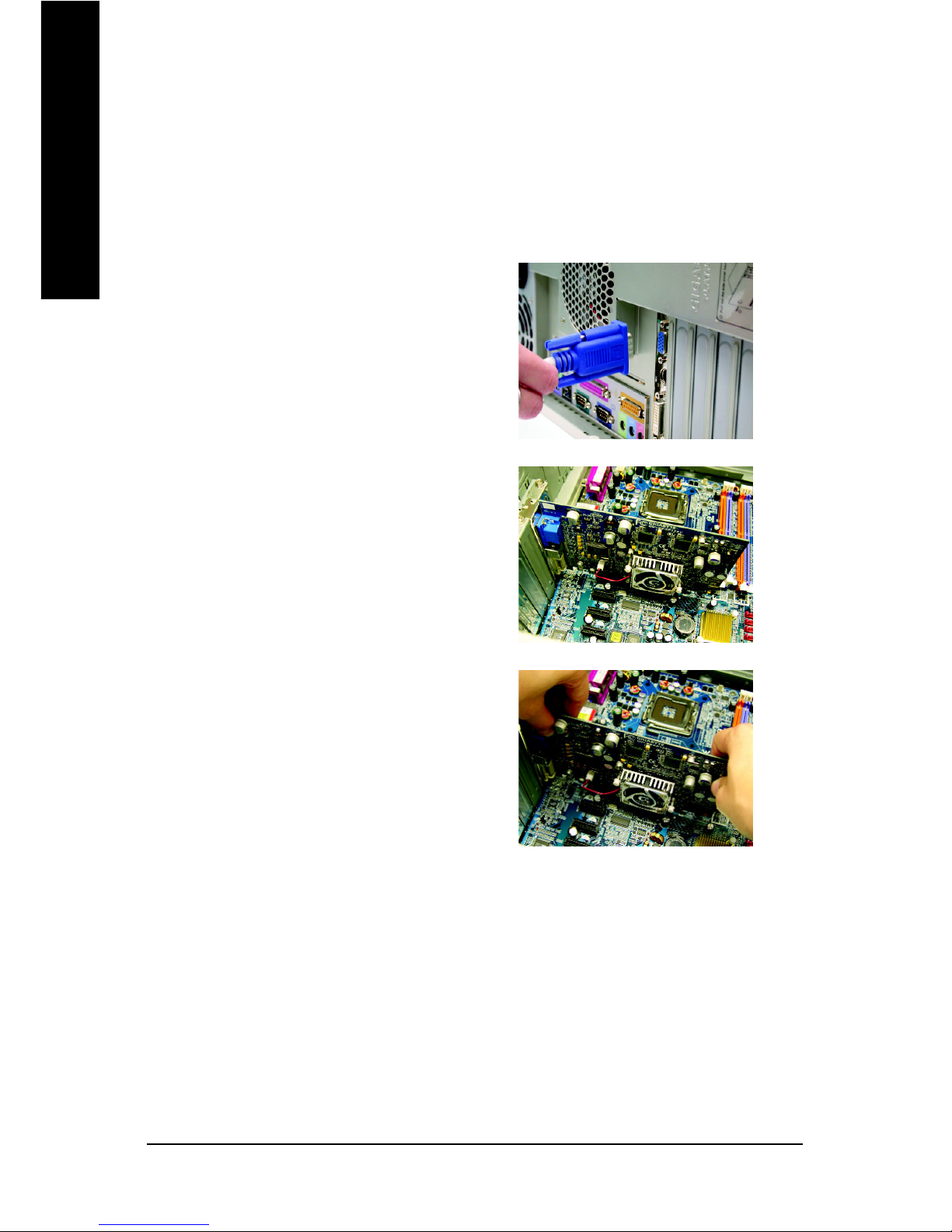

To install your new graphics card:
1. Locate one PCI Express x16 slot. If
necessary, remove the metal cover from the
slot; then align your graphics card with the
PCI Express x16 slot, and press it in firmly
until the card is fully seated.
* Please make sure that the gold edge
connectors of the graphics card is securely
inserted.
Connect a flat panel
Connect a VGA monitor via DVI-I to D-sub adapter

GV-NX76G256HI-RH Graphics Accelerator - 8 -
English
4. To connect an HDMI TV, use either
Method A or Method B below (depending
on your motherboard design) to enable
the S/PDIF in function for the graphics card.
It is recommended Method A be used on
motherboards that have a free S/PDIF
header.
A-1. Connect the SPDIF cable to the graphics card
A-2. Connect the SPDIF cable to the motherboard.
B-1. Connect the GIGABYTE video adapter to
the TV-Out port on the graphics card
B-2. Connect the SPDIF coaxial cable (optional)
to the video adapter and motherboard
Method B (via the coaxial S/PDIF out
jack): Connect the GIGABYTE video
adapter to the TV-Out port on the graphics
card. Insert one end of the SPDIF coaxial
cable (optional) into the S/PDIF in jack on
the adapter and the other end into the
coaxial S/PDIF out jack on your
motheboard.
Method A (via the S/PDIF out header):
Connect the provided S/PDIF cable to the
graphics card and the S/PDIF out header
on your motherboard (the red wire
connects to the S/PDIF out pin and the
black to the Ground pin).

Hardware Installation- 9 -
English
Connect an HDMI TV
Connect a flat panel display by the HDMI-to-DVI-I
adapter
You are now ready to proceed with the installation of the graphics card driver. Please refer
to next chapter for detailed instructions.
5. Then connect an HDMI TV or a flat panel
(by using the HDMI-to-DVI-I adapter) to
the card.
HDMI signals that have been converted
to DVI digital signals by adapter cannot
be converted to analog RGB signals.
To TV/VCR To Flat Panel Display
To HDMI TV

GV-NX76G256HI-RH Graphics Accelerator - 10 -
English

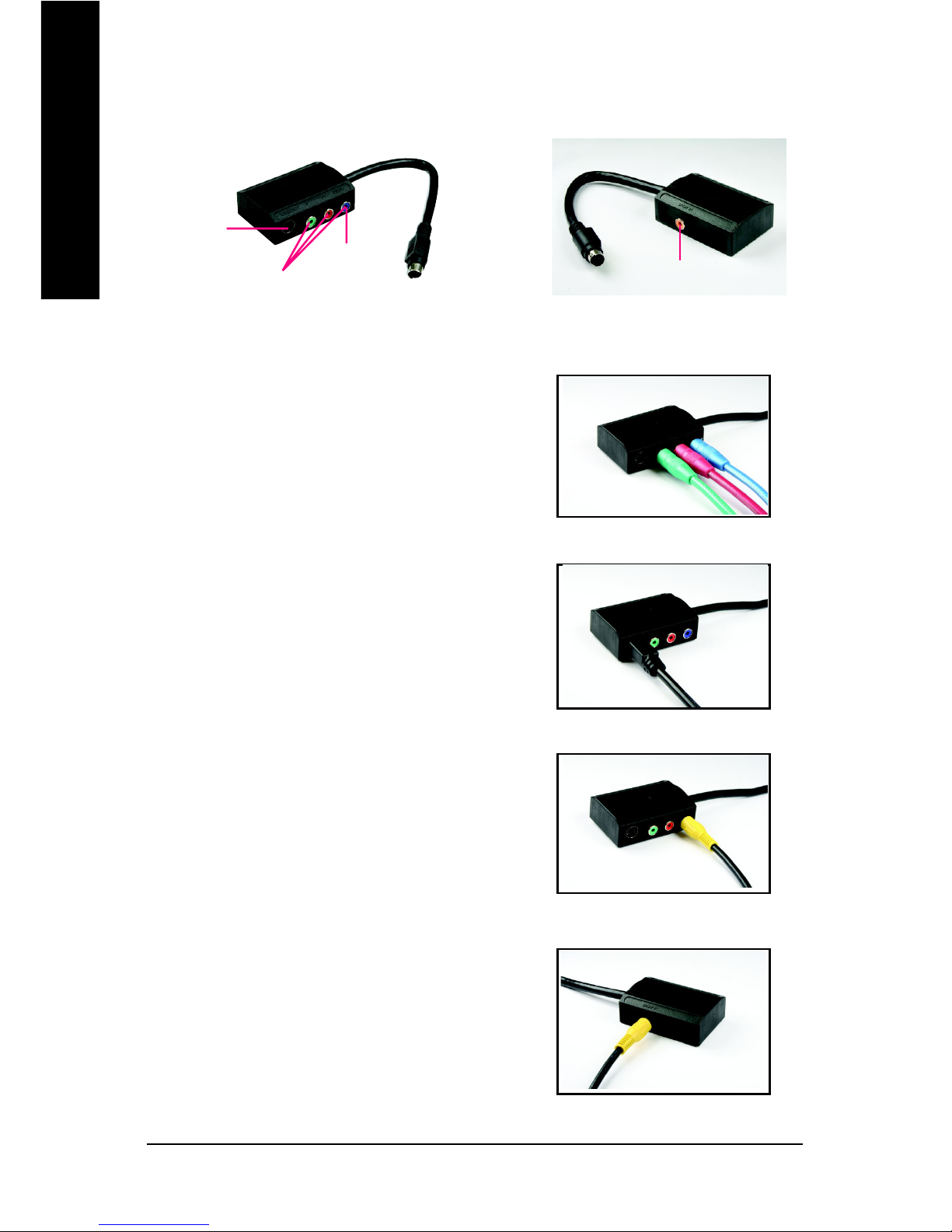

GIGABYTE Video Adapter for Nvidia Graphics Cards
(1) Connecting HDTV
Connect your HDTV cables to the video adapter
according to the corresponding color.
(Y= Green, Pr= Red, Pb= Blue)
(2) Connecting S-Video
If your TV has a S-Video connection, connect the S-
Video cable from your TV to the S-Video Out port on the
adapter.
(3) Connecting AV Output
If your TV has Composite video connection, you can
connect the RCA cable from your TV to the AV Out port
on the adapter.
Connect to the
TV-Out port on the
graphics card.
HDTV Component
(Y+Pr+Pb)
AV Out
S-Video Out
(4) Connecting S/PDIF IN (for HDMI TV)
If you wish to connect an HDMI TV, you may insert one
end of the S/PDIF coaxial cable (optional) into the
S/PDIF in jack on the adapter and the other end into the
coaxial S/PDIF jack on your motherboard.
S/PDIF In

Hardware Installation- 11 -
English

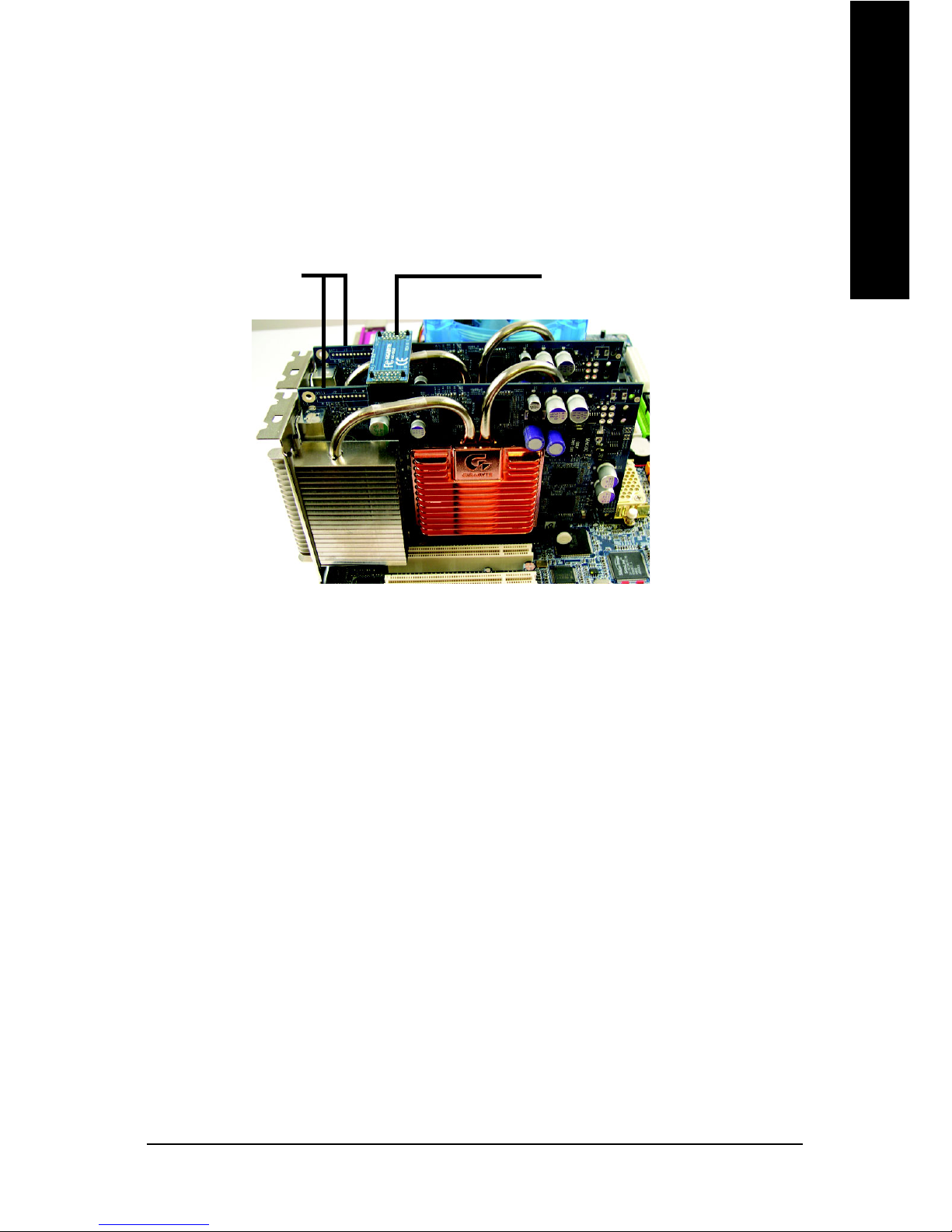

How NVIDIA® SLITM (Scalable Link Interface) technology works:
In an SLI configuration, two SLI-ready graphics cards of the same model and the same
manufacturers are connected together via SLI bridge connector in a system that provides
two x16 PCI Express slots to scale graphics performance. The picture below shows that two
graphics cards are linked in parallel in an SLI configuration.
SLI bridge connector
(provided by motherboard
manufacturer)
Two SLI-ready graphics
cards of the same type.
(Example: GV-NX66T256DP-RH)

GV-NX76G256HI-RH Graphics Accelerator - 12 -
English
3. Software Installation
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
The installation of Windows®2000 / Windows®XP drivers is very simple. When you insert the
driver CD into your CD-ROM drive, you can see the AUTORUN window (if it does not show
up, run "D:\setup.exe"). Then you can follow the guides to setup your graphics card driver.
(Please follow the subsection 3.1.3 "Driver installation" to install the driver for your graphics
accelerator.)
3.1. Windows®XP Driver and Utilities Installation
3.1.1. Operating System Requirement
•When loading the graphics card drivers for the system, please make sure your system
has installed DirectX 9.0c or later version.
•If you install the graphics card drivers for the motherboard, which consist of SIS or VIA
chipsets, please install the appropriate driver program for that motherboard. Or please
contact your motherboard nearest dealer for motherboard driver.

Software Installation- 13 -
English

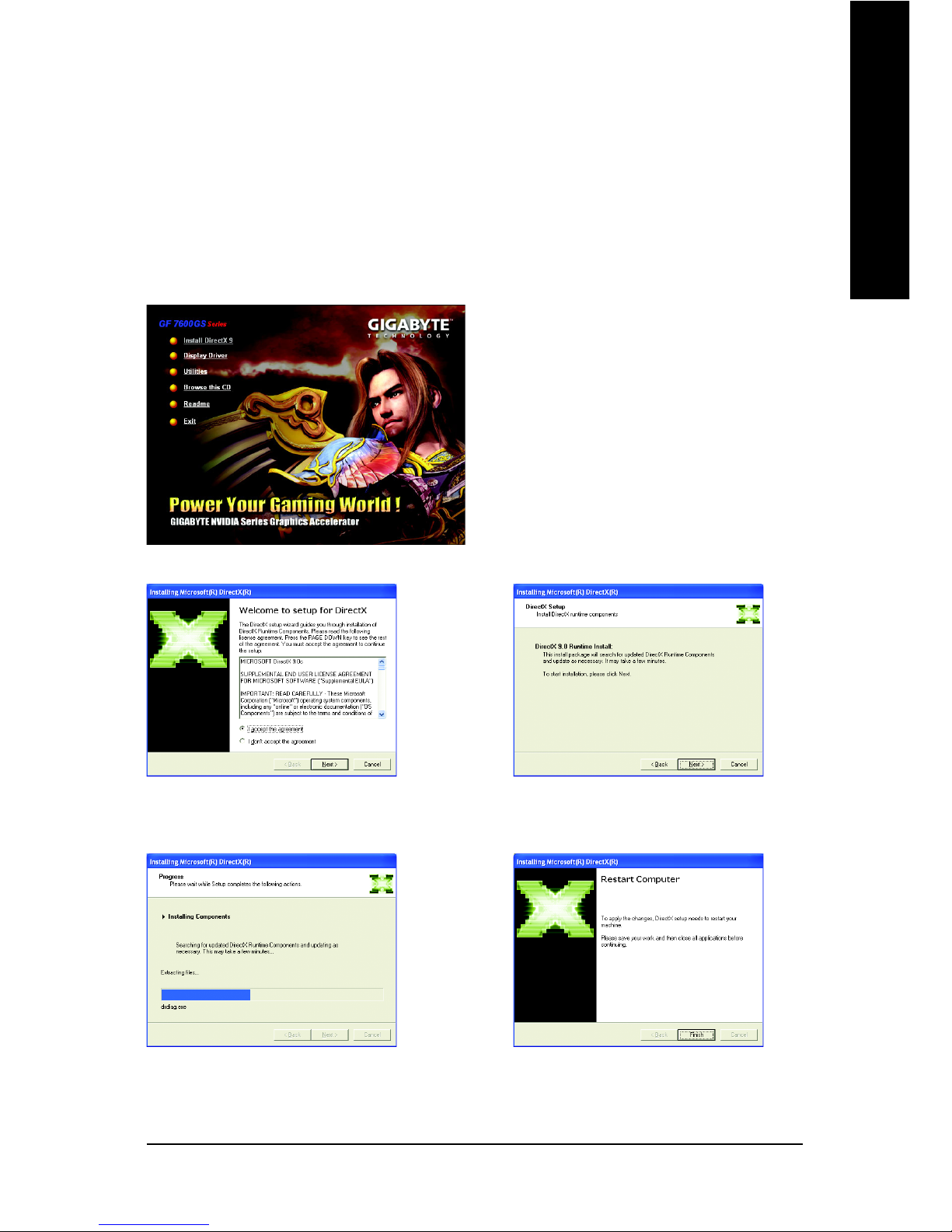

3.1.2. DirectX Installation
Install Microsoft DirectX to enable 3D hardware acceleration support for Windows®2000 or
Windows®XP to achieve better 3D performance.
0Note: For software MPEG support in Windows®2000 or Windows®XP, you must install
DirectX first. Users who run Windows XP with Service Pack 2 or above do not need to
install DirectX separately.
Step 2. Choose I accept the agreement
and click the Next button.
Step 3. Click the Next button.
Step 4. Click Finish to restart computer.
Then the DirectX 9 installation is completed.
Installing the components.
Step 1. When autorun window show up, click the
Install DirectX 9 item.

GV-NX76G256HI-RH Graphics Accelerator - 14 -
English
3.1.3. Driver Installation
A. New hardware found
After the graphics card is inserted into your computer at the first time, the windows will
automatically detect a new hardware in the system and pop out a "New Hardware Found"
message. The following is the step-by-step installation guide.
Step 1: Found new hardware wizard: Video controller (VGA Compatible)
Click the "Next" button to install the driver. (There
is a driver CD disk that came with your graphics
accelerator, please insert it now.)
Or click the "Cancel" button to install the driver
from AUTORUN window.
Step 2: Found new hardware wizard: Searching and installing
The wizard will search for the driver and install it automatically.
Step 3: Found new hardware wizard: Finish
Click the "Finish" button to finish the installation.

Software Installation- 15 -
English
B. Driver installation (Autorun Window)
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
Step 1. When autorun window show up,
click Display Driver item.
Step 2. When autorun window show up,
click Install Display Driver item.
Step 3. Click "Next" button.
Step 4. Click "Finish" button to restart
computer. Then the driver installation is
completed.
Windows installings the components.

GV-NX76G256HI-RH Graphics Accelerator - 16 -
English
3.1.4. Utilities on Driver CD
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
•Install GIGABYTE utilities:
Step 3. Enter your name and company.
Step 4. Click the Finish button to restart computer.
Then the utilities installation is completed.
Step 2. Click the Next button.
Step 1. When autorun window show up, please click
the Utilities item.
Then click the GIGABYTE Utility item.

Software Installation- 17 -
English

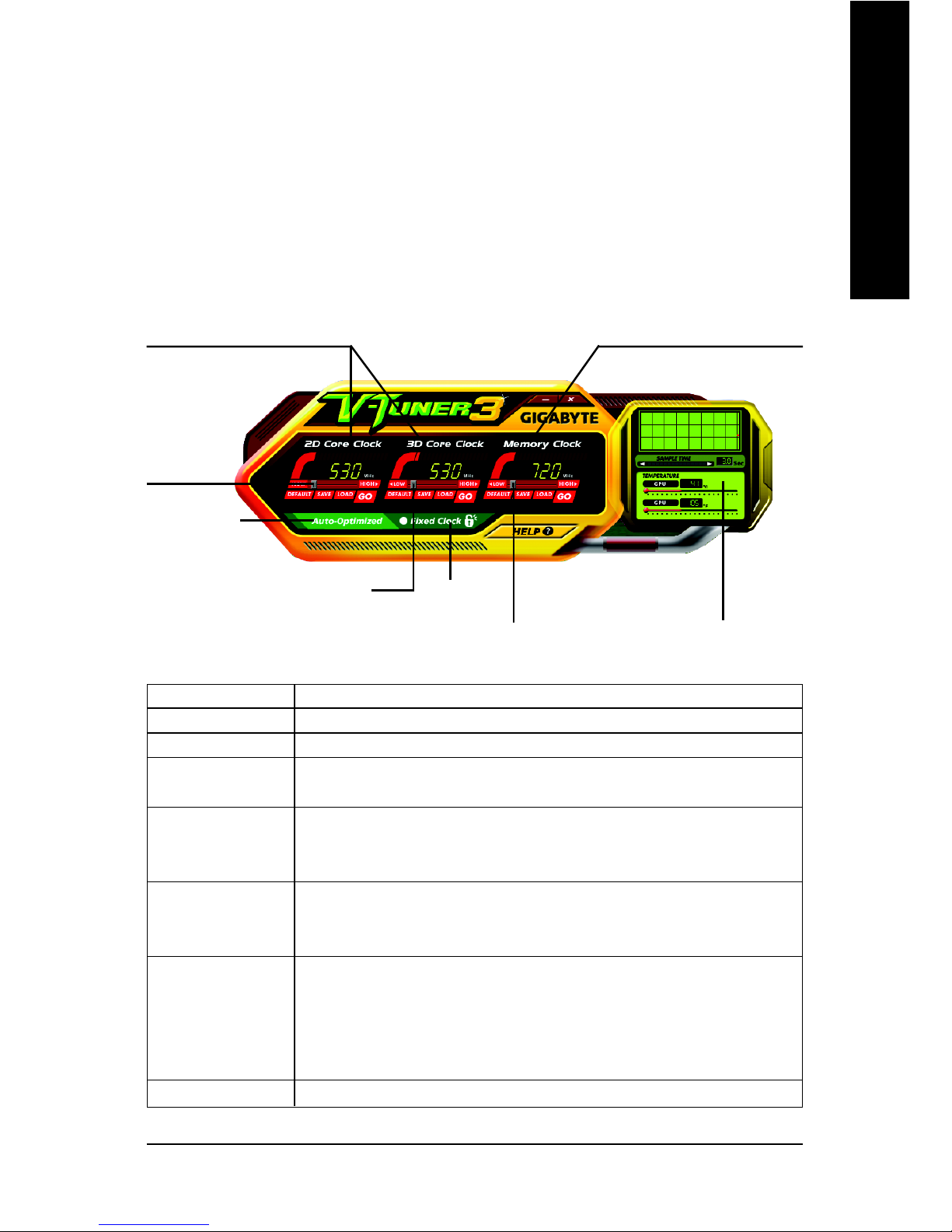

V-Tuner 3
V-Tuner 3 lets you adjust the working frequency of the graphic engine and video memory
(Core Clock and Memory Clock).
Displays 2D/3D core clock status Displays memory clock status
Adjust 2D core
clock
Adjust memory clock
Adjust 3D core clock
Hardware Monitor
Button Function
DEFAULT You may click this button to restore to the default setting
SAVE You may click this button to save the frequency you wanted
LOAD After saving the specific value, you may click this button to load the
frequency you saved last time
Auto-Optimized The V-Tuner3 clock configuration utility will determine the recommended
GPU and memory clock setting your system. If the utility should hang,
restart your system and then enter "Auto-Optimized" mode
Fixed Clock The V-Tuner3 clock configuration utility will lock the GPU and memory
clock you choose, whether you restart your system or not. To rechange
clock, uncheck the "Fixed Clock" mode and then adjust
Hardware Monitor If your card have Hardware Monitor function, you will see the extend
window. The window will display the GPU temperature and show the
thermal curve. Besides, you can move the slider to adjust the frequency-
time temperature of GPU, and you will see the change of thermal curve
from now on.
HELP Opens Help page
Auto-Optimized
core / memory clock
Fixed Clock

GV-NX76G256HI-RH Graphics Accelerator - 18 -
English
3.1.5. Taskbar Icon
After installation of the display drivers, you will find a GIGABYTE icon on the taskbar's
status area. Right-click this icon to open the GIGABYTE control panel, showing a menu
composed of shortcut of the graphics card's enhanced and other functions.
You may click the "Display Properties" item, and then click Settings. Click "Advanced" after
clicking Settings. Click the appropriate tab to change your display settings.
Right click the icon.
You can link to GIGABYTE website for updated information about the
graphics accelerator, latest drivers, and other information.
Click the VGA Information
item into the "VGA Info" and
"Color Adjust" tabs.
