GV-R587SO-1GD
ATI RadeonTM HD 5870 GraphicsAccelerator
User's Manual
Rev. 101
12MM-R587SO-101R
Copyright
©2010GIGABYTETECHNOLOGYCO.,LTD
CopyrightbyGIGA-BYTETECHNOLOGYCO.,LTD.("GBT").Nopartofthismanualmay bereproducedortransmitted
inany formwithout theexpressed, writtenpermission ofGBT.
Trademarks
Third-partybrandsandnamesarethepropertiesoftheirrespectiveowners.
Notice
Pleasedo notremove any labels on this graphics card. Doing so may void the warranty of this card.
Duetorapidchangeintechnology,someofthespecificationsmightbeoutofdatebeforepublicationofthisthismanual.
Theauthorassumesnoresponsibilityforanyerrorsoromissionsthatmayappearinthisdocumentnordoestheauthor
makeacommitmenttoupdatetheinformationcontainedherein.
Macrovision corporation product notice:
ThisproductincorporatescopyrightprotectiontechnologythatisprotectedbyU.S.patentsandotherintellectualpropertyrights.
UseofthiscopyrightprotectiontechnologymustbeauthorizedbyRoviCorporation,andisintendedforhomeandotherlimited
viewingusesonlyunlessotherwiseauthorizedbyRoviCorporation. Reverseengineeringordisassemblyisprohibited.

Mar. 20, 2010
VGA Card
GV-R587SO-1GD
VGA Card
GV-R587SO-1GD
Mar. 20, 2010

- 3 -
Table of Contents
1.Introduction ................................................................................................................ 4
1.1.Features ......................................................................................................................... 4
1.2.MinimumSystemRequirements .................................................................................... 4
2.HardwareInstallation.................................................................................................. 5
2.1.BoardLayout ................................................................................................................. 5
2.2.HardwareInstallation......................................................................................................7
3.SoftwareInstallation.................................................................................................... 9
3.1.DriverandUtilityInstallation........................................................................................... 9
3.1.1. Driver Installation ........................................................................................................... 9
3.2. TaskbarIcon............................................................................................................. 13
3.3. DisplayPropertiesPages ........................................................................................ 15
4.TroubleshootingTips................................................................................................ 30
5.Appendix ................................................................................................................. 31
5.1.ResolutionsandColorDepthTables ............................................................................. 31
5.2.RegulatoryStatements ................................................................................................. 32

- 4 -GV-R587 Series Graphics Accelerator
1. Introduction
1.1. Features
•Powered by ATI RadeonTM HD5870 Graphics Processing Unit (GPU)
•Supports PCI Express 2.1
•Integratedwith 1GBGDDR5 memory
•SupportsDirectX11
•SupportsCrossFireXTM
• Supports DVI-I / HDMI / Display port
• Supports2Dual-LinkDVI-Iconnectors
• SupportsD-Subconnectors(byadapter)
• SupportsHDMIconnector
• SupportsDisplayport
1.2. Minimum System Requirements
•Hardware
- Intel®Pentium®4/CoreTM 2 or AMD AthlonTM /PhenomTM
- 1 GB or more of system memory for best performance
- Optical drive for software installation (CD-ROM or DVD-ROM drive)
- A power supply that provides at least 500-watt and with two 75w 2x3-pin PCIe power
connector is required. The power supply should be with a known brand and certified to
conform to safety regulations. (For the list of certified power supplies, go to
http://ati.amd.com/certifiedpsu.)
•OperatingSystem
- Windows®7
- Windows®Vista
- Windows®XP with Service Pack 2 (SP2)
- Windows®XP Professional x64 Edition
•CrossFireXTM Configuration
If you are planning on using this graphics card as part of a CrossFireX system, the following
is required:
- A CrossFireX certified motherboard with two PCI Express x16 slots and correct chipset driver
- Two GV-R587SO-1GD
- A power supply that provides at least 600-watt and with four 2x3-pin PCIe power
connectors is required. The power supply should be with a known brand and certified to
conform to safety regulations. (For the list of certified power supplies, go to
http://ati.amd.com/certifiedpsu.)
- One or two CrossFire bridge interconnect cables

- 5 - Hardware Installation
2. Hardware Installation
2.1. Board Layout
DisplayPort Connector
HDMI Connector
DVI-I Connector
DVI-I
Connector
AnalogLCDMonitor AnalogMonitor
or DVI-I to D-Sub
Adapter
Digital LCD Monitor
DVI Output
D-Sub
Output
HDMI TV
HDMI
Connector
Digital LCD Monitor
DisplayPort
Connector
HDMI TV
CrossFire Connector

- 6 -GV-R587 Series Graphics Accelerator
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protectthemagainstdamagefromstaticelectricity,youshouldfollowsome
precautions whenever you work on your computer.
1. Turnoffyour computer and unplug power supply.
2. Useagroundedwriststrapbeforehandlingcomputercomponents.Ifyoudonot
haveone,touchbothofyourhandstoasafelygroundedobjectortoametalobject,
suchasthepowersupply case.
3. Placecomponentsonagroundedantistaticpadoronthebagthatcamewiththe
componentswheneverthecomponentsareseparatedfromthesystem.
Thecardcontainssensitiveelectriccomponents,whichcanbeeasilydamagedbystatic
electricity,sothecardshouldbeleftinitsoriginalpackinguntilitisinstalled.
Unpackingandinstallationshouldbedoneonagroundedanti-staticmat.Theoperator
shouldbewearingananti-staticwristband,groundedatthesamepointastheanti-static
mat.
Inspectthecardcartonforobviousdamage.Shippingandhandlingmaycausedamage
toyour card. Be sure thereareno shipping and handling damagesonthecard before
proceeding.
DO NOTAPPLY POWER TOYOUR SYSTEM IF THE GRAPHICS CARD IS
DAMAGED.
In order to ensure that your graphics card can work correctly, please use
official GIGABYTE BIOS only. Using non-official GIGABYTE BIOS might
cause problem(s) on the graphics card.
The entire Radeon HD5870 series support HDMI output which can handle both audio and
video signals. However, audio output from the onboard audio controller or the external
sound card will be disabled when HDMI output is activated.
If no need for HDMI output function, set the onboard audio controller or the external sound
card to be the default Sound Playback device to obtain audio output from your system. For
more details, refer to page 14.

- 7 - Hardware Installation
2.2. Hardware Installation
Now that you have prepared your computer, you are ready to install your graphics card.
Step 1.
Locate the PCI Express x16 slot. If necessary, remove the
metal cover from this slot; then align your graphics card with
the PCI Express x16 slot, and press it in firmly until the card is
fully seated.
Step 2.
Replace the screw to fasten the card in place, and replace the
computer cover.
Makesurethatthegoldedgeconnectorofthegraphicscardissecurely
inserted.
Step 3.
Plug the display cable into your card; then turn on the computer
and monitor. To connect a flat panel display to your graphics
card, use the DVI-I connector. To connect an HDMI monitor to
your graphics card, use the HDMI connector. To connect a
DisplayPort monitor to your graphics card, use the DisplayPort
connector.
You are now ready to proceed with the installation of the graphics card driver. Please refer to next
chapter for detailed instructions.
Connecta flat panel display
ConnectanHDMImonitor
To Flat Panel Display
ToHDMIMonitor
ConnectaDisplayPortmonitor
ToDisplayPortMonitor
After installation, remember to connect the power cable to your graphics
card, or the system will not boot. Do not touch the card when it's operating
to prevent system instability.

- 8 -GV-R587 Series Graphics Accelerator

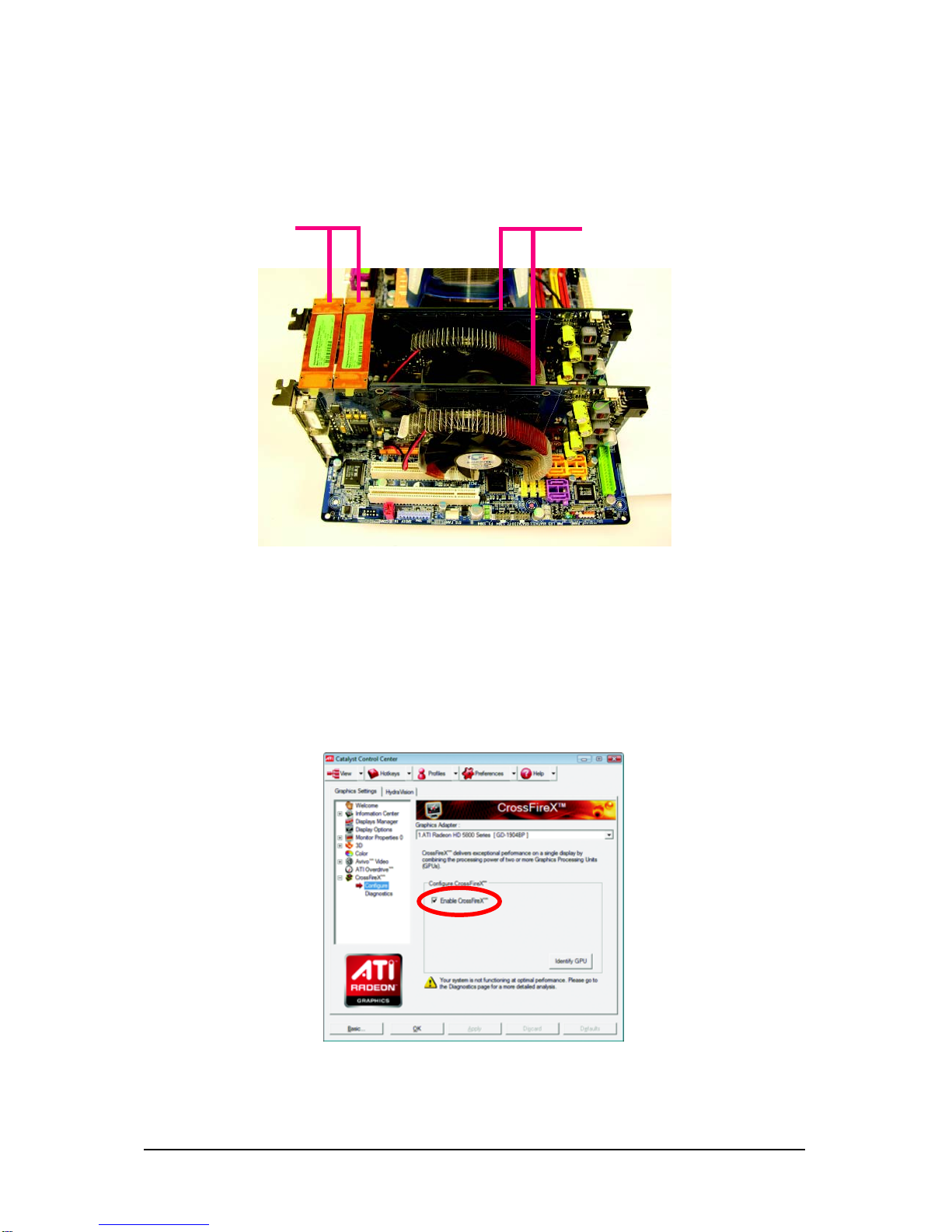

How to enable the ATI CrossFireXTM technology?
Step 1:
Install two CrossFireX graphics cards of the same chipset on a CrossFireX-supported motherboard and
connect the graphics cards via two CrossFire bridge interconnect cables (Figure 1). Then users can
enable the CrossFireX technology through the graphics card driver.
Two CrossFire bridge
interconnect cables. TwoCrossFiregraphics cardsofthe sametype.
(Example: GV-RX195P256D-RH)
Figure 1
Step 2:
After installing graphics card driver in operating system, when an ATI CrossFireX configuration is
detected for the first time by the ATI Catalyst display driver, ATI CrossFireX support is automatically
enabled, and the best possible GPU combination is selected based on the hardware configuration.
IfATI CrossFireX is not enabled, access the ATI Catalyst Control Center (please refer to Page 14). From
theATI Catalyst Control Center, enter the CrossFire menu and assure to select the Enable CrossFireXTM
check box (Figure 2).
Figure 2

- 9 - Software Installation
3. Software Installation
Notice the following guidelines before installing the drivers:
1. First make sure your system has installed DirectX 9 or later version.
2. Make sure your system has installed the appropriate motherboard drivers (for the motherboard
drivers, please contact the motherboard manufacturer.)
3.1. Driver and Utility Installation
3.1.1. Driver Installation

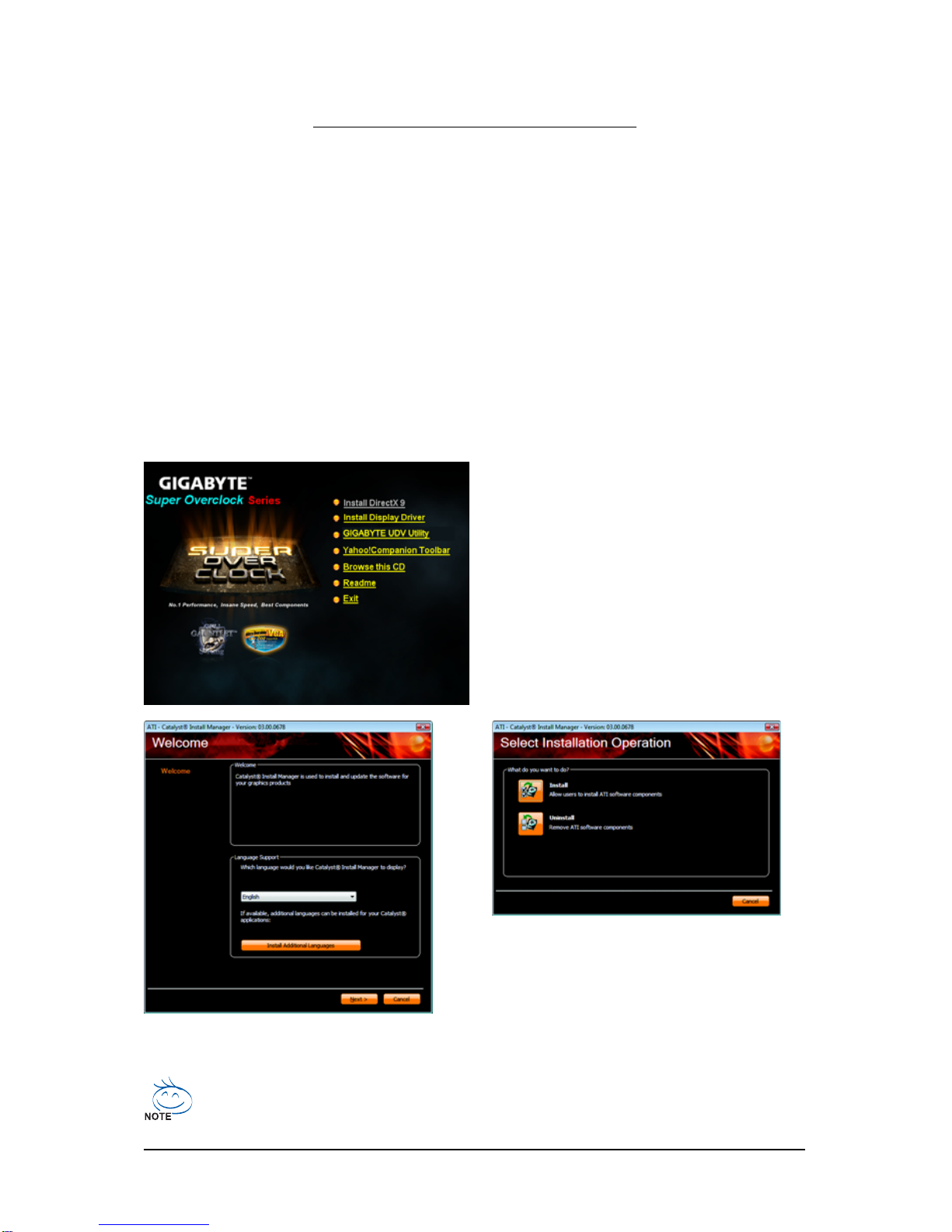

After installing the operating system, insert the driver disk into your optical drive. The driver Autorun
screen is automatically displayed which looks like that shown in the screen shot below. (If the driver
Autorun screen does not appear automatically, go to My Computer, double-click the optical drive and
execute the setup.exe program.)
For software MPEG support in Windows XP, you must install DirectX first. Users who run
Windows XP with Service Pack 2 or above do not need to install DirectX separately.
Step 1:
Click the Install Display Driver item.
Step 2:
Select the displayed language and then click Next.
Step 3:
Click the Install button.

- 10 -GV-R587 Series Graphics Accelerator

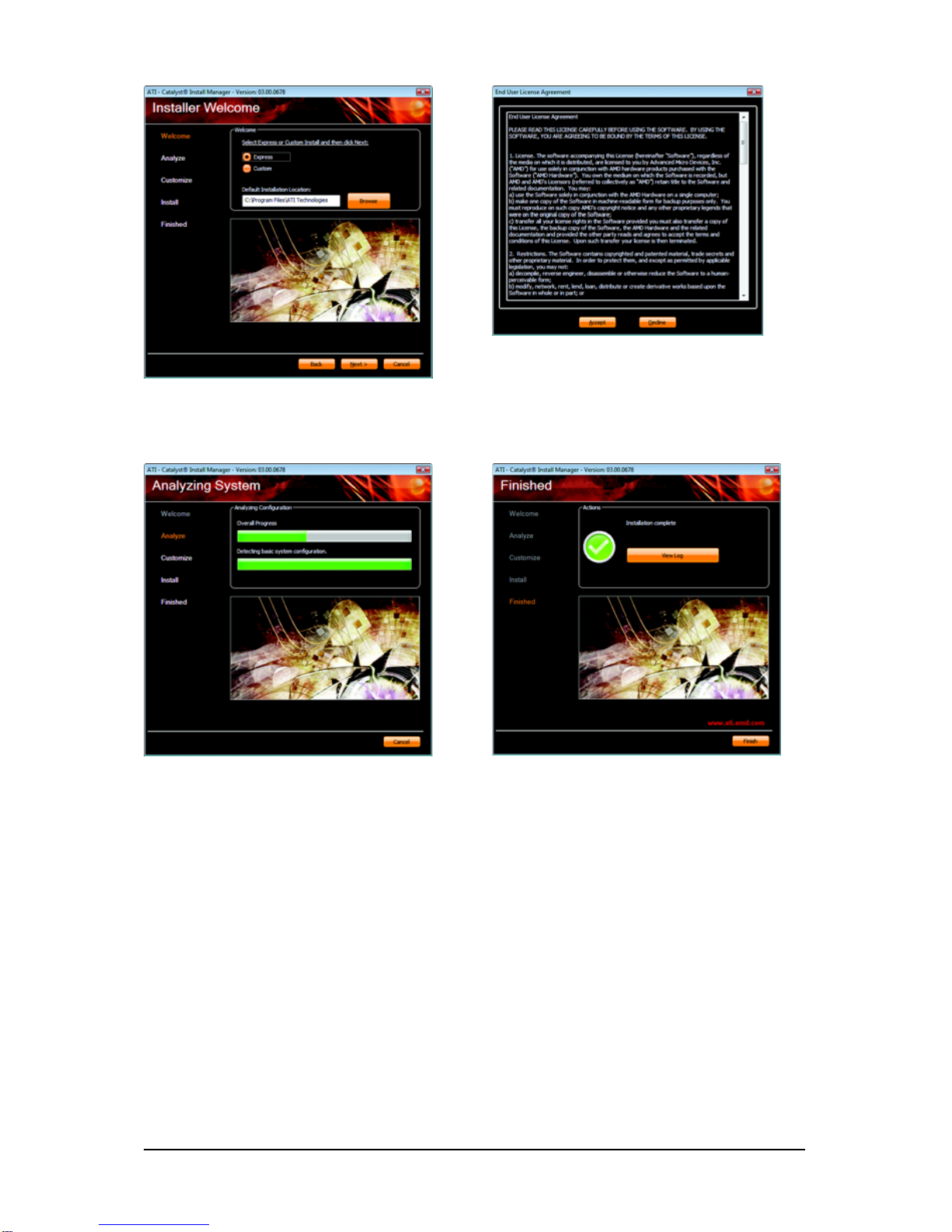

Setp 4:
Click the Express or Custom icon and then
click Next.
Step 5:
Click the Accept button.
The system is installing the components. Step 6:
Click the Finish button to restart the computer.
Then the driver installation is completed.

- 11 - Software Installation

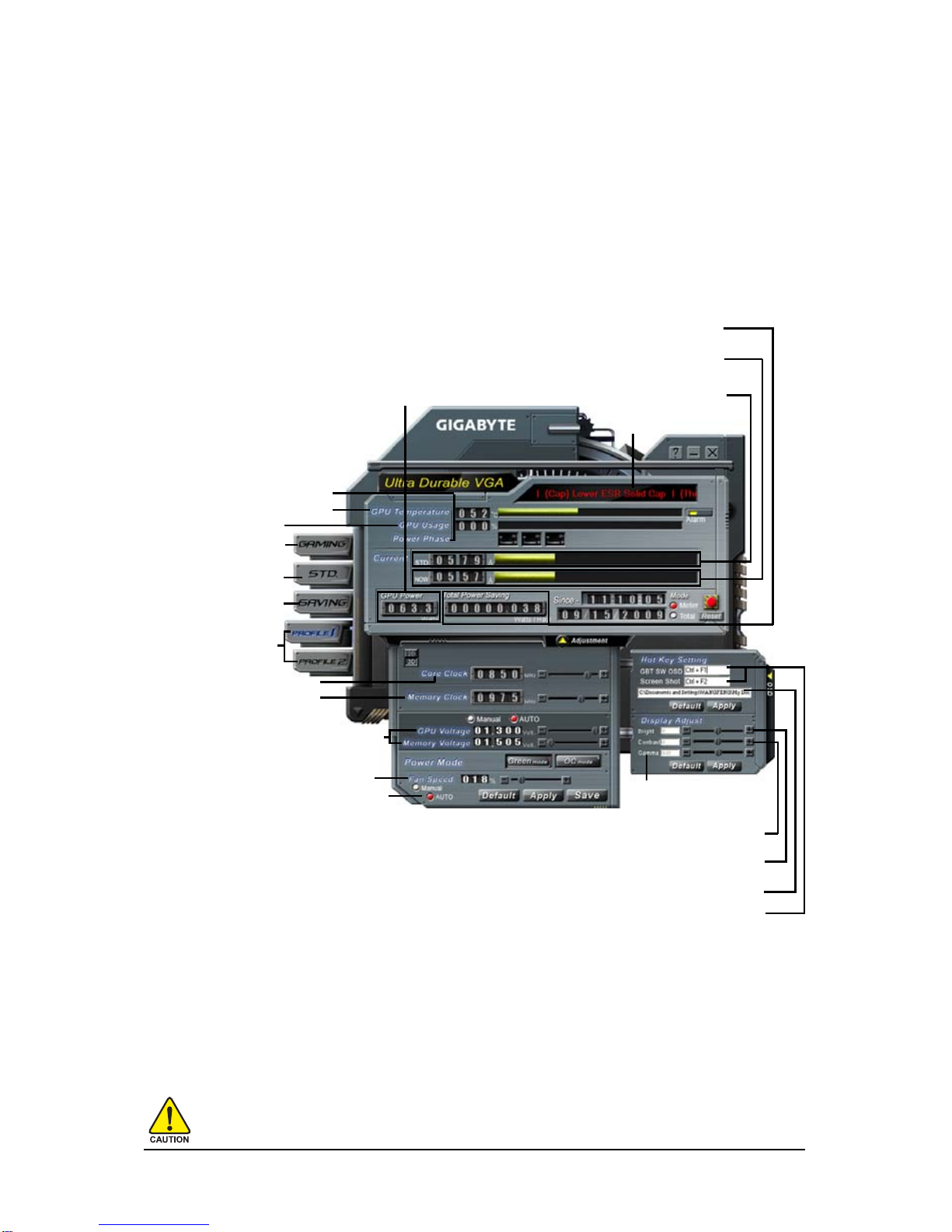

GIGABYTE UDV Utility
The GIGABYTE UDV utility provides 3 default profiles: Gaming Mode, standard Mode, Power Saving Mode,
and two user profiles that configure basic clock, voltage, current, fan speed and gamer OSD settings.
Gaming Mode: Extreme 3D gaming performance for enthusiastic users
Default Mode: Original setting
Power Saving Mode: The best 2D and 3D power saving setting to reduce unnecessary power consumption
User Defined Mode: Manually adjusting to meet users’ demand
Information:Theinformationpanelallowsuserstomonitortheirgraphicscards.Suchas:GPUTemperature,GPUusage,Power
phase,currentandpowersaving.
Incorrectly doing overclock/overvoltage may result in damage to your system and reduce
the useful life of the system components.
Productinformation
GPUcurrent
GPUcurrentUsage
VGAPowerPhaseStatus
Referenceboard
GIGABYTE own design board with
UltraDurableVGAmaterials.
CurrentGPUPowerConsumption
Calculatepowersavingsbased on time)
GIGABYTErecommends
GamingSetting
DefaultSetting
GIGABYTErecommends
PowerSavingSetting
Userallowsconfiguringthe
settingsMove the slidersto adjust
Movethe sliders to adjust
MovethesliderstoadjustGPU/Memory
voltage
Movethe sliders to adjust FanSpeed
FanSpeedAUTOMode:Defaultsettings
Clicktokeyin the hotkeysetting
Click to Select Screen Shot File Path
Movethesliderstoadjustbrightvalue
Movethesliderstoadjustcontrastvalue
Movethe sliders to adjust
gammavalue

- 12 -GV-R587 Series Graphics Accelerator

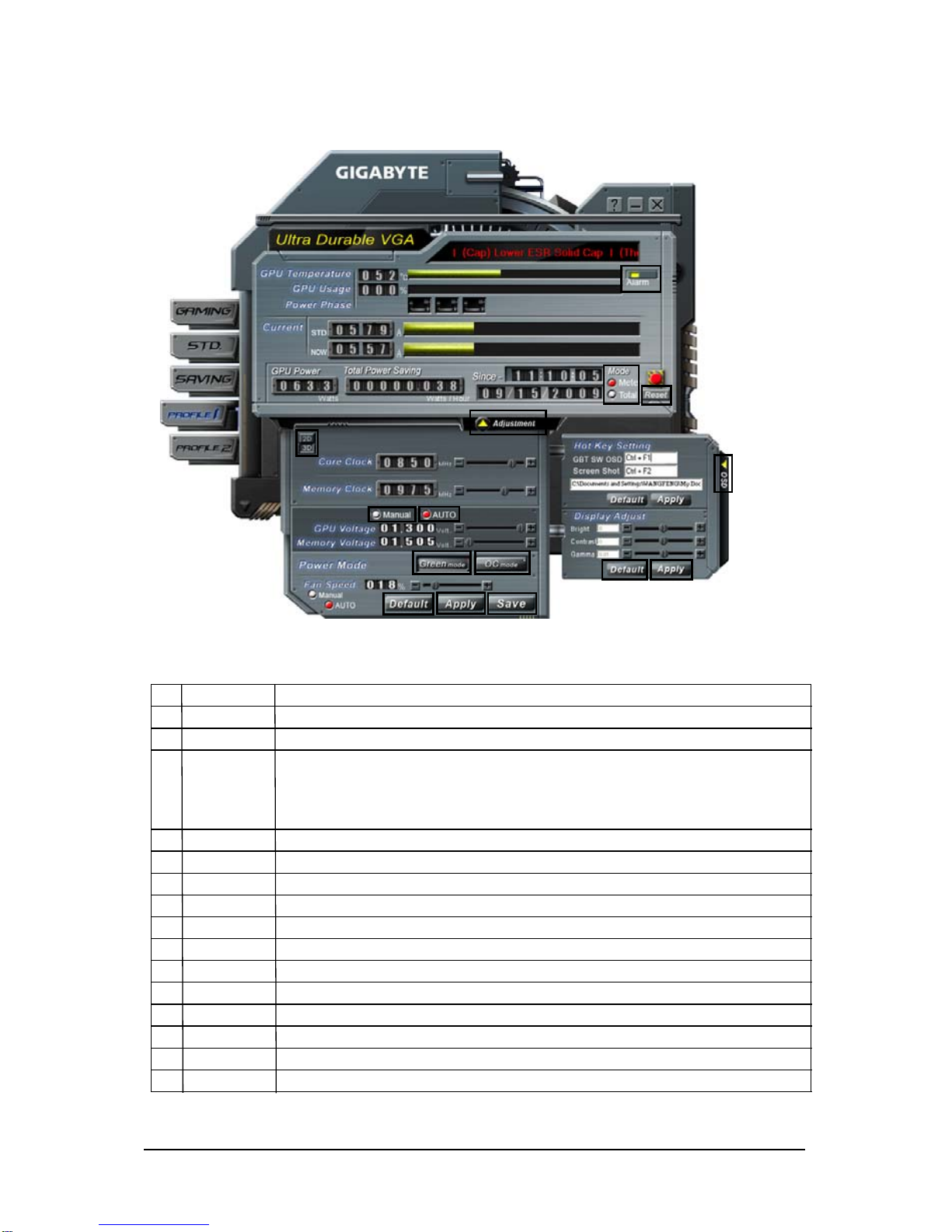

NO. Button Function
1 Alarm Temperature warning alarm On/Off Switch (Default On)
2 Reset Meter/Timer Reset Switch
3 Mode Meter mode:GIGABYTE UDV Utility shows how much power they have savedin
a set period of time.Total mode: In Total Mode, users are able to see how much total
power savings they have accumulated in a set period of time since activating UDV
Utility for the first time.
4 Adjustment Click the arrow Adjustment to adjust the default setting
5 2D / 3D 2D / 3D Switch
6 Manual Move the sliders to adjust GPU / Memory voltage
7 AUTO Default GPU / Memory voltage Settings
8 Green mode Power Saving mode
9 OC mode Overclocking mode
10 Default Click to back the default settings
11 Apply Click to apply settings
12 Save Click to save settings
13 Gamer OSD Click the arrow Gamer OSD to adjust OSD Settings
14 Default Click to back the default settings
15 Apply Click to apply settings
1
1
2
3
4
5
67
89
10 11 12
13
14 15

- 13 - Software Installation
3.2. Taskbar Icon
After installation of the display driver, you will find an ATI icon in the notification area. Right-click the
icon to enter the ATI Catalyst Control Center. The ATI Catalyst Control Center is used to configure
all your graphics card settings.
Right-click the ATI icon to enter the ATI Catalyst Control Center.
Or you can right-click on the desktop and select Catalyst(TM) Control Center.

- 14 -GV-R587 Series Graphics Accelerator
Configuring Audio Output
Configure the default audio output device based upon your needs.
Step 1:
Go to Start > Control Panel > Hardware and Sound > Manage audio devices.
Using the picture to the left as the example, to set HDMI audio to be
the default Sound Playback device, select Digital Output Device
(HDMI). Otherwise, select Digital Output Device (SPDIF), which
is the onboard audio controller.
Step 2:
In the Manage audio devices dialog box, click the Playback tab.
Figure 1 Figure 2
Figure 3

- 15 - Software Installation
You can move the slider to change the resolution.
You can click the item to change the color quality.
Click the Advanced button for advanced settings.
3.3. Display Properties Pages
Display Settings (Resolutions and Color Quality for Windows)
To access Display Settings page, right-click on desktop and select Personalize, then the Personalization
windows will show up. Select Display Settings to adjust the screen resolution and color quality settings.
Display
Matrix Model GV-R587SO-1GD DVI+DP+HDMI Yes
HDMI+DVI Yes
HDMI+DP Yes
DVI+DP Yes
CRT(Note)+HDMI+DP Yes
CRT(Note)+DP Yes
CRT(Note)+HDMI Yes
(Note) By a DVI-to-D-Sub adapter.

- 16 -GV-R587 Series Graphics Accelerator
ATI Catalyst®Control Center Basic View :
The Basic View is the default view when ATI Catalyst Control Center is launched for the first time. This
interface provides access to the basic settings and advanced features of your ATI graphics products.
You can switch between Basic View and Advanced View at any time.
To access more settings in Basic View, click Basic,
and then click Next.
Easy Setup Wizards:
Choose a wizard from the central list and click Go for step-by-step assistance.


Avivo Video Converter
This wizard assists you to convert videos from one file format to another.
Step 1:
Select Avivo Video Converter, then click Go.Step 2: Select the video file to be converted.
Step 3:
In the Output Folder area, select the destination folder where the new file will be located. Click Next.

- 17 - Software Installation
Step 4:
In the Output Video Format list, select a file
format for the new file. If you wish to change the
name of the new file, enter the new name in the
Output File area. Finally, click Next to start
file conversion.
The video file has been successfully converted.


Setup my display configuration
This wizard allows you to configure display
setting for desktop viewing.


HydraVision Configuration Settings
This wizard will take you to set up the HydraVision
Configuration based on your own preference.

- 18 -GV-R587 Series Graphics Accelerator
Quick Settings:
The Quick Settings page provides access to three main settings.


3D Quality
3D Performance and Quality Settings allows your
3D games and applications to get faster perfor-
mance and better quality with a more balanced
setting.


Video Playback
Use this option to optimize video playback in
different room environment or to select how
video playback appears on the second display.


Display Setup
This option allows you to configure your desktop,
including changing desktop resolution and desk-
top mode, setting up extended desktop (requires
more than one display), and rotating desktop
image to match new display orientation.
Information Center:
The Information Center page in Basic and Advanced View provides hardware and software information
about the installed graphics card.


Graphics Software
Provides software information including driver
version, CATALYST version, Direct 3D version
and so on.


GraphicsHardware
Provides hardware information including graph-
ics chipset, BIOS version, memory size, core
clock and so on.

- 19 - Software Installation
ATI Catalyst Control Center Advanced View
The Advanced page allows you to configure all of the many available settings of your ATI graphics
card.
View Properties:
The CATALYST Control Center dashboard supports three types of views: Basic View/ Advanced View/
Custom View.


Basic View
The Basic view is the default view when CATA-
LYST Control Center is launched for the first
time. Refer to the previous pages for details.


Advanced View
The Advanced view provides access to the
advanced features on each page. The left navi-
gation pane displays a tree view that lists all the
advanced features. The Advanced view is rec-
ommended for experienced users.


Custom View
The Custom view allows you to display only
the features you choose in the left navigation
pane. The Custom view is recommended for
experienced users who want to expose only
the features they adjust most often or that their
3D application supports.
Hotkeys Properties:
The Hotkeys Manager allows you to create shortcut key combinations to quickly perform tasks such
as changing a graphics setting or opening an application. A Hotkey is a combination of a modifier key
or keys, such as Ctrl, Alt, or Shift, and any letter from the alphabet.

- 20 -GV-R587 Series Graphics Accelerator
Profiles Properties:
You can use profiles to create customized environments for your desktop, video, and 3D applications.
Define and save your own personal video settings that can be quickly activated manually, through a
Hotkey, or by file association. Note:
A profile applies to a specific graphics card. If
there is more than one graphics card installed in
your computer, you need to select the appropriate
card before creating, loading, or activating a Profile.
Preferences Properties:
The Preferences page helps to restore defaults, change skins, and update the Catalyst Control Center.
The Catalyst Control Center Preferences page contains the following options:
Always on Top
Hide Tooltips
Hide Toolbar Text
Hide Splash Screen
Enable System Tray Menu
Select a Language ...
Select a Skin ...
Restore Factory Defaults ...
