GV-NX85T128P
GeForce™8500 GT Graphics Accelerator
User's Manual
Rev. 101
12MD-NX85T1P-101R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
Copyright
© 2007 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from
without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on VGA card, this may void the warranty of this VGA card
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a
commitment to update the information contained herein.
Macrovision corporation product notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

GV-NX85T128P Graphics Accelerator - 2 -
English
Table of Contents
1. Introduction ......................................................................................... 3
1.1. Features ..................................................................................................... 3
1.2. Minimum System Requirements ................................................................... 3
2. Hardware Installation ........................................................................... 4
2.1. Board Layout .............................................................................................. 4
2.2. Hardware Installation ................................................................................... 6
3. Software Installation .......................................................................... 10
3.1. Windows®XP Driver and Utilities Installation ............................................... 10
3.1.1. Operating System Requirement ................................................................................. 10
3.1.2. DirectX Installation ......................................................................................................... 11
3.1.3. Driver Installation .......................................................................................................... 12
3.1.4. Utilities on Driver CD ................................................................................................... 14
3.1.5. Taskbar Icon ................................................................................................................. 17
3.1.6. Display Properties Pages ............................................................................................ 20
3.1.7. nView Properties pages .............................................................................................. 31
3.2. Windows®2000 Driver Installation ............................................................. 36
4. Troubleshooting Tips ........................................................................ 37
5. Appendix .......................................................................................... 38
5.1. How to Reflash the BIOS in MS-DOS mode ............................................... 38
5.2. Resolutions and Color Depth Table (In Windows®XP) ............................... 39

Introduction- 3 -
English
1. Introduction
1.1. Features
•Powered by NVIDIA®GeForce™8500 GT Graphics Processing Unit (GPU)
•Supports PCI Express x16
•Integrated with 128 MB GDDR3 memory
•Supports DirectX 9.0c and DirectX 10
•Supports AV / S-Video / TV-Out and HDTV output
•Supports D-sub connector (by adapter)
•Supports 2 DVI-I connectors
•Supports HDCP (High-bandwidth Digital Content Protection) technology
1.2. Minimum System Requirements
•Hardware
- Intel®Pentium®4 or AMD AthlonTM
- 128 MB of system memory; 2 GB or more for best performance
- Optical drive for software installation (CD-ROM or DVD-ROM drive)
- A power supply with 450-watt is recommended
•Operating System
- Windows® Vista
- Windows® XP with Service Pack 2 (SP2)
- Windows®XP Professional x64 Edition
- Windows®2000

GV-NX85T128P Graphics Accelerator - 4 -
English
2. Hardware Installation
2.1. Board Layout
TV-Out
DVI-I
Connector
1
S-Video Output
Pb/AV Output
Pr
Y
NTSC / PAL TV Projector
HDTV
OR
NTSC / PAL TV Projector
OR
Digital LCD Monitor
DVI Output
DVI-I to D-Sub
Adapter
D-Sub
Output
Analog LCD Monitor Analog Monitor
OR
DVI-I
Connector
2
TV-Out
DVI-I Connector 2
DVI-I Connector 1

Introduction- 5 -
English
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some
precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static
electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator
should be wearing an anti-static wristband, grounded at the same point as the anti-static
mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage
to your card. Be sure there are no shipping and handling damages on the card before
proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON
THE CARD.
In order to ensure your graphics card working correctly, please use official
Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem
on the graphics card.

GV-NX85T128P Graphics Accelerator - 6 -
English
2.2. Hardware Installation
Installing Your graphics card.
Now that you have prepared your computer, you are ready to install your graphics accelerator
card.
To remove the existing graphics card:
1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help in
removing the cover.
3. Remove any existing graphics card from
your computer.
.
To install your new graphics card:
1. Locate one PCI Express x16 slot. If
necessary, remove the metal cover from the
slot; then align your graphics card with the
PCI Express x16 slot, and press it in firmly
until the card is fully seated.
* Please make sure that the gold edge
connectors of the graphics card is securely
inserted.

Software Installation- 7 -
English
You are now ready to proceed with the installation of the graphics card driver. Please refer
to next chapter for detailed instructions.

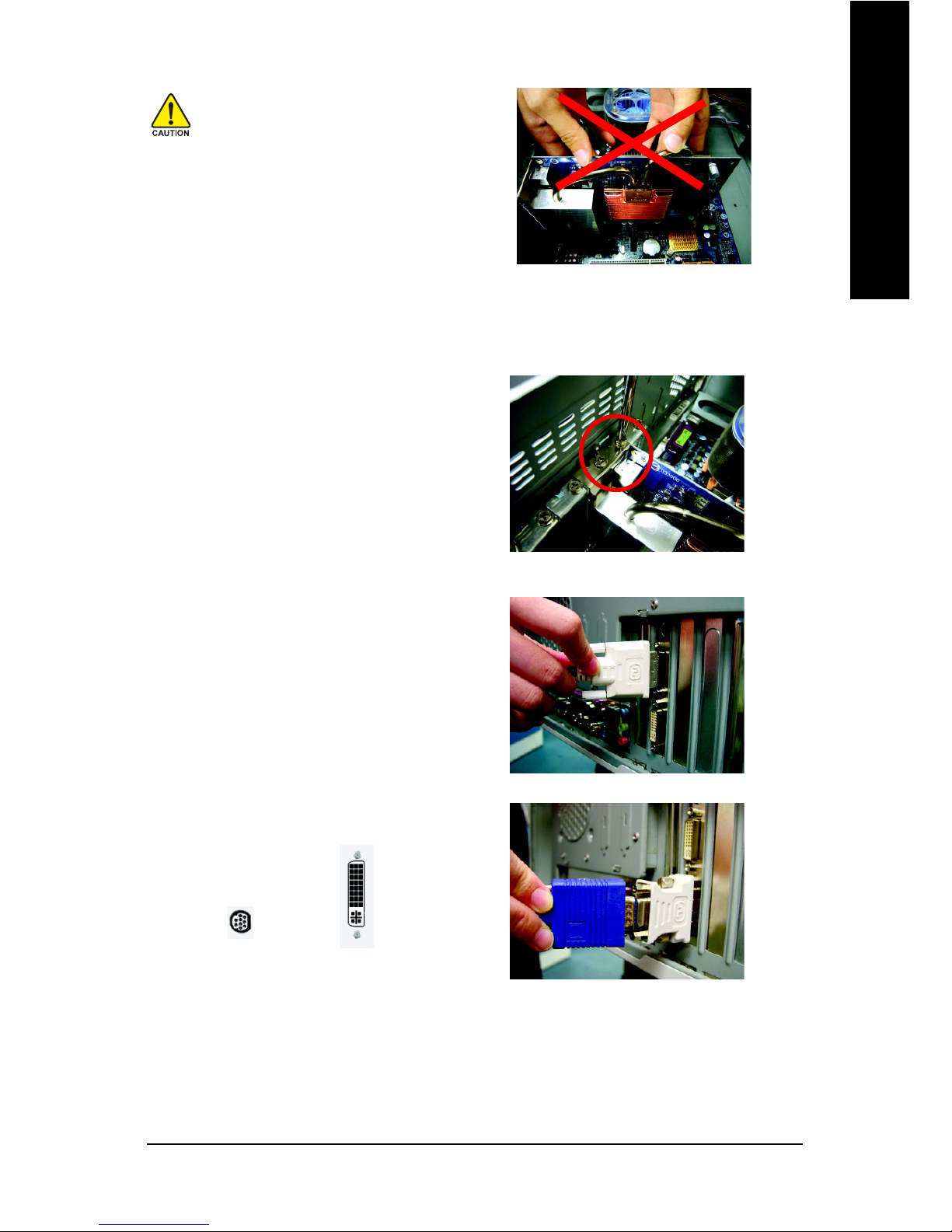

2. Replace the screws to fasten the card in
place, and replace the computer cover.
Warning!
When installing the graphics card, do
not push down the heat pipe. This
may displace the heat pipe and cause
bad contact between the GPU and
thermal pad as well as affect the heat
dissipation. To avoid system instability,
do not touch the graphics card when it
is runnnig .
To TV / VCR To Flat Panel Display
3. Plug the display cable into your graphics
card; then turn on the computer and monitor.
To connect a flat panel directly to your
graphics card, use the DVI-I connector. To
connect a D-Sub monitor to the DVI-I
connector, plug the DVI-I to D-Sub adapter
intotheDVI-I connector, thenplugthe monitor
cable into the adapter.
Connect a flat panel
Connect a D-Sub monitor via DVI-I to D-Sub
adapter

GV-NX85T128P Graphics Accelerator - 8 -
English
GIGABYTE Thermal Solution Guidelines:
1. GIGABYTE established the use of silent pipes on graphics card's thermal solution, and has been
the leading company for silent thermal solution. GIGABYTE's passive thermal solution allows
system to work perfectly in chassis with 40~50 degrees Celsius through the air flow of the system.
Please beware of the other excess component or insufficient system thermal design that may
cause high system temperature. Excess high temperature will affect the passive thermal design
and thus compromising system stability.
2. GIGABYTE TECHNOLOGY's passive thermal design effectively implemented heat exchange,
radiation and convection to improve stability of the system. Please maintain passive thermal sink
at a normal and clean environment. Extra dust on heatsink may decrease the effectiveness of the
thermal design.
Silent Thermal Technology Passive Thermal Design

Software Installation- 9 -
English
GIGABYTE Video Adapter for Nvidia Graphics Cards
(1) Connecting HDTV
Connect your HDTV cables to the video adapter
according to the corresponding color.
(Y= Green, Pr= Red, Pb= Blue)
(2) Connecting S-Video
If your TV has a S-Video connection, connect the S-
Video cable from your TV to the S-Video Out port on the
adapter.
(3) Connecting AV Output
If your TV has a Composite video connection, you can
connect the RCA cable from your TV to the AV Out port
on the adapter.
Connect to the TV-Out port
on the graphics card.
S-Video Out HDTV Component
(Y+Pr+Pb)
AV Out

GV-NX85T128P Graphics Accelerator - 10 -
English
3. Software Installation
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
The installation of Windows®2000 / Windows®XP drivers is very simple. When you insert the
driver CD into your CD-ROM drive, you can see the AUTORUN window (if it does not show
up, run "D:\setup.exe"). Then you can follow the guides to setup your graphics card driver.
(Please follow the subsection 3.1.3 "Driver installation" to install the driver for your graphics
accelerator.)
3.1. Windows®XP Driver and Utilities Installation
3.1.1. Operating System Requirement
•When loading the graphics card drivers for the system, please make sure your system
has installed DirectX 9.0c or later version.
•If you install the graphics card drivers for the motherboard, which consist of SIS or VIA
chipsets, please install the appropriate driver program for that motherboard. Or please
contact your motherboard nearest dealer for motherboard driver.

Software Installation- 11 -
English

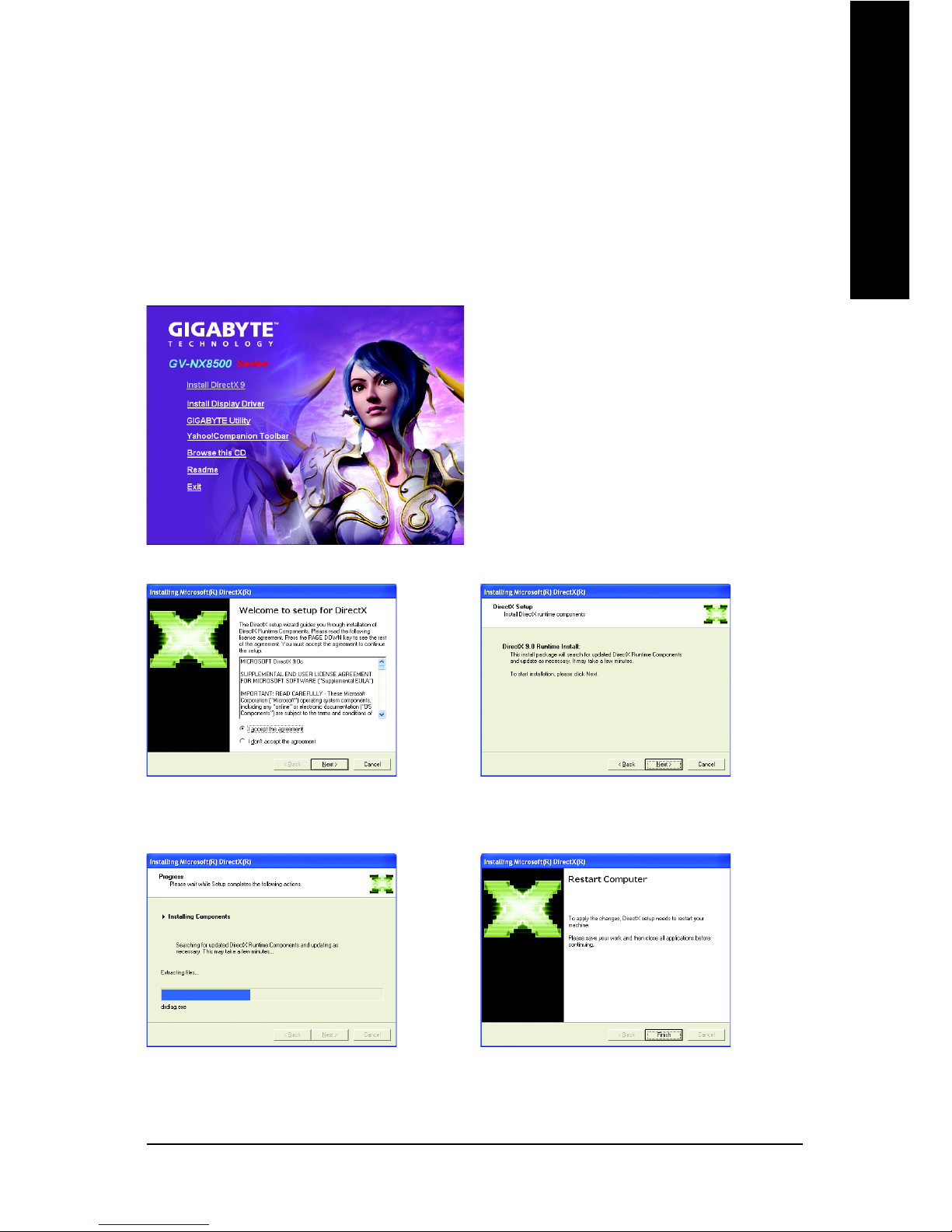

3.1.2. DirectX Installation
Install Microsoft DirectX to enable 3D hardware acceleration support for Windows®2000 or
Windows®XP to achieve better 3D performance.
0Note: For software MPEG support in Windows®2000 or Windows®XP, you must install
DirectX first. Users who run Windows XP with Service Pack 2 or above do not need to
install DirectX separately.
Step 1. When autorun window show up, click the
Install DirectX 9 item.
Step 2. Choose I accept the agreement
and click the Next button.
Step 3. Click the Next button.
Step 4. Click Finish to restart computer.
Then the DirectX 9 installation is completed.
Installing the components.

GV-NX85T128P Graphics Accelerator - 12 -
English
3.1.3. Driver Installation
A. New hardware found
After the graphics card is inserted into your computer at the first time, the windows will
automatically detect a new hardware in the system and pop out a "New Hardware Found"
message. The following is the step-by-step installation guide.
Step 1: Found new hardware wizard: Video controller (VGA Compatible)
Click the "Next" button to install the driver. (There
is a driver CD disk that came with your graphics
accelerator, please insert it now.)
Or click the "Cancel" button to install the driver
from AUTORUN window.
Step 2: Found new hardware wizard: Searching and installing
The wizard will search for the driver and install it automatically.
Step 3: Found new hardware wizard: Finish
Click the "Finish" button to finish the installation.

Software Installation- 13 -
English
B. Driver installation (Autorun Window)
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
Step 1. When autorun window show up,
click Install Display Driver item.
Step 2. Click "Next" button.
Step 3. Click "Finish" button to restart computer. Then
the driver installation is completed.
Windows installings the components.

GV-NX85T128P Graphics Accelerator - 14 -
English

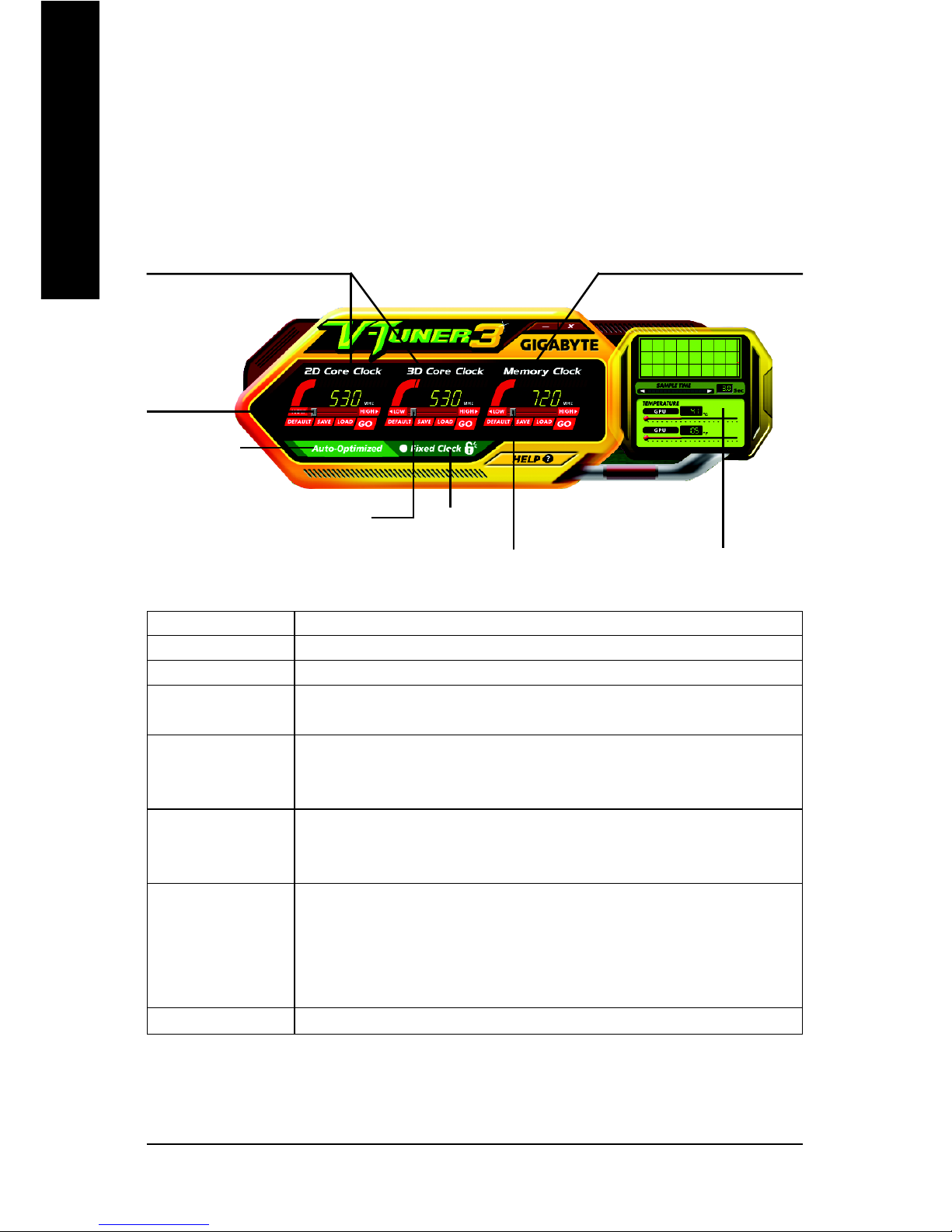

3.1.4. Utilities on Driver CD
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
•Install GIGABYTE utilities:
Step 4. Click the Finish button.
Step 2. Click the Next button.Step 1. When autorun window show up,
please click the GIGABYTE Utility item.
Step 3. Click the Install button.
Step 5. Click the Next button.

Software Installation- 15 -
English
Step 7. Click the Next button.
Step 9. Click the Finish button to restart computer.
Then the utilities installation is completed.
Step 6.Click the Next button.
Step 8. Click the Install button.

GV-NX85T128P Graphics Accelerator - 16 -
English
V-Tuner 3
V-Tuner 3 lets you adjust the working frequency of the graphic engine and video memory
(Core Clock and Memory Clock).
Displays 2D/3D core clock status Displays memory clock status
Adjust 2D core
clock
Adjust memory clock
Adjust 3D core clock
Hardware Monitor
Button Function
DEFAULT You may click this button to restore to the default setting
SAVE You may click this button to save the frequency you wanted
LOAD After saving the specific value, you may click this button to load the
frequency you saved last time
Auto-Optimized The V-Tuner3 clock configuration utility will determine the recommended
GPU and memory clock setting your system. If the utility should hang,
restart your system and then enter "Auto-Optimized" mode
Fixed Clock The V-Tuner3 clock configuration utility will lock the GPU and memory
clock you choose, whether you restart your system or not. To rechange
clock, uncheck the "Fixed Clock" mode and then adjust
Hardware Monitor If your card have Hardware Monitor function, you will see the extend
window. The window will display the GPU temperature and show the
thermal curve. Besides, you can move the slider to adjust the frequency-
time temperature of GPU, and you will see the change of thermal curve
from now on.
HELP Opens Help page
Auto-Optimized
core / memory clock
Fixed Clock

Software Installation- 17 -
English
3.1.5. Taskbar Icon
After installation of the display drivers, you will find a GIGABYTE icon on the taskbar's
status area. Right-clicking this icon opens the GIGABYTE control panel, showing a menu
composed of shortcut of the graphics card's enhanced and other functions.
You may click the Display Properties item, and then click Settings. Click Advanced after
clicking Settings. Click the appropriate tab to change your display settings.
You can link to GIGABYTE website for updated information about the
graphics accelerator, latest drivers, and other information.
Click the Color Correction and
VGA Information items into the
"Color Adjust" and "VGA Info"
tabs.
Right click the icon.

GV-NX85T128P Graphics Accelerator - 18 -
English
VGA Information
VGA Info lists the relevant information about your card.
Color Adjust
Color Adjust allows you to make color adjustments, such as brightness, contrast and
gamma values for each or all of RGB colors.

Software Installation- 19 -
English
You can adjust the properties of
the graphics accelerator from
here.
Right click the icon.
After installation of the display drivers, you will find a NVIDIA icon on the taskbar's status
area. Click this icon to open the control panel.

GV-NX85T128P Graphics Accelerator - 20 -
English

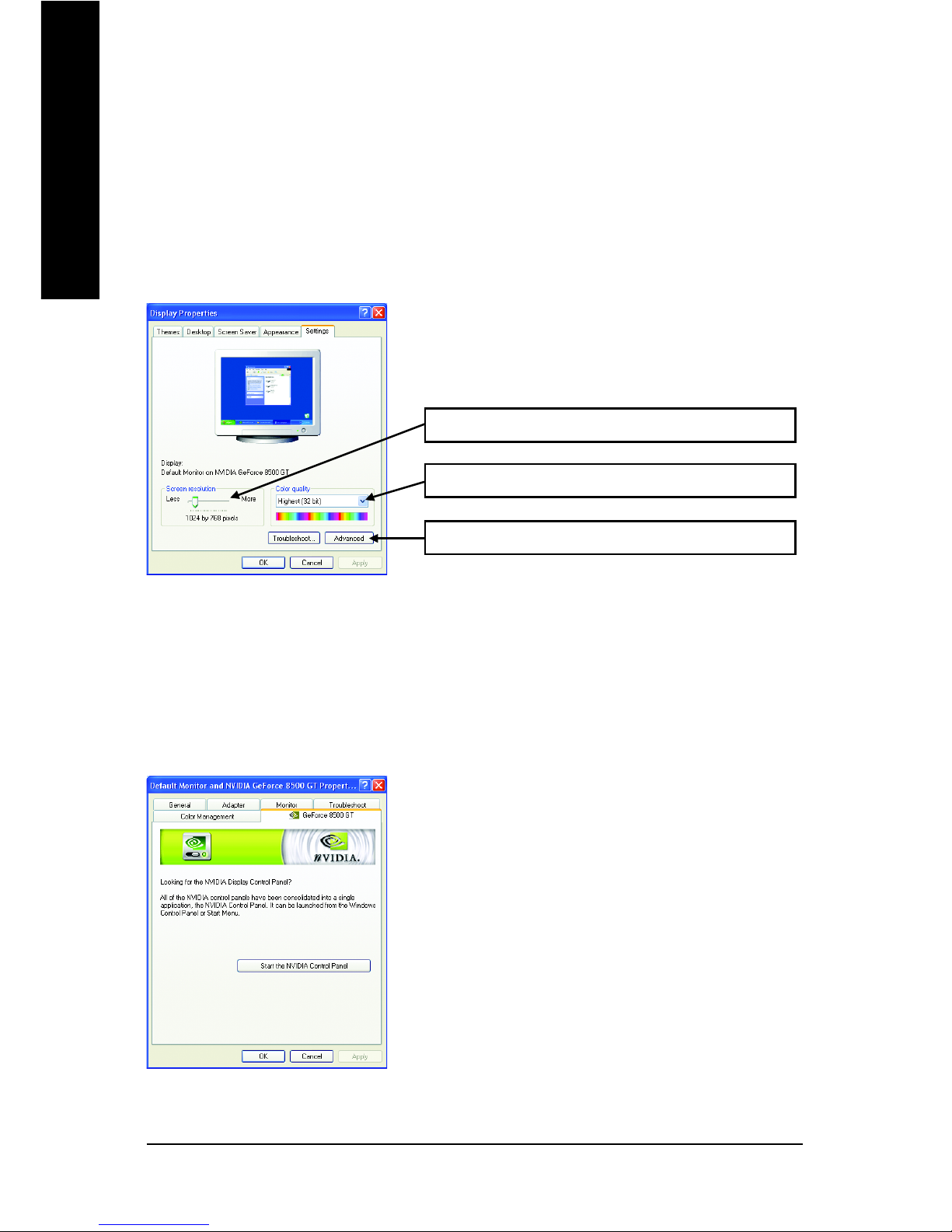

3.1.6. Display Properties Pages
To access Display Properties pages, right-click on desktop and then select Properties. The
Display Properties dialog box shows the information of display adapter, color, the range of
display area, and the refresh rate.
Settings (Resolutions and Color depth for Windows)
You may adjust the screen resolution and color quality settings in this dialog box.
You can click the item to change the color quality.
You can move the slider to change the resolution.
Click the Advanced button for adapter and setting.
Access the GeForce 8500 GT tab page to launch
the NVIDIA Control Panel
All of the NVIDIA control panels have been
consolidated into a single application, the
NVIDIA Control Panel. Click the Start the
NVIDIA Control Panel button to open the
NVIDIA Control Panel.
To access more advanced options, click the Advanced button.
NVIDIA Control Panel
After pressing the Advanced button in Settings, you'll see the Default Monitor and NVIDIA
GeForce 8500 GT Properties dialog box. Click the GeForce 8500 GT tab. (You can also click the
NVIDIA icon on the taskbar and select NVIDIA Control Panel.)
