Important information
15
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
ENGLISH
Important information
Application
For Gigaset cordless telephones.
Safety precautions
Note:
Read the safety precautions and the manual before use.
Explain their contents to your children, and the potential hazards associated with using the device.
Only use the power supply unit supplied, as indicated on the underside of the device.
The operation of medical appliances may be affected. Be aware of the technical conditions in
your particular environment, e.g. doctor's surgery.
Maintain sufficient distance from other electronic devices (e.g. PC), as these can interfere with
operation.
Do not install the device in a bathroom or shower. It is not waterproof.
Do not use the device in environments with a potential explosion hazard, e.g. auto paint shops.
If you give your Gigaset Repeater to someone else, make sure you also give them the manual.
All electrical and electronic products should be disposed of separately from the municipal
waste stream via designated collection facilities appointed by the government or the local
authorities.
This crossed-out wheeled bin symbol on the product means the product is covered by the
European Directive 2002/96/EC.
The correct disposal and separate collection of your old appliance will help prevent potential
negative consequences for the environment and human health. It is a precondition for reuse
and recycling of used electrical and electronic equipment.
For more detailed information about disposal of your old appliance, please contact your local
council refuse centre or the original supplier of the product.
$
ƒ

Introduction
16
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
Contents of the package
●1 Gigaset Repeater
●1 power supply unit for Gigaset Repeater
●These operating instructions
Maintenance
Simply wipe the device with a damp cloth or an antistatic cloth. Do not use solvent or a microfibre cloth.
Never use a dry cloth as this can cause static.
Introduction
Your Gigaset Repeater extends the reception range of a maximum of 2 handsets. Up to 6 Gigaset Repeater
units can be used with a single base station thus making available extra extended reception range for each
2 handsets respectively.
The maximum number of handsets that can be registered at your base station is not affected by the
Gigaset Repeater.
Before you start to register the units, install the Gigaset Repeater in close proximity to the base station and
a power supply point. If a Gigaset Repeater is already in use, it must be switched on and positioned next to
the base station before registration can commence.
Example with 2 Gigaset Repeaters Additional reception ranges with
Gigaset Repeater
Base station

Preparing
17
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
ENGLISH
Preparing
Please refer to the user guide for your phone to check whether your base station is suitable for operating
the repeater and how to prepare it for registering the repeater.
If a repeater can register at your base station, make sure repeater mode is enabled.
Automatic registration
Carry out the following steps:
$Gigaset Repeater is enabled (power plug inserted). The de-
vice is then in registration mode for a period of five minutes.
Place the base station in Repeater registration mode in the
same way as you would to manually register a handset.
Please refer to the operating instructions for your base sta-
tion.

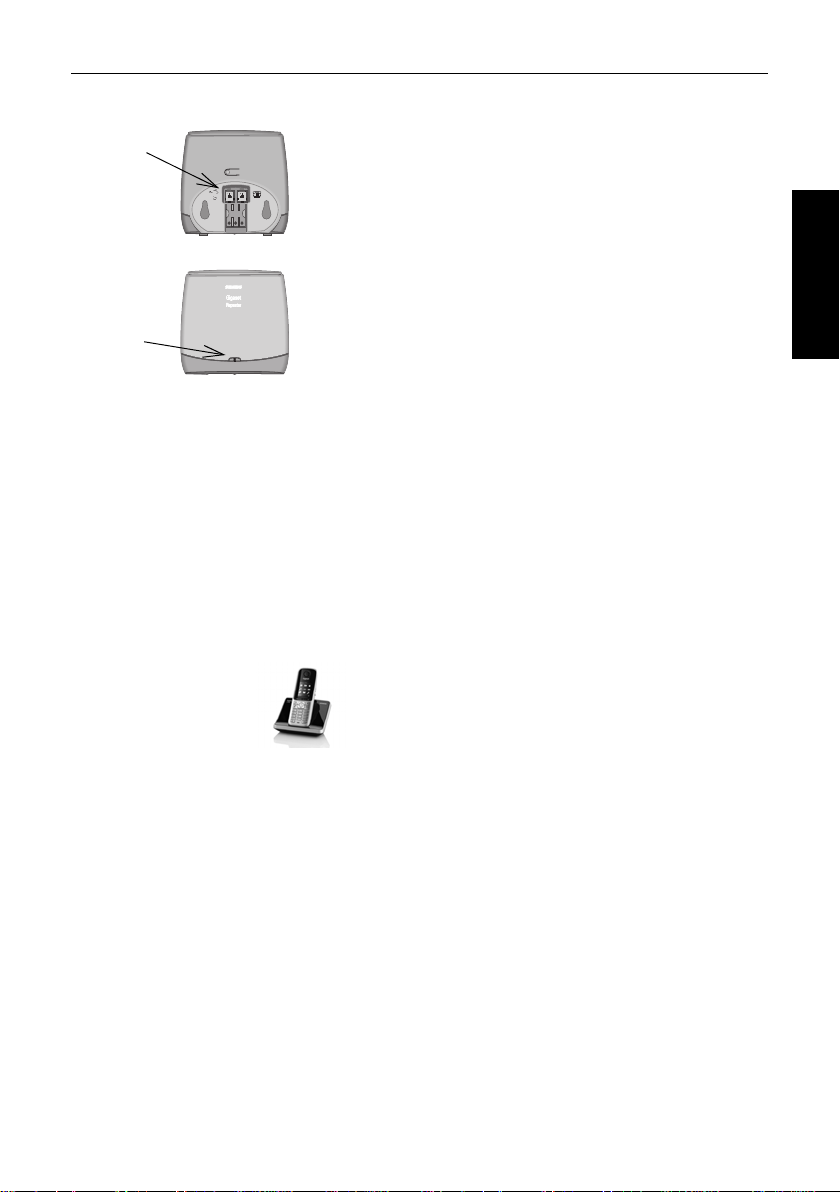

Socket
for
power
lead
LED’s
Registration button
The power lead supplied is plugged into the socket on the Gigaset
Repeater’s rear side.
The different operating modes are indicated on the front of the
Repeater unit by means of two LED’s (for an explanation, see
page 19).

Preparing
18
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
Manual registration
Carry out the following steps:
Repeating registration
You can reregister the Gigaset Repeater at any time, for example if initial registration was unsuccessful, or
if the Gigaset Repeater is to be registered at another base station for the first time.
Before registering the Gigaset Repeater once again (e.g. at a different base station), please reset the Gigaset
Repeater beforehand as described below:
●$Switch on the unit (power plug inserted)
●Press the registration button for at least 10 seconds to reset
The Gigaset Repeater is now ready to be registered again as described above. This is signalled by the LED
which flashes continually once the power plug is reconnected.
$Gigaset Repeater is enabled (power plug inserted).
Place the base station in Repeater registration mode in the
same way as you would to manually register a handset.
Please refer to the operating instructions for your base sta-
tion.
To perform manual registration, press the registration button
for 4 seconds (it can be found on the rear of the device, see
figure above).
Enter the number of the repeater (talk button, choose be-
tween 2 - 7) on any (registered) handset and then press the
hash key.
If you are registering a number of repeaters at your base sta-
tion, make sure to assign them different numbers.
Ensure that other base stations close to the Gigaset Repeater are not in registration mode during
this process.
The left LED on the Gigaset Repeater flashes continually. Af-
ter a short while the LED stays on permanently indicating
that registration is complete and that the unit is ready for op-
eration.
The Gigaset Repeater can be registered independently of the length of an audible registra-
tion tone or a display at the base station.
If registration is not successful, the LED on the Gigaset Repeater will flash continuously. In
this case, repeat the procedure.

Preparing
19
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
ENGLISH
Installation
Once you have registered your Gigaset Repeater you can install it wherever you would like to extend the
reception range of your handsets. However, you must ensure that there is a power point at the place of
installation and that the left LED remains on constantly after the device has been switched on.
If the left LED flashes, the Gigaset Repeater is too far away from the base station or reception is being hin-
dered by thick walls or metal objects for example (e.g. radiators).
When looking for a suitable installation site, a useful guide is a handset which requires a good connection
with the base station at the Gigaset Repeater installation site.
To operate a handset for the firsttime in the extended Gigaset Repeater area, switch off the handset within
the new reception range of the Gigaset Repeater, but outside the reception range of the base station and
then switch it back on again:
LED display of functions
There are two green LEDs on the centre front of the housing. The left LED displays registration and opera-
tion function, the right LED displays the handset-traffic via this repeater:
Left LED states:
Dark power supply off
Flashing no link to base station
Continuous lighting normal link to base station
Intermittent flashing ready to register
Fast flashing manual registration: the repeater waits for input on the handset
Right LED states:
Dark no traffic
Flashing once one handset link via repeater
Flashing twice two handset link via repeater
If you are using more than one Gigaset Repeater in the area of your base station, you must keep
the Gigaset Repeaters at least 10m apart.
Base station
Extended reception area

Miscellaneous
20
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
Using the verification tone
The verification tone enables you to establish whether or not the handset is working in the extended area
of the Gigaset Repeater. This tone is audible on the activated handset as long as the unit is connected to
the Gigaset Repeater.
Carry out the procedure described below on your Gigaset Repeater in order to switch the verification tone
on and off:
●$Switch on the unit (power plug inserted)
●Press the registration button for at least 20 seconds to switch on/off
Miscellaneous
Troubleshooting
Technical data
Problem Cause Action
Left LED flashes continuously
when the registration procedure
has been concluded
No radio connection to the
base station
Repeat registration
Left LED flashes continuously at a
selected location
No radio connection to the
base station
Select a new location
Left LED does not light up at all No power Check the power point
No reception of the handset in
the area of the repeater
Repeater not registered
No radio connection to the
base station
Handset cannot find the
repeater
Repeat registration
Select a new location
Switch handset on and off
Standards: Compatible to DECT, GAP
Radio frequency range: 1880 MHz - 1900 MHz
Transmit power: 10 mW average power per channel
Range: max. 300 m outdoors,
max. 50 m indoors
Power supply: 220/230 V, 50 Hz (plug-in power unit)
Power consumption: 6 VA
Operating temperature: -10 °C to + 45°C
Dimensions (mm): 131 x 111 x 50 (LxBxH)
Weight: 136 g
Power cable length: approx. 3 m

Miscellaneous
21
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
ENGLISH
Service (Customer Care)
You have questions? As a Gigaset customer, you can take advantage of our comprehensive service offer-
ings. You can find help quickly in this User Manual and in the service pages of our Gigaset online portal.
Please register your phone right after purchase.
This enables us to provide you with even better service regarding questions or a warranty claim. Your per-
sonal user account enables you to directly contact our customer service by email.
Our representatives are available on the telephone hotlines for more advanced questions or immediate
consultation.
United Kingdom
www.gigaset.com/uk/service
Service Hotline: 0845 367 0812
(local call cost charge)
Ireland
www.gigaset.com/ie/service
Service Hotline: 1850 777 277
(6.6561 Ct./Call)
Please note that if the Gigaset product is not sold by authorised dealers in the national territory the prod-
uct may not be fully compatible with the national telephone network. It is clearly specified on the box near
the CE mark as well as on the bottom of the base station for which country/countries the equipment has
been developed. If the equipment is used in a manner inconsistent with this advice or with the instructions
of the manual and on the product itself, this may have implications on the conditions for warranty or guar-
antee claims (repair or exchange of product).
In order to make use of the warranty, the product purchaser is asked to submit a receipt which proves the
date of purchase (date from which the warranty period starts) and the type of goods that have been pur-
chased.
Customer Service & Assistance
Do you have any questions? As a Gigaset customer, you can find help quickly in this User Manual and in the
service section of our Gigaset online portal www.gigaset.com/service.
In our constantly updated online service you can find:
●Extensive information about our products
●FAQ compilations
●Keyword search to help find topics quickly
●Compatibility database: Find out which base stations and handsets can be combined.
●Product comparison: Compare the features of several products with each other.
●Downloads for user manuals and current software updates
●E-mail contact form for customer service
Please register your phone online right after purchase.
This enables us to provide you with even better service regarding questions or an after sales query/issue/
claim. In order to contact our customer service via email, please use the email contact form from our
Gigaset online portal after selecting your home country.
Our representatives are also available on the telephone hotlines for consultation.

Miscellaneous
22
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
Customer Service & Assistance
Australia . . . . . . . . . . . . . . . . . . . . . . 1300 780 878
Austria. . . . . . . . . . . . . . . . . . . . . 0043 1 311 3046
Bahrain . . . . . . . . . . . . . . . . . . . . . 97 31 73 11 173
Belgium . . . . . . . . . . . . . . . . . . . . . . .0 78 15 66 79
Bosnia Herzegovina . . . . . . . . . . . . .033 276 649
Brazil . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4003 3020
(grandes cidades e regiões metropolitanas -
Custo de uma ligao local)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0800 888 3020
(demais localidades - Gratuito)
Bulgaria . . . . . . . . . . . . . . . . .+359 2 9710666
(0.50 евро на минута от всички държави за
стационарни телефони. За обаждания от
мобилни телефони може да има други цени).
Canada . . . . . . . . . . . . . . . . . . . . . 1-866 247-8758
China . . . . . . . . . .0 21 400 670 6007 (RMB 0.11)
Croatia. . . . . . . . . . . . . . . . 01 2456 555 (0,23 Kn)
Czech Republic. . . . . . . . . . . . . . . . 0 233 032 727
Denmark. . . . . . . . . . . . . . . . . +45 (0) 35 25 86 00
Finland . . . . . . . . . . . . . . . . . . . . . . .09 231 134 25
France . . . . . . . . . . . . . . . . . . +33 170 706 181
Coût d’un appel local depuis une ligne fixe
France Télécom.
Germany. . . . . . . . . . . . . . . . . . . . . 01805333222
Der Anruf kostet Sie aus den deutschen Fest-
netzen 0,14 € pro Minute. Anrufe aus den deut-
schen Mobilfunknetzen kosten höchstens 0,42
€ pro Minute.
Greece . . . . . . . . . . . . . . . . . . . . . 801-100.0.500
(Χρέωση 0,0026 € το λεπτό για το σταθερό δίκτυο
της Ελλάδας. Για κλήσεις από κινητό ίσως ισχύουν
άλλες χρεώσεις)
Hong Kong . . . . . . . . . . . . . . . . . . . . . . 2763 0203
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2389 7285
Hungary . . . . . . . . . . . . . . . . 01 267 21 09 (27 Ft)
India. . . . . . . . . . . . . . . . . . . . .Please refer to your
. . . . . . . . . . . . . . . . . . . . . . . . . .local warranty card
Indonesia . . . . . . . . . . . . . . . . . . .(62-21) 5673813
. . . . . . . . . . . . . . . . . . . . . . . . . . (62-21) 888856000
Ireland. . . . . . . . . . . . . . . . . . . . . . . 18 50 77 72 77
Italy . . . . . . . . . . . . . . . . . . . . . . . .199.15.11.15
(€ cent 8,36 + IVA al minuto da telefono fisso
della rete Telecom Italia senza scatto alla ris-
posta mentre per le chiamate effettuate attra-
verso la rete di altri operatori fissi o mobili con-
sultate le tariffe del vostro operatore)
Jordan . . . . . . . . . . . . . . . . 00962 6 5625460/1/2
Kuwait . . . . . . . . . . .+965 -22458737/22458738
Lebanon . . . . . . . . . . . . . . . . . . . . . +9611240259/
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+9611236110
Luxembourg . . . . . . . . . . . . . . . +352 8002 3811
Malaysia . . . . . . . . . . . . . . . . . . . +603-8076 9696
Malta . . . . . . . . . . . . . .+390 2360 46789 (0,10 €)
Mexico
. . . .01800 999 4442738 (01800 999 GIGASET)
Netherlands. . . . . . . . . . . . . . . 0900-3333102
(0,25 € per minuut (vast net). Voor oproepenuit
het mobiele netwerk kunnen andere prijzen
gelden.)
New Zealand . . . . . . . . . . . . . . . . . . 0800 780 878
Norway . . . . . . . . . . . . . . . . . . . . . . . . . 22 70 84 00
(Oppstartskost 89 øre + 15 øre pr minutt fra
fasttelefon linje. For samtaler fra mobil vil det
gjelde egne priser.)
Oman . . . . . . . . . . . . +968 709281 Ext. 49/21/75
Poland . . . . . . . . . . . . . . . . . . . . . . . . . 801 140 160
Portugal . . . . . . . . . . . . . . . (351) 808 781 223
(custo de uma chamada local)
Qatar . . . . . . 00974 4257777 / 00974 4257844
Romania . . . . . . . . . . . . . . . . . .+40 021 204 9130
Russia. . . . . . . . . . . . . . . . . . . . . . .8 (495) 2281312
Saudi Arabia . . . . . .00966 2 6500282 Ext. 209
Serbia. . . . . . . . . . . . . . . . . . . . . . . . . 0800 222 111
Singapore. . . . . . . . . . . . . . . . . . . . . . . . 6735 9100
Slovak Republic . . . . 02 59 68 22 66 (4,428 sk)
Slovenija . . . . . . . . . . . . . . . . . . . . . . . .01 5644171
South Africa. . . . . . . . . . . . . . . . +2711 46 13 181
Spain . . . . . . . . . . . . . . . . . . . . . . . . . . .902 103935
Sweden . . . . . . . . . . . . . . . . . . . . . . . . . 87 50 99 11
Switzerland . . . . . . . . . . . . . . . . . . . 0848 212 000
Taiwan . . . . . . . . . . . . . . . . . . . . . . . . 02 266 24343
Turkey . . . . . . . . . . . . . . . . . . . . . . 0216 459 98 59
Ukraine . . . . . . . . . . . . . . . . . +380-44-451-71-72
United Arab Emirates . . . . . . . .+97144458255/
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . +97144458254
United Kingdom. . . . . . . . . . . . 0 84 53 67 08 12
USA. . . . . . . . . . . . . . . . . . . . . . . . . 1-866 247-8758
Vietnam. . . . . . . . . . . . . . . . . . . . . . . 1900 545 416

Miscellaneous
23
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
ENGLISH
Authorisation
This device is intended for use within the European Economic Area and Switzerland. If used in other coun-
tries, it must first be approved nationally in the country in question.
Country-specific requirements have been taken into consideration.
We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other
relevant regulations laid down in Directive 1999/5/EC.
A copy of the 1999/5/EC Declaration of Conformity is available at this Internet address:
http://www.gigaset.com/docs.
Guarantee Certificate United Kingdom
Without prejudice to any claim the user (customer) may have in relation to the dealer or retailer, the cus-
tomer shall be granted a manufacturer's Guarantee under the conditions set out below:
●In the case of new devices and their components exhibiting defects resulting from manufacturing and/
or material faults within 24 months of purchase, Gigaset Communications shall, at its own option and
free of charge, either replace the device with another device reflecting the current state of the art, or
repair the said device. In respect of parts subject to wear and tear (including but not limited to, batteries,
keypads, casing), this warranty shall be valid for six months from the date of purchase.
●This Guarantee shall be invalid if the device defect is attributable to improper treatment and/or failure
to comply with information contained in the user guides.
●This Guarantee shall not apply to or extend to services performed by the authorised dealer or the cus-
tomer themselves (e.g. installation, configuration, software downloads). User guides and any software
supplied on a separate data medium shall be excluded from the Guarantee.
●The purchase receipt, together with the date of purchase, shall be required as evidence for invoking the
Guarantee. Claims under the Guarantee must be submitted within two months of the Guarantee default
becoming evident.
●Ownership of devices or components replaced by and returned to Gigaset Communications shall vest
in Gigaset Communications.
●This Guarantee shall apply to new devices purchased in the European Union. For Products sold in the
United Kingdom the Guarantee is issued by: Gigaset Communications UK Limited, Quatro House, Lyon
Way, Camberley, Surrey, GU16 7ER.
●Any other claims resulting out of or in connection with the device shall be excluded from this Guaran-
tee. Nothing in this Guarantee shall attempt to limit or exclude a Customers Statutory Rights, nor the
manufacturer's liability for death or personal injury resulting from its negligence.
●The duration of the Guarantee shall not be extended by services rendered under the terms of the Guar-
antee.
●Insofar as no Guarantee default exists, Gigaset Communications reserves the right to charge the cus-
tomer for replacement or repair.
●The above provisions does not imply a change in the burden of proof to the detriment of the customer.
To invoke this Guarantee, please contact the Gigaset Communications telephone service. The relevant
number is to be found in the accompanying user guide.

Miscellaneous
24
Grep-eng.fm
22.12.2010 Gig Repeater, IM: A31008-M601-R101-4-SU19
Guarantee Certificate Ireland
Without prejudice to any claim the user (customer) may have in relation to the dealer or retailer, the cus-
tomer shall be granted a manufacturer’s Guarantee under the conditions set out below:
●In the case of new devices and their components exhibiting defects resulting from manufacturing and/
or material faults within 24 months of purchase, Gigaset Communications shall, at its own option and
free of charge, either replace the device with another device reflecting the current state of the art, or
repair the said device. In respect of parts subject to wear and tear (including but not limited to, batteries,
keypads, casing), this warranty shall be valid for six months from the date of purchase.
●This Guarantee shall be invalid if the device defect is attributable to improper care or use and/or failure
to comply with information contained in the user manuals. In particular claims under the Guarantee
cannot be made if:
●The device is opened (this is classed as third party intervention)
●Repairs or other work done by persons not authorised by Gigaset Communications.
●Components on the printed circuit board are manipulated
●The software is manipulated
●Defects or damage caused by dropping, breaking, lightning or ingress of moisture. This also applies if
defects or damage was caused by mechanical, chemical, radio interference or thermal factors (e.g.: mi-
crowave, sauna etc.)
●Devices fitted with accessories not authorised by Gigaset Communications
●This Guarantee shall not apply to or extend to services performed by the authorised dealer or the cus-
tomer themselves (e.g. installation, configuration, software downloads). User manuals and any software
supplied on a separate data medium shall be excluded from the Guarantee.
●The purchase receipt, together with the date of purchase, shall be required as evidence for invoking the
Guarantee. Claims under the Guarantee must be submitted within two months of the Guarantee default
becoming evident.
●Ownership of devices or components replaced by and returned to Gigaset Communications shall vest
in Gigaset Communications.
●This Guarantee shall apply to new devices purchased in the European Union. For Products sold in the
Republic of Ireland the Guarantee is issued by Gigaset Communications UK Limited, Quatro House, Lyon
Way, Camberley, Surrey, GU16 7ER.
●Any other claims resulting out of or in connection with the device shall be excluded from this Guaran-
tee. Nothing in this Guarantee shall attempt to limit or exclude a Customers Statutory Rights, nor the
manufacturer’s liability for death or personal injury resulting from its negligence.
●The duration of the Guarantee shall not be extended by services rendered under the terms of the Guar-
antee.
●Insofar as no Guarantee default exists, Gigaset Communications reserves the right to charge the cus-
tomer for replacement or repair.
●The above provisions does not imply a change in the burden of proof to the detriment of the customer.
To invoke this Guarantee, please contact the Gigaset Communications helpdesk on 1850 777 277. This
number is also to be found in the accompanying user guide.

Gigaset Communications GmbH
Frankenstr. 2a, D-46395 Bocholt
All rights reserved. Subject to availability.
www.gigaset.com
© Gigaset Communications GmbH 2010
Table of contents
Other Gigaset Repeater manuals
