Girard Systems 98GC2762B Operating instructions

98GC2762B
MULTI CHANNEL REMOTE HANDSET
PROGRAMMING GUIDE
RV AWNING PRODUCTS
1361 CALLE AVANZADO, SAN CLEMENTE, CA 92673 [phone] FAX [phone]
www.girardrv.com

2
Girard Systems awnings may be operated in light wind and rain
conditions. When periods of heavy rain and or high wind are expected
the awning must be closed. Never leave the awning open and
unattended.
Damage caused by wind and rain is not covered by warranty.
All awnings must be closed prior to moving the vehicle for any reason.
As an extra safety precaution, a visual check that every awning is fully
closed is required.
Damage caused by failure to comply with these instructions is
not covered by warranty.
Before using your awning, ensure that the area into which the awning
will be deployed is free of obstructions (Trees, walls, pillars, posts,
other vehicles etc.)
Damage caused by collisions with any of the above or similar is
not covered by warranty.
Before using your awning make sure that all of your electrical circuits
are operating correctly. Recreational Vehicles can generate AC power
from three separate sources. The electrical system transfer switch in
your vehicle will select power for the awning as follows:
Shore Power –if connected;
Generator Power –if the generator is running;
Inverter Power –batteries must be charged for inverter operation.
Girard Systems awnings are supplied with an electric motor appropriate to the
product.

3
CONTENTS
The G-Link System ………………………………………………………………………….. 3
Product Description …………………………………………………………………………. 4
Programming ……………………………………………………………….…………………. 6
GC136 AC Motor Controller ………………………………………………………………. 6
GC274B / GC274C AC motor Controllers ………………………………………….... 7
98GC74 AC Motor Controller ………………………………….…………………………. 8
GC732G DC Motor Controller ……………………………………………………………. 9
GC1146C DC Motor Controller …………………………………………………………. 10
THE G–LINK SYSTEM
The G-Link motors and control modules provided by Girard Systems communicate by
use of RF signals on a frequency of 433.92 MHZ. This eliminates the need for wiring
and the drilling of holes in the vehicle. These components must be electronically
matched, programmed or paired before use. This is usually done at the Girard Systems
factory. Should the need arise for the user to pair a device with the motor controller
they must refer to the appropriate manual for the devices applicable to their
installation.

4

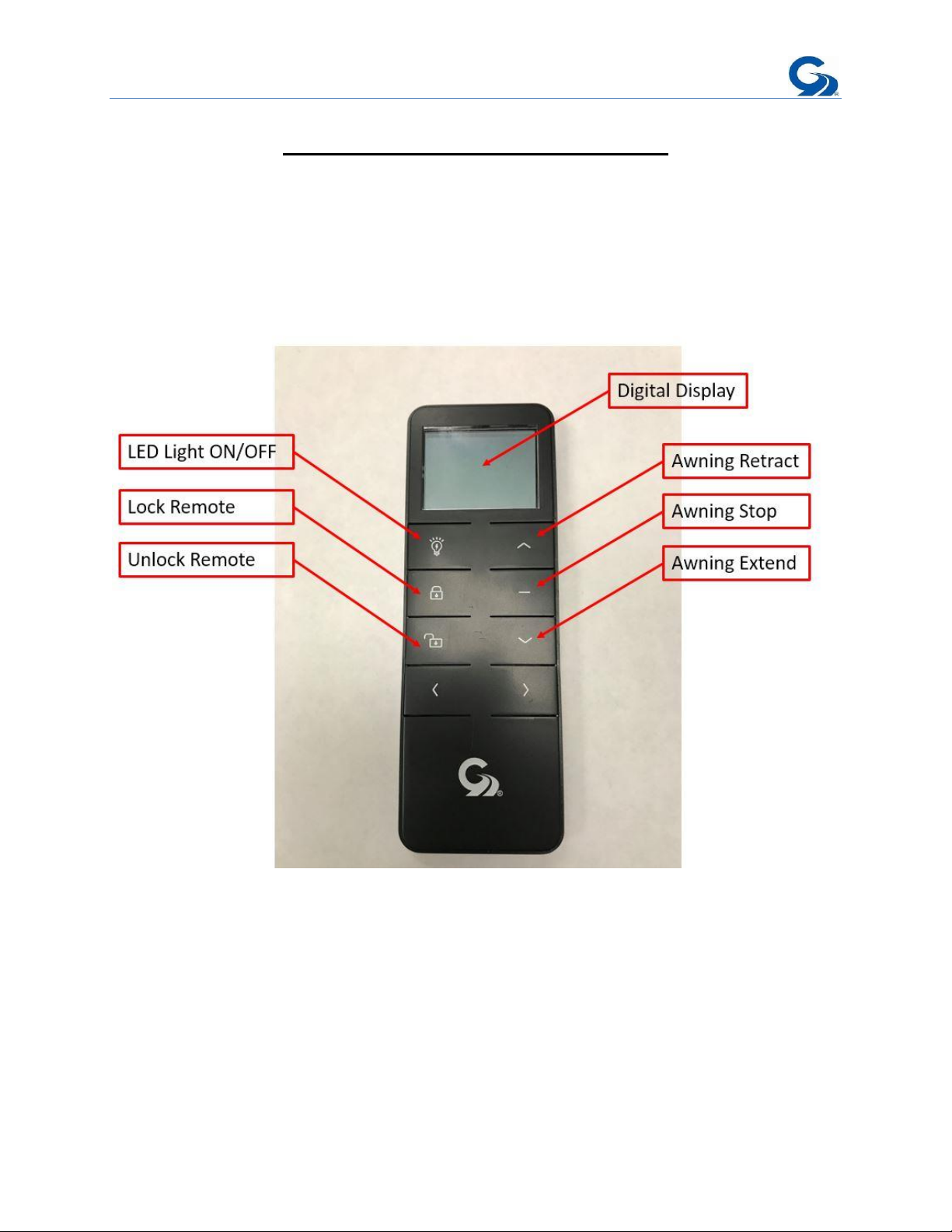

PRODUCT DESCRIPTION
The 98GC2762 remote handset is a Multi-channel RF transmitter, powered by a single
3v Lithium battery (CR2450) designed to control up to 15 awnings and operate the LED
lighting strips by means of a multi-functional circular control pad. As shown in Fig.1
below.
Fig.1

5

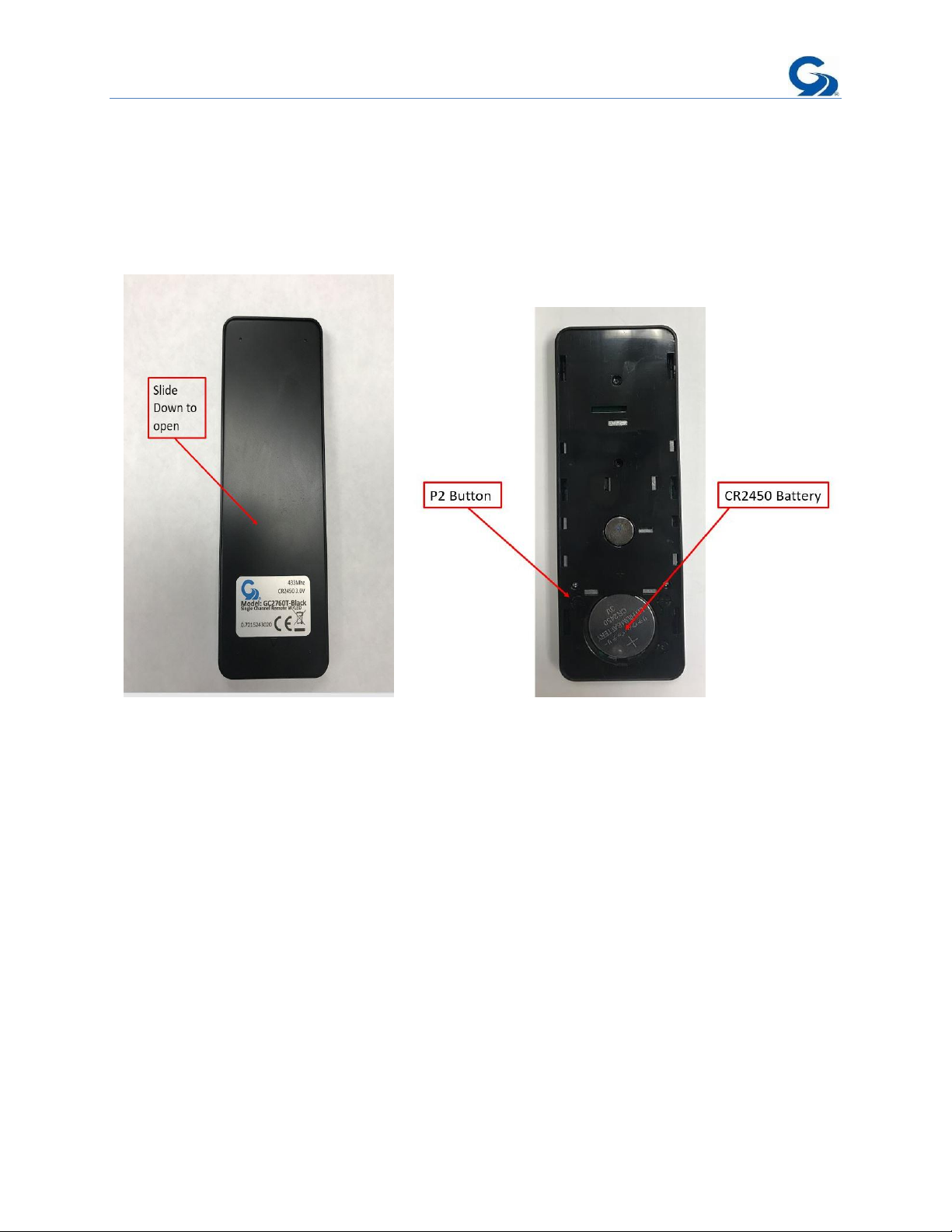

To find the battery turn the remote handset over and slide the cover down;
•The Battery compartment, (into which a single CR2450 3v Lithium battery should
be inserted as shown)
•The P2 button (used when pairing the device to some other G-Link Modules)
Fig.2

6
PROGRAMMING
The following pages give instructions of how to Program or electronically Pair the
handset with various motor controllers. Ensure that you select the correct set of
instructions for the motor controller on your vehicle.

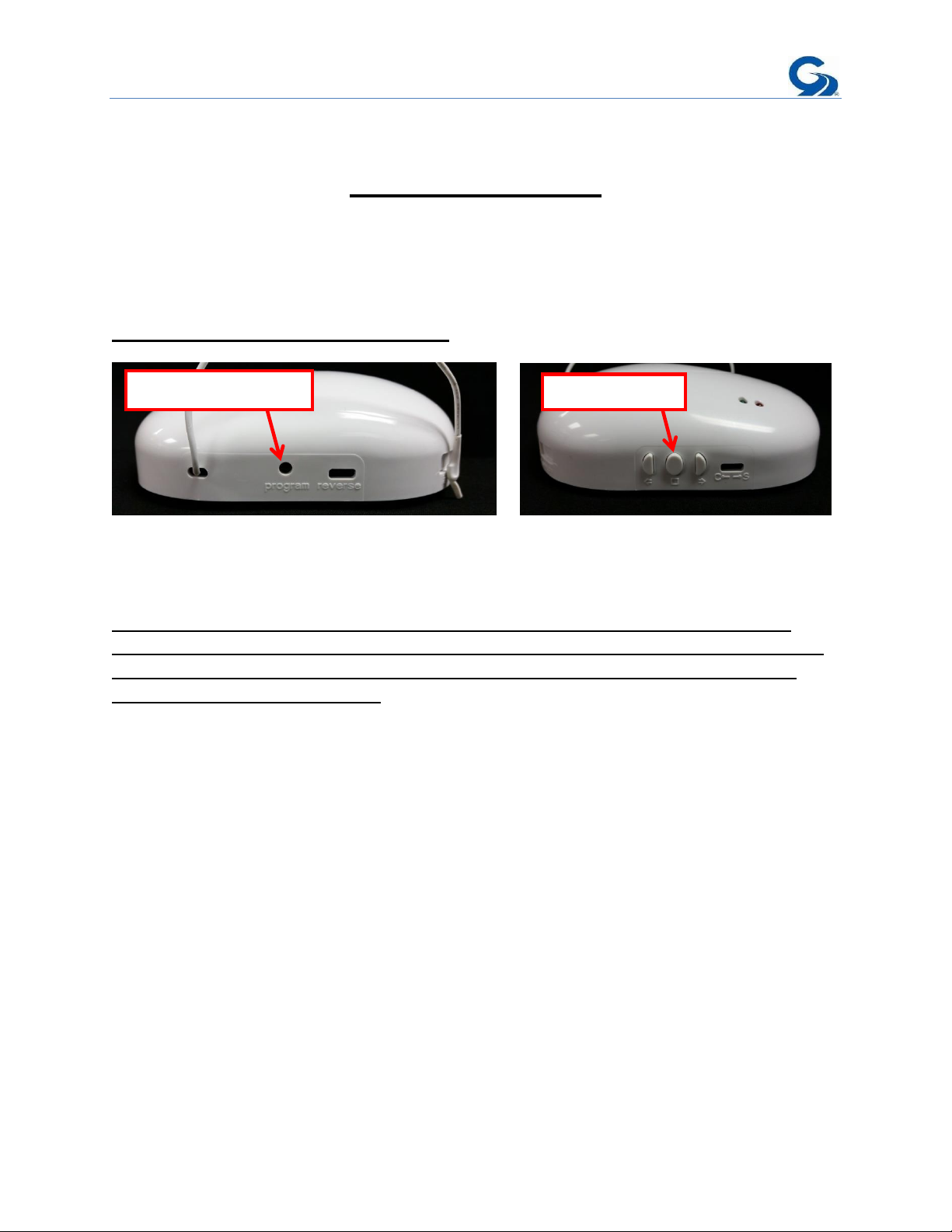

GC136 AC Motor Controller
Fig.3 Fig.4
To pair the Remote handset with a GC136 Motor controller, follow the steps below.
Note; when carrying out this part of the procedure each step must be executed
within 10 seconds of the previous one or the module will revert to factory settings.
It is highly recommended that you read and understand the following sequence
before attempting to execute it.
1) Ensure that there is power supplied to the Motor controller.
2) Using an appropriate tool press the Program button on the Motor controller. See
Fig.3 (The Green LED will start blinking)
3) Press the STOP button on the Motor Controller. See Fig.4 (The Green LED will
remain ON)
4) Select the desired channel on the remote handset
5) Press the IN button on the remote handset. (The Green LED will extinguish)
6) Press the OUT, STOP and IN buttons on the handset to ensure that the Modules
have been successfully paired.
Program Button
Stop Button

7
GC274B / GC274C AC motor Controllers
Fig.5
To pair the Remote handset with a GC274A or GC274B follow the steps below.
Note; when carrying out this part of the procedure each step must be executed
within 10 seconds of the previous one or the module will revert to factory settings.
It is highly recommended that you read and understand the following sequence
before attempting to execute it.
1) Ensure that there is power supplied to the Motor controller.
a. Press and hold the MIDDLE and RIGHT buttons on the GC274 (Fig 5) for
about 3 seconds until the Green LED starts to flash.
b. Press MIDDLE: The Green LED will stop blinking and remain illuminated.
c. Select the desired channel on the remote handset
d. Press the IN button on the REMOTE DEVICE being programmed. The
Green LED on the motor controller will extinguish.
2) Change motor direction
a. Supply power to GC274B
b. Simultaneously press the LEFT and RIGHT buttons of the GC274B for at
least 6 seconds. The Green LED will illuminate and then blink a few times.
When the Green LED extinguishes, the operation is complete.
CHANGE MOTOR DIRECTION
PROGRAM MODE

8
98GC74 AC Motor Controller
Fig.6
When pairing with the 98GC74 it is advised that the awning to be controlled is manually
extended couple of feet to enable the programmer to see if the awning is responding in
the correct direction when the buttons on the remote handset are pressed.
The programming window for this module is only 6 seconds so please ensure
that the programming instructions are read and understood before
attempting to execute them.
1) Supply power to the motor control module. (It will beep ONCE)
2) Select the desired channel on the remote handset
3) Press the P2 button on the Remote Handset TWICE. (The motor controller will
beep with each press)
4) Press the IN button on the Remote handset. (The awning should retract)
If the awning extends at this point instead of retracting, press the STOP button
immediately, then remove the power supply to the motor controller for at least 10
seconds.
Next repeat steps 1 to 3 above then press the OUT button on the Remote handset to
complete the programming procedure.
Ensure that the awning responds correctly to the handset by pressing the OUT, STOP
and IN buttons alternately.

9
GC732G DC Motor Controller
Fig.7
To pair the Remote handset with a GC732G Motor controller, follow the steps below.
Note; when carrying out this part of the procedure each step must be executed
within 10 seconds of the previous one or the module will revert to factory settings.
It is highly recommended that you read and understand the following sequence
before attempting to execute it.
1) Ensure that there is power supplied to the Motor controller.
2) Press the Program button on the Motor controller. (The Red LED will start
blinking)
3) Press the STOP button on the Motor Controller. (The Red LED will remain ON)
4) Select the desired channel on the remote handset
5) Press the IN button on the handset. (The Red LED will extinguish)
6) Press the OUT, STOP and IN buttons alternately on the handset to ensure that
the Modules have been successfully paired.
Program Button

10

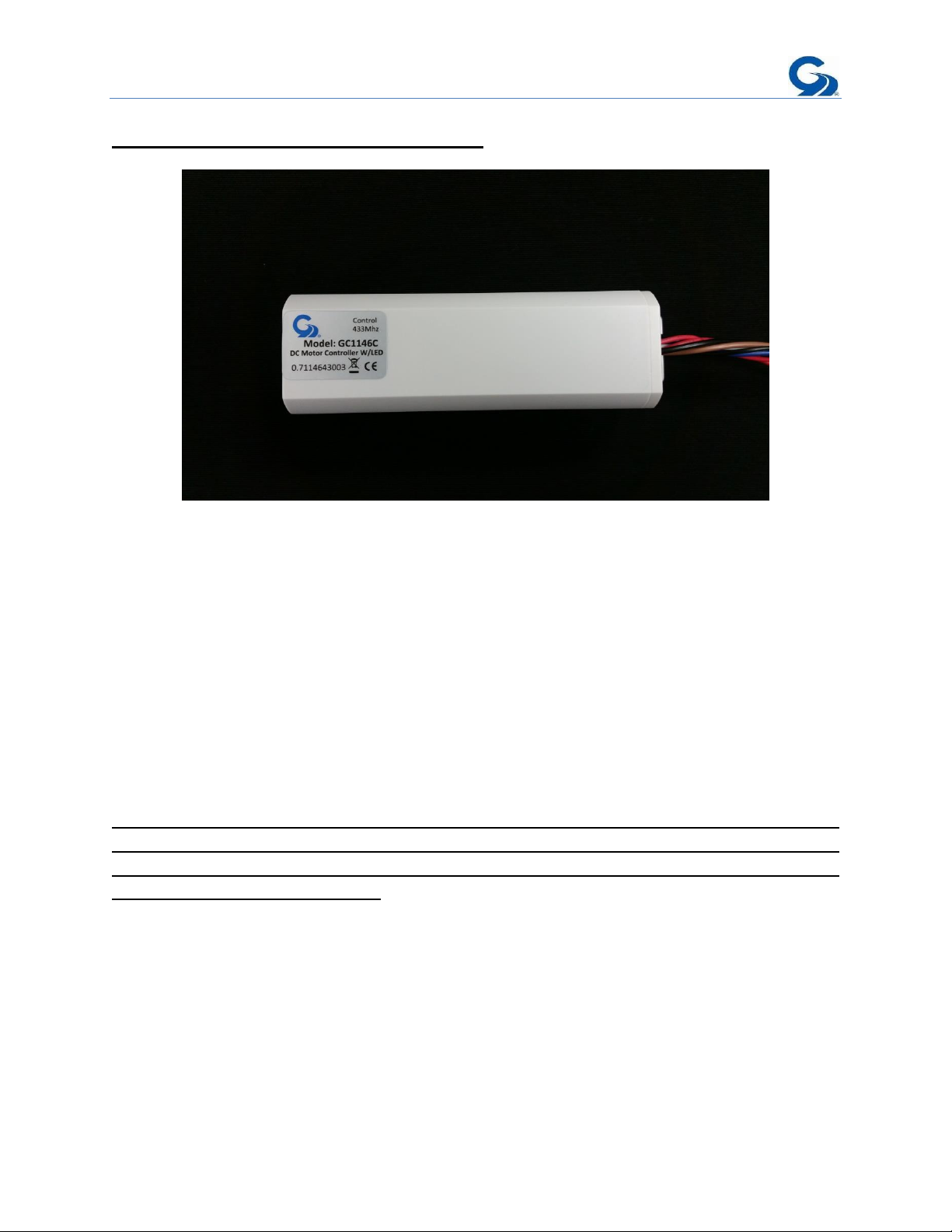

GC1146C DC Motor Controller
Fig.8
To pair the Remote handset with a GC1146C Motor controller, follow the steps below.
•Fully extend the awning to ensure smooth operation, and then retract the
awning leaving it partially open (about 3 feet).
•Locate the P2 Button on the back of the handset, see figure 2
Note; when carrying out this part of the procedure each step must be executed
within 10 seconds of the previous one or the module will revert to factory settings.
It is highly recommended that you read and understand the following sequence
before attempting to execute it.
1) Supply power to the Motor controller. (The GC1146C will emit a soft beep)
2) Select the desired channel on the remote handset
3) Using an appropriate tool press the P2 button on the back of the Handset
TWICE. (The GC1146C will Beep with each press)
4) Press the IN button on the wall switch and verify that the awning moves in the
desired direction.

11
Note: If the awning extends at this point instead of retracting, press the STOP button
immediately, then remove the power supply to the motor controller for at least 10
seconds.
Next repeat steps 1, 2 and 3 above then press the OUT button on the wall switch to
complete the programming procedure.
Ensure that the awning responds correctly to the wall switch by pressing the OUT,
STOP and IN buttons alternately.
For queries or assistance with programming any remote handset to any of your G-Link
devices please call Girard Systems toll free on 800–382–8442 between 7:30am and
5:00pm P.S.T.
