Operating sit-in bath tub GK hera
Before operating the GK hera you will notice two

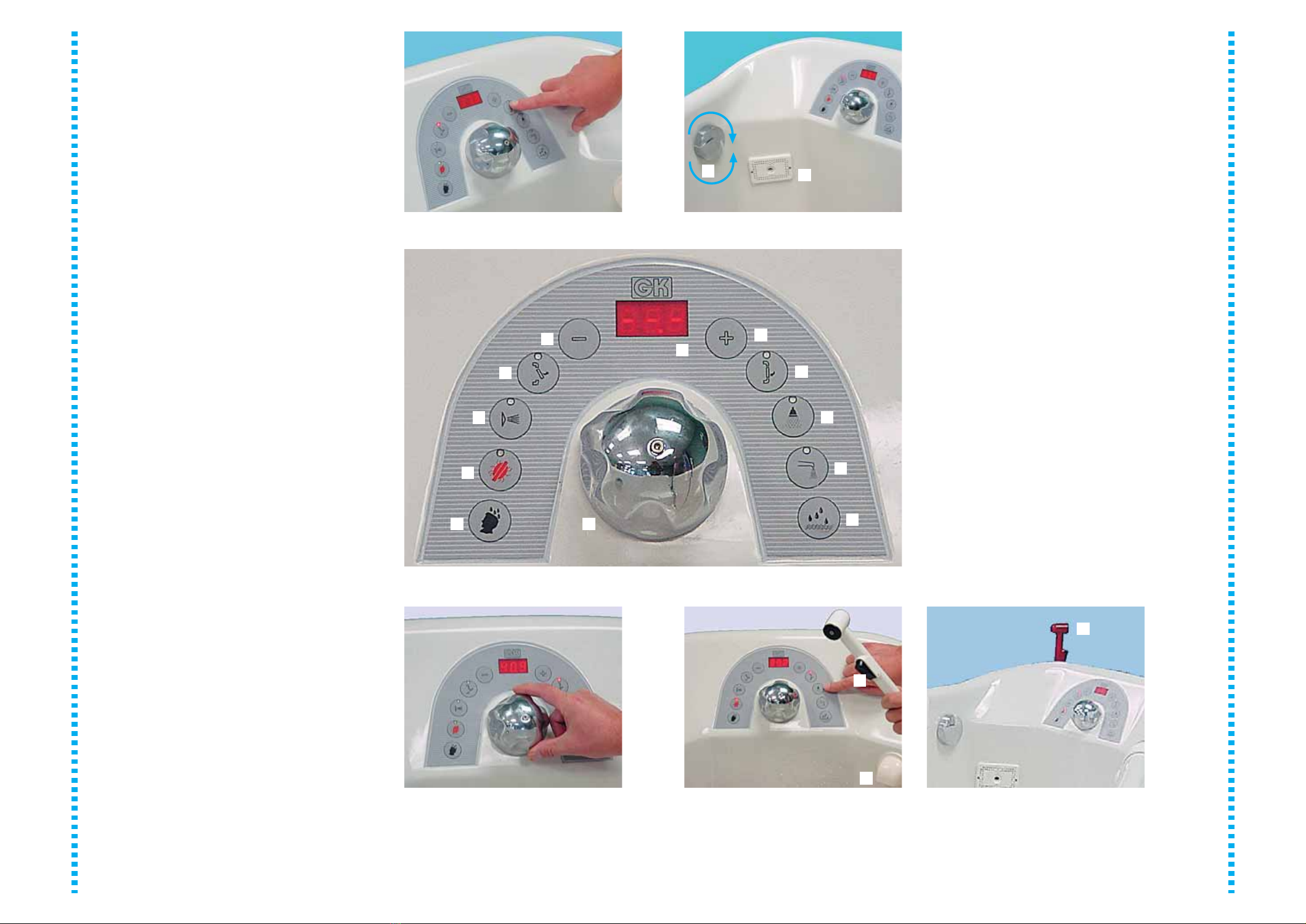

illuminated LED lights on the control panel (picture1).
One of these lights is on the “disinfection” button (B),
the other is on the “door open” (D) or “door close”
button (G). Open the door fully. The person can now
be transfered into the bath.
Close the door
Close the door and hold it closed. Push the “door
close” button (G) on the control pad. When the door is
closing a red light will appear on the “door close”
button (G) and will stay on.
Close the drain
The drain control (N) is located on the upper left-
hand side of the bath (picture 2). Close the drain by
turning it clockwise (to the right) until it stops.
Fill the bath
Push the “fill” button (I). A red LED light will appear
on the “fill” button (I) and the bath will automatically
fill and shut off, and the light will also shut off. You
can stop the filling process at anytime if needed by
pushing the “fill” button (I) again.
Adjust the temperature
Adjust the temperature by turning the thermal
mixing valve (L) located in the centre of the control
panel (picture 4) to the required temperature as
indicated on the digital thermometer (M).
Aktivate the jet
Once the tub has reached capacity (the water level is
just above the jets), the “jet” button (C) will begin to
flash. Push the “jet” button (C) to turn the jets (O) on.
The light will stay on.
Adjust the jets
To adjust the jets push the “+” button (F) to increase
to desired level. The function will shut off after 10
minutes automatically or you may shut it off manu-
ally by pushing the “jet” button (C) again.
Bath additives and shampoo dispenser
Bath additives can be dispensed at any time by
pushing and holding the “additive” button (K) until
you have the desired amount of the product. Bath
additives dispense at the tub-fill spout (P). Bodywash
and shampoo can be dispensed at any time by
pushing and holding the “shampoo” button (A) until
you have the desired amount of the product.
Shampoo/Bodywash dispense at the tub-fill spout (P).
Handle the shower
Grasp the white hand held nozzle from it’s holder
(picture5) and push the “shower” button (H) on the
control panel. A red LED light will appear on the
shower button. The shower can be activated at any
time by pushing the trigger (R) on the shower handle.
Drain the bath
To drain, turn the knob (N) located on the left-hand
side of the bath counter clockwise (to the left).
Open the door
Once the bath has drained, push the “door open”
button (D) to allow the person to exit the bath.
Handle the disinfection
After the bath is completely drained and the client is
removed, a red LED light will appear on the “disin-
fection” button (B). Grasp the red hand held nozzle
(picture 6) and push the “disinfection” button (B).
The LED light will turn green allowing you to spray
disinfectant in the bath. To stop the disinfection
cycle, push the “disinfection” button (B) again and it
will turn red.
Note: During process of disinfection it’s not possible
to use fill in or shower.
Sleep mode
If the GK hera is left unused for over an hour, it will
go into sleep mode. Push any button on the control
panel to begin.
L
A
B
C
D
EF
G
H
I
K
M
NO
12
3
4 5 6
P
R
S
Note: In case of emergency, it’s possible to open door when tub is full with water. Press the button
behind the control panel and door will open.
Please use this function only in extrem situation!
