Glacier bay 1673US-24-262 User manual

THANK YOU
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this laundry cabinet. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement
needs. Thank you for choosing Glacier Bay!
USE AND CARE GUIDE
ALL-IN-ONE 24 IN LAUNDRY SINK CABINET
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Item #1006757132;
1006757092; 1006757133
Model #1673US-24-262;
1673US-24-313; 1673US-24-314

2
Table of Contents
Table of Contents ...................................2
Safety Information ..................................2
Warranty ..........................................3
Pre-Installation.....................................4
Planning Installation ...............................4
Tools Required ....................................4
Hardware Included.................................4
Package Contents .................................5
Installation ........................................6
Care and Maintenance ..............................10
Troubleshooting ...................................10
Service Parts......................................11
Safety Information
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING:
□Some steps are more easily handled with two adults.
□Assembly and unpacking requires two adults.
□Use care when assembling the product; take your time and follow the assembly instructions closely.
□Inspect your unit before proceeding. Once you unpack your unit, check for chips, scratches, cracks, dents or scuff marks. If any
damage is noticed, do not install.
□Use this unit only in the manner intended by the manufacturer. If you have any questions, contact the manufacturer.
□Installation work and plumbing must be done by qualied person(s) in accordance with all applicable codes and standards.
□Protect the entire surface during installation.
□All holes drilled into the unit must be done from the nished surface side with extreme care and caulked very carefully to form a
watertight barrier.
MANUFACTURER’S REQUIRED MINNESOTA DISCLOSURE. IMPORTANT HEALTH NOTICE:
SOME OF THE BUILDING MATERIALS USED IN THIS HOME (OR THESE BUILDING MATERIALS) EMIT FORMALDEHYDE. EYE, NOSE, AND THROAT
IRRITATION, HEADACHE, NAUSEA AND A VARIETY OF ASTHMA-LIKE SYMPTOMS, INCLUDING SHORTNESS OF BREATH, HAVE BEEN REPORTED
AS A RESULT OF FORMALDEHYDE EXPOSURE. ELDERLY PERSONS AND YOUNG CHILDREN, AS WELL AS ANYONE WITH A HISTORY OF ASTHMA,
ALLERGIES, OR LUNG PROBLEMS, MAY BE AT GREATER RISK. RESEARCH IS CONTINUING ON THE POSSIBLE LONG-TERM EFFECTS OF
EXPOSURE TO FORMALDEHYDE.
REDUCED VENTILATION MAY ALLOW FORMALDEHYDE AND OTHER CONTAMINANTS TO ACCUMULATE IN THE INDOOR AIR. HIGH INDOOR
TEMPERATURES AND HUMIDITY RAISE FORMALDEHYDE LEVELS. WHEN A HOME IS TO BE LOCATED IN AREAS SUBJECT TO EXTREME
SUMMER TEMPERATURES, AN AIR-CONDITIONING SYSTEM CAN BE USED TO CONTROL INDOOR TEMPERATURE LEVELS. OTHER MEANS OF
CONTROLLED MECHANICAL VENTILATION CAN BE USED TO REDUCE LEVELS OF FORMALDEHYDE AND OTHER INDOOR AIR CONTAMINANTS.
IF YOU HAVE ANY QUESTIONS REGARDING THE HEALTH EFFECTS OF FORMALDEHYDE, CONSULT YOUR DOCTOR OR LOCAL HEALTH
DEPARTMENT.

3 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Warranty
LIFETIME LIMITED WARRANTY
A thorough inspection must be made before installation and any damage must be promptly reported. We will not be liable for failures or
damage that could have been discovered or avoided by proper inspection and testing prior to installation.
We warrant this product to be free from defects in materials or workmanship for as long as the original consumer purchaser owns this product.
Proof of purchase (original sales receipt) from the original consumer purchaser must be made available to us for all warranty claims.
This warranty is non-transferable and shall be voided if the unit is removed from its initial installation or if it is not installed following the
manufacturer’s instructions. It does not apply in the event of product damage due to the use of other than our genuine replacement parts,
(Replacement parts may be obtained by calling 1-855-HD-GLACIER, 8:00 am - 7:00 pm, EST, Monday - Friday, 9:00 am - 6:00 pm, EST,
Saturday) installation error, abuse, misuse or improper care and maintenance (whether performed by a plumber, contractor, service provider or
member of the purchaser’s household). The warranty excludes damage due to aggressive air or water conditions, harsh or abrasive cleaners
and/or materials.
Under no circumstance shall we be held liable for personal injury or property damage resulting from improper installation or use of this
product. We will not be held liable for inconvenience caused by loss of use of this product, costs incurred for labour or materials, removal
and installation of replacement units, or any other incidental or consequential damages. Costs relating to obtaining access for repair or
replacement are the responsibility of the user.
Our obligation shall be limited to the repair or replacement of a unit (at our discretion) that may prove, by our sole examination, to be defective
under normal use and service during the warranty period.
Any failure of this product that is not traceable to a defect in material or workmanship is not covered by this warranty. These non-warrantable
items include, but are not limited to:
□Improper installation not in accordance with manufacturer’s instructions.
□Dents and/or scratches incurred during shipping, handling, or installation.
□Change in colour or nish due to chemical usage.
□Damage caused by failure to follow care and cleaning guidelines, including damage caused by the use of abrasive cleaners.
□Alterations made to the unit by the purchaser or installer.
□Damage caused by accidental impact, re, ood, freezing, and normal wear.
□Bends and warping caused by forced connections, over-tightened ttings, and inadequate support during installation.
This warranty does not extend to commercial and institutional installation or use.
WARRANTY CLAIM PROCEDURE
If a claimable defect occurs or replacement parts are needed, please contact our customer service team at 1-855-HD-GLACIER
(8:00 am - 7:00 pm, EST, Monday - Friday, 9:00 am - 6:00 pm, EST, Saturday).
Before you make your call, please ensure that you have:
□Model number or description.
□Proof of sale.
□Details regarding the defect and/or part number.
□Name(s) and address(es) of the owner and/or installer.

4
Pre-Installation
PLANNING INSTALLATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents
list. If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 40 minutes (24 hours for adhesive to dry).

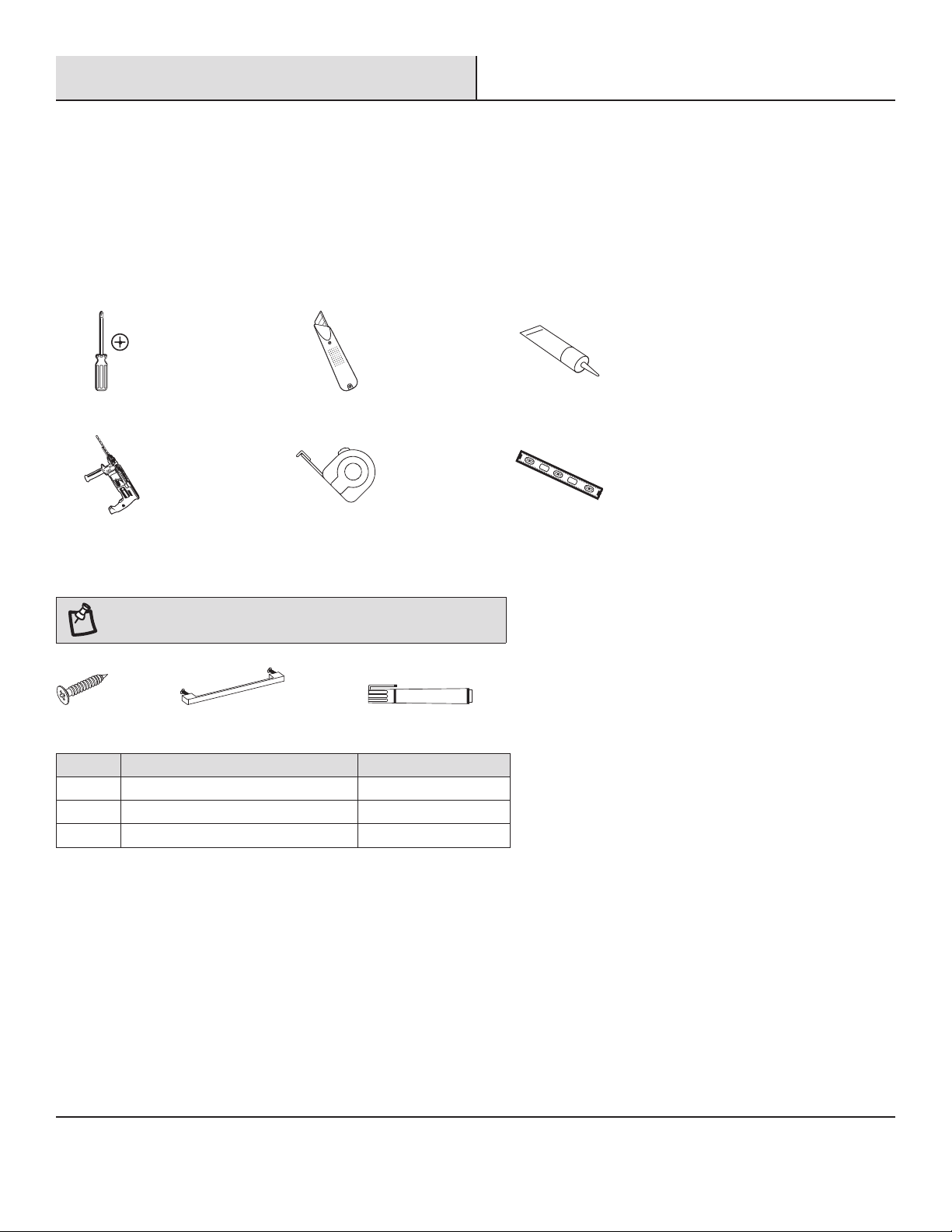

TOOLS REQUIRED (NOT INCLUDED)
Phillips
Screwdriver Utility Knife Adhesive
Power Drill
With Drill Bit Measuring Tape Level
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
—AA —BB —
CC
Part Description Quantity
AA Cabinet Base Screw 2
BB Door Pull 3
CC Touch-up Pen 1

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)

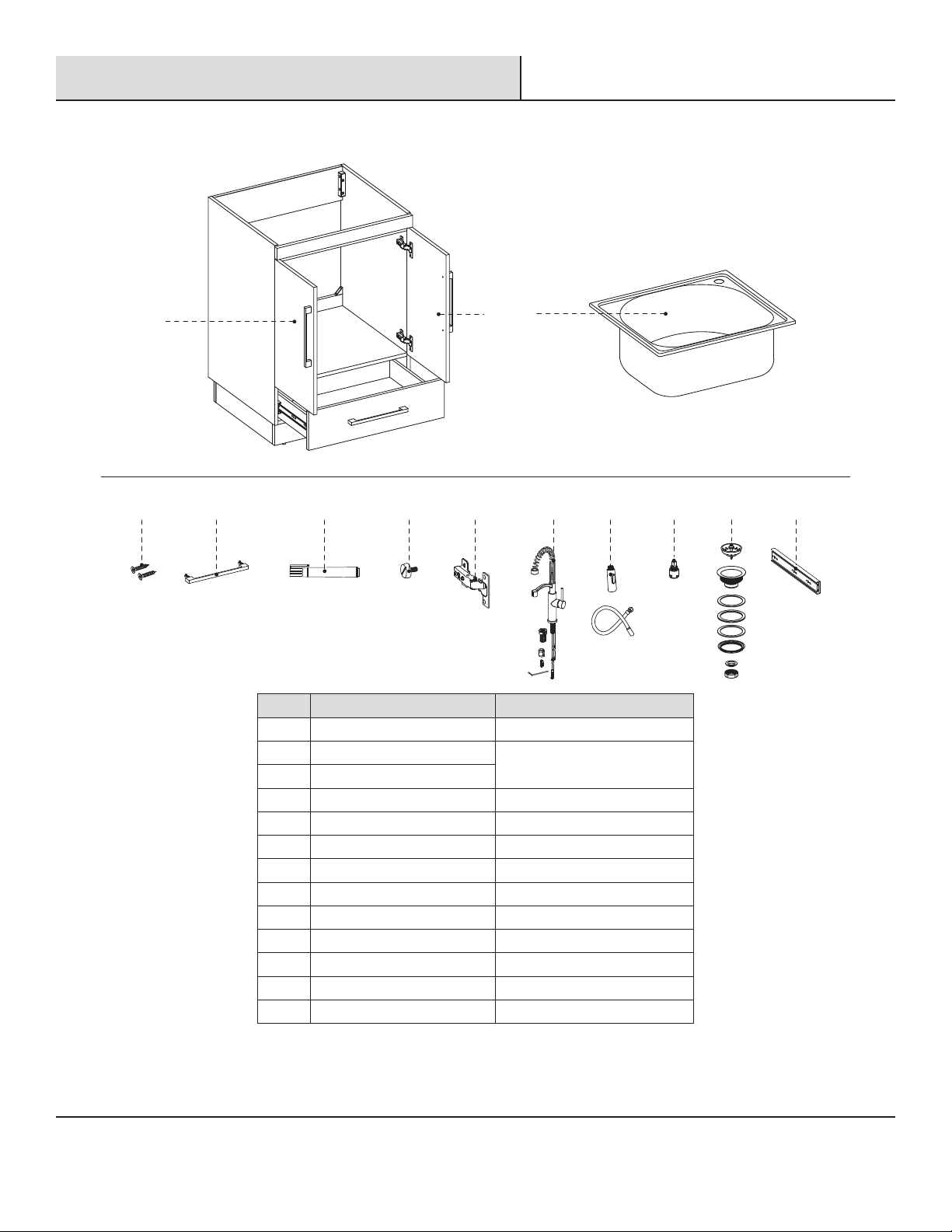

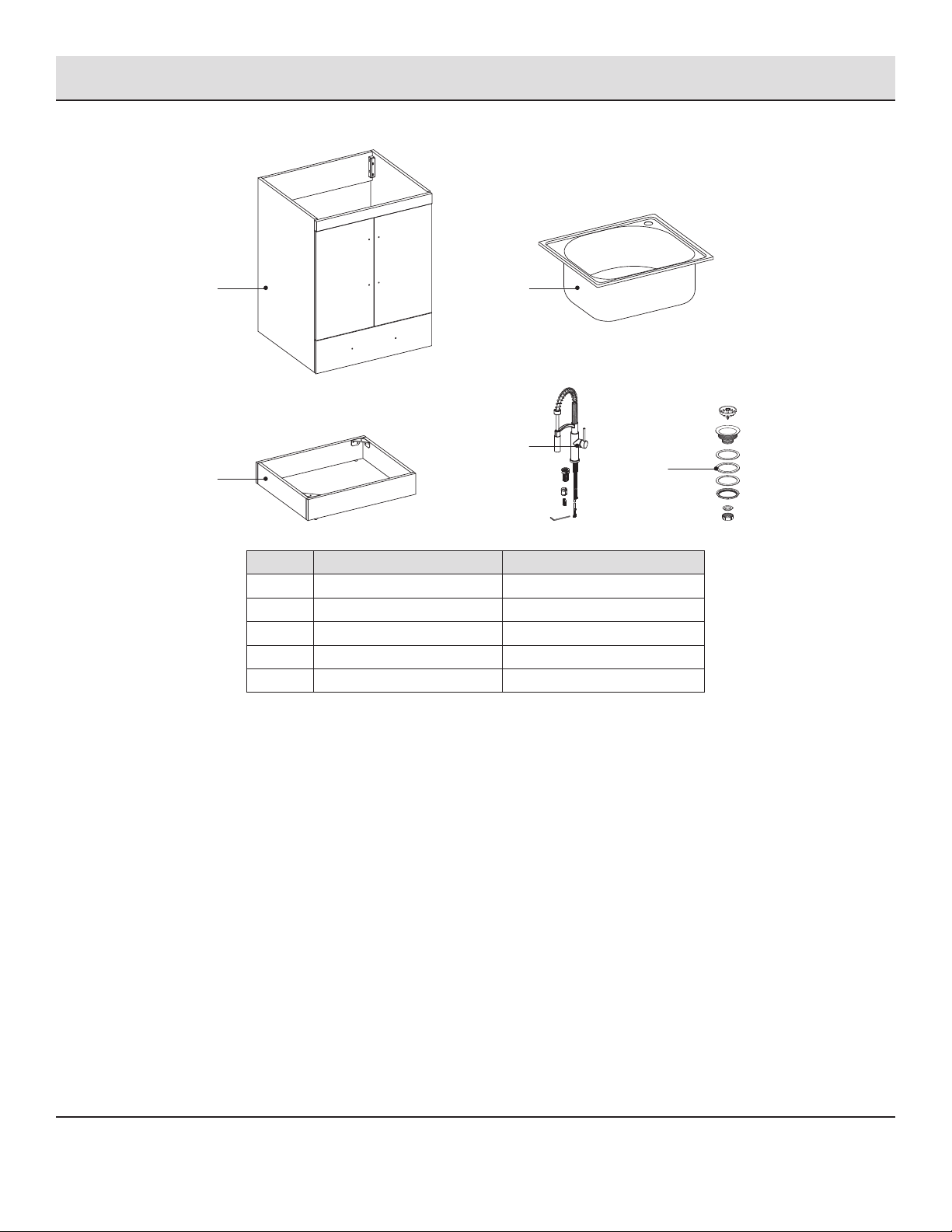

PACKAGE CONTENTS
A
C
D
II
B
Part Description Quantity
A Cabinet 1
B Sink 1
C Cabinet Base 1
D Utility Faucet 1
II Drain Kit 1

6
Installation
1 Installing the Drain Kit
□Apply the sponge washer (3) to the underside of the
strainer body (2).
□Insert the strainer body (2) into the sink.
□Assemble the rubber washer (4), the paper washer (5) and
locknut (6) onto the strainer body (2) from underneath the
sink.
□Hand tighten the locknut (6). Do not over tighten the
locknut as it may split or deform the strainer body.
□Assemble the plastic joint (7) and connecting nut (8) onto
the strainer body (2) from underneath the sink.
□Insert the screener (1) into the strainer.
1. Screener
2. Strainer Body
3. Sponge Washer
4. Rubber Washer
5. Paper Washer
6. Locknut
7. Plastic Joint
8. Connecting Nut
2 Installing the Base
CAUTION: Do not place side load onto feet when righting
the cabinet.
A thorough inspection must be made before installation and any
damages or missing parts must be promptly reported. Do not
proceed with the installation. Do not dispose of packaging before
you are satised with your new sink.
□Unpack the unit and place the sink (B) on a blanket or
cardboard to protect the surface.
□Turn the cabinet (A) upside down onto the protective
surface.
□Gently attach the cabinet base (C) onto its proper location.
Using the supplied cabinet base screws (AA), attach the
base (C) to the cabinet (A).
□Gently place the cabinet upright.
AA
A
C

7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)
3 Installing the Door Pulls
□Place a door pull (BB) over the pre-drilled holes on the right
door and secure to the door using the included bolts.
□Repeat for remaining door pull (BB).
BB
4 Adjusting the Levelers
NOTE: Clean area where the cabinet will be permanently
located prior to beginning installation, ensuring the cabinet
will not interfere with any water supply and drain lines
once mounted.
□Find and mark locations of wall studs behind the
permanent location of cabinet.
□With two people, carefully place cabinet (A) against the
wall in its nal location. While holding the cabinet base
rmly against the wall, use the pre-assembled levelers on
the bottom of each leg of the cabinet (A) to level the item.
Twisting the levelers counterclockwise will raise the height
of the cabinet (A), and twisting them clockwise will lower
the cabinet.
□Once the cabinet is in place, against the wall, and level
from front to back and side to side, drill a hole through the
cabinet mounting area and into the wall studs (as illustrated
in diagram). Using appropriate mounting hardware (not
included), secure the cabinet (A) to a wall stud. If possible,
secure the cabinet (A) to two wall studs for increased stability.
WARNING:
□Cabinet MUST be secured to wall studs.
A

8
Installation (continued)
5 Mounting the Sink
□Following enclosed assembly instructions, install the faucet
to the sink (B).
□Using a hard setting adhesive suitable for bonding metal
and wood (not included), carefully place a bead of the
adhesive around the entire top edge of the cabinet (A).
□Ease the sink (B) into the cabinet (A), be sure to use enough
adhesive to rmly secure the back right corner of the sink
to the cabinet around where the faucet mounts. Wipe off
any excess adhesive. Use masking tape to hold the sink in
place until the adhesive dries.
1
B
A
2
6 Aligning the Doors
If you need to adjust the doors, do so in the following manner.
□To adjust the door up or down, loosen screws (a) on both
hinges, adjust door, and retighten screws.
□To adjust the door left or right, turn screws (b) on both
hinges, in or out.
□To adjust the door in or out, loosen screws (c) on both
hinges, adjust door, and retighten screws.
1
3
1
1
1
3
2
2
2
2
2
2

9 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)

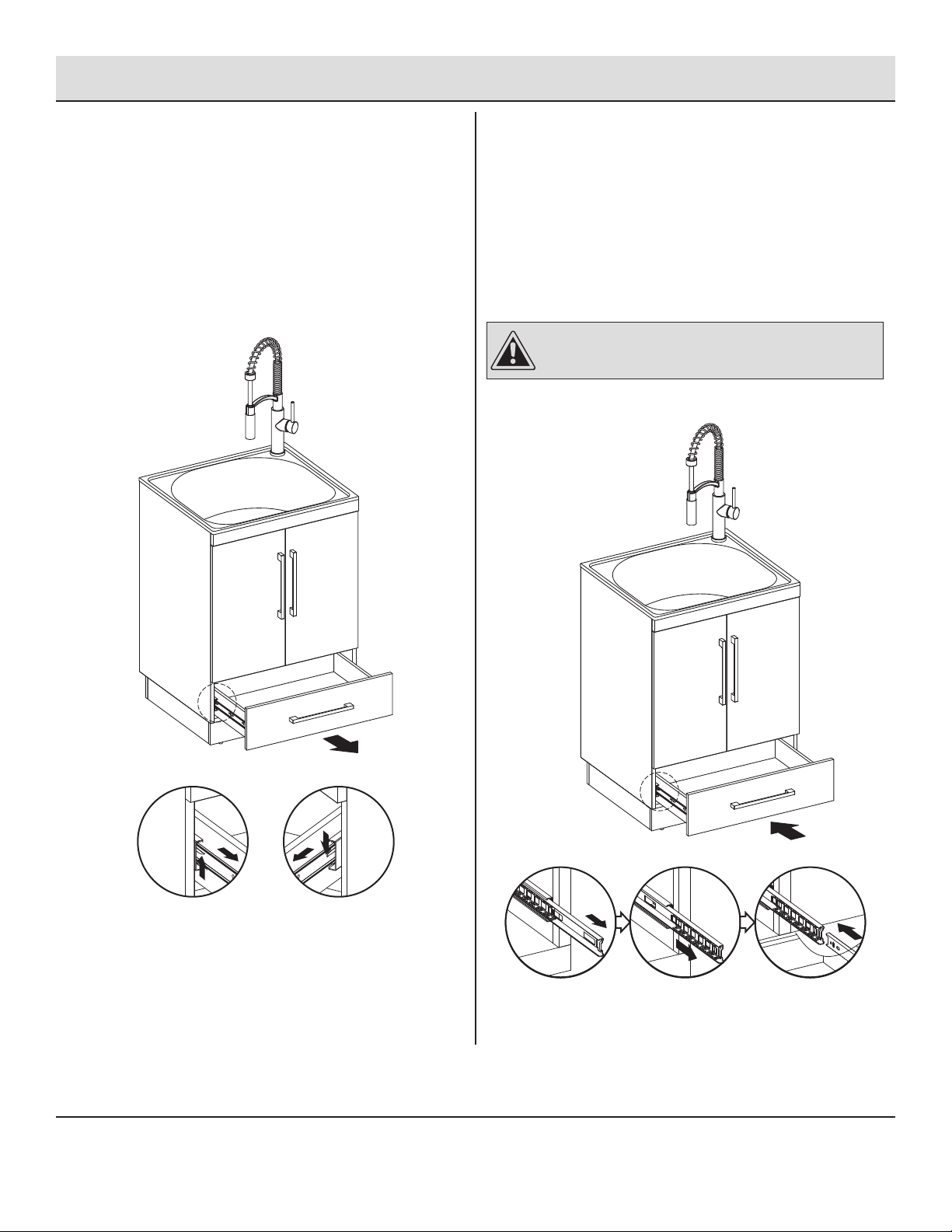

7 Remove drawer
□Remove drawer preassembled in cabinet (A) by fully
extending drawer.
□Locate black plastic levers on metal glide tracks at left and
right sides of drawer box.
□To disengage drawer box from glides, simultaneously push
down on right plastic lever and up on left plastic lever
while gently pulling out drawer.
2
3
3
2
A
1
8 Reinstall drawer
□To reinstall drawer, slide glide roller (on track inside
cabinet) to front of cabinet (A).
□Carefully align drawer box glide track (attached to sides of
drawer box) with glide track (attached to inside of cabinet).
□Making sure drawer is aligned and centered onto glides,
gently push drawer. Keep drawer box centered and
straight.
CAUTION: Do not force drawer or damage to glide may
occur. If drawer does not slide in with ease, remove and try
again from the start.
A
1
2
3
1
2
3

10
Care and Maintenance
SINK
Do
□After use, always rinse your sink with tap water to dilute
and remove deposits.
□Towel dry after use whenever possible to prevent water
spots. Should water spots occur, clean with a mild solution
of vinegar and water followed by a thorough rinse.
□Use liquid soap, a general household cleaner, or a weak
solution of vinegar and water for regular cleaning.
□Only use plastic scouring pads recommended for use in
stainless steel sinks, and only use them in the bowl of the
sink. Scrub in the direction of the satin nish lines.
Do not
□Do not allow any food, detergent, soap or grease to dry or
sit for extended periods of time on the surface of the sink.
□Never use abrasive cleaning products, as they will dull and
scratch the nish.
□Do not use scouring pads on the deck, as they will dull the
mirror nish.
□Never use steel wool pads, as they will leave iron particles
on the sink, which will cause corrosion.
□Never leave steel or cast iron pans in your sink for
extended periods of time, as this can cause corrosion.
CABINET
Do
□Remove dust and dry dirt with a soft, damp cloth.
□Clean grease, oil, paint and ink stains with isopropyl
(rubbing alcohol). Immediately rinse with water after stain
removal.
Do not
□Do not allow your cabinet surface to come into contact
with products such as acetone (nail polish remover), nail
polish, dry cleaning solution, lacquer thinners, gasoline,
pine oil, etc.
□Use caution when using sharp instruments that may fall
and scratch the surface.
Your sink is manufactured with the highest grade stainless steel and will provide you many years of enjoyment with the proper care.
Troubleshooting
Problem Possible Cause Solution
The faucet is not stable after
installation to metal basin.
Basin is not secured well to cabinet top edge. □Use hard setting adhesive to secure
metal basin to the top edge of the wood
cabinet, especially around faucet corner.

11 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Service Parts For 1673US-24-262
If you are missing parts or if you require replacement parts, please contact our customer service team at 1-855-HD-GLACIER, 8:00 am - 7:00
pm, EST, Monday - Friday, 9:00 am - 6:00 pm, EST, Saturday. Identify the required part(s) and have the part number(s) ready.
F
EB
AA BB CC DD EE FF GG HH II JJ
Part Description Part Number
B Sink 1521-24 SS SINK
E Left Door 1673US-24-262 DOOR SET
F Right Door
AA Cabinet Base Screw 1673US-BASE SCREWS
BB Door pull 1673US-BN-DOOR PULL
CC Touch-up Pen OF-OO10
DD Leveler LEVELER-SMALL
EE Hinge HINGES-PB
FF Faucet HD67458-FAUCET
GG Spray Head and Hose HD67458-FAUCET SPRAY HEAD
HH Cartridge 1521US-FAUCET CARTRIDGE
II Drain Kit SS DRAIN KIT
JJ Drawer Glide Set GLIDE-45x14-SIDE-SILVER

12
Service Parts For 1673US-24-313
If you are missing parts or if you require replacement parts, please contact our customer service team at 1-855-HD-GLACIER, 8:00 am - 7:00
pm, EST, Monday - Friday, 9:00 am - 6:00 pm, EST, Saturday. Identify the required part(s) and have the part number(s) ready.
F
EB
AA BB CC DD EE FF GG HH II JJ
Part Description Part Number
B Sink 1521-24 SS SINK
E Left Door 1673US-24-313 DOOR SET
F Right Door
AA Cabinet Base Screw 1673US-BASE SCREWS
BB Door pull 1673US-BN-DOOR PULL
CC Touch-up Pen M-1106
DD Leveler LEVELER-SMALL
EE Hinge HINGES-PB
FF Faucet HD67458-FAUCET
GG Spray Head and Hose HD67458-FAUCET SPRAY HEAD
HH Cartridge 1521US-FAUCET CARTRIDGE
II Drain Kit SS DRAIN KIT
JJ Drawer Glide Set GLIDE-45x14-SIDE-SILVER

13 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Service Parts For 1673US-24-314
If you are missing parts or if you require replacement parts, please contact our customer service team at 1-855-HD-GLACIER, 8:00 am - 7:00
pm, EST, Monday - Friday, 9:00 am - 6:00 pm, EST, Saturday. Identify the required part(s) and have the part number(s) ready.
F
EB
AA BB CC DD EE FF GG HH II JJ
Part Description Part Number
B Sink 1521-24 SS SINK
E Left Door 1673US-24-314 DOOR SET
F Right Door
AA Cabinet Base Screw 1673US-BASE SCREWS
BB Door pull 1673US-BN-DOOR PULL
CC Touch-up Pen M-1210
DD Leveler LEVELER-SMALL
EE Hinge HINGES-PB
FF Faucet HD67458-FAUCET
GG Spray Head and Hose HD67458-FAUCET SPRAY HEAD
HH Cartridge 1521US-FAUCET CARTRIDGE
II Drain Kit SS DRAIN KIT
JJ Drawer Glide Set GLIDE-45x14-SIDE-SILVER

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

GRACIAS
Agradecemos la con anza que has depositado en Glacier Bay al comprar este gabinete de lavandería . Nos esforzamos por crear continuamente
productos de calidad diseñados para mejorar su hogar. Visítanos en Internet para ver nuestra línea completa de productos disponibles para las
necesidades de mejoras de tu hogar. ¡Gracias por elegir a Glacier Bay!
GUÍA DE USO Y CUIDADO
TODO EN UNO, 24 EN EL FREGADERO
DEL GABINETE DE LAVANDERÍA
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de Glacier Bay de lunes a
viernes entre 8 a.m. y 7 p.m. y los sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Artículo #1006757132;
1006757092; 1006757133
Modelo #1673US-24-262;
1673US-24-313; 1673US-24-314

16
Tabla de contenido
Tabla de contenido .................................16
Información de seguridad ...........................16
Garantía. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Preinstalación.....................................18
Planicación de la instalación ......................18
Herramientas necesarias...........................18
Herrajes incluidos ................................18
Contenido del paquete.............................19
Instalación .......................................20
Cuidado y mantenimiento ...........................24
Solución de problemas..............................24
Partes de repuesto .................................25
Información de seguridad
Por favor lea y comprenda todo el manual antes de intentar ensamblar, operar o instalar este producto.
ADVERTENCIA:
□Algunos pasos se manejan más fácilmente con dos adultos.
□El ensamblaje y desembalaje requiere dos adultos.
□Tenga cuidado al ensamblar el producto; tómese su tiempo y siga atentamente las instrucciones de ensamblaje.
□Inspeccione su unidad antes de continuar. Una vez que desempaque la unidad, inspecciónela en busca de virutas, rayones, grietas,
abolladuras o marcas de desgaste. Si nota algún daño, no lo instale.
□Use esta unidad solo de la manera prevista por el fabricante. Si tiene alguna pregunta, comuníquese con el fabricante.
□El trabajo de instalación y la plomería deben ser realizados por personas calicadas, de acuerdo con todos los códigos y normas
aplicables.
□Proteja toda la supercie durante la instalación.
□Todos los oricios perforados en la unidad deben hacerse desde el lado de la supercie terminada con mucho cuidado, y calafatear
con mucho cuidado para formar una barrera impermeable.
DIVULGACIÓN REQUERIDA POR EL FABRICANTE DE MINNESOTA. AVISO DE SALUD IMPORTANTE:
ALGUNOS DE LOS MATERIALES DE CONSTRUCCIÓN USADOS EN ESTA CASA (O ESOS MATERIALES DE CONSTRUCCIÓN) EMITEN
FORMALDEHÍDO. IRRITACIÓN EN LOS OJOS, NARIZ Y LA GARGANTA, DOLOR DE CABEZA, NAUSEAS Y UNA VARIEDAD DE SÍNTOMAS
SIMILARES AL ASMA, INCLUYENDO LA FALTA DE ALIENTO, HAN SIDO REPORTADOS COMO RESULTADO DE LA EXPOSICIÓN AL FORMALDEHÍDO.
LAS PERSONAS MAYORES Y LOS INFANTES, ASÍ COMO CUALQUIER PERSONA CON UN HISTORIAL DE ASMA, ALERGIAS O PROBLEMAS
PULMONARES, PUEDEN ENCONTRARSE EN UN RIESGO MAYOR. LAS INVESTIGACIONES CONTINÚAN SOBRE LOS POSIBLES EFECTOS A LARGO
PLAZO DE LA EXPOSICIÓN AL FORMALDEHÍDO.
LA VENTILACIÓN LIMITADA PUEDE PERMITIR QUE EL FORMALDEHÍDO Y DEMÁS AGENTES CONTAMINANTES SE ACUMULEN EN EL AIRE
DE LOS INTERIORES. LAS TEMPERATURAS ALTAS EN LOS INTERIORES Y LA HUMEDAD INCREMENTAN LOS NIVELES DE FORMALDEHÍDO.
CUANDO UNA CASA DEBE UBICARSE EN ÁREAS SUJETAS A TEMPERATURAS EXTREMAS EN VERANO, SE PUEDE UTILIZAR UN SISTEMA DE
AIRE ACONDICIONADO PARA CONTROLAR LOS NIVELES DE TEMPERATURA INTERNOS. OTROS MEDIOS DE VENTILACIÓN MECÁNICA PUEDEN
USARSE PARA REDUCIR LOS NIVELES DE FORMALDEHÍDO Y DEMÁS CONTAMINANTES AÉREOS DE LOS INTERIORES.
SI TIENE ALGUNA PREGUNTA SOBRE LOS EFECTOS SOBRE LA SALUD DEL FORMALDEHÍDO, CONSULTE A SU DOCTOR O A SU DEPARTAMENTO
DE SALUBRIDAD LOCAL.

17 HOMEDEPOT.COM/GLACIERBAY
Para obtener asistencia, llama al 1-855-HD-GLACIER.
Garantía
GARANTÍA LIMITADA DE POR VIDA
Debe hacerse una inspección a conciencia antes de la instalación y cualquier daño debe ser reportado inmediatamente. No seremos
responsables de los fallos o daños que pudieran haberse descubierto o evitado con una inspección y pruebas adecuadas antes de la instalación.
Garantizamos este producto contra todo defecto en los materiales o en la fabricación, durante el tiempo que el comprador/consumidor original
sea el propietario de este producto. Una prueba de compra (factura original) del comprador/consumidor deberá acompañar toda reclamación
hecha a nosotros.
Esta garantía no es transferible y será anulada si la unidad se quita del lugar donde se instaló inicialmente o si no se instala de acuerdo con las
instrucciones del fabricante. La garantía no se aplica en caso de daños al producto debido al uso de otros repuestos, (las piezas de repuesto
pueden obtenerse por liamando al 1-855-HD-GLACIER, 8 a 19 horas, hora del este, lunes a viernes, 9:00 a.m. - 6:00 p.m., hora del este,
sábado) error de instalación, abuso, mal uso, cuidado incorrecto o mal mantenimiento (ya sea realizada por un plomero, fontanero, contratista,
proveedor de servicios o un miembro de la familia del comprador). La garantía excluye los daños causados por condiciones agresivas de aire,
agua, abrasivos, limpiadores y/o materiales.
Bajo ninguna circunstancia seremos responsables de lesiones personales o daños a la propiedad que resulten de una instalación o de un
uso inapropiado de este producto. No seremos responsables por inconvenientes ocasionados por pérdida de uso de este producto, costos
incurridos en mano de obra o materiales, retiro e instalación de unidades de remplazo, ni ningún otro daño incidental o consecuente. Los
costos relacionados con la reparación o el reemplazo son la responsabilidad del usuario.
Nuestra obligación se limita a la reparación o reemplazo de una unidad (a nuestra discreción) que pueda comprobarse, únicamente al
examinarla por nosotros, que tiene defectos bajo un uso y servicio normal durante el periodo de garantía.
Cualquier fallo de este producto que no sea identicable como un defecto en materiales o de fabricación no estará cubierto por la garantía.
Estos artículos que no se pueden garantizar incluyen, pero no se limitan a:
□Instalación indebida que no siga las instrucciones del fabricante.
□Abolladuras, golpes y marcas ocasionadas durante el transporte, manejo o instalación.
□Cambio de color o en el acabado debido al uso de productos químicos.
□Daños ocasionados por no seguir las instrucciones de cuidado y limpieza, incluyendo daños ocasionados por el uso de limpiadores
abrasivos.
□Alteraciones hechas a la unidad por parte del comprador o el instalador.
□Daños ocasionados por impacto accidental, fuego, inundaciones, congelamiento y por el desgaste normal.
□Dobleces y deformaciones a consecuencia de conexiones forzadas, accesorios apretados en exceso y soporte inadecuado durante
la instalación.
Esta garantía no cubre el uso o la instalación comercial ni institucional.
PROCEDIMIENTO DE RECLAMACIÓN DE GARANTÍA
Si ocurre un defecto por el que se puede presentar una reclamación, por favor contacte nuestro equipo de servicio al cliente
1-855-HD-GLACIER (8 a 19 horas, hora del este, lunes a viernes, 9:00 a.m. - 6:00 p.m., hora del oste, sábado).
Antes de llamar para presentar una reclamación, por favor asegúrese que tiene:
□La descripción o el numéro de modelo.
□El comprobante de venta.
□Los detalles del defecto.
□Nombre(s) y domicilio(s) del propietario y del instalador.

18
Preinstalación
PLANIFICACIÓN DE LA INSTALACIÓN
Antes de comenzar el ensamblaje del producto, asegúrese de tener todas las partes. Compare las partes con la lista de contenidos del
paquete y la lista de herrajes. Si alguna parte falta o está dañada, no intente ensamblar el producto.
Tiempo estimado de ensamblaje: 40 minutos (24 horas para que el adhesivo se seque).
HERRAMIENTAS NECESARIAS (NO INCLUIDAS)
Destornillador
Phillips
Cuchillo o
Tijeras Adhesivo
Taladro Eléctrico
Con Una Broca Cinta Métrica Nivel
HERRAJES INCLUIDOS
NOTA: Los herrajes no se muestran en tamaño real.
—AA —BB —
CC
Pieza Descripción Cantidad
AA Tornillo de La Base Del Gabinete 2
BB Manija de Puerta 3
CC Aplicador de Retoque 1

19 HOMEDEPOT.COM/GLACIERBAY
Para obtener asistencia, llama al 1-855-HD-GLACIER.
Preinstalación (cont.)
CONTENIDO DEL PAQUETE
A
C
D
II
B
Pieza Descripción Cantidad
A Gabinete 1
B Fregadero 1
C Base del Gabinete 1
DGrifo de Trabajo 1
II Kit de Drenaje 1

20
Instalación
1 Instalación Del Kit de Drenaje
□Aplique la arandela de esponja (3) en la parte inferior del
cuerpo de la coladera (2).
□Inserte el cuerpo de la coladera (2) en el fregadero.
□Ensamble la arandela de goma (4), la arandela de papel
(5) y la contratuerca (6) en el cuerpo de la coladera (2) por
debajo del fregadero.
□Apriete la contratuerca (6) a mano. No apriete demasiado
la contratuerca ya que puede partir o deformar el cuerpo
de la coladera.
□Ensamble la junta de plástico (7) y la tuerca de conexión (8)
en el cuerpo de la coladera (2) por debajo del fregadero.
□Inserte el ltro (1) en la coladera.
1. Filtro
2. Cuerpo de La
Coladera
3. Arandela de
Esponja
4. Arandela de Goma
5. Arandela de Papel
6. Contratuerca
7. Junta de Plástico
8. Tuerca de Conexión
2 Instalación de La Base
PRECAUCIÓN: No coloque la carga lateral sobre las patas
al enderezar el gabinete.
Se debe realizar una inspección detallada antes de la instalación,
y cualquier daño o pieza faltante debe reportarse de inmediato. No
continúe con la instalación. No deseche el embalaje antes de estar
satisfecho con su nuevo fregadero.
□Desempaque la unidad y coloque el fregadero (B) en una
manta o cartón para proteger la supercie.
□Voltee el gabinete (A) al revés sobre la supercie
protectora.
□Fije cuidadosamente la base del gabinete (C) en su
ubicación correcta. Usando los tornillos de la base del
gabinete (AA) suministrados, je la base (C) al gabinete (A).
□Coloque cuidadosamente el gabinete en posición vertical.
AA
A
C
