Glacier bay 14-028-W User manual

THANK YOU
THANK YOUTHANK YOU
THANK YOU
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this sink. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Glacier Bay!
USE AND CARE GUIDE
Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1-855-434-5224
HOMEDEPOT.COM
Item #923 715
Model #14-028-W
OVAL UNDERMOUNT SINK

2
Table of Contents
Table of Contents.............................................................2
Safety Information...................................................
......... 2
Warranty................................................................
......... 2
Pre-Installation................................................................3
Planning Installation...........................................
............. 3
Tools Required...............................................................3
Package Contents.................................................
.......... 4
Roughing In Dimensions...........................
............... ........ 5
Installation ..............................................................
.... 6-7
Care and Cleaning...........................................................7
Safety Information
WARNING: Handle with care. Vitreous chinaware is
glass-like with sharp edges if broken. Do not drop, handle
NOTICE: Observe local plumbing and building codes.
Warranty
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our limited lifetime warranty.
Glacier Bay products are warranted to the original consumer purchaser to be free of defects in materials or workmanship. We will replace
FREE OF CHARGE any product or parts that proves defective. Simply, return the product / part to any of The Home Depot retail locations or
call 1-855-HD Glacier (1-855-434-5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original
consumer purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and tear. This warranty
excludes all industrial, commercial & business usage, whose purchasers are hereby, extended a ve year limited warranty from the date of
purchase, with all other terms of this warranty applying except the duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not
apply to you. This warranty gives you specic legal rights and you may also have other rights that vary from state to state and province to
province. Please see a store or contact 1-855-HD Glacier for more details.
roughly, or overtighten bolts.

3 HOMEDEPOT.COM
Please contact 1-855-434-5224 for further assistance.
Pre-Installation
NOTE:
It is recommended to check the desired location for clearance between the
backsplash, faucet, plumbing, and vanity.
PLANNING INSTALLATION
Before beginning installation of this product, ensure all parts are present. Compare parts with the Hardware Included and Package Contents
sections of this manual. If any part is missing or damaged, do not attempt to assemble, install, or operate the product. Contact customer
service for replacement parts.
If you have a marble or stone countertop that does not have a cutout to accommodate the sink, it is recommended this be done by a professional.
Install so future removal is possible. Do not use adhesives or adhesive sealant. This will avoid damage to the top.
Estimated Assembly Time: 60 minutes + epoxy setting time (4-8 hours)
NOTE:
Hardware not shown to actual size.
AA BB CC DD
HARDWARE INCLUDED
Part Description Quantity
4
CC
DD
Machine screw
Washer
4
Drill
Safety
glasses
Adjustable
wrench
Sealant
Carpenter
level
Phillips
screwdriver
Putty
knife
Flat blade
screwdriver
Pipe
wrench
Drill
NOTE:
You may require different, more specialized tools to install this lavatory to
countertop materials other than wood or wood composites.

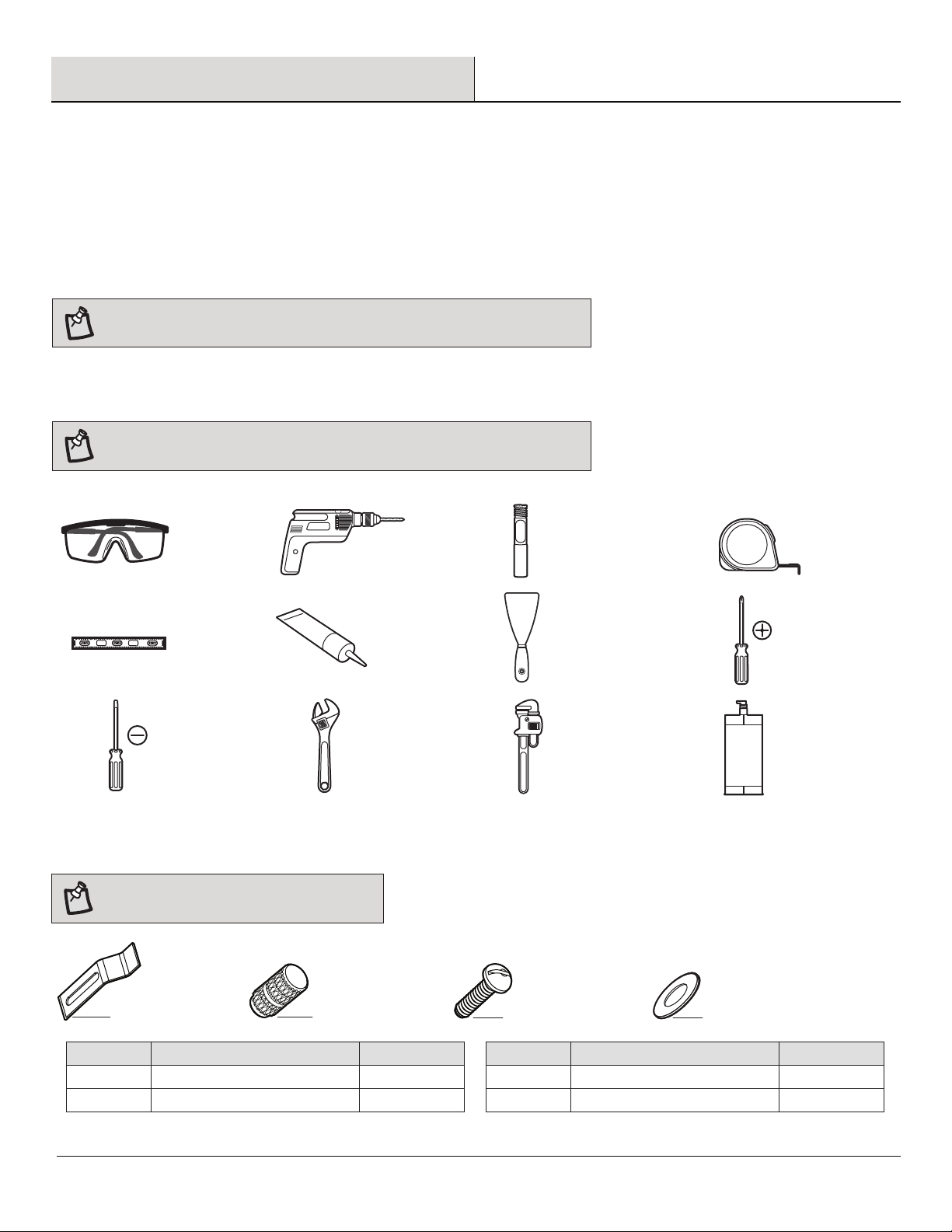

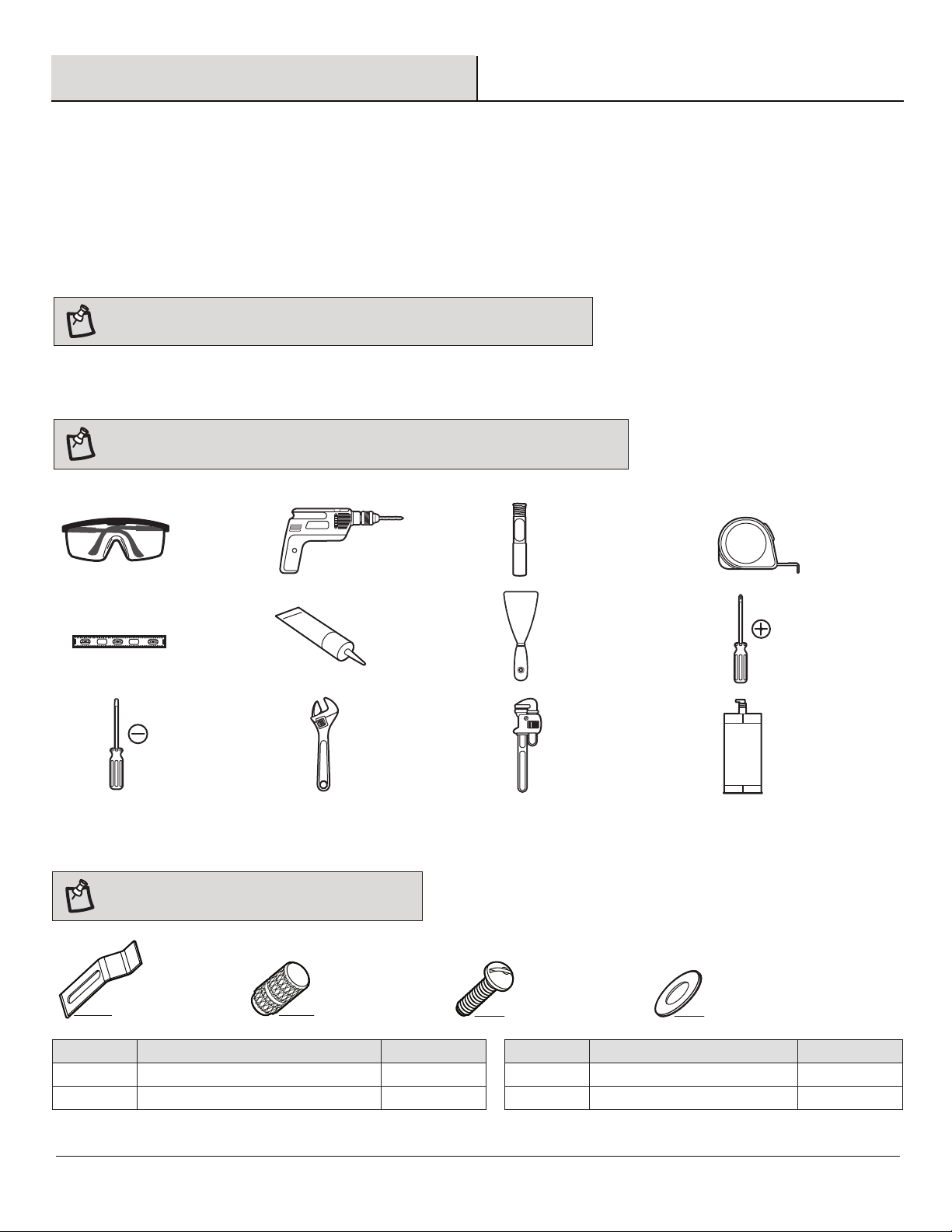

TOOLS REQUIRED
5/16 in. Diamond
drill bit
A
A
4
BB
Undermount clips
Threaded knurl
4
Part Description Quantity
Part Description Quantity
Measuring
tape
Expoxy

4

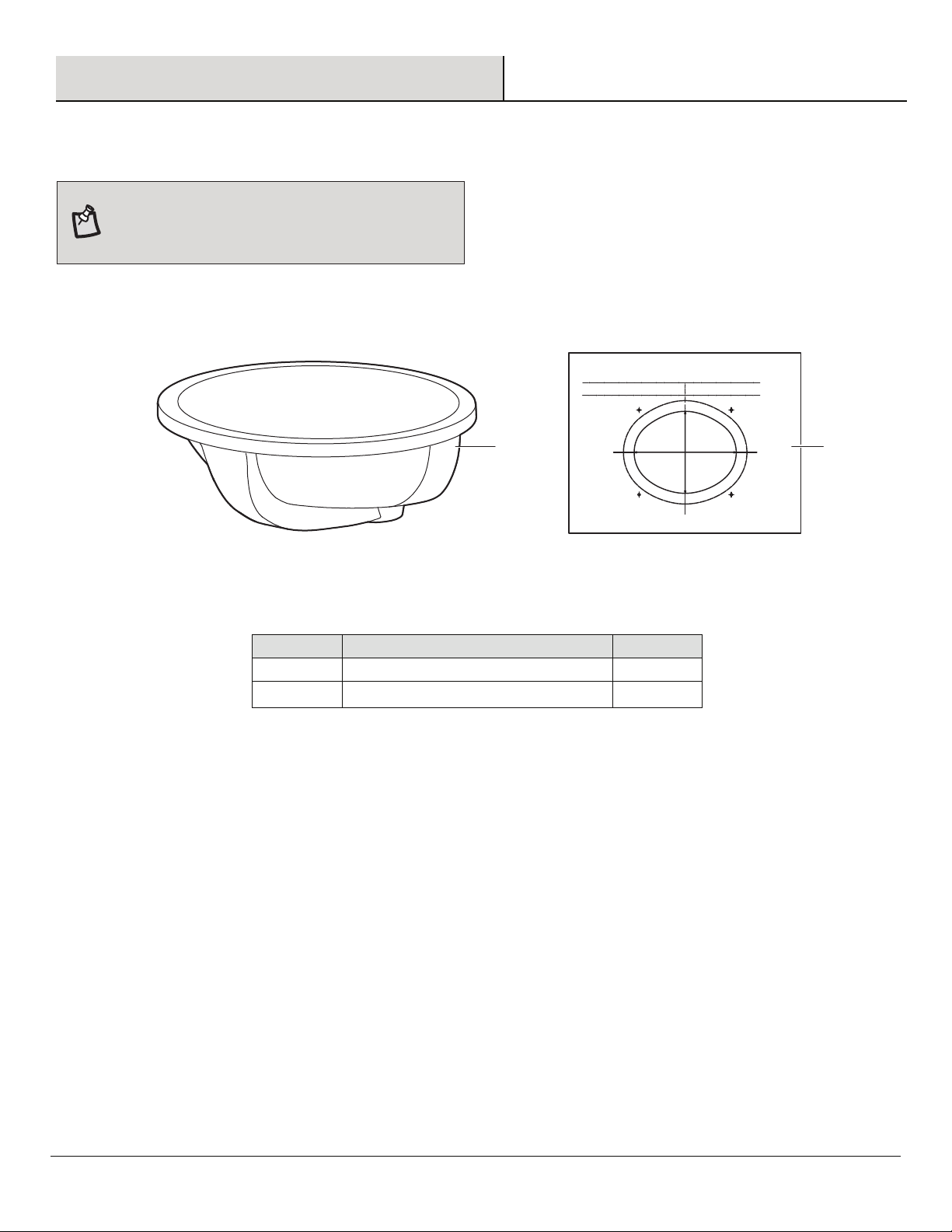

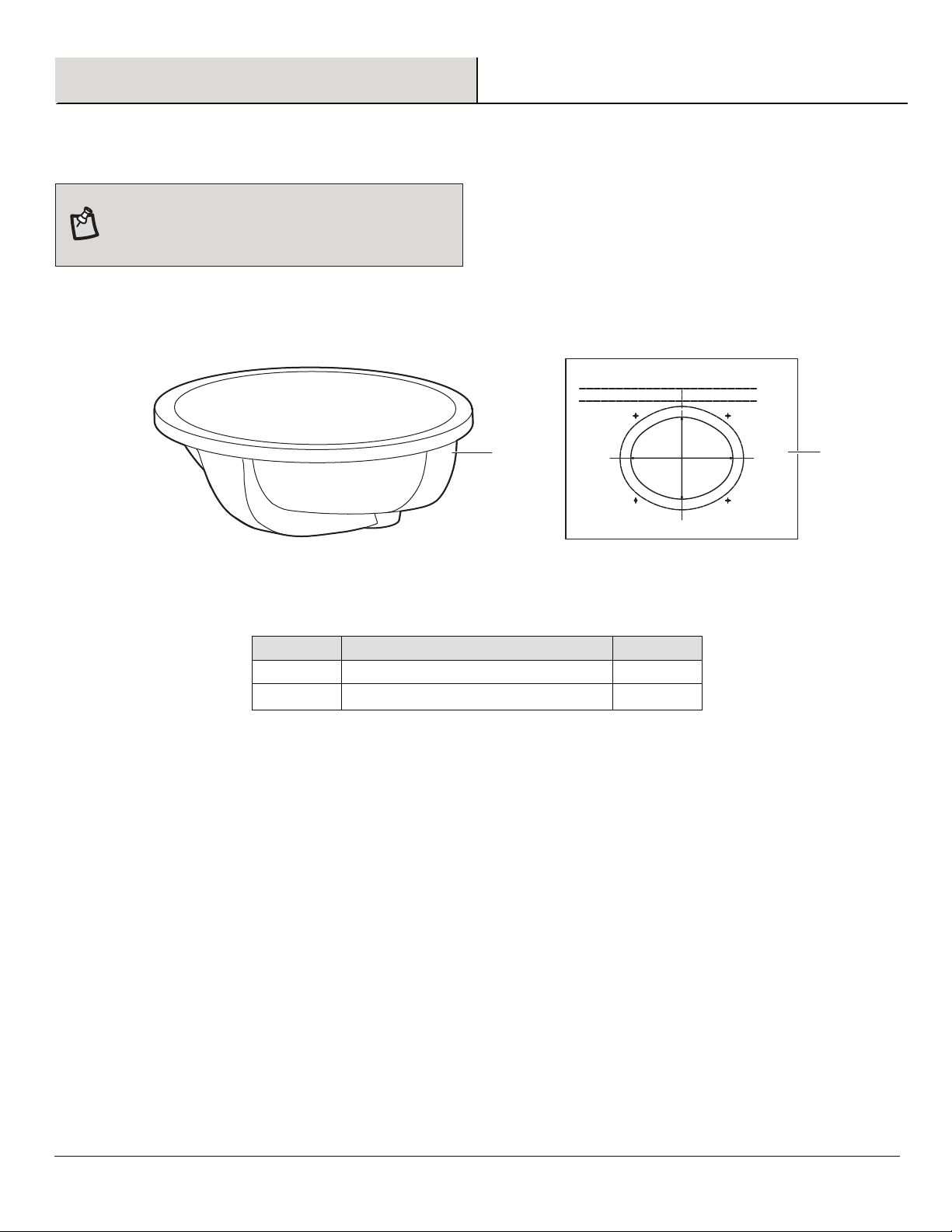

PACKAGE CONTENTS
Part Description Quantity
1Undermount sinkA
Pre-Installation (continued)
1TemplateB
NOTE:
The template (B) is to be used as a guide for cutting
the sink opening in the countertop, if one does not exist.
To avoid possible damage to the cabinet, cut the counter top
before installing it to the cabinet.
A
B

5 HOMEDEPOT.COM
Please contact 1-855-434-5224 for further assistance.

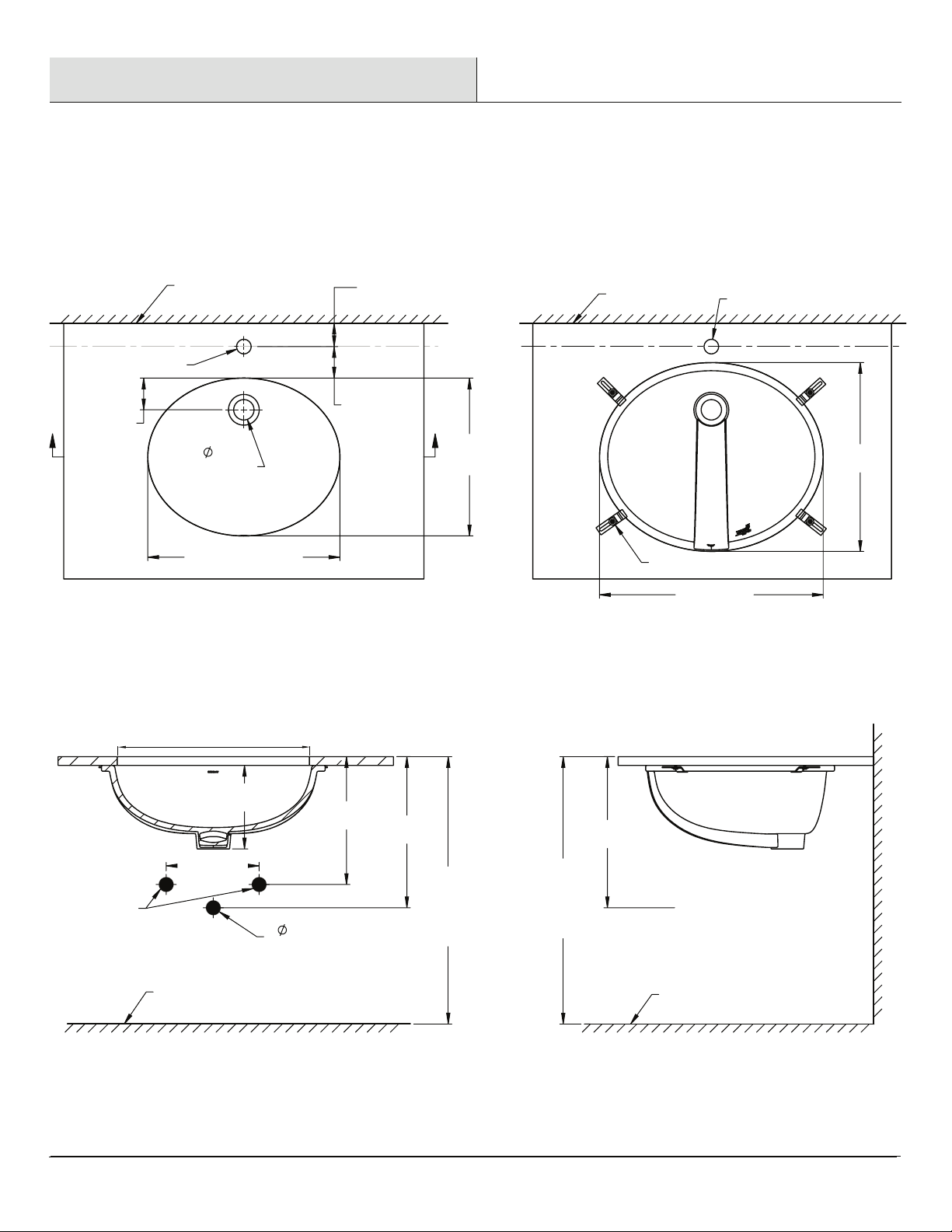

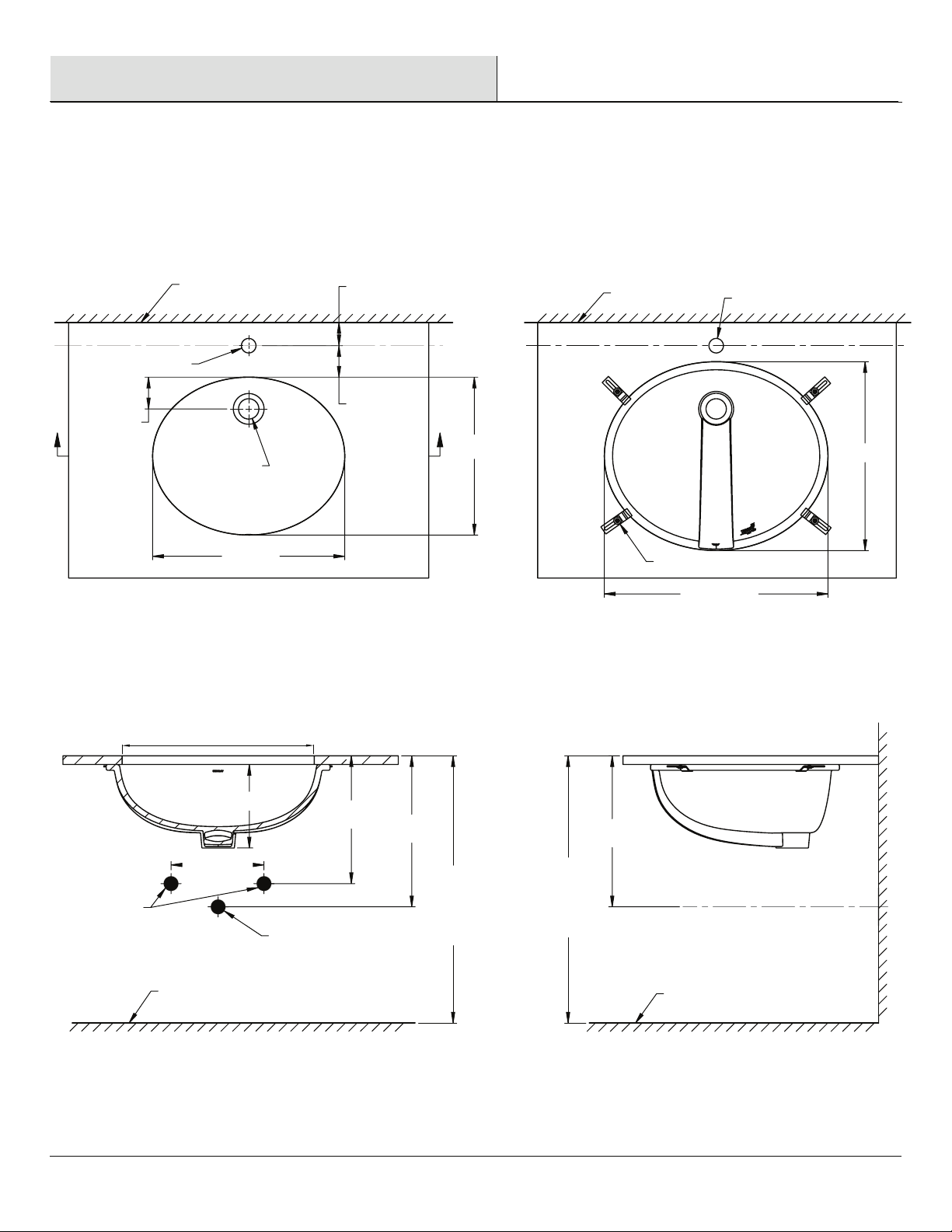

ROUGHING-IN DIMENSIONS
Pre-Installation (continued)
Faucet Hole
16 3/8 in.
19 1/2 in.
Undermount Clips
Fitting Line
BOTTOM VIEW
Finished Wall
13 in.
34
in.
Suggested
SIDE VIEW
Finished Floor
Faucet Hole
1 3/4in.
Drain Hole
2 in.
Suggested
2 3/4 in.
2 1/2 in.
Suggested
Cutout dimension
13 in.
Cutout
dimension
H H
TOP VIEW
Fitting Line
Finished wall
or backsplash
7 3/8 in.
1 1/4 in.
Waste
34
in.
Suggested
13 in.
11 in.
8 in.
FRONT VIEW
Finished Floor
Supplies as
required
16 1/8 in.
16 1/8 in.

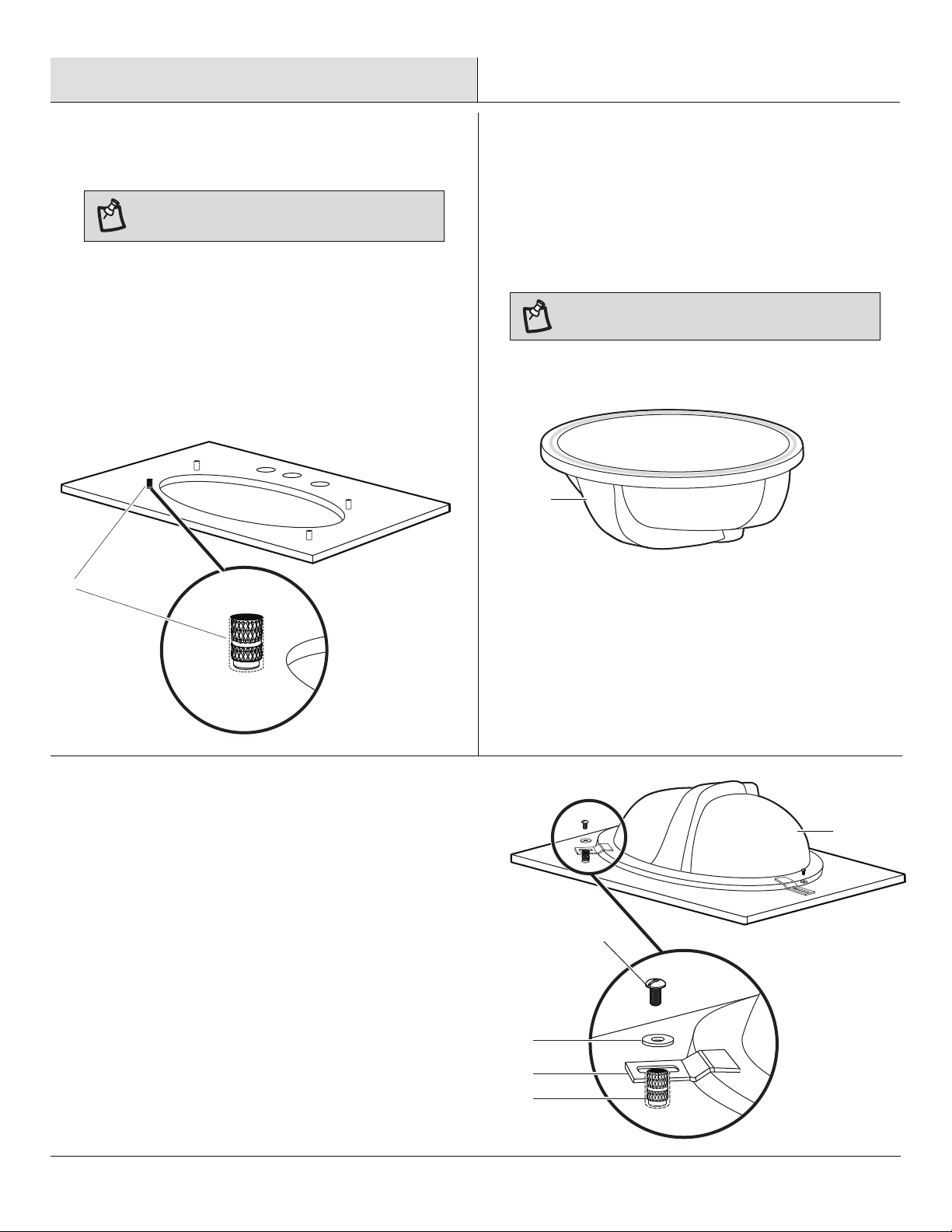

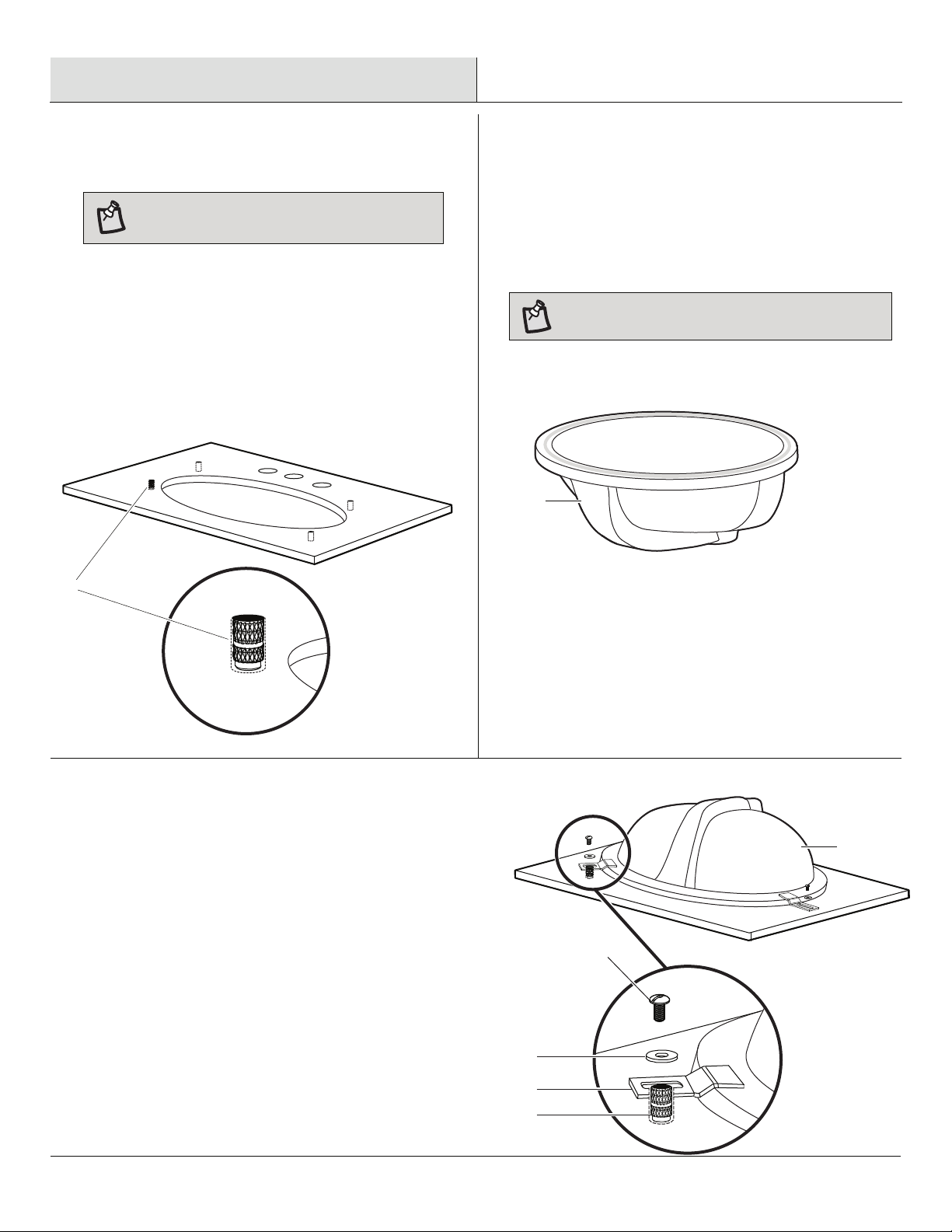

Installation
6
With the countertop positioned upside-down, center the
sink (A) over the cutout.
Firmly press the sink (A) onto the countertop, and immediately
wipe off excess sealant.
Attach the undermount clips (AA) to the threaded knurl (BB) in
the countertop using the machine screws (CC) and washers
(DD) to hold sink (A) in place.
Allow the sealant to set for 30 minutes before proceeding.
Flip the countertop right-side up, and install it onto the
cabinet.
Mounting the sink





3
1
Installing the anchors
Using the template (B) as a guide, mark the four hole
locations for the mounting hardware on the countertop.
Using a 5/16 in. diamond bit, drill a 1/2 in. deep hole in
each location.
Clean the holes and apply quick set epoxy.
Place one threaded knurl (BB) into each hole, and allow
to cure for the amount of time required according to the
epoxy manufacturer’s directions.




professional.
NOTE: It is recommended this be done by a 

NOTE: It is recommended to practice the proper
positioning two or three times before applying sealant.
Make sure the surface to be sealed is clean, dry, soap free,
oil free, and grease free.
Apply a continuous bead of quality sealant around the top
side of the sink (A) rim near the edge.
2Applying the sealant
BB
A
A
AA
DD
CC
BB

7HOMEDEPOT.COM
Please contact 1-855-434-5224 for further assistance.
Care and Cleaning
For best results in caring for your sink, we suggest the following:
Clean the outside surface with mild soap, warm water, and a soft cloth.
On stubborn stains, use a powdered detergent and damp sponge or nylon scouring pad.
Never use abrasive scouring powders, cleansers, or pads because they will scratch, damage, and dull the surface.




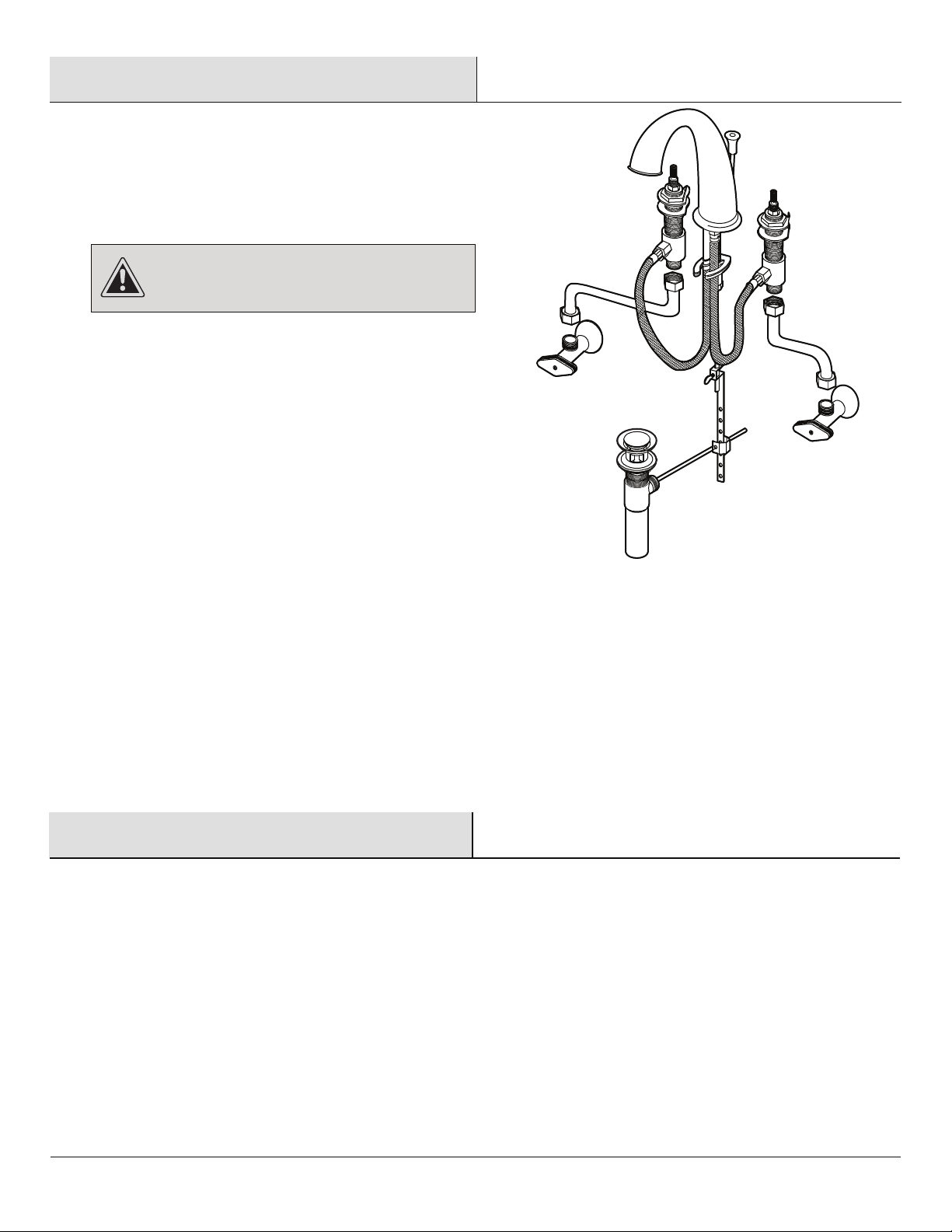

Installation
4

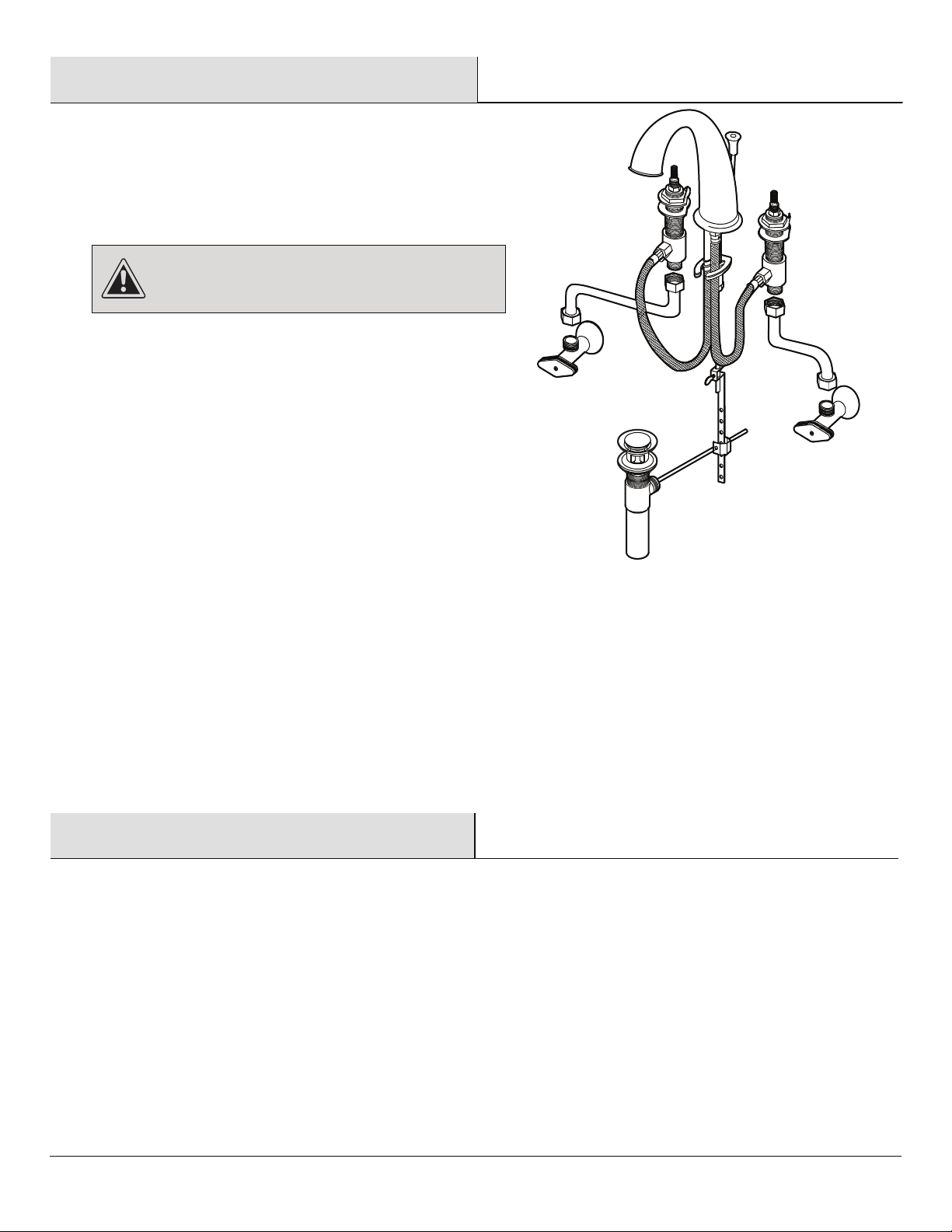

Installing the plumbing
Install the drain (not provided) according to the manufacturer’s
installation instructions.
Install the waste system, faucet, and the water supply (not
provided) according to the manufacturer’s installation
instructions.
Check for leakage.
CAUTION: Do not overtighten the drain assembly.
This may cause the bowl to forcefully crack during
installation or at some time in the future.




Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday
1
11
1-
--
-855
855855
855-
--
-434
434434
434-
--
-5224
52245224
5224
HOMEDEPOT
HOMEDEPOTHOMEDEPOT
HOMEDEPOT.COM
.COM.COM
.COM
Retain this manual for future use.

GRACIAS
Agradecemos la conanza que has depositado en Glacier Bay al comprar este lavamanos. Nos esforzamos para continuamente crear
productos de calidad diseñados para tu hogar. Visítanos en Internet para ver nuestra línea completa de productos disponibles para
las necesidades de mejoras de tu hogar. ¡Gracias por elegir Glacier Bay!
GUÍA DE USO Y MANTENIMIENTO
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda,
llama al servicio al cliente de Glacier Bay de
lunes a viernes entre 8 a.m. y 6 p.m. hora estándar del Este
1-855-434-5224
HOMEDEPOT.COM
Artículo núm. 923 715
Model núm. 14-028-W
LAVAMANOS ÓVALO DE MONTAJE BAJO CUBIERTA

2
Tabla de contenido
Tabla de contenido...........................................................2
Información de seguridad........................................
.......... 2
Garantía.............................................................
.............. 2
Preinstalación .................................................. .. ............. 3
Planicar la instalación......................................
.............. 3
Herramientas necesarias......................................
.. ......... 3
Contenido del paquete....................................................
. 4
Dimensiones de la abertura.............................................
. 5
Instalación............................................................ .......... 6
Mantenimiento y limpieza....................................
............ 7
Información de seguridad
ADVERTENCIA: Manipular con cuidado. Cuando la
vitrocerámica se rompe tiene bordes alados como el
vidrio. No lo dejes caer, no lo manipules bruscamente, ni
aprietes los pernos demasiado.
NOTA: Cumple con todas las normas locales de plomería y construcción.
Garantía
Los productos Glacier Bay se fabrican con normas y mano de obra de calidad superior, y están respaldados por nuestra garantía limitada de
por vida. Los productos Glacier Bay están garantizados para el comprador original contra defectos materiales o de fabricación.
Reemplazaremos GRATIS cualquier producto o pieza defectuosa. Simplemente devuelva el producto / pieza a cualquier tienda de The Home
Depot o llame al 1-855-HD Glacier (1-855-434-5224) para recibir el artículo de reemplazo. La prueba de compra (recibo original de ventas)
del comprador original debe estar disponible para cualquier reclamación de garantía de Glacier Bay.
Esta garantía excluye fallas y daños directos/indirectos debido al uso incorrecto, abuso o uso y desgaste normales. Esta garantía excluye
todo uso industrial, comercial y de negocios, a cuyos compradores se les extiende una garantía limitada de cinco años a partir de la fecha
de compra, manteniendo todos los demás términos de la garantía, con excepción de la duración.
Algunos estados y provincias no permiten la exclusión o limitación de daños directos o indirectos, por ello las limitaciones previamente
enunciadas pueden no aplicarse a su caso. Esta garantía le otorga derechos legales especícos y es posible que también goce de otros
derechos que varían de un estado a otro y de una provincia a otra. Por favor, consulte a un asociado de la tienda o comuníquese con el
1-855-HD Glacier para obtener más detalles.
