Glacier bay 833X-0001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Model#
833X-0001
833X-0101
TWO-HANDLE TUB AND SHOWER FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this tub and
shower faucet. We strive to continually create quality products designed to enhance your home. Visit us online
to see our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
3/2017 REV.01THD
SKU#
937207
766585

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................3
Planning Installation ..............................3
Package Contents..................................6
Installation................................................7
Care and Cleaning ....................................10
Troubleshooting........................................11
Service Parts ........................................... 12
Important Information
□ Do not install this product until you read and understand the instructions in this manual. If you are installing this
product for someone else, leave this manual for the owner’s/ user’s reference.
□ Inlet ports are designed to allow for 1/2 in. COPPER tubing solder connection or 1/2 in. IPS threading coupling
connection. For threaded connections, wrap sealant tape around threaded ends before connecting. If soldering
connections, certain inammable parts should be removed prior to the soldering in order to avoid heat damage.
If you are unsure how to properly remove these parts, please call us at 1-855-HD-Glacier.
□ Protect your eyes with safety glasses when cutting or soldering water supply lines.
□ NOISE AND WATER HAMMER IN PEX SYSTEMS: Due to the inherent exibility of PEX compared with metallic
plumbing materials, water hammer and noise can sometimes occur from the pressure surges. It is important to
ensure the tubing is not in contact with wallboard, forced air ducts or other high-resonance materials. Clamping
or strapping can help prevent these noises. DO NOT USE PEX tubing from the valve to the tub spout.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Tools and Hardware Required ...............3

3HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape
Phillips
screwdriver
SILICONE
Silicone
sealant
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service
for replacement parts.

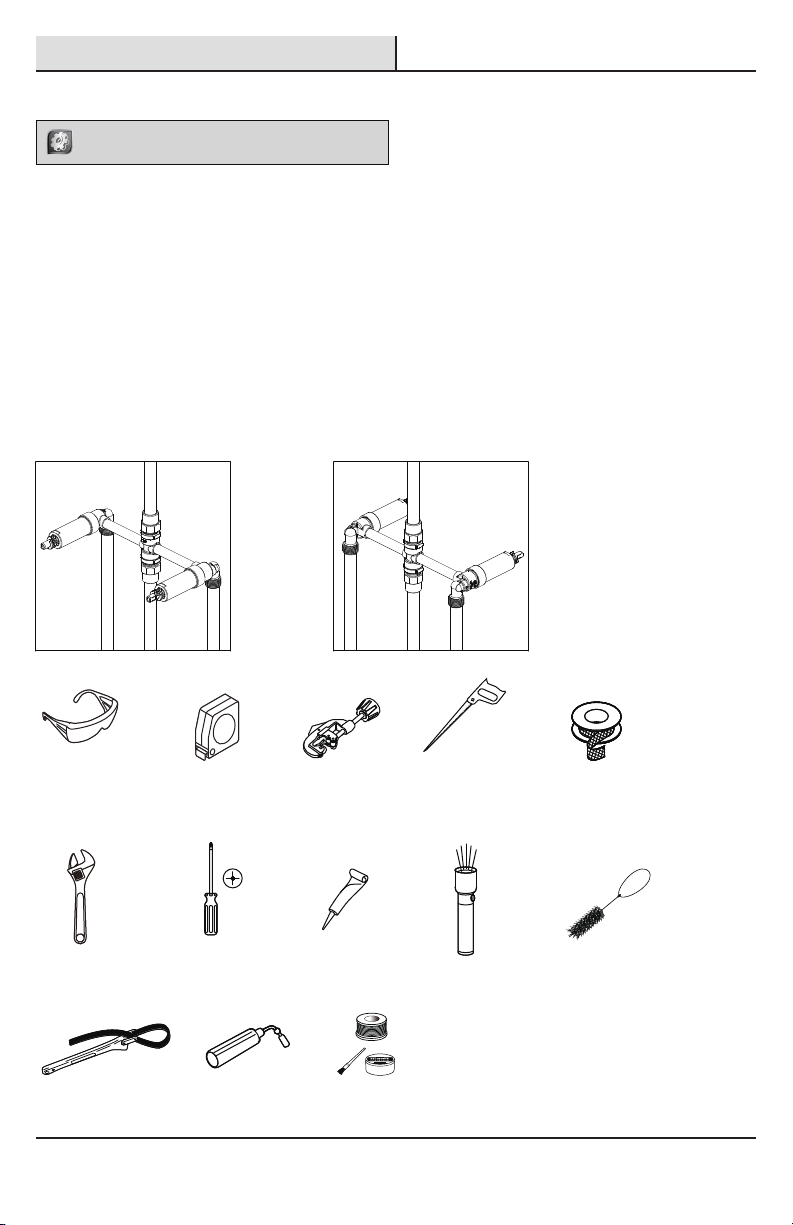

TOOLS AND HARDWARE REQUIRED
ADVANCED INSTALLATION: Consult a plumber or
professional before installing this product.
If you are replacing your plumbing valve, please review the four common plumbing methods illustrated below:
COPPER, IPS, PEX and CPVC. Remove the existing handle and valve trim before replacing your valve. Please follow
all local building and plumbing codes.
A. COPPER (Before soldering, remove the cartridge from the valve)
Torch Lead-free solder Kit
Key
hole saw
Wire
brush
All installations can vary depending on how your previous faucet was installed. Not all supplies for faucet
installation are included; however, they are available wherever plumbing supplies are sold. When choosing your
installation supplies, make sure they are UPC and/or CSA approved products.
Flashlight

Pre-Installation (continued)
4
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape
Phillips
screwdriver
SILICONE
Silicone
sealant
B. IPS
Key
hole saw
Flashlight
C. PEX+COPPER
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape
Phillips
screwdriver
SILICONE
Silicone
sealant
Key
hole saw
Flashlight
Full circle
crimping tool
Pipe
wrench
COPPER COPPER

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)
5
D. CPVC+COPPER
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape
Phillips
screwdriver
SILICONE
Silicone
sealant
Key
hole saw Flashlight
CPVC
cleaner
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
CPVC
cement
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
COPPER COPPER

6
Pre-Installation (continued)

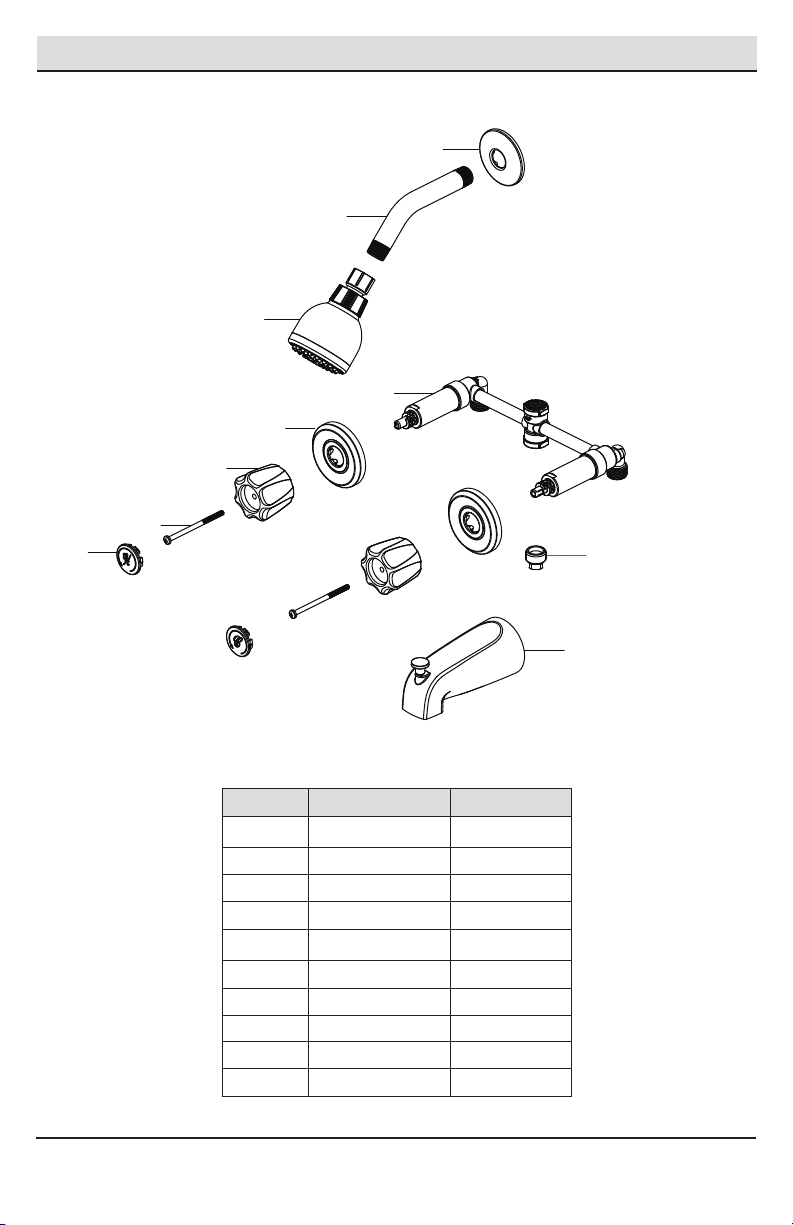

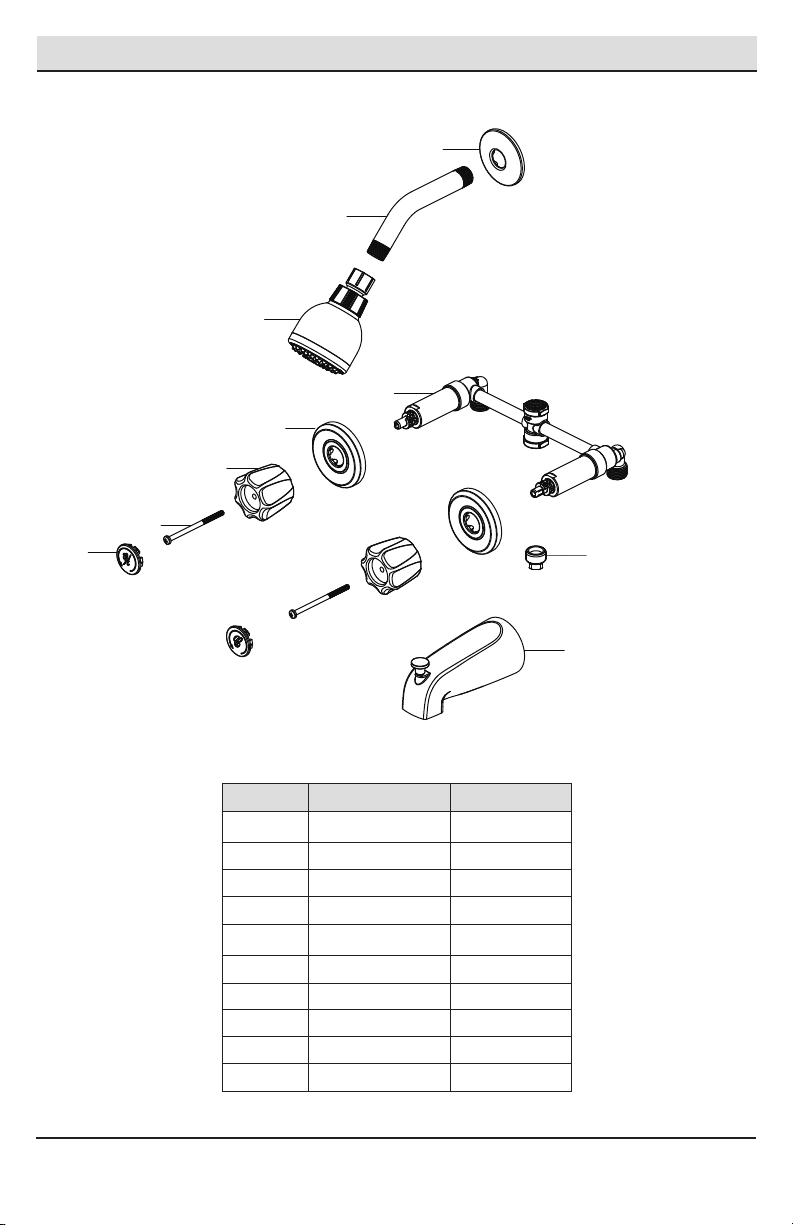

PACKAGE CONTENTS
Part Description Quantity
A1
B Shower arm 1
C Shower head 1
D Valve body 1
E Flange 2
F Handle 2
H Index 2
Shower ange
I Plug 1
J Tub spout 1
G Screw 2
C
E
D
J
B
A
F
G
I
H

7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation
1 Preparing for installation
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply to the tub and
shower.
□Verify that the hole sizes and positions of the
holes in the wall are correct：
□The shower and tub spout outlet holes
should be 1-1/4 in. diameter.
□For the cold water inlet (the right side)
and the hot water inlet (the left side),
cut or leave a 1-3/8 in. diameter hole
(recommended size is 1-3/4 in.). The
center to center distance between the
cold and hot water inlets is 8 in.
2 Installing the supply
connections
□
Wrap thread sealant tape around the valve body
(D) threads in a clockwise direction, as shown.
□
Thread the waterline (1) to the valve body (D),
and tighten with a wrench.
NOTE: Be sure to position the valve body (D) correctly in
the wall, with the markings "UP" facing upward. Hot water
supply lines go into the “H” inlet; cold water supply lines
go into the “C” inlet.
NOTE: Do not disassemble the cartridges during normal
installation. When reinstalling the cartridges, be sure to
insert them with the limit stop (a & b) pointed inward as
shown in the diagram. This is necessary for proper
operation of the valve.
a
b
Cold
Hot
1-3/8 in. ~ 2 in.1-3/8 in. ~ 2 in.
8 in.
8 in. Min.
30 in.
Shower Only
48 in.
Tub & Shower
30 in.
Tub & Shower
48 in.
Shower Only
1
D

8
Installation (continued)

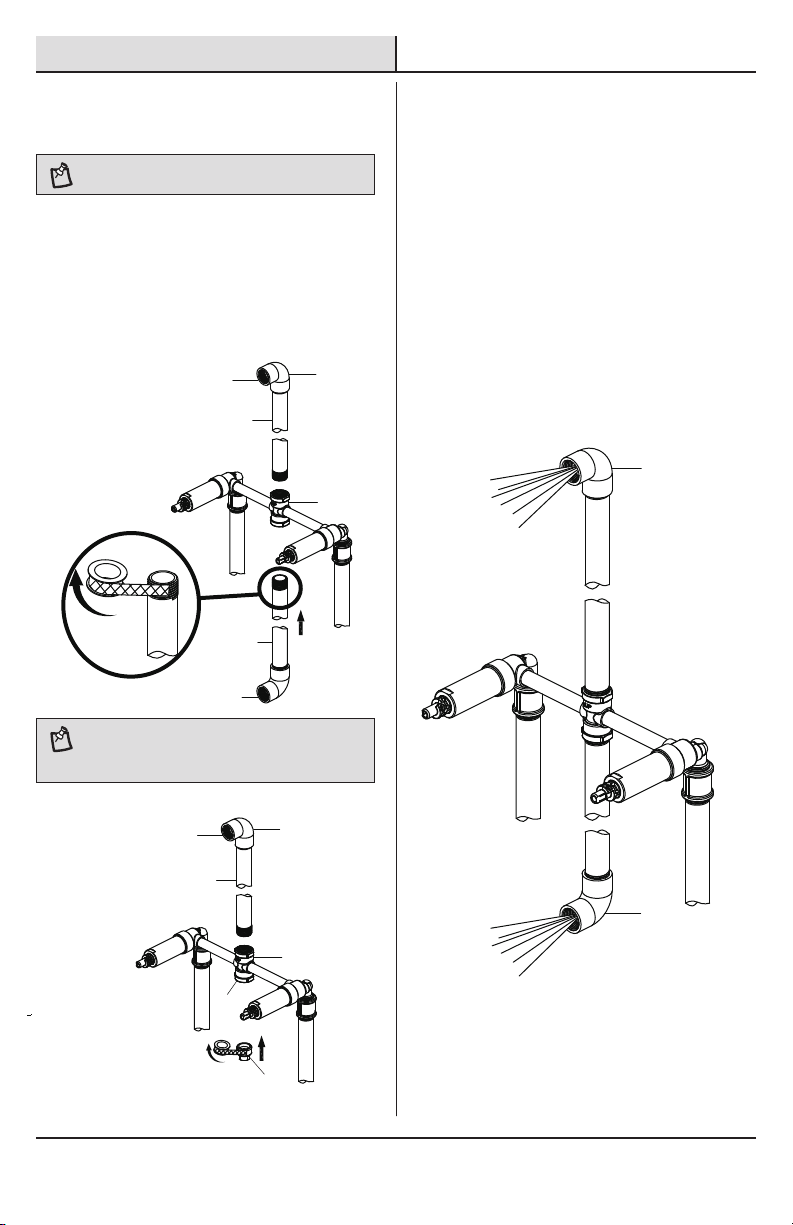

3 Installing the tub and shower
outlet connections
□Wrap thread sealant tape around the pipe
threads in a clockwise direction, as shown.
Connect the shower (1) and tub outlet pipes (2)
to the valve body (D). Connect the pipe elbows
(3) (not included) to the ends of both pipes,
and tighten with a wrench.
□
4Flushing the water outlets and
checking for leaks
□
□
For tub and shower combinations, turn on the
hot and cold water supply lines, allowing water
to ow from the tub spout outlet (1) until all
debris is cleared from the line. Check all
connections for leaks.
For shower only installations, turn on the hot
and cold water supply lines, allowing water
to ow from the shower outlet (2) until all
debris is cleared from the line. Pressure must
be approximately equal on both hot and cold
sides for the valve to function properly. Check
all connections for leaks.
NOTE: Do not use PEX or CPVC between the valve body (D)
and tub spout (I).
NOTE: For shower-only installation, wrap thread sealant
tape around the threads of the plug (I), and insert it into
the bottom outlet (4).
Tub
Shower 3
1
D
2
Shower
I
4
3
1
D
1
2

9 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)

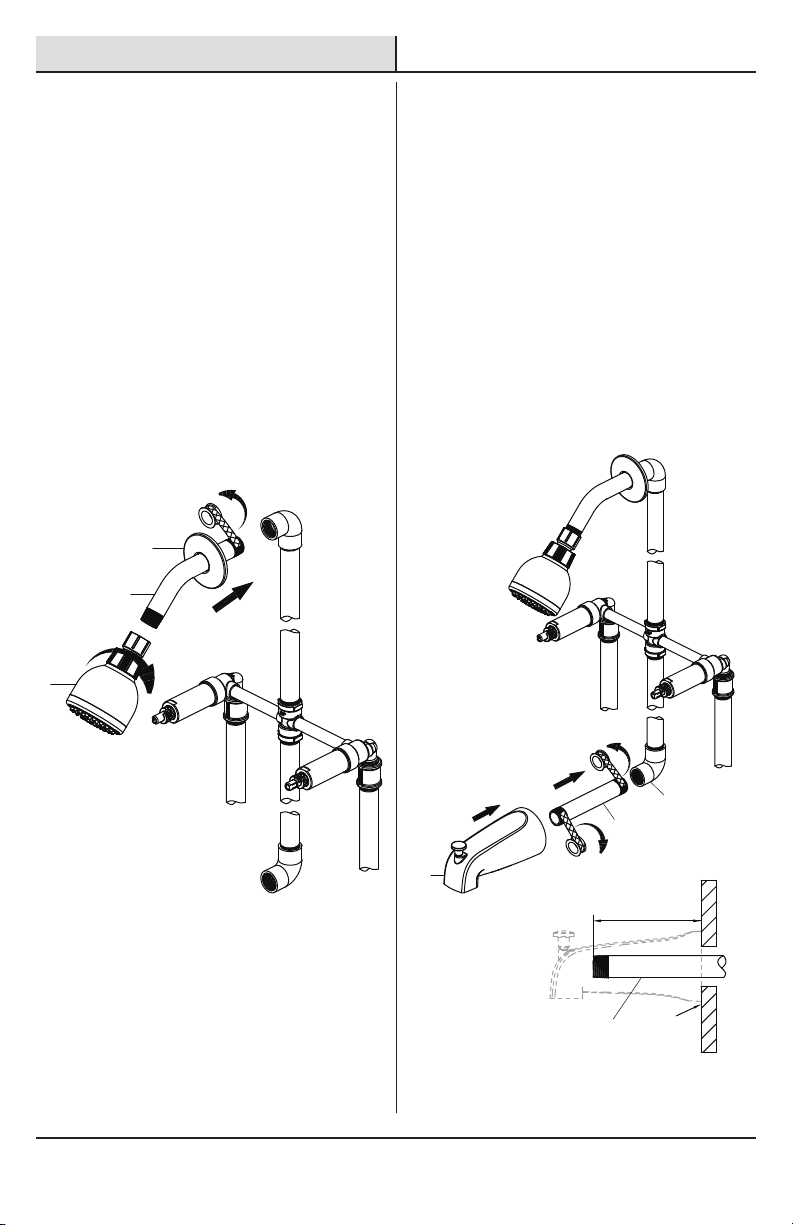

5Installing the shower flange,
shower arm, and shower head
□Insert the long end of the shower arm (B)
through the shower ange (A), then wrap thread
sealant tape around the long end of the shower
arm (B) in a clockwise direction, as shown.
□Install the long end of the shower arm (B) into
the pipe elbow inside the wall. The shower
ange (A) should t snug to the nished wall
surface.
□Thread the shower head (C) onto the shower
arm (B).
□Carefully tighten the shower arm (B) and shower
head (C) with a clean strap wrench. Do not over
tighten, as it could cause damage to the shower
arm (B).
6Installing the tub spout
□Wrap thread sealant tape around the pipe
threads of the tub spout outlet (1, not included)
in a clockwise direction, as shown.
Connect the tub spout outlet pipe (the tub
spout outlet pipe should project 3-7/8 in. to
4-1/16 in. from the nished wall) to the lower
pipe elbow (2, not included). Tighten the
elbows and tub spout outlet pipe connections
with the strap wrench.
□
Thread the tub spout (J) onto the tub spout outlet
pipe in a clockwise direction until the tub spout
(J) becomes ush with the nished wall. Use
a strap wrench to tighten the tub spout (J).
□
3-7/8 in. to 4-1/16 in.
Wall
1
A
B
C
2
1
J

10
Installation (continued)

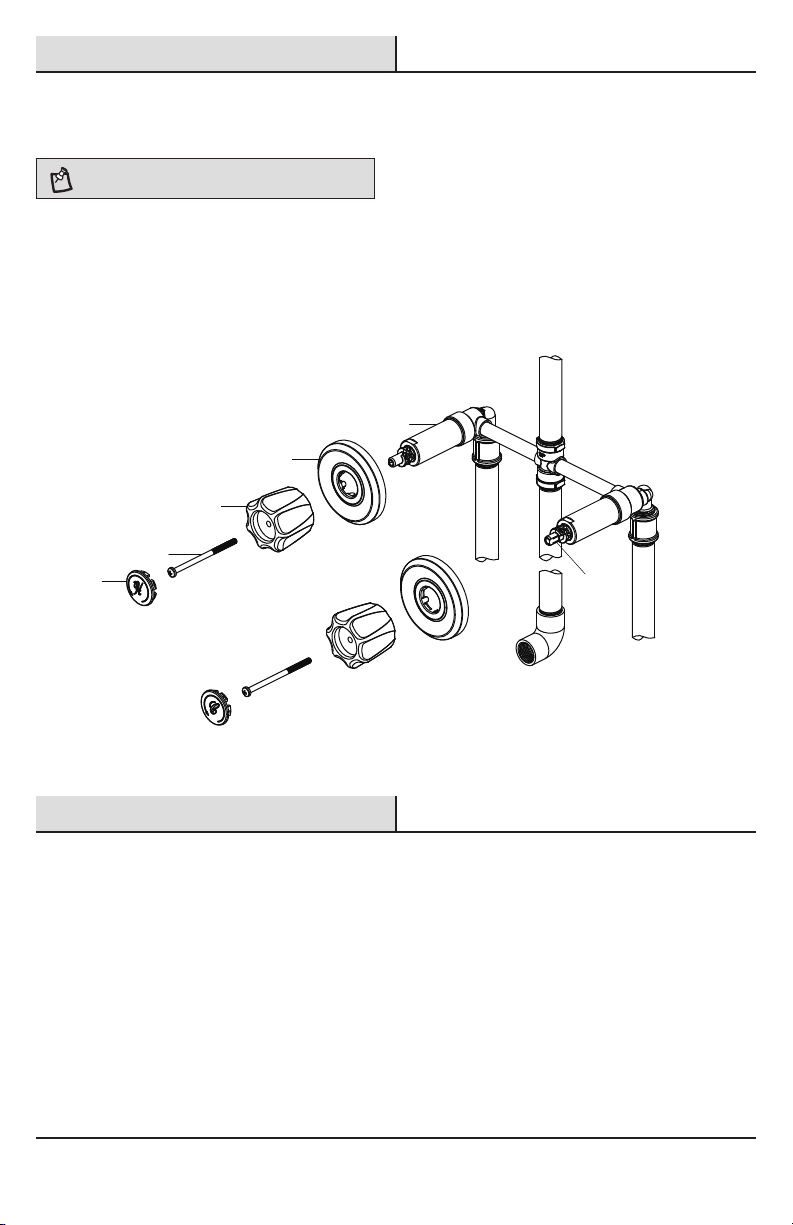

7 Installing the handle
□Position the anges (E) on the valves (D).
NOTE: Before proceeding, ensure the valves are closed.
□Attach the handles (F) to the stems (1), and secure them with the screws (G). Use a Phillips
screwdriver to tighten the screws (G).
□Attach the indexes (H).
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
E
D
F
1
G
H

11 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Troubleshooting

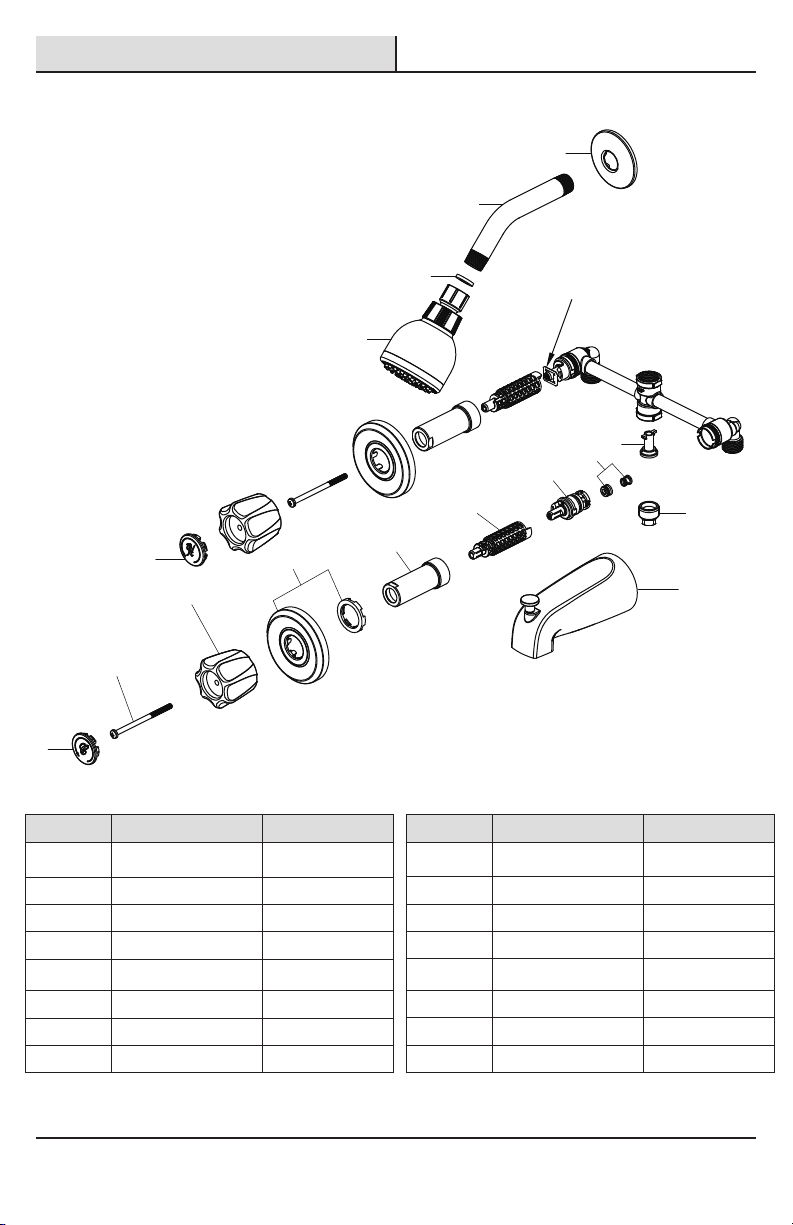

NOTE: Refer to the Service Parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
Problem Possible Cause Solution
There is no ow or a low
water ow.
□Turn both water supply valves
counterclockwise to the on
position.
There is leaking or dripping
from the spout when the
handle is closed.
The grommets are not sealing properly. □Replace the cartridge.
One or both water supplies are not turned
on.
Water comes out of the
tub spout and showerhead
at the same time.
If the pattern of the water ow switches to
the shower from the tub spout, and the leak
from the tub spout is less than 0.01 GPM,
this is a normal occurrence. Or consider the
causes below:
! The pipe used between the valve and the
tub spout is not 1/2 in. IPS, or the COPPER
pipe is incorrect.
! The distance between the valve and the
showerhead is less than 48 in..
! There is a restriction between the valve
and the tub spout.
! The valve is installed upside down.
□Change the pipe to IPS or
COPPER.
□The distance from the
showerhead and valve moved
to at least 48 in..
□Remove the tub spout and ush
out debris and/or replace the
undersized line or ttings.
□Remove the valve and reinstall it
using the correct orientation.
The handle is hard to turn. The bonnet nut is too tight. □Loosen the bonnet nut and
reinstall it. Do not overtighten.

12
Part Description Part Number
1RP38046*
2 Shower arm RP38019*
3 Washer RP64031
4 Shower head RP38301*
5 Index (H) RP10028
6 Index (C) RP10029
7 Screw RP50059
8 Handle RP13090
Shower ange
Part Description Part Number
9RP80387*
10 Bonnet nut RP70154
11 Connector RP70426
12 Cartridge RP22010
13 Seat & Spring RP22008
14 Diverter RP70160
15 Plug RP70153
16 Spout RP33052*
Flange
Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can be
found by removing
the hot water handle
5
3
10
8
9
11
12
13 14
15
4
7
6
2
1
16

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

GRACIAS
GUÍA DE USO Y MANTENIMIENTO
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Modelo núm.
833X-0001
833X-0101
GRIFO PARA BAÑERA Y DUCHA, DE DOS LLAVES
Apreciamos la conanza que has depositado en Glacier Bay al comprar este grifo para bañera y ducha. Nos
esforzamos por crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos en Internet
para ver nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar.
¡Gracias por elegir a Glacier Bay!
SKU núm.
937207
766585

15
Tabla de contenido
Información importante .........................15
Garantía...................................................15
Pre-instalación .......................................16
.............16
Herramientas y herrajes necesarios....16
Contenido del paquete.........................19
Instalación ..............................................20
Planicación de la instalación
Cuidado y limpieza ................................23
Piezas de repuesto ................................25
Solución de problemas...........................24
Garantía
GARANTÍA LIMITADA DE POR VIDA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Glacier Bay garantiza al comprador consumidor original que sus productos
no presentan defectos materiales o de fabricación. Reemplazaremos GRATIS cualquier producto o pieza defectuosos.
Simplemente, devuelva el producto o pieza a cualquiera de las tiendas minoristas de The Home Depot o llame al
1-855-HD-GLACIER (1-855-434-5224) para recibir el artículo de reemplazo. El comprobante de compra (recibo de venta
original) del comprador consumidor original debe estar disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores se les
extiende en la presente una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuentes,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicarse a su caso. Esta garantía le otorga derechos
tienda o llame al 1-855-HD-GLACIER para obtener más detalles.
Información importante
□ No instales este producto hasta que hayas leído y entendido las instrucciones de este manual. Si estás instalando
este producto para alguien, déjale este manual para que le sirva como referencia al dueño/usuario.
□ Los puertos de entrada están diseñados para 1/2 plg. Conexión de soldadura de tubería de COBRE o 1/2 plg.
Conexión de acoplamiento de rosca IPS. Para conexiones roscadas, envuelve los extremos roscados con cinta
selladora antes de conectar. Si vas a soldar las conexiones, algunas partes inamables deben quitarse antes
de la soldadura para evitar daños por calor. Si no estás seguro sobre cómo quitar estas partes, llámanos a
1-855-HD-Glacier.
□ Al soldar o cortar las líneas de suministro de agua, protege tus ojos con gafas de seguridad.
□ RUIDO Y GOLPE DE ARIETE EN SISTEMAS PEX: Debido a la exibilidad inherente del PEX, en comparación con
materiales de plomería metálicos, el ruido y golpe de ariete puede ocurrir de vez en cuando por sobrecargas
de presión. Es importante garantizar que la tubería no esté en contacto con paneles de pared, ductos de aire
propulsado u otros materiales de alta resonancia. La sujeción o anclaje son métodos para evitar estos ruidos.
NO USES tuberías PEX desde la válvula al caño de la bañera.

16 HOMEDEPOT.COM/GLACIERBAY
Para obtener asistencia, llama al 1-855-HD-GLACIER.
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Gafas de
seguridad
Cinta selladora
para roscas
Cortador de
tuberías
Llave de correa
Llave
ajustable
Cinta
métrica
Destornillador
Phillips
SILICONE
Sellador de
silicona
Antes de comenzar la instalación de este producto, asegúrate de que no falta ninguna pieza. Compara las piezas
con la lista de Contenido del paquete. Si falta alguna pieza o está dañada, no intentes instalar el producto.
Comunícate con el servicio al cliente para piezas de repuesto.
HERRAMIENTAS Y HERRAJES NECESARIOS
INSTALACIÓN AVANZADA: Consulta a un plomero o
profesional antes de instalar este producto.
Si estás cambiando tu válvula de plomería, consulta los cuatro métodos comunes que aparecen más abajo: COBRE,
IPS, PEX y CPVC. Quita la manija y el regulador de válvula preexistentes antes de reemplazar tu válvula. Cumple con
todos los códigos locales de construcción y plomería.
A. COBRE (Antes de soldar, quita el cartucho de la válvula)
Soplete Kit de alambre de
soldadura sin plomo
Serrucho
de punta
Cepillo de
alambre
Todas las instalaciones pueden variar en dependencia de cómo estaba instalado el grifo anterior. No se incluyen todos
los suministros para la instalación del grifo; sin embargo, están disponibles dondequiera que se vendan suministros de
plomería. Al elegir tus suministros de instalación, asegúrate de que son productos aprobados por UPC y/o CSA.
Linterna

Pre-instalación (continuación)
17
B. IPS
Gafas de
seguridad
Cinta selladora
para roscas
Cortador de
tuberías
Llave de correa
Llave
ajustable
Cinta
métrica
Destornillador
Phillips
SILICONE
Sellador de
silicona
Serrucho
de punta
Linterna
C. PEX+COBRE
Gafas de
seguridad
Cinta selladora
para roscas
Cortador de
tuberías
Llave de correa
Llave
ajustable
Cinta
métrica
Destornillador
Phillips
SILICONE
Sellador de
silicona
Serrucho
de punta
Linterna
Herramienta para
engarzar de
círculo completo
COBRE COBRE
Llave para
tubería

HOMEDEPOT.COM/GLACIERBAY
Para obtener asistencia, llama al 1-855-HD-GLACIER.
Pre-instalación (continuación)
18
D. CPVC+COBRE
Gafas de
seguridad
Cinta selladora
para roscas
Cortador de
tuberías
Llave de correa
Llave
ajustable
Cinta
métrica
Destornillador
Phillips
SILICONE
Sellador de
silicona
Serrucho
de punta Linterna
Limpiador
CPVC
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
Cemento
CPVC
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
COBRE COBRE

19
Pre-instalación (continuación)
CONTENIDO DEL PAQUETE
Pieza Descripción Cantidad
A1
B Brazo de la ducha 1
C Cabezal de la ducha 1
DCuerpo de la válvula 1
E Brida 2
F Llave 2
H Índice 2
Brida de la ducha
I Tapón 1
JCaño de la bañera 1
C
E
D
J
B
A
F
G
I
H
G Tornillo 2

20 HOMEDEPOT.COM/GLACIERBAY
Instalación
□Para la entrada de agua fría (lado derecho)
y la de agua caliente (lado izquierdo), haz o
deja un oricio de 3.5 cm (el tamaño
recomendado es 4.4 cm. La distancia entre
los centros de las entradas de agua fría y
caliente es 20.3 cm.
2 Cómo instalar las conexiones
de suministro
NOTA: Asegúrate de colocar el cuerpo de la válvula (D)
correctamente en la pared, con la marca "UP" hacia arriba.
Las líneas de suministro de agua caliente van en la entrada
“H”; las de agua fría, en la entrada “C”.
3.5 cm a 5.1 cm3.5 cm a 5.1 cm
20.3 cm
Fría
Caliente
NOTA: No desensambles los cartuchos durante la
instalación normal. Al reinstalar los cartuchos, asegúrate de
insertarlos con el tope límite (a y b) apuntando hacia adentro,
como se muestra en el diagrama. Esto es necesario para que
la válvula funcione correctamente.
Para obtener asistencia, llama al 1-855-HD-GLACIER.
1 Cómo prepararse para
la instalación
□Cierra el suministro de agua a la bañera y a
la ducha.
□Verica que el tamaño y la posición de los
oricios en la pared sean correctos:
□Los oricios de salida del caño de bañera
y ducha deben ser de 3.2 cm de diámetro.
PRECAUCIÓN: Cierra siempre el suministro de agua
antes de quitar un grifo existente o reemplazar cualquier
pieza de un grifo. Abre la llave del grifo para liberar la
presión de agua y asegúrate de que el suministro de agua
esté completamente cerrado.
a
b
□
Coloca cinta selladora para roscas alrededor de
las roscas del cuerpo de la válvula (D) en el
sentido de las manecillas del reloj, como se
muestra.
□
Enrosca la línea de agua (1) en el cuerpo de la
válvula (D) y apriétala con una llave.
20.3 cm mín.
76.2 cm
Ducha
solamente
1.22 m
Bañera y ducha
76.2 cm
Bañera y Ducha
1.22 m
Ducha
solamente
1
D
