Glacier bay ARAGON HD834X-0001 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
ARAGON 3-HANDLE 1-SPRAY TUB AND
SHOWER FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this tub and
shower faucet. We strive to continually create quality products designed to enhance your home. Visit us online
to see our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
THD 3/2023 REV.04
Model#
HD834X-0001
Internet#
303783504
SKU#
1002910935

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................3
Planning Installation ..............................3
Package Contents ..................................6
Installation................................................7
Care and Cleaning ....................................10
Troubleshooting........................................11
Service Parts ........................................... 12
Important Information
□ Do not install this product until you read and understand the instructions in this manual. If you are installing this
product for someone else, leave this manual for the owner’s/ user’s reference.
□ Inlet ports are designed to allow for 1/2 in. COPPER tubing solder connection or 1/2 in. IPS threading coupling
connection. For threaded connections, wrap sealant tape around threaded ends before connecting. If soldering
connections, certain inammable parts should be removed prior to the soldering in order to avoid heat damage.
If you are unsure how to properly remove these parts, please call us at 1-855-HD-Glacier.
□ Protect your eyes with safety glasses when cutting or soldering water supply lines.
□ NOISE AND WATER HAMMER IN PEX SYSTEMS: Due to the inherent exibility of PEX compared with metallic
plumbing materials, water hammer and noise can sometimes occur from the pressure surges. It is important to
ensure the tubing is not in contact with wallboard, forced air ducts or other high-resonance materials. Clamping
or strapping can help prevent these noises. DO NOT USE PEX tubing from the valve to the tub spout.
Tools and Hardware Required ...............3
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape
Phillips
screwdriver
SILICONE
Silicone
sealant
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.

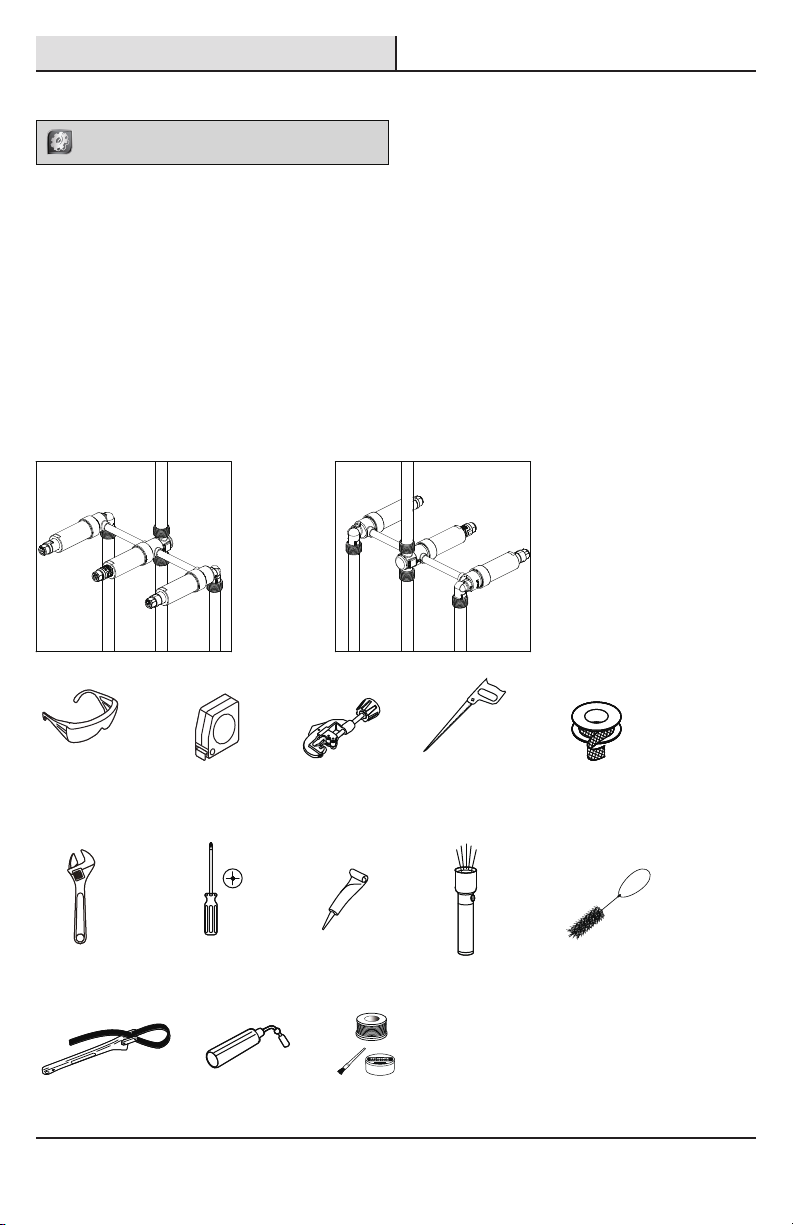

TOOLS AND HARDWARE REQUIRED
ADVANCED INSTALLATION: Consult a plumber or
professional before installing this product.
If you are replacing your plumbing valve, please review the four common plumbing methods illustrated below:
COPPER, IPS, PEX and CPVC. Remove the existing handle and valve trim before replacing your valve. Please follow
all local building and plumbing codes.
A. COPPER (Before soldering, remove the cartridge from the valve)
Torch Lead-free solder Kit
Key
hole saw
Wire
brush
All installations can vary depending on how your previous faucet was installed. Not all supplies for faucet
installation are included; however, they are available wherever plumbing supplies are sold. When choosing your
installation supplies, make sure they are UPC and/or CSA approved products.
Flashlight

Pre-Installation (continued)
4
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape
Phillips
screwdriver
SILICONE
Silicone
sealant
B. IPS
Key
hole saw
Flashlight
C. PEX+COPPER
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape
Phillips
screwdriver
SILICONE
Silicone
sealant
Key
hole saw
Flashlight
Full circle
crimping tool
Pipe
wrench
COPPER COPPER

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)
5

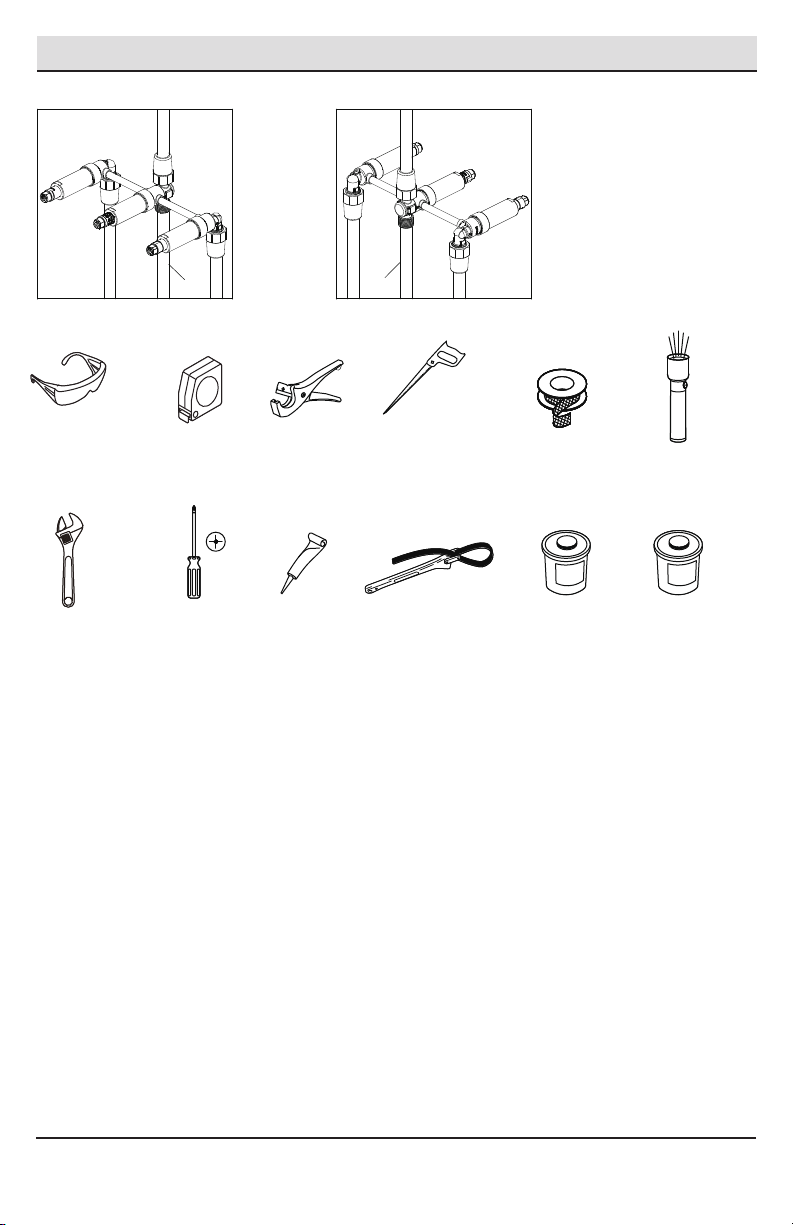

D. CPVC+COPPER
Safety
goggles
Thread
sealant tape
Tube
cutter
Strap wrench
Adjustable
wrench
Measuring
tape
Phillips
screwdriver
SILICONE
Silicone
sealant
Key
hole saw Flashlight
CPVC
cleaner
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
CPVC
cement
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
COPPER COPPER

6
Pre-Installation (continued)

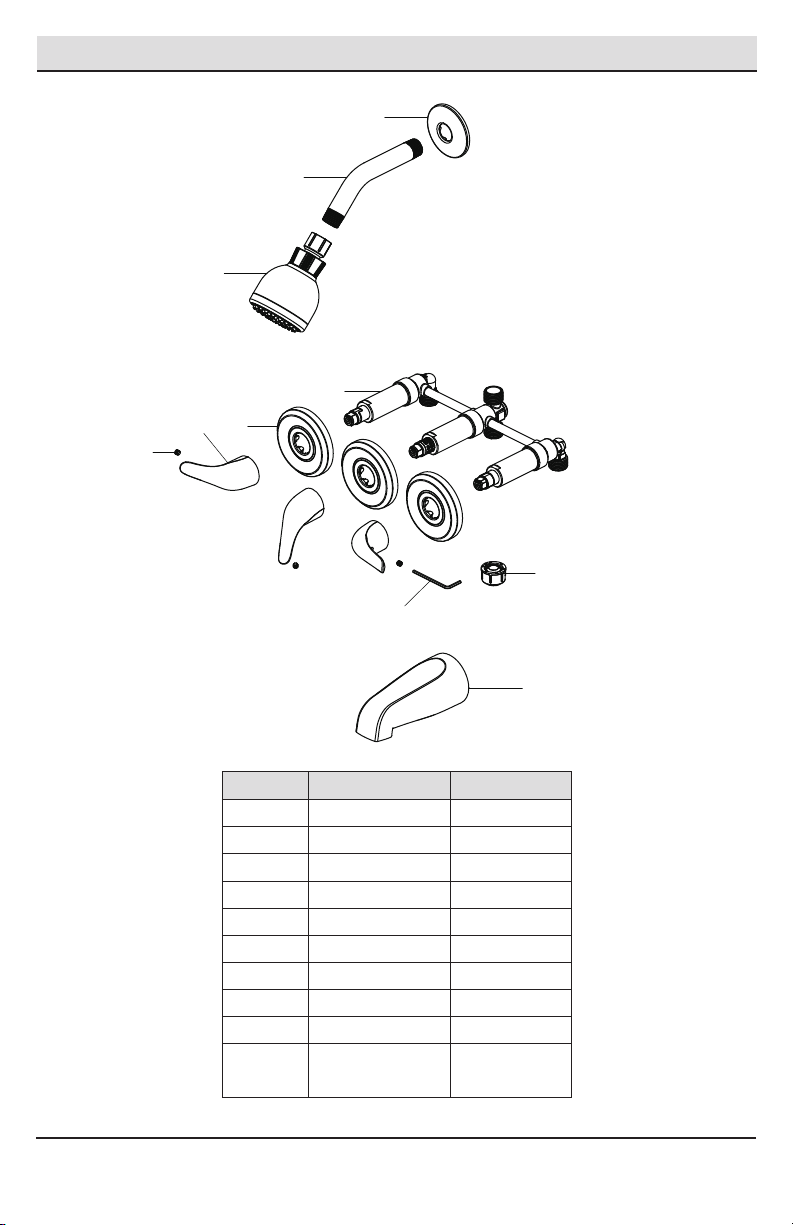

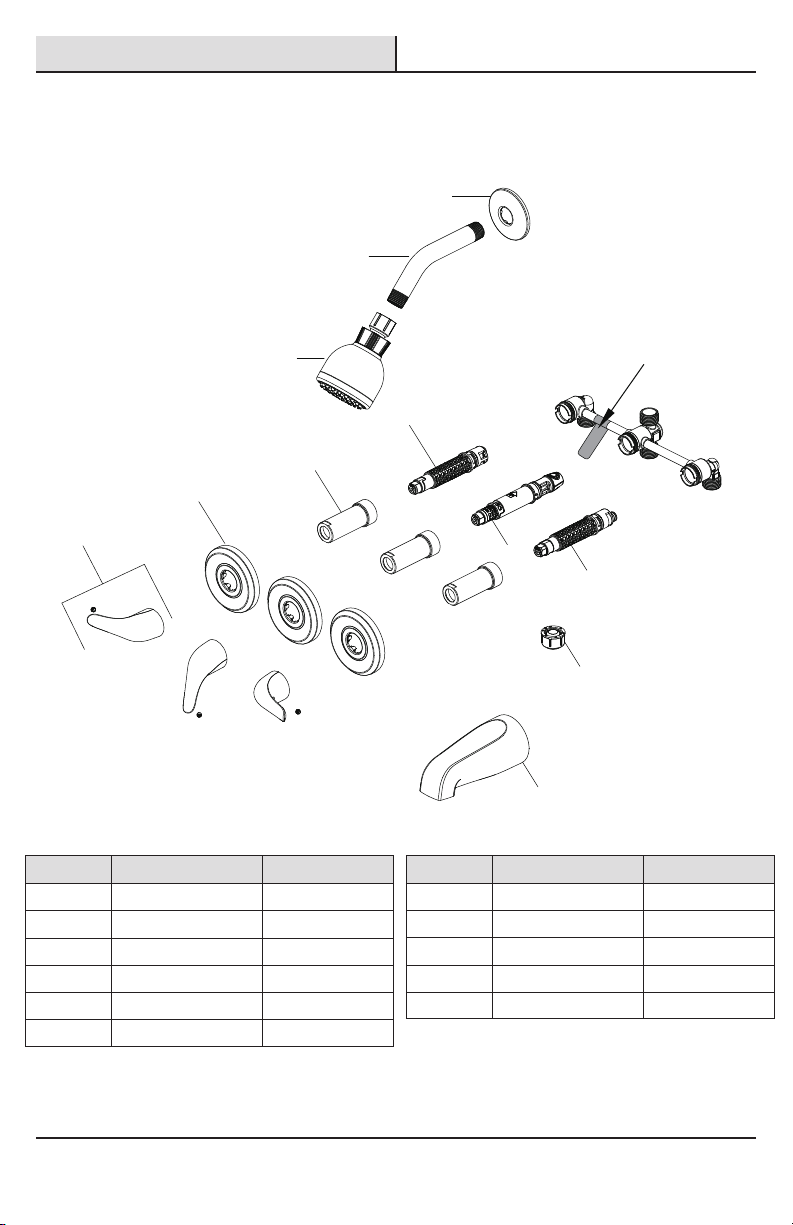

PACKAGE CONTENTS
Part Description Quantity
A 1
B Shower arm 1
C Shower head 1
D Valve body 1
E Flange 3
Shower ange
H Plug 1
I Tub spout 1
J 2.5mm hex wrench 1
F Handle 3
G Set screw 3
A
B
C
E
F
G
H
I
J
D

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
7
Installation
1 Preparing for installation
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply to the tub and
shower.
□Verify that the hole sizes and positions of the
holes in the wall are correct
□The shower and tub spout outlet holes
should be 1-1/4 in. diameter.
□For the cold water inlet (the right side)
and the hot water inlet (the left side),
cut or leave a 1-3/8 in. diameter hole
(recommended size is 1-3/4 in.). The
center to center distance between the
cold and hot water inlets is 8 in.

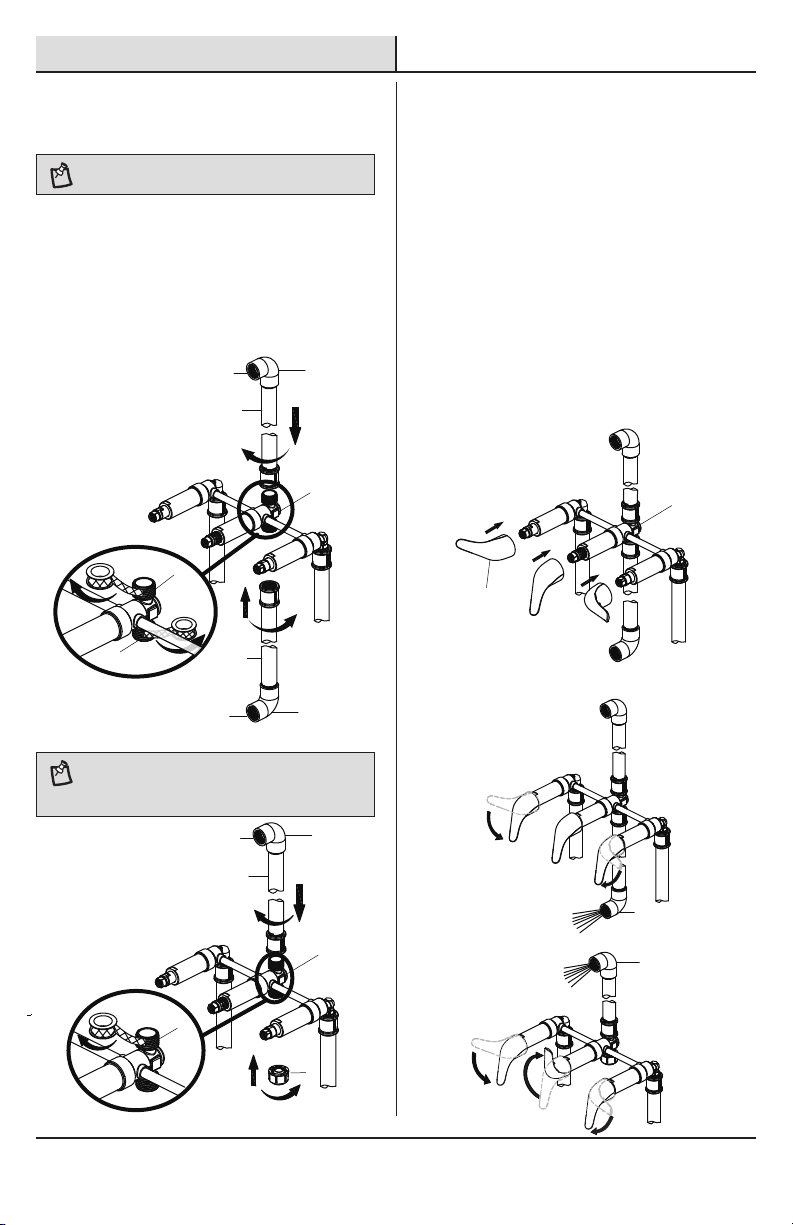

2 Installing the supply
connections
□
Wrap thread sealant tape around the valve body
(D) threads in a direction the same to the thread
tighten direction, as shown.
□
Thread the waterline (1) to the threaded joint on
valve body (D), and tighten with a wrench.
NOTE: Hot water supply lines go into the “H” inlet;
cold water supply lines go into the “C” inlet.
NOTE: Do not disassemble the cartridges and diverter
during normal installation. When reinstalling the cartridges,
be sure to insert the inverter with the text (a&b) on it
upward as shown in the diagram. When reinstalling the
diverter, be sure to insert the face (c) with the markings
"UP" facing upward as shown in the diagram.This is
necessary for proper operation of the valve.
8 in. Min.
30 in.
Shower Only
48 in.
Tub & Shower
30 in.
Tub & Shower
48 in.
Shower Only
1-3/8 in. ~ 2 in.
8 in.
1-3/8 in. ~ 2 in.
1-3/8 in. ~ 2 in.
c
a
b
D
Hot
Cold 1
1

8
Installation (continued)
3 Installing the tub and shower
outlet connections
□Wrap thread sealant tape around the valve body
threads (a&b) in a direction the same to the
thread tighten direction, as shown.
Connect the shower outlet pipes (1) and tub
outlet pipes (2) to the valve body (D). Connect
the pipe elbows (3) (not included) to the ends
of both pipes, and tighten with a wrench.
□
4Flushing the water outlets and
checking for leaks
□
□
For tub and shower combinations: Turn on the
hot and cold water supply lines, allowing water
to ow from the tub spout outlet (1) until all
debris is cleared from the line. Check all
connections for leaks.
For shower only installations: Turn on the hot
and cold water supply lines, allowing water
to ow from the shower outlet (2) until all
debris is cleared from the line. Pressure must
be approximately equal on both hot and cold
sides for the valve to function properly. Check
all connections for leaks.
NOTE: Do not use PEX or CPVC between the valve body (D)
and tub spout (I).
NOTE: For shower-only installation, install the plug (H) into
the bottom of the valve body (D). Just wrap thread sealant
tape around the valve body threads (a).
□Attach the handle (F) onto the valve body (D)
and turn the handle to the full on mixed position.
For tub and shower mode :
For shower only mode:
Shower 3
1
Tub
2
Shower
D
3
a
b
3
1
H
D
a
F
D
1
2

9
Installation (continued)
5 Installing the shower flange,
shower arm, and shower head
□Insert the long end of the shower arm (B)
through the shower ange (A), then wrap thread
sealant tape around the long end of the shower
arm (B) in a direction the same to the threads
tighten direction, as shown.
□Install the long end of the shower arm (B) into
the pipe elbow inside the wall. The shower
ange (A) should t snug to the nished wall
surface. Carefully tighten the shower arm (B)
with a clean strap wrench. Do not overtighten,
as it could cause damage to the shower arm (B).
□Thread the shower head (C) onto the shower
arm (B). Hand-tighten only.
6 Installing the tub spout
□Wrap thread sealant tape around the pipe
threads of the tub spout outlet (1, not included)
respectively in a direction the same to the pipe
elbow (2) threads tighten direction and a
direction the same to the tub spout (I) threads
tighten direction, as shown.
Connect the tub spout outlet pipe (the tub
spout outlet pipe should project 3-27/32 in.
from the nished wall) to the lower pipe elbow
(2, not included). Tighten the elbows and tub
spout outlet pipe connections with the strap
wrench.
□
Thread the tub spout (I) onto the tub spout outlet
pipe in a clockwise direction until the tub spout
(I) becomes ush with the nished wall. Use
a strap wrench to tighten the tub spout (I).
□
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
A
B
C
NOTE: Do not use the thread sealant tape and do not use
wrench to tighten shower head. If the screen lter (1) in
the spray head (C) is blocked, turn off the water supply at
angle valve and unscrew the spray head (C) from spray
arm (B). Clean the screen lter (1) in the spray head (C)
under running water with brush (2, not included).
C
1
2
Wall
3-27/32 in.
1
2
1
I

10
Installation (continued)
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
7 Installing the handle
□Position the anges (E) on the valve body (D).
NOTE: Before proceeding, ensure the valves are closed.
□Place the handles (F) onto the valve body (D) and tighten the set screw (G) with the Hex wrench
(Hex: 2.5 mm, J) provided.
E
F
F
F
G
G
G
J
E
E
D

11 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Troubleshooting
NOTE: Refer to the Service Parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
Problem Possible Cause Solution
There is leaking or dripping
from the spout when the
handle is closed.
The grommets are not sealing properly. □
□
Replace the cartridge.
Water comes out of the
tub spout and showerhead
at the same time.
If the pattern of the water ow switches to
the shower from the tub spout, and the leak
from the tub spout is less than 0.01 GPM,
this is a normal occurrence. Or consider the
causes below:
! The pipe used between the valve and the
tub spout is not 1/2 in. IPS, or the COPPER
pipe is incorrect.
! The distance between the valve and the
showerhead is less than 48 in..
! There is a restriction between the valve
and the tub spout.
! The valve is installed upside down.
□Change the pipe to IPS or
COPPER.
□The distance from the
showerhead and valve moved
to at least 48 in..
□Remove the tub spout and ush
out debris and/or replace the
undersized line or ttings.
□Remove the valve and reinstall it
using the correct orientation.
The handle is hard to turn. The bonnet nut is too tight. □Loosen the bonnet nut and
reinstall it. Do not overtighten.
There is no ow or a low
water ow.
□Turn both water supply valves
counterclockwise to the on
position.
□Turn off the water supply at
angle valve and unscrew the
spray head from spray hose.
Clean the screen lter in the
spray head under running water
with brush. Refer to the step 5.
□One or both water supplies are not
turned on.
□The screen lter in the spray head
is blocked.
The bonnet nut is not tightened
□
□Use wrench to retighten the
bonnet nut sufciently.
Products are in compliance with EPA's
WaterSense Specication for Showerheads,
so the maximum ow rate value should be
below 1.8 gpm. Or consider the causes
below:

12
Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Part Description Part Number
1 RP38046*
2 Shower arm RP38408*
3 Shower head RP38301*
6 RP80387*
8
Handle assembly
RP70848
9 RP20136
4 Cartridge H RP20135
5 Bonnet nut RP70154*
Shower ange
Part Description Part Number
7
Flange
RP13871*
11
Plug
RP33090*
10
Diverter
RP70770
Spout
Faucet ID tags can
be found on the hot
side of the valve body
1
2
3
4
5
6
78
9
10
11
Cartridge C

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

GRACIAS
GUÍA DE USO Y MANTENIMIENTO
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
ARAGON-GRIFO PARA TINA Y DUCHA CON UNA
SOLA FUNCIÓN Y 3 LLAVES
Apreciamos la conanza que has depositado en Glacier Bay al comprar este grifo para bañera y ducha. Nos
esforzamos por crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos en Internet
para ver nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar.
¡Gracias por elegir a Glacier Bay!
Modelo núm.
HD834X-0001
Internet núm.
303783504
SKU núm.
1002910935

15
Tabla de contenido
Información importante .........................15
Garantía...................................................15
Pre-instalación .......................................16
.............16
Herramientas y herrajes necesarios....16
Contenido del paquete.........................19
Instalación ..............................................20
Planicación de la instalación
Cuidado y limpieza ................................23
Piezas de repuesto ................................25
Solución de problemas...........................24
Información importante
□ No instales este producto hasta que hayas leído y entendido las instrucciones de este manual. Si estás instalando
este producto para alguien, déjale este manual para que le sirva como referencia al dueño/usuario.
□ Los puertos de entrada están diseñados para 1/2 plg. Conexión de soldadura de tubería de COBRE o 1/2 plg.
Conexión de acoplamiento de rosca IPS. Para conexiones roscadas, envuelve los extremos roscados con cinta
selladora antes de conectar. Si vas a soldar las conexiones, algunas partes inamables deben quitarse antes
de la soldadura para evitar daños por calor. Si no estás seguro sobre cómo quitar estas partes, llámanos a
1-855-HD-Glacier.
□ Al soldar o cortar las líneas de suministro de agua, protege tus ojos con gafas de seguridad.
□ RUIDO Y GOLPE DE ARIETE EN SISTEMAS PEX: Debido a la exibilidad inherente del PEX, en comparación con
materiales de plomería metálicos, el ruido y golpe de ariete puede ocurrir de vez en cuando por sobrecargas
de presión. Es importante garantizar que la tubería no esté en contacto con paneles de pared, ductos de aire
propulsado u otros materiales de alta resonancia. La sujeción o anclaje son métodos para evitar estos ruidos.
NO USES tuberías PEX desde la válvula al caño de la bañera.
Garantía
GARANTÍA DE POR VIDA LIMITADA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor
original de estar libres de defectos en materiales o mano de obra. Reemplazaremos LIBRE DE CARGOS cualquier
producto o pieza que se demuestre está defectuosa. Símplemente, devuelva el producto a cualquiera de las
ubicaciones de venta al detalle de The Home Depot o llame al 1-855-HD-GLACIER (1-855-434-5224) para recibir el
artículo de reemplazo. La prueba de compra (recibo de venta original) del comprador consumidor original debe estar
disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores por la
presente, se les ha ampliado una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuenciales,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicar a usted. Esta garantía le otorga derechos
legales especícos y también puede tener otros derechos que varían de un estado a otro. Por favor, vaya a una
tienda o llame al 1-855-HD-GLACIER para más detalles.
Póngase en contacto con el Equipo de Servicio al Cliente llamando al 1-855-434-5224 o visite www.HomeDepot.com.

16 HOMEDEPOT.COM/GLACIERBAY
Para obtener asistencia, llama al 1-855-HD-GLACIER.
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Gafas de
seguridad
Cinta selladora
para roscas
Cortador de
tuberías
Llave de correa
Llave
ajustable
Cinta
métrica
Destornillador
Phillips
SILICONE
Sellador de
silicona
Antes de comenzar la instalación de este producto, asegúrate de que no falta ninguna pieza. Compara las piezas
con la lista de Contenido del paquete. Si falta alguna pieza o está dañada, no intentes instalar el producto.
Comunícate con el servicio al cliente para piezas de repuesto.
HERRAMIENTAS Y HERRAJES NECESARIOS
INSTALACIÓN AVANZADA: Consulta a un plomero o
profesional antes de instalar este producto.
Si estás cambiando tu válvula de plomería, consulta los cuatro métodos comunes que aparecen más abajo: COBRE,
IPS, PEX y CPVC. Quita la manija y el regulador de válvula preexistentes antes de reemplazar tu válvula. Cumple con
todos los códigos locales de construcción y plomería.
A. COBRE (Antes de soldar, quita el cartucho de la válvula)
Soplete Kit de alambre de
soldadura sin plomo
Serrucho
de punta
Cepillo de
alambre
Todas las instalaciones pueden variar en dependencia de cómo estaba instalado el grifo anterior. No se incluyen todos
los suministros para la instalación del grifo; sin embargo, están disponibles dondequiera que se vendan suministros de
plomería. Al elegir tus suministros de instalación, asegúrate de que son productos aprobados por UPC y/o CSA.
Linterna

Pre-instalación (continuación)
17
B. IPS
Gafas de
seguridad
Cinta selladora
para roscas
Cortador de
tuberías
Llave de correa
Llave
ajustable
Cinta
métrica
Destornillador
Phillips
SILICONE
Sellador de
silicona
Serrucho
de punta
Linterna
C. PEX+COBRE
Gafas de
seguridad
Cinta selladora
para roscas
Cortador de
tuberías
Llave de correa
Llave
ajustable
Cinta
métrica
Destornillador
Phillips
SILICONE
Sellador de
silicona
Serrucho
de punta
Linterna
Herramienta para
engarzar de
círculo completo
Llave para
tubería
COPPER COPPER

HOMEDEPOT.COM/GLACIERBAY
Para obtener asistencia, llama al 1-855-HD-GLACIER.
Pre-instalación (continuación)
18
D. CPVC+COBRE
Gafas de
seguridad
Cinta selladora
para roscas
Cortador de
tuberías
Llave de correa
Llave
ajustable
Cinta
métrica
Destornillador
Phillips
SILICONE
Sellador de
silicona
Serrucho
de punta Linterna
Limpiador
CPVC
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
Cemento
CPVC
P
i
p
e
J
o
i
n
t
C
o
m
p
o
u
n
d
COPPER COPPER

19
Pre-instalación (continuación)
CONTENIDO DEL PAQUETE
Pieza Descripción Cantidad
A 1
B Brazo de la ducha 1
C Cabezal de la ducha 1
DCuerpo de la válvula 1
E Brida 3
Brida de la ducha
H Tapón 1
I Caño de la bañera 1
JLlave hexagonal
de 2.5 mm 1
F Llave 3
G Tornillo de jación 3
A
B
C
E
F
G
H
I
J
D

HOMEDEPOT.COM/GLACIERBAY
Para obtener asistencia, llama al 1-855-HD-GLACIER.
20
Instalación
□Para la entrada de agua fría (lado derecho)
y la de agua caliente (lado izquierdo), haz o
deja un oricio de 3.5 cm (el tamaño
recomendado es 4.4 cm. La distancia entre
los centros de las entradas de agua fría y
caliente es 20.3 cm.
2 Cómo instalar las conexiones
de suministro
NOTA: Las líneas de suministro de agua caliente van en
la entrada “H”; las de agua fría, en la entrada “C”.
Fría
Caliente
NOTA: No desarmar los cartuchos ni el desviador durante
la instalación normal. Al reinstalar los cartuchos, asegúrate
de insertar el inversor con el texto (a&b) hacia arriba como
se muestra en el diagrama. Al volver a instalar el desviador,
asegura insertar la cara (c) con las marcas "UP" mirando
hacia arriba, como se muestra en el diagrama. Esto es
necesario para que la válvula funcione correctamente.
1 Cómo prepararse para
la instalación
□Cierra el suministro de agua a la bañera y a
la ducha.
□Verica que el tamaño y la posición de los
oricios en la pared sean correctos:
□Los oricios de salida del caño de bañera
y ducha deben ser de 3.2 cm de diámetro.
PRECAUCIÓN: Cierra siempre el suministro de agua
antes de retirar un grifo existente o reemplazar alguna
parte del mismo. Abre la llave del grifo para liberar la
presión de agua y asegúrate de que el suministro de agua
esté completamente cerrado.
□
Coloca cinta selladora de roscas alrededor de la
rosca en el cuerpo de la válvula (D) en la misma
dirección para apretar de la rosca, como se muestra.
□
Enrosca la línea de agua (1) en el cuerpo de la
válvula (D) y apriétala con una llave.
3.5 cm a 5.1 cm3.5 cm a 5.1 cm
20.3 cm
3.5 cm a 5.1 cm
20.3 cm mín.
76.2 cm
Ducha solamente
1.22 m
Bañera y ducha
76.2 cm
Bañera y ducha
1.22 m
Ducha solamente
c
a
b
D
1
1
