Glacier bay 67112W-8004 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Model#
67112W-8004
67112W-8016
67112W-8027H2
TWO-HANDLE LAVATORY FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
8/2015 REV.01YOW
SKU#
703413
703433
703419

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents..................................3
Installation................................................4
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts ........................................... 9
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service
for replacement parts.

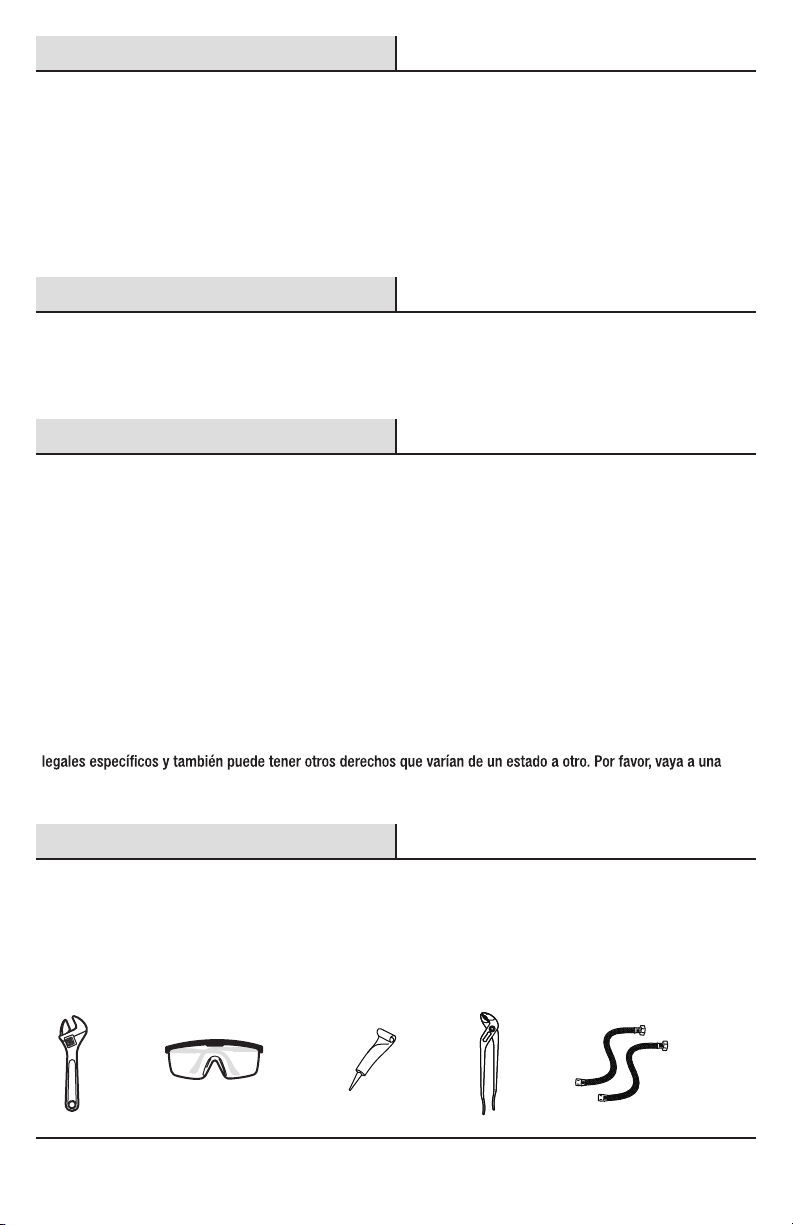

TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Channel
lock pliers
(2) Supply
lines
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2
Operation...................................................7

3
Pre-Installation (continued)

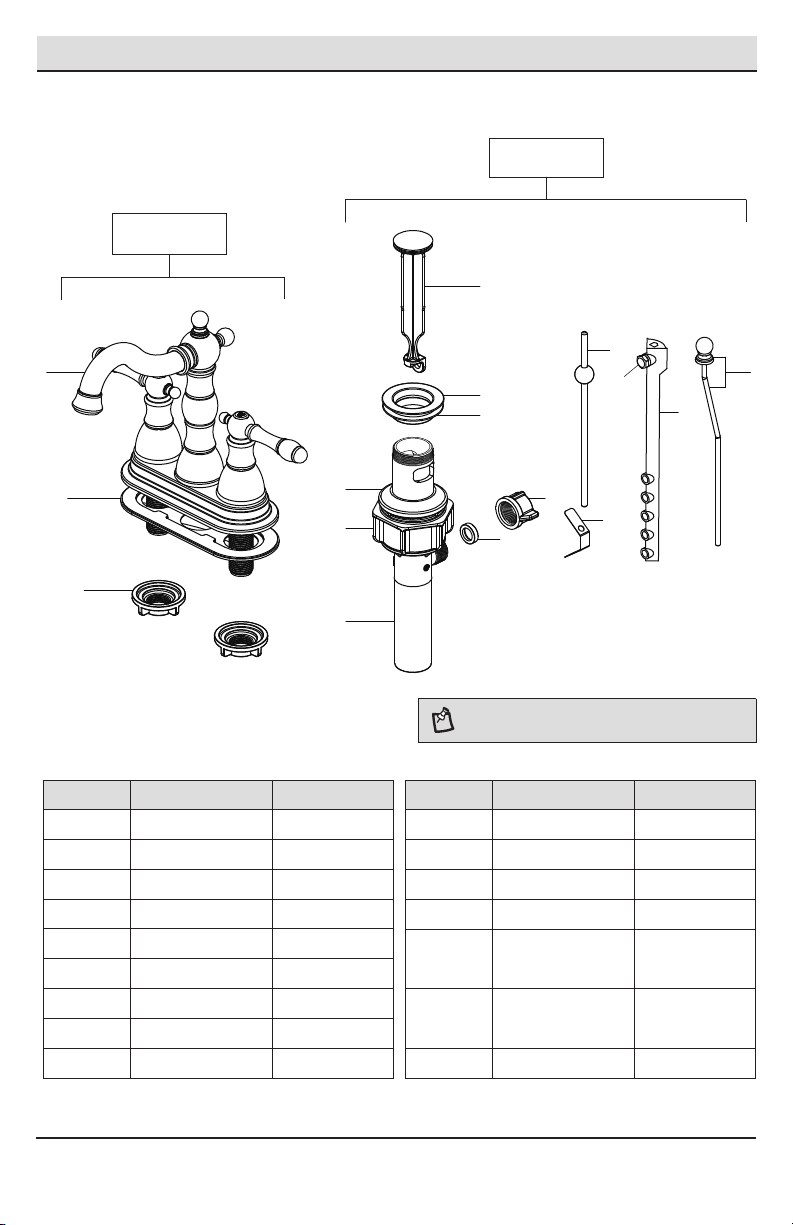

PACKAGE CONTENTS
Part Description Quantity
A 1Faucet
B 1Gasket
C 2Mounting nut
D 1Pop up stopper
E 1Drain ange
F 1Rubber washer
H 1Lock nut
I 1Drain body
K 1Ball nut
L 1Ball rod
M 1Spring clip
O 1Lift rod strap
P 1Lift rod
N 1Thumb screw
Part Description Quantity
Faucet Assembly
Drain Assembly
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
NOTE: *Items D - K come pre-assembled.
G 1Rubber washer
J 1Seal
D*
E*
F*
G*
H*
I*
M
N
L
O
J*
K*
P
A
B
C

Installation
4
1 Installing the faucet assembly
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
□Ensure the gasket (B) is on the bottom of the
new faucet (A).
□Place the faucet (A) through the mounting
holes in the sink.

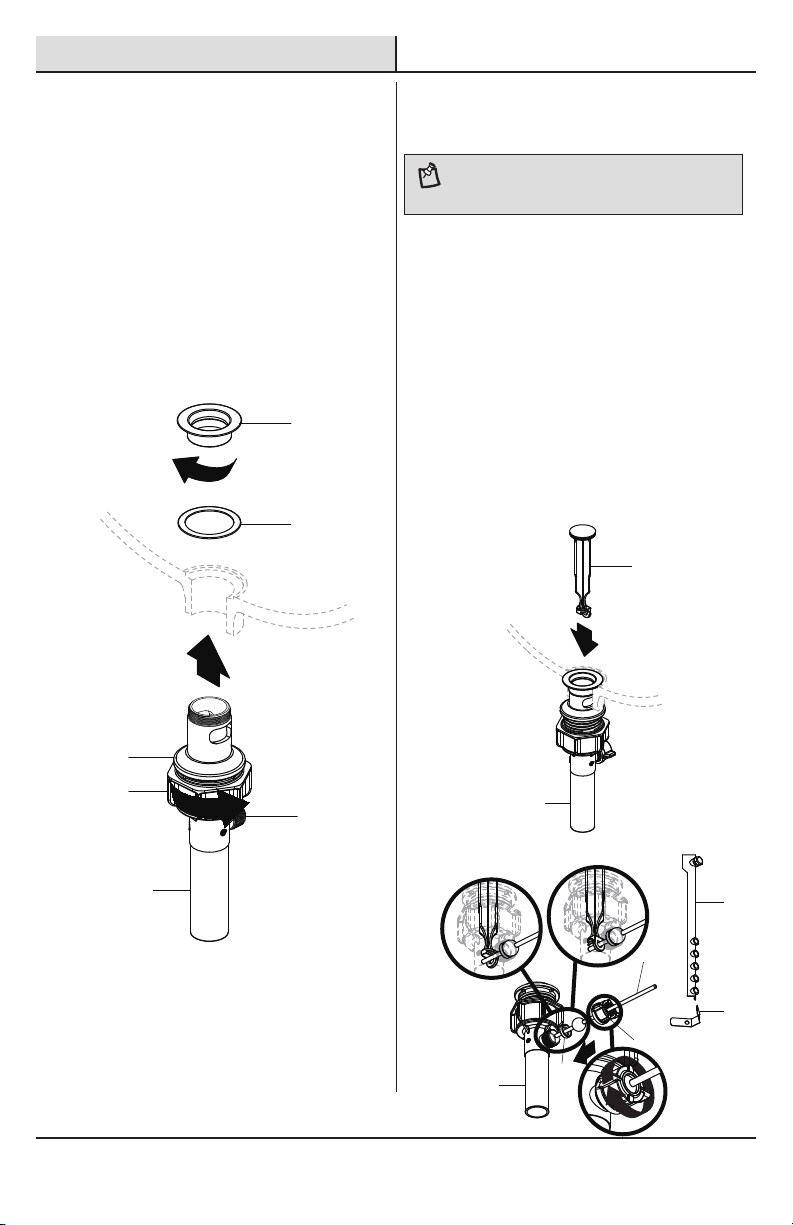

2 Preparing the pop-up assembly
□Remove the pop up stopper (D), drain ange (E)
and rubber washer (F) from the drain body (I).
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided. Hand-tighten only.
NOTE: If the sink is uneven, use silicone under the
gasket (B).
□Clean the mounting surface.
□Screw the lock nut (H) in a counter-clockwise
direction, and push the rubber washer (G)
down.
D
E
F
G
H
I
2
3
1
A
B
C

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
5
Installation (continued)
3 Installing the drain body
□Place the drain ange (E) into the drain hole
of the sink, make sure the rubber washer (F)
under the drain ange (E).
□From underneath the sink, screw the drain
body (I) onto the drain ange (E). Ensure that
the opening (1) for the ball rod on the drain
body (I) faces towards the rear of the sink.
4 Installing the stopper and ball
rod
□Insert the stopper (D) into the drain hole in the sink.
□Remove the lift rod strap (O) and spring clip (M)
from the ball rod (L).
□For easier removal and cleaning, rotate the
stopper (D) 90 degrees so that the ball rod (L)
does not go through the hole in the stopper (D).
See insert 2.
□ Screw the lock nut (H) in a clockwise direction,
and push the rubber washer (G) up to tighten
the drain body (I). Do not overtighten.
□Secure the ball nut (K) against the hole in the drain
body (I) and tighten the ball nut (K) onto the
threaded end. Do not overtighten.
□Remove the ball nut (K). Retain the seal (J) on the
ball rod (L). Insert the ball rod (L) into the drain body (I)
and through the hole of the stopper (D). See insert 1.
NOTE: In shallow cabinet installations, the ball rod (L) may
need to be shortened. Use a hack saw to cut the end of the
rod, away from the ball, to the desired length.
1
2
E
F
G
H
1
I
3
1
2
2
D
I
Insert 2 Insert 1
K
J
L
M
O
I
3

6
Installation (continued)

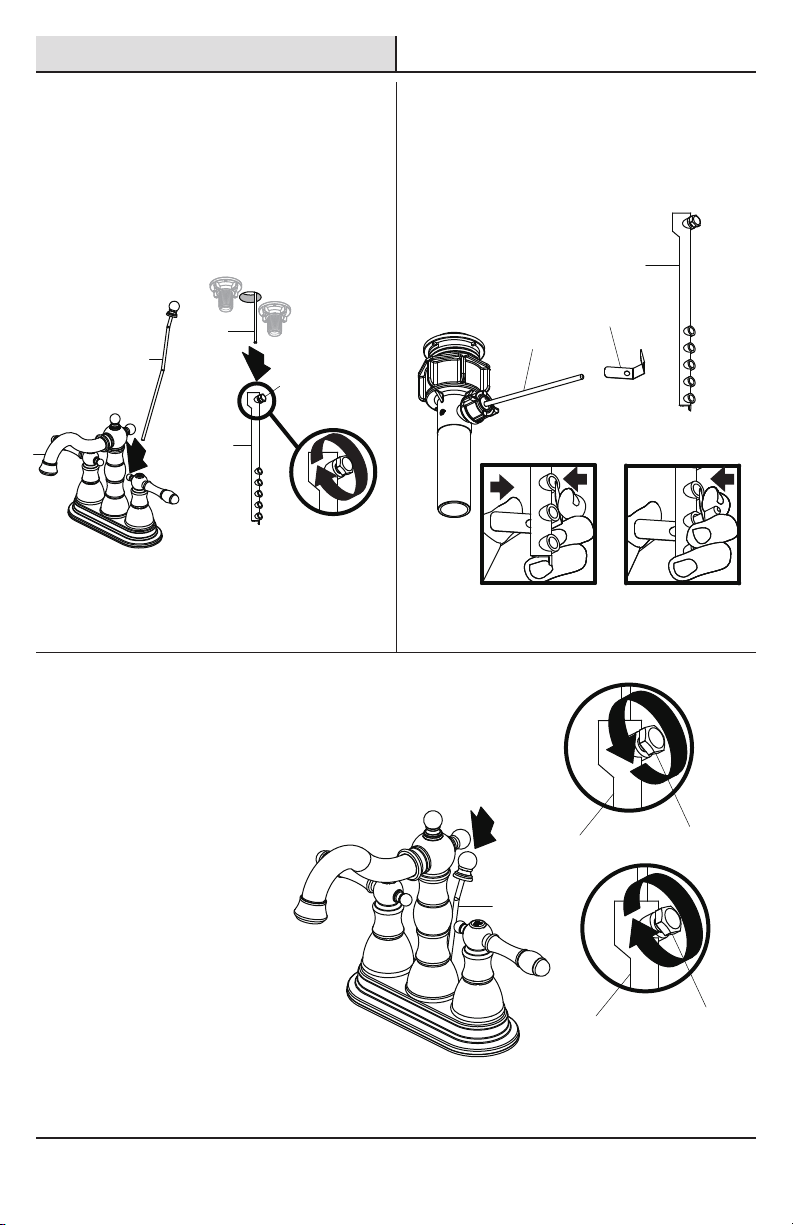

5 Installing the lift rod
□Insert the lift rod (P) through the faucet (A) and
down into the lift rod strap (O). Tighten the
thumb screw (N).
6 Attaching the ball rod and strap
□Attach the ball rod (L) to the lift rod strap (O)
using the spring clip (M).
1
2
1
7 Adjusting the lift rod
□Loosen the thumb screw (N) on the lift rod
strap (O).
□Push down on the lift rod (P) until the drain
stopper is in the open position. Retighten
the thumb screw (N).
2
P
O
N
3
L
M
O
ON
1
ON
3
1
A
P
2
P

HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
7

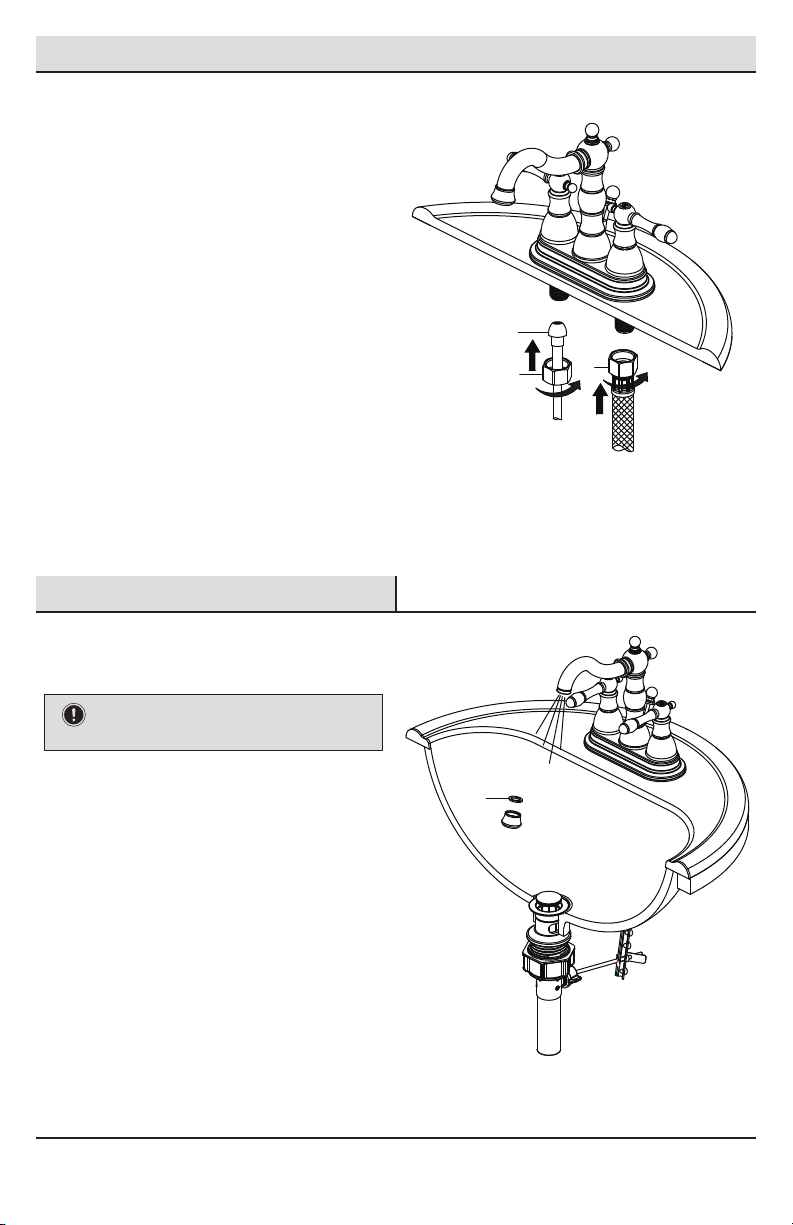

8 Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
□Use wrenches to tighten the connections. Do not
overtighten.
Installation (continued)
1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator to ush the water lines. Do not lose the gasket (1)
in the aerator.
□Ensuring the handles are in the off position, turn
on the water supply and check for leaks. If you
discover any leaks, check your connections to
ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold handles to allow the
water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
Operation
2
1
3
1

8
Care and Cleaning
□To clean, wipe down with a damp cloth and towel dry.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
□Ensure that the rubber washer
is properly installed.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
The aerator is dirty or mis-tted.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
Leaking from sink drain
at the base of the sink.
Rough or irregular surface on sink. □Apply additional silicone sealant
to the beveled side of the drain
ange.
□Retighten and test for leaks.

9

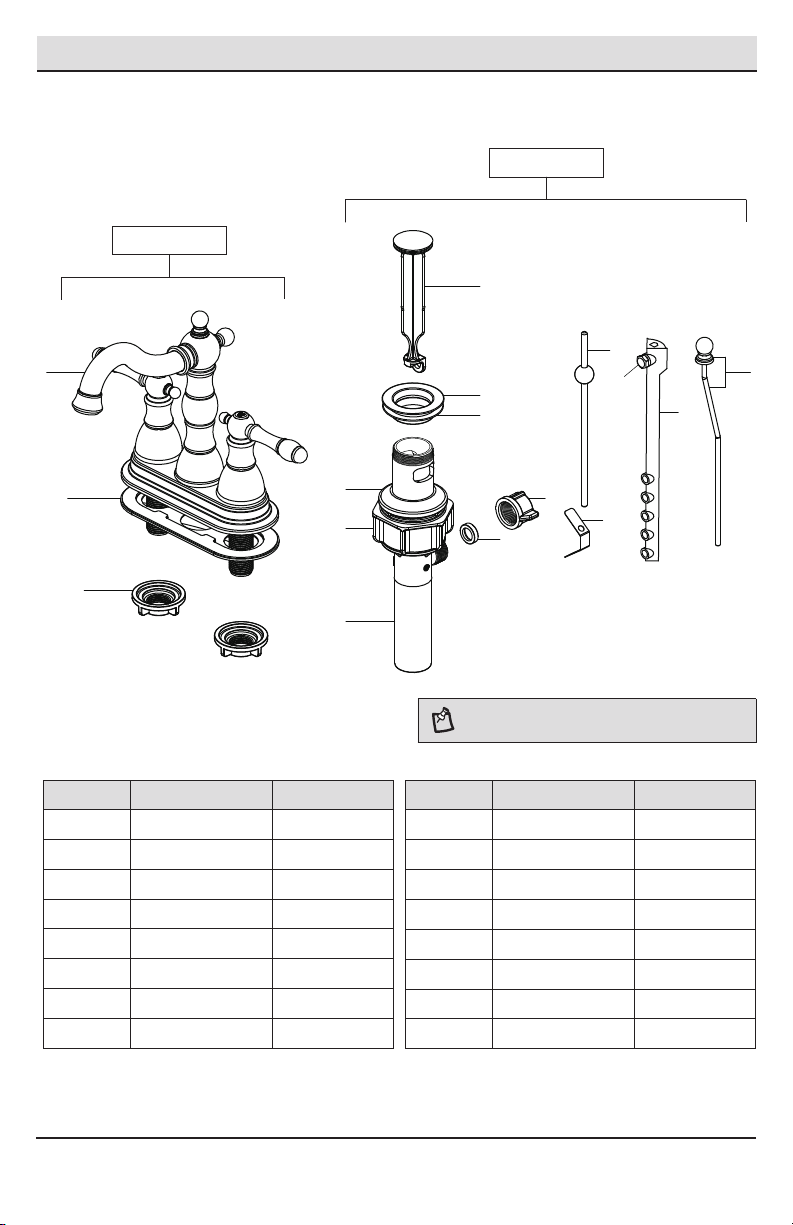

Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can be
found by removing
the hot water handle
Part Description Part Number
1 RP80001*
2 Index H RP10001*
3 Index C RP10002*
4 Screw RP50001
5 Handle RP13229*
6 Bonnet nut RP70435
7 Washer RP64123
Cap
11 Mounting nut RP56001
13 Wearable ring RP64002
14 O-ring RP60008
15 Drain assembly
less lift rod RP40096*
16 Lift rod RP40002*
Part Description Part Number
12 Aerator RP30221*
15
16
1
3
4
5
6
7
8
9
10
11
12
2
13
14
8 Cartridge H RP20001
9 Cartridge C RP20002
10 Gasket RP80182

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Retain this manual for future use.
