Glacier bay 67568-1027H2 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
TWO-HANDLE KITCHEN FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
THD
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
9/2014 REV.01
Model#
67568-1027H2
SKU#
1000-002-226

2
Table of Contents
Important Information .............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents..................................3
Installation................................................4
Care and Cleaning ....................................6
Service Parts ........................................... 7
Troubleshooting........................................6
Tools and Hardware Required ...............2
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Channel
lock pliers
(2) Supply
lines
SILICONE
Silicone
sealant
Operation...................................................5

3
Pre-Installation (continued)

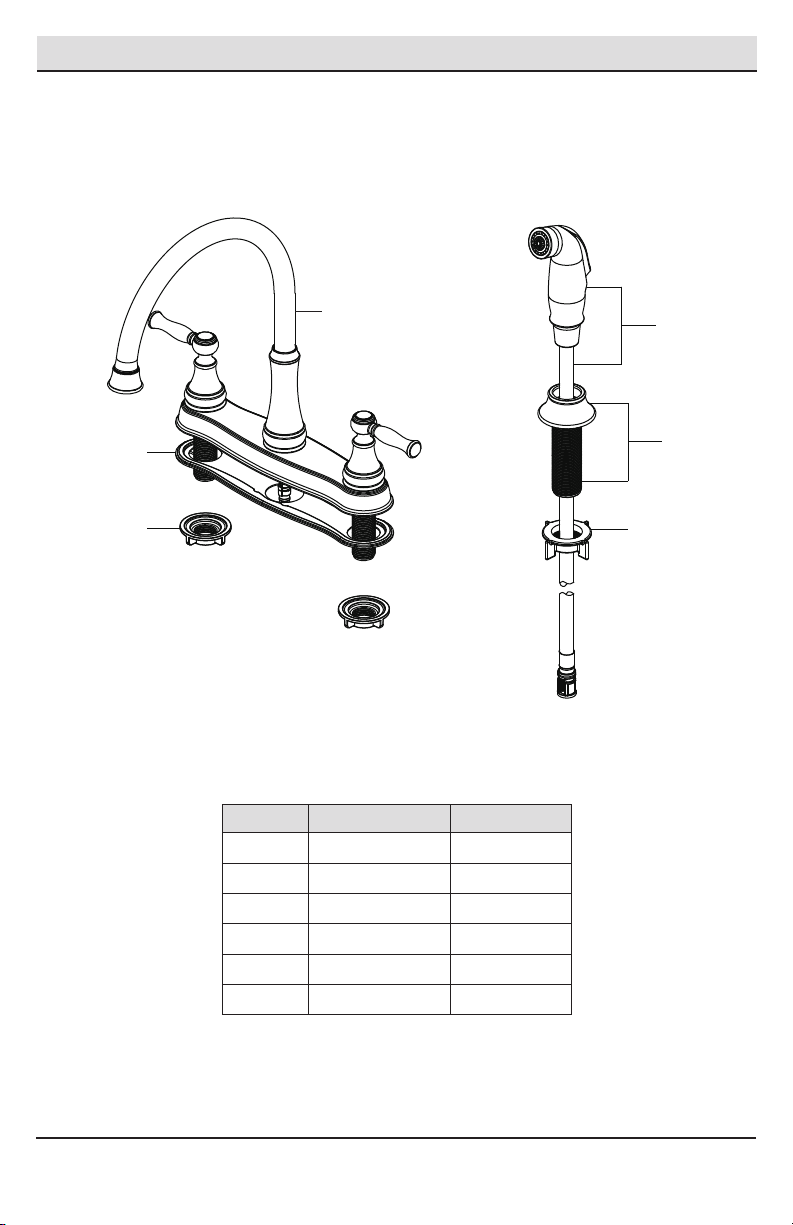

PACKAGE CONTENTS
Part Description Quantity
A1 Faucet
B 1
Gasket
D 1
Side sprayer
E 1
Sprayer ange
F 1
Sprayer mounting nut
C 2
Faucet mounting nut
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
A
B
C
D
E
F

Installation
4

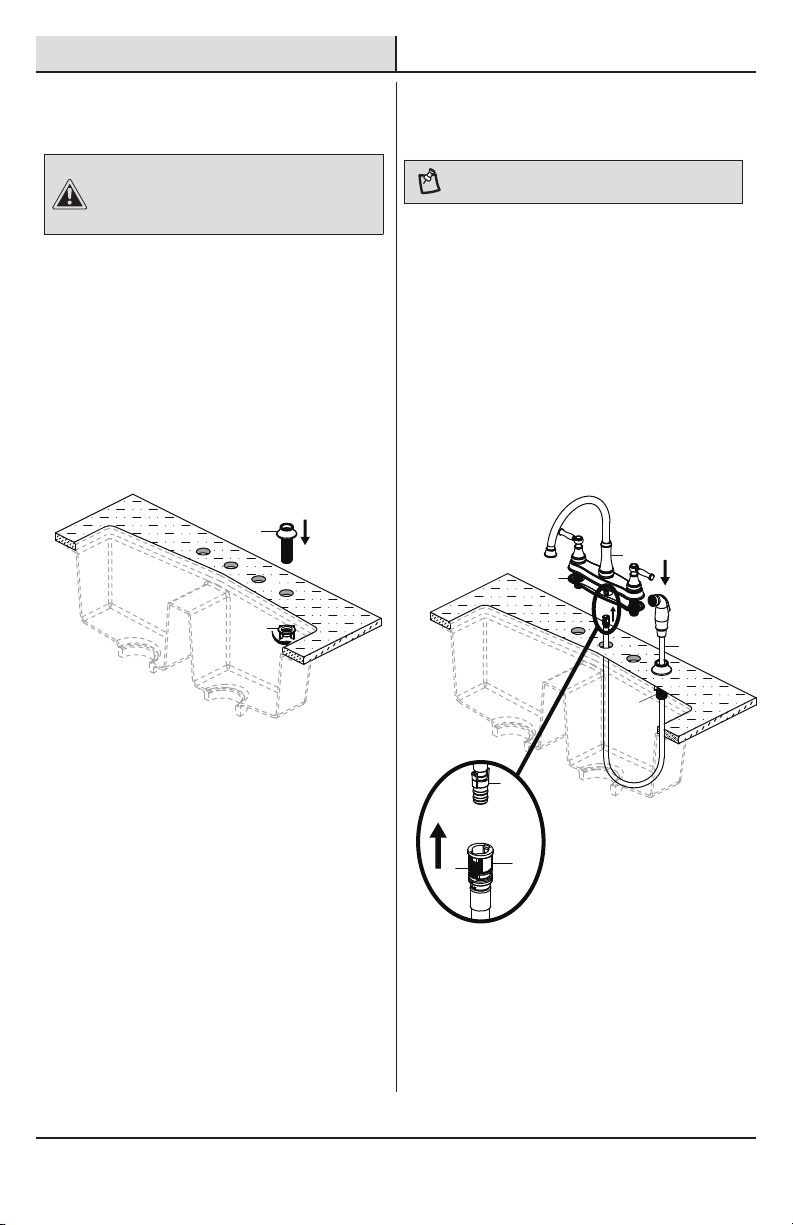

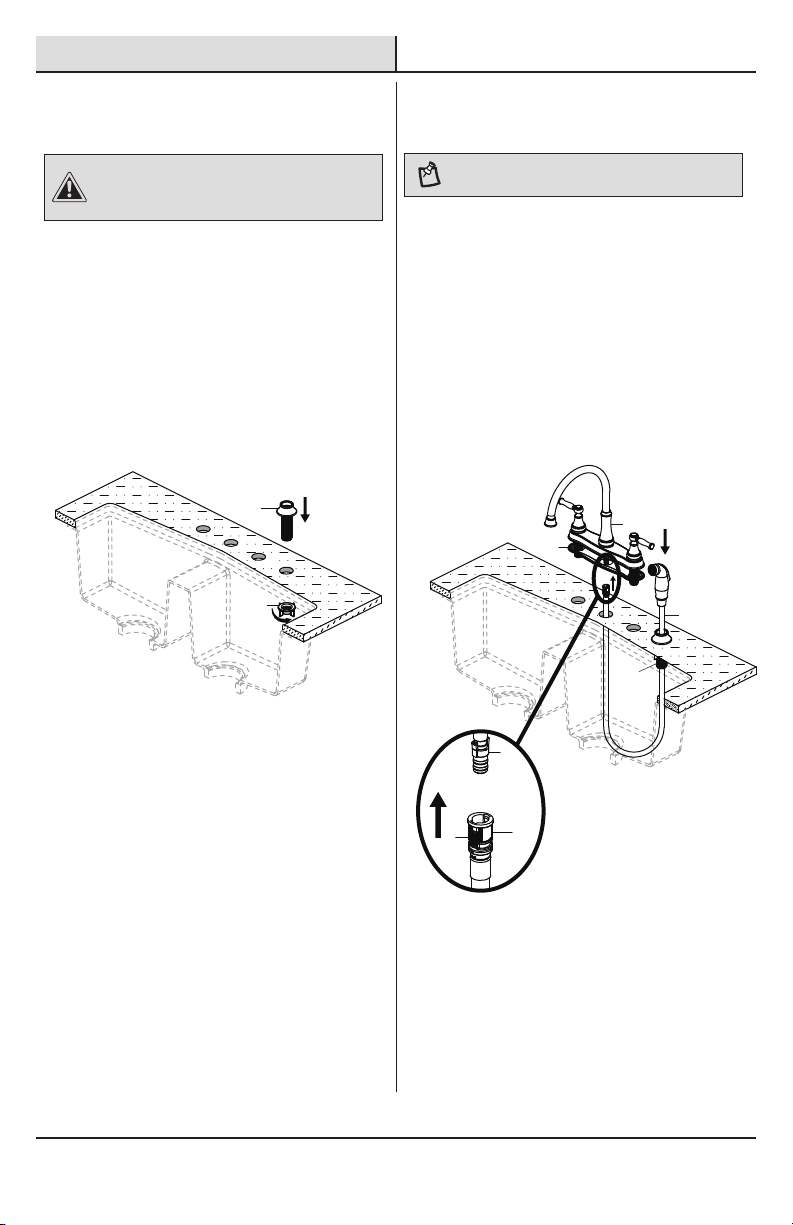

1 Installing the sprayer support
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
□Insert the sprayer ange (E) through the far
right hole on the sink.
□Screw the sprayer mounting nut (F) onto the
sprayer ange (E) shank from underneath the
sink, and hand tighten. Do not overtighten.
□Clean the mounting surface.
□Insert the side sprayer (D) hose down through
the sprayer ange (E) and sink. Align the
tabs (1 & 2) on the quick connects (3). Push the
quick connector housing rmly upward and
snap it onto the receiving tube tab. Pull down
the hose moderately to ensure the connection
has been made.
E
F
2 Installing the faucet assembly
□Ensure the gasket (B) is on the bottom of the
new faucet (A). Place the faucet (A) through
the mounting holes in the sink.
NOTE: If the sink is uneven, use silicone under the
gasket (B).
3
2
1
B
A
E
D

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
5
Installation (continued)
4

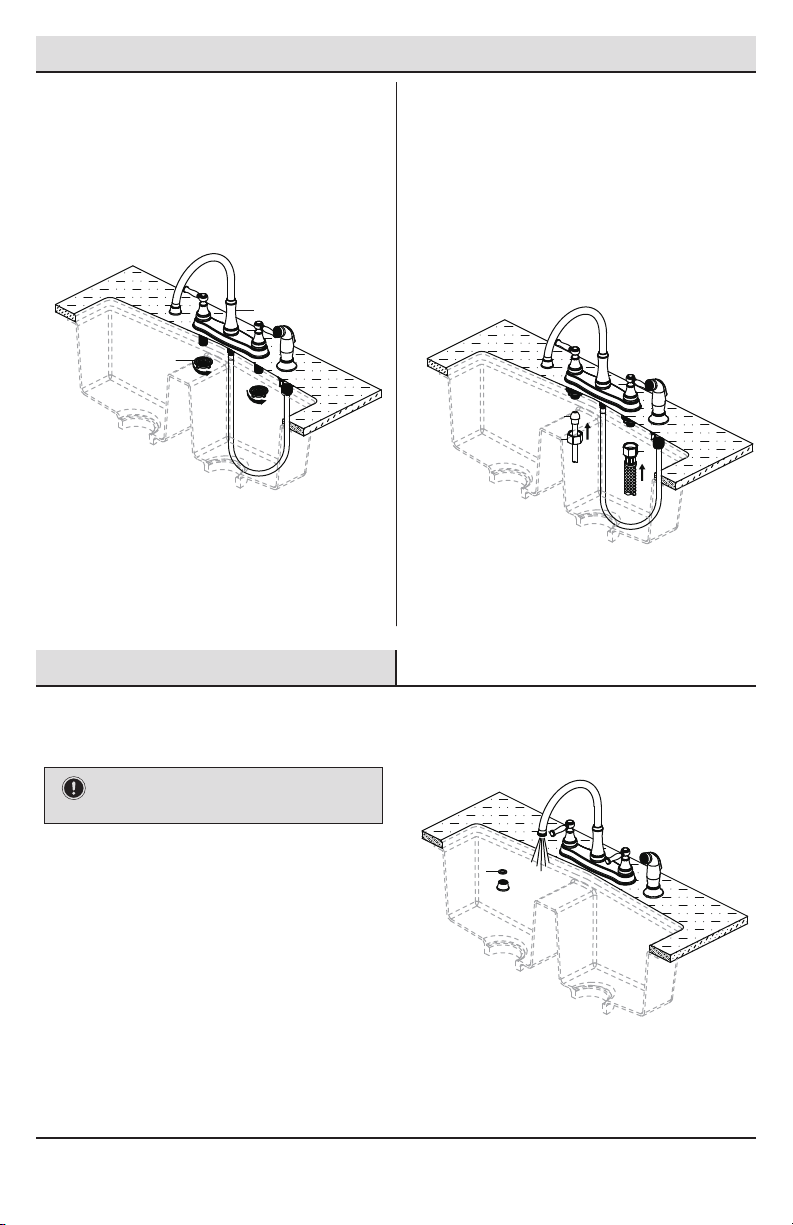

Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
□Use wrenches to tighten the connections. Do not
overtighten.
3 Tightening the faucet assembly
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided. Hand tighten only.
Operation
1 Flushing and checking for leaks
□Ensuring the handles are in the off position, turn
on the water supply and check for leaks. If you
discover any leaks, check your connections to
ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold handles to allow the
water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
IMPORTANT: After installation is complete, remove the
aerator to ush the water lines. Do not lose the gasket (1)
in the aerator.
C
A
1
2
3
1

6
Operation (continued)
Care and Cleaning
□To clean, wipe down with a damp cloth and towel dry.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
□Ensure that the rubber washer
is properly installed.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
The aerator is dirty or mis-tted.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.

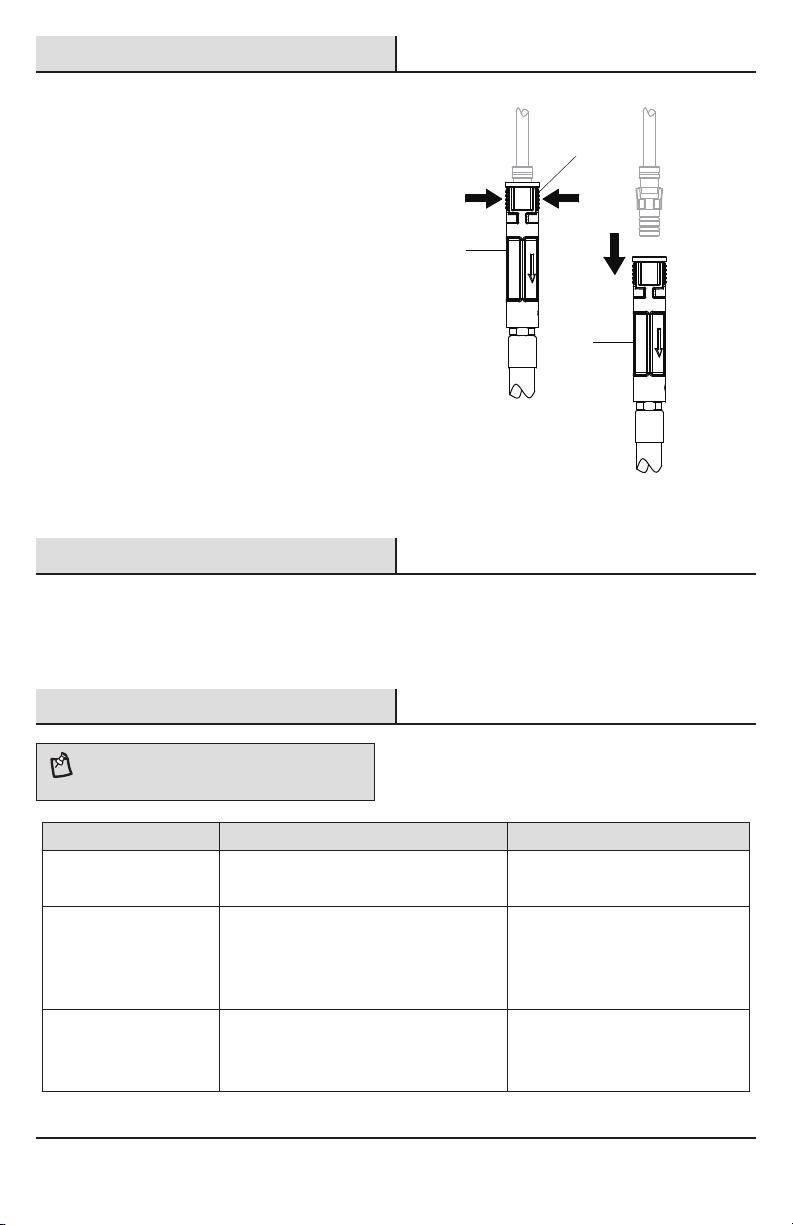

2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect. Squeeze
2
Pull
down
1
1

7

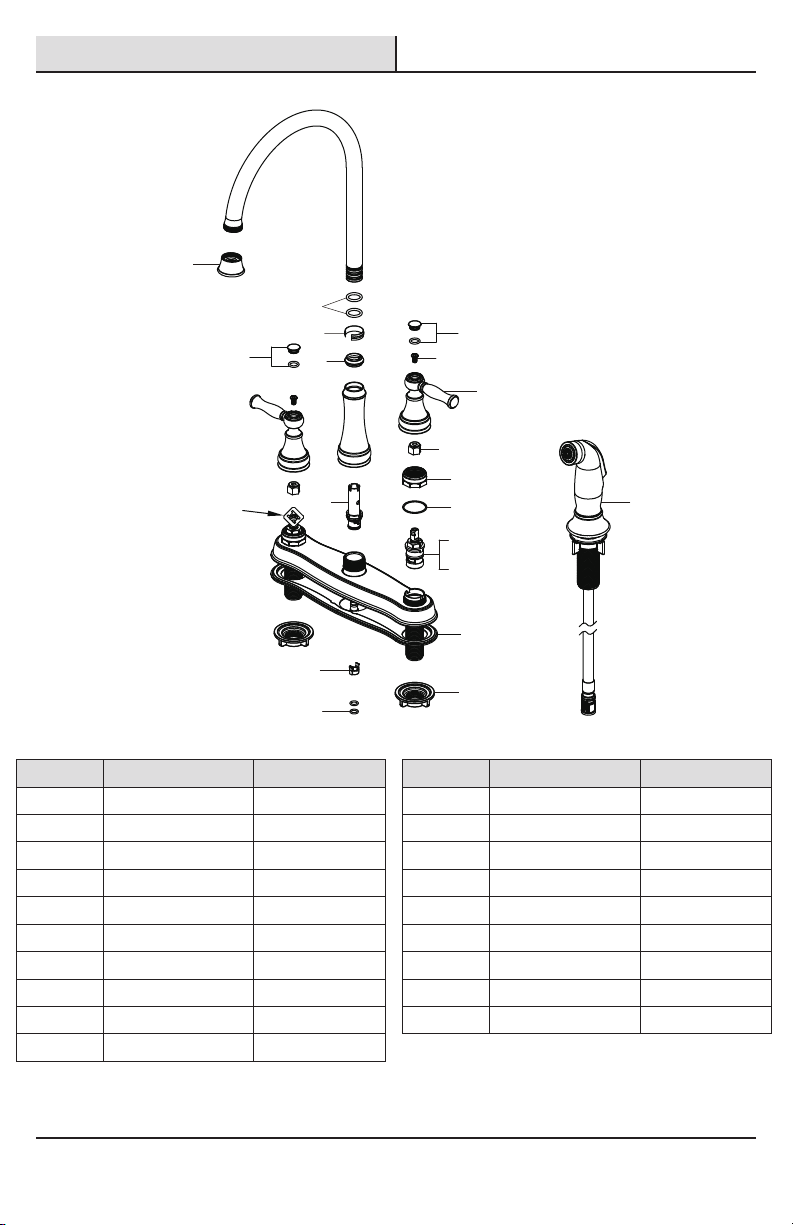

Service Parts
*Specify Finish
Part Description Part Number
1 RP80373*
2 Index RP80374*
3 Screw RP50154
4 Handle RP13304*
5 Inverter RP64044
6 Bonnet nut RP70435
7 Washer RP64124
8 Cartridge H RP20013
9 Cartridge C RP20014
Index 11 Mounting nut RP56001
12 Aerator RP30124*
13 O-ring RP60008
14 Wearable ring RP70077
16 Diverter RP70007
17 Block RP70421
19 Side spray RP36069*
Part Description Part Number
15 Clip RP70023
10 Gasket RP70488
18 O-ring RP60002
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can be
found by removing
the hot water handle
3
4
6
5
9
13
7
8
12
14
11
2
10
15
1
18
17
16 19

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.

GRACIAS
GUÍA DE USO Y MANTENIMIENTO
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Modelo núm.
67568-1027H2
GRIFO PARA COCINA, DE DOS LLAVES
Agradecemos la con anza que has depositado en Glacier Bay al comprar este grifo para cocina. Nos esforzamos
por crear continuamente productos de calidad diseñados para mejorar tu hogar. Visítanos en Internet para ver
nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar. ¡Gracias por
elegir a Glacier Bay!
SKU núm.
1000-002-226

10
Información importante
□ Cumple con todos los códigos locales de construcción y de plomería.
□ Cubre el drenaje del lavabo para evitar que se pierda alguna pieza.
□ Consulta la sección de mantenimiento y limpieza incluida en esta guía.

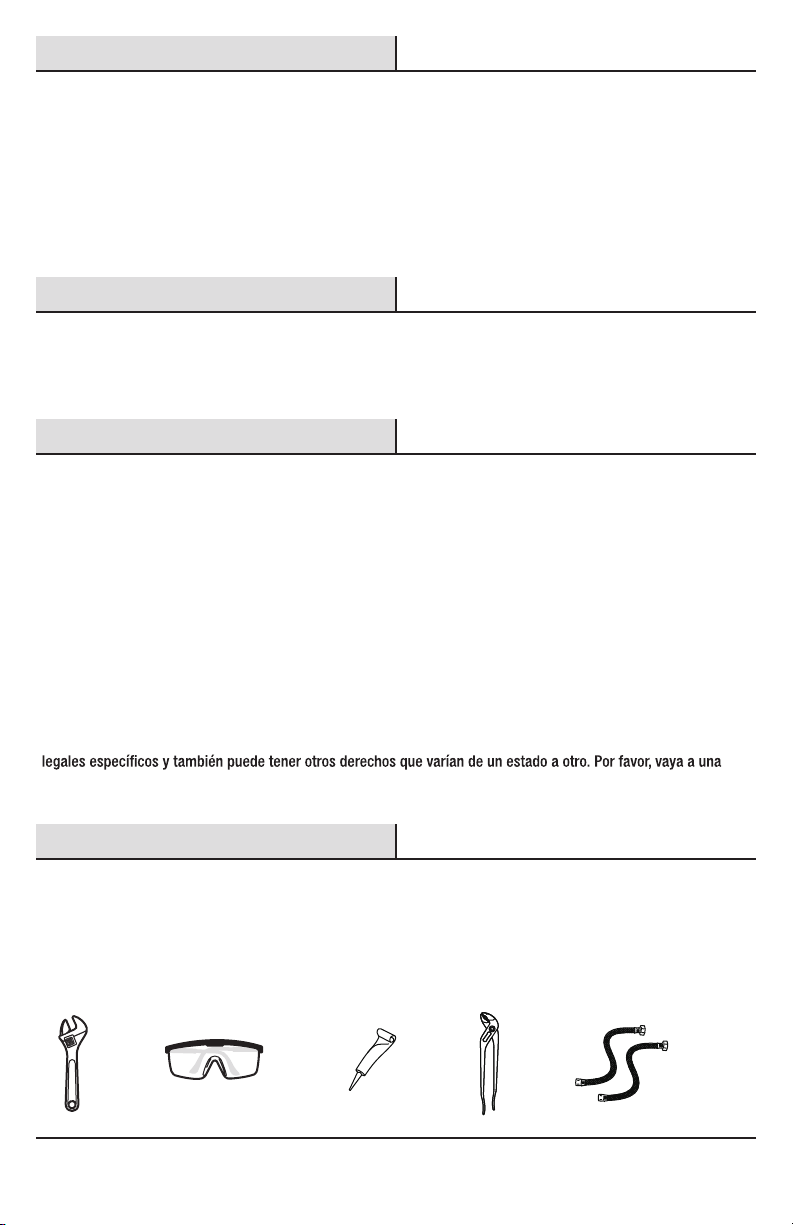

HERRAMIENTAS Y HERRAJES NECESARIOS
Llave
ajustable
Gafas de
seguridad
Pinzas
ajustables
Líneas de
suministro
SILICONE
Sellador
de silicona
Tabla de contenido
Información importante .........................10
Garantía...................................................10
Pre-instalación .......................................10
.............10
Herramientas y herrajes necesarios....10
Contenido del paquete.........................11
Instalación ..............................................12
Funcionamiento......................................13
Cuidado y limpieza ................................14
Piezas de repuesto ................................15
Planicación de la instalación Solución de problemas...........................14
Garantía
GARANTÍA LIMITADA DE POR VIDA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Glacier Bay garantiza al comprador consumidor original que sus productos
no presentan defectos materiales o de fabricación. Simplemente, devuelva el producto o pieza a
cualquiera de las tiendas minoristas de The Home Depot o llame al 1-855-HD-GLACIER (1-855-434-5224)
para recibir el artículo de reemplazo. El comprobante de compra (recibo de venta original) del comprador consumidor
original debe estar disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores se les
extiende en la presente una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuentes,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicarse a su caso. Esta garantía le otorga derechos
tienda o llame al 1-855-HD-GLACIER para obtener más detalles.
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Antes de comenzar la instalación de este producto, asegúrate de que no falta ninguna pieza. Compara las piezas
con la lista de Contenido del paquete. Si falta alguna pieza o está dañada, no intentes instalar el producto.
Comunícate con el servicio al cliente para piezas de repuesto.
