Glacier bay 67385-0004 User manual

USE AND CARE GUIDE
Model #67385-0004
PULL-OUT KITCHEN FAUCET
REV.01THD
THANK YOU
Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!

2
Table of Contents
Safety Information....................................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Tools Required .......................................2
Package Contents..................................3
Installation................................................4
Operation...................................................8
Care and Cleaning ....................................8
Service Parts ........................................... 9

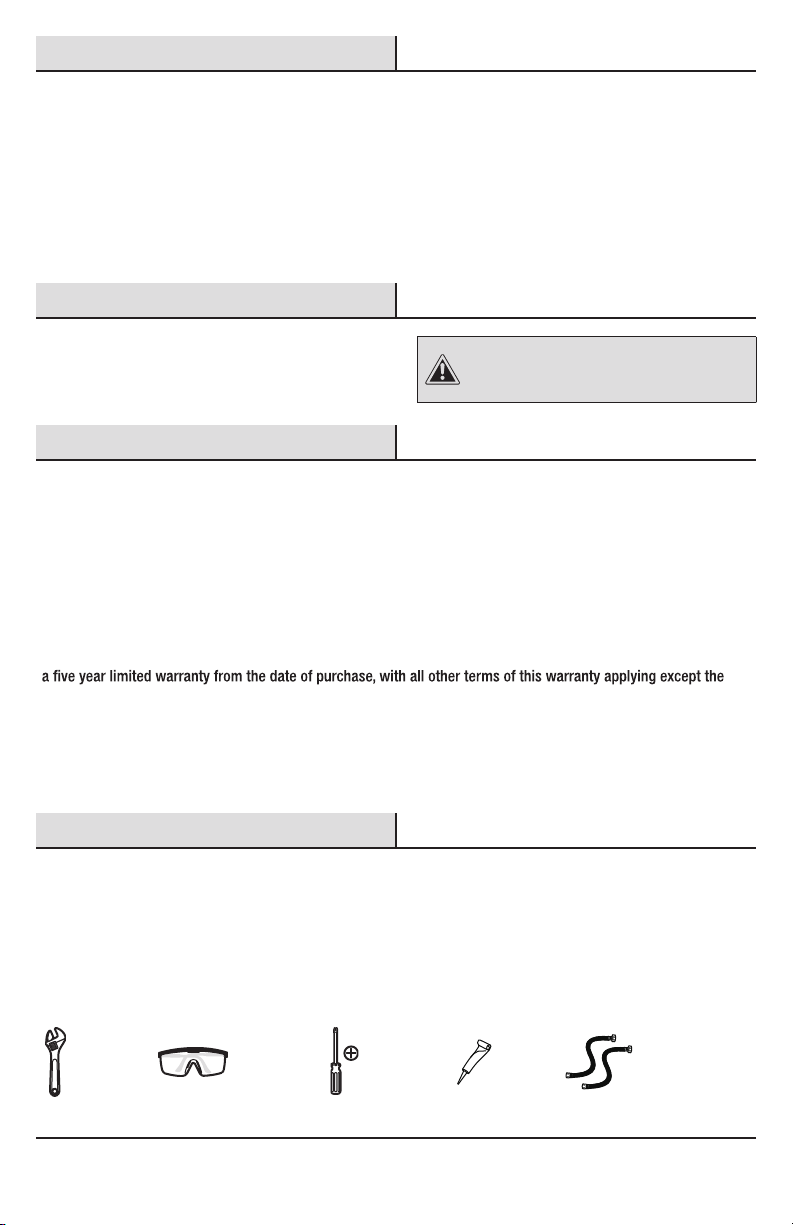

Safety Information
Please read and understand this entire manual before
attempting to assemble, operate, or install the product. CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents section. If any part is missing or damaged, do not attempt to install the product.
TOOLS REQUIRED
Adjustable
wrench
Safety
goggles
Phillips
screwdriver
SILICONE
Silicone (2) Supply
lines

3
Pre-Installation (continued)
PACKAGE CONTENTS
Part Description Quantity
A 1
B Washer 1
C Nut 1
Faucet assembly
D 2
E Flange 1
F Escutcheon 1
Screw
G 1Gasket
H 1
I Weights 1
Quick connector
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
A
B
E
F
GI
H
C
D

4

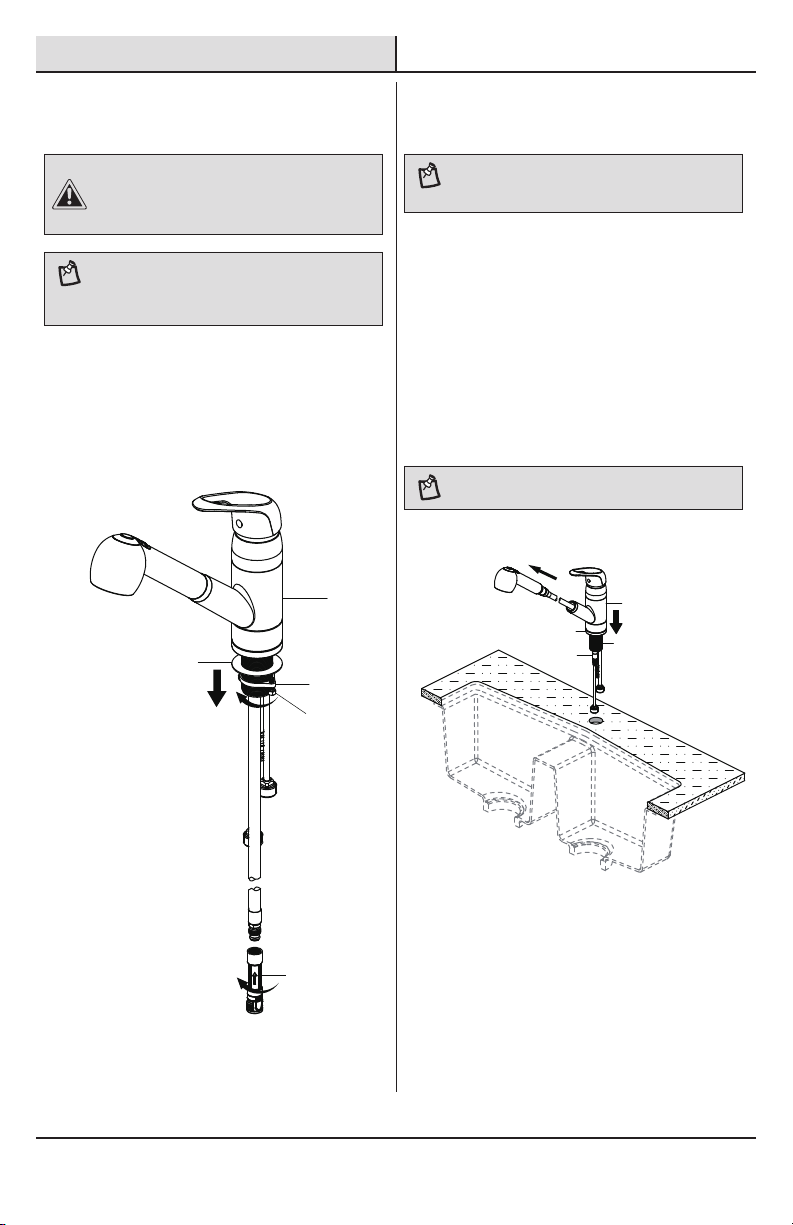

Installation
1 Preparing for installation
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.

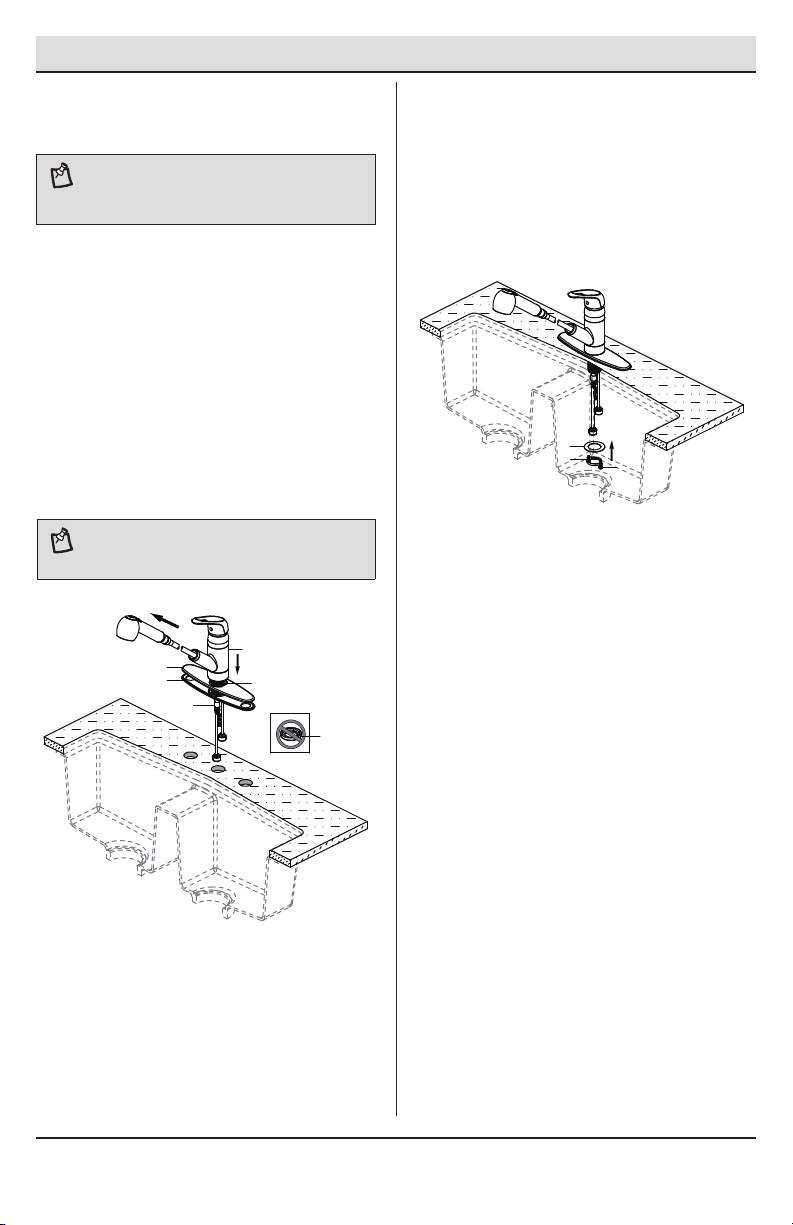

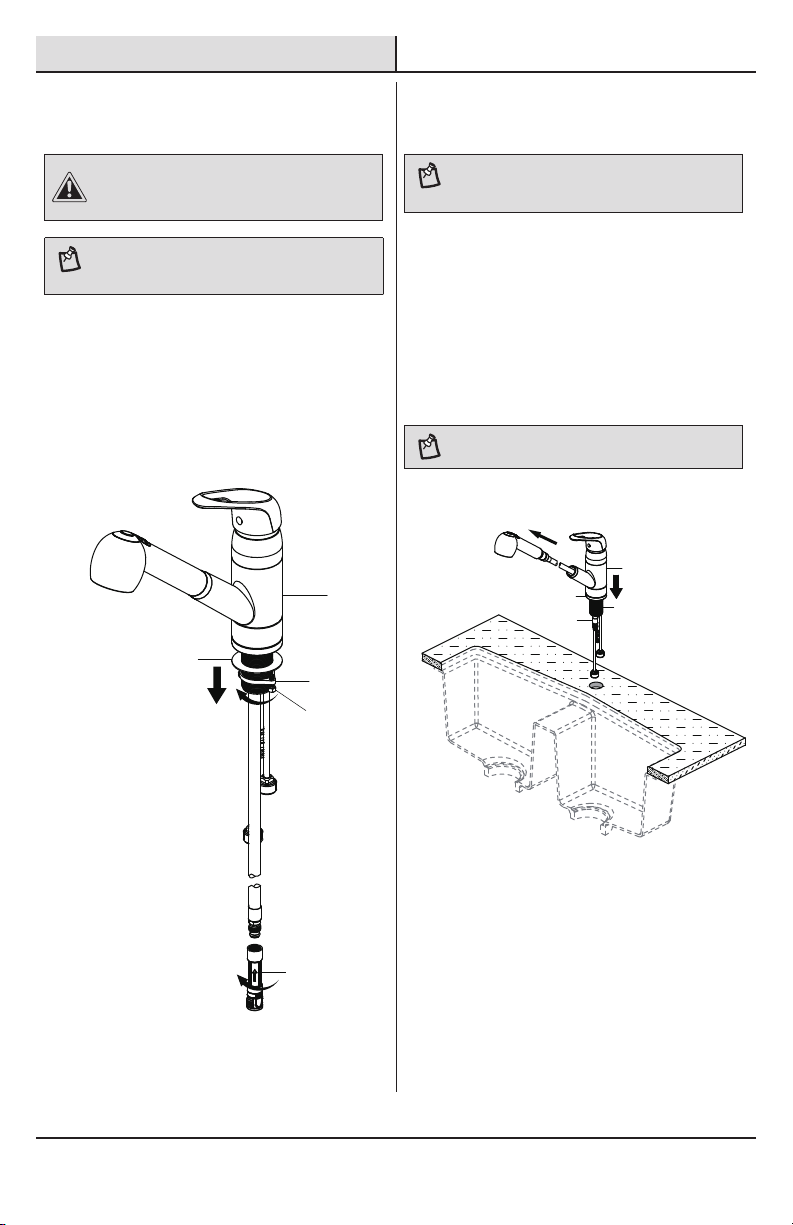

2 Installing the faucet assembly
□Before installation, ensure that the ange (E)
is placed on the bottom of the new faucet
assembly (A).
□Retract the hose (1) up through the faucet body
until the hose tting is ush with the bottom of
the shank (2). Do not pull the hose tting past
the shank. Insert the faucet body through the
hole in the sink.
NOTE: If installing the faucet assembly (A) without the
escutcheon, begin with step 2. If installing the faucet
assembly (A) with the escutcheon, begin with step 3.
NOTE: This step is for ange installation (optional). If the
ange will not be used, install the faucet assembly as
described in step 3.
H
D
B
C
A
NOTE: Do not feed the hose (1) back down through the
spout until step 5.
E
12
A
□Shut off the water supply.
□Unscrew the nut (C), and remove the washer (B).
□Before installation, remove the quick connector
(H) from the free end of the hose by unscrewing
it in a counterclockwise direction.

5
Installation (continued)

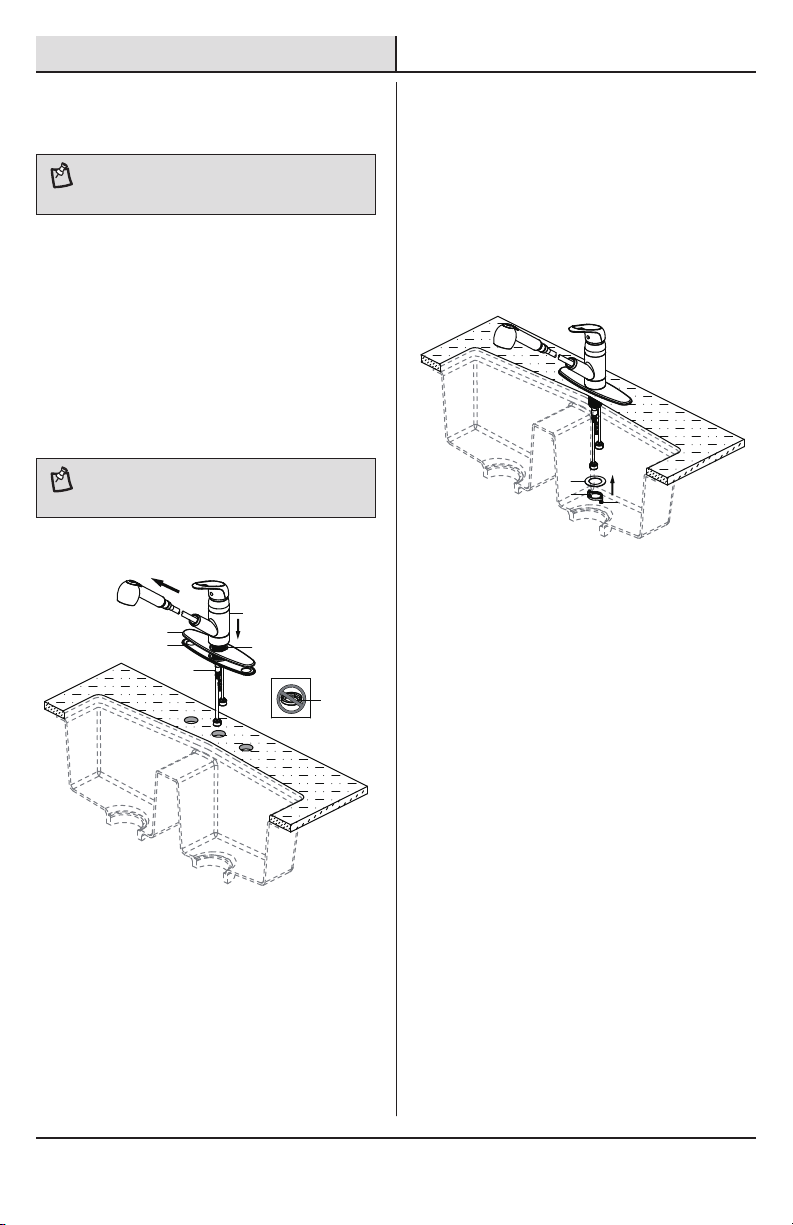

3 Installing the faucet assembly
NOTE: This step is for escutcheon installation (optional).
If the escutcheon will not be used, install the faucet
assembly as described in step 2.
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
□Before installation, remove the ange (E).
2
1
A
G
F
E
D
C
B
□Retract the hose (1) up through the faucet body,
until the hose tting is ush with the bottom of
the shank (2). Do not pull the hose tting past
the shank.
□Insert the faucet body through the hole in the
escutcheon (F).
□Place the escutcheon (F) and the gasket (G) on
the bottom of the new faucet assembly (A).
NOTE: If the sink is uneven, use silicone under the
gasket (G). Do not feed the hose (1) back down through the
spout until step 5.
4 Securing the faucet assembly
□Install the washer (B) and the nut (C) onto the
threaded mounting shank.
□Lock the nut (C) into position by tightening the
screws (D). Do not overtighten.

6
Installation (continued)

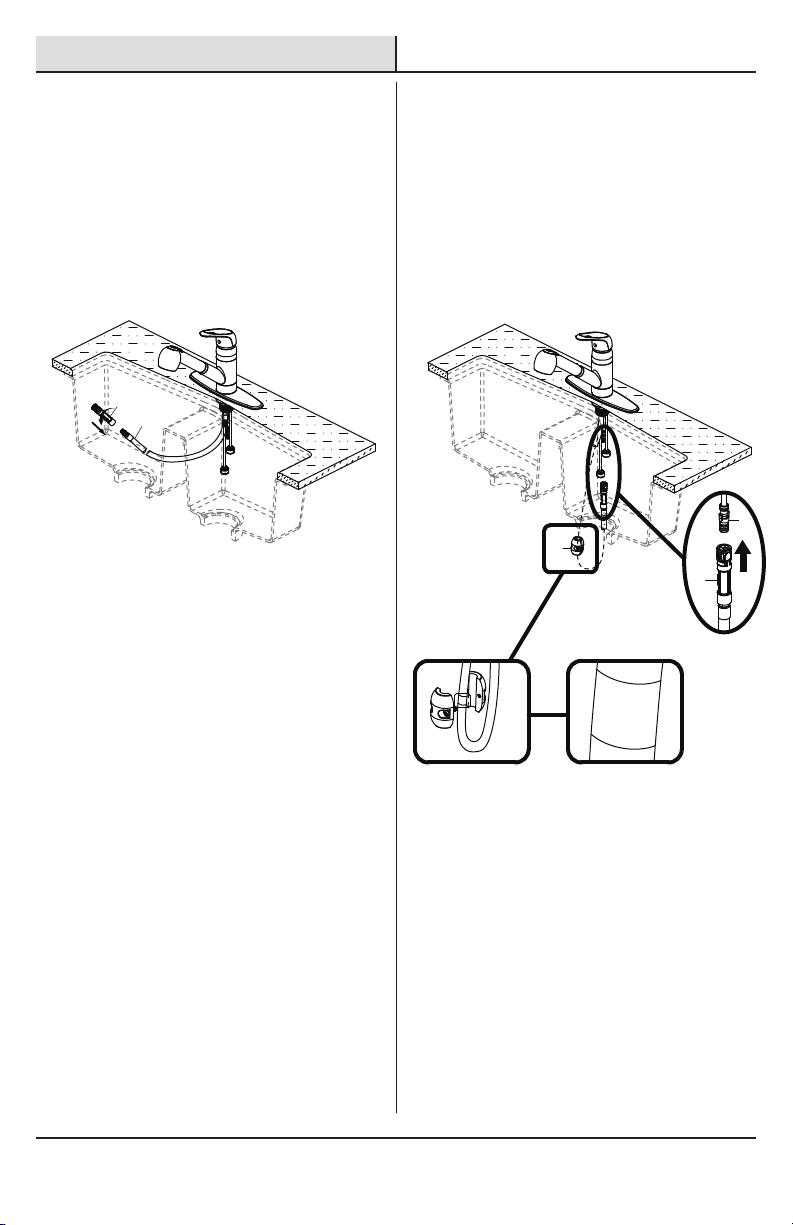

6 Attaching the quick connector
to the receiving block
□Push the quick connector (H) rmly upward and
attach it to the receiving block (1). Pull down
moderately to ensure the connection has been
made.
□After connecting the hose, install the weights (I)
at the point of the hose marking “weights here”.
1
H
Weights
here
Weights
here
I
H
1
5
Attaching the quick connector
to the hose
□After inserting the hose through the hole in the
sink surface, reattach the quick connector (H)
by screwing it onto the threaded end of the
hose (1) in a clockwise motion. Hand tighten
only.

7
Installation (continued)
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
2
Squeeze Pull
down
1
1

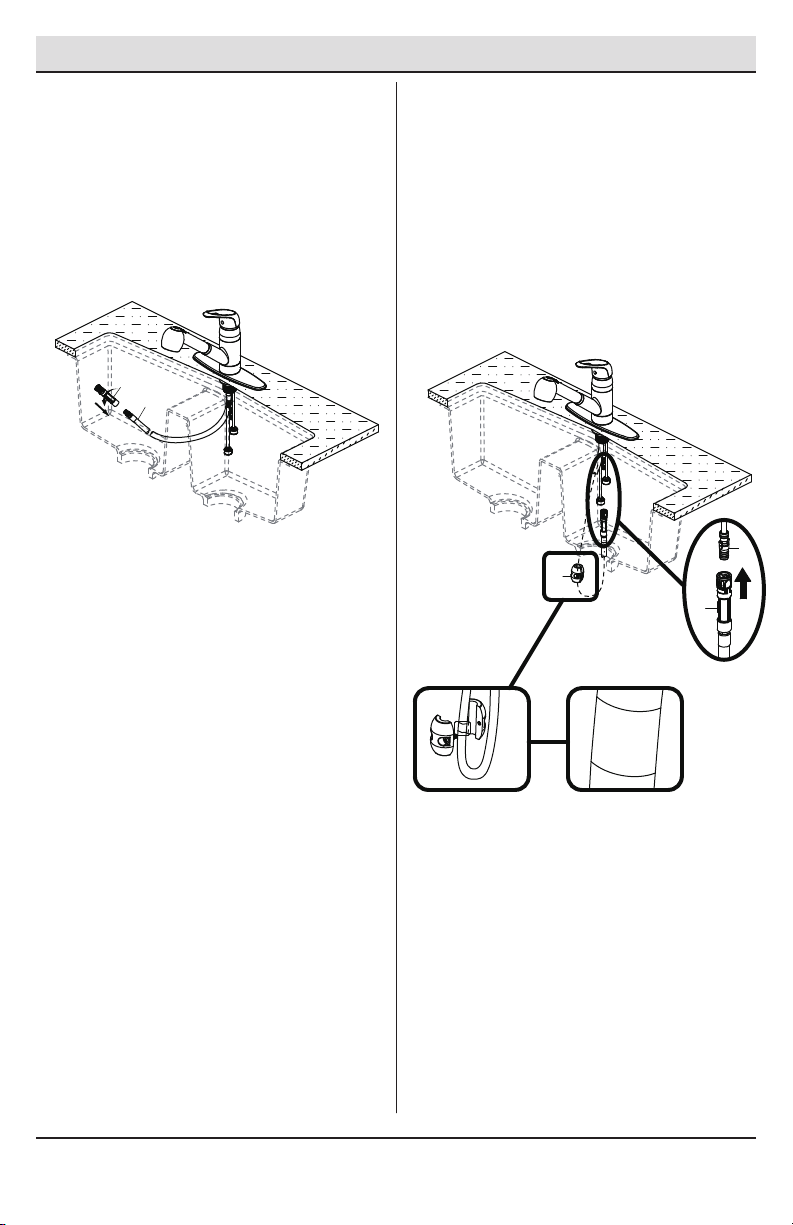

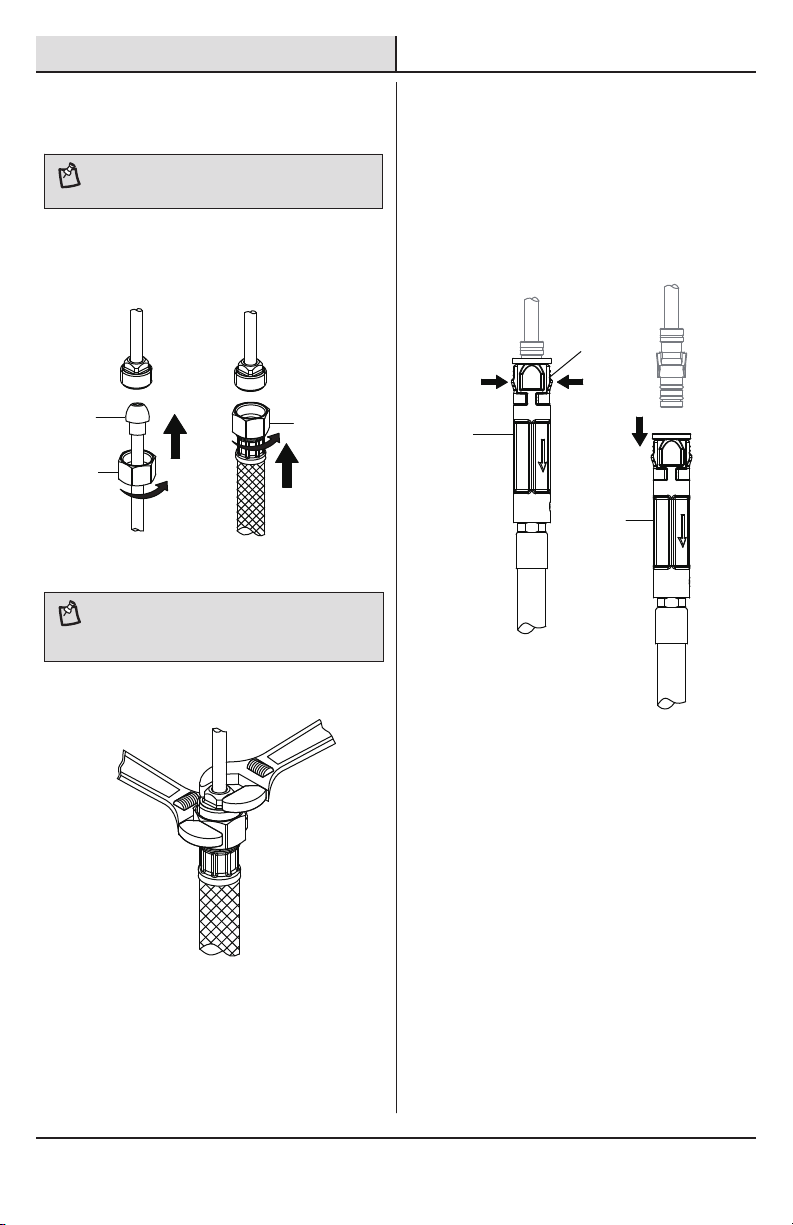

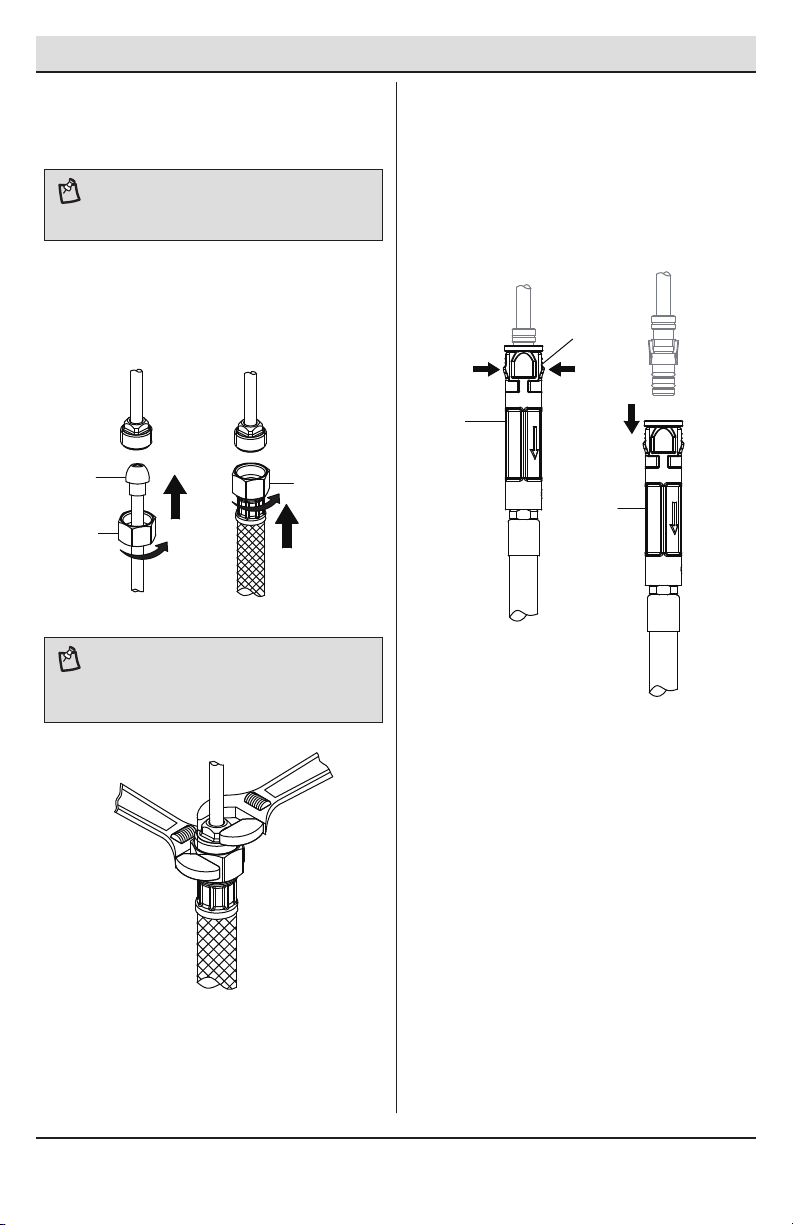

7 Making the waterline
connections
NOTE: The hot side inlet tube is indicated by a label.
If the label is not present, the hot supply tube is the longer
of the two inlet tubes.
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
3
12
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube tting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
8Remove the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.

8

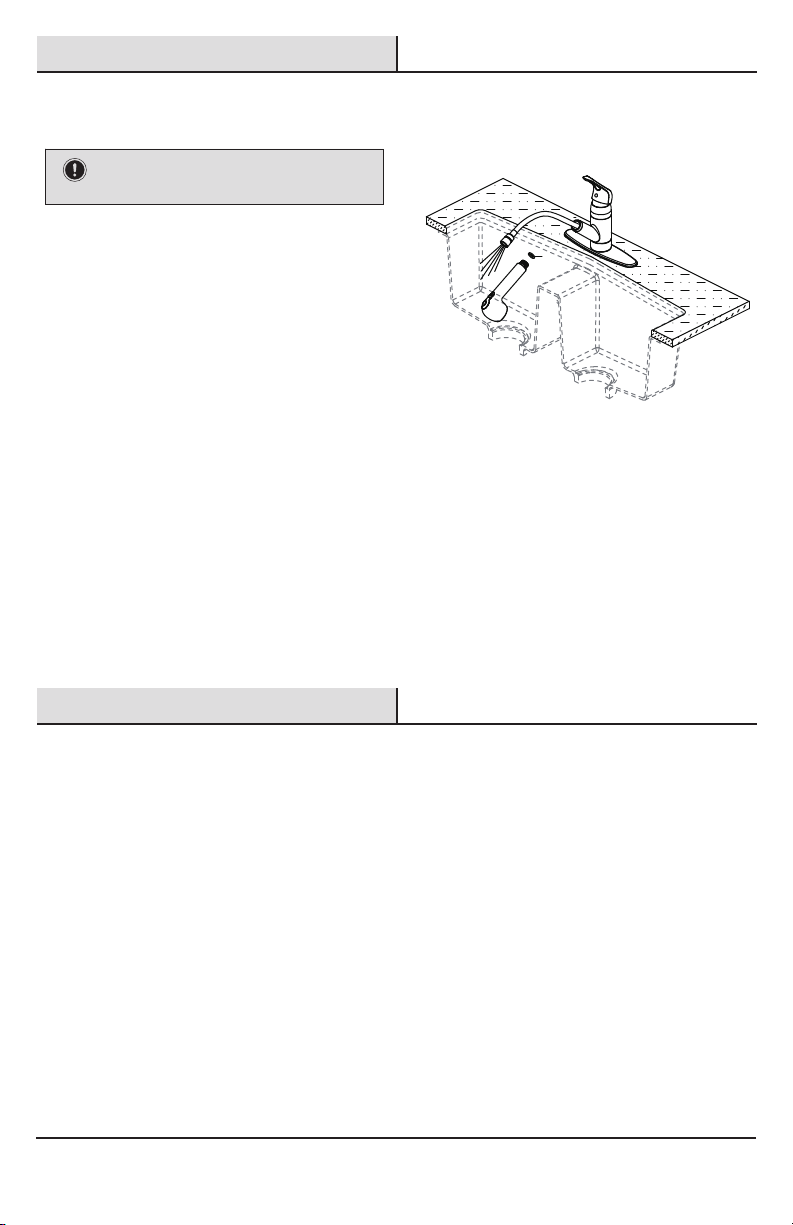

Care and Cleaning
□
□
□Do not use abrasive cleaners when cleaning this faucet.
Operation
1Flushing and checking for leaks
□Pull the hose assembly out of the spout and
remove the spray head by unscrewing it from
the hose in a counterclockwise direction. Be
sure to hold the end of the hose down into the
sink and turn the faucet on to the warm position
where it mixes hot and cold water.
□Flush the water lines for one minute. This ushes
away any debris that could cause damage to
internal parts. Check for leaks.
□Re-tighten any connections if necessary, but do
not overtighten. Reinstall the spray head by hand
tightening it back onto the spray hose.
IMPORTANT: After installation is completed, turn on the
hot and cold water supplies. Check for leaks. Do not lose the
gasket (1) in the hose.
1

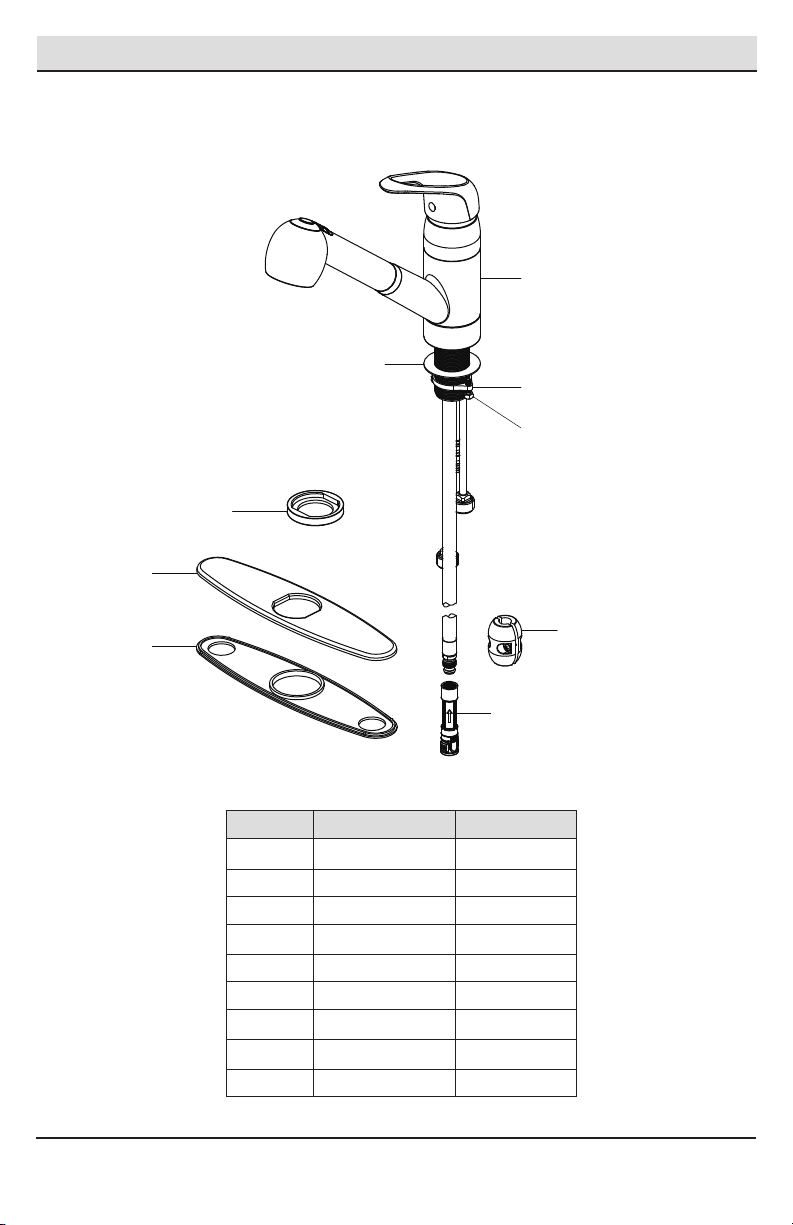

Service Parts
*Specify Finish
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
9
1
4
5
2
3
6
7
8
9
10
11
15
16
17
18
19
12
13
14
Part Description Part Number
1 RP13033*
2 Set screw RP50002
3 Index RP10006
4 Screw RP50015
5 Cap RP80109*
6 Bonnet RP70336
7 Cartridge RP20005
8 Spray head and Hose RP38212*
9 Flange RP80013*
Handle
13 Nut RP56100
Part Description Part Number
10 Escutcheon RP80157*
11 Gasket RP70031
12 Washer RP64024
17 Quick connect
assembly RP70438
18 O-ring RP60024
19 Weights RP70029
14 Screw RP50004
15 Block RP70421
16 O-ring RP60002

Questions, problems, missing parts? Before returning to the store,
call Glacier Bay Customer Service
8 a.m. - 6 p.m., EST, Monday - Friday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
