Glacier bay HD67099-0B01 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
CONSTRUCTOR 2-HANDLE
STANDARD KITCHEN FAUCET
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
7/2020 REV.02THD
Model#
HD67099-0B01
HD67099-1B01
SKU#
1002974577
1002974601

2
Table of Contents
Important Information .............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................7
Service Parts ........................................... 8
Troubleshooting........................................7
Tools and Hardware Required ...............2
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Channel
lock pliers
(2) Supply
lines
SILICONE
Silicone
sealant
Operation...................................................6
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

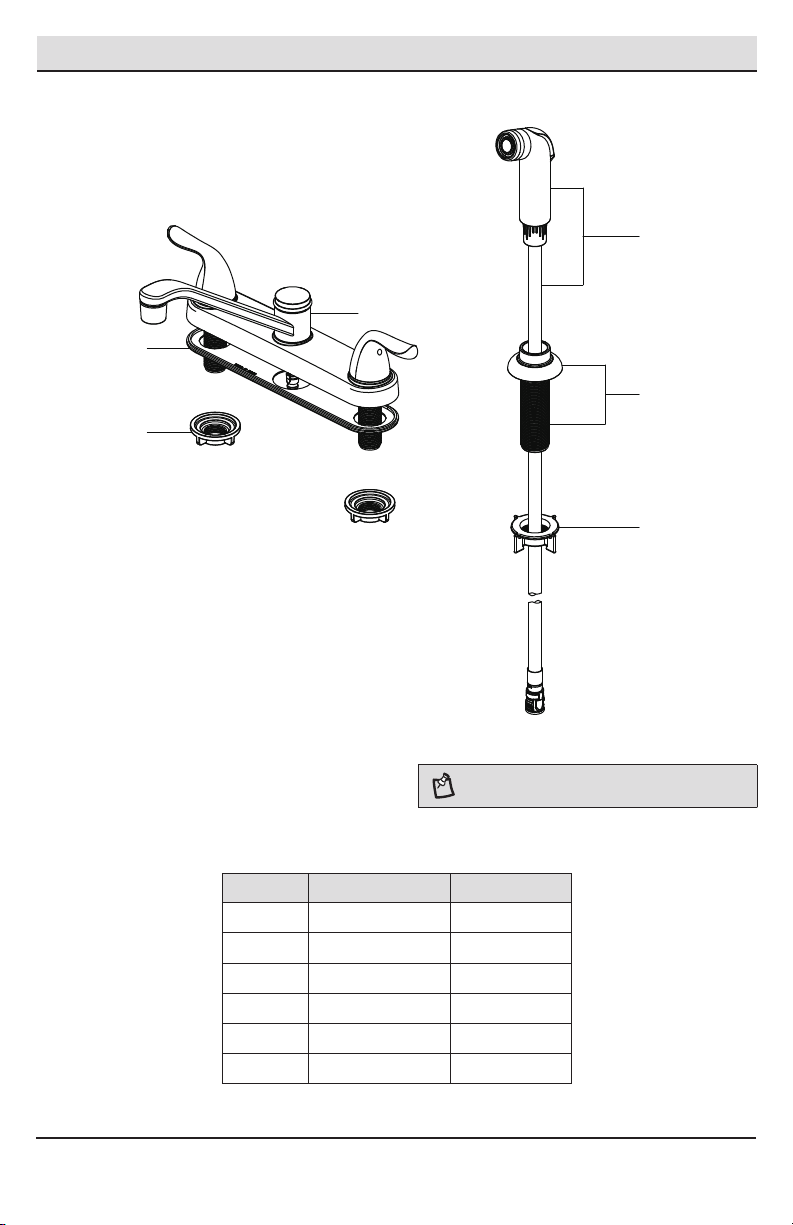

PACKAGE CONTENTS
Part Description Quantity
A1 Faucet
B 1
Gasket
D 1
Side sprayer
E 1
Sprayer flange
F 1
Sprayer mounting nut
C 2
Faucet mounting nut
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
NOTE: *Parts D-F are only included with
model HD67099-1B01 SKU 1002974601.
D*
E*
F*
A
B
C

Installation
4

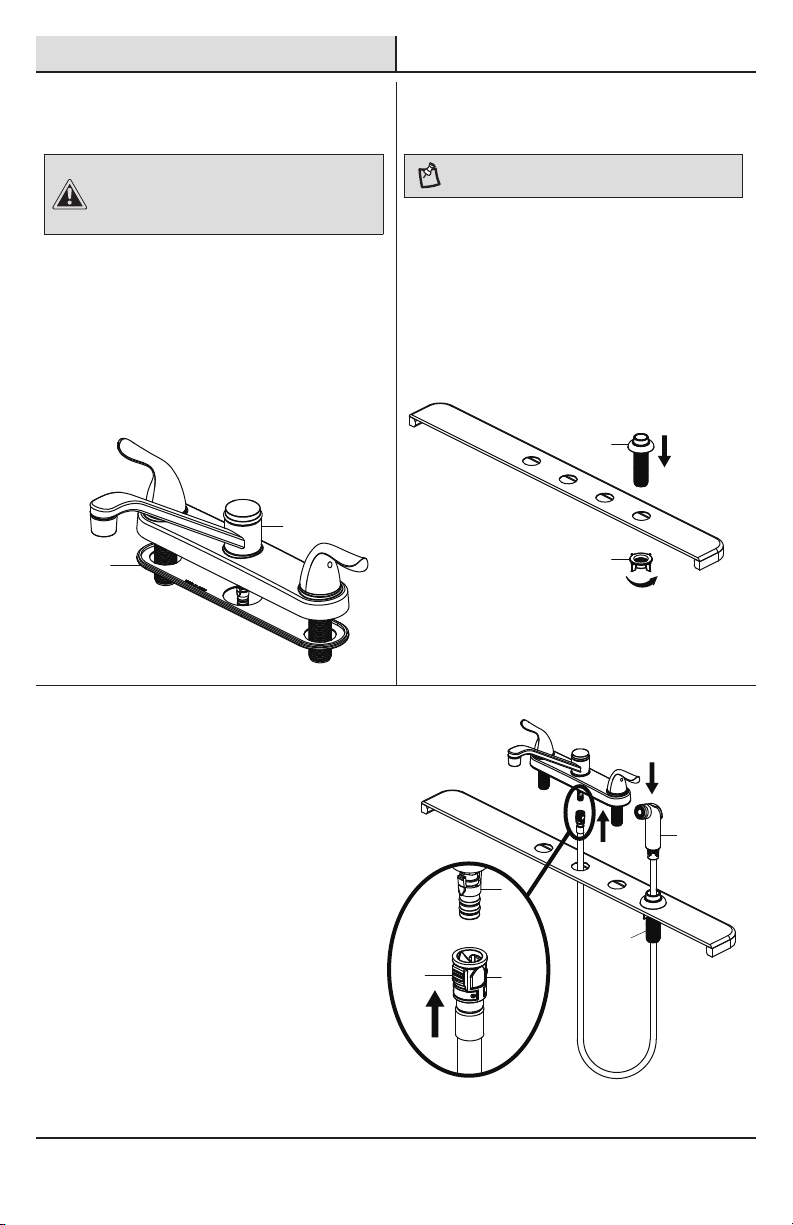

1 Preparing for installation
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Shut off the water supply. Remove the old
faucet.
2 Installing the sprayer support
□If your model has a side sprayer, proceed to
step 2. If your model does not have a side
sprayer, skip to step 4.
□Insert the sprayer flange (E) through the far
right hole on the sink.
□Screw the sprayer mounting nut (F) onto the
sprayer flange (E) shank from underneath the
sink, and hand tighten. Do not overtighten.
NOTE: The faucet with spray requires a 4 hole sink for
installation.
□Clean the mounting surface.
□Ensure the gasket (B) is on the bottom of the
new faucet (A).
3 Connecting the spray hose to
the faucet
□Insert the side sprayer (D) hose down through
the sprayer flange (E) and sink. Align the
tabs (1 & 2) on the quick connects (3). Push the
quick connector housing firmly upward and
snap it onto the receiving tube tab. Pull down
the hose moderately to ensure the connection
has been made.
A
B
E
F
E
D
1
23

5

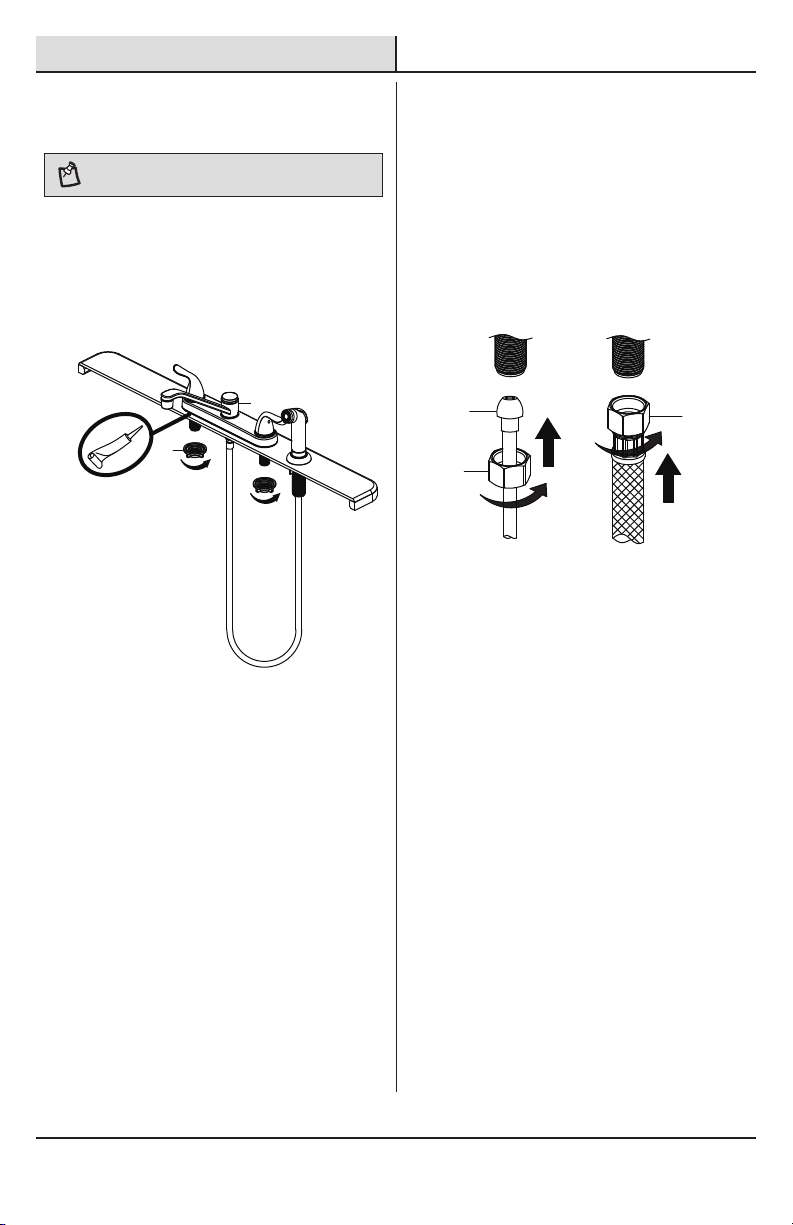

Installation (continued)
5
Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
□Use wrenches to tighten the connections. Do not
overtighten.
4 Installing the faucet assembly
□Place the faucet (A) through the mounting holes
in the sink.
□Secure the faucet (A) to the sink using the
mounting nuts (C) provided. Hand tighten only.
NOTE: Silicone sealant is required under the gasket (B).
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
2
3
1
C
A
SILICONE

6
2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator from the faucet (A) to flush the water lines. Do not
lose the gasket (1) in the aerator.
□Ensure the faucet (A) handles are in the off
position and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold handles to allow the
water to run for at least one minute. This
flushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
Operation
A
1
Squeeze
Pull
down
2
1
1

HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
7
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water flow.
□Remove the aerator and
check for debris.
□Ensure that the rubber washer
is properly installed.
The aerator is dirty or mis-fitted.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
2
1
1
2
Fig. 1
a
b
The water will not shut off
completely.
The rubber seat and spring under the handle
cartridge is dirty or broken. □Remove the cartridge to check
the rubber seat and spring.
□Remove the handle.
□Clean or replace.
□When reinstalling the cartridges,
make sure the rubber seats and
springs (1) are below the
cartridge (2).The spring should
be installed first into the slot
and then the rubber seat.The
cartridge should then be installed
with the molded stops (a & b)
facing inward as shown in Fig. 1.

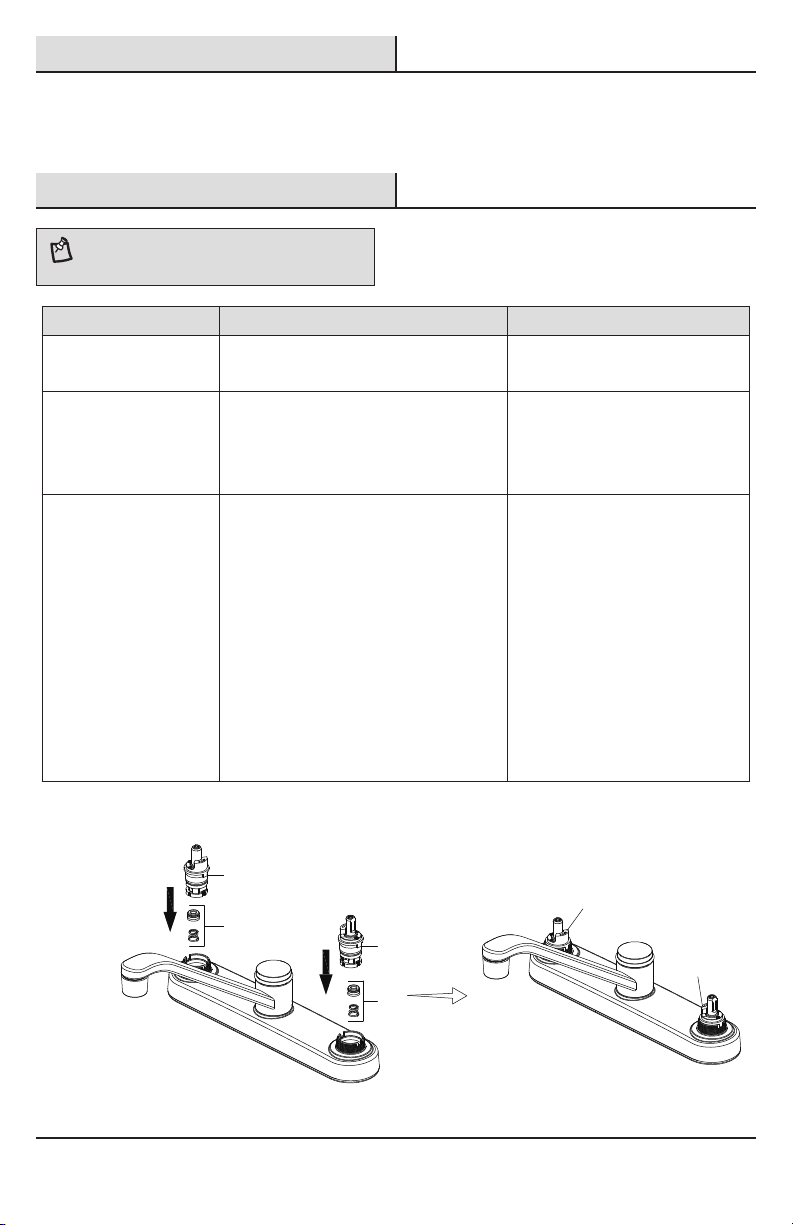

Reinstalling the cartridges:

8
Service Parts
*Specify Finish
Part Description Part Number
1 RP30133*
2 Cap RP80173*
3 Washer & O-ring RP70427
5 Diverter RP70007
6 O-ring RP60006
4 Washer RP64100
7 Washer RP64129
8 Block RP70421
Aerator 10 Handle assembly H RP13590*
11 Handle assembly C RP13591*
12 Bonnet nut RP70678
14 Cartridge RP50168
15 Seat & Spring RP22008
17 Mounting nut RP56001
Part Description Part Number
13 Washer RP64124
9 O-ring RP60002 18 Side spray RP36107*
16 Gasket RP70419
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can be
found by removing
the hot water handle
1
10
3
2
4
11
12
13
14
15
6
7
16
17
18
5
8
9

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
