Glacier bay F8FA0000BNV Assembly instructions

SKU #
209-442
Model #
F8FA0000BNV
INSTALLATION AND CARE GUIDE
TWO-HANDLE KITCHEN FAUCET
THANK YOU
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
THD 08/2016 REV.01

2
SILICONE
PLANNING INSTALLATION
TOOLS AND HARDWARE REQUIRED
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation.............................2
Tools and Hardware Required...............2
Package Contents.................................3
Installation.................................................4
Operation....................................................6
Care & Cleaning.........................................7
Troubleshooting.........................................7
Service Parts..............................................8
Table of Contents
Pre-Installation
Warranty
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD Glacier (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD Glacier for
more details.
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service
for replacement parts.
Adjustable
Wrench
Channel-
Lock Pliers
Safety
Goggles
Sealant
Important Information
LIMITED LIFETIME WARRANTY
(2) Supply
Lines
Observe all local plumbing and building codes.
Cover the drain in your sink to avoid losing parts.
Review the care and cleaning section included in this guide.

3 HOMEDEPOT.COM/GLACIERBAY
Pre-Installation (continued)

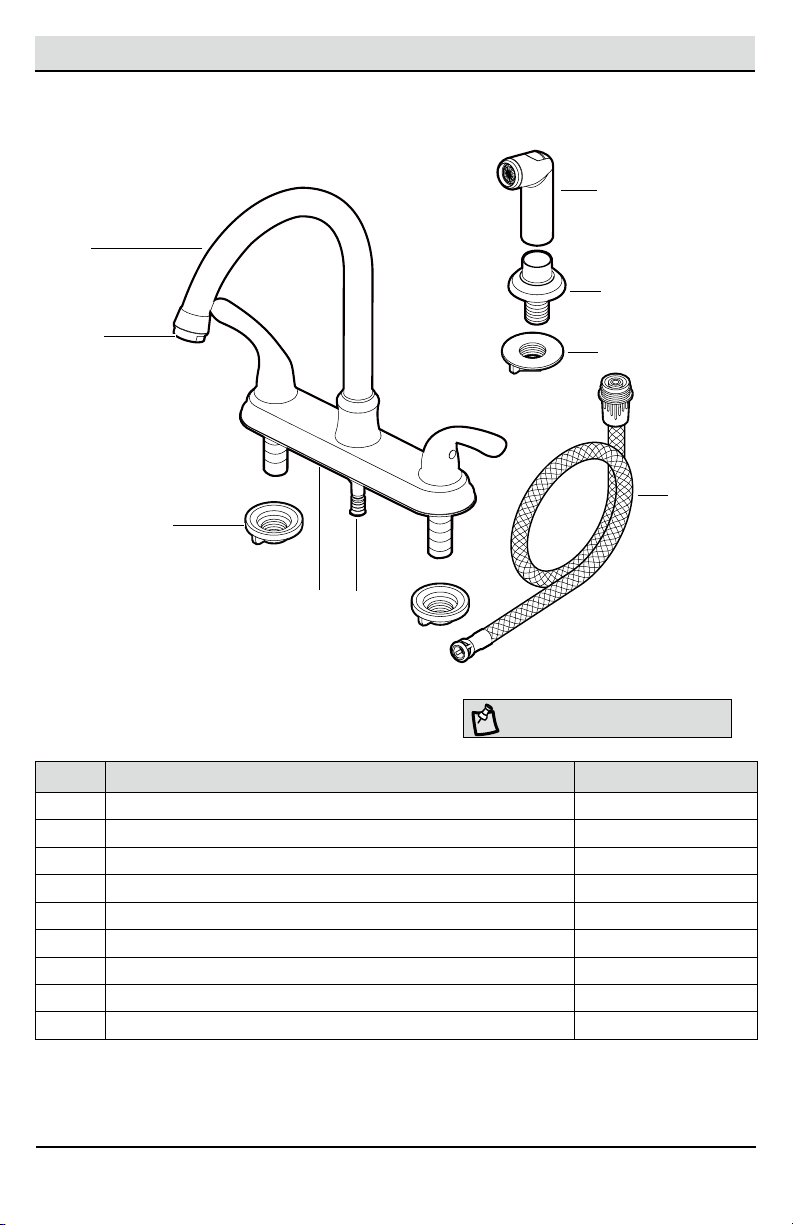

PACKAGE CONTENTS
Part Description Quantity
A Faucet body 1
B Aerator 1
C Lock nut 2
D Spray head 1
E Spray holder 1
F Spray lock nut 1
G Spray hose 1
H Gasket 1
I Cap 1
I*
A
C
B*
D
E*
F*
G
NOTE: *Items come pre-assembled.
H*

4
Attach the quick connector end of the spray
hose (G) into the spray holder (E).
Installing the spray holder
Installing the faucet assembly
Insert the spray holder (E) into the installation
hole on the sink and tighten the spray lock nut
(F) onto the spray holder shank.
Installation
2
A
C
1
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
Shut off the water supply. Remove the old faucet.
Place the faucet (A) through the mounting holes in
the sink.
Ensure the gasket (H) is on the bottom of the new
faucet (A).
Clean off the mounting surface.
Secure the faucet (A) to the sink using the lock nuts
(C) provided.
NOTE: If the sink is uneven, use silicone under the
gasket (H).
H
G
E
F

5 HOMEDEPOT.COM/GLACIERBAY
11
2
2
1
2
2
3
Making the water supply
connections
Installation (continued)
5
D
G
Attaching the hose quick
connector
Remove the cap (I) from the quick connect
receiver on the faucet (A).
3
Use 1/2 in. I.P.S. faucet connections (1), or a 3/8 in.
O.D. ball-nose riser (2) with supply line coupling
nuts (3) .
Use a wrench to tighten the connections. Do not
over tighten or torque the copper supply line.
Installing the spray head
Screw the spray head (D) onto the spray hose (G).
4
Attach the quick connector end of the spray
hose (G) to the faucet quick connect receiver.
1
2
4
3
G
I
NOTE: For removal, see “Removing the Quick
Connecting Hose”.

6
2
1
2
3
If it is necessary to remove the quick connector,
push the quick connector housing up, hold the
housing together and pull down.
CAUTION: Use caution when removing the quick connector
hose to prevent cutting your hands.
Operation
Flushing and checking for leaks
Turn on the water supply to the faucet.
Remove the aerator (B) from the faucet (A).
Turn the handles on the faucet (A) and allow
the hot and cold water to run for at least 1
minute to ush out any debris and identify any
possible leaks.
When nished, turn the water off and replace
the aerator (B).
1
B
Removing the quick connector
hose
2
A
D
Operate the side spray to clear hose of trapped air.

7 HOMEDEPOT.COM/GLACIERBAY
Care and Cleaning
Troubleshooting
To clean, wipe down with a damp cloth and towel dry.
Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
NOTE: Refer to the service parts section in this manual
for a detailed drawing showing the location of the parts
listed below.
Problem Possible Cause Solution
There are leaks from the
handle.
□The bonnet nut is loose.
□The O-ring on the cartridge is dirty
or damaged.
□Tighten the bonnet nut.
□Clean or replace the O-ring.
The aerator leaks or has a
reduced water ow.
□The aerator is dirty or mis-tted.
□The cartridge may be clogged.
□Remove the aerator and check for
debris.
□Remove the cartridge and check for
debris.
□Ensure the aerator is properly
installed.
The water will not shut off
completely.
□The locking nut is loose or
cartridge is not positioned
correctly.
□Remove the handle and cartridge to
check the rubber seat and spring.
□Tighten the lock nut.
□Clean or replace.
The sink drain at the base of
the sink is leaking.
□The sink surface is rough or
irregular.
□Apply additional silicone sealant to
the beveled side of the drain ange.
□Retighten and test for leaks.

8
DATE CODE：
DO NOT REMOVE
1-888-328-2383
HOT
Faucet ID Tags can
be found on the
spray hose

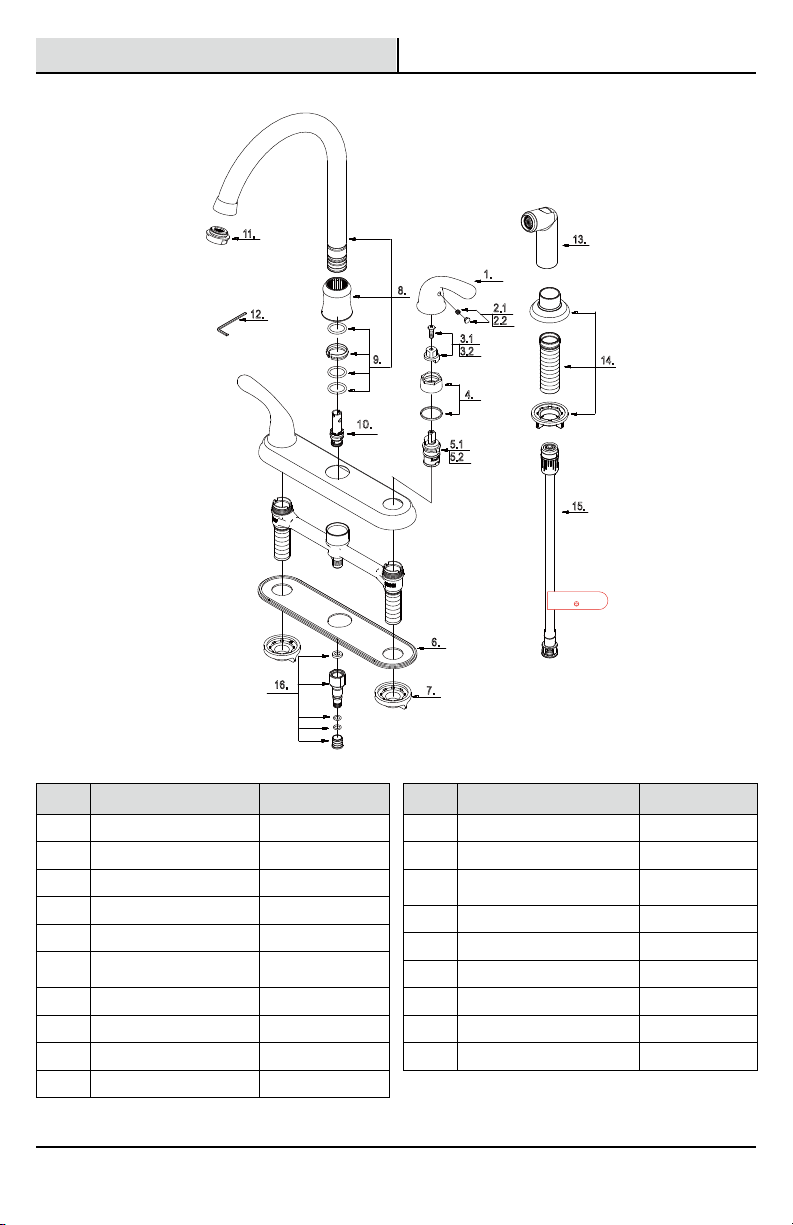

Service Parts
Part Description Part No.
1Handle (H or C) A069059*
2.1 Index Button (C) A603595C
2.2 Index Button (H) A603595H
3.1 Handle Adaptor (C) A66D574CZN-H
3.2 Handle Adaptor (H) A66D574HZN-H
4Bonnet Nut &
Washer A663629*
5.1 Cartridge (C) A507104N
5.2 Cartridge (H) A507103N
6 Gasket A011003
7 Mounting Nut A504023
Part Description Part No.
8Spout Assembly A666457N
9 Spout Set A663040N
10 Spray Diverter
w/ Vacuum Breaker A66G391
11 Aerator A500274N-64*
12 Allen Wrench A031000NI
13 Side Spray A503002N*
14 Spray Holder Assembly A220008*
15 Spray Hose A511008N
16 Sealing Kit A66G352N
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM.

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
