Glacier bay HD67441W-0091 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
TWO-HANDLE KITCHEN FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
11/2018 REV.01HOMEDEPOT.COM
Model#
HD67441W-0091
HD67441W-0073
Internet#
306838704
306838699
SKU#
1003911332
1003911334

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................6
Troubleshooting........................................6
Service Parts ........................................... 7
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts..
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Tools and Hardware Required ...............2
Operation...................................................6
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.
SILICONE
Silicone
sealant

3
Pre-Installation (continued)

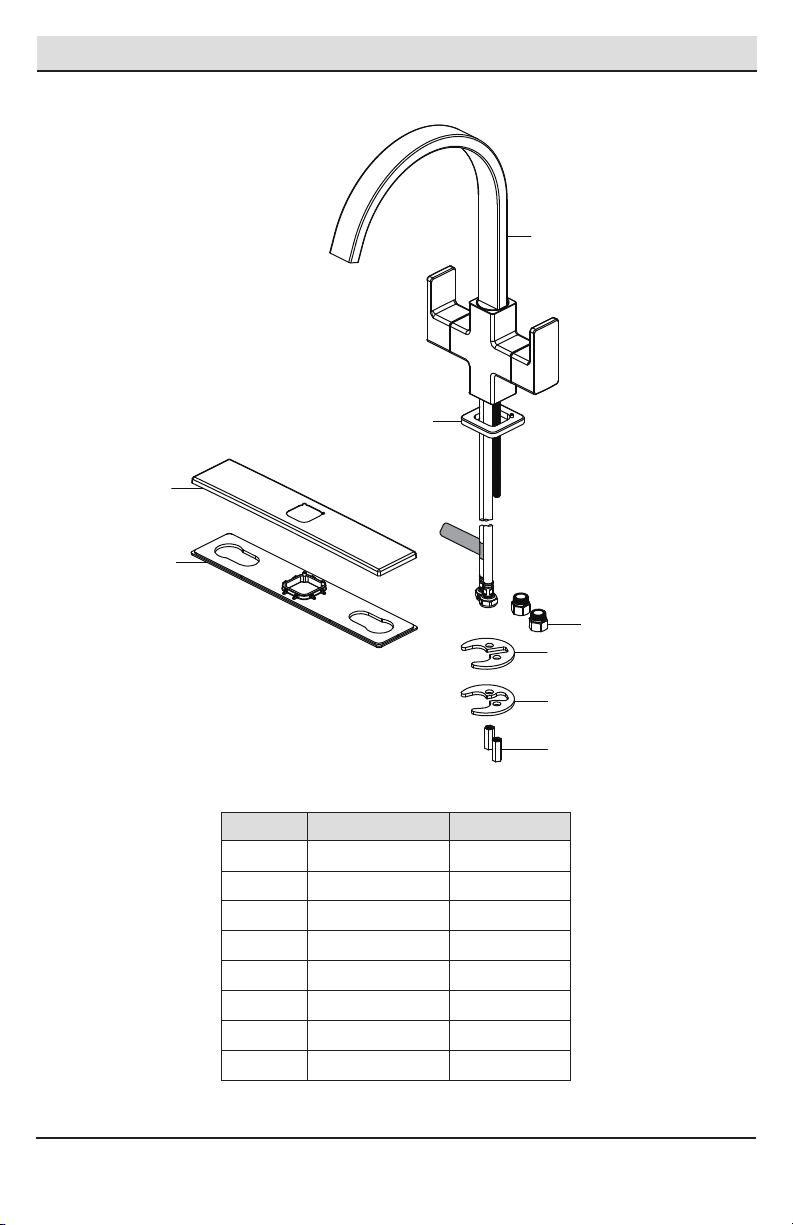

PACKAGE CONTENTS
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
Part Description Quantity
A 1Faucet assembly
B 1Rubber washer
C 1Metal washer
D 2Lock nut
E 1Flange
F 1Escutcheon
G 1Gasket
H 2Connector
A
B
C
D
E
F
G
H

4
□Place the escutcheon (F) and the gasket (G) on
the bottom of the new faucet assembly (A).
□Insert the faucet assembly (A) through the hole
in the escutcheon (F).
NOTE: A silicone is required under the gasket (G).
A
E
SILICONE
A
F
G
E

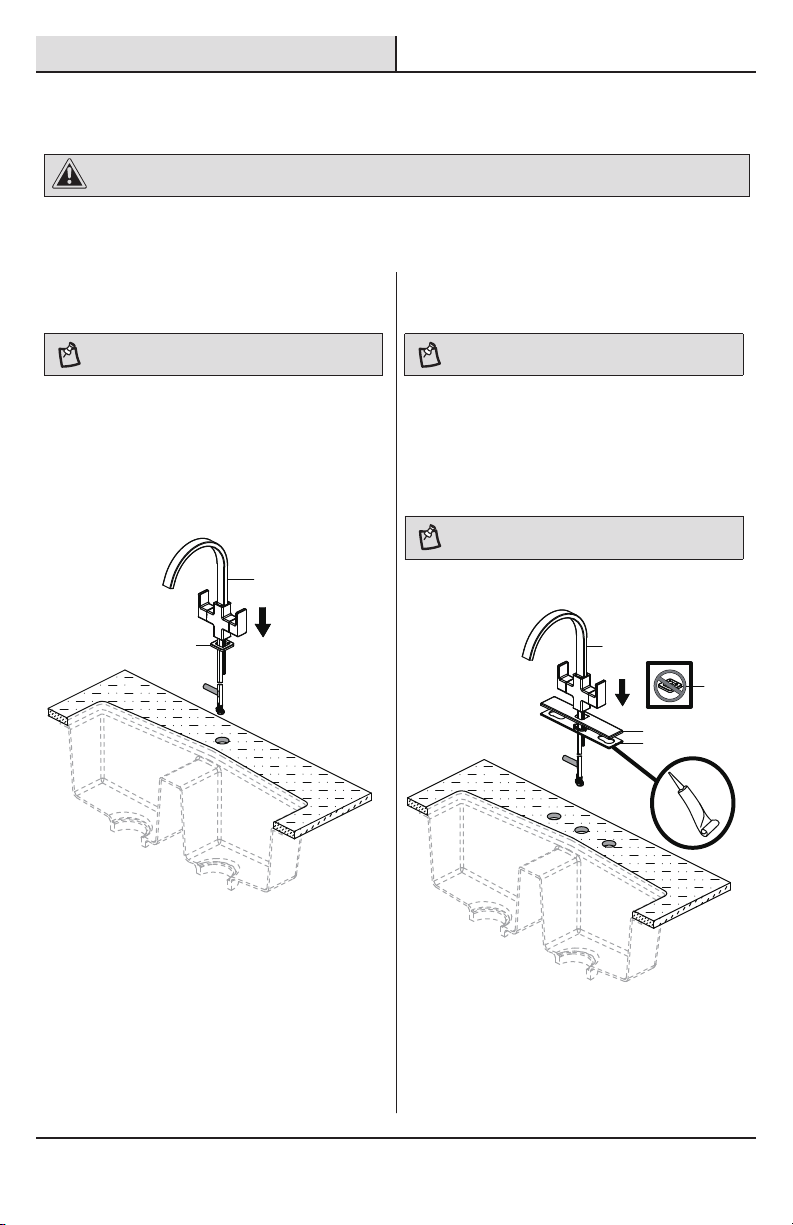

Installation
1 Installing the faucet assembly
CAUTION: Always shut off the water supply before removing an existing faucet or replacing any part of a faucet. Open the faucet handle
to relieve water pressure and ensure that the water is completely shut off.
1b
□Before installation, remove the ange (E).
NOTE: This step is for escutcheon installation (optional).
□Shut off the water supply. Remove the old faucet. Clean the mounting surface.
□Unscrew the nuts (D), and remove the washers (B & C).
1a
□Before installation, ensure that the ange (E)
is placed on the bottom of the new faucet
assembly (A).
□Insert the faucet assembly (A) through the hole
in the sink.
NOTE: This step is for ange installation (optional).

5
Installation (continued)
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.

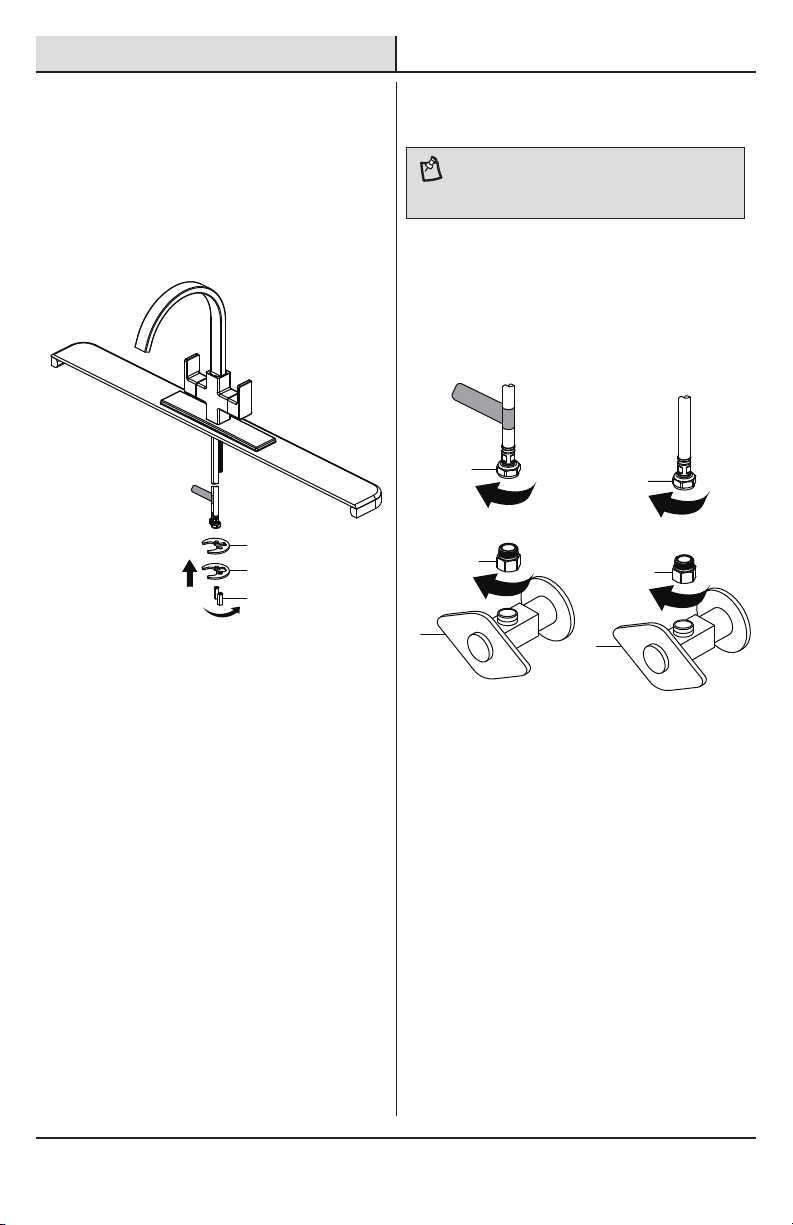

2 Securing the faucet assembly
□From underneath sink, secure the faucet
assembly (A) with the rubber washer (B),
metal washer (C) and nuts (D). Use the wrench
to tighten the nuts (D).
B
C
D
3Making the water supply
connections
□Thread the connector (H) onto the outlet of the
water supply valve (1), then thread the nut (2)
on the supply line onto the connector (H) and
tighten with a wrench. Do not overtighten.
NOTE: The hot side inlet tube is indicated by a label. Avoid
twisting wires together or placing the wires close to each
other and damaging. Clean the the screen lter in the
connector (H) regularly.
H
1
H
2
1
H
2
C
2
1
2
1

6

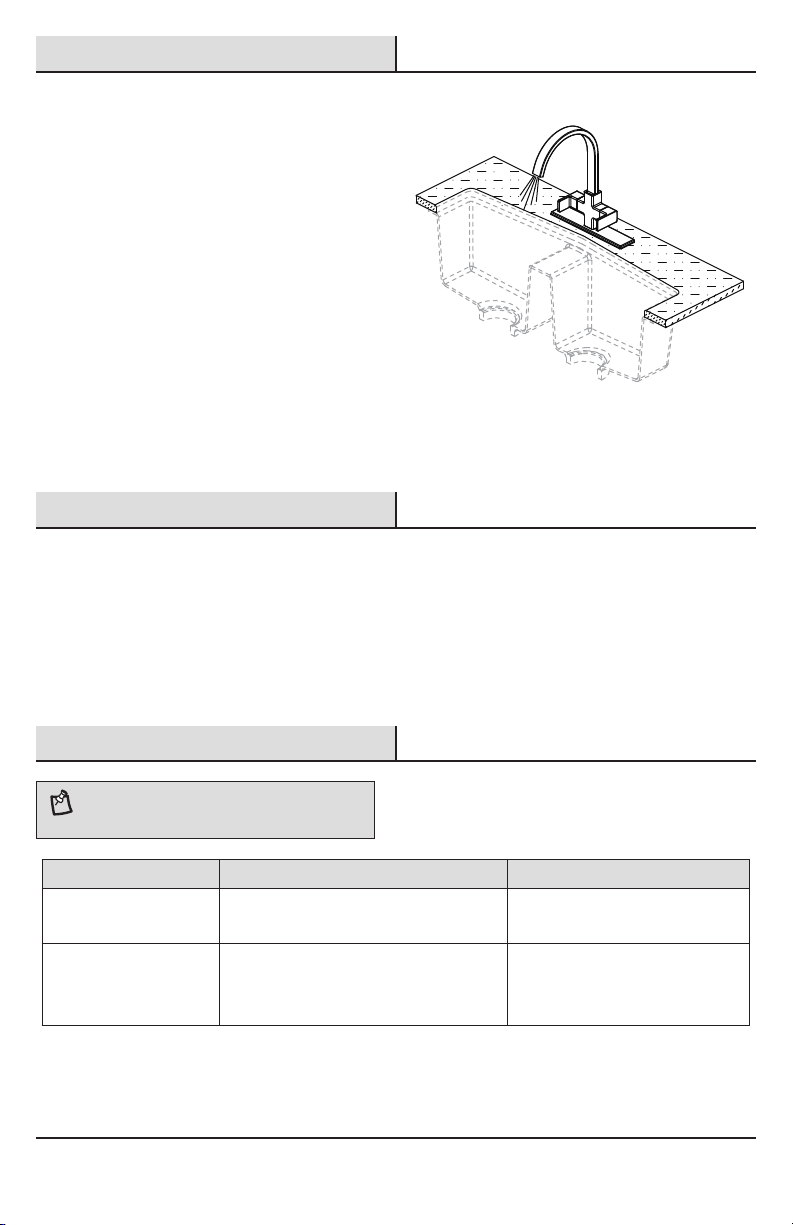

Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
1Flushing and checking for leaks
Operation
□Ensure the faucet (A) handles are in the off
position and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Turn on the hot and cold water handle to allow
the water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.

7

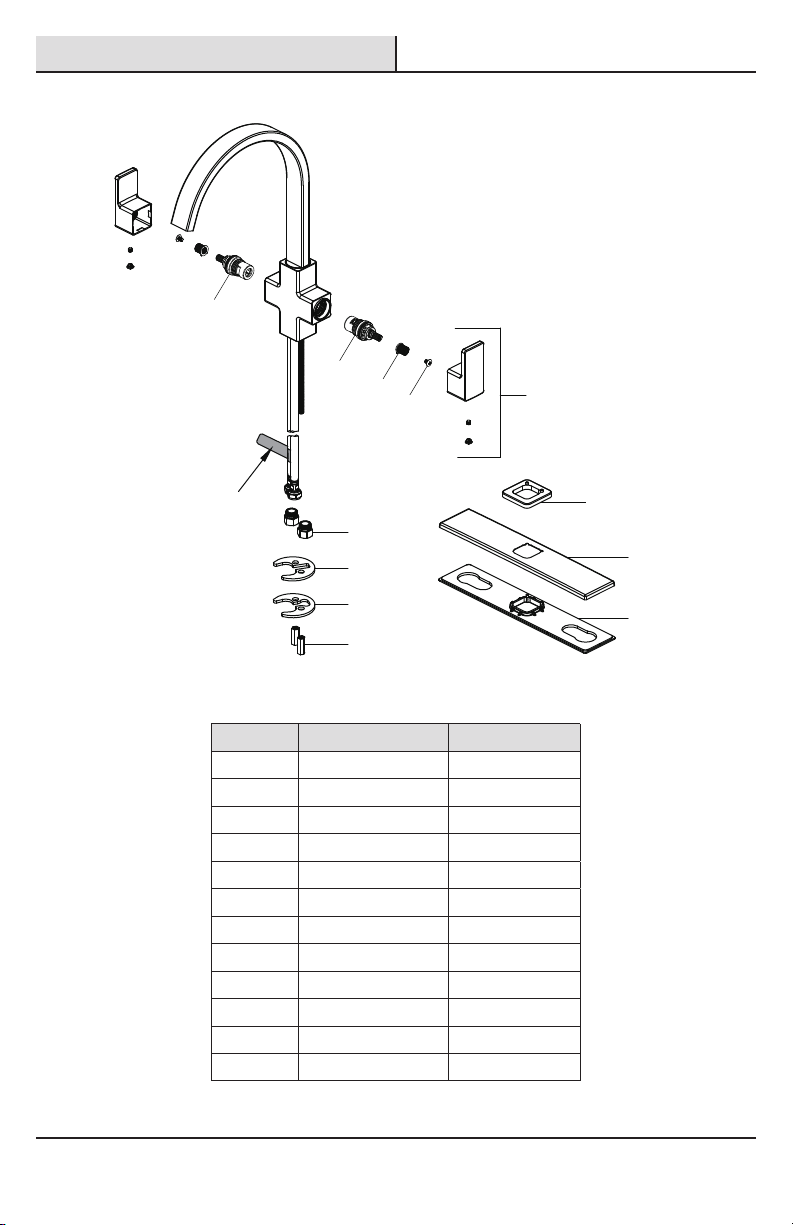

Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
Part Description Part Number
1 RP13668*
2 Screw RP50170
3 Inverter RP70396
4 Cartridge H RP20051
6 Connector RP70656
7 Rubber washer RP64008
8 Metal washer RP64009
9 Lock nut RP56111
Handle assembly
5 Cartridge C RP20050
10 Flange RP80690*
11 Escutcheon RP80691*
12 Gasket RP80692
1
2
3
4
5
6
7
8
9
10
11
12

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Retain this manual for future use.
