Glacier bay HD65601-8004 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
TWO-HANDLE ROMAN TUB FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this roman tub
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
12/2017 REV.01HOMEDEPOT.COM
Model#
HD65601-8004
Internet#
304685561
SKU#
1003181244

Phillips
screwdriver Basin
wrench
2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents..................................3
Installation................................................4
Care and Cleaning ....................................7
Troubleshooting........................................7
Service Parts ........................................... 8
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
(2) Supply
lines
Tools and Hardware Required ...............2
Operation...................................................7
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

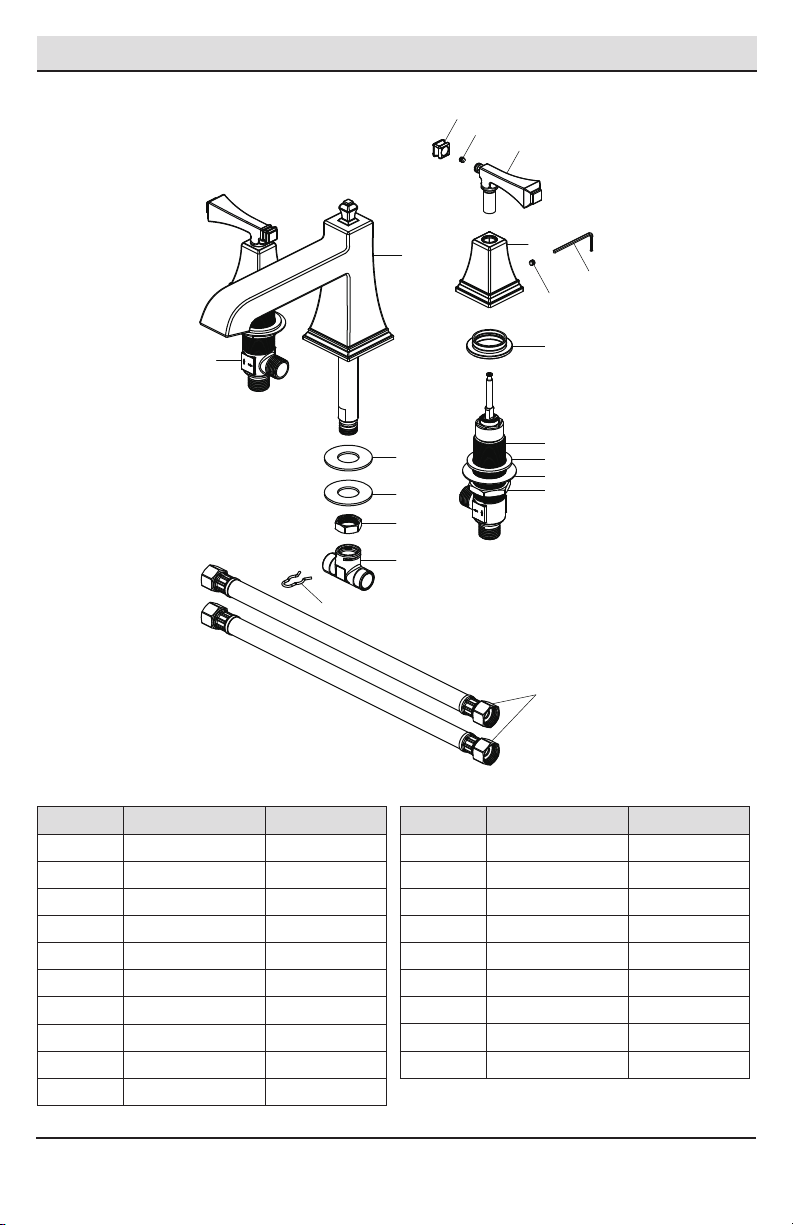

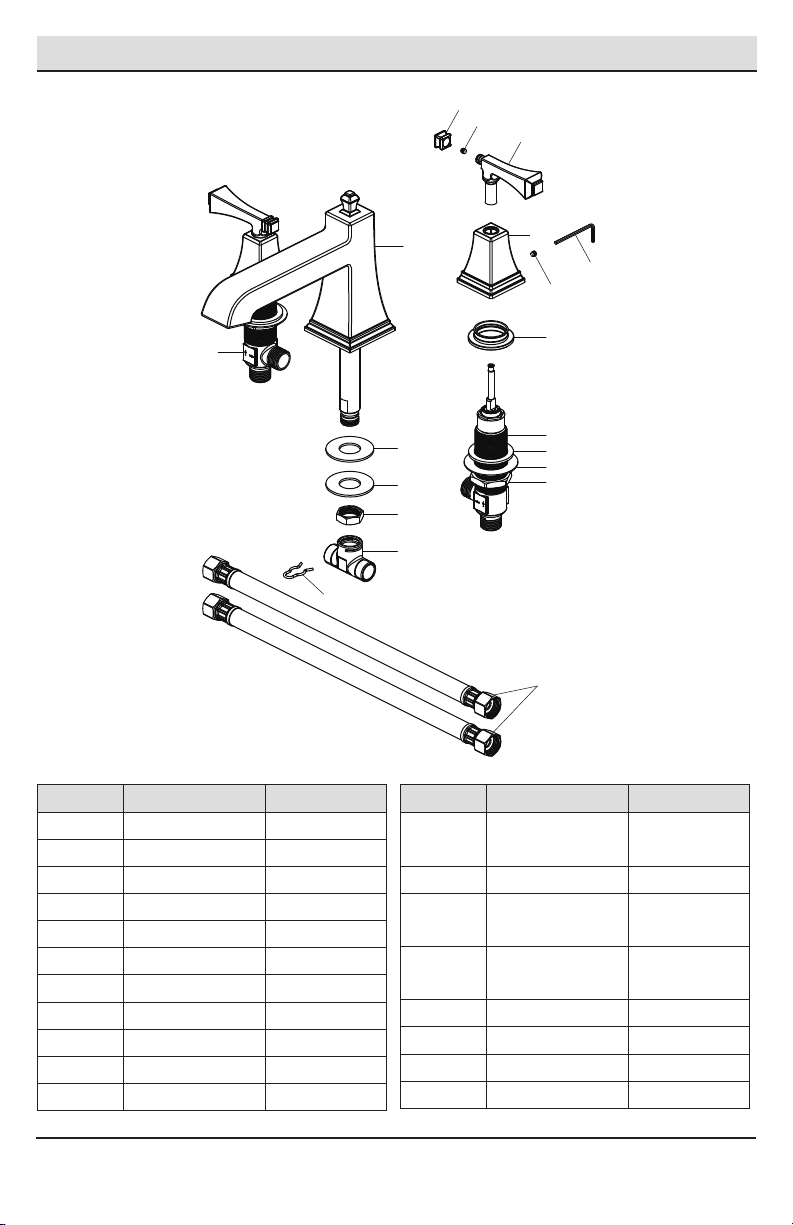

PACKAGE CONTENTS
Part Description Quantity
ET-tube 1
FClip 1
G 2
HSet screw 2
Accessorize cap
I 2
JHandle seat 2
Handle
Part Description Quantity
ASpout assembly 1
BRubber washer 1
CMetal washer 1
DMounting nut 1
PRubber washer 2
QMetal washer 2
R 2
SHose 2
Mounting nut
KSet screw 2
L2.5mm hex wrench 1
MFlange 2
NHot end valve 1
OCold end valve 1
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
A
B
C
D
E
F
G
HI
J
K
L
M
N
O
P
Q
R
S

4
Installation
1 Preparing for installation
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
2 Removing the mounting kits
□Remove the clip (F) and T-tube (E) from the
spout assembly (A).
□Loosen the mounting nut (D) and remove the
washers (B & C) from the spout assembly (A).
□Shut off the water supply. Remove the old
faucet.
□Clean the mounting surface.
□Drill holes in the nished deck as shown in
the diagram below.
5 in. min.
8~16 in.
3 in. min.
1-7/8 in. MAX. DECK THICKNESS
1-3/8 in.
Diamter
1-1/8 in.
Diamter
1-3/8 in.
Diamter
NOTE: This kit allows up to 1-7/8 in. deck thickness.
3 Installing the spout assembly
□Insert the spout assembly (A) through the hole
in the deck.
□Secure the spout assembly (A) with the rubber
washer (B), metal washer (C) and mounting
nut (D).
A
B
C
D
E
F
A
B
C
D

5
Installation (continued)
4 Removing the mounting kits
□Remove the accessorize caps (G). Loosen the
set screws (H & K) with the Hex wrench
(Hex: 2.5mm, L) and remove the handles (I)
& handle seats (J).
□Loosen the anges (M) from the valve bodys
(N & O). Adjust the rubber washers (P), metal
washers (Q) and mounting nuts (R) to the
bottom of valve bodys (N & O).
5 Installing the valve bodies
□From underneath the deck, insert the cold end
valve (O) with the rubber washer (P), metal
washer (Q) and mounting nut (R) through
the hole on the right (cold) side.
□From above, thread the ange (M) onto the
valve body (O).
□Tighten the mounting nut (R) using a basin
wrench, so that the ange (M) sits ush against
the nished deck surface.
□Repeat this procedure for the hot end valve (N)
on the left (hot) side.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
NOTE: The hot end valve is identied with a label.
6 Installing the handle
□Place the handle seat (J) onto the right (cold)
ange (M) and the handle (I) onto the handle
seat (J). Place the set screw (K & H) into handle
seat (J) & handle (I) and tighten set screw (K & H)
with the Hex wrench (Hex: 2.5mm, L). Place the
accessorize cap (G) onto the handle (I).
□Place the other handle onto the left (hot) valve
and install the same way.
G
HI
L
J
KL
M
O
P
Q
R
G
H
I
J
K
M
P
Q
R
N
M
O
P
Q
R
N
G
HI
L
J
K
L
M

6
Installation (continued)

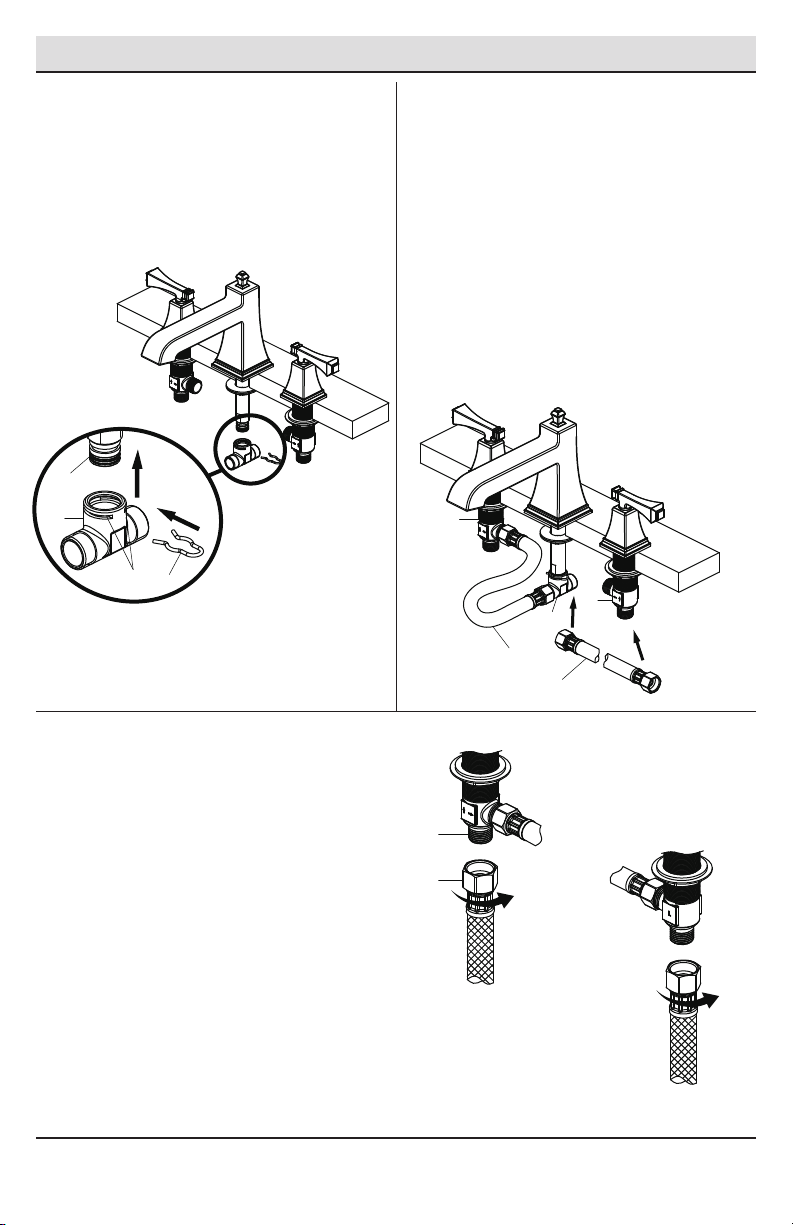

7 Installing the T-tube
□From below the deck, push the T-tube (E) onto
the spout shank (1) until it is completely seated.
Place the clip (F) through the slots (2).
9 Making the water supply
connections
□Connect the water supply lines (1) to the
faucet inlets (2). (Supply lines are not
included.)
8 Connecting the hoses
□Connect the hoses (S) to the bottom of the
hot and cold end valves (N & O), as shown.
□Align the T-tube (E) in a position that will
allow maximum clearance to connect the
hoses (S).
□Carefully bend the hoses (S) to t in the
available space, and carefully thread the hose
(S) couplings onto the sides of the T-tube (E).
Tighten all connections with a wrench.
E
F
1
2
E
S
S
N
O
1
2

7
Operation
1Flushing and checking for leaks
□Ensure the faucet handles are in the off position,
and turn on the water supply to check for leaks.
If you discover any leaks, check your connections
to ensure they are installed properly.
□Turn on the hot and cold handles to allow the
water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water.
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.

8

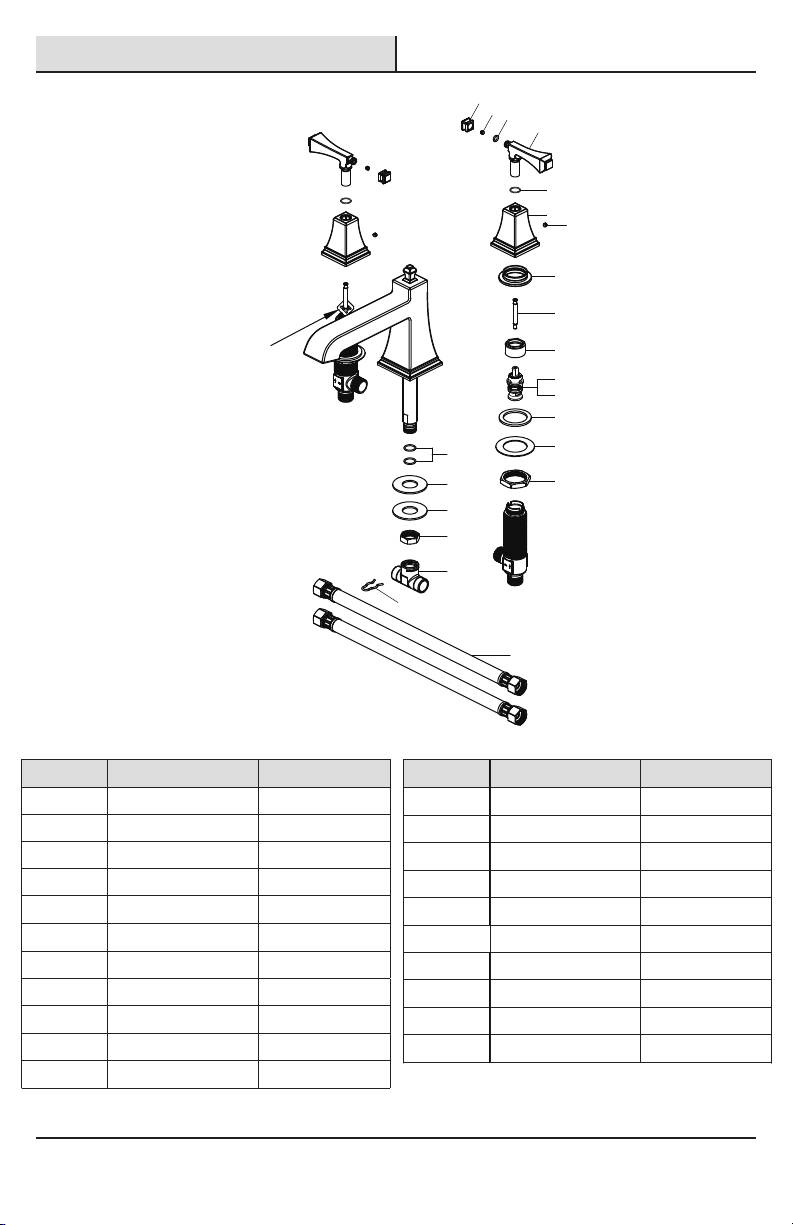

Service Parts
*Specify Finish
Faucet ID tags can be
found by removing
the hot water handle
17 Mounting nut RP56015
Part Description Part Number
Metal washer RP64033
Part Description Part Number
15
16
Rubber washer RP64032
1RP80044*
5 Handle seat RP17023*
6
8
9
10
Flange RP17051
7
Bonnet nut RP70001
12
Cartridge H RP20067
Accessorize cap
2RP50002 Set screw
3RP60022 O-ring
4RP13088* Handle
Connector RP50030
13
Cartridge C RP20068
14
Metal washer RP64024
Mounting nut RP56014
O-ring RP60047
11 Rubber washer RP64023
Hose RP70042
19
20
Clip RP70123
Wearable ring RP6405321
18 T-tube RP70124
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
1234
5
21
2
20
6
8
9
10
11
12
7
13
15
14
16
17
18
19

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Retain this manual for future use.
