Glacier bay HDQFP4F0005CP Assembly instructions

INSTALLATION AND CARE GUIDE
THANK YOU
We appreciate the trust and confidence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
PULL-DOWN KITCHEN FAUCET
SKU#
1008088887
1008088847
1008089071
1008089126
OMSID#
321486751
321486804
321486590
321486571
Model#
HDQFP4F0005CP
HDQFP4F0005SS
HDQFP4F0005BL
HDQFP4F0005OB

2
□Observe all local plumbing and building codes.
□Cover the drain in your sink to avoid losing parts.
□Review the care and cleaning section included in this guide.
Important Information..............................2
Warranty ...................................................2
Pre-installation.........................................2
Planning Installation ................................2
Tools and Hardware Required..................2
Package Contents....................................3
Installation................................................4
Operation...................................................7
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts.............................................9
Table of Contents
Important Information
Warranty
Pre-installation
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-
434-5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental / inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
a five year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specific legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Before you begin to install this product, ensure that all parts are present. Compare parts with the package
contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service for
replacement parts.
LIMITED LIFETIME WARRANTY
PLANNING INSTALLATION

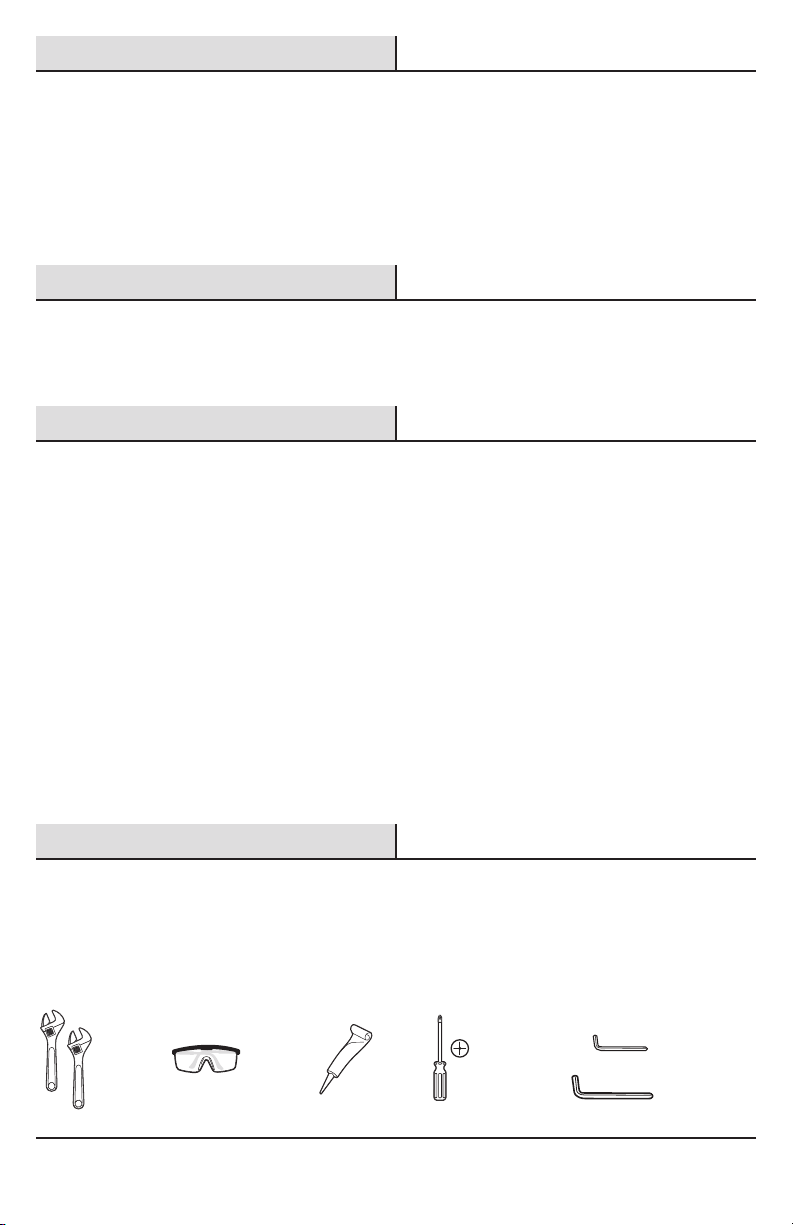

TOOLS AND HARDWARE REQUIRED
SILICONE
(2)
Adjustable
wrenches
Safety
goggles Silicone Phillips
Screwdriver Large Hex wrench
Small Hex wrench

3HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Pre-Installation (continued)

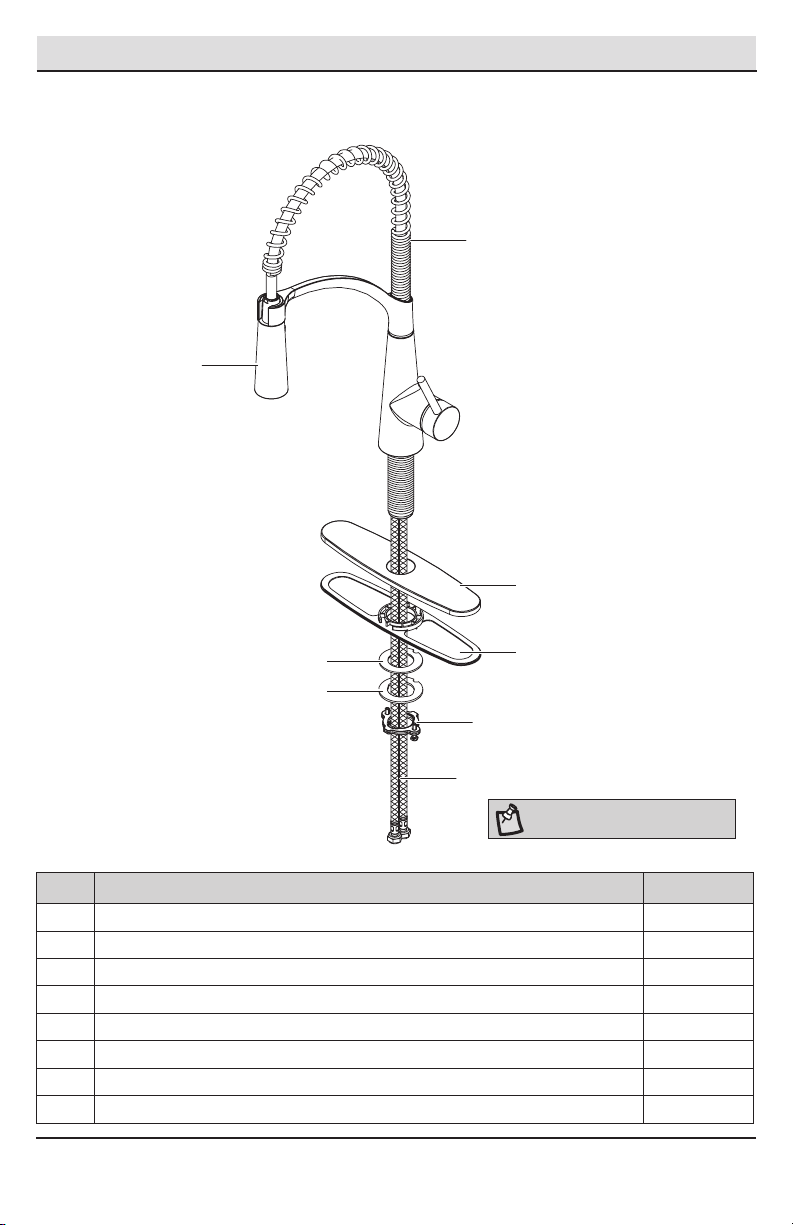

PACKAGE CONTENTS
Part Description Quantity
A Faucet Body 1
B Pull-down spray 1
C Deck Plate 1
D Putty Plate 1
ERubber Washer 1
FMetal Washer 1
G Lock Nut (preassembled) 1
H Water Supply Line (preassembled) 2
NOTE: *Items come pre-assembled.
A
B
C
D
E
F
G
H

4

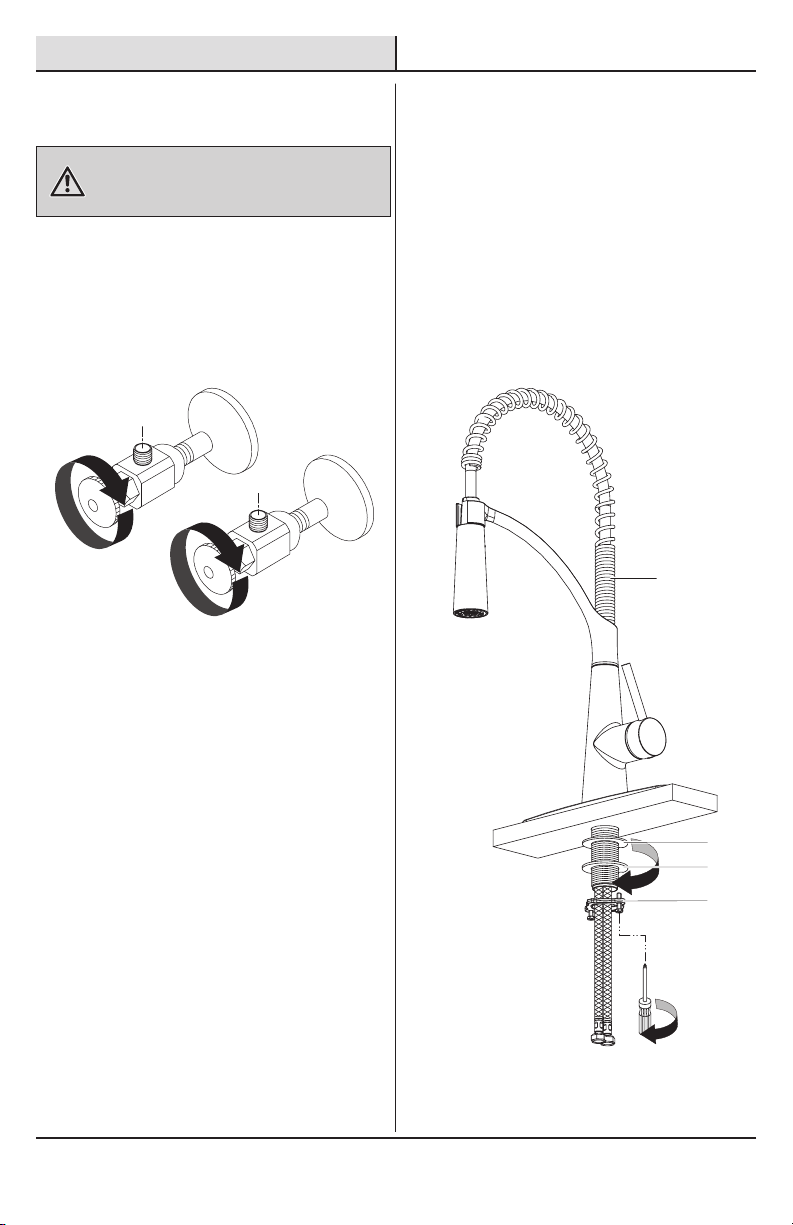

Installation
□Turn off the water supply. Remove the existing
faucet if necessary.
□Unscrew the lock nut (G) from the shank of the
faucet body (A). Remove the lock nut (G), metal
washer (F) and rubber washer (E) from the
shank of the faucet body (A).
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
1 Turning off the water supply 2 Securing the faucet
COLD
HOT
A
E
F
G

5HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

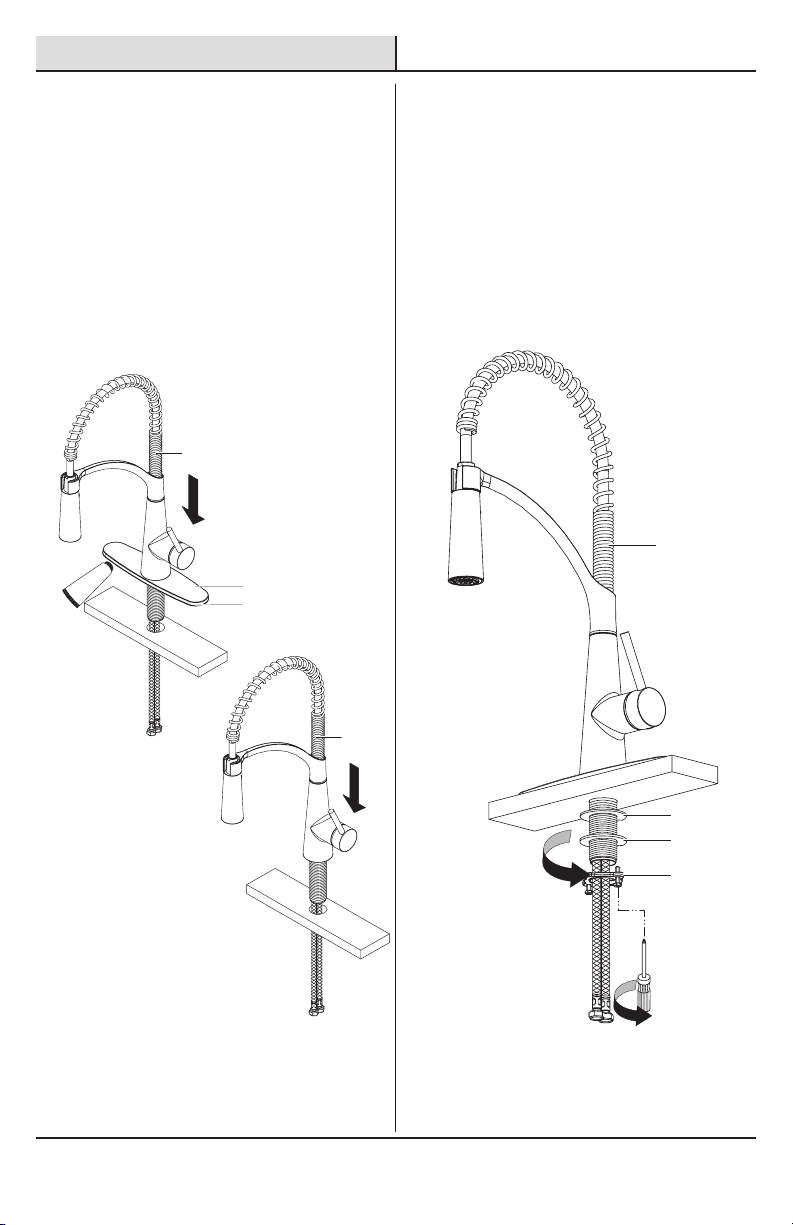

3 Installing the faucet 4 Securing the faucet
Installation
□Without deck plate installation: Install the faucet
body (A) through the top of sink (not included).
□With deck plate installation: Place a bead of
clear silicone sealant (not included) around the
base of the putty plate (D). Place the putty plate
(D) and deck plate (C) on the sink (not included).
Insert the faucet body (A) through the deck plate
(C).
□Slide the rubber washer (E), and the metal
washer (F) onto the shank of the faucet body (A).
□Secure the faucet body (A) to the sink with the
lock nut (G) and preassembled screws.
A
E
F
G
A
A
C
D

6
A
A
B
B
Installation (continued)
Operation
5 Attaching supply lines
□Remove the spray head (B) from the faucet body (A).
□Turn on the water supply.
□Flush out any debris. Check for leaks.
□Replace the spray head (B).
□Identify hot and cold water supply valves below
the sink. Connect and tighten the water supply
line nuts by using two adjustable wrenches
(avoid twisting or kinking).
Flushing and checking for leaks
1
BLUE LINERED LINE
COLD
HOT

7HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Problem Possible Cause Solution
There are leaks from the
handle.
□The bonnet nut is loose.
□The O-ring on the cartridge is
dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the O-ring.
The pull-down spray leaks or
has a reduced water flow.
□The pull-down spray is dirty or
mis-fitted.
□The cartridge may be clogged.
□Remove the pull-down spray and
check for debris.
□Remove the cartridge and check for
debris.
□Ensure the pull-down spray is
properly installed.
There are leaks from the hose
underneath the deck.
□The connection between the
pull-down spray and pull-down
spray hose may be loose.
□Tighten the connection between the
pulldown spray and pull-down spray
hose.
The hose does not retract. □The weight is not installed in the
correct position.
□The pull-down spray hose is
obstructed.
□Reinstall or readjust the weight.
□Check under the sink to ensure
the pull-down spray hose is not
obstructed.
The water pressure is low. □The quick connector may be
clogged with debris.
□Turn off the water supply and
disconnect the quick connector from
the outlet hose.
□Disconnect the quick connector from
the pull-down spray hose and flush
under running water.
□Reattach the quick connector to the
outlet hose.
□Test water flow. If water pressure
is still low then replace the quick
connector.
There is no hot or cold water. □The hot or cold water supply
lines may be kinked or twisted.
□Ensure hot and cold water supply
lines are not kinked or twisted.
Reinstall the supply line if necessary.
Care and Cleaning
Troubleshooting
NOTE: Refer to the service parts section in this manual for a
detailed drawing showing the location of the parts listed below.
□To clean, wipe down with a damp cloth and towel dry.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will be
voided.

8
Service Parts
Part Description Part No.
1Metal Handle Assembly A662358-T*
2 Index Button A66D558
3Handle Trim Ring A103062*
4 Adjusting Ring A104072
5 Ceramic Disc Cartridge A507348N
Part Description Part No.
6 Spray Hose A515213N*
7 Clip A012318KP-T
8 Pull-Down Spray Head A568025N*
9 Mounting Hardware A603171
10 Cover Plate & Putty Plate A667A48*
1.
2.
3.
4.
5.
6.
9.
7.
8.
10.
* Specify finish
NOTE: Many replacement cartridges, aerators,
and drain assemblies can be purchased at
your local The Home Depot store or online at
HOMEDEPOT.COM.

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
