Glacier bay ARNETTE HD67664W-6201 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
ARNETTE 8 IN. WIDESPREAD 2-HANDLE
BATHROOM FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this lavatory
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
2/2023 REV.01THD
Model#
HD67664W-6201
HD67664W-6204
HD67664W-6210H
Internet#
323008769
323188386
323188439
SKU#
1008656514
1008714854
1008714851

2
Table of Contents
Important Information ..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................8
Troubleshooting........................................8
Service Parts ........................................... 9
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts.

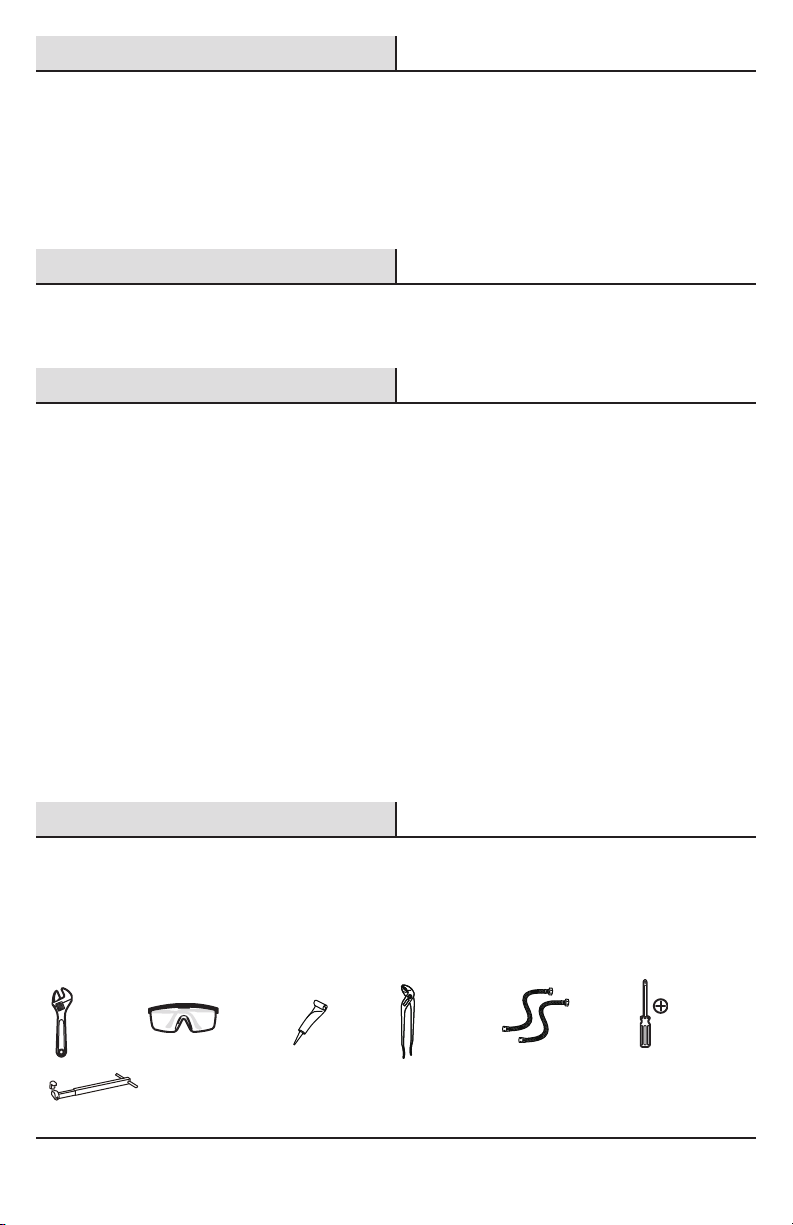

TOOLS AND HARDWARE REQUIRED
Tools and Hardware Required ...............2
Operation...................................................7
Phillips
screwdriver
Basin
wrench
Adjustable
wrench
Safety
goggles
Channel
lock pliers
(2) Supply
lines
SILICONE
Silicone
sealant
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

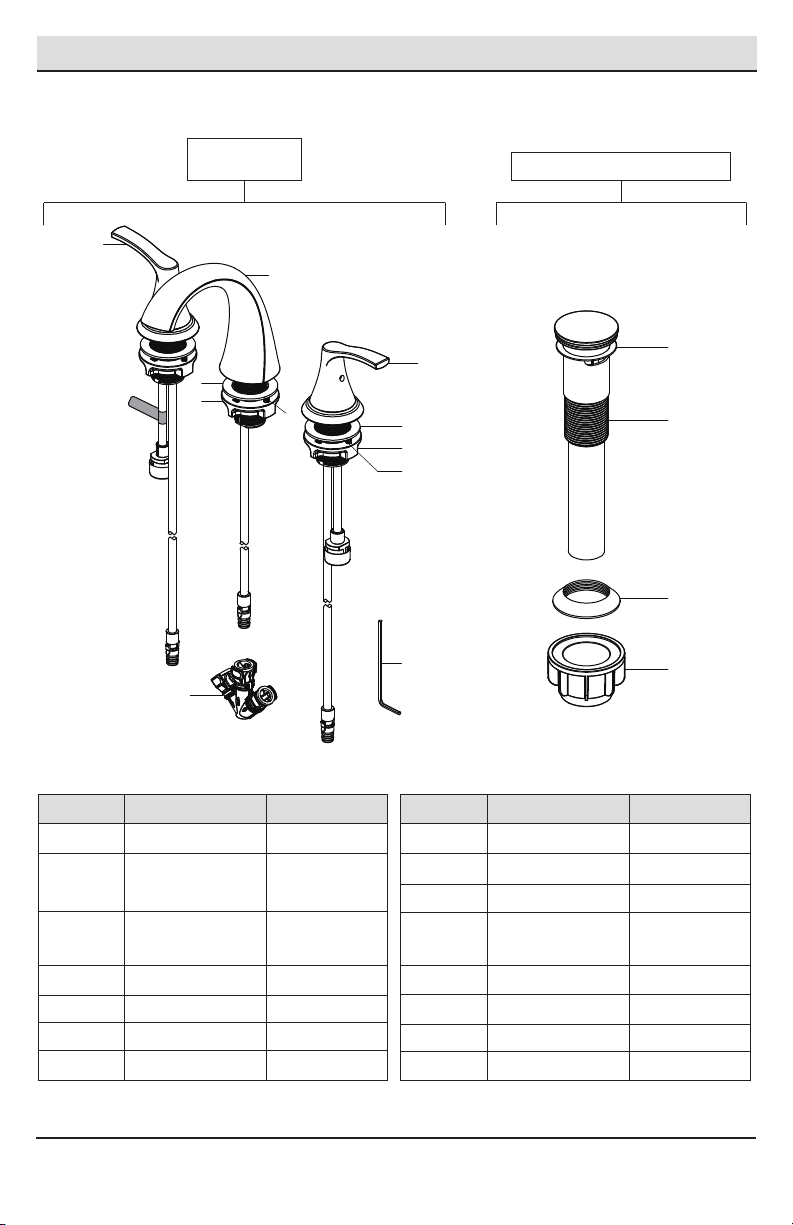

PACKAGE CONTENTS
Part Description Quantity
A 1
BHandle assembly
- Hot 1
CHandle assembly
- Cold 1
Faucet body
D 2
ENut (M30) 2
FScrew 4
Washer
G 1
HNut (M28) 1
IScrew 2
JQuick connector 1
K2.38mm hex wrench 1
Washer
Part Description Quantity
HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Faucet Assembly Press Pop-Up Assembly
L 1Top gasket
M 1Pop-up body
N 1Bottom gasket
O 1Nut
L
M
N
O
J
K
A
B
C
D
E
F
G
HI

4
Installation

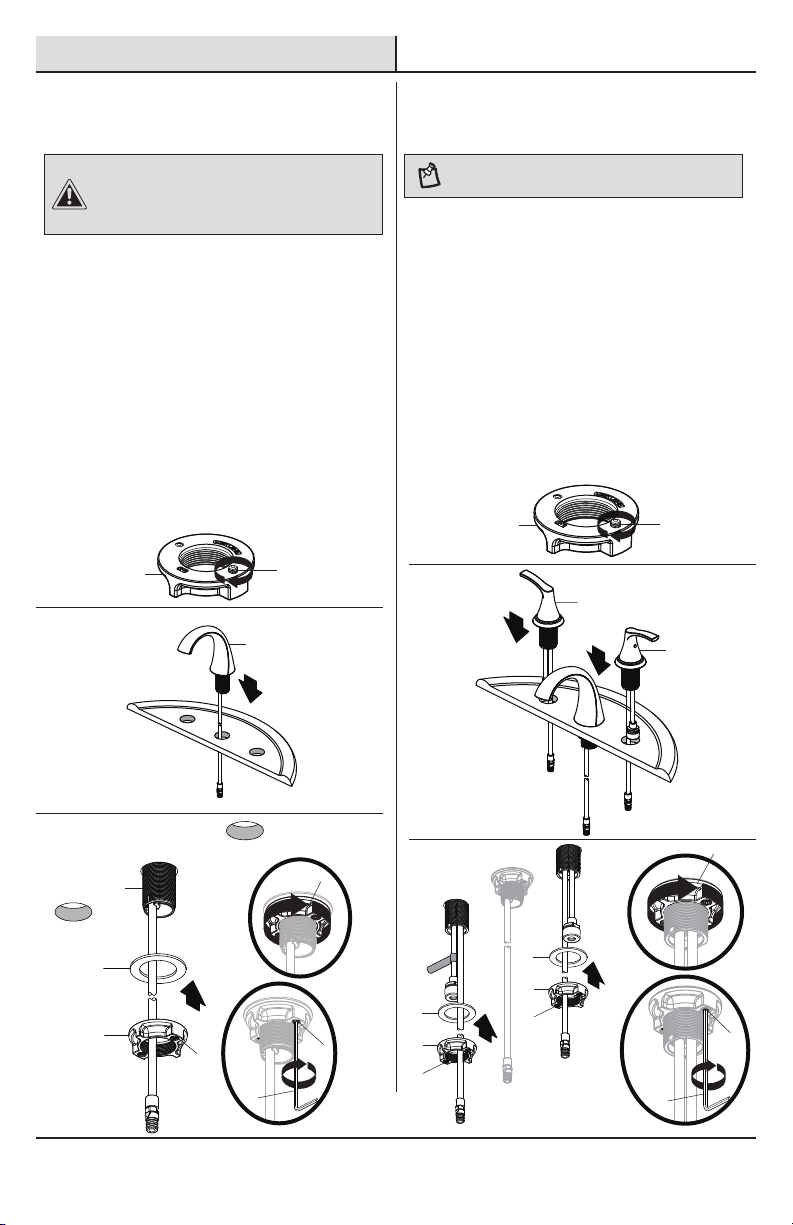

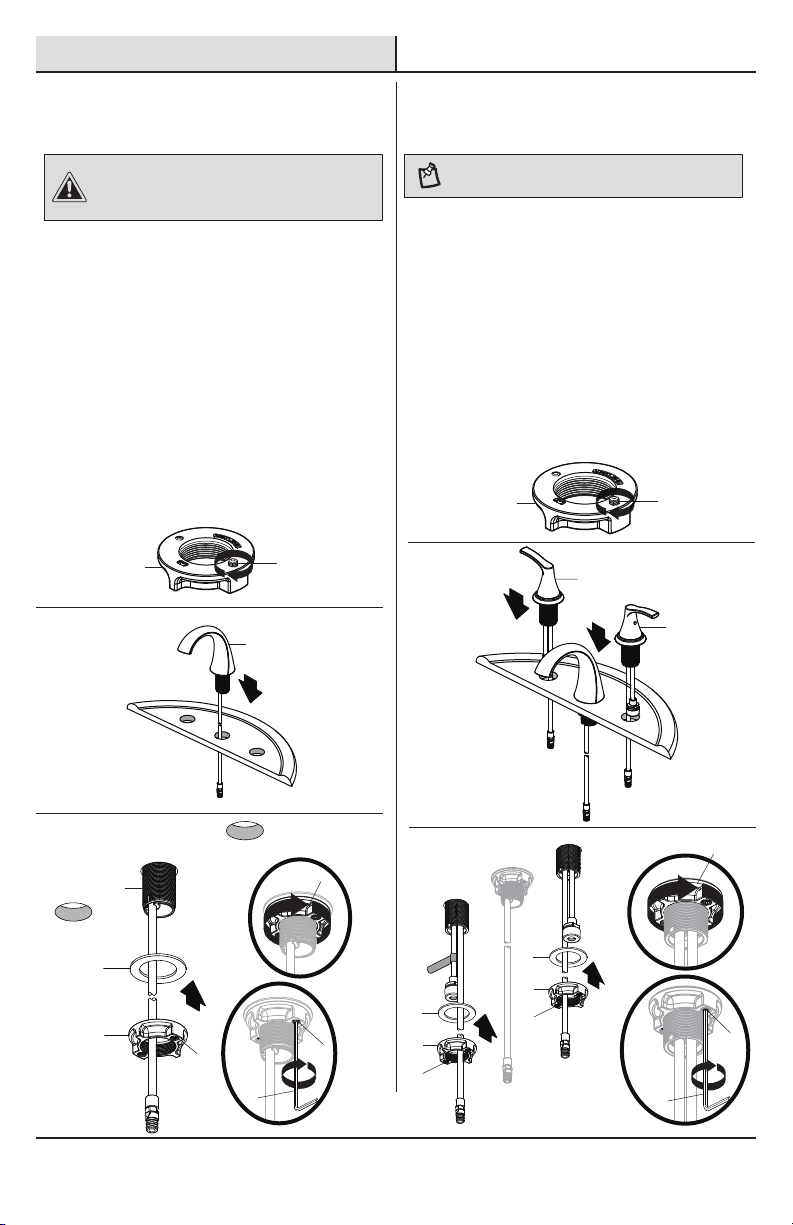

1 Installing the faucet assembly
CAUTION: Always shut off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Place the faucet (A) through the mounting
holes in the sink.
□Secure the faucet (A) to the sink using the
washer (G) and nut (H) provided. Securely
tighten the screws (I) on the nut (H) with the
Hex wrench (Hex: 2.38 mm, K) provided.
2 Installing the faucet handles
□Remove the preassembled nuts (E) and washers
(D) from the hot and cold faucet handles (B and C).
□Insert the hot faucet handle (B) to the left of the
spout and cold faucet handle (C) to the right of
the spout.
NOTE: The hot water valve is identied with a label.
□Shut off the water supply. Remove the old
faucet.
□Clean the mounting surface.
□Loosen the screws (F) on the nuts (E) until the
ends of the screws (F) are ush with the face of
the nuts (E).
□Attach the faucet handles (B and C) underneath
the sink using the washers (D) and nuts (E).
Securely tighten the screws (F) on the nuts (E)
with the Hex wrench (Hex: 2.38 mm, K) provided.
□Remove the preassembled nut (H) and
washer (G) from the new faucet (A).
□Loosen the screws (I) on the nut (H) until the
ends of the screws (I) are ush with the face
of the nut (H).
I
H
1
F
E
1
2
A
G
H
I
3
4
5
I
H
K
A
C
B
2
2
D
E
F
D
E
F
3
3
4
5
E
F
K

5 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.
Installation (continued)

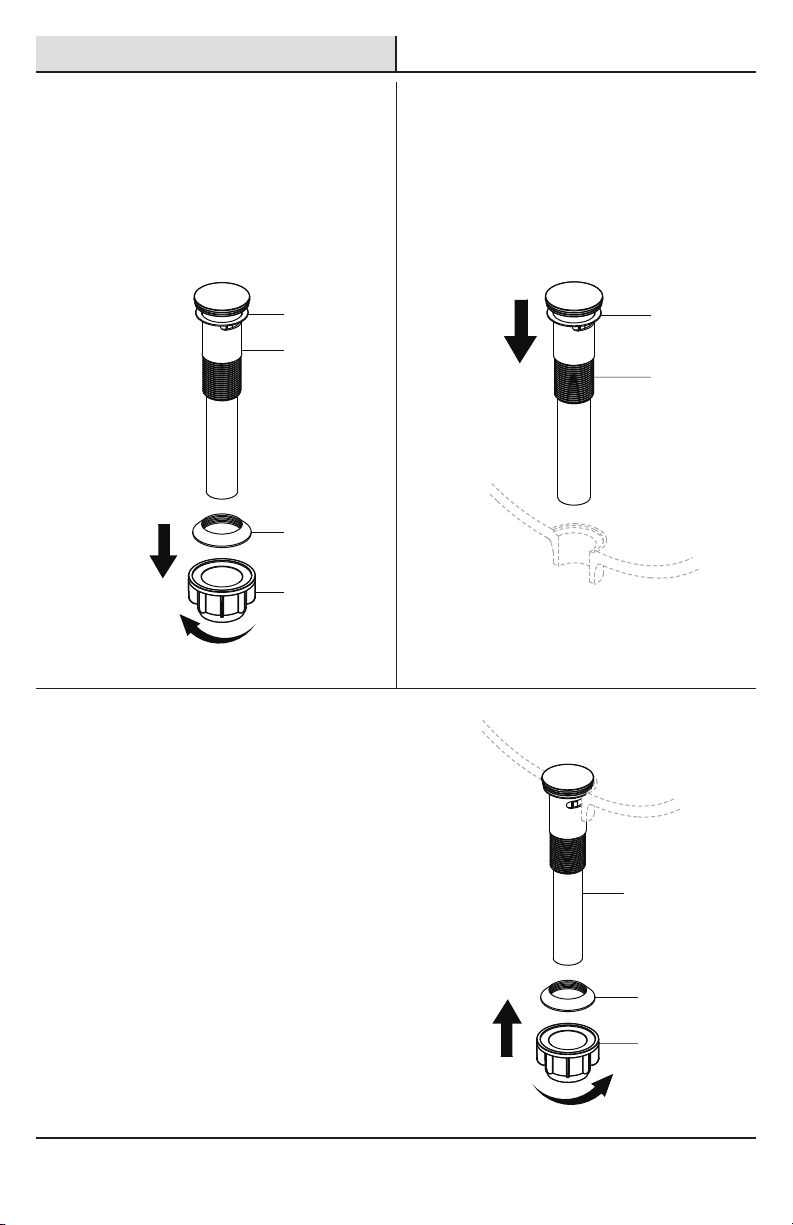

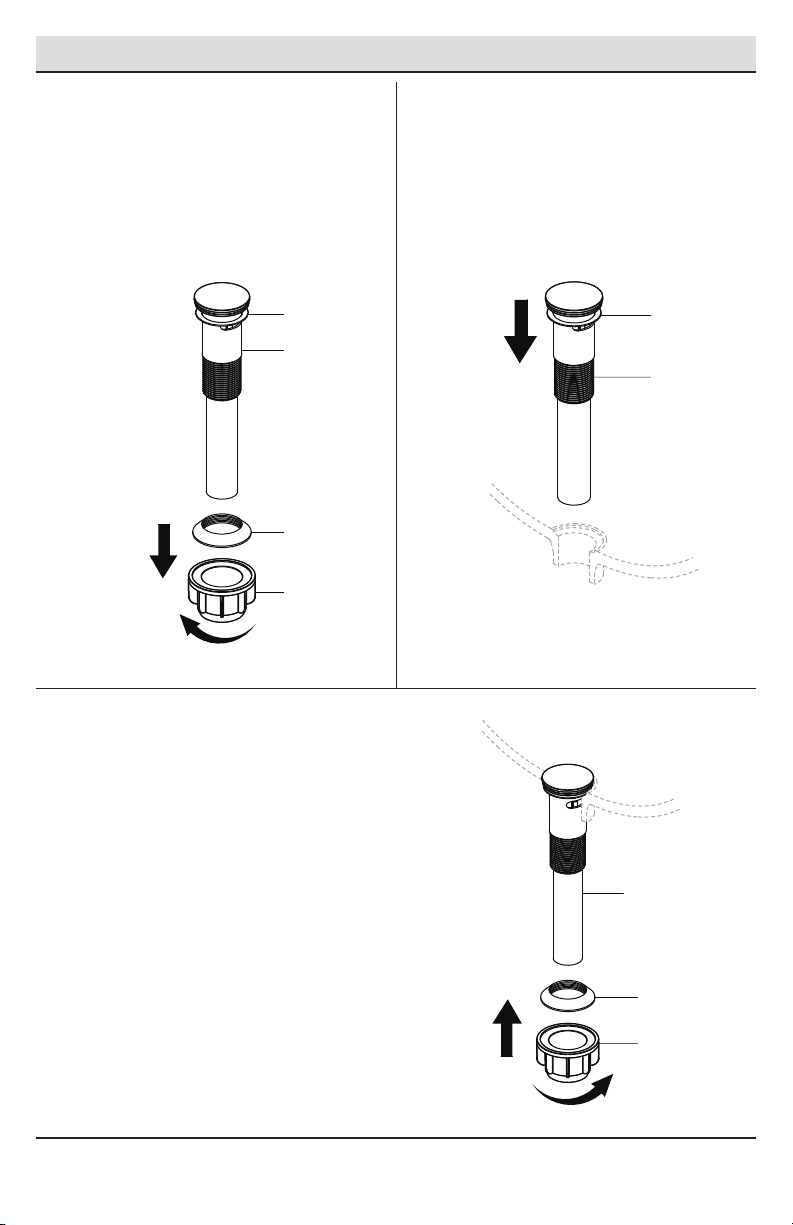

3 Preparing the pop-up assembly
□Remove the bottom gasket (N) and nut (O) from
the top gasket (L) and pop-up body (M).
□Attach these pieces together by pushing the
bottom gasket (N) down into the top of the
nut (O) and twisting together.
4 Installing the pop-up body
□Insert the pop-up body (M) into the sink. Ensure
that the top gasket (L) rests securely between
the top of the sink and the top of the pop-up
body (M).
5 Securing the pop-up body
□From underneath the sink, screw the bottom
gasket (N) and nut (O) assembly onto the pop-up
body (M) by twisting clockwise until secure.
L
M
L
M
N
O
M
N
O

6
Installation (continued)

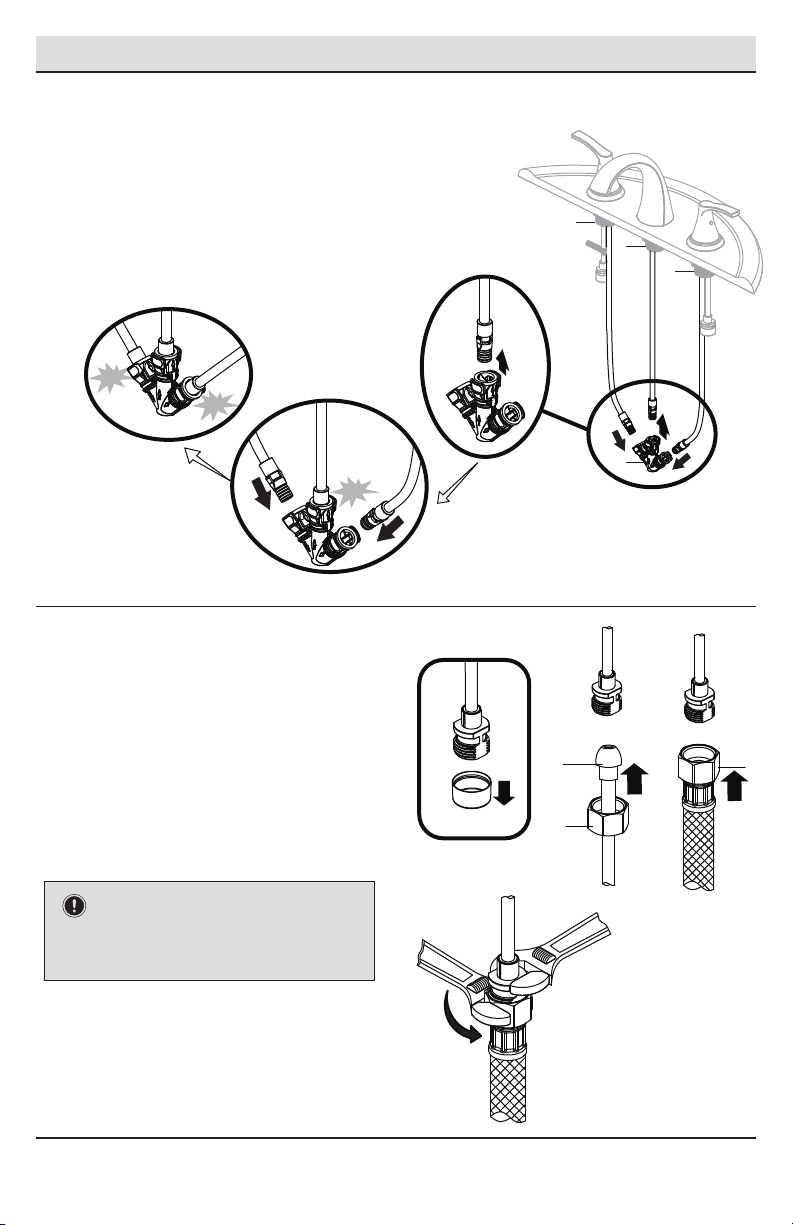

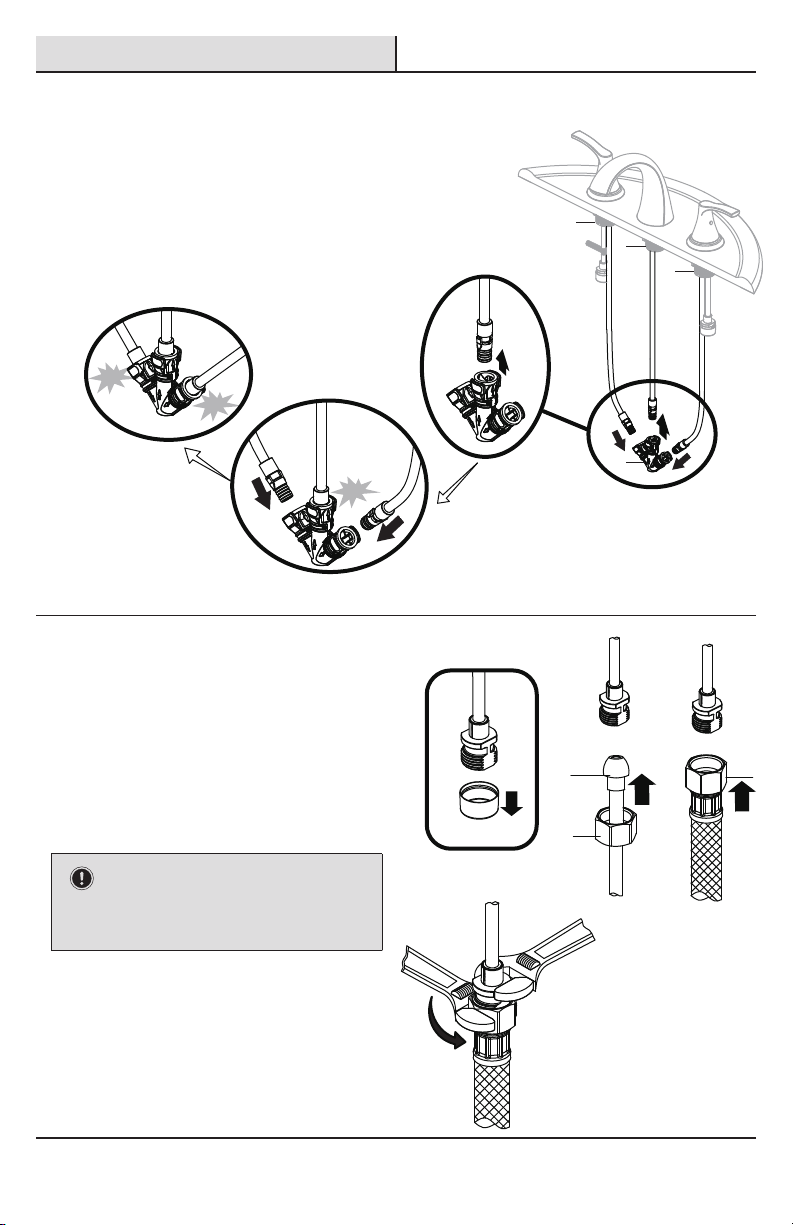

7Making the water supply
connections
6Attaching the quick connect
□Attach the quick connector (J) to the Spout (A)
connection, the hot faucet handle (B) connection,
and cold faucet handle (C) connection. Push until
the connections snap together.
□Pull down moderately to ensure the connections
have been made.
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
□If it is necessary to plug up one of the inlet tubes,
use a plug (not included) with a washer. 3
12
□Remove the sleeve from the inlet tube.
122
IMPORTANT: WHEN PRE-TIGHTENING THE WATER
SUPPLY LINE TO THE FAUCET CONNECTOR, A SECOND
WRENCH MUST BE APPLIED TO THE INLET SUPPLY TUBE
FITTING TO PREVENT IT FROM MOVING OR TWISTING
WHEN TIGHTENING THE WATER SUPPLY LINE. DO NOT
OVERTIGHTEN.
Click
Click
Click
1
2
2
J
C
A
B

7 HOMEDEPOT.COM/GLACIERBAY
Please contact 1-855-HD-GLACIER for further assistance.

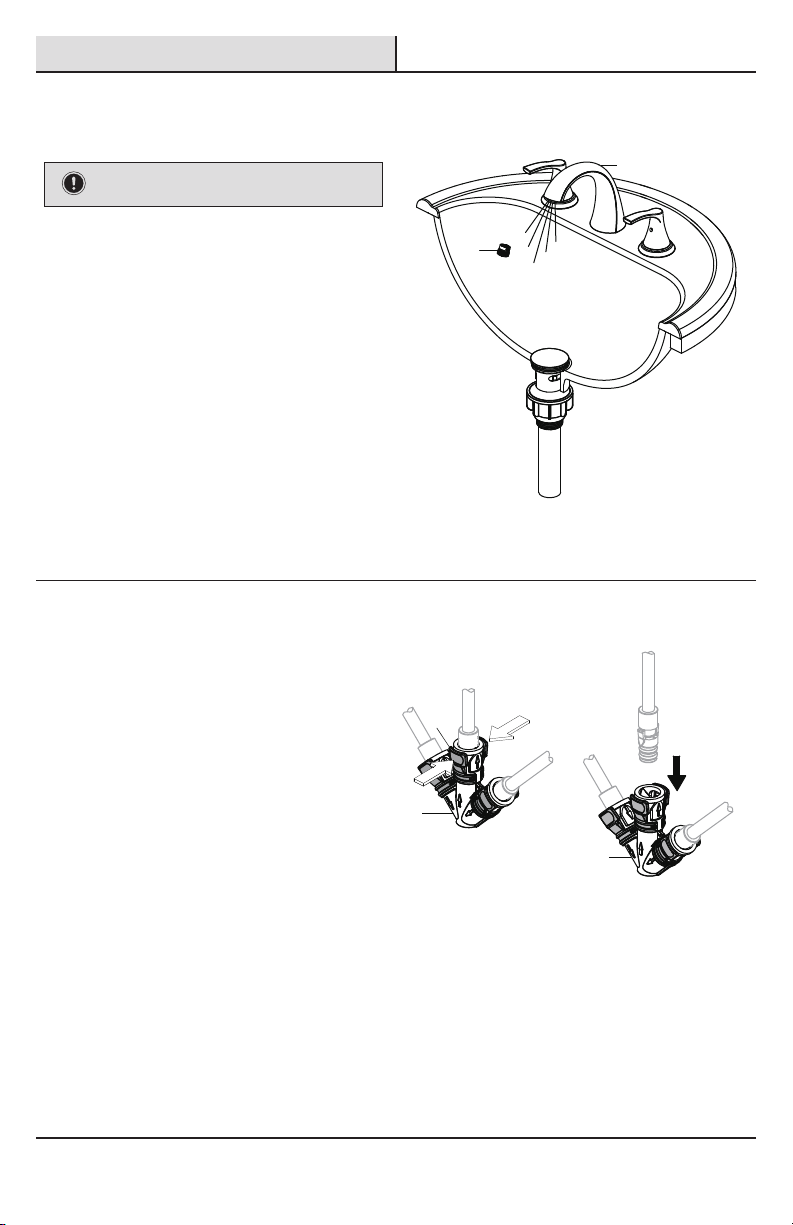

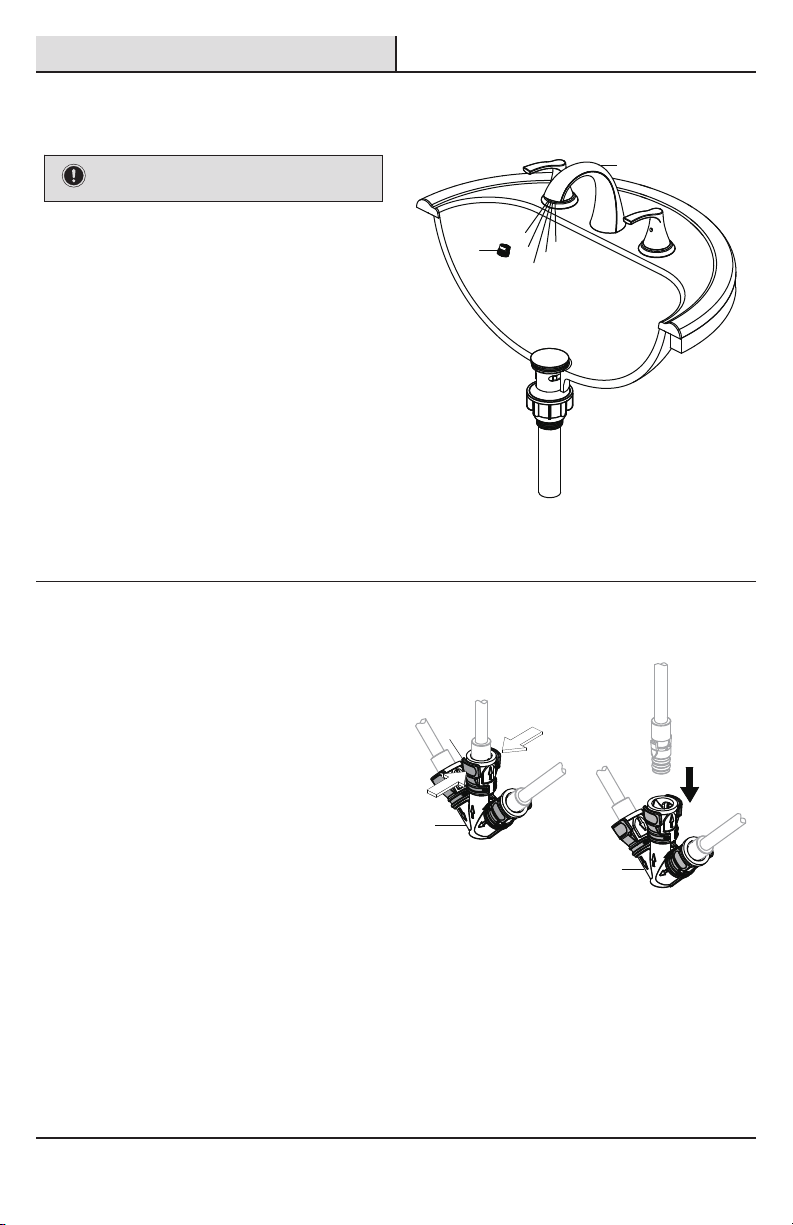

2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
Operation
1Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator (1) from the faucet (A) to ush the water lines.
□Ensure the faucet (A) handles are in the off
position and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold handles to allow the
water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
Squeeze
1
2
Pull
down
1
Squeeze
1
A

8
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
□Ensure that the rubber washer
is properly installed.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
The aerator is dirty or mis-tted.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or irregular surface. □Apply additional silicone sealant
to the beveled side of the drain
ange.
□Retighten and test for leaks.

9

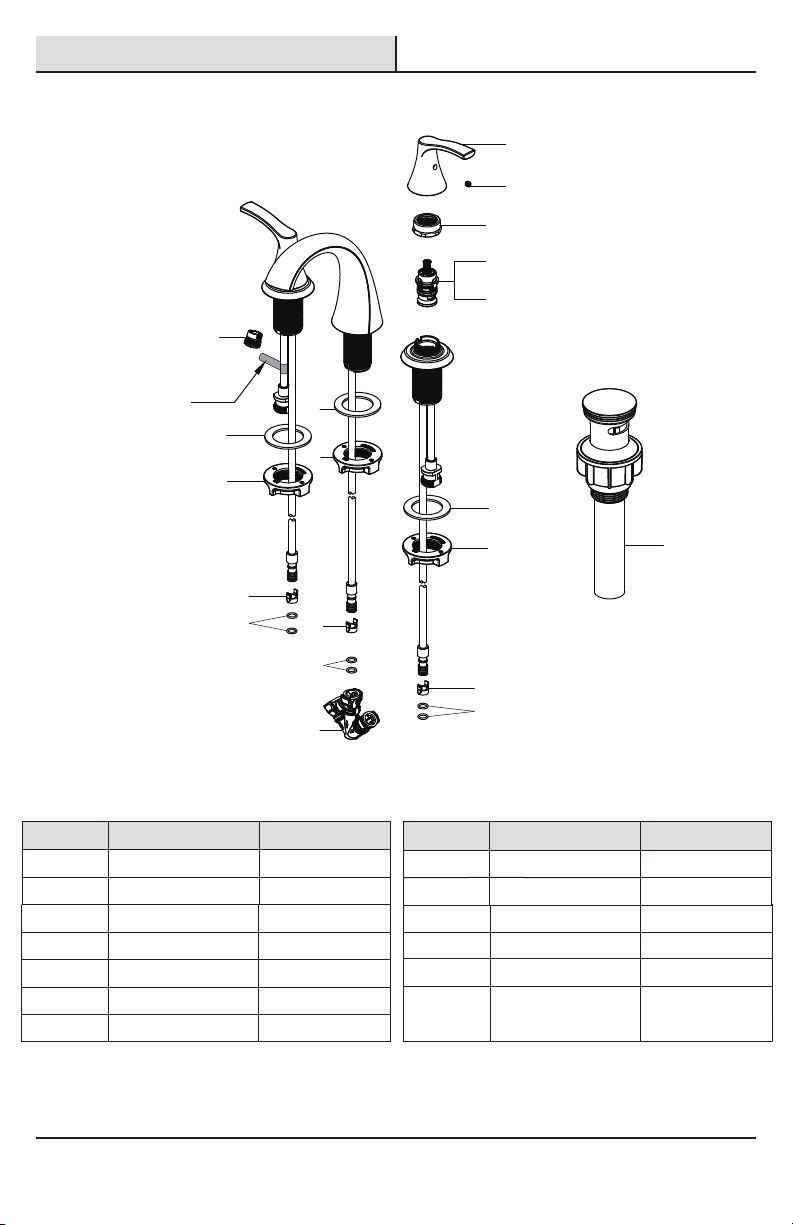

Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Part Description Part Number
1Handle
Screw
Part Description Part Number
RP13853*
RP50002
Faucet ID tags can
be found on the
hot water inlet
10
Nut & Screw RP56140
11
12
13
Quick connector
Press pop-up
assembly
RP70765
RP40269*
1
2
3
4
5
6
7
8
98
9
12
8
9
13
6
7
6
11
10
9
Aerator RP30187
O-ring
8 Block RP70421
RP60002
2
Bonnet nut
3
5
Cartridge H
6
7 Nut & Screw
4
Cartridge C
Washer
RP70678
RP20079
RP20080
RP64147
RP56137

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM/GLACIERBAY
Retain this manual for future use.
