Glacier bay HD67644-0101 Assembly instructions

THANK YOU
INSTALLATION AND CARE GUIDE
Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
SINGLE-HANDLE KITCHEN FAUCET
We appreciate the trust and condence you have placed in Glacier Bay through the purchase of this kitchen
faucet. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Glacier Bay!
11/2018 REV.01HOMEDEPOT.COM
Model#
HD67644-0101
HD67644-0110H
HD67644-0108D2
Internet#
306838820
306838829
306838665
SKU#
1003915511
1003915510
1003915512

2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents ..................................3
Installation................................................4
Care and Cleaning ....................................6
Troubleshooting........................................6
Service Parts ........................................... 7
Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact Customer Service
for replacement parts..

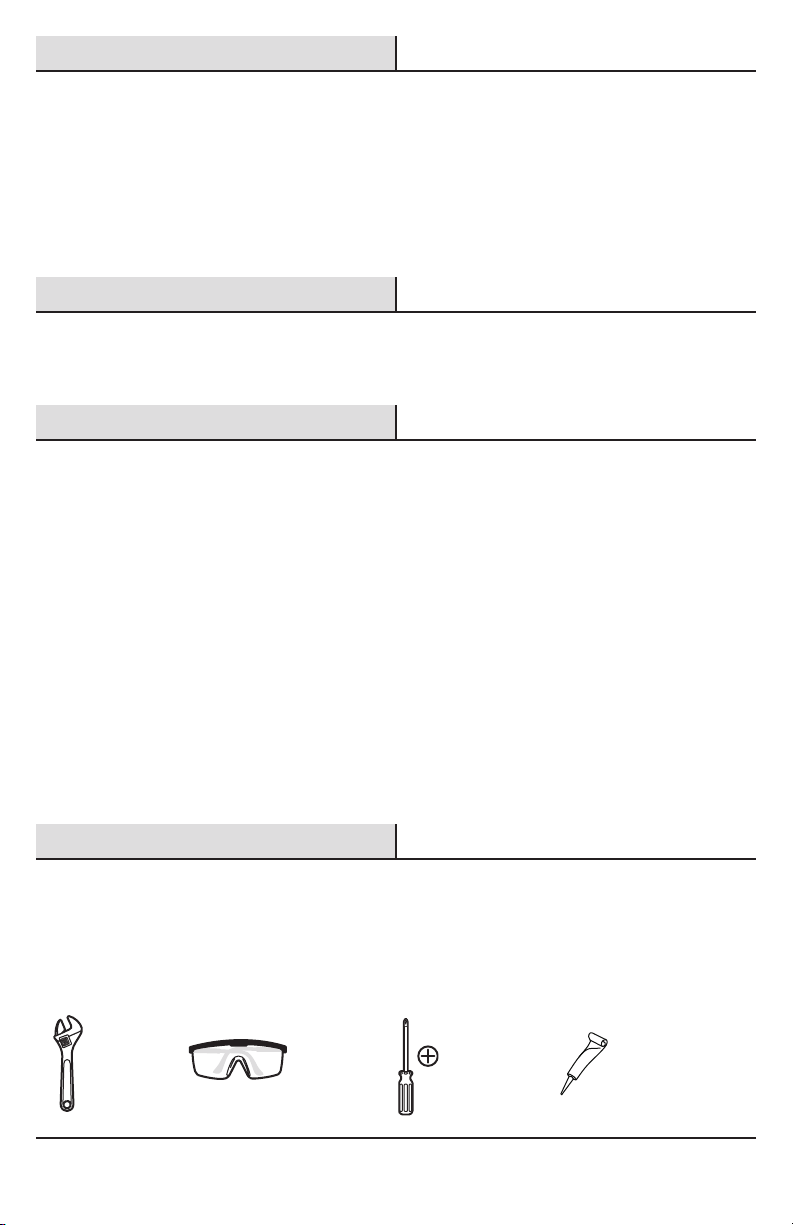

TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Tools and Hardware Required ...............2
Operation...................................................6
Phillips
screwdriver
SILICONE
Silicone
sealant
Warranty
LIMITED LIFETIME WARRANTY
Glacier Bay products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Glacier Bay products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that proves defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-855-HD-GLACIER (1-855-434-
5224) to receive the replacement item. Proof of purchase (original sales receipt) from the original consumer
purchaser must be made available for all Glacier Bay warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial and business usage, whose purchasers are hereby extended
a ve year limited warranty from the date of purchase, with all other terms of this warranty applying except the
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-855-HD-GLACIER for
more details.
Contact the Customer Service Team at 1-855-434-5224 or visit www.HomeDepot.com.

3
Pre-Installation (continued)

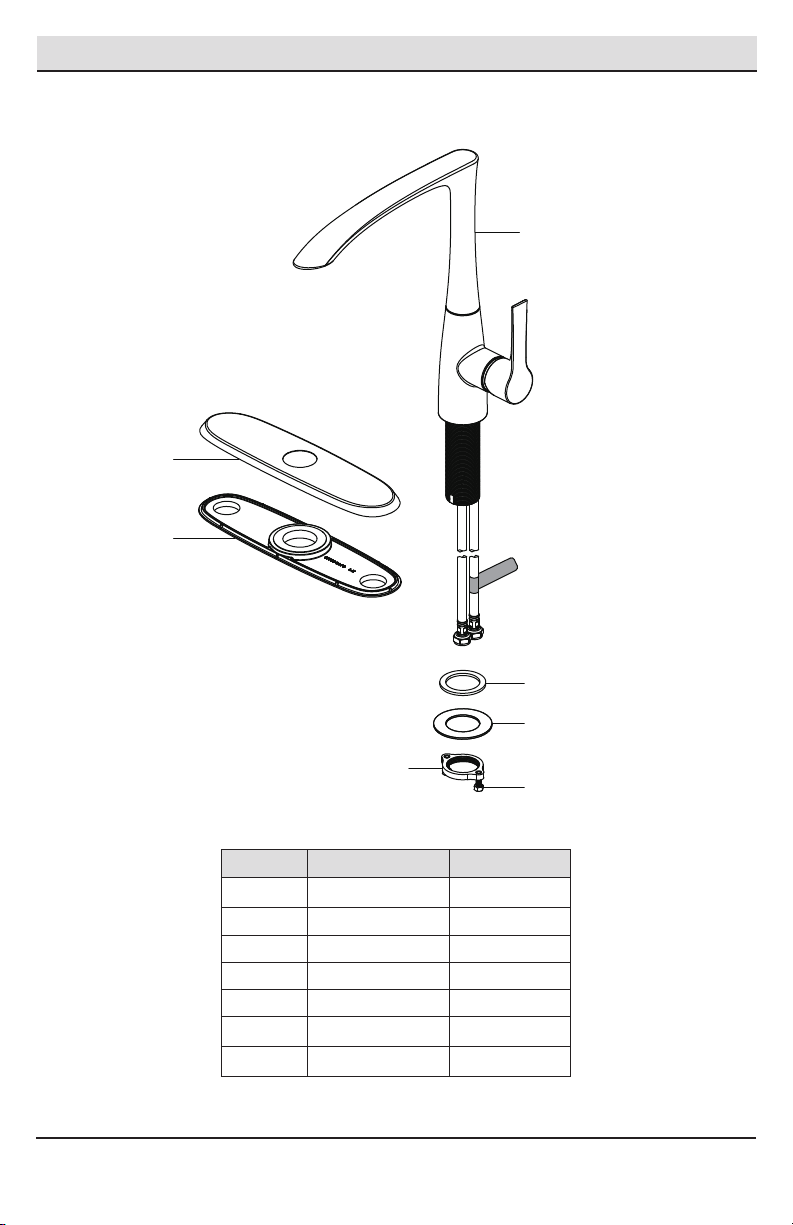

PACKAGE CONTENTS
Part Description Quantity
A 1
B Rubber washer 1
C Metal washer 1
D Nut 1
E Screw 2
Faucet assembly
F 1Escutcheon
G 1Gasket
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
A
B
C
D
E
F
G

4
Installation

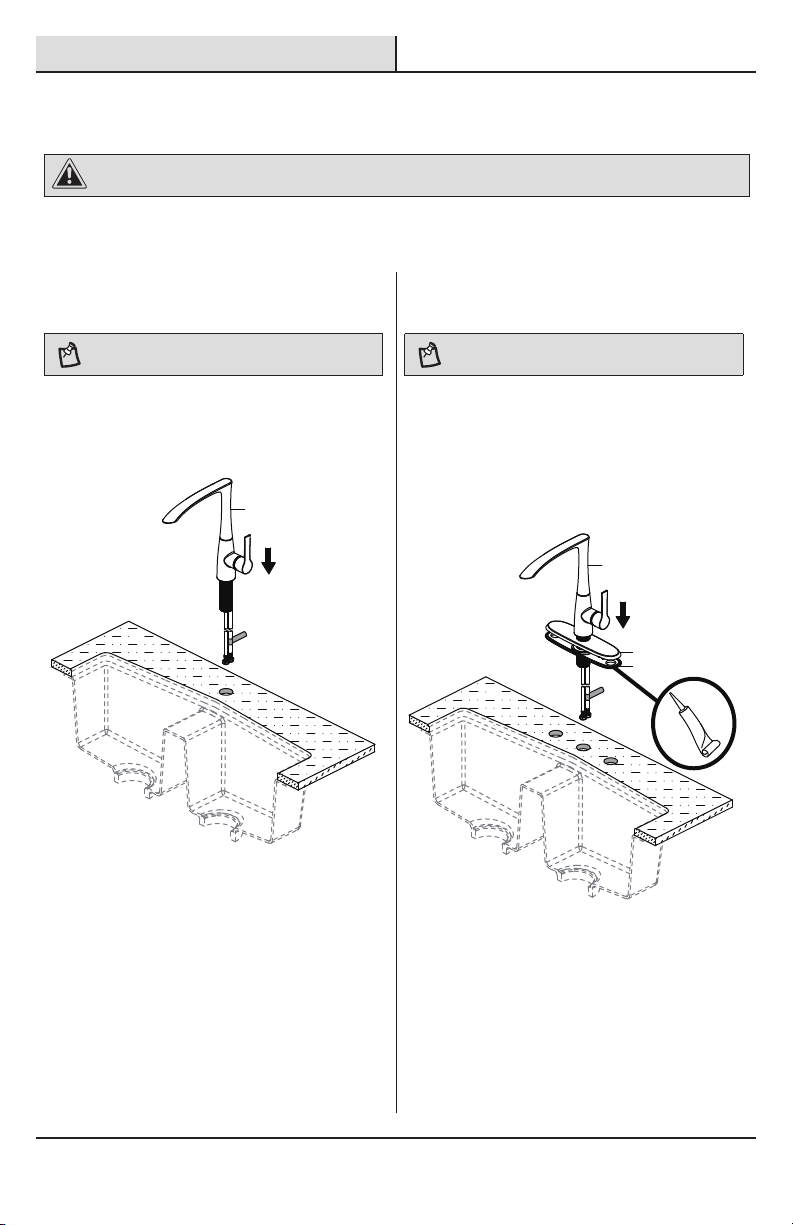

1 Installing the faucet assembly
CAUTION: Always shut off the water supply before removing an existing faucet or replacing any part of a faucet. Open the faucet handle
to relieve water pressure and ensure that the water is completely shut off.
1b
NOTE: This step is for escutcheon installation (optional).
A silicone is required under the gasket (G).
□Shut off the water supply. Remove the old faucet. Clean the mounting surface.
□Unscrew the nut (D), and remove the washers (B & C).
1a
□Insert the faucet assembly (A) through the hole
in the sink.
NOTE: This step is for no escutcheon installation (optional).
□Place the escutcheon (F) and the gasket (G) on
the bottom of the new faucet assembly (A).
□Insert the faucet assembly (A) through the hole
in the escutcheon (F).
A
SILICONE
A
F
G

5
Installation (continued)

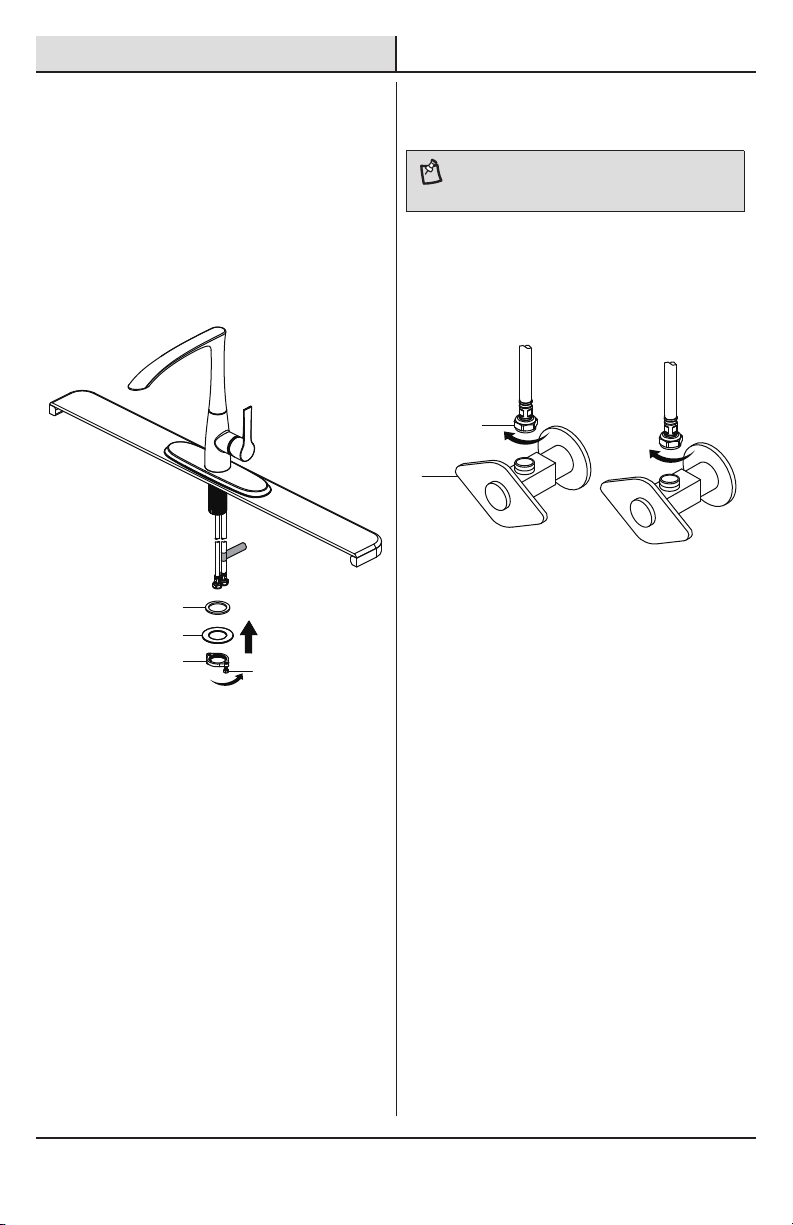

2 Securing the faucet assembly
□Install the rubber washer (B), and metal
washer (C) onto the threaded mounting shank.
□Thread the nut (D) onto the mounting shank.
Lock the nut (D) into position by tightening the
screws (E). Do not overtighten.
HOMEDEPOT.COM
Please contact 1-855-HD-GLACIER for further assistance.
3Making the water supply
connections
□Thread the nut (1) on the supply line onto the
outlet of the water supply valve (2) and tighten
with a wrench. Do not overtighten.
NOTE: The hot side inlet tube is indicated by a label. Avoid
twisting wires together or placing the wires close to each
other and damaging.
1
2
B
C
DE

6
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□Remove the aerator and
check for debris.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
The aerator is dirty or mis-tted.
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or irregular surface. □Apply additional silicone sealant
to the beveled side of the drain
ange.
□Retighten and test for leaks.

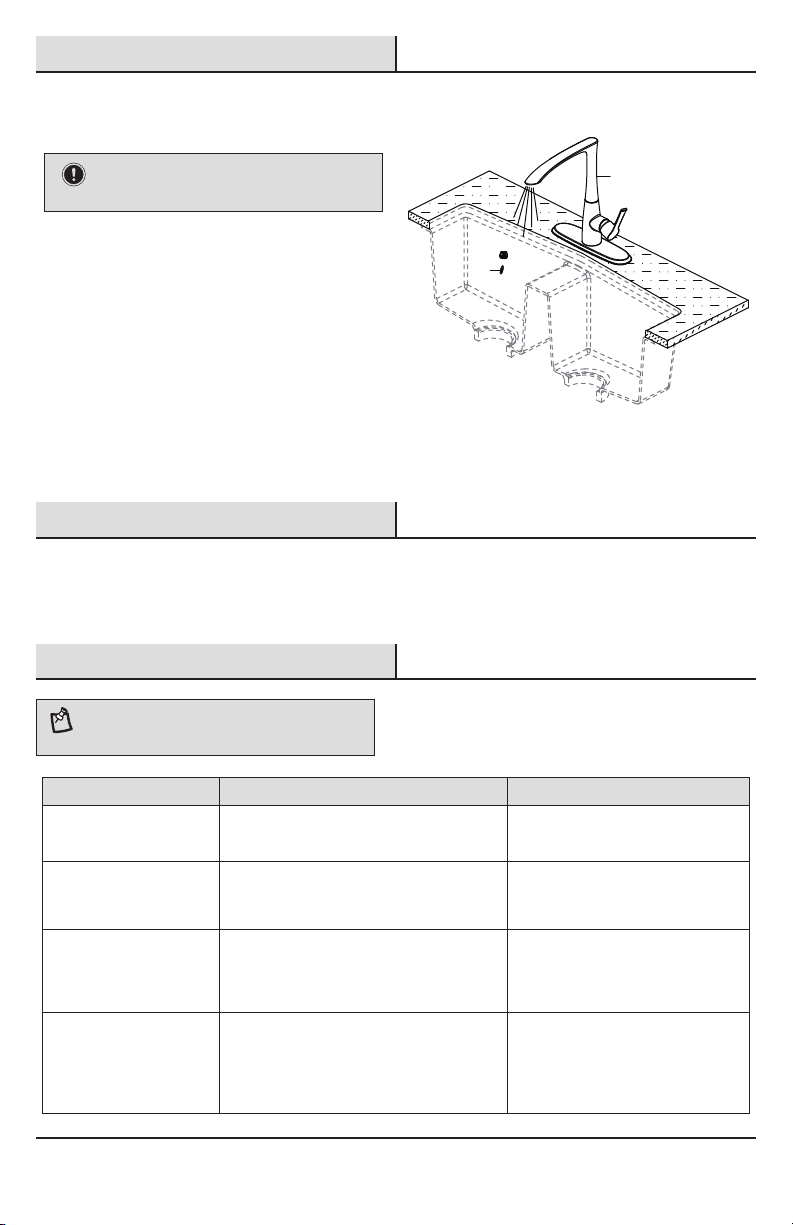

1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator from the faucet (A) with a coin (1) to ush the water
lines.
Operation
□Ensure the faucet (A) handle is in the off
position and turn on the water supply to check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold water handle to allow
the water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
1
A

7
Service Parts
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
Part Description Part Number
1RP13669*
4 Cartridge & Screw RP20052
5 Escutcheon RP80556*
6 Gasket RP80604
7 Rubber washer RP64023
8 Metal washer RP64146
9 Nut & Screw RP56123
Handle assembly
2RP80184*Cap
3RP70662Bonnet nut
1
2
3
4
5
6
7
8
9

Questions, problems, missing parts?
Before returning to the store, call Glacier Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
Retain this manual for future use.

GRACIAS
GUÍA DE USO Y MANTENIMIENTO
¿Problemas, preguntas o piezas faltantes?
Antes de regresar a la tienda, llama al servicio al cliente de
Glacier Bay de lunes a viernes entre 8 a.m. y 7 p.m. y los
sábados entre 9 a.m. y 6 p.m.(hora estándar del Este)
1-855-HD-GLACIER (1-855-434-5224)
HOMEDEPOT.COM
GRIFO PARA COCINA, DE UNA SOLA LLAVE
Agradecemos la conanza que has depositado en Glacier Bay al comprar este grifo para cocina. Nos esforzamos
por crear continuamente productos de calidad diseñados para mejorar su hogar. Visítanos en Internet para ver
nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar. ¡Gracias por
elegir a Glacier Bay!
Internet núm.
306838820
306838829
306838665
Modelo núm.
HD67644-0101
HD67644-0110H
HD67644-0108D2
SKU núm.
1003915511
1003915510
1003915512

10
Información importante
□ Cumple con todos los códigos locales de construcción y de plomería.
□ Cubre el drenaje del lavabo para evitar que se pierda alguna pieza.
□ Consulta la sección de mantenimiento y limpieza incluida en esta guía.

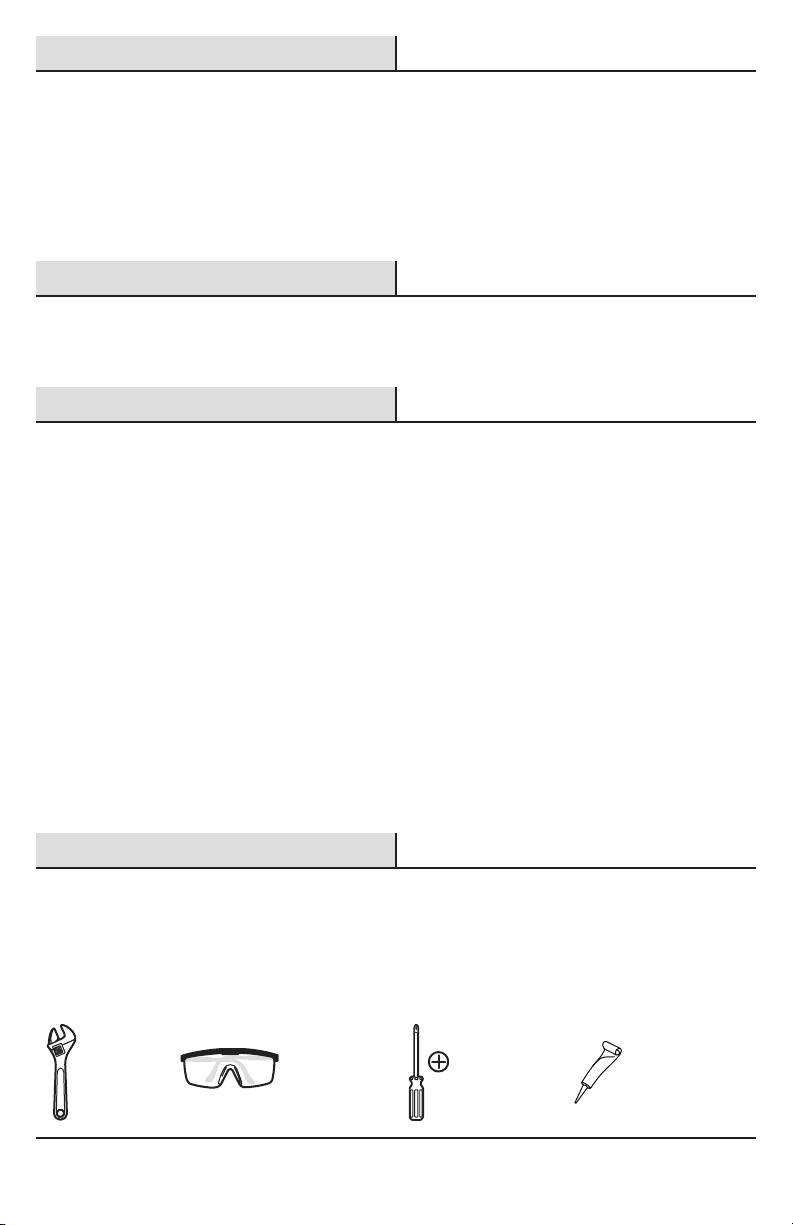

HERRAMIENTAS Y HERRAJES NECESARIOS
Llave
ajustable
Gafas de
seguridad
Tabla de contenido
Información importante .........................10
Garantía...................................................10
Pre-instalación .......................................10
.............10
Herramientas y herrajes necesarios....10
Contenido del paquete.........................11
Instalación ..............................................12
Funcionamiento......................................14
Cuidado y limpieza ................................14
Piezas de repuesto ................................15
Planicación de la instalación Solución de problemas...........................14
Pre-instalación
PLANIFICACIÓN DE LA INSTALACIÓN
Antes de comenzar la instalación de este producto, asegúrate de que no falta ninguna pieza. Compara las piezas
con la lista de Contenido del paquete. Si falta alguna pieza o está dañada, no intentes instalar el producto.
Comunícate con el servicio al cliente para piezas de repuesto.
Destornillador
Phillips
SILICONE
Sellador de
silicona
Garantía
GARANTÍA DE POR VIDA LIMITADA
Los productos de Glacier Bay están fabricados con normas y mano de obra de calidad superior y están respaldados
por nuestra garantía de por vida limitada. Los productos de Glacier Bay están garantizados al comprador consumidor
original de estar libres de defectos en materiales o mano de obra. Reemplazaremos LIBRE DE CARGOS cualquier
producto o pieza que se demuestre está defectuosa. Símplemente, devuelva el producto a cualquiera de las
ubicaciones de venta al detalle de The Home Depot o llame al 1-855-HD-GLACIER (1-855-434-5224) para recibir el
artículo de reemplazo. La prueba de compra (recibo de venta original) del comprador consumidor original debe estar
disponible para todos los reclamos de garantía de Glacier Bay.
Esta garantía excluye daños y fallos incidentales/consecuenciales debido al mal uso, abuso o desgaste normal por
el uso. Esta garantía excluye todos los usos industriales, comerciales y de negocios, a cuyos compradores por la
presente, se les ha ampliado una garantía limitada de cinco años a partir de la fecha de compra, con todos los otros
artículos de esta garantía que aplican excepto la duración de la garantía.
Algunos estados y provincias no permiten la exclusión o la limitación de los daños incidentales o consecuenciales,
por lo tanto, las limitaciones y exclusiones anteriores podrían no aplicar a usted. Esta garantía le otorga derechos
legales especícos y también puede tener otros derechos que varían de un estado a otro. Por favor, vaya a una
tienda o llame al 1-855-HD-GLACIER para más detalles.
Póngase en contacto con el Equipo de Servicio al Cliente llamando al 1-855-434-5224 o visite www.HomeDepot.com.
