Glacier bay TL-6900-EW User manual

Product Code: 215-583
Model: TL-6900-EW
HIGH EFFICIENCY
ELONGATED Dual Flush
ALL-IN-ONE TOILET
Package Contents
AC
B
C Seat with Lid 1
A Tank with Cover 1
B Toilet Bowl 1
PART DESCRIPTION QTY
Questions, problems, missing parts? Before returning to your retailer, call our
Spanish p. 9

2
HARDWARE CONTENTS
Qty Picture
Part Description
Plastic Retaining
Washer 2
Wax Ring 1
Plastic Disc
Metal Washer
Nut
Floor Bolt 2
Bolt Cap
Brass Washer 4
Rubber Washer
Bolt
Hex Nut 2
Rubber
Sealing Gasket 1
Oval
Metal Washer
Wing Nut
Lock Bolt
Toilet Seat
Washer
Lock Nut
2
2
2
AA
BB
CC
DD
EE
FF
Qty PicturePart Description
2
GG
HH
2
2
2
2
JJ
KK
LL
MM
NN
2
2
OO
PP
2
Dual Flush
Button 1
II
QQ
RR

3
WARNINGS AND CAUTIONS
PREPARATION
Before beginning installation of product, make sure all parts are present. Compare parts with package
contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or
operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly and Installation (not included): Toilet Water Supply Line, Adjustable Wrench,
Putty Knife, Flathead Screwdriver, Hacksaw, Carpenters Level.
•Handle with care. Vitreous chinaware is glass-like with sharp edges if broken. Do not drop, handle
roughly or overtighten bolts.
•Risk of hazardous gases. If new toilet is not installed immediately, temporarily plug floor flange hole
with a towel (or cover) to block sewer gases from escaping.
•Observe local plumbing and building codes.
Fig. 1
ASSEMBLY INSTRUCTIONS
Remove Old Toilet
•Turn off water supply and flush tank completely. Towel or sponge remaining water from tank and bowl.
•Disconnect and remove old water supply line.
•Remove tank from bowl by removing old tank-to-bowl hardware.
•Remove bowl from floor by removing bolt caps and floor bolt nuts.
•Remove floor bolts from toilet flange and clean old wax, putty and sealant from base area.
(Temporarily plug floor flange with a towel or cover to block sewer gases from escaping.)
•NOTE: MOUNTING SURFACE MUST BE CLEAN AND LEVEL BEFORE NEW TOILET IS
INSTALLED.
1. Install Floor Bolts (AA), (Fig. 1)
•Insert new floor bolts (AA) into the toilet flange
(not included) with bolt heads down and threaded
ends facing up (use plastic retaining washers (BB)
to hold bolts in full-length, upright position).
•Floor bolts (AA) should be parallel to wall and 6
inches apart.
Toilet
Flange
BB
AA

ASSEMBLY INSTRUCTIONS

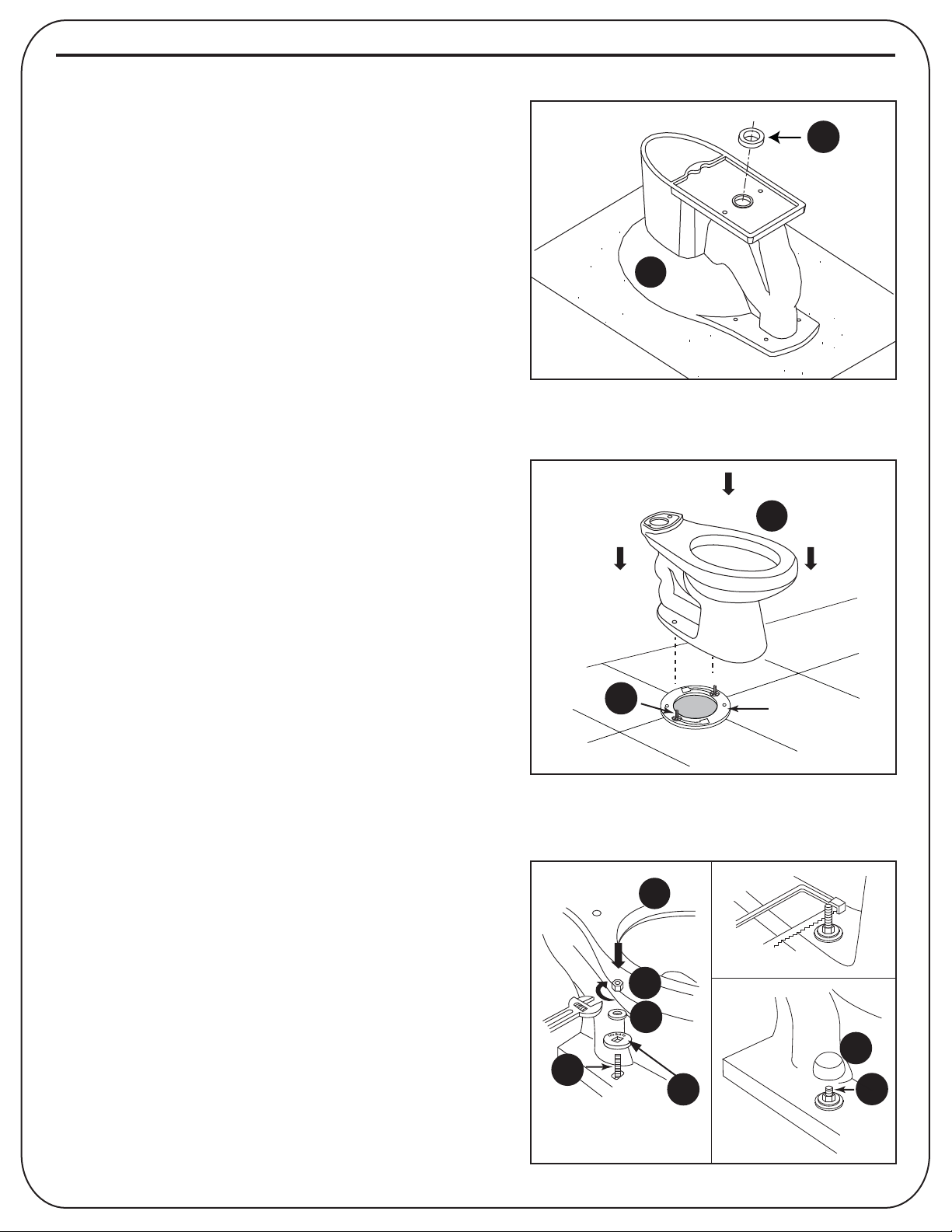

2. Install Wax Ring (CC), (Fig. 2) Fig. 2
•Turn toilet bowl (B) upside down onto a towel or
cushioned surface. With the rounded (tapered) end
of the ring facing the toilet, place the wax ring
(CC) around the raised outlet ring of the bowl (B),
and press firmly enough so the wax ring (CC)
adheres to the bowl (B).
3. Position Toilet Bowl (B) on Toilet Flange, (Fig. 3)
Fig. 3
•Unplug waste opening in toilet flange. Gently
place toilet bowl (B) (right side up) in position
with the floor bolts (AA) protruding up through
the holes in the base of the toilet bowl (B). Level
toilet bowl (B) as it is lowered onto the toilet
flange.)
•Once toilet bowl (B) is in position, press down
with a slight twisting motion on the top center of
the bowl (B) eventually applying full body weight
to evenly compress the wax ring (CC) creating a
water-tight seal. (Do not rock the bowl
back-and-forth as this may break the seal.)
•Make sure the toilet bowl (B) is as level as
possible. It may be necessary to use small wedges
(shims) under the edge of the bowl due to slight
variations in vitreous chinaware or uneven floors.
(Toilet bowl (B) should be firmly seated on the
floor, so it does not wobble or rock.)
4. Secure Bowl to Floor, (Fig. 4)
Fig. 4
•Place plastic disc (DD) (Note: “THIS SIDE UP”),
metal washers (EE) and nuts (FF) on floor bolts
(AA). Alternately tighten nuts (FF) until toilet
bowl (B) is firmly seated on floor.
•DO NOT OVERTIGHTEN NUTS (FF)
BECAUSE VITREOUS CHINA CAN EASILY
CRACK OR CHIP.
•Pour water into toilet bowl (B) to prevent the
escape of sewer gases.
•Using a hacksaw, cut off excess length of floor
bolts (AA) so bolt caps (GG) will fit. (Leave no
more than 1/4-in length above nuts (FF)). Place
bolt caps (GG) over floor bolts (AA) and press
down for secure fit.
B
CC
B
AA Toilet Flange
B
EE
DD
FF
AA
“THIS SIDE UP”
GG
AA
4

5
ASSEMBLY INSTRUCTIONS
Fig. 6
Position flush button mechanism (RR) in tank lid so blue button will align with blue
lever (half flush) on top of flush valve & chrome button aligns with the white button.
Secure flush button mechanism in tank lid by hand tightening lock nut.
The rubber tip on the bottom of the push rods leading from the flush buttons should lightly touch the top of the levers on the flush valve.
• To increase the rod length, turn the rod locknut counter-clockwise to loosen, then rotate the push rod counter-clockwise to increase
exposed length. When desired length is achieved, turn the rod locknut clockwise while holding the push rod, until it is tightened.
• To shorten the rod length, turn the rod locknut counter-clockwise to loosen, then rotate the push rod clockwise to decrease exposed
length. When desired length is achieved turn the rod locknut clockwise clockwise while holding the push rod, until it is tightened.
NOTE: When activating the half flush mode (blue button), both buttons on the flush mechanism will depress. When activating the
full flush mode (chrome button), only the chrome button will depress. The flush valve is setup to prevent the full flush from being
activated when the blue button is pushed.
ADJUSTMENT OF WATER FLOW FOR DUAL FLUSH
Flush valves are set at the factory, should not need adjustment. Call 1-877-527-0313 if you require assistance.
RR
