GLEELITE GL G110A User manual

1
GL G110A
CP2018100PD.1
Beam Spot
USER MANUAL
WWW.GLEELITE.COM

2
GL 110A Beam Spot
Table of contents
1. Safety instructions..................................................................................... 3
2. Operating determination........................................................................... 4
3. Fixture exterior view ................................................................................. 5
4. Installation ................................................................................................ 6
4.1 Connection to the mains............................................................... 6
4.2 Replacing gobos ........................................................................... 7
4.3 Rigging the fixture......................................................................... 8
4.4 DMX-512 connection..................................................................... 11
5. Control menu map.................................................................................... 12
6. Technical Specifications................................................................................ 14
7. Maintenance and cleaning.............................................................................. 17
8. Photometric diagram....................................................................................... 18
9. DMX protocol........... ........................................................................................ 19

3
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOU INITIAL START - UP!
1. Safety instructions
Every person involved with installation and maintenance of this device have to:
- be qualified
- follow the instructions of this manual
CAUTION!
Be careful with your operations.
With a high voltage you can suffer
a dangerous electric shock when touching the wires!
This device has left our premises in absolutely perfect condition. In order to maintain this condition and to en-
sure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning
notes written in this manual.
Important:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
Never let the power-cord come into contact with other cables! Handle the power cord and all connections
with the mains with particular caution!
Make sure that the available voltage is not higher than stated on the rear panel.
WARNING! Always disconnect power input cable to completely remove power from unit when not
in use or before cleaning or servicing the unit.
Make sure that the power cord is never crimped or damaged by sharp edges. Check the device and the pow-
er-cord from time to time.
Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the pow-
er-cord by the plug. Never pull out the plug by tugging the power cord.
This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to
earth. The electric connection, repairs and servicing must be carried out by a qualified employee.
Do not connect this device to a dimmer pack.
During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily
mean that the device is defective.
Do not touch the device’s housing bare hands during its operation (housing becomes hot)!
For replacement use fuses of same type and rating only.
Warning! Risk Group 2 LED product according to EN
62471.LED light emission. Risk of eye injury!
Do not look straight at the fixture´s LED source during operation. The intense
light beam may damage your eyes.

4
Do not view the light output with optical instruments or any device that
may concentrate the beam.
2. Operating determination
This device is a moving head for creating decorative effects and was designed for indoor use only.
This device is for professional use only. It is not for household use.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it
on immediately. The arising condensation water might damage your device. Leave the device switched off
until it has reached room temperature.
Do not shake the device. Avoid brute force when installing or operating the device.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the
fixture at the transport handles.
When choosing the installation spot, please make sure that the device is not exposed to extreme heat,
moisture or dust.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.
Always fix the fixture with an appropriate safety rope. Fix the safety rope at the correct holes only.
Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.
The maximum ambient temperature 45°C must never be exceeded.
CAUTION!
The lens has to be replaced when it is obviously damaged,
so that its function is impaired, e. g. due to cracks or deep scratches!
Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the result of unprofessional operation!
Do not block the front objective lens with any object when the fixture is under operation.
The fixture housing never must be covered with cloth or other materials.
Please use the original packaging if the device is to be transported.
Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
cir-cuit, burns, electric shock, burns etc.
CAUTION!
To avoid damage of the internal parts of the fixture head, never let the sunlight or other
fixture lights directly to the front lens, even when the fixture is not working!

5
9
10
11
12
3

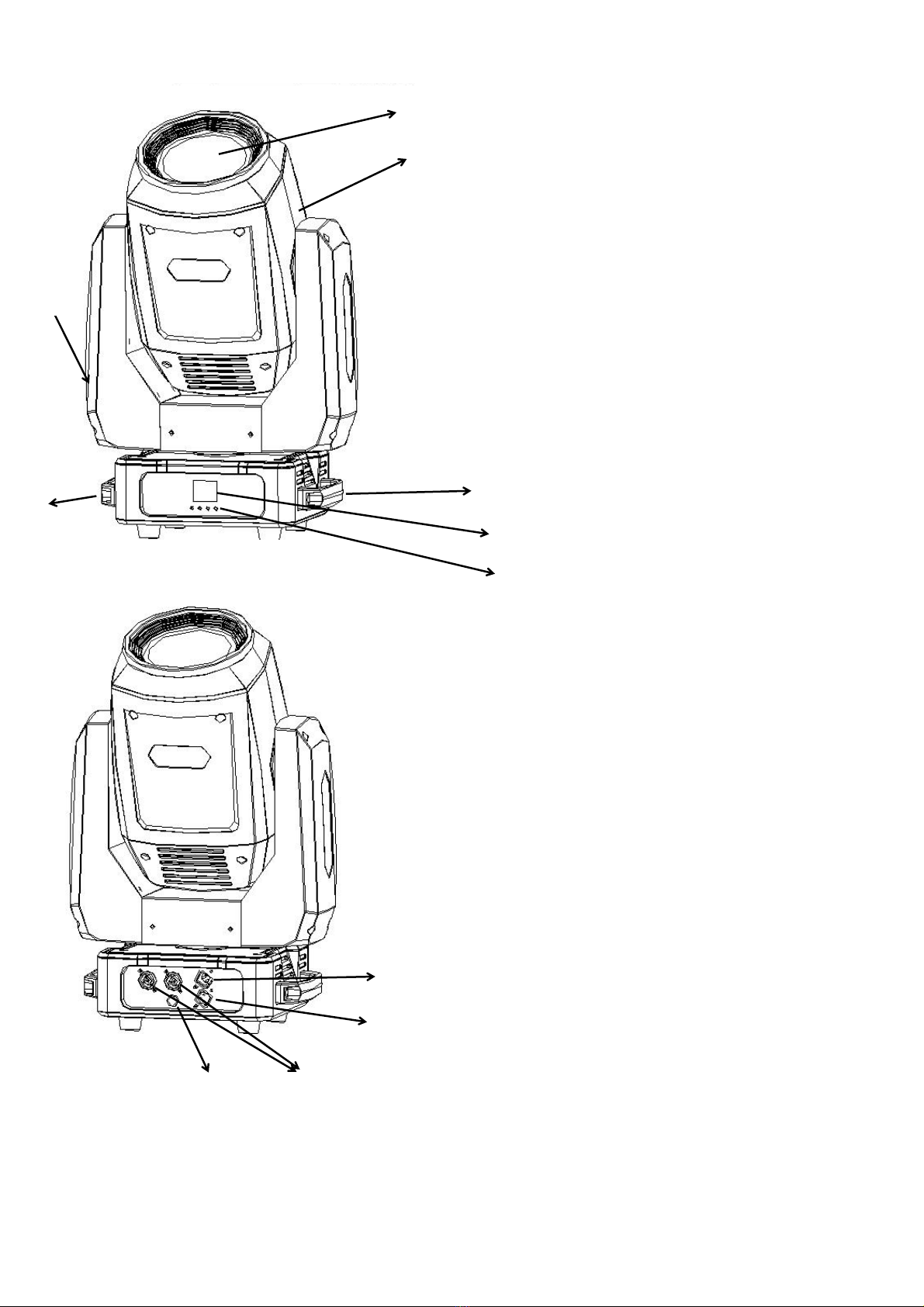

3. Fixture exterior view
1- Head
2- Front lens
3- Handles
4- Display screen
5- Control buttons
6- Yoke
9- Power (PowerCon)
10 - Fuse holder
11 - DMX OUT (3-pin)
12 - DMX IN (3-pin)
1
2
3
4
5
8

6
4. Installation
4.1 Connection to the mains
For protection from electric shock, the fixture must be earthed!
The GL G110A is equipped with auto-switching power supply that automatically adjusts to
any 50-60Hz AC power source from 100-240 Volts. Power cord is enclosed to the fixture.
Install a suitable plug on the power cord if needed, note that the cores in the power cord are
coloured according to the following table. The earth has to be connected! If you have any
doubts about proper installation, consult a qualified electrician.
Fixtures must be installed by a Qualified electrician in accordance with all
national and local electrical and construction codes and regulations.
For protection from electric shock, the fixture must be earthed!

7

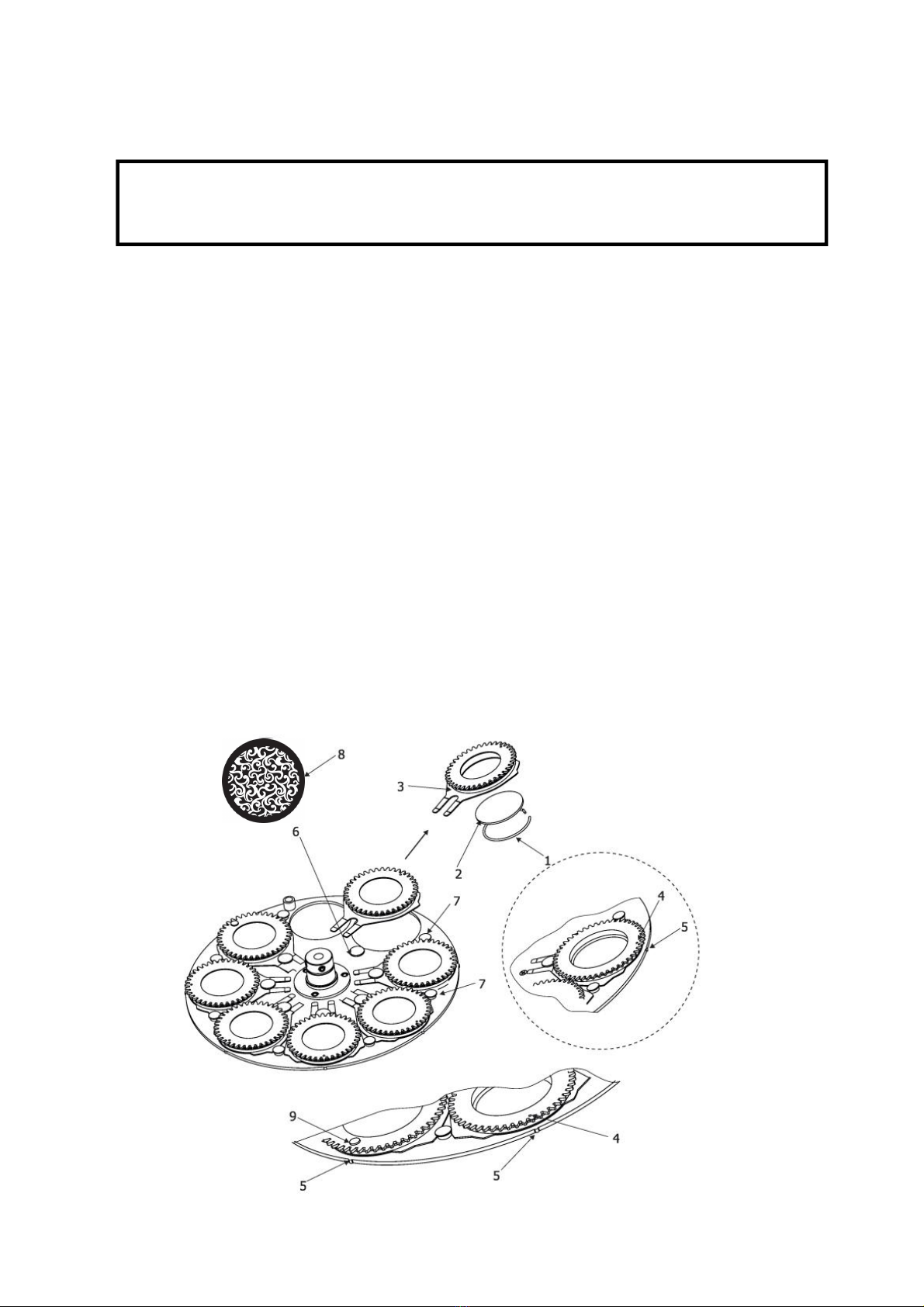

4.2 Replacing rotating gobos
1. Disconnect the fixture from mains and allow it to cool.
2. Remove the plastic cover of the head by loosening the 4 quarter-turn fasteners on
the cover.
3. Gently pull up the gobo holder (3) from the rotation gobo wheel.
4. Remove the spring lock (1) with an appropriate tool (e.g. small-bladed screwdriver)
and remove it. Do not touch the surface of the pattern of the glass gobo with bare
fingers.
5. Remove the original gobo (2) and insert the new one (glazy side towards the light
source). The Gleelite gobo has a small position point (8) at its edge which has to
aimed at the position point (4) on the gobo holder (4). Insert the spring lock to secure
correct gobo position in the gobo holder.
6. Insert he gobo holder back under the distance slots (6, 7) into rotating gobo wheel
in this way, that its position point (4) has to aimed at a small toothlike projection (5)
on the edge of the rotating gobo wheel.
Important! When inserting the gobo holder back to the rotating gobo wheel, one of
the adjacent gobo holder has to be oriented according to the same rule, it means that
its position point (4) has to aimed at the toothlike projection (5) on the edge of the
rotating gobo wheel. You have keep both marks (4) and (5) side by side when
rotating the gobo wheel to the position allows inserting the gobo holder back.
5. Replace the plastic cover before applying power.
6. Use the menu Service to fine adjust replaced gobo (Service -> Calibration ->
Calibrate effects -> R. Gobo Index 1 ...R. Gobo Index 6).
Note. The magnet (9) of the gobo holder has the same function as the position point
(4) on the rest of gobo holders.
DANGER!
Install the gobos with the device switched off only.
Unplug from mains before!

8
4.3 Rigging the fixture
The installation of the fixture has to be built and constructed in a way that it can hold
10 times the weight for 1 hour without any harming deformation.
The installation must always be secured with a secondary safety attachment, e.g. an
appropriate catch net. This secondary safety attachment must be constructed in a
way that no part of the installation can fall down if the main attachment fails.
When rigging, derigging or servicing the fixture staying in the area below the
installation place, on bridges, under high working places and other endangered areas
is forbidden.
The operator has to make sure that safety-relating and machine-technical
installations are approved by an expert before taking into operation for the first time
and after changes before taking into operation another time.
The operator has to make sure that safety-relating and machine-technical
installations are approved by an expert after every four year in the course of an
acceptance test.
The operator has to make sure that safety-relating and machine-technical
installations are approved by a skilled person once a year.
The projector should be installed outside areas where persons may walk by or be
seated.
IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE,
including (but not limited to) calculating working load limits, installation material being
used, and periodic safety inspection of all installation material and the fixture. If you
lack these qualifications, do not attempt the installation yourself, but instead use a
professional structural rigger. Improper installation can result in bodily injury or
damage to property.
The fixture has to be installed out of the reach of people.
If the fixture shall be lowered from the ceiling or high joists, professional trussing
systems have to be used. The fixture must never be fixed swinging freely in the room.
Caution: Fixtures may cause severe injuries when crashing down! If you have
doubts concerning the safety of a possible installation, do not install the moving head!
Before rigging make sure that the installation area can hold a minimum point load of
10 times the fixture’s weight.
Danger of fire !
When installing the device, make sure there is no highly inflammable
material (decoration articles, etc.) in a distance of min. 0.5 m.
CAUTION!
Use 2 appropriate clamps to rig the fixture on the truss. Follow the
instructions mentioned at the bottom of the base. Make sure that the
device is fixed properly! Ensure that the structure (truss) to which you
are attaching the fixtures is secure.

9
The fixture can be placed directly on the stage floor or rigged in any orientation on a
truss without altering its operation characteristics .
For securing a fixture to the truss, install a safety wire that can hold at least 10 times
the weight of the fixture. Use only the safety wire with screw-on carabine. Pull the
safety wire through the safety attachment point on the bottom of the base and around
the truss as shown on the pictures below.
Truss installation
1.Bolt each clamp (1) to the omega holder (3) with M12 bolt and lock nut through the
hole in the holder.
2.Fasten the omega holders on the bottom of the base by inserting both quick-lock
fasteners (4) into the holes of the base and tighten fully clockwise.
3.Pull the safety wire (2) through the attachment point and around the truss (5).
1-Clamps
2-Safety wire
3-Omega holder
4-Quick-lock fastener
5-truss
1
2
3
5

10
Alternativelly, fixtures handels can be used for safety attachment
When installing fixtures side-by-side,
avoid illuminating one fixture with another!
DANGER TO LIFE!
Before taking into operation for the first time,the installation has to be
approved by an expert!
1-Clamps
2-Safety wire
3-Omega holder
4-Quick-lock fastener
5-truss

11
4.4 DMX-512 connection
The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input
and output.The sockets are wired in parallel.
Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin
XLR-plugs and connectors in order to connect the controller with the fixture or
one fixture with another.
If you are using the standard DMX controllers, you can connect the DMX
output of the controller directly with the DMX input of the first fixture in the
DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs,
you need to use adapter-cables.
Building a serial DMX-chain:
DMX - output
XLR mounting-sockets (rear view):
DMX - input
XLR mounting-plugs (rear view):
DMX512
120Ω
Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture.
Always connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω
resistor between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last fixture.

12
5. Control menu map
Main Menu
1st Selection
2nd
Selection
Using Noted
Address
Address Setting
a) Press S4 enter to Selection Page;
b) Press S2 or S3 to change DMX address at range 1 to 512;
c) Press S4 to save and exit Select Page;
d) Press S1 to exit directly-without save the selection.
Fixture
Setting
Channel Mode
Standard
Mode
Select “Channel Mode”
a) Press S4 enter to option selection Page;
b) Press S2 or S3 to select Channel Mode options;
c) Press S4 to save and exit selection Page;
d) Press S1 to exit directly-without save the selection.
Reduced
Mode
Pan/Tilt
Setting
Invert Pan
Select “Invert Pan/Tilt”
a) Press S4 enter to option selection Page;
b) Press S2 or S3 to select ON/Off options;
c) Press S4 to save and exit the selection Page;
d) Press S1 to exit directly-without save the selection.
Invert Tilt
Swap Pan-Tilt
Select “Swap Pan-Tilt”
a) Press S4 enter to option selection Page;
b) Press S2 or S3 to select ON/Off options;
c) Press S4 to save and exit at selection Page;
d) Press S1 to exit directly-without save the selection..
Manual
Reset
Head Reset
Select “Reset”
a) Press S4 enter to option selection Page;
b) Press S2 or S3 to select Reset options;
c) Press S4 to save and exit at selection Page;
d) Press S1 to exit.
Pan/Tilt Reset
All Reset
Channel
Pan
Select “Channel”
a) Press S4 enter to channel selection Page;
b) Press S2 or S3 to select channel;
c) Press S4 to enter edit status;
d) Press S2 or S3 to change channel value from 0 to 255 at
edit status;
e) Press S4to save channel value and exit edit status;
f) Press S1 to exit edit status without save.
Tilt
Dimmer
Strobe
Color
Fixed-Gobo
Rot-Gobo
1、Button Instruction
S1：Return
S2：Down
S3：UP
S4：UPEnter
Menu Page:
1.Address
2.Fixture Setting
3.Manual Setting
4.Auto Test
5.System Test
6.Information
2、Menu Function
When in Start Page,press any button,then reach the Selection Page

13
Rot-Gobo Rot
Prism
Prism Rot.
Focus
Zoom
Auto Test
Stop
Select “Auto Test”
a) Press S4 enter to test program Page;
b) Press S2 or S3 to select test program options;
c) Press S4 to save and run selected test program;
d) Press S1 to exit without save .
Test program 1
Test program 2
Test program 3
System
Language
Chinese
Select “Language”
a) Press S4 enter to option selection Page;
b) Press S2 or S3 to select Language options;
c) Press S4 to save and exit to selection Page;
d) Press S1 to exit without save.
English
Backlight
Setting
Auto
Select “Backlight Setting”
a) Press S4 enter to option selection Page;
b) Press S2 or S3 to select Backlight Setting options;
c) Press S4 to save and exit selection Page;
d) Press S1 to exit without save.
Keep On
Display
Normal
Select “Display”
a) Press S4 enter to option selection Page;
b) Press S2 or S3 to select Display options;
c) Press S4 to save and exit selection Page;
d) Press S1 to exit without save.
Turnover
Factory Reset
Ok
Cancel
Main Menu
1st Selection
2nd
Selection
Using Noted
Address
Address Setting
a) Press S3 enter to Selection Page;
b) Press S2 or S4 to change DMX address at range 1 to 512;
c) Press S3 to save and exit Select Page;
d) Press S1 to exit directly-without save the selection.
Fixture
Setting
Channel Mode
Standard
Mode
Select “Channel Mode”
a) Press S3 enter to option selection Page;
b) Press S2 or S4 to select Channel Mode options;
c) Press S3 to save and exit selection Page;
d) Press S1 to exit directly-without save the selection.
Reduced
Mode
Extend Mode
Pan/Tilt
Setting
Invert Pan
Select “Invert Pan/Tilt”
a) Press S3 enter to option selection Page;
b) Press S2 or S4 to select ON/Off options;
c) Press S3 to save and exit the selection Page;
d) Press S1 to exit directly-without save the selection.
Invert Tilt
Swap Pan-Tilt
Select “Swap Pan-Tilt”
a) Press S3 enter to option selection Page;
b) Press S2 or S4 to select ON/Off options;
c) Press S3 to save and exit at selection Page;
d) Press S1 to exit directly-without save the selection..
Curve
Curve 1
Select “Curve”
a) Press S3 enter to option selection Page;
b) Press S2 or S4 to select Dimmer Curve options;
Curve 2
Curve 3

14
c) Press S3 to save and exit at selection Page;
d) Press S1 to exit directly-without save the selection.
Curve 4
Curve 5
Manual
Reset
Head Reset
Select “Reset”
a) Press S3 enter to option selection Page;
b) Press S2 or S4 to select Reset options;
c) Press S3 to save and exit at selection Page;
d) Press S1 to exit.
Pan/Tilt Reset
All Reset
Channel
Pan
Select “Channel”
a) Press S3 enter to channel selection Page;
b) Press S2 or S4 to select channel;
c) Press S3 to enter edit status;
d) Press S2 or S4 to change channel value from 0 to 255 at
edit status;
e) Press S3 to save channel value and exit edit status;
f) Press S1 to exit edit status without save.
Tilt
Dimmer
Strobe
Color
Fixed-Gobo
Rot-Gobo
Rot-Gobo Rot
Iris
Effect
Effect Rot
Focus
Auto Test
Stop
Select “Auto Test”
a) Press S3 enter to test program Page;
b) Press S2 or S4 to select test program options;
c) Press S3 to exit at selection UI with save and run selected
test program;
d) Press S1 to exit without save .
Test program 1
Test program 2
Test program 3
System
Language
Chinese
Select “Language”
a) Press S3 enter to option selection Page;
b) Press S2 or S4 to select Language options;
c) Press S3 to save and exit to selection Page;
d) Press S1 to exit without save.
English
Backlight
Setting
Auto
Select “Backlight Setting”
a) Press S3 enter to option selection Page;
b) Press S2 or S4 to select Backlight Setting options;
c) Press S3 to save and exit selection Page;
d) Press S1 to exit without save.
Keep On
Display
Normal
Select “Display”
a) Press S3 enter to option selection Page;
b) Press S2 or S4 to select Display options;
c) Press S3 to save and exit selection Page;
d) Press S1 to exit without save.
Turnover
Informatio
n
Select “Information”
a) Press S3 enter to view system information;
b) Press S1 to return main menu.

15
6. Technical Specifications
Electrical
Power supply:.........................electronic auto-ranging
Input voltage range:............... 100-240V, 50/60Hz
Max. power consumption:.......152 W@230V
Fuse:.......................................T 5 A
Light source
100W white engine
Colour temperature: 8500K
CRI=70
Colour wheel
13 dichroic filters + open
Static gobo wheel
19metal gobos, image diameter =5mm, aluminium,
thickness=0.5 mm
Gobo wheel continuous rotation
13
4
1
3
5
6
7
2
10
9
8
11
12
14
15
16
17
18
19

16
2
6
8
7

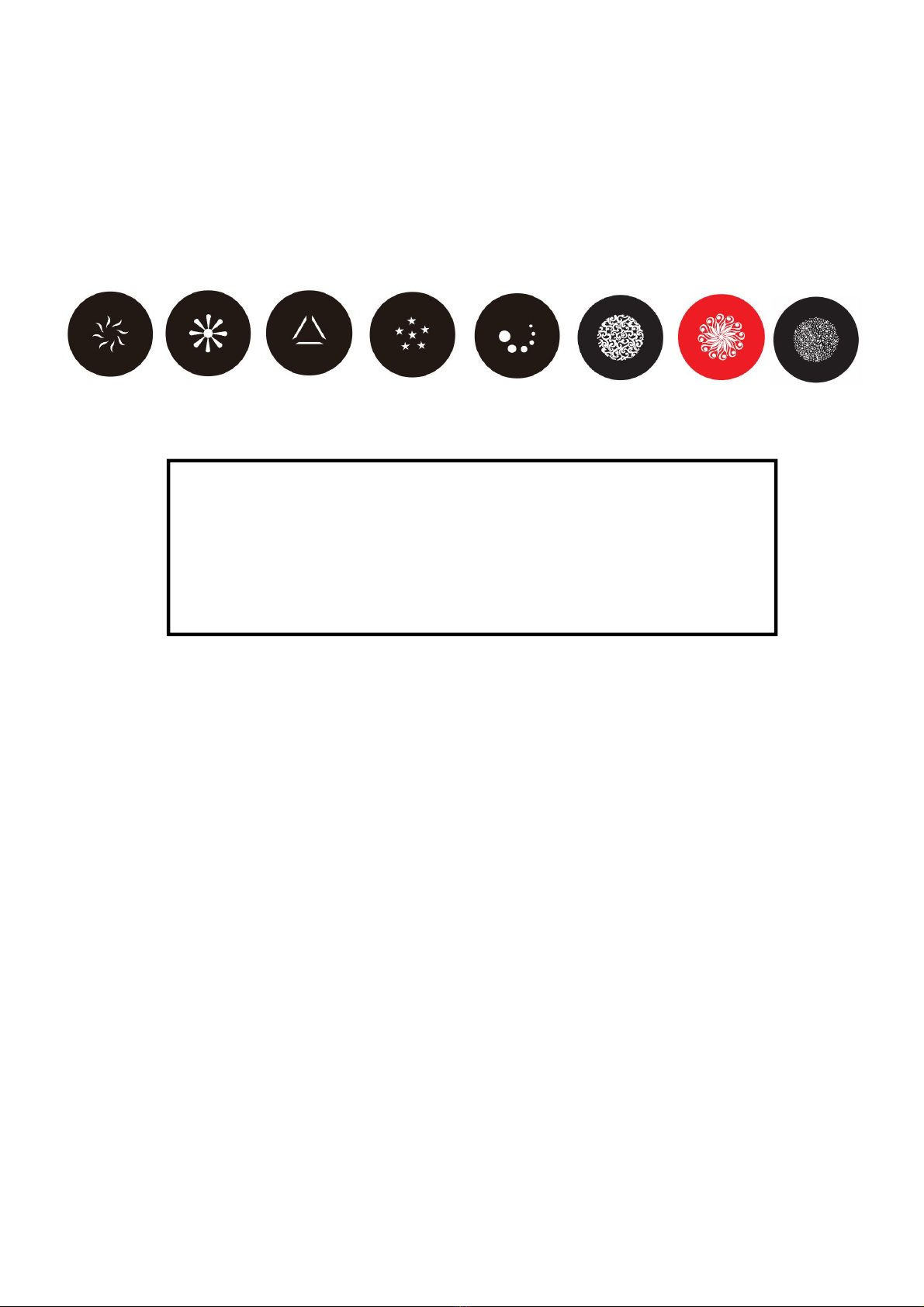

Rotating gobo wheel
Prism
Rotating 8-facet 11° prism with continuous rotation in both directions
Iris
Motorized iris for different beam diameters
Zoom
Linear motorized zoom (2.5°- 20°)
Strobe
Strobe effect with variable speed (max.15 flashes/sec.)
Dimmer
Smooth dimmer from 0 - 100 %
Control
Readout fixture and llight source usage, receiving DMX values, temperatures, etc
Built-in analyzer for easy fault finding, error messages
Built-in demo sequences
Black-out while head moving, colour changing
Silent fans cooling,
8 glass gobos can be indexed and rotated in both directions at
different speeds Gobo wheel continuous rotation
Glass gobos: outside diameter=12 mm, max. thickness=3 mm, high
temperature borofloat or better glass
"Slot&lock" system for easy replacement of gobos
Warning!!!
All glass Gobos which needed change,must be supply f
rom the original factory.These glass gobos are professi
onal heat-
resistant glass Gobos. Or we would not be providing an
y warranty for them!
1
3
4
5

17
Optional Wireless DMX/RDM module
Compliance with USITT DMX-512 (1986 & 1990) and 512-A
Full DMX fidelity and frame integrity
Auto sensing of DMX frame rate and frame size
<5ms DMX latency
Operational frequency range of 2402-2480 MHz
Pan/Tilt
Pan movement range 540°
Tilt movement range 270°
16 bit movement resolution
Rigging
Mounting points: 1 of 1/4-turn locks
Mounting horizontally or vertically via 1 Omega brackets
Temperatures
Maximum ambient temperature : 45° C
Maximum housing temperature : 80° C
Minimum distances
Min. distance from flammable surfaces: 0.5 m
Min. distance to lighted object: 2 m
Weight (net) 12 kg
Dimensions (mm)
7. Maintenance and cleaning

18
It is absolutely essential that the fixture is kept clean and that dust, dirt and
smoke-fluid residues must not build up on or within the fixture. Otherwise, the
fixture‘s light-output will be significantly reduced. Regular cleaning will not only
ensure the maximum light-output, but will also allow the fixture to function
reliably throughout its life. A soft lint-free cloth moistened with any good glass
cleaning fluid is recommended, under no circumstances should alcohol or
solvents be used!
The front objective lens will require weekly cleaning as smoke-fluid tends to
building up residues, reducing the light-output very quickly. The cooling-fans
should be cleaned monthly.
The interior of the fixture should be cleaned at least annually using a vacuum-
cleaner or an air-jet. Dichroic colour filters, gobo wheels and the internal
lenses should be cleaned monthly.
Remove dust and dirt from the fans and cooling vents using a soft brush and
vacuum-cleaner.
Clean the air filters placed in the fixture bases. Use a vacuum cleaner,
compressed air or you can wash them and put back dry.
After replacing the air filters, reset the elapsed time counter in the menu
"Information" (Information--->Air Filters---> Elapsed Time).
Replacing the fuse.
Before replacing the fuse, unplug mains lead.
1) Remove the fuse holder on the rear panel of the base with a fitting
screwdriver from the housing (anti-clockwise).
2) Remove the old fuse from the fuse holder.
3) Install the new fuse in the fuse holder (only the same type and rating).
4) Replace the fuseholder in the housing and fix it.
12.1 Disposing of the product
To preserve the environment please dispose or recycle this product at the end
of its life according to the local
regulations and codes.
8. Photometric diagram
DANGER !
Disconnect from the mains before starting any maintenance
work
Important!
Check the air filters periodically and clean before they become
clogged!

19

20
9. DMX protocol
GLG80 DMX Channel
Mode/Channel
Value
Function
St
Ba
1
1
0-255
Pan
0-100%
2
0-255
Pan fine
0-100%
3
2
0-255
Tilt
0-100%
4
0-255
Tilt fine
0-100%
5
3
0-255
Pan/Fine Speed
Fast -> Slow
6
4
0-255
Dimmer
0 -> 100%
7
Dimmer Fine
0 -> 100%
8
5
252-255
213-251
208-212
108-207
104-107
4-103
0-3
Strobe/Shutter
Open
Random Strobe
Open
Pulse: Slow -> Fast
Open
Strobe: Slow -> Fast
Close
9
6
213-255
170-212
167-169
164-166
161-163
158-160
155-157
152-154
149-151
146-148
143-145
140-142
137-139
134-136
131-133
128-130
0-127
Color1 Wheel
Rotation(CCW):Slow -> Fast
Rotation(CW): Fast -> Slow
Open
Color13
Color12
Color11
Color10
Color9
Color8
Color7
Color6
Color5
Color4
Color3
Color2
Color1
Color Position
10
0-255
Color1 Wheel fine
0 -> 100%
