Global American Inc. 2807660 Series User manual

2807660 User’s Manual
Mini-ITX Motherboard
Version 1.0

Copyrights
This document is copyrighted and all rights are reserved. It does not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental
or consequential damages arising from the use of inability to use the product or
documentation, even if advised of the possibility of such damages. The manufacturer
keeps the rights in the subject to change the contents of this document without prior
notices in order to improve the function design, performance, quality and reliability. The
author assumes no responsibility for any errors or omissions, which may appear in this
document, nor does it make a commitment to update the information contained herein.
Trademarks
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product's name mentioned herein are mentioned
for identification purposes only, and may be trademarks and/or registered trademarks of
their respective companies or owners.

Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 2
1.3 Board Dimensions................................................................. 4
Chapter 2 Unpacking ..................................................5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 Before Installation ................................................................. 7
3.2 Board Layout ......................................................................... 8
3.3 Jumper List ............................................................................ 8
3.4 Connector List ....................................................................... 9
3.5 Configuring the CPU ............................................................. 9
3.6 System Memory ................................................................... 10
3.7 VGA Controller .................................................................... 10
3.8 Serial ATA Connector ......................................................... 13
3.9 Serial Port Connectors ....................................................... 13
3.10 Ethernet Connector............................................................. 13
3.11 USB Port............................................................................... 14
3.12 CMOS Data Clear................................................................. 15
3.13 Power and Fan Connectors................................................ 15
3.14 Keyboard/Mouse Connectors ............................................ 16
3.15 System Front Panel Control ............................................... 16
3.16 Audio Connectors ............................................................... 16
3.17 Speader ................................................................................ 17
3.18 IrDA Connector .................................................................... 17
3.19 GPIO Function ..................................................................... 18

Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:
 Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.
 Before handling a board or integrated circuit, touch an unpainted portion of
the system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.
 Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the product to ensure
harmlessly discharge any static electricity through the strap.
 Please use an anti-static pad when putting down any components or parts or
tools outside the computer. You may also use an anti-static bag instead of
the pad. Please inquire from your local supplier for additional assistance in
finding the necessary anti-static gadgets.
NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.

1
Chapter 1
General Description
The 2807660 series all-in-one mini ITX is designed to fit a high
performance Pentium® M based processor and compatible for
high-end computer system application with PCI bus architecture. It is
made to meet today’s demanding pace, and keep complete
compatibility with hardware and software designed for the IBM PC/AT.
The onboard devices support one PCI slot, integrated graphics, and
onboard three Marvell Gigabit Ethernet controllers. It’s beneficial to
build up a high performance and high data availability system for VARs,
or system integrators.
2807660 series support the following processors: Intel® uFC-PGA 478
Pentium® M/Celeron® M processor FSB 400/533MHz with 0.90 and
0.13 micron technology.
This mini ITX can run with Intel® socket 479 Pentium®/Celeron® M
processors and support DIMM up to 2GB dual-channel DDR2 533
memory. The enhanced onboard one PCI-IDE interface can support 1
drive up to PIO mode 4 timing and Ultra ATA 33/66/100 synchronous
mode feature, one CF socket interface, and 2 serial ATA high-speed
data transfers at up to 150MB/s connectors. The onboard super I/O
chipset supports two serial ports, one SIR(Serial Infrared) port, two
high performance 16C550-compatible UARTs provide 16-byte
send/receive FIFOs, and two RS-232 serial port interfaces. Besides,
H/W monitor function, Intel® High Definition Audio as 5.1 surround
sound, six Hi-Speed USB2.0 ports offering up to 40X greater
bandwidth over USB1.1. Also provide dual display function by VGA and
DVI, by VGA, and LVDS interface.

2
The mini ITX standard makes the 2807660 series work with the one
slot PCI and one 6-pin Mini DIN connector for PS/2 mouse and
keyboard. The onboard Flash ROM is used to make the BIOS update
easier. The high precision Real Time Clock/calendar is built to support
Y2K for accurate scheduling and storing configuration information. One
20-pin standard connector is designed to support ATX power function.
A feature of CPU overheat protection will give user more security and
stability. All of these features make 2807660 series excellent in
stand-alone applications.
NOTE:
 The 2807660 series only support Intel® Pentium®/Celeron® M
processor (Dothan 400/533 FSB) for 0.13 and 0.90 micron.
 The 2807660 series only support DDR2 533 memory module
1.1 Major Features
The 2807660 comes with the following features:
 Intel® Pentium® M/Celeron® M processor
 Two DDRII sockets with a max. capacity of 2GB
 Intel® 915GM GMCH/ICH6-M chipset
 Winbond W83627THG super I/O chipset
 Intel® 915GM graphics controller
 18-bit/36-bit LVDS Panel interface
 Three 10/100/1000 Ethernet controller
 AC97 5.1CH audio controller
 Intel® ICH6-M SATA controller
 Fast PCI ATA/33/66/100 IDE controller
 CF, 8-bit I/O, 2 COM, 6 USB2.0
 Hardware Monitor function
1.2 Specifications
 CPU: Intel® Pentium® M/Celeron® M processor
 Front Side Bus: 400/533MHz FSB
 Memory: Two DDRII sockets supports up to 2GB
 Chipset: Intel® 915GM MCH/ICH6-M
 I/O Chipset: Winbond W83627THG
 CompactFlash: Type I/II IDE interface adapter x 1
 PCI Slot: Standard PCI slot x 1
 8-bit I/O: 8-bit input/output (parallel port)
 VGA: Intel® 915GM for CRT or optional CHRONTEL 7307 for DVI
display, supports up to 2048 x 1536 @ 75Hz

3
 LVDS Panel: Supports 18-bit single channel/36-bit dual channel LVDS
interface
 Ethernet: Three 10/100/1000 Based LAN
 Audio: AC97 5.1CH audio controller
 Serial ATA: Intel® ICH6-M controller and with 2 ports
 IDE: One 2.54-pitch 40-pin IDE connector
 Serial Port: 16C550 UART-compatible RS-232 x 2 serial ports with
16-byte FIFO
 USB: 6 USB ports, internal x 4 and external x 2
 Keyboard: PS/2 6-pin Mini DIN
 Mouse: PS/2 6-pin Mini DIN
 BIOS: Award PnP Flash BIOS
 Watchdog Timer: Software programmable time-out intervals from
1~255 sec.
 CMOS: Battery backup
 Hardware Monitor: Winbond W83627THG
 Board Size: 17.0(L) x 17.0(W) cm

4

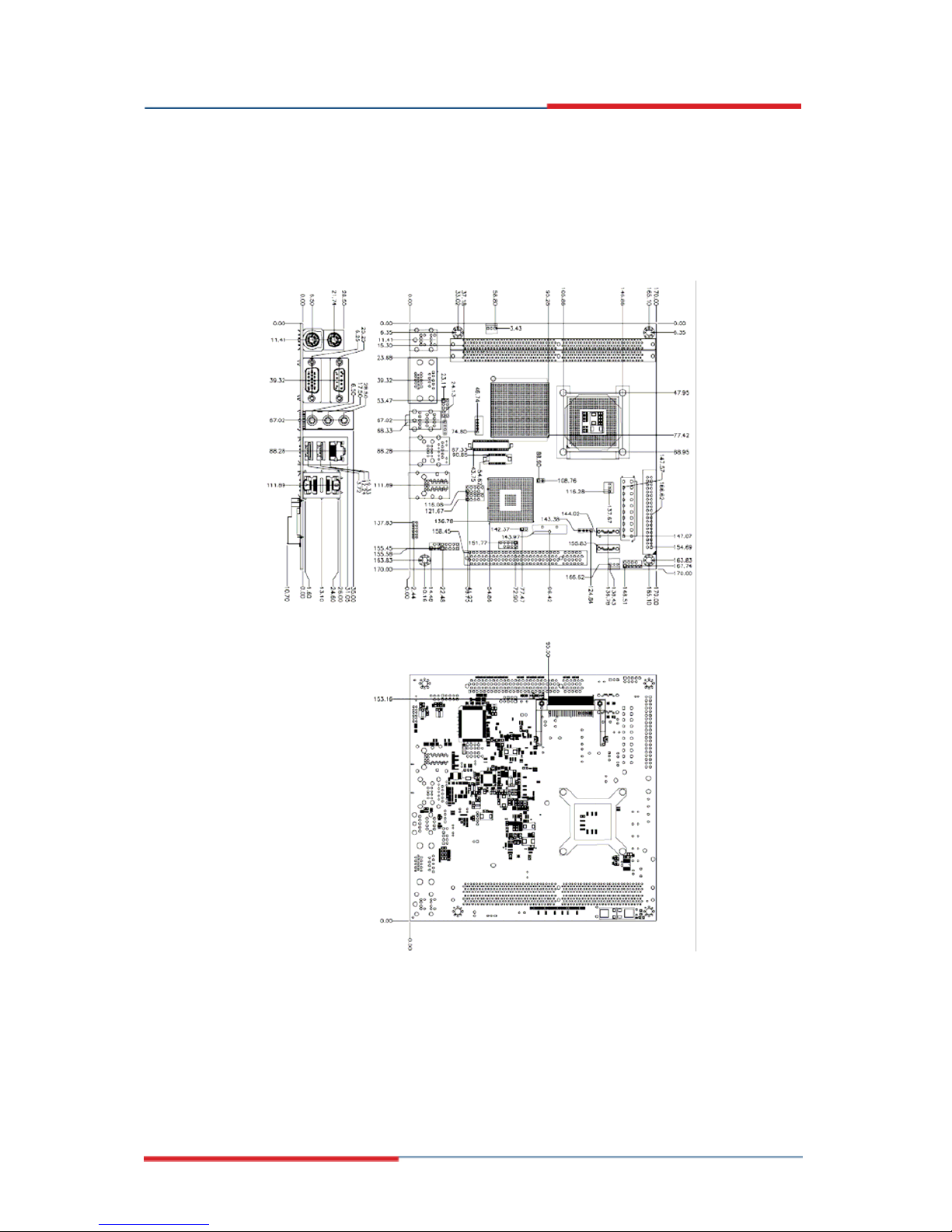

1.3 Board Dimensions

5
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The 2807660is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. ExAwardne all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Di sk, and keyboard controller chip
to ensure that they are rmly seated. The 2807660delivery package
contains the following items:
2807660 Board x 1
Utility CD Disk x 1
Cables Package x 1
Jumper Bag x 1
User’s Manual

6
Cables Package
NO. Description
1 IDE flat cable x 1
2 Serial port flat cable x 1
3 SATA cable x 1
4 I/O Bracket x 1
5 2 USB cable with bracket x 1
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.

7
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the 2807660. This chapter also contains information related to
jumper settings of switch, and watchdog timer selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper. (Set JP1 short 1-2)
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.

8
3.2 Board Layout
3.3 Jumper List
Jumper Default Setting Setting Page
JP1 Clear CMOS: Normal Operation Open 19
JP4 CPU Frequency Select: 400MHz FSB Open 10

9
3.4 Connector List
Connector Definition Page
AUDIO1 Internal Audio for Chassis
AUDIO2 Audio Connector
CD1 CD-In from CD-ROM
CF1 CompactFlash Card Connector
CHS_FAN1 Chassis Fan Connector
CPU_FAN1 CPU Fan Connector
COM2 Serial Port 2 Connector
DIMM1/DIMM2 240-pin DDR2 SDRAM 1 & 2 Socket
DVI1 DVI Connector
GPIO1 GPIO Connector
IDE1 Primary IDE Connector
IR1 IrDA Connector
KBMS1 PS/2 Keyboard & Mouse Connector
LAN_LED1 LAN LED Connector
LAN2_LAN3 LAN 2 & LAN 3 Connectors
LVDS1 LCD Inverter Connector
LVDS2 LVDS Connector
PANEL1 Front Side Indicators
PCI1 PCI Slot
PWR1 24-pin ATX Power Connector
SATA1/SATA2 Serial ATA 1&2 Connector
SPK1 Internal Speaker Connector
SYS_FAN1 System Fan Connector
USB1_LAN1 USB 1, 2 & LAN 1 Connectors
USB2/USB3 Internal USB 3, 4 & 5, 6 Connectors
VGA_COM1 15-pin VGA & 9-pin Serial Port 1 Connectors
3.5 Configuring the CPU
The 2807660 provides with Intel® Pentium® M/Celeron® M processor.
JP4is the frequently select jumper.
 JP4: CPU Frequency Select
Options Settings
400MHz FSB (default) Open
533MHz FSB Short

10
3.6 System Memory
The 2807660 provides two DDRII sockets at locations DIMM1/DIMM2.
The maximum capacity of the onboard memory is 2GB.
3.7 VGA Controller
 VGA: CRT Connector
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9 +5V 10 GND
11 N/C 12 DCC Data
13 HSYNC 14 VSYNC
15 DCC CLK
 DVI1: DVI Connector
PIN Description PIN Description
1 +5V 2 TDC0#
3 GND 4 TDC0
5 N/C 6 N/C
7 N/C 8 N/C
9 HPDET 10 TDC1#
11 MDVIDATA 12 TDC1
13 MDVICLK 14 N/C
15 GND 16 N/C
17 TLC# 18 TDC2#
19 TLC 20 TDC2

11
Signal Type Description
TDC0, TDC0# O DVI Data Channel 0 Output: These pins provide
the DVI differential output for data channel 0 (Blue)
TDC1, TDC1# O DVI Data Channel 0 Output: These pins provide
the DVI differential output for data channel 0
(Green)
TDC2, TDC2# O DVI Data Channel 0 Output: These pins provide
the DVI differential output for data channel 0 (Red)
HPDET I Hot Plug Detect (internal pull-down): This input
determines whether the DVI is connected to a DVI
monitor. When terminated, the monitor is required
to apply a voltage greater than 2.4 volts. Changes
on the status of this pin will be relayed to the
graphics controller via the P-OUT/TLDET* or
GPIO(1)/TLDET* pin pulling low.
TMDSDATA I/O DVI I2C Data: This signal is used as the I2C DOC
clock for a digital display connector (i.e. TV-Out
Encoder, TMDS transmitter). This signal is
tri-stated during a hard reset.
TMDSDCLK I/O DVI DOC Clock: This signal is used as the DOC
clock for a digital display connector (i.e. primary
digital monitor). This signal is tri-stated during a
hard reset.
TLC, TLC# O DVI Clock Output: These pins provide the
differential clock outputs to the DVI interface
corresponding a data on TDC(0:2) outputs.

12
 LVDS2 Interface Connector
PIN
Description
PIN
Description
1 +3.3V 2 +5V
3 +3.3V 4 +5V
5 GND 6 GND
7 LDDC_CLKL 8 LCTLB_CLK_L
9 LDDC_DATA_L 10 LCTLB_DATA_L
11 GND 12 GND
13 GND 14 GND
15 B_CLK- 16 A_CLK-
17 B_CLK+ 18 A_CLK+
19 GND 20 GND
21 B_DATA0- 22 A_DATA0-
23 B_DATA0+ 24 A_DATA0+
25 GND 26 GND
27 B_DATA1- 28 A_DATA1-
29 B_DATA1+ 30 A_DATAP+
31 GND 32 GND
33 B_DATA2- 34 A_DATA2-
35 B_DATA2+ 36 A_DATA2+
37 GND 38 GND
39 +12V 40 +12V
Signal Type Description
LCTLB_CLK_L I/O I2C Based control signal (Clock) for external SSC
clock chip control
LCTLB_DATAL I/O I2C Based control signal (Data) for external SSC
clock chip control
LDDC_CLKL I/O EDID support for flat panel display
LDDC_DATAL I/O EDID support for flat panel display
 LVDS1: LCD Inverter Connector
PIN
Description
1 +12V
2 GND
3 Backlight On/Off Control
4 Backlight Brightness Adjustment
5 +5V

13
3.8 Serial ATA Connector
These SATA connectors support Serial ATA 150. Each SATA
connector can only support one serial ATA device.
Note: With most storage devices, there is a power cable what you need attach
to a power source (power supply).
3.9 Serial Port Connectors
 COM 1/COM 2:
PIN Description PIN Description
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND 10 Not used
3.10 Ethernet Connector
Triple Marvell Gigabit Ethernet 10/100/1000 Base-TX controller by PCI
Express. The 2807660 series provide three LED indicators on RJ-45
connectors to show LAN interface status. These messages will give
you a guide for troubleshooting.
Yellow LED indicates transmit and receive activity.
 Blinking: indicates transmit/receive activity
 On: Indicates no activity but link is valid
 Off: link is invalid
Green LED indicates link speed.
 On: link speed at 1000Mbps
 On: link speed at 100Mbps
 Off: link speed at 10Mbps

14
 LAN 1/2/3
PIN Description
1 TX+
2 TX-
3 RX+
4 N/C
5 N/C
6 RX-
7 N/C
8 N/C
 LAN_LED1:
PIN Description PIN Description
1 L1_LED_LINKACT 7 L2_LED_LINKACT_V
2 L1_LED_LINK100 8 L2_LED_LINK1000
3 L1_LED_LINKACT_V 9 L3_LED_LINKACT
4 L1_LED_LINK1000 10 L3_LED_LINK100
5 L2_LEDLINKACT 11 L3_LED_LINKACT_V
6 L2_LED_LINK100 12 L3_LED_LINK1000
3.11 USB Port
 USB 1/2
PIN Description PIN Description
1 +5V (fused) 2 +5V (fused)
3 USBP0- 4 USBP1-
5 USBP0+ 6 USBP1+
7 GND 8 GND
 USB2, USB3
PIN Description PIN Description
1 5VSB 6 DATA_4+/DATA_6+
2 5VSB 7 GND
3 DATA_3-/DATA_5- 8 GND
4 DATA_3-/DATA_5+ 9 N/C
5 DATA_4+/DATA_6- 10 N/C

15
3.12 CMOS Data Clear
 JP1: Clear CMOS
Options Settings
Normal Operation (default) Open
Clear CMOS Short
3.13 Power and Fan Connectors
 PWR1: 24-pin ATX Power In Connector
PIN Description PIN Description
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 PW_OK 20 -5V
9 5VSB 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND
 CHS_FAN1, CPU_FAN1, SYS_FAN1: Fan Power In
Connector
PIN Description
1 GND
2 +12V
3 SENSE
4 Control (CPU_FAN1 only)

16
3.14 Keyboard/Mouse Connectors
 KBMS1: PS/2 6-pin Mini DIN KB/MS Connector
PIN Description
1 Keyboard Data
2 Mouse Data
3 GND
4 +5V
5 Keyboard Clock
6 Mouse Clock
3.15 System Front Panel Control
 Panel1: System Front Panel Control
PIN Description Function
1 +5V
3 HDD active# IDE1 Active LED
5 Reset
7 GND System Reset LED
6 Power button control signal
8 GND
System Power On
Switch LED
3.16 Audio Connectors
 CD1: CD-In from CD-ROM
PIN Description
1 CD L
2 GND
3 GND
4 CD R
