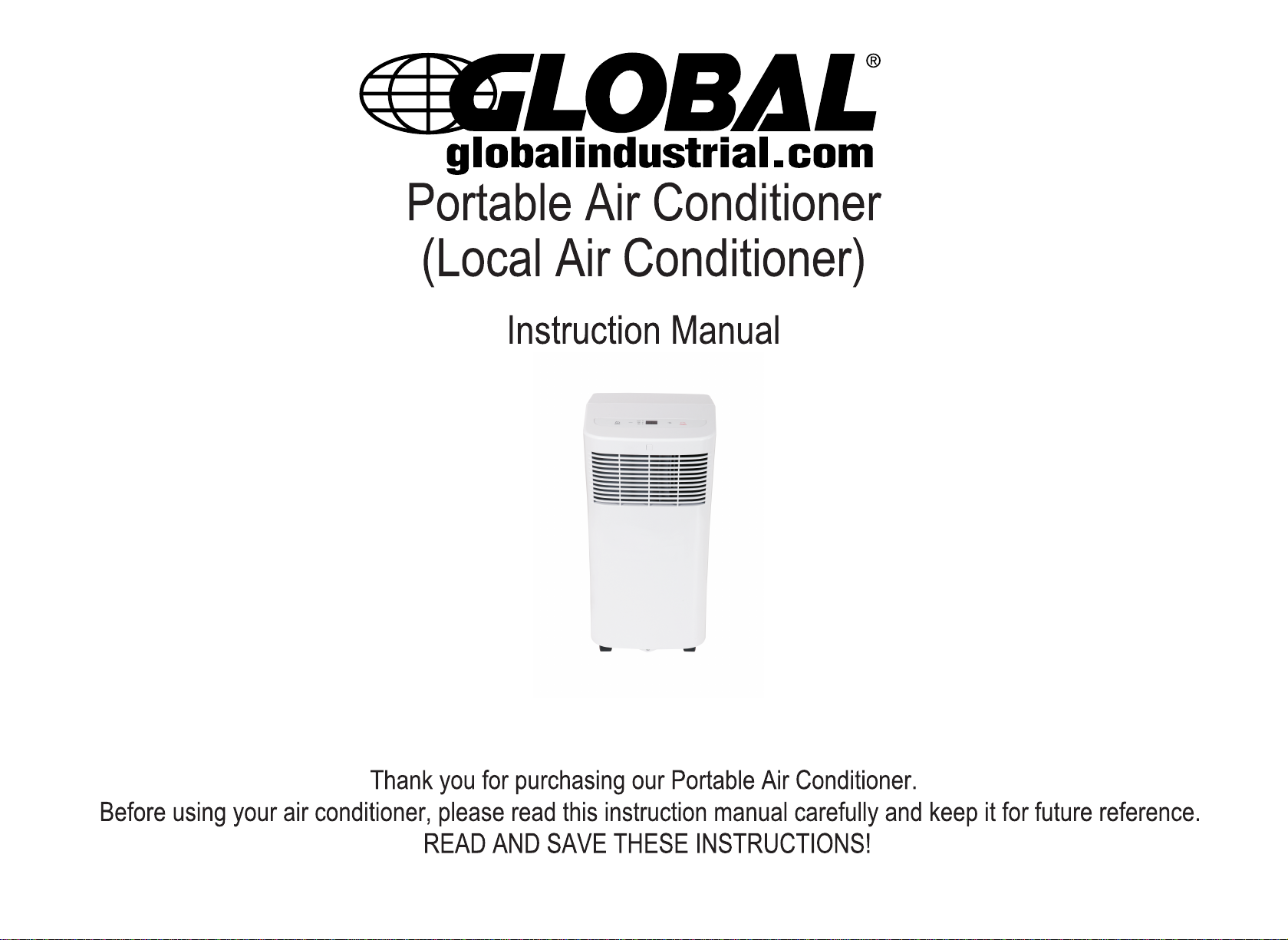

Global Industrial 292781 User manual

Model: 292781

Contents
1
Preparation
Safety Precautions
Cautions
Installation
Operation
Maintenance
Faults Diagnosis
Design and Compliance Notes
Sociable Remark
2
4
5
6
10
13
14
15
16
-----------------------------
--------------------------------
-----------------------------
-------------------------------
----------------------------
------------------------
------------------------
---------------------
----------

Preparation
rearfront
control panel
remote signal receptor
handle
(both sides)
horizontal louver control
lever(adjust manually)
NOTE: PHA can not be
adjusted.
NOTE: PHA can not be
adjusted.
vertical louver control
lever(adjust manually)
panel
Caster
bottom tray
drain outlet
air filter
(behind the grille)
upper air intake
air outlet
lower air intake
drain outlet
2

Preparation
NOTE: The unit you purchased may be look like one of the followings:
3

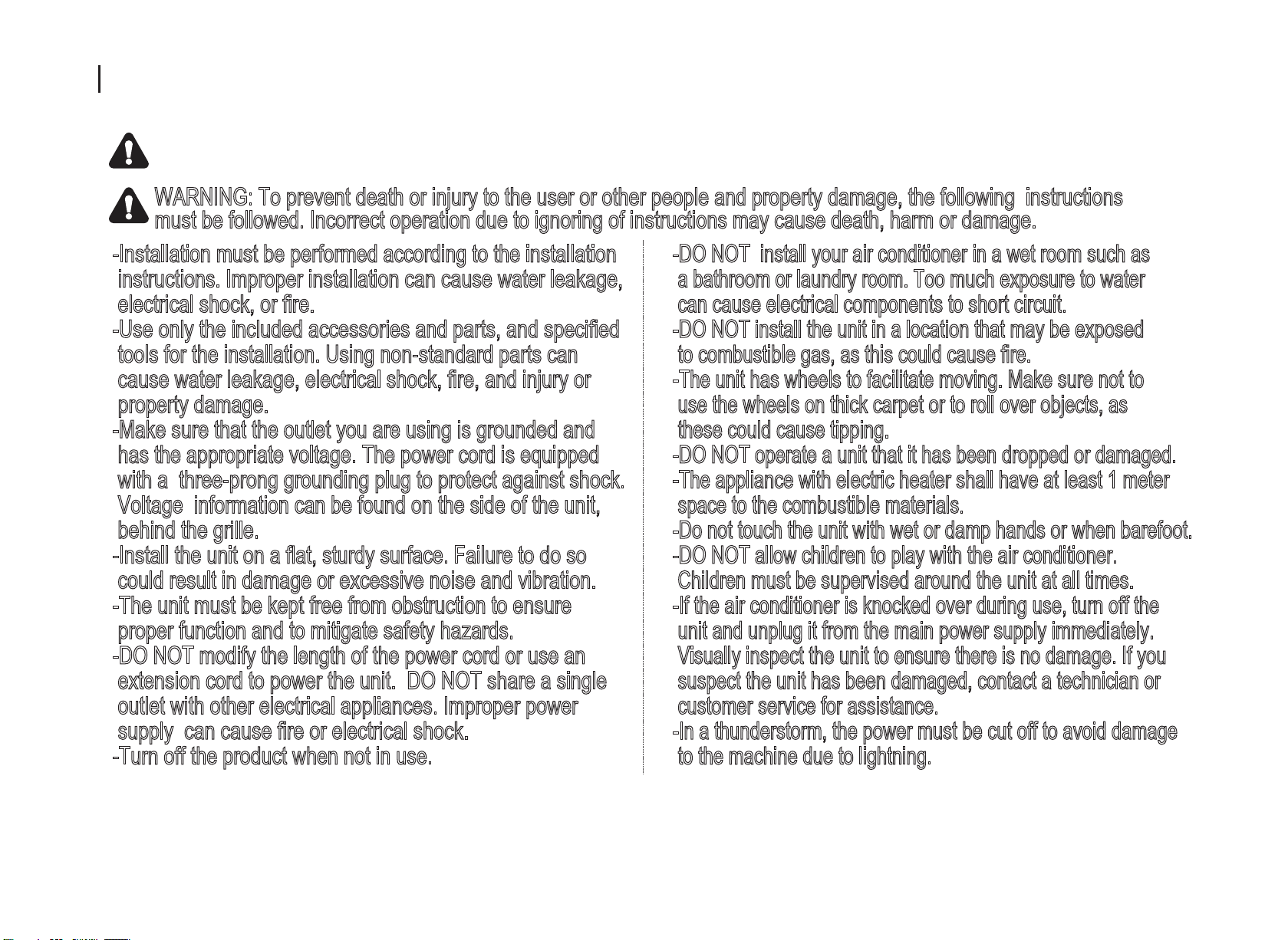

Safety Precautions
4
-Installation must be performed according to the installation
instructions. Improper installation can cause water leakage,
electrical shock, or fire.
-Use only the included accessories and parts, and specified
tools for the installation. Using non-standard parts can
cause water leakage, electrical shock, fire, and injury or
property damage.
-Make sure that the outlet you are using is grounded and
has the appropriate voltage. The power cord is equipped
with a three-prong grounding plug to protect against shock.
Voltage information can be found on the side of the unit,
behind the grille.
-Install the unit on a flat, sturdy surface. Failure to do so
could result in damage or excessive noise and vibration.
-The unit must be kept free from obstruction to ensure
proper function and to mitigate safety hazards.
-DO NOT modify the length of the power cord or use an
extension cord to power the unit. DO NOT share a single
outlet with other electrical appliances. Improper power
supply can cause fire or electrical shock.
-Turn off the product when not in use.
-DO NOT install your air conditioner in a wet room such as
a bathroom or laundry room. Too much exposure to water
can cause electrical components to short circuit.
-DO NOT install the unit in a location that may be exposed
to combustible gas, as this could cause fire.
-The unit has wheels to facilitate moving. Make sure not to
use the wheels on thick carpet or to roll over objects, as
these could cause tipping.
-DO NOT operate a unit that it has been dropped or damaged.
-The appliance with electric heater shall have at least 1 meter
space to the combustible materials.
-Do not touch the unit with wet or damp hands or when barefoot.
-DO NOT allow children to play with the air conditioner.
Children must be supervised around the unit at all times.
-If the air conditioner is knocked over during use, turn off the
unit and unplug it from the main power supply immediately.
Visually inspect the unit to ensure there is no damage. If you
suspect the unit has been damaged, contact a technician or
customer service for assistance.
-In a thunderstorm, the power must be cut off to avoid damage
to the machine due to lightning.
WARNING: To prevent death or injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage.
This symbol indicates that ignoring instructions may cause death or serious injury.

Cautions
5
-This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall not play the appliance. Cleaning
and user maintenance shall not be made by children without supervision. (be applicable for the European Countries)
-This appliance is not intended for use by persons (including childern) with reduced physical, sensory or mental
capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. (be applicable for other countries except the European
Countries )
-Children should be supervised to ensure that they do not play with the appliance.
-If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or similarly qualified persons
in order to avoid a hazard.
-Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
-Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.
-Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord
under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
-Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or return to an authorized service
facility for examination and/or repair.
-To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device.
-The appliance shall be installed in accordance with national wiring regulations.
-Contact the authorised service technician for repair or maintenance of this unit.
- Contact the authorised installer for installation of this unit.
-Do not cover or obstruct the inlet or outlet grilles.
-Do not use this product for functions other than those described in this instruction manual.
- Before cleaning, turn off the power and unplug the unit.
- Disconnect the power if strange sounds, smell, or smoke comes from it.
Cautions

Installation
Choosing The Right Location
Your installation location should meet the following requirements:
-Make sure that you install your unit on an even surface to minimize
noise and vibration.
-The unit must be installed near a grounded plug, and the Collection
Tray Drain (found on the back of the unit) must be accessible.

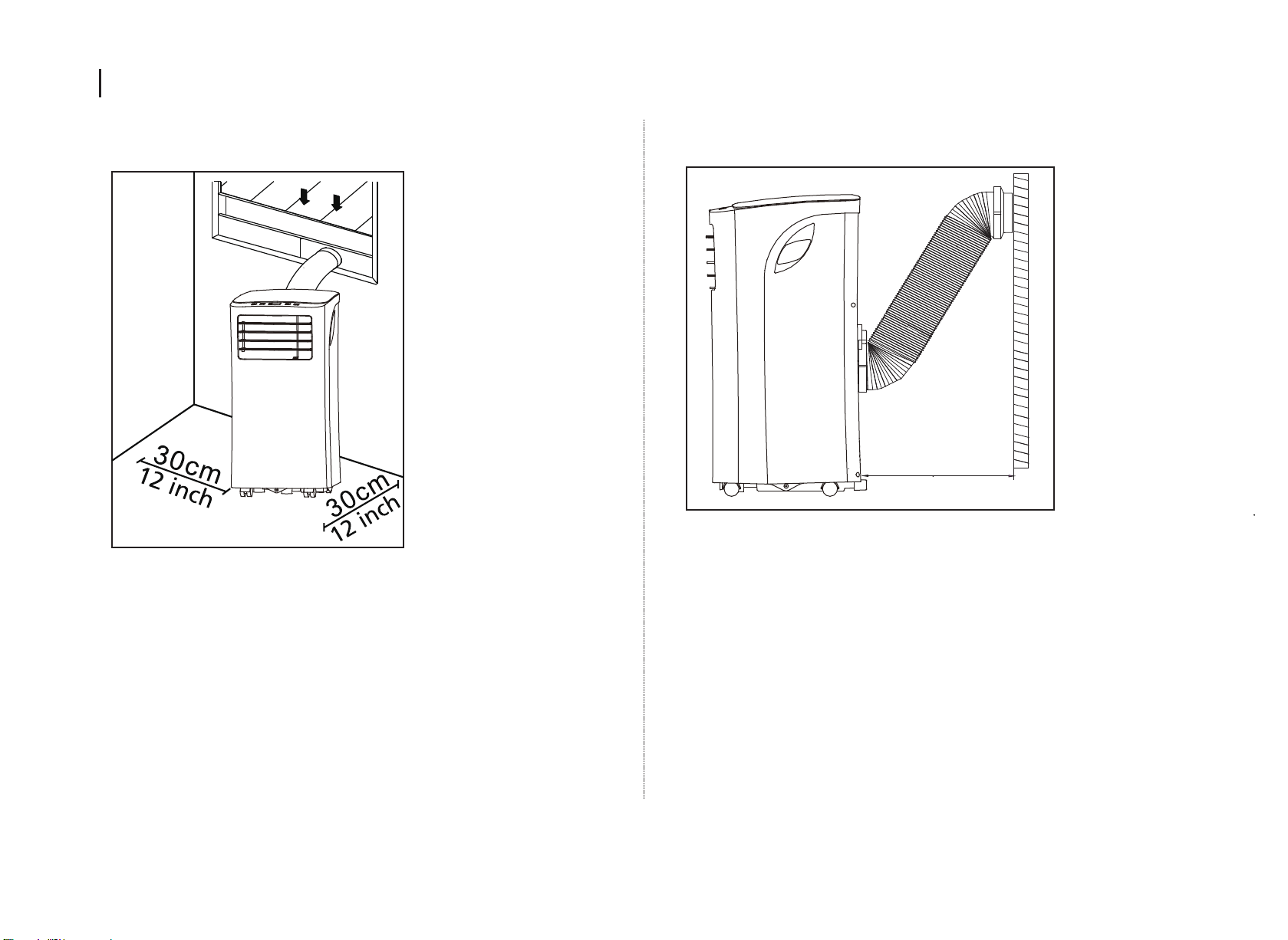

-The unit should be located at least 30cm (12”) from the nearest wall
to ensure proper air conditioning.
-DO NOT cover the Intakes, Outlets or Remote Signal Receptor of the
unit, as this could cause damage to the unit.
NOTE:
All the illustrations in the manual are for explanation
purpose only. Your machine may be slightly different.
The actual shape shall prevail.
The unit can be controlled by the unit control panel alone or
with the remote controller. This manual does not include
Remote Controller Operations, see the <<Remote Controller
Instruction>> packed with the unit for details.
6
Recommend Installation
50cm
19.7inch

Installation
Tools Needed
-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;
-Saw (optional, to shorten window adaptor for narrow windows)
Accessories
Your Window Installation Kit fits windows 67.5-123cm(26.5-48”) and can
be shortened for smaller windows.
Window Installation Kit
7
Part Description
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
2 pc
2 pc
1 set
1 set
Unit Adaptor
Window Slider Adaptor
Window Slider A
Window Slider B
Exhaust Hose
Bolt
Foam Seal A (Adhesive)
Foam Seal B (Adhesive)
Foam Seal C (Non-adhesive)
Security Bracket and 2 Screws
Drain Hose
Quantity
Remote Controller and Battery
(For remote control models only)
Press the exhaust hose into the window slider adaptor and unit adaptor,
clamp automatically by elastic buckles of the adaptors.
Push the Exhaust hose into the airoutlet opening of the unit along the
arrow direction.
Unit adaptor Window slider
adaptor
Exhaust hose Exhaust hose
assembly
Step One: Preparing the Exhaust Hose assembly
Step Two: Install the Exhaust hose assembly to the unit
Step Three: Preparing the Adjustable Window Slider
1. Depending on the size of your window, adjust the size of the
window slider.
2. If the length of the window requires two window sliders, use the bolt
to fasten the window sliders once they are adjusted to the proper
length.
Window slider A Window slider B
Bolt
MODE
SLEEPLED
CLOCK
CANCEL
TIMER
FAN
RESET
LOCK
CLOCK
C
ON
OFF
SET TEMP.
FAN SPEED
AUTO
F
SWING
TURBO
FO LL OW M E

Installation
Note: Once the Exhaust Hose assembly and Adjustable Window Slider
are prepared, choose from one of the following two installation methods.
Cut the adhesive foam seal A
and B strips to the proper
lengths, and attach them to
the window sash and frame
as shown.
Cut the adhesive foam seal A
and B strips to the proper
lengths, and attach them to
the window sash and frame
as shown.
Cut the non-adhesive foam
seal C strip to match the width
of the window. Insert the seal
between the glass and the
window frame to prevent air
and insects from getting into
the room.
If desired, install the security
bracket with 2 screws as shown.
Insert the window slider adaptor
into the hole of the window slider.
Insert the window slider
assembly into the window
opening.
Insert the window slider
assembly into the window
opening.

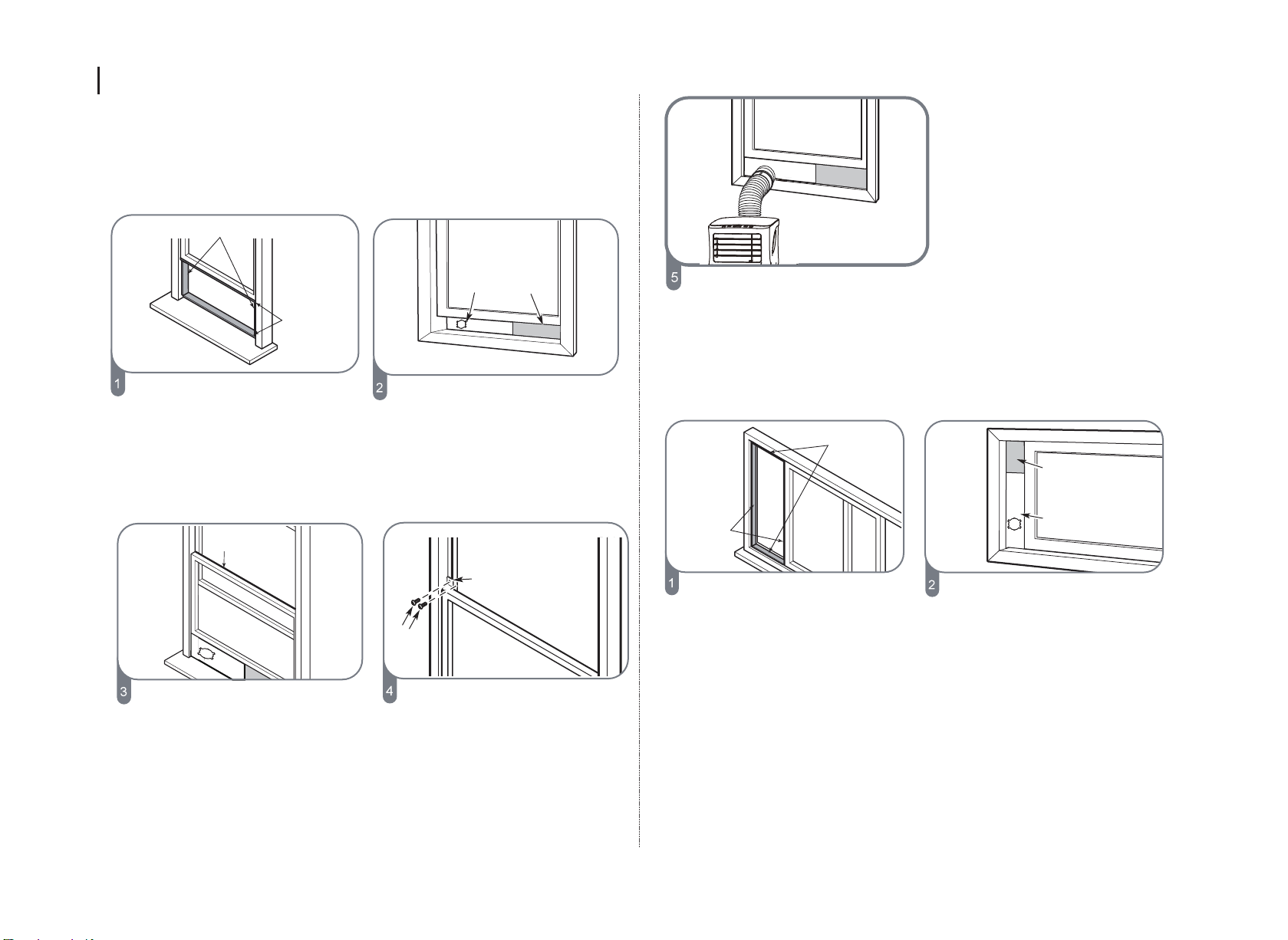

Type 1: Hung Window Installation
Foam seal B
(Adhesive type-shorter)
2 Screws
Security Bracket
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
8
Type 2: Sliding Window Installation
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Foam seal C
(Non-adhesive type)

Installation
9
Cut the non-adhesive foam
seal C strip to match the
window height. Insert the foam
seal between the glass and the
window frame to prevent air
and insects from getting into
the room.
If desired, install the security
bracket with 2 screws as shown.
Insert the window slider adaptor
into the hole of the window slider.
Foam seal C
(Non-adhesive type)
2 Screws
Security
Bracket
Note: To ensure proper function, DO NOT overextend or bend the hose.
Make sure that there is no obstacle around the air outlet of the exhaust
hose (in the range of 500mm) in order to the exhaust system works
properly. All the illustrations in this manual are for explanation purpose
only. Your air conditioner may be slightly different. The actual shape
shall prevail.

Operation

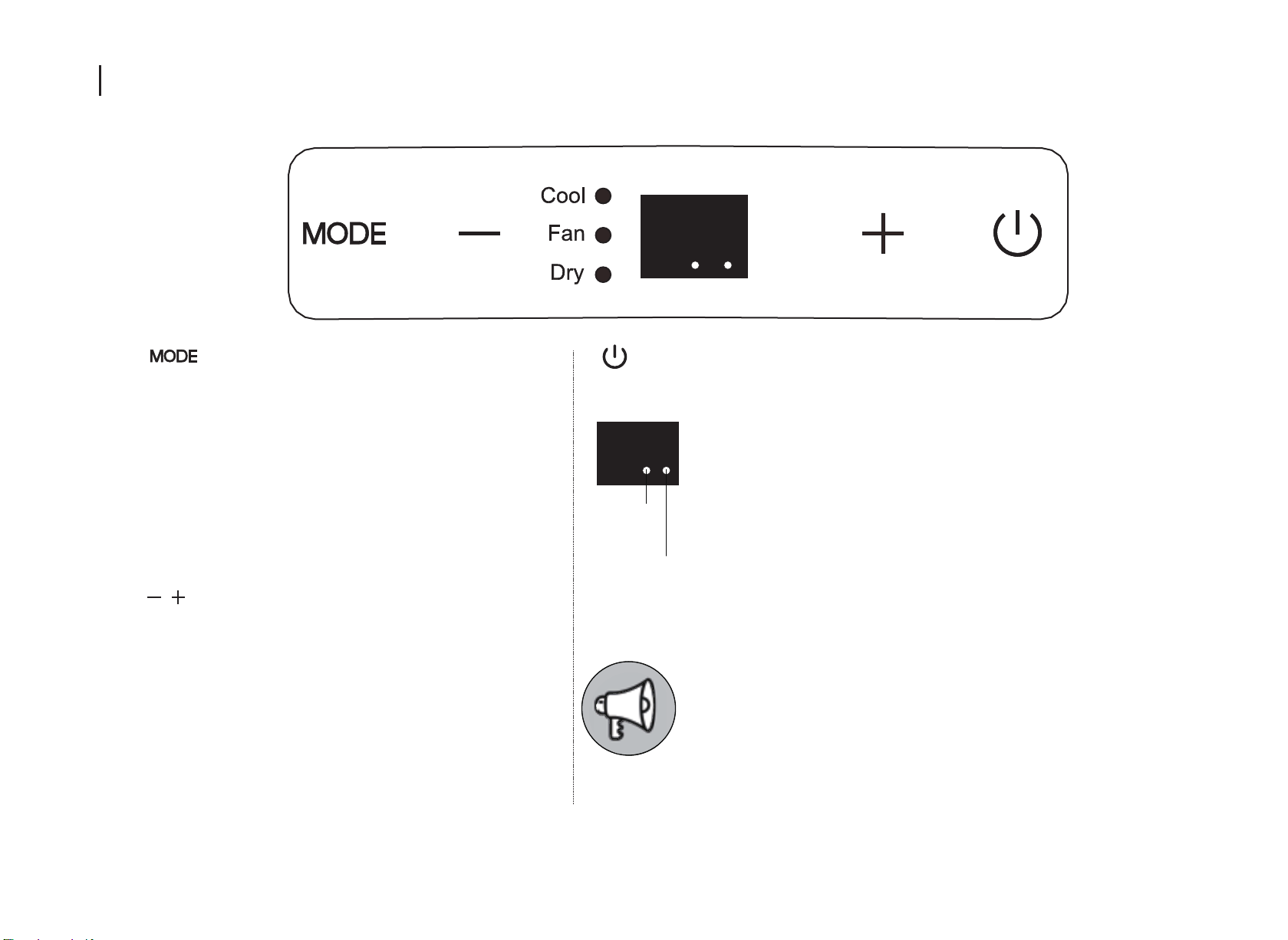

MODE button
Selects the appropriate operating mode.
Each time you press the button, a mode
is selected in a sequence that goes from
COOL, FAN and DRY .The mode indicator
light illuminates under the different mode
setting.
NOTE: On above modes, the unit operates
the auto fan speed automatically. You can
set fan speed only by the remote controller
on COOL and FAN modes.
Used to adjust (increasing/decreasing)
temperature settings in 1°C/1°F
increments in a range of 17°C/62°F to
30°C/86°F.
NOTE: The control is capable of displaying
temperature in degrees Fahrenheit or
degrees Celsius. To convert from one to
the other, press and hold the Up and Down
buttons at the same time for 3 seconds.
Power button
Power switch on/off.
Power
indicator light
Timer mode indicator
light (set only by
remote controller)
Up (+) and Down (-) buttons
LED display
Shows the set temperature while on cool mode. While on DRY
and FAN modes, it shows the room temperature.
Shows Error codes:
E1-Room temperature sensor error.
E2-Evaporator temperature sensor error.
E4-Display panel communication error.
Shows protection code:
P1-Bottom tray is full--Connect the drain hose and drain the
collected water away.If protection repeats,call for service.
Note: When one of the above malfunctions occurs, turn off the
unit, and check for any obstructions. Restart the unit, if the
malfunction is still present, turn off the unit and unplug the power
cord. Contact the manufacturer or its service agents or a similar
qualified person for service.
10

Operation
Operation Instructions
COOL operation
-Press the "MODE" button until the "COOL" indicator light comes on.
-Press the ADJUST buttons "+" or "-" to select your desired room
temperature. The temperature can be set within a range of
17°C~30°C/62°F~86°F.
-Press the "FAN SPEED" button on the remote cotroller to choose the
fan speed.
FAN operation
-Press the "MODE" button until the "FAN " indicator light comes on.
-Press the "FAN SPEED" button on the remote cotroller to choose the
fan speed. The temperature can not be adjusted.
-Do not put the duct to window.
SLEEP/ECO operation
This feature can be activated from the remote control ONLY.
To activate SLEEP feature, the set temperature will increase by
1°C/2°F) in 30 minutes. The set temperature will then increase
by another 1°C/2°F) after an additional 30 minutes. This new
temperature will be maintained for 7 hours before it returns to the
originally selected temperature. This ends the Sleep mode and the unit
will continue to operate as originally programmed.
NOTE: This feature is unavailabe under FAN or DRY mode.
DRY operation
-Press the "MODE" button until the "DRY" indicator light comes on.
-Under this mode, you cannot select a fan speed or adjust the
temperature. The fan motor operates at LOW speed.
-Keep windows and doors closed for the best dehumidifying effect.
-Do not put the duct to window.
AIR FLOW DIRECTION ADJUSTMENT
Adjust the air flow direction manually:
-The louver can be set to the desired position manually.
-Do not place any heavy objects or other loads on the louver, doing so
will cause damage to the unit.
-Ensure the louver is fully opened under heating operation.
-Keep the louver fully opened during operation.
Other features
FOLLOW ME/TEMP SENSING feature(optional)
NOTE:This feature can be activated from the remote control ONLY. The
remote control servesas a remote thermostat allowing for the precise
temperature control at its location. To activate the Follow Me/Temp
Sensing feature, point the remote control towards the unit and press the
Follow Me/Temp Sensing button. The remote display is actual
temperature at its location. The remote control will send this signal to
the air conditioner every 3 minutes interval until press the
Follow Me/Temp Sensing button again. If the unit does not receive the
Follow Me/Temp Sensing signal during any 7 minutes interval, the unit
will exit the Follow Me/Temp Sensing mode.
NOTE: This feature is unavailabe under FAN or DRY mode.
AUTO-RESTART
If the unit breaks off unexpectedly due to the power cut,it will restart
with the previous function setting automatically when the power
resumes.
WAIT 3 MINUTES BEFORE RESUMING OPERATION
After the unit has stopped, it can not be restarted operation in the
first 3 minutes. This is to protect the unit. Operation will automatically
start after 3 minutes.
11

Water drainage
-During dehumidifying modes, remove the drain plug from the back of
the unit, install the drain connector(5/8" universal female mender) with
3/4" hose(locally purchased). For the models without drain connector,
just attach the drain hose to the hole. Place the open end of the hose
directly over the drain area in your basement floor.
NOTE: Make sure the hose is secure so there are no leaks. Direct the
hose toward the drain, making sure that there are no kinks that will stop
the warter flowing. Place the end of the hose into the drain and make
sure the end of the hose is down to let the water flow smoothly. When
the continuous drain hose is not used, ensure that the drain plug and
knob are installed firmly to prevent leakage.
Remove the
drain plug
Continuous
drain hose
-When the water level of the bottom tray
reaches a predetermined level, the unit
beeps 8 times, the digital display area
shows "P1" . At this time the air
conditioning/dehumidification process will
immediately stop. However, the fan motor
will continue to operate(this is normal).
Carefully move the unit to a drain location,
remove the bottom drain plug and let the
water drain away. Reinstall the bottom
drain plug and restart the machine until
the "P1" symbol disappears. If the error
repeats, call for service.
NOTE: Be sure to reinstall the bottom
drain plug firmly to prevent leakage
before using the unit.
Bottom drain
plug
Operation
12

Maintenance Tips
-Always unplug the unit before cleaning or servicing.
-DO NOT use flammable liquids or chemicals to clean the unit.
-DO NOT wash the unit under running water. Doing so causes
electrical danger.
-DO NOT operate the machine if the power supply was damaged
during cleaning. A damaged power cord must be replaced with a
new cord from the manufacturer.
Clean the Air Filter
-Be sure to clean the air filter every 2
weeks for optimal performance.
-The water collection tray should be
drained immediately after P1 error occurs,
and before storage to prevent mold.
-In households with animals, you will have
to periodically wipe down the grill to
prevent blocked airflow due to animal hair.

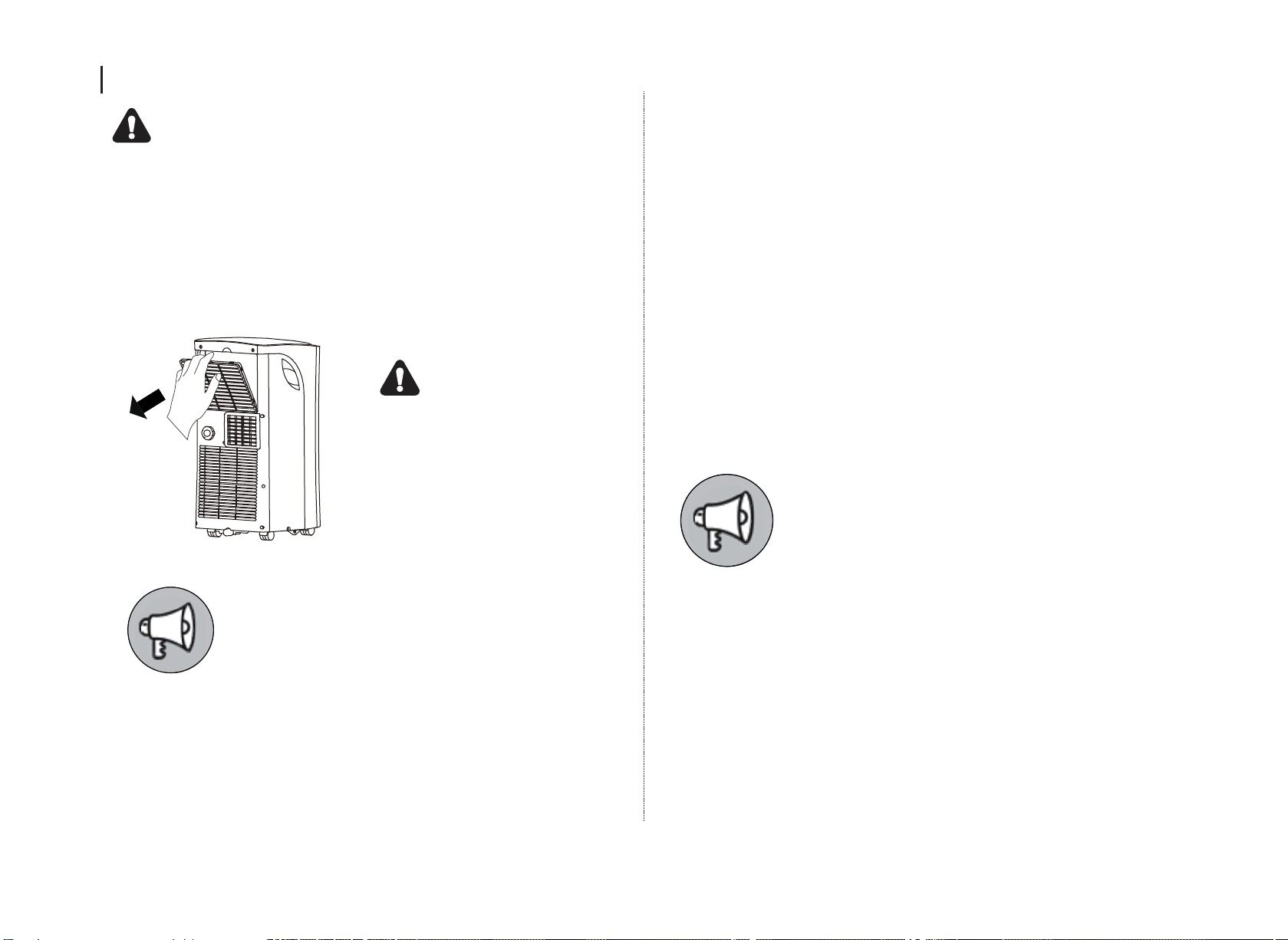

Remove the air filter
Air filter
(take out)
WARNING:
Maintenance
13
CAUTION
DO NOT operate the unit
without filter because dirt
and lint will clog it and
reduce performance.
Clean the Unit
Store the unit when not in use
Clean the unit using a damp, lint-free cloth and mild detergent. Dry the
unit with a dry, lint-free cloth.
-Drain the unit’s water collection tray according to the instructions in
the following section.
-Run the appliance on FAN mode for 12 hours in a warm room to dry
it and prevent mold.
-Turn off the appliance and unplug it.
-Clean the air filter according to the instructions in the previous section.
Reinstall the clean, dry filter before storing.
-Remove the batteries from the remote control.
Be sure to store the unit in a cool, dark place. Exposure to
direct sunshine or extreme heat can shorten the lifespan
of the unit.

Please check the machine according to the following form before asking for maintenance:
Faults Diagnosis
Problem Possible Cause
P1 Error Code
In COOL mode: room
temperature is lower than
the set temperature
The air filter is blocked with
dust or animal hair
The unit is low on
refrigerant
Temperature setting is too
high
The windows and doors in
the room are open
The room area is too large
Troubleshooting
Reset the temperature
Unit does not turn
on when pressing
ON/OFF button
Unit does not cool
well
The unit is noisy
and vibrates too
much
The unit makes a
gurgling sound
Exhaust hose is not
connected or is blocked
The Water Collection Tray is full.
Turn o the unit, drain the water
from the Water Collection Tray
and restart the unit.
There are heat sources
inside the room
Turn o the unit and clean the
filter according to instructions
Call a service technician to inspect
the unit and top o refrigerant
Decrease the set temperature
Make sure all windows and doors
are closed
Double-check the cooling area
Turn o the unit, disconnect the
hose, check for blockage and
reconnect the hose
Remove the heat sources if
possible
The ground is not level Place the unit on a flat, level
surface
The air filter is blocked with
dust or animal hair
Turn o the unit and clean the
filter according to instructions
This sound is caused by the
flow of refrigerant inside
the unit
This is normal
14

Design and Compliance Notes
Design Notice
Energy Rating Information
In order to ensure the optimal performance of our products, the
design specifications of the unit and remote control are subject
to change without prior notice.
The Energy Rating for this unit is based on an installation
using an un-extended exhaust duct without window slider
adaptor (as shown in the Installation section of this manual).
At the same time, the unit must be operate on the COOL
MODE and HIGH FAN SPEED by remote controller.
Unit Temperature Range
Cool 17-35°C (62-95°F)
Dry
13-35°C (55-95°F)
Mode Temperature Range
15
Exhaust hose installation
The exhaust hose and adaptor must be installed or
removed in accordance with the usage mode.
For COOL mode must be installed exhaust hose.
For FAN,DEHUMIDIIFY mode must be removed exhaust hose.

Sociable Remark
When using this dehumidifier in the European countries, the following information must be followed:
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately
for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can be disposed of at least
free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least free of charge.
C) The manufacture will take back the old appliance for disposal at least free of charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak
into the ground-water and find their way into the food chain.
16

CP027IU-PH(US)XBDOE
16120600000495

说明书纸张规格：290*210
材质：铜版纸105g.印刷内容黑白。
此页内容不需要印刷。
封面后不能加空白页，要印目录页内容。
